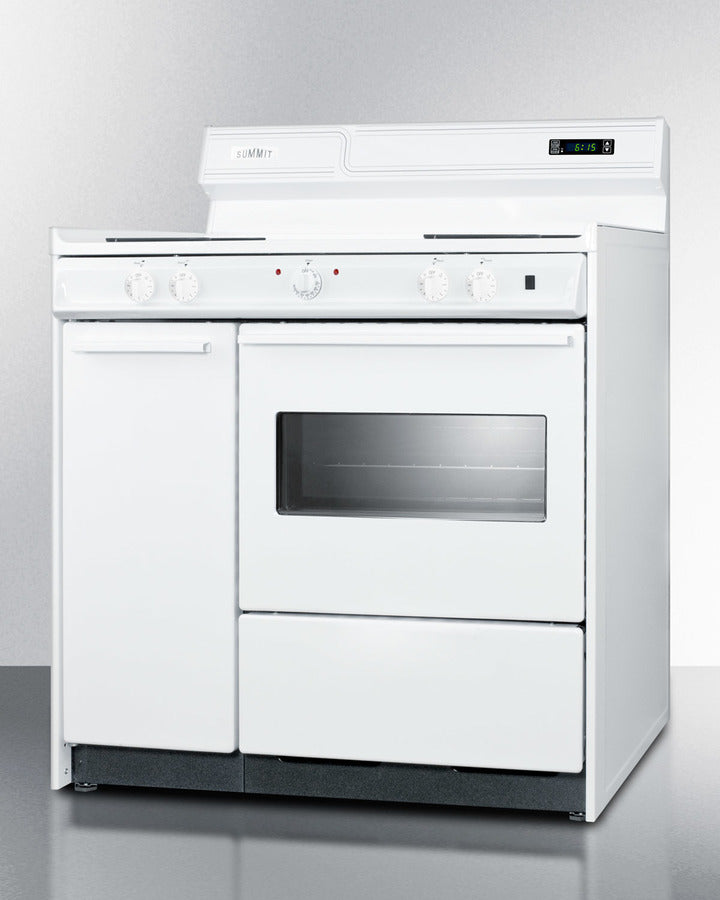

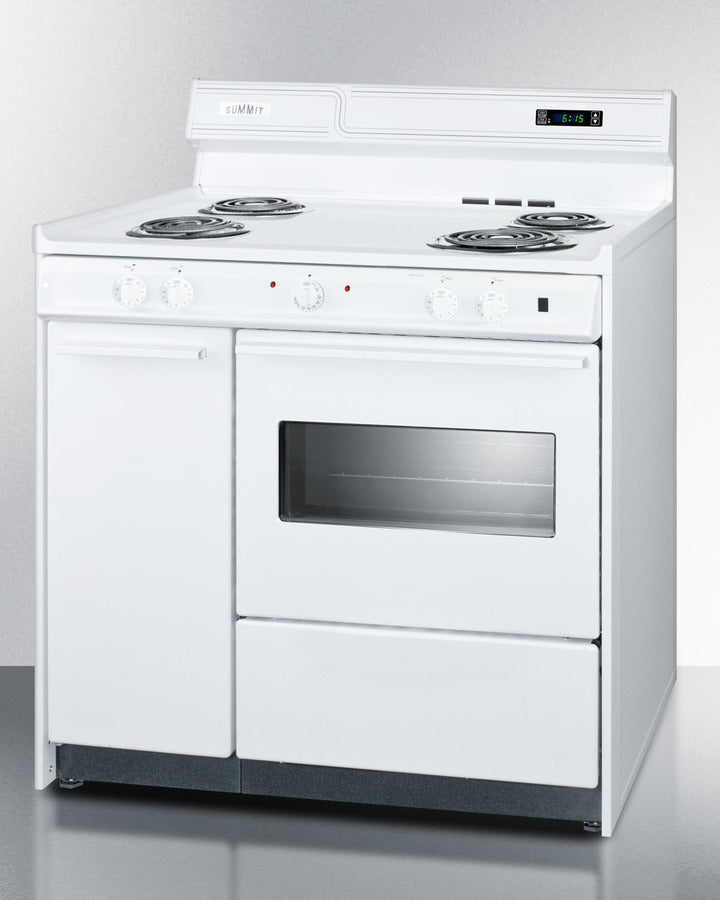

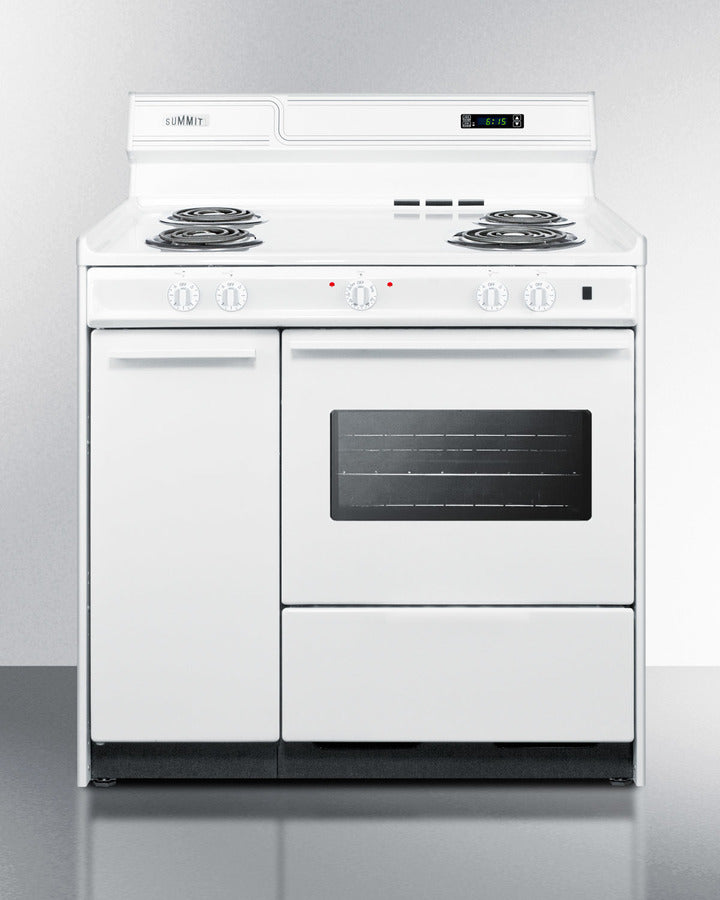

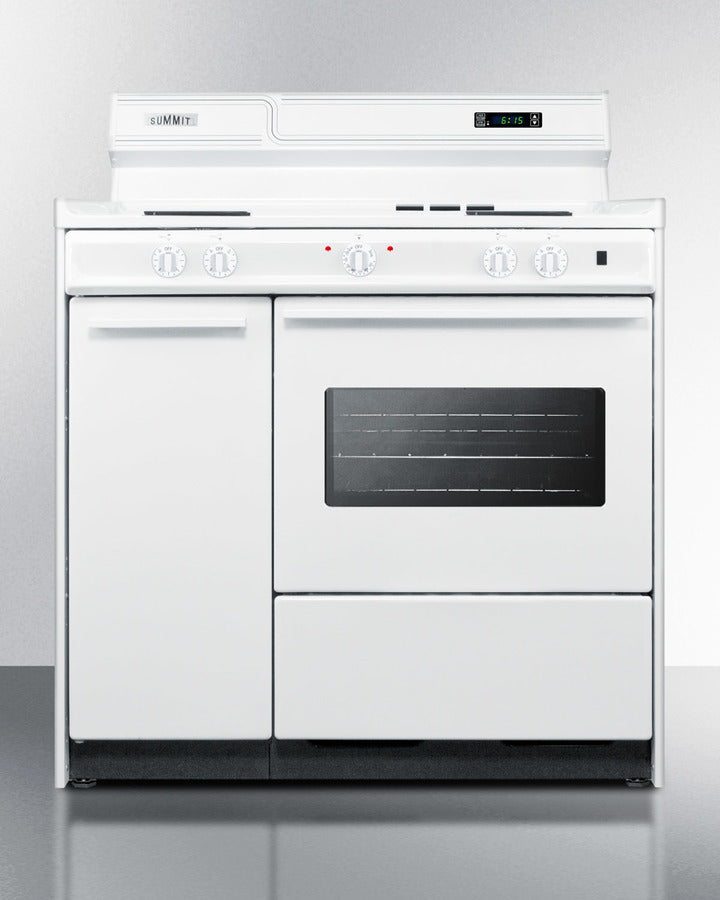

SUMMIT 36" Wide Electric Coil Top Range - Other (WEM430KW)

SKU: WEM430KW

UPC: 761101003733

$1,40500 $1,81000

SUMMIT 36" Wide Electric Coil Top Range - Other (WEM430KW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • ✔ 24 inch depth
  • ✔ 36 inch wide range
  • ✔ Made in the USA
  • ✔ Four coil elements
  • ✔ Chrome drip pans
  • ✔ Oven window and light
  • ✔ Storage compartments
  • ✔ Waist-high broiler
  • ✔ Safety burners with low wattage outputs
  • ✔ Adjustable oven racks
  • ✔ Porcelain and steel construction
  • ✔ Deluxe backguard
  • ✔ Digital clock and timer
  • ✔ Recessed oven door
  • ✔ Upfront controls
  • ✔ Push-to-turn knobs
  • ✔ Indicator lights
  • ✔ Broiler pan included
  • ✔ Anti-tip bracket
  • ✔ Cord not included

Documents

▼

Product Features

24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens
36 inch wide range
Uniquely sized to fit many older kitchen spaces
Made in the USA
Designed and constructed domestically
Four coil elements
Includes one 8" and three 6" coil elements
Chrome drip pans
Each coil element includes a removable chrome pan for easier cleaning
Oven window and light
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

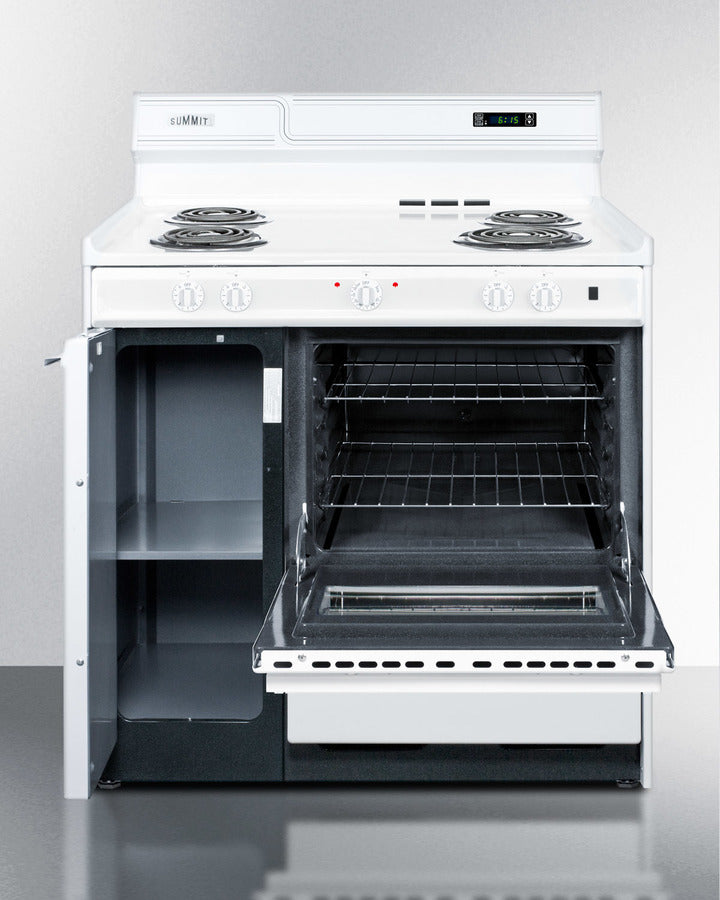

Storage compartments
12" wide storage cabinet included in body, with a removable shelf to help store cookware, smaller appliances, non-perishable food, and other items, with a lower drop-down compartment also included
Waist-high broiler
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Safety burners with low wattage outputs
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Porcelain and steel construction
Solid construction built to hold up to everyday use
Deluxe backguard
8" high backguard helps to protect your walls from spills and splashes
Digital clock and timer
Backguard includes time readout
Recessed oven door
Smart design limits the depth and protects adjacent cabinetry
Upfront controls
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Push-to-turn knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Broiler pan included
Two-piece porcelain broiler tray with grease well
Anti-tip bracket
Included for user installation to help prevent tipping
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords

Product Specifications

Overview

Height of Cabinet 44.0" (112 cm)
Width 36.0" (91 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Voltage/Frequency 220 V AC/60 Hz
Weight 200.0 lbs. (91 kg)
Parts & Labor Warranty 1 Year
UPC 761101003733

Electric Range

Oven Capacity 2.9 cu.ft. (82 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Cleaning Type Manual
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door White/Window

Dimensions & Weight

Width 36 in.
Height 44 in.
Length 24 in.
Weight 200 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width 41 in.
Shipping Height 49 in.
Shipping Length 29 in.
Shipping Weight 240 lbs.
Total of Shipping Weight 240 lbs.
Source Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement 22 ft
Dimensional Weight 273.5 lbs.
Total of Cubes 22 ft
Total of Dimensional Weight 273.5 lbs.
