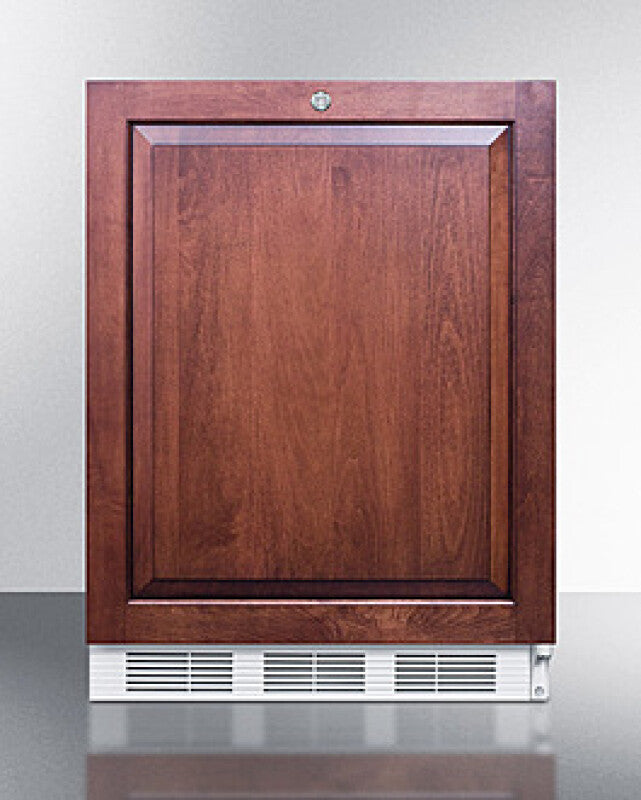

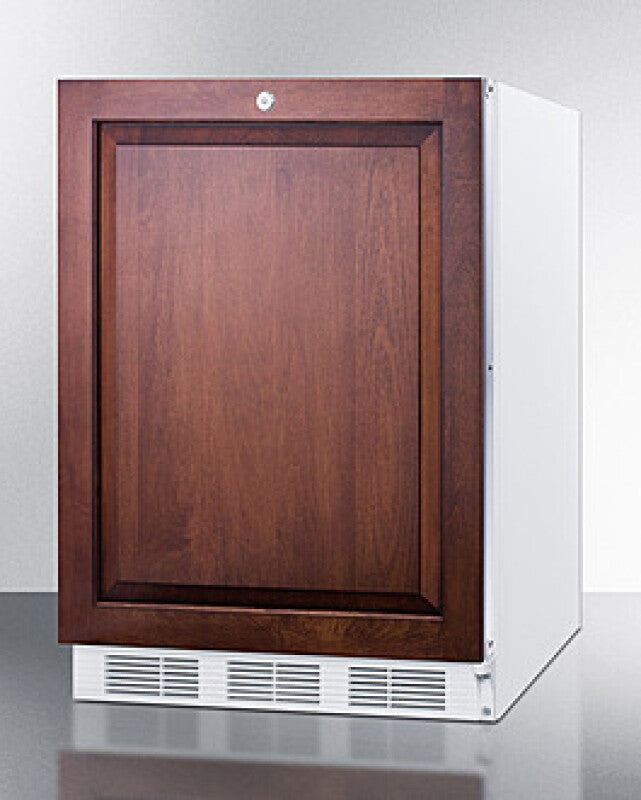

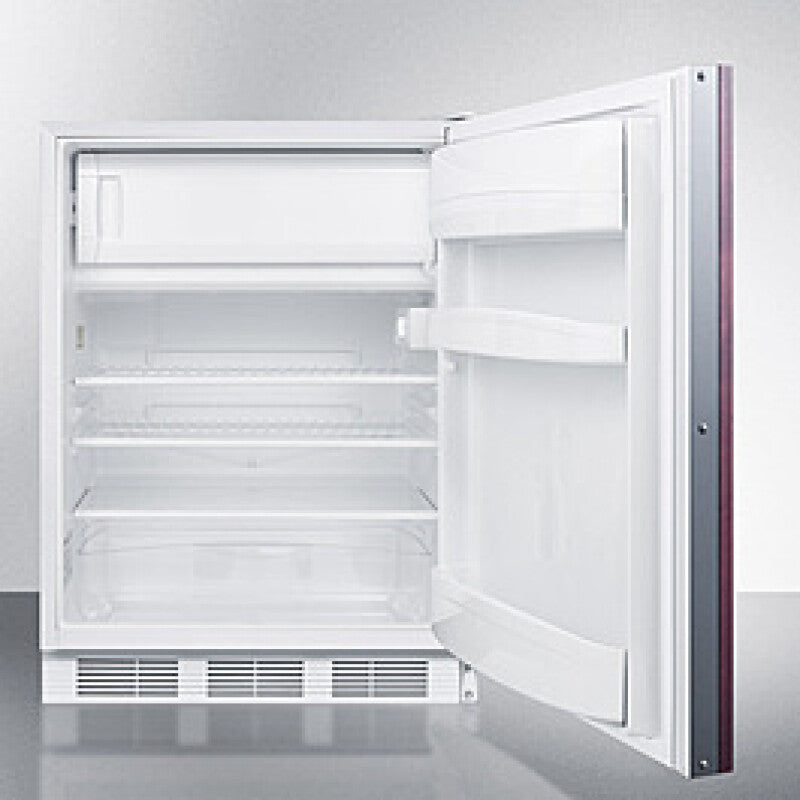

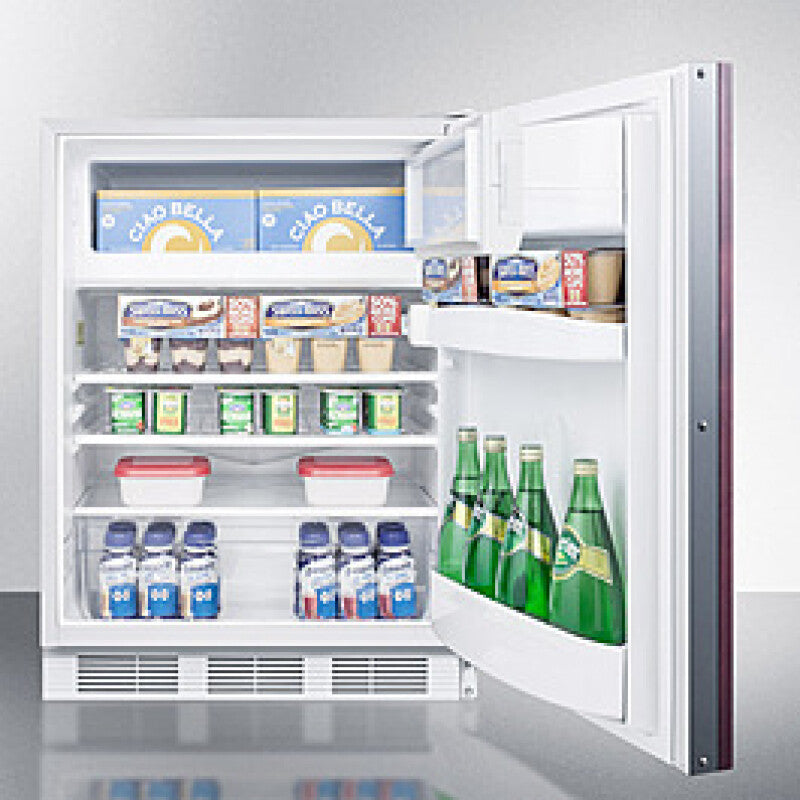

Summit 24" Wide Built-In Refrigerator-Freezer, ADA Compliant - Other (CT66LWBIIFADA)
SKU:
CT66LWBIIFADA
UPC: 761101068855
Regular price
$1,90500
Unit price
Summit 24" Wide Built-In Refrigerator-Freezer, ADA Compliant - Other (CT66LWBIIFADA) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ ADA Compliant
- ✔ Slim undercounter dimensions
- ✔ Factory installed lock
- ✔ Built-in capable
- ✔ Fully finished white cabinet
- ✔ Cycle defrost
- ✔ Adjustable thermostat
- ✔ Door storage
- ✔ Dual evaporator
- ✔ Integrated door frame
- ✔ Adjustable shelves
- ✔ Interior light
- ✔ Clear crisper drawer
- ✔ 100% CFC Free
Documents
Summit 24" Wide Built-In Refrigerator-Freezer, ADA Compliant -...
Regular price
$1,90500
Unit price
SKU:
CT66LWBIIFADA
Regular price
$1,90500
Unit price
Summit 24" Wide Built-In Refrigerator-Freezer, ADA Compliant - Other (CT66LWBIIFADA) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features
ADA Compliant
Slim undercounter dimensions
Factory installed lock
Built-in capable
Fully finished white cabinet
Cycle defrost
Adjustable thermostat
Door storage
Dual evaporator
Integrated door frame
Adjustable shelves
Interior light
Clear crisper drawer
100% CFC Free
Product Specifications
Overview
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Estimated Time to Ship | 2 to 4 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 19.5" (50 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.0" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 4 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
Dimensions & Weight
| Width | 23.63 in. |
| Height | 32 in. |
| Length | 23.5 in. |
| Weight | 100 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.63 in. |
| Shipping Height | 37 in. |
| Shipping Length | 28.5 in. |
| Shipping Weight | 105 lbs. |
| Total of Shipping Weight | 105 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.28 ft |
| Dimensional Weight | 127.84 lbs. |
| Total of Cubes | 10.28 ft |
| Total of Dimensional Weight | 127.84 lbs. |
Certifications
California Prop 65
