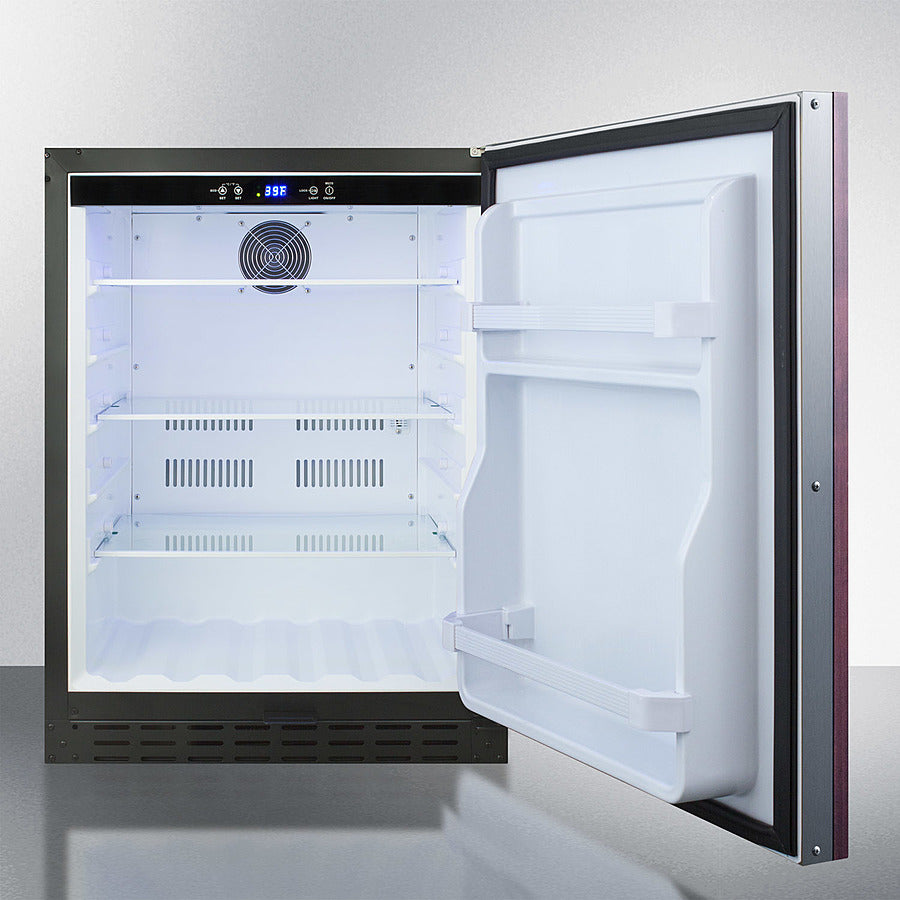

SUMMIT 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - Panel-Ready (AL55IF)
UPC: 761101067049
SUMMIT 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - Panel-Ready (AL55IF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Panel-ready door
- ✔ White interior
- ✔ Brake shelving system
- ✔ Internal fan
- ✔ Factory-reversible door swing
- ✔ Integrated hinge
- ✔ Matching freezer
- ✔ CARB Compliant
- ✔ ADA compliant
- ✔ Commercially approved
- ✔ Built-in capable

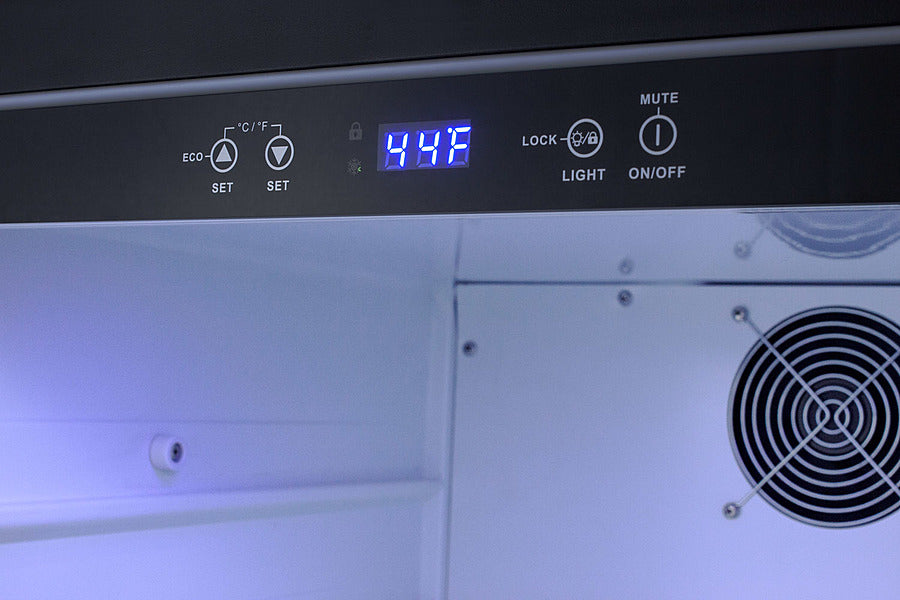

- ✔ Digital control panel
- ✔ Adjustable shelving
- ✔ Slotted floor
- ✔ Automatic defrost
- ✔ Interior lighting
- ✔ Temperature alarm
- ✔ Sabbath mode
- ✔ Fully finished black cabinet
- ✔ 100% CFC free
SUMMIT 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - Panel-Ready (AL55IF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description

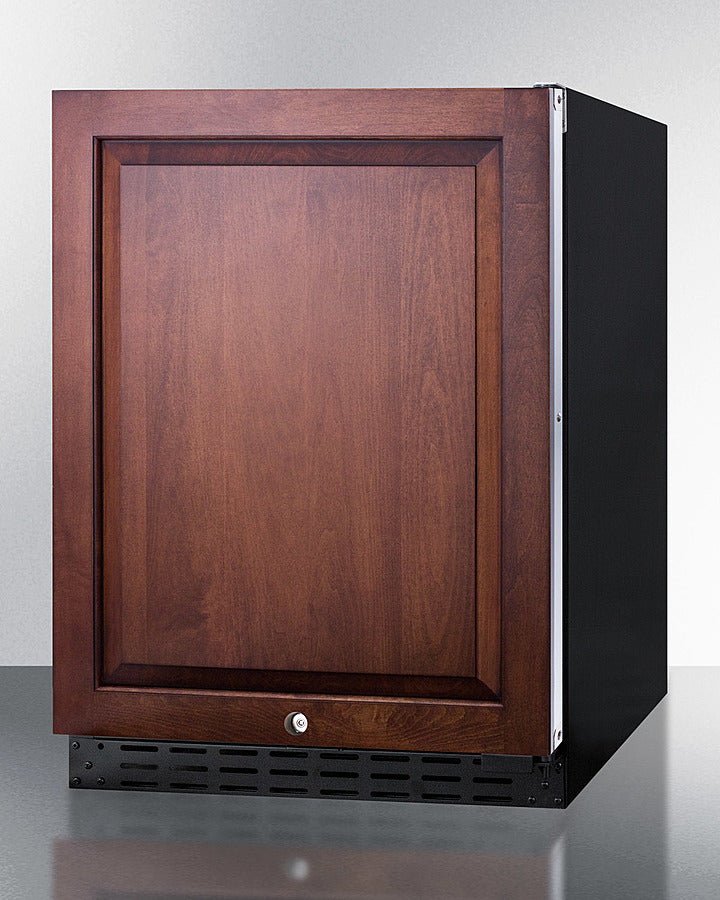

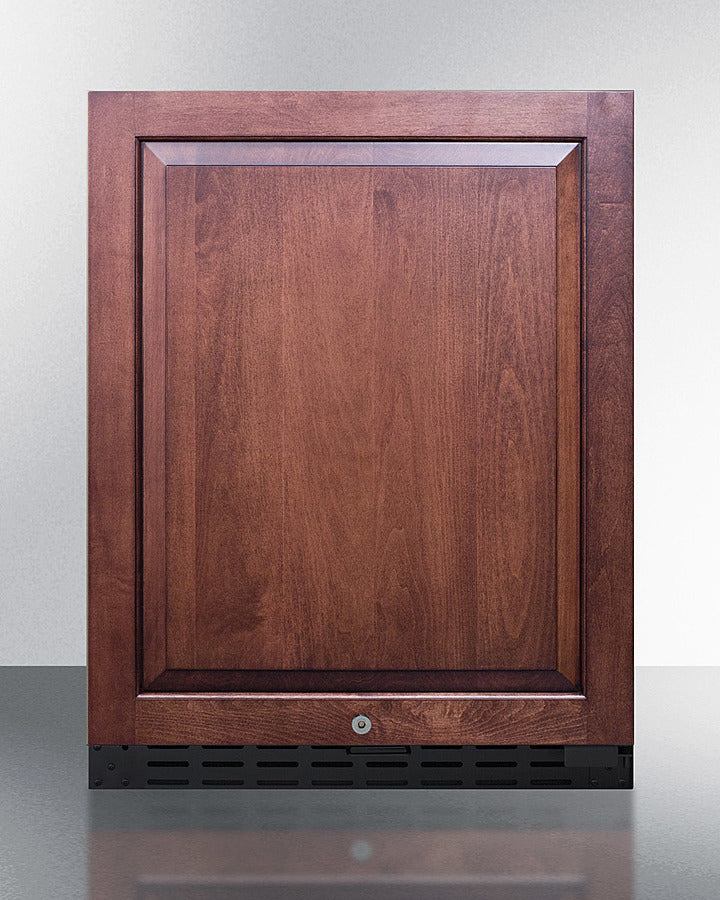

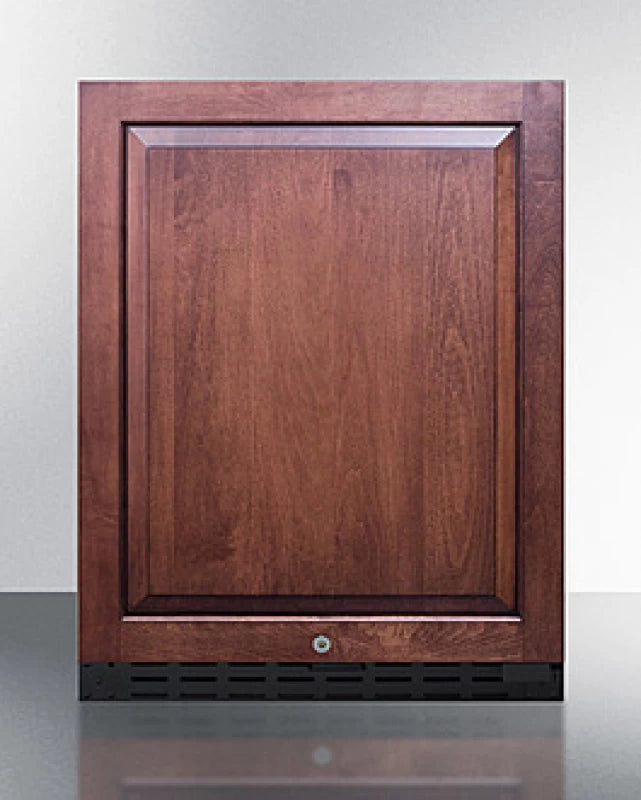

SUMMIT features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The AL55IF refrigerator meets both residential and commercial standards for versatile use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features du
Product Features
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 23.5 in. |
| Height | 31.63 in. |
| Length | 23.38 in. |
| Weight | 95 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.06 ft |
| Dimensional Weight | 125.02 lbs. |
| Total of Cubes | 10.06 ft |
| Total of Dimensional Weight | 125.02 lbs. |
Overview Refrigerator Features Dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.63" (80 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.5" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 4.2 cu.ft. (119 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 250.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067049 |
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 46F |
| Sound Level | 33.7 dB |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 19.0" (48 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 19.0" (48 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
Certifications
California Prop 65
