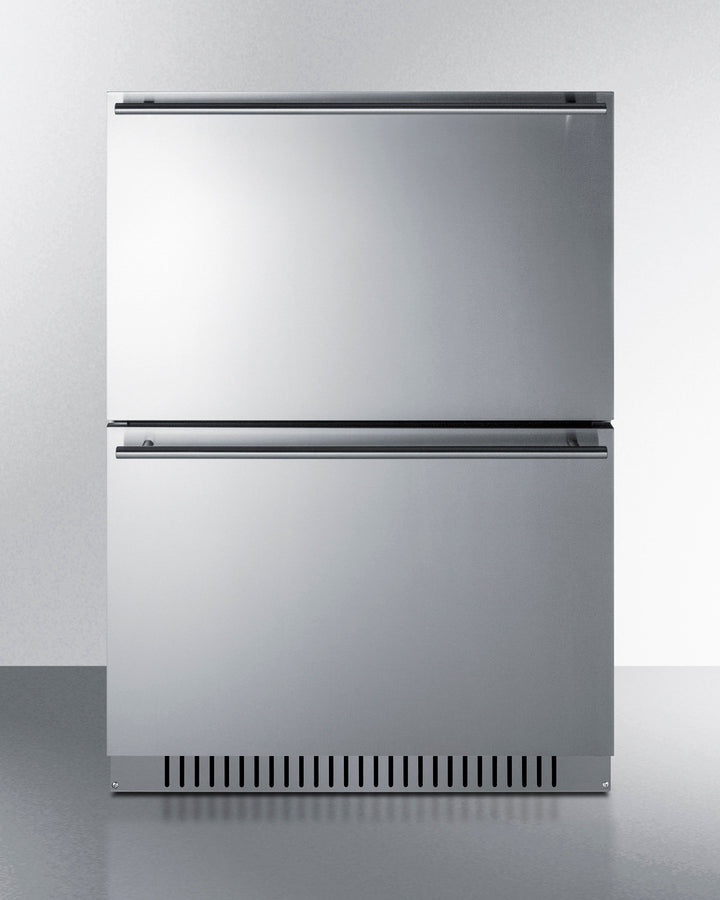

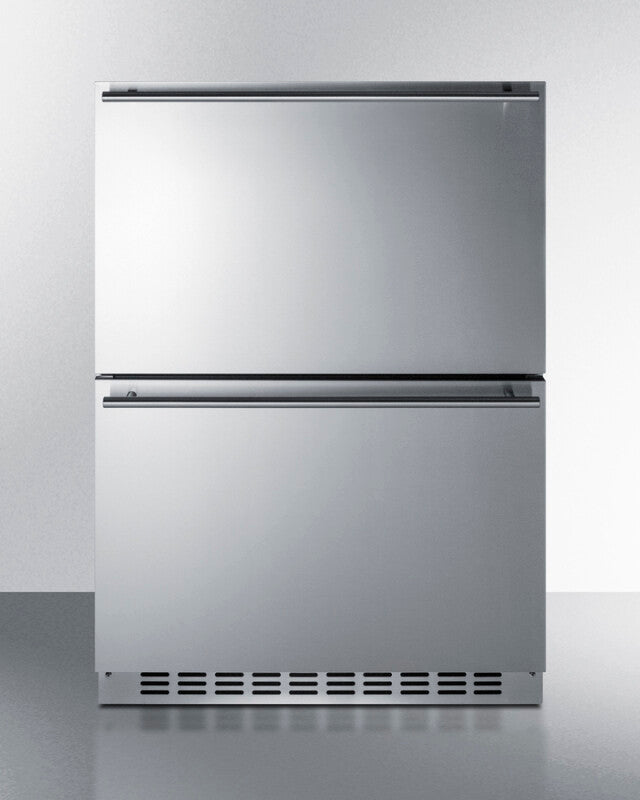

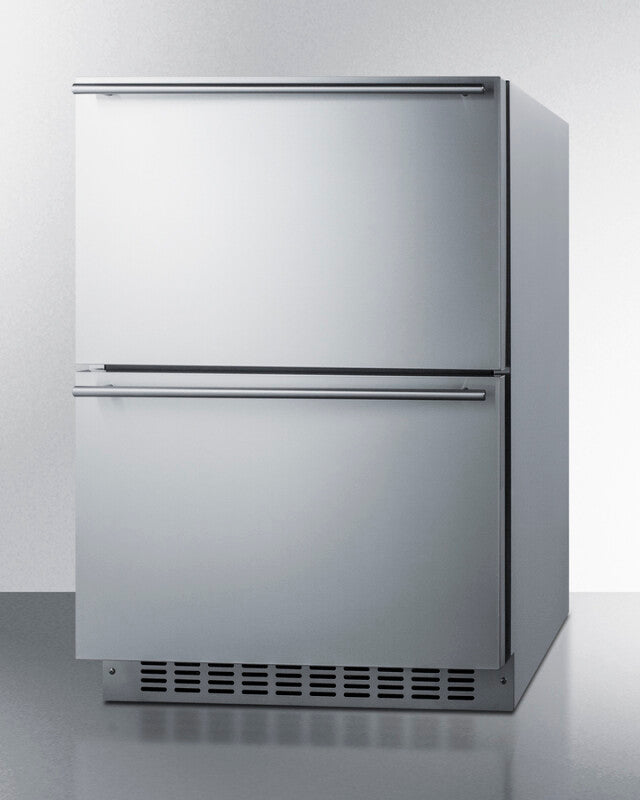

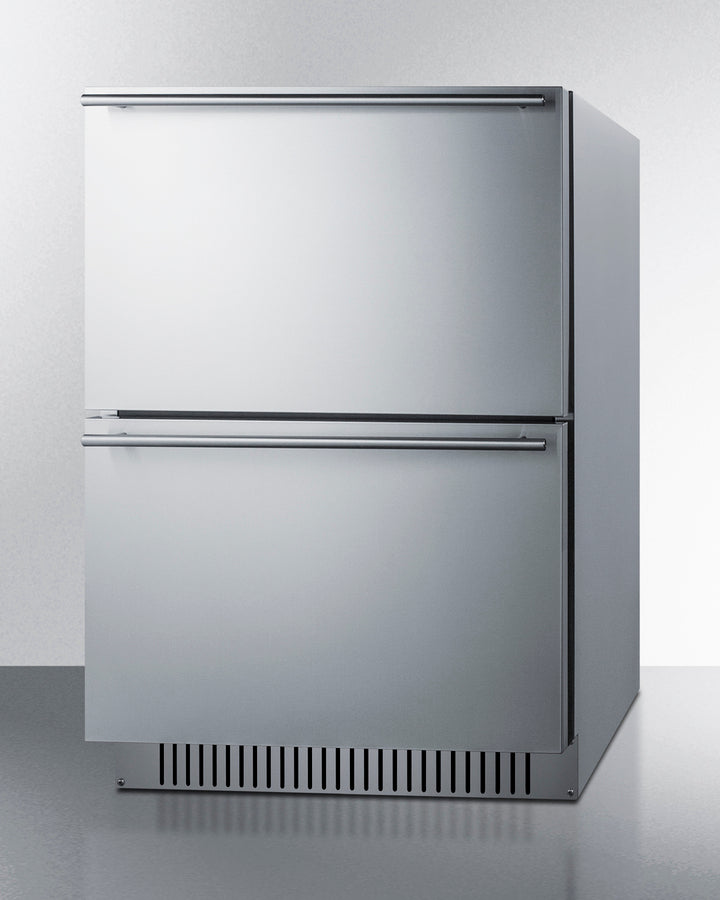

SUMMIT 24" Wide 2-Drawer All-Freezer, ADA Compliant - Stainless Steel (ADFD243CSS)

SKU: ADFD243CSS

UPC: 761101088235

Sale price $2,99900 Regular price $3,55000

SUMMIT 24" Wide 2-Drawer All-Freezer, ADA Compliant - Stainless Steel (ADFD243CSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • Indoor/Outdoor compatible
  • 2-Drawer All-Freezer
  • ADA compliant design
  • Built-in capable
  • Stainless steel drawers
  • Panel-ready drawer fronts
  • Professional handles
  • Frost-free operation
  • LED lighting
  • Internal fan
  • Drawer dividers
  • Sliding basket
  • Temperature alarm
  • Open drawer alarm
  • Sabbath Mode
  • SuperFreezer function
  • Child lock
  • Temperature Memory Function
  • Right angle plug
  • Sealed back
  • Stainless steel wrapped cabinet
  • Stainless steel kickplate
  • Anti-tip bracket
  • Commercially approved
  • Matching refrigerator
  • 100% CFC free
  • CARB Compliant
  • Digital thermostat

Documents

PDF Icon

ASSEMBLY DRAWING

View | Download

PDF, 184.38 KB

PDF Icon

BROCHURE w/ DRAWINGS

View | Download

PDF, 339.29 KB

Description

Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADFD243CSS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The cabinet and drawers are constructed from weatherproof stainless steel for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. A stainless steel kickplate and sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADFD243CSS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243CSS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241CSS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244CSS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.

Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADFD243CSS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The cabinet and drawers are constructed from weatherproof stainless steel for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. A stainless steel kickplate and sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADFD243CSS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal u

Product Features

Indoor/Outdoor compatible
Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
2-Drawer All-Freezer
24" wide 3.7 cu.ft. freezer with two gliding drawers
ADA compliant design
Sized just under 32" high to allow installation under lower ADA compliant counters
Built-in capable
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
Stainless steel drawers
Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

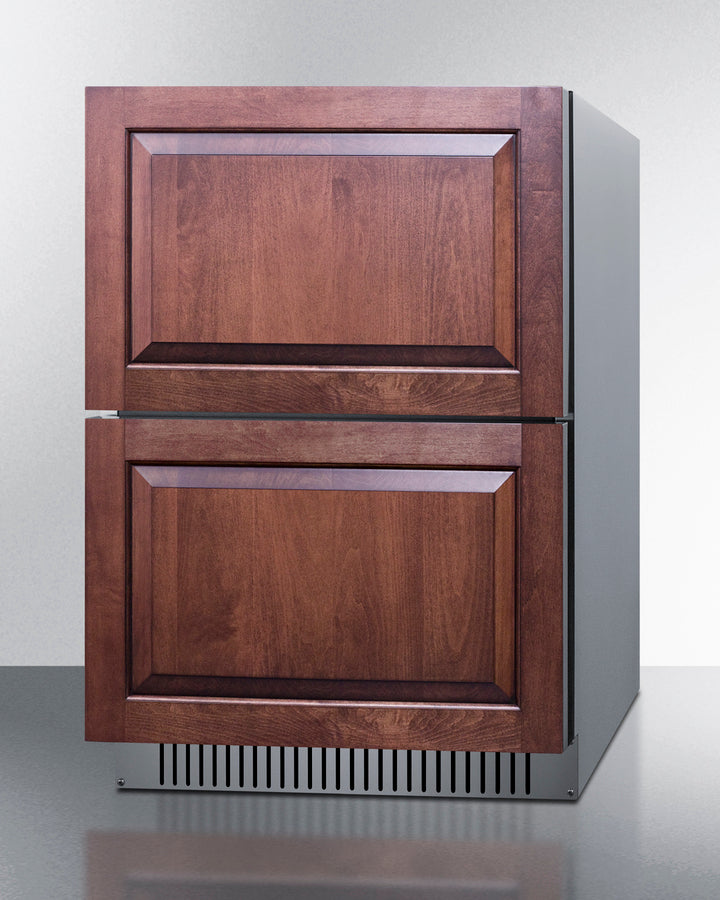

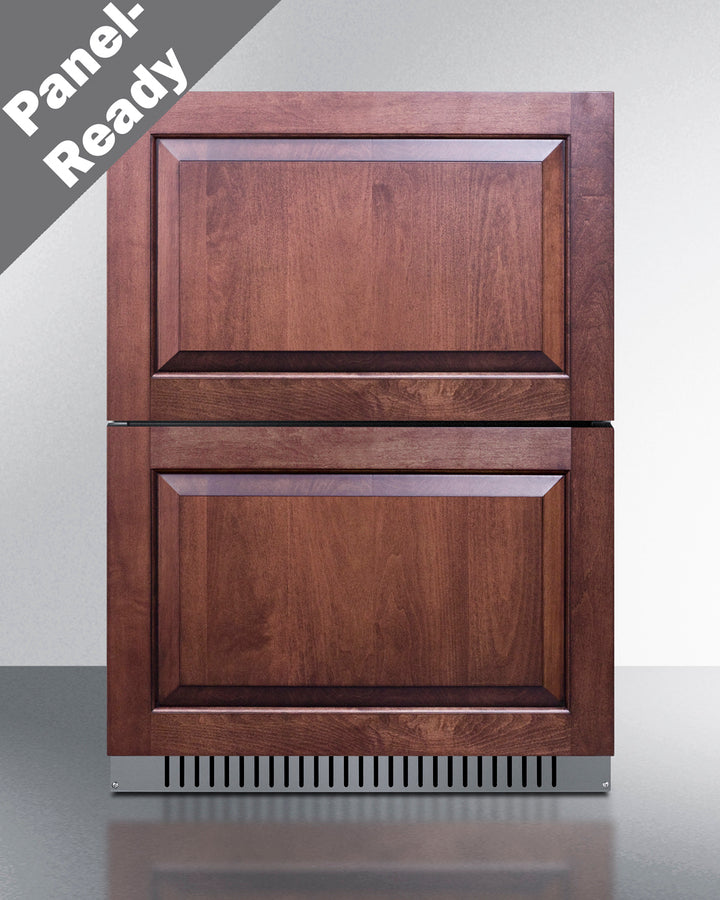

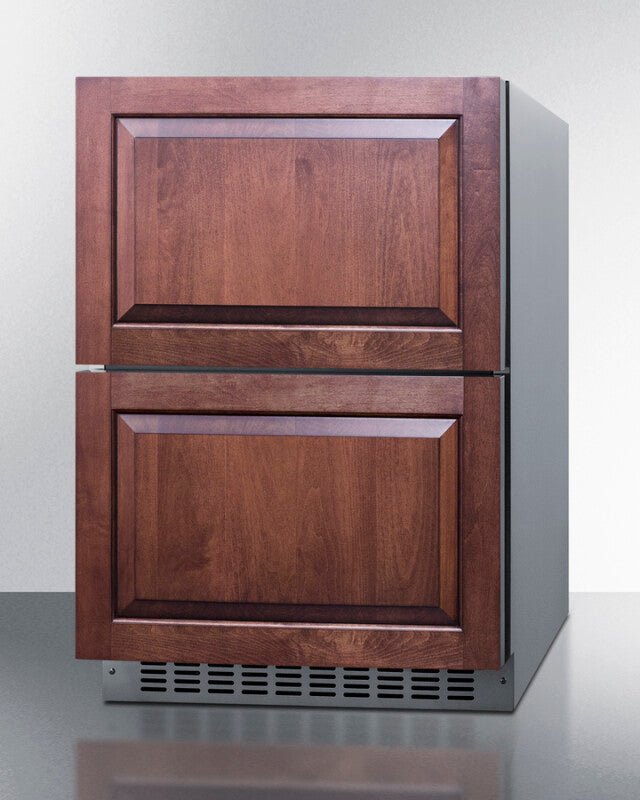

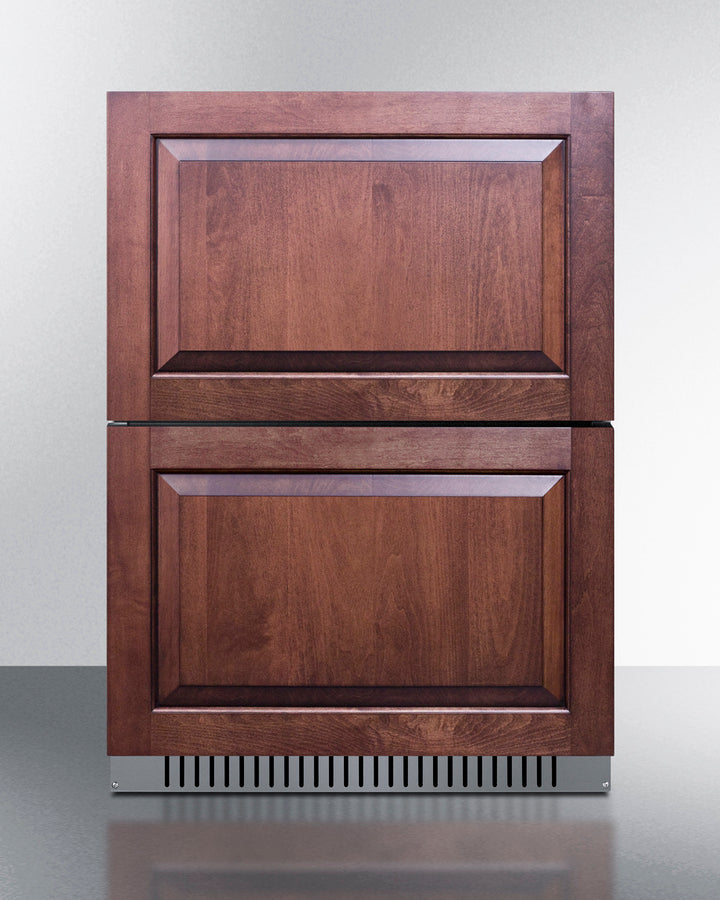

Panel-ready drawer fronts
Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Frost-free operation
No-frost operation for minimum user maintenance
LED lighting
Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
Internal fan
Fan-forced cooling ensures even temperature distribution from top to bottom

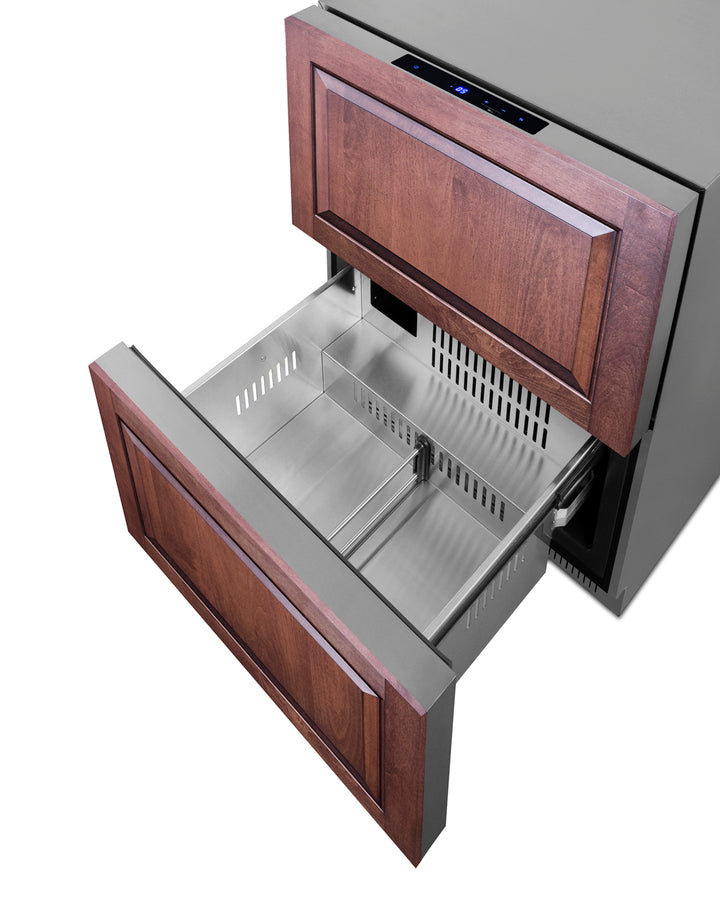

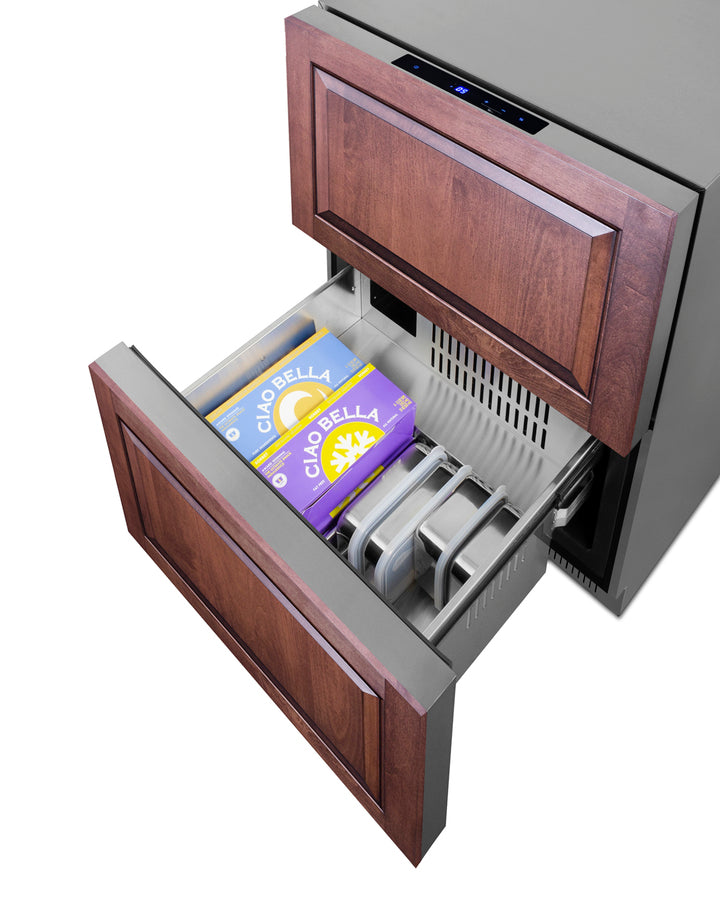

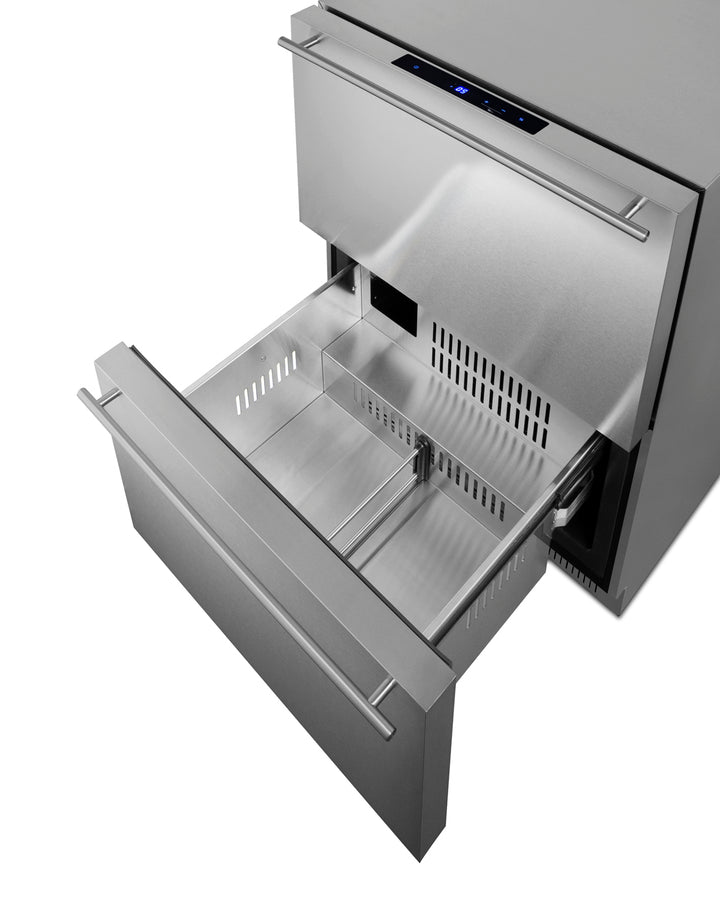

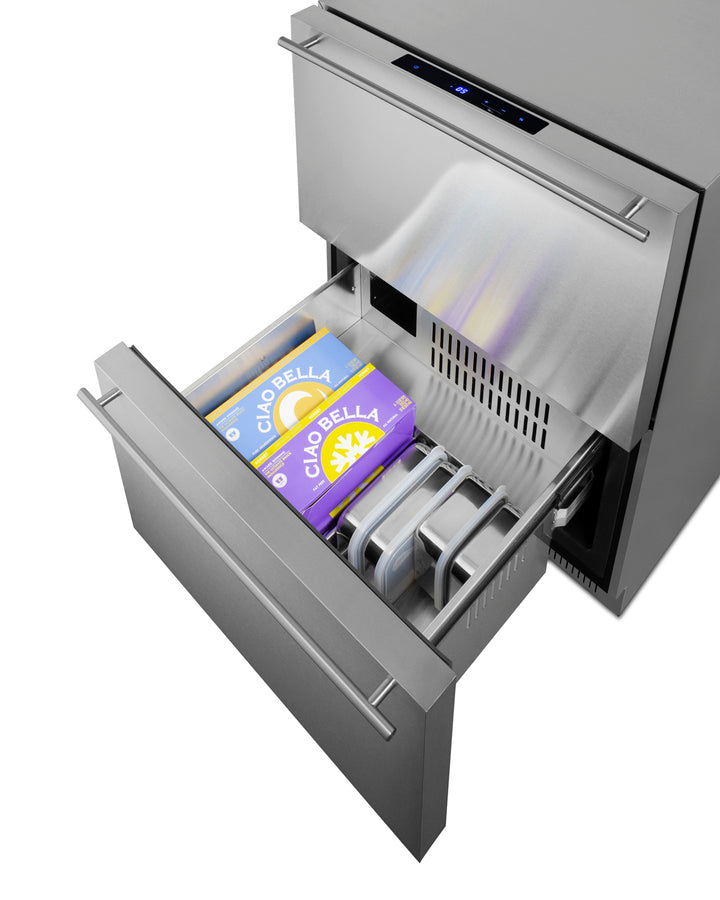

Drawer dividers
Two adjustable dividers make it easier to organize the drawer interiors

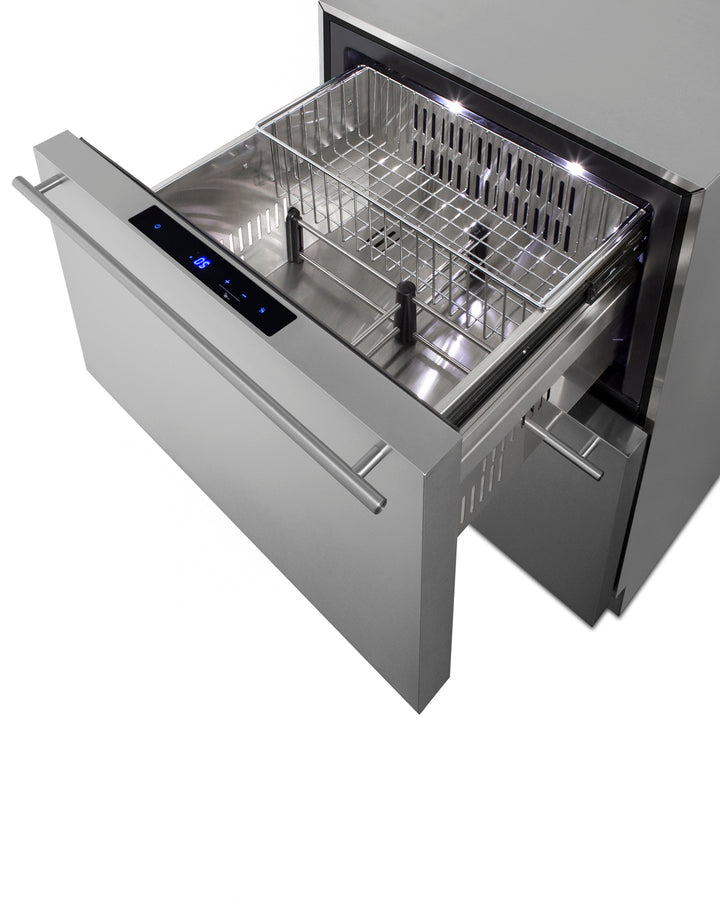

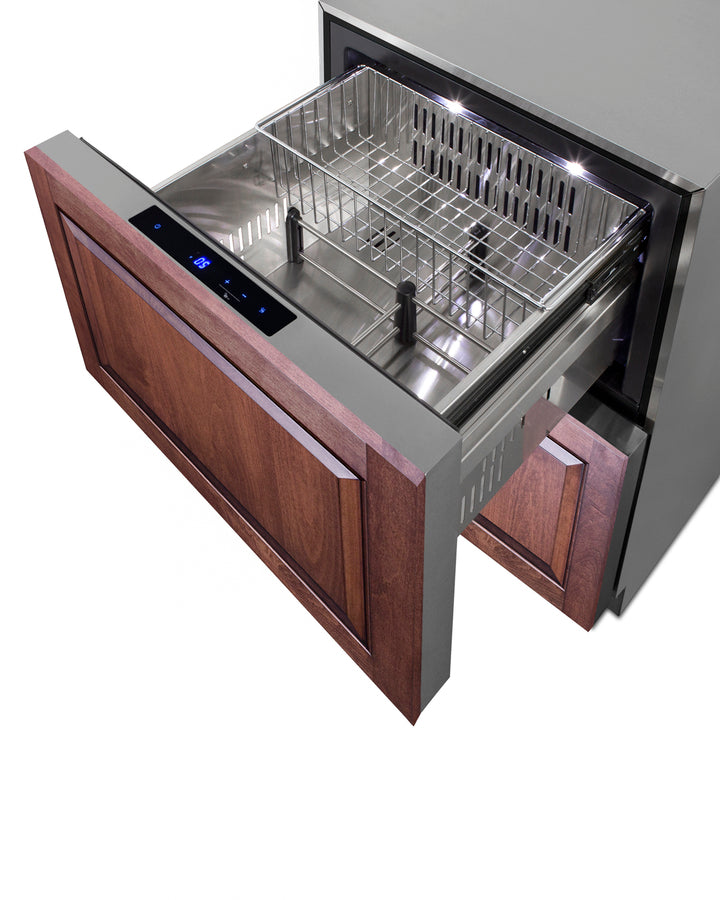

Sliding basket
Removable chrome basket included for added storage convenience
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
Audible alarm will sound if either drawer is left open longer than one minute
Sabbath Mode
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
SuperFreezer function
Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
Child lock
Disables digital controls after two minutes of activity for added safety
Temperature Memory Function
Unit will restore the most recent temperature settings after losing power
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability and added protection from the elements
Stainless steel wrapped cabinet
304 grade stainless steel construction around the exterior for true luxury in the home
Stainless steel kickplate
Completes the look right down to the toe kick
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Commercially approved
ETL-S listed to NSF-7 standards to allow use in commercial establishments
Matching refrigerator
Pair with the ADRD241CSS refrigerator to create a complete 2-drawer undercounter set
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

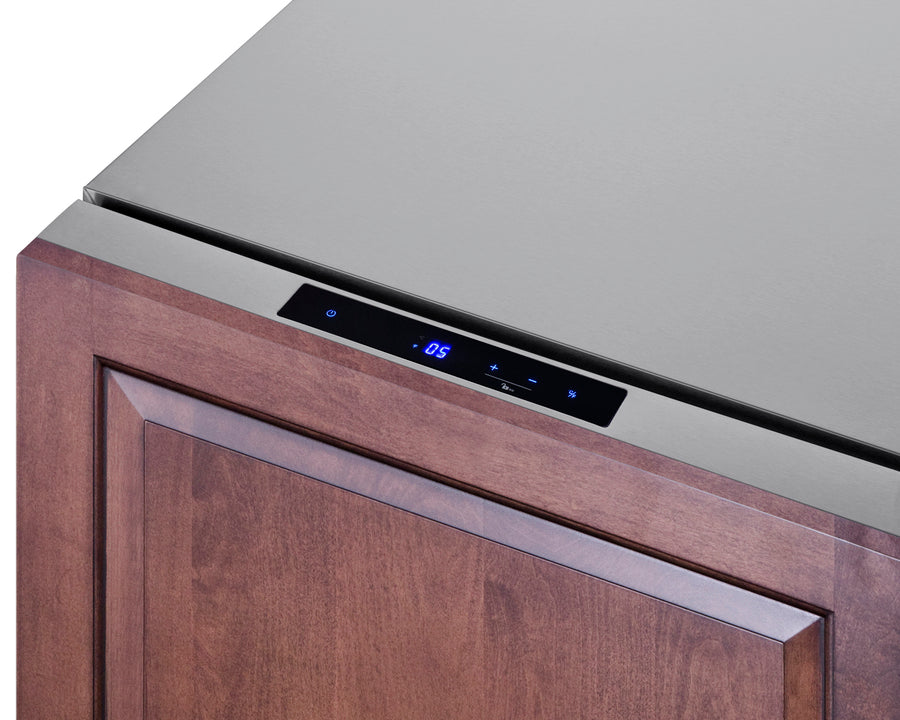

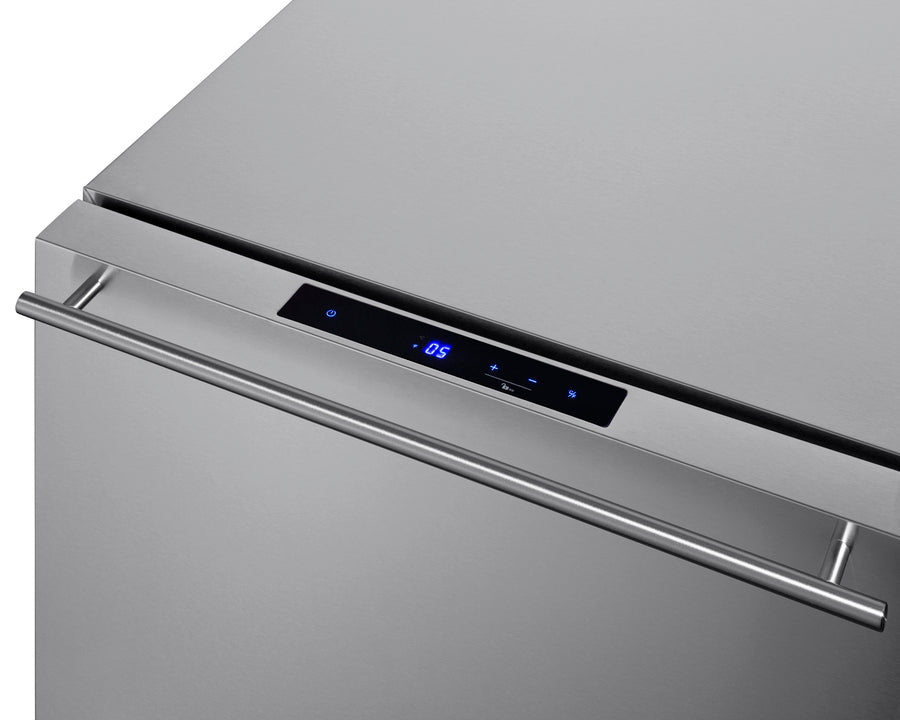

Digital thermostat
Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Product Specifications

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & Weight

Width 23.38 in.
Height 31.88 in.
Length 22.5 in.
Weight 136 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement 9.71 ft
Dimensional Weight 120.65 lbs.
Total of Cubes 9.71 ft
Total of Dimensional Weight 120.65 lbs.

Overview Freezer

Nominal Height 32.0" (81 cm)
Height of Cabinet 31.88" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth with Handle 23.88" (61 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 3.7 cu.ft. (105 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 395.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 136.0 lbs. (62 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088235
Door Swing Drawer
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 2
Interior Height - Drawer 1 8.0" (20 cm)
Interior Width - Drawer 1 17.0" (43 cm)
Interior Depth - Drawer 1 14.5" (37 cm)
Interior Height - Drawer 2 8.0" (20 cm)
Interior Width - Drawer 2 17.0" (43 cm)
Interior Depth - Drawer 2 14.5" (37 cm)
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 3.5" (9 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes
Sound Level 33.8 dB

Certifications

California Prop 65
