$560.00 off
SUMMIT 24" Wide 2-Drawer All-Freezer, ADA Compliant - Other (ADFD2D24)
SKU:
ADFD2D24
UPC: 761101085920
Sale price
$2,19500
Regular price
$2,75500
Unit price
SUMMIT 24" Wide 2-Drawer All-Freezer, ADA Compliant - Other (ADFD2D24) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ 2-Drawer All-Freezer
- ✔ ENERGY STAR certified
- ✔ Adjustable height
- ✔ Commercially approved
- ✔ Indoor/Outdoor compatible
- ✔ Panel-ready drawer fronts
- ✔ Stainless steel construction
- ✔ Built-in capable
- ✔ Professional handles
- ✔ Frost-free
- ✔ Interior lighting
- ✔ Digital thermostat
- ✔ Sliding basket
- ✔ Digital display
- ✔ Drawer dividers
- ✔ Removable drawers
- ✔ Temperature alarm
- ✔ Door alarm
- ✔ Sabbath mode
- ✔ Right-angle plug
- ✔ Sealed back
- ✔ Fan-forced cooling
- ✔ Temperature memory
- ✔ Anti-slam drawers
- ✔ Anti-tip bracket
- ✔ Fully finished cabinet
- ✔ Matching refrigerator
- ✔ 100% CFC free
- ✔ CARB Compliant
SUMMIT 24" Wide 2-Drawer All-Freezer, ADA Compliant - Other (A...
Sale price
$2,19500
Regular price
$2,75500
Unit price
SKU:
ADFD2D24
Sale price
$2,19500
Regular price
$2,75500
Unit price
SUMMIT 24" Wide 2-Drawer All-Freezer, ADA Compliant - Other (ADFD2D24) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features
2-Drawer All-Freezer
24" wide 3.5 cu.ft. undercounter frost-free freezer with two gliding drawers
ENERGY STAR certified
Ensures unit runs efficiently with an environmentally friendly performance
Adjustable height
Unit can be raised to 34.5", with a taller kickplate included for a seamless look
Commercially approved
ETL-S listed to NSF-7 standards for commercial use
Indoor/Outdoor compatible
Durable, weatherproof construction designed to hold up to the elements

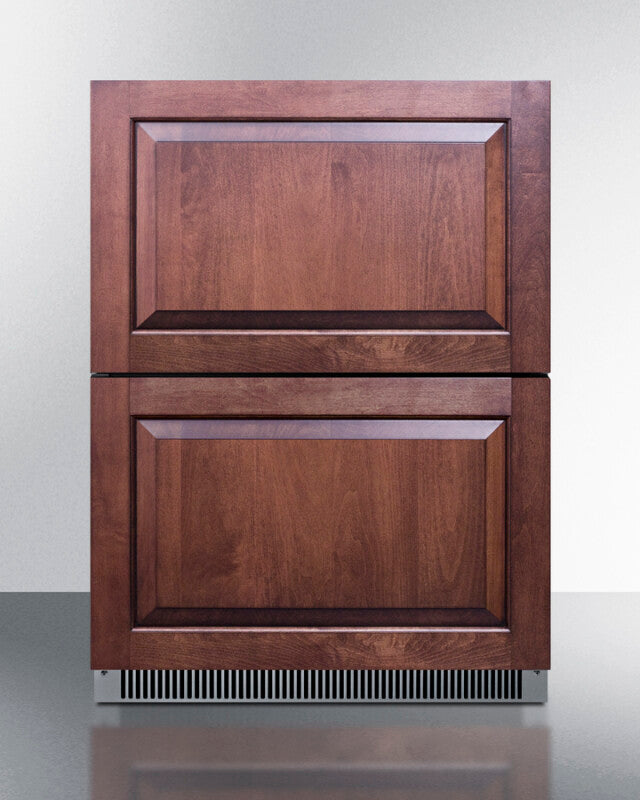

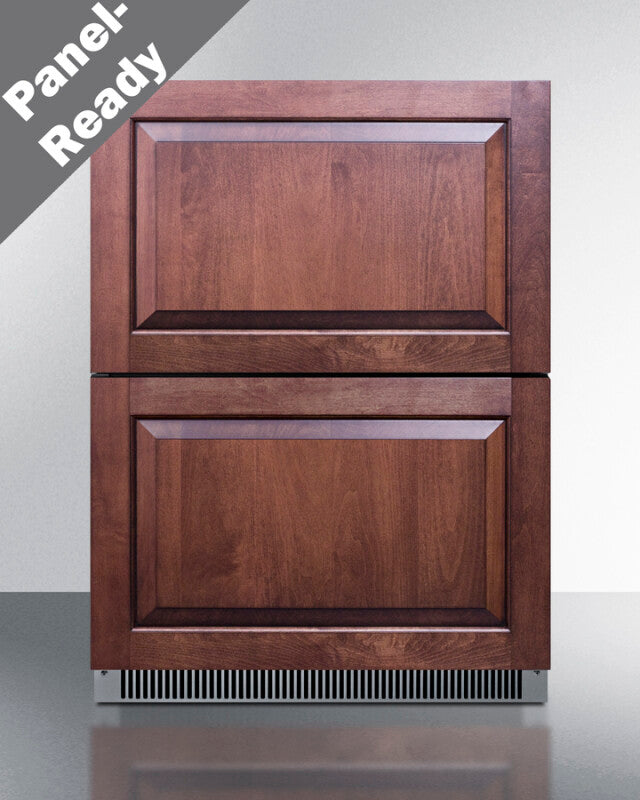

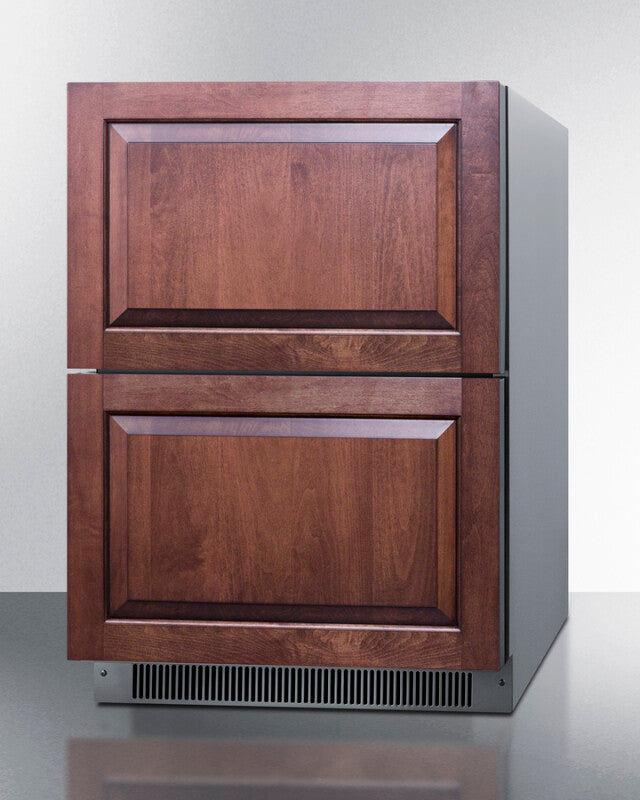

Panel-ready drawer fronts
Drawers can be customized with overlay panels to match or accent existing cabinetry (panel dimensions: 23.34" W x 13.93" D at 3/4" thick)

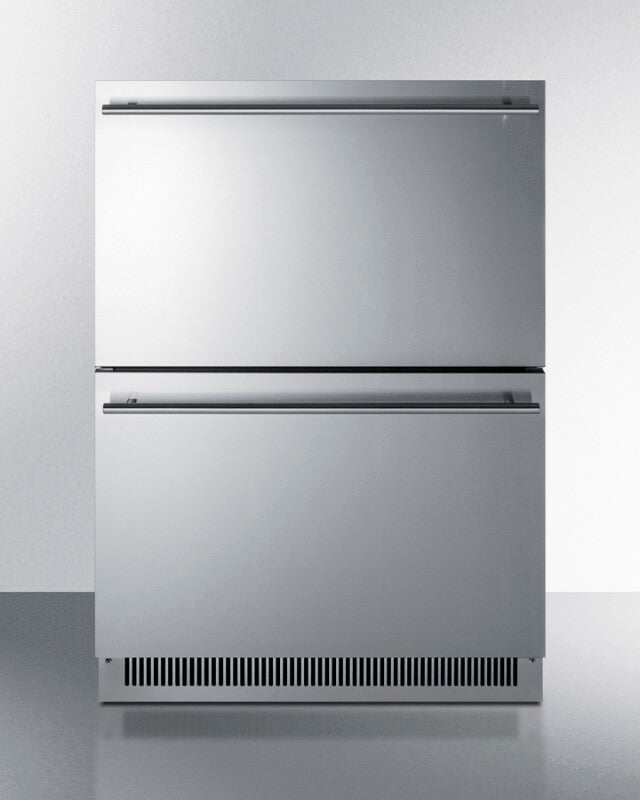

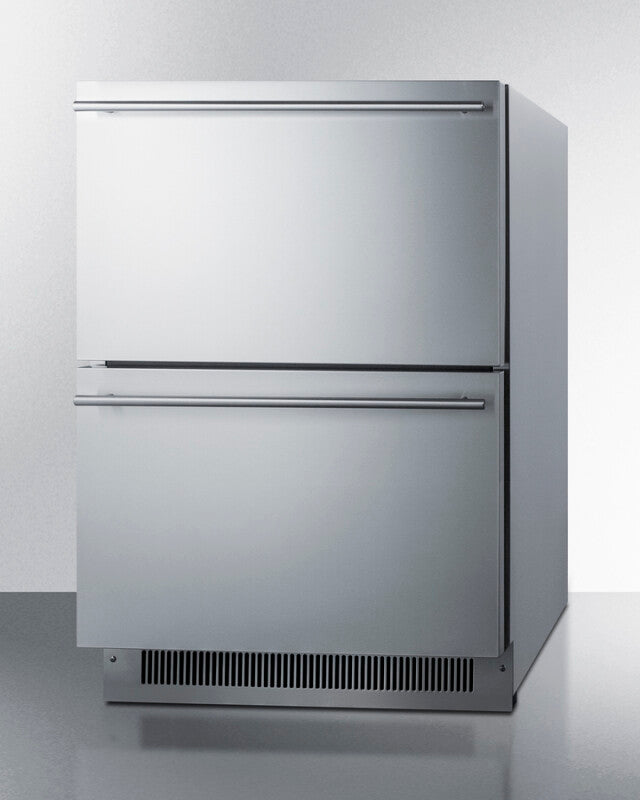

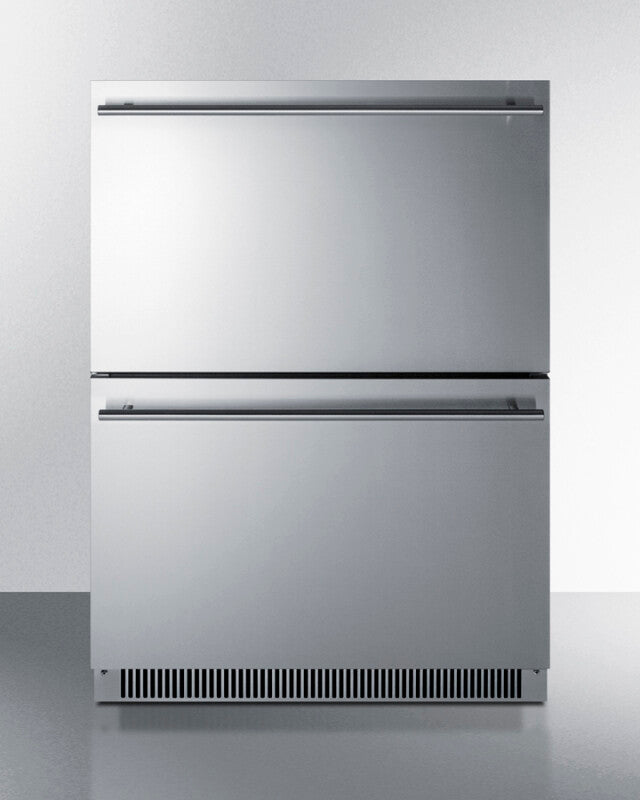

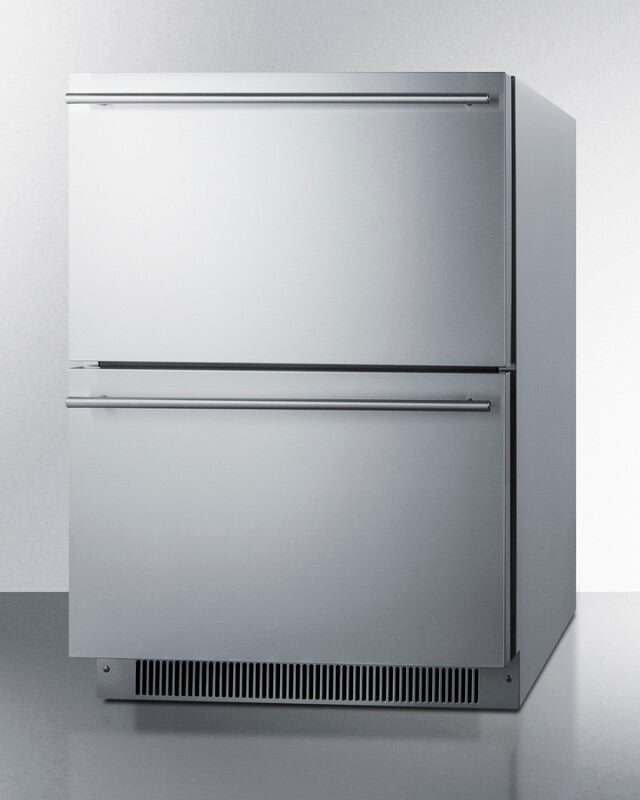

Stainless steel construction
Complete 304 grade stainless steel construction provides durability while maintaining an elegant look
Built-in capable
Front-breathing design allows the unit to be built-in under counters
Professional handles
Stainless steel handles add style to any setting
Frost-free
No-frost operation for minimal user maintenance
Interior lighting
Soft LED lighting makes for easy viewing of each drawers contents
Digital thermostat
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

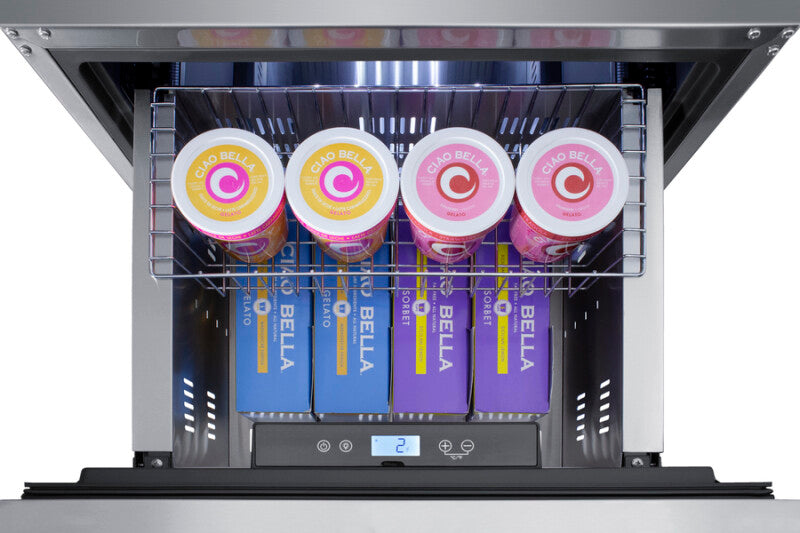

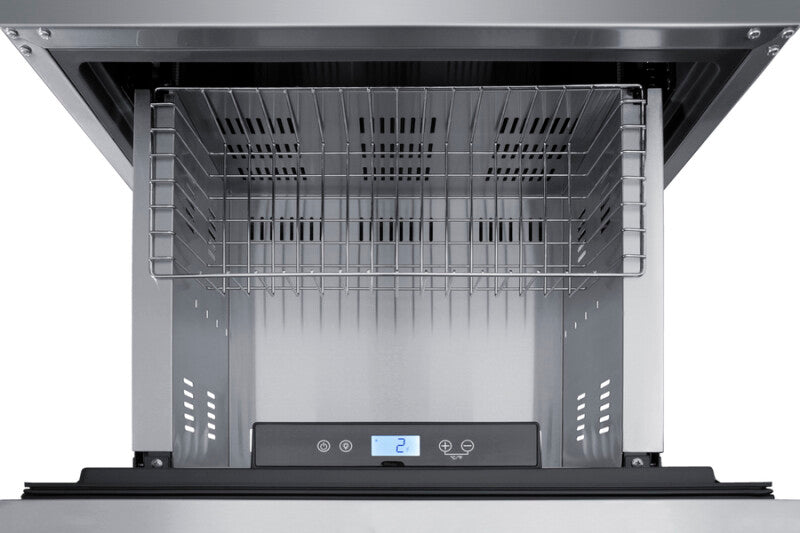

Sliding basket
Removable basket included for additional storage convenience
Digital display
Large display allows for easy readability and unit control

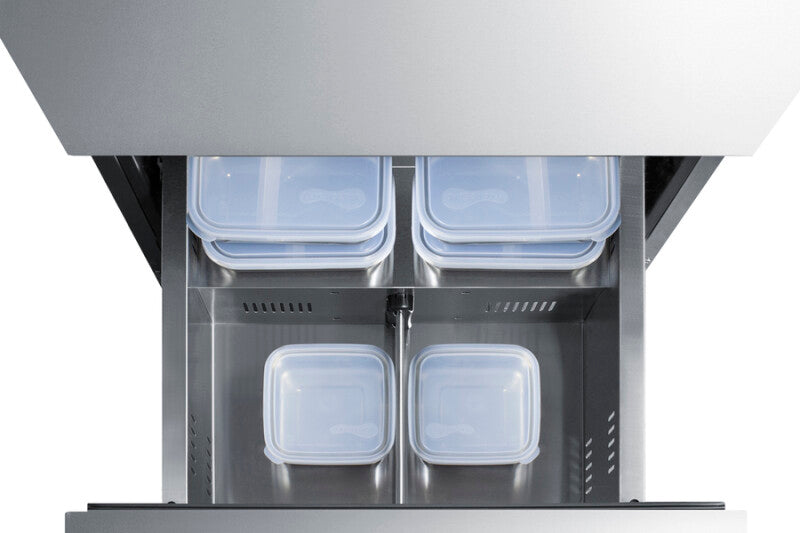

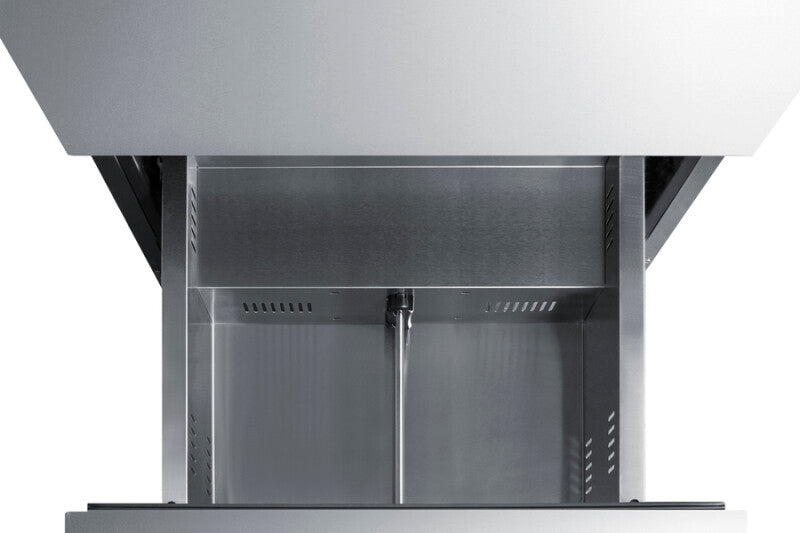

Drawer dividers
Two adjustable dividers provide flexibility when organizing the interior
Removable drawers
Allows for easy cleaning and organization within the interior of the unit
Temperature alarm
Alarm alerts you if the units temperature goes beyond recommended high and low temperature ranges
Door alarm
Audible alarm sounds if the drawers are left open for more than five minutes
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Right-angle plug
Flat plug allows unit to sit flush against the wall
Sealed back
Space-saving design with no exposed coils for easier cleanability
Fan-forced cooling
Provides for efficient, even cooling of the entire unit
Temperature memory
Unit will retain temperature settings after losing power
Anti-slam drawers
Soft-close glides prevent drawers from slamming shut for additional durability and safety
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety
Fully finished cabinet
Allows the unit to be used freestanding
Matching refrigerator
Pair with the ADRD24 to create the perfect drawer refrigeration set
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Product Specifications
Overview

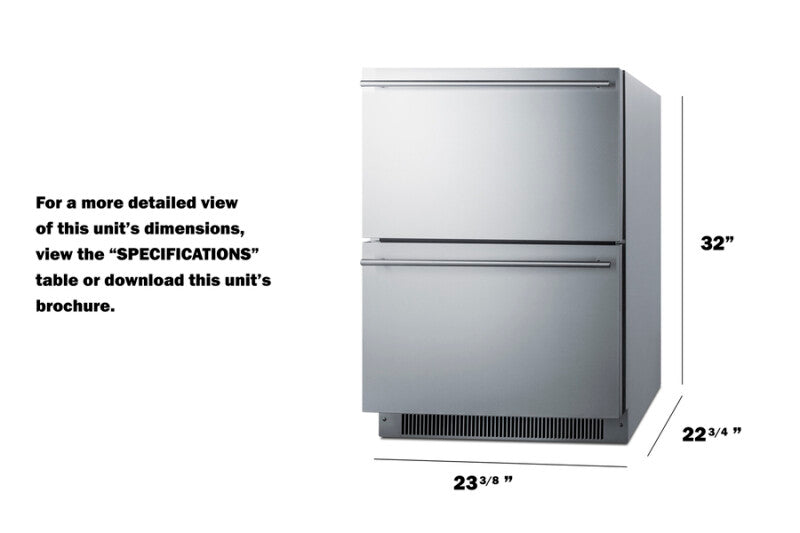

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 3.54 cu.ft. (100 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 355.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101085920 |
Freezer
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.79 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Level Legs | 4 |
| Interior Height - Drawer 1 | 8.0" (20 cm) |
| Interior Width - Drawer 1 | 15.75" (40 cm) |
| Interior Depth - Drawer 1 | 14.0" (36 cm) |
| Interior Height - Drawer 2 | 8.25" (21 cm) |
| Interior Width - Drawer 2 | 15.75" (40 cm) |
| Interior Depth - Drawer 2 | 14.0" (36 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 15.75" (40 cm) |
| Compressor Step Depth | 4.13" (10 cm) |
| Temperature Range | -11°F to +10°F(-24°C to -12°C) |
Dimensions & Weight
| Width | 23.38 in. |
| Height | 32 in. |
| Length | 22.75 in. |
| Weight | 95 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.38 in. |
| Shipping Height | 37 in. |
| Shipping Length | 27.75 in. |
| Shipping Weight | 135 lbs. |
| Total of Shipping Weight | 135 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.85 ft |
| Dimensional Weight | 122.45 lbs. |
| Total of Cubes | 9.85 ft |
| Total of Dimensional Weight | 122.45 lbs. |
Certifications
California Prop 65
