SUMMIT 18" Wide Clear Icemaker, ADA Compliant (Panel Not Included) - Panel-Ready (BIM182ADAIF)
UPC: 761101150680
SUMMIT 18" Wide Clear Icemaker, ADA Compliant (Panel Not Included) - Panel-Ready (BIM182ADAIF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ ADA-compliant
- ✔ 18" Wide Clear Icemaker

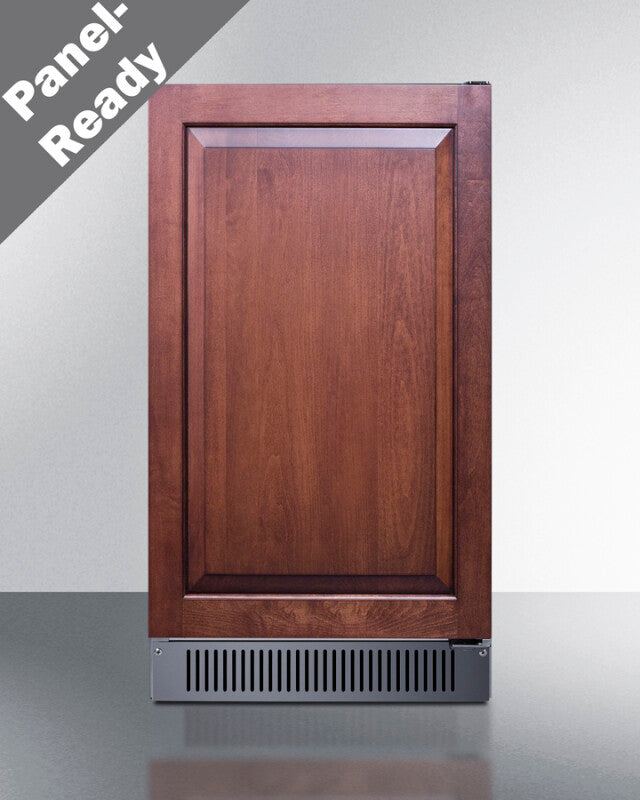

- ✔ Panel-ready door
- ✔ 60 lb. production capacity
- ✔ Built-in pump
- ✔ Height adjustable
- ✔ Automatic defrost

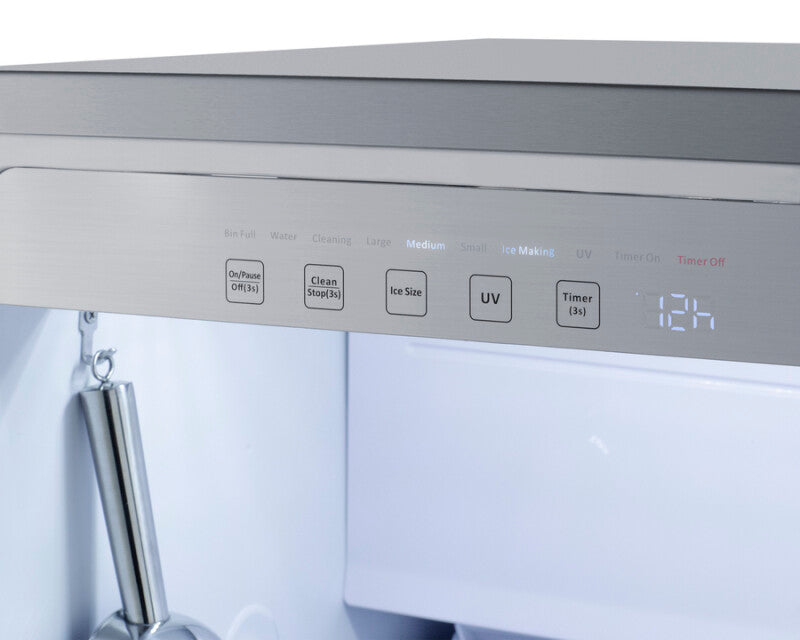

- ✔ Touch control panel
- ✔ Interior light
- ✔ Interior UV light

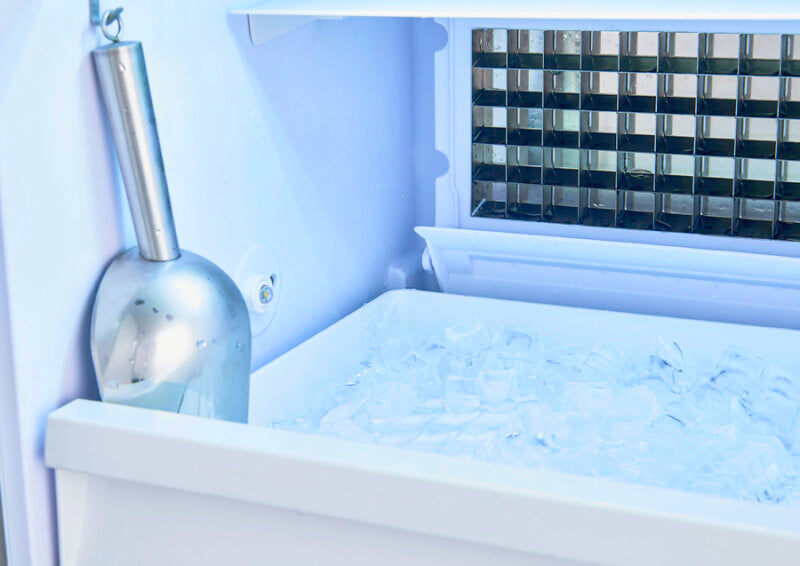

- ✔ Ice scoop included
- ✔ Removable bin
- ✔ Insulated storage bin
- ✔ Fully finished stainless steel cabinet
- ✔ Pro style handle
- ✔ Sealed back
- ✔ Right angle plug
- ✔ 100% CFC free
- ✔ Lead-free certified
- ✔ Built-in capable
- ✔ Ice selection
- ✔ CARB compliant
SUMMIT 18" Wide Clear Icemaker, ADA Compliant (Panel Not Included) - Panel-Ready (BIM182ADAIF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description

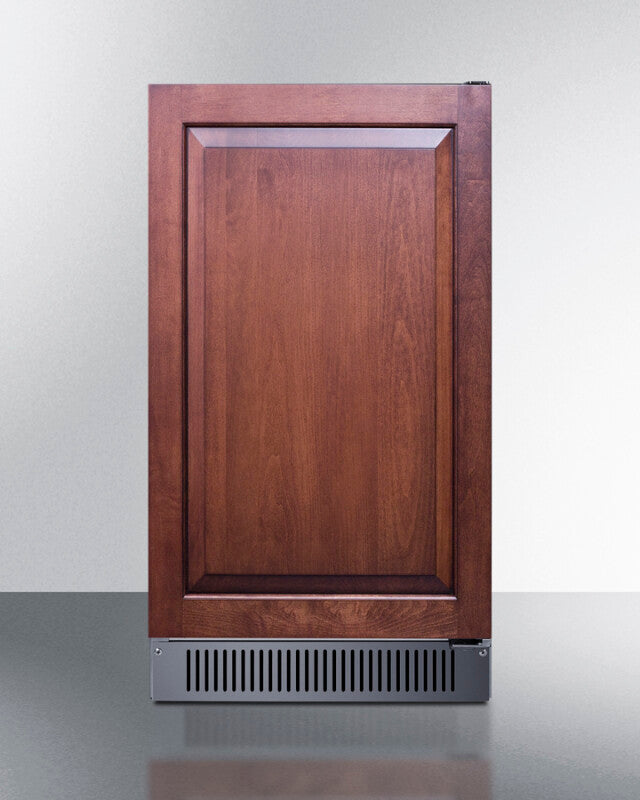

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces. Sized just under 18 inches wide and 32.5 inches high, model BIM182ADAIF features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised up to 34.75 inches to accommodate more standard counters. We include a stainless steel kickplate extender to fill the gap. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings. Inside, the BIM182ADAIF can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The
Product Features
Product Specifications

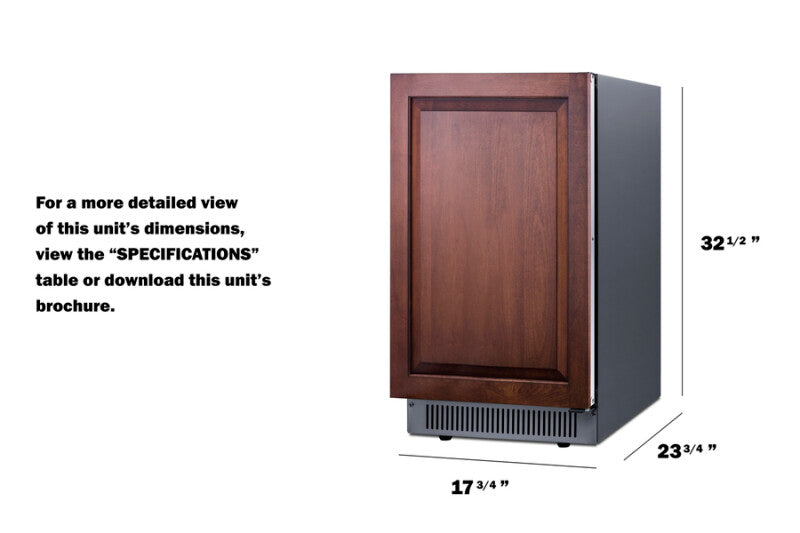

Dimensions & Weight
| Width | 17.75 in. |
| Height | 32.5 in. |
| Length | 23.75 in. |
| Weight | 95 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.93 ft |
| Dimensional Weight | 98.57 lbs. |
| Total of Cubes | 7.93 ft |
| Total of Dimensional Weight | 98.57 lbs. |
Overview Icemaker
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.5" (83 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.75" (60 cm) |
| Depth with Panel | 24.75" (63 cm) |
| Depth with door at 90° | 41.0" (104 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 11.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101150680 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 60.0 lbs. (27 kg) |
| Ice Storage Capacity | 33.0 lbs. (15 kg) |
| Ice Shape | Cube |
| Size of Cube | .87" x .87" . 87" |
| Number of Ice Cube Sizes | 3 |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.37 oz. |
| High Side PSI | 330.0 |
| Low Side PSI | 160.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 14.75" (37 cm) |
| Interior Depth | 16.75" (43 cm) |
| Level Legs | 4 |
Certifications
California Prop 65
