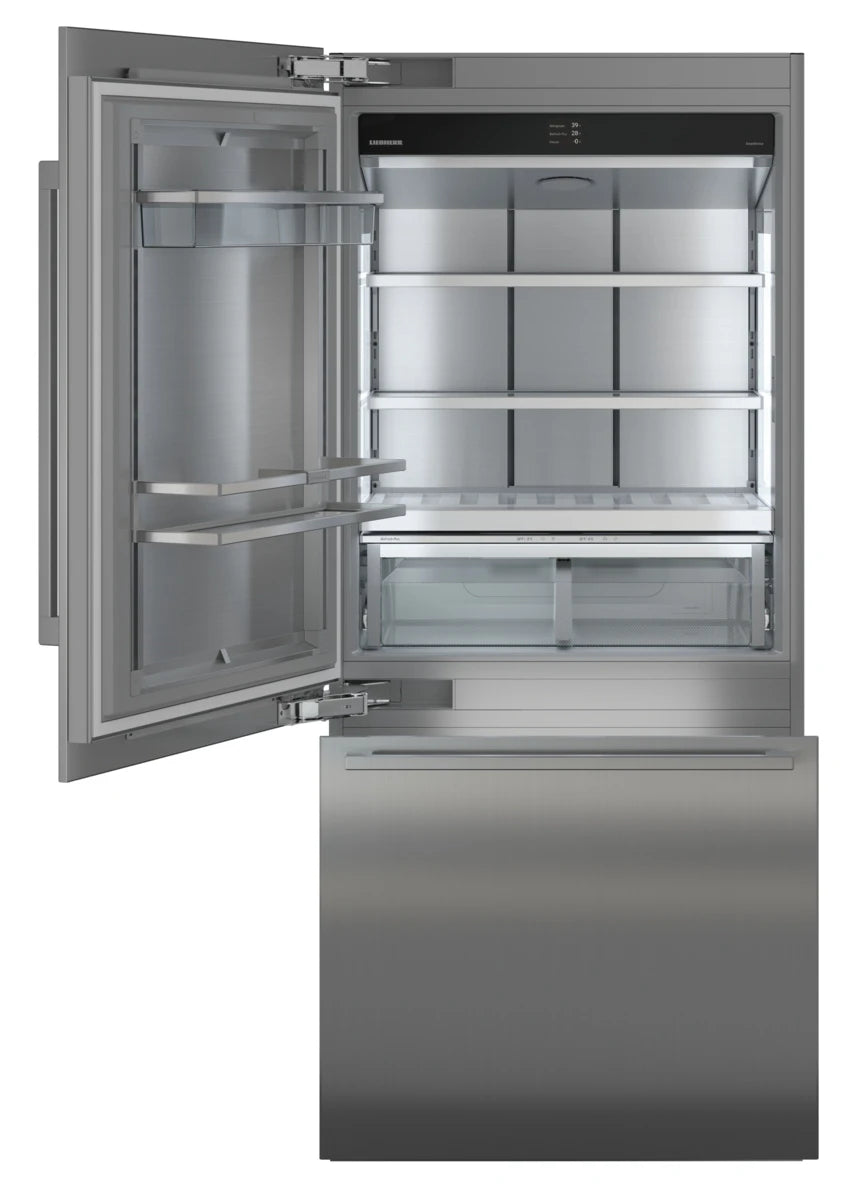

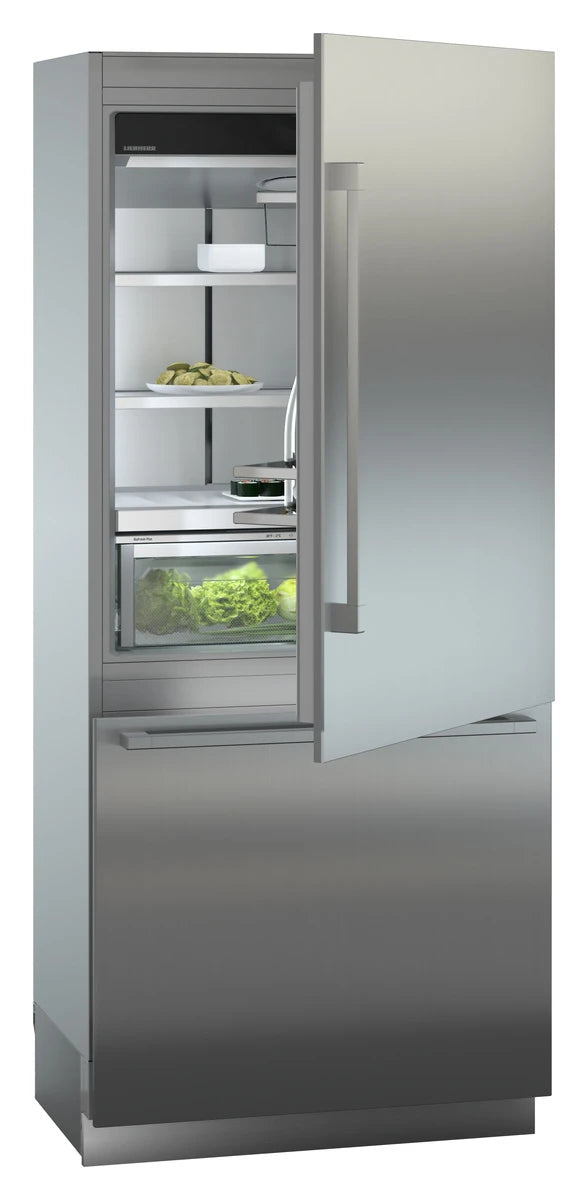

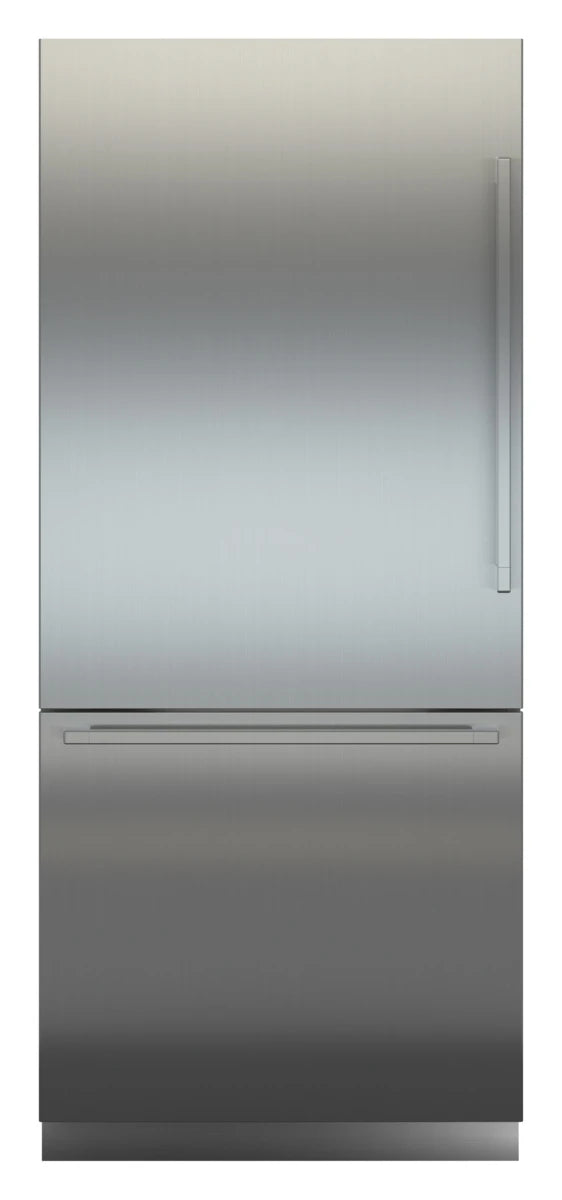

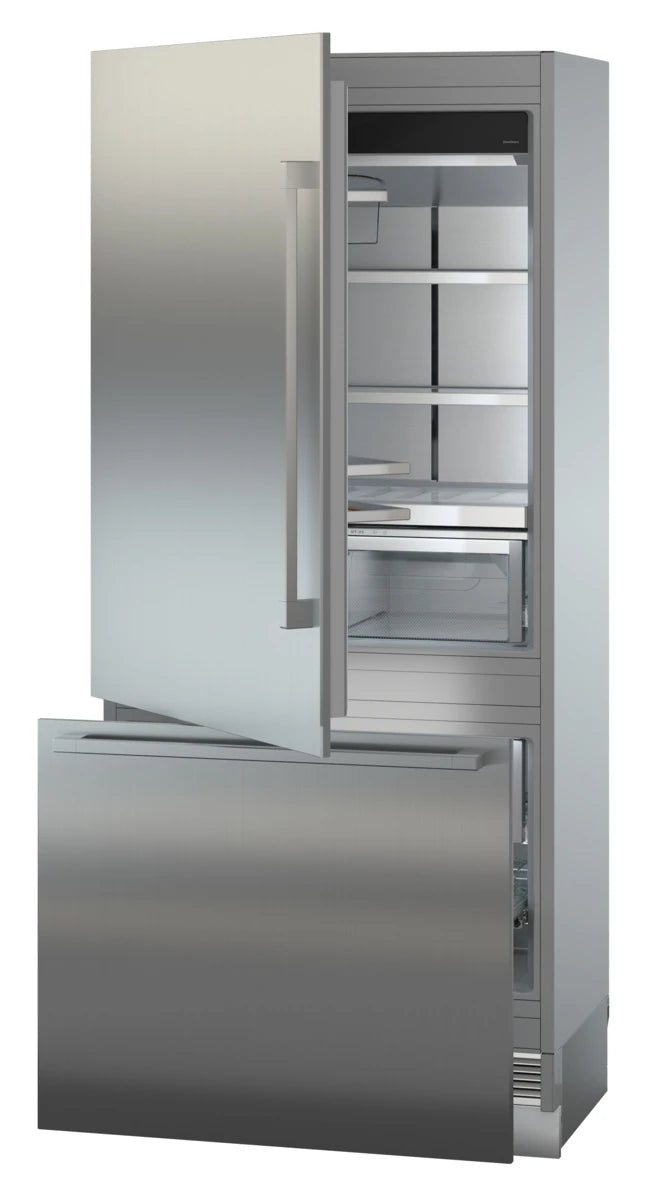

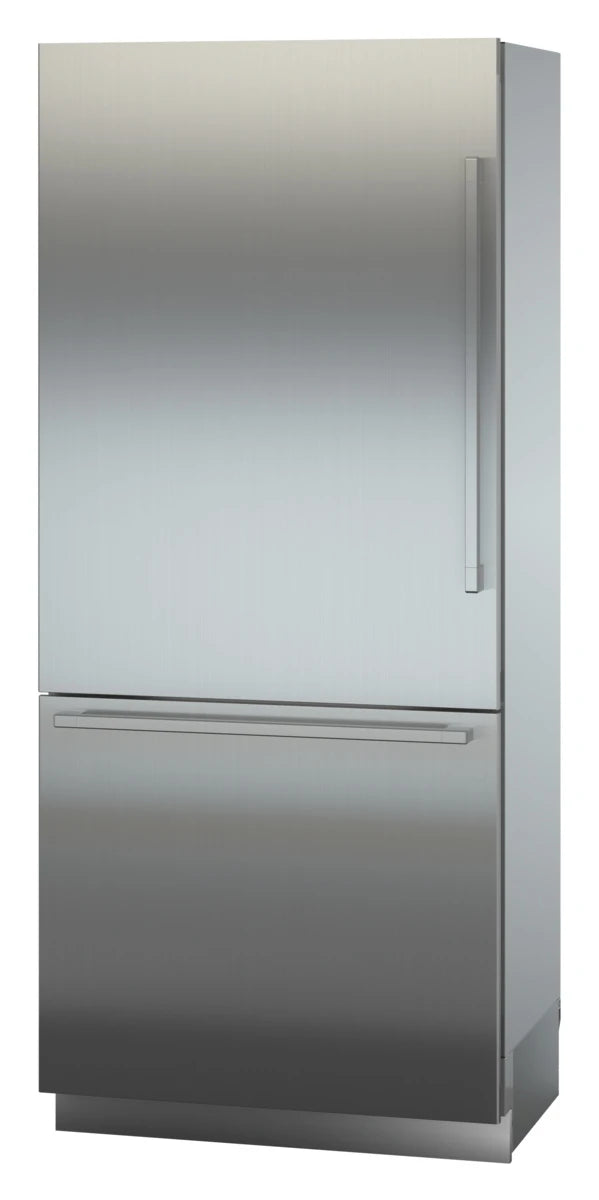

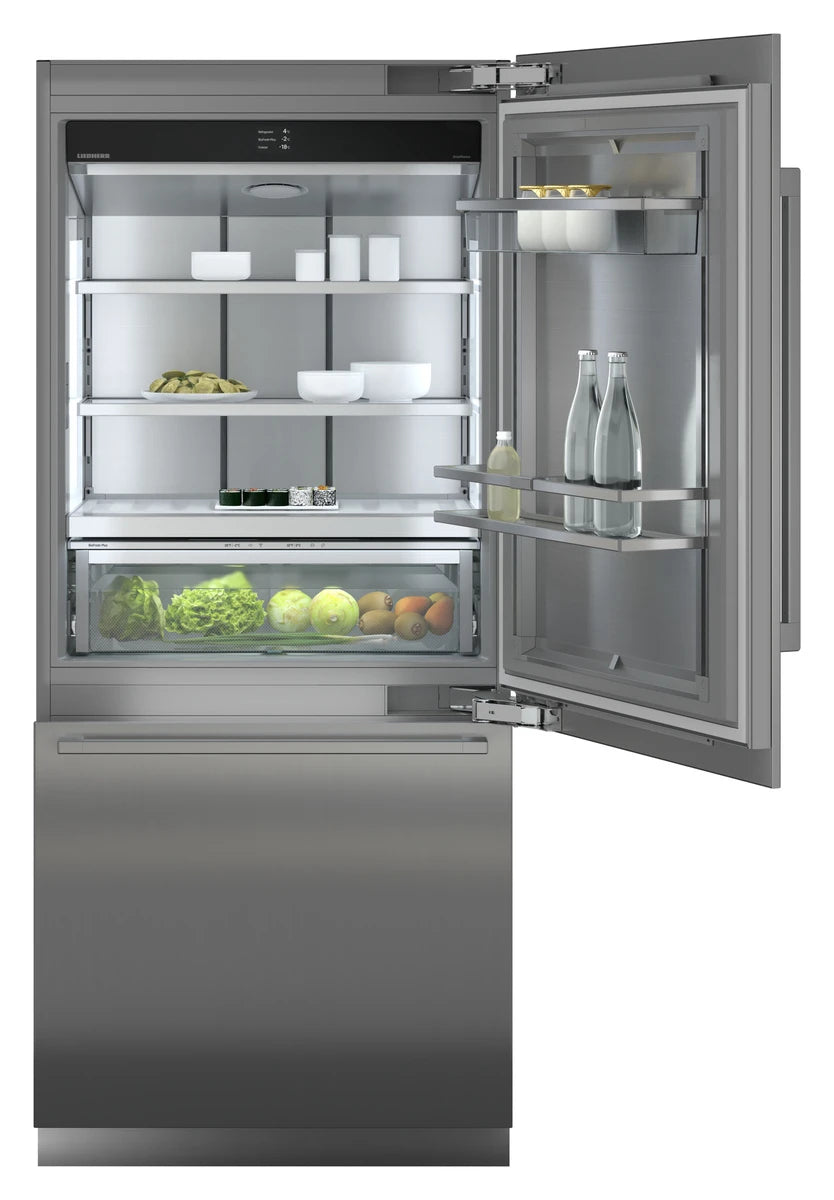

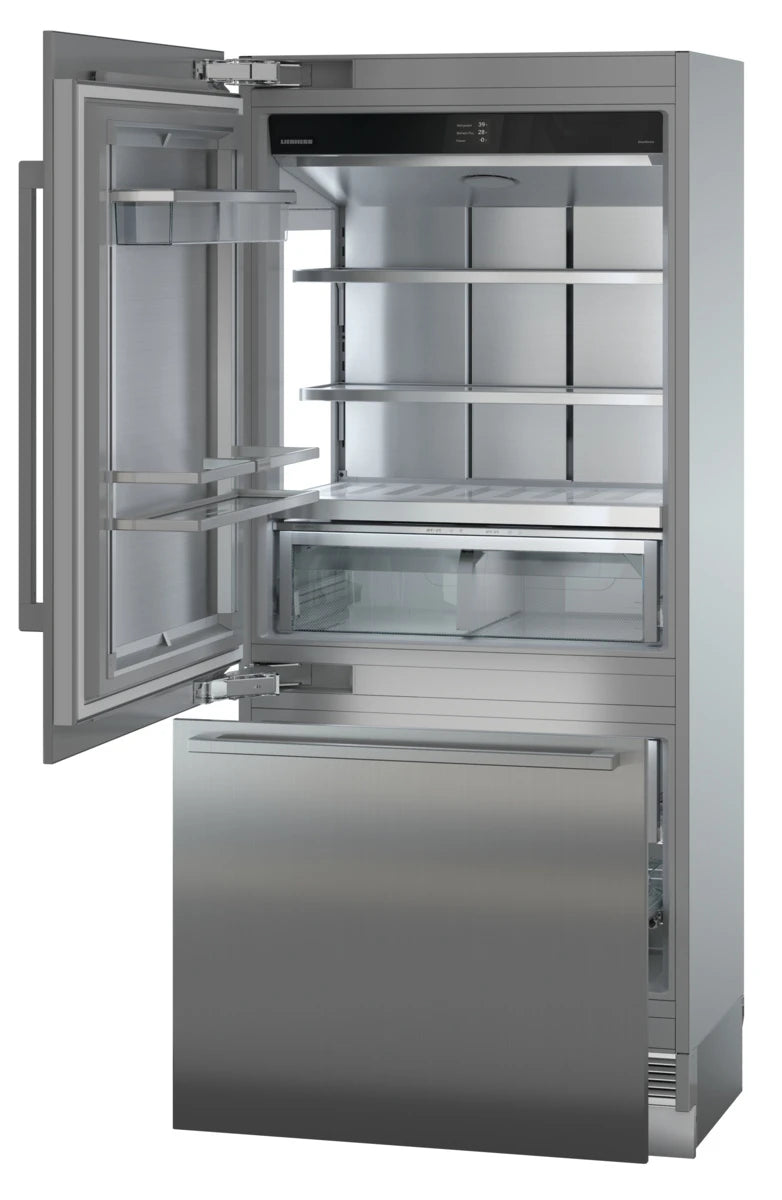

MONOLITH by Liebherr Fully Integrated Bottom Freezer Refrigerator with BioFresh - Panel Ready (MCB3651)
UPC: 9005382274552
MONOLITH by Liebherr Fully Integrated Bottom Freezer Refrigerator with BioFresh - Panel Ready (MCB3651) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ German engineering
- ✔ ENERGY STAR®
- ✔ SmartDevice
- ✔ BioFresh-Plus
- ✔ NoFrost
- ✔ DuoCooling
Documents
MONOLITH by Liebherr Fully Integrated Bottom Freezer Refrigerator with BioFresh - Panel Ready (MCB3651) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
Fully Integrated Bottom Freezer Refrigerator with BioFresh, Exterior dimensions: height/width/depth 83 11/16 | 35 11/16 | 24 in, Net capacity, total 18.1 ft?, ENERGY STAR®, SmartDevice, BioFresh-Plus, NoFrost, DuoCooling, InfinitySwipe, InfinityLight, SuperCool, SuperFrost, InfinitySpring, IceMaker, SoftSystem, BioFreshPlus with SoftTelescopic, Freezer drawer pull-outs with SoftTelescopic
Product Features
Product Specifications
General product information
| Model type | Fully Integrated Bottom Freezer Refrigerator with BioFresh |
| GTIN | 9005382274552 |
| Series | |
| Distribution item no. | 091256751 |
Output and consumption
| Energy consumption per year | 535 kWh/a |
| Energy Label | EnergyStar |
| Energy consumption in 24h | 1.465 kWh / 24h |
| Voltage | 115 V ~ |
| Frequency | 60 Hz |
| Connection rating | 3.0 A 248.5 W |
Control and functions
| Door alarm, freezing | audible |
| Control | 3,5"-LCD-Farbdisplay |
| Position of control unit | behind the door |
| Control unit | Touch & Swipe |
| Child proofing | |
| Temperature display | Fridge, freezing compartment & BioFresh safe |
| Front frame heater | present |
| SuperCool | |
| SuperFrost | Automatic |
| Door alarm, cooling | audible |
| BottleTimer | |
| Malfunction: Warning signal | optical and audible |
Refrigerator compartment
| Interior light of BioFresh safe | Downlight |
| extendible on telescopic rails | |
| Defrosting method | automatic |
| Forced air cooling | |
| FreshAir filter | in valve |
| SoftSystem | |
| Of which separable | 0 |
| of which height-adjustable | 2 |
| Bottle rack | 1 |
| Number of can racks | 0 |
| Storage rack | Gallon rack |
| Interior light | Illuminated side wall |
| Number of storage shelves | 3 |
Freezer compartment
| Freezer compartment position | Bottom |
| Defrosting method | automatic |
| No. of drawers in freezer compartment | 2 |
| Interior light, freezer compartment | LED ceiling lighting |
| Water inlet | Fixed water connection |
| Star-rating | 4 |
| Ice cube storage | 6.6 lb |
| Adjustable temperature range | -14 °C to -27 °C |
| Freezing capacity in 24 hrs | 26.5 lb |
| Ice cube production | 4.0 lb |
Design and materials
| Material door bins | Glass |
| Material of adjustable shelves in the freezer compartment | |
| Cabinet Material | Steel |
| Shelf material | Glass |
Set-up and installation
| Type of installation | Fully Integrated |
| door assembly | Fixed door |
| Door hinges | Left |
| Door hinge replacement | Only possible via customer service |
| Door opening angle | 115° |
| Height-adjustable feet | 0 |
| Leveling bars | |
| Number of levelling bars | 0 |
| Ventilation | Base ventilation |
| Plug type | USA |
| Connector cable (length) | 2,500 mm |
Exterior dimensions: height/width/depth
| Exterior dimensions: height/width/depth | 83 11/16 | 35 11/16 | 24 in |
Net capacity, total
| Net capacity, total | 18.1 ft |
Specifications
| Net capacity, total | 18.1 ft |
| Niche Height | 84 in |
| Range of appliance width | 36 in |
| Min. depth | 25 in |
| Exterior dimensions: height/width/depth | 83 11/16 | 35 11/16 | 24 in |
| Exterior dimensions: height/width/depth (with packaging) | 85 7/16 | 38 3/16 | 30 1/8 in |
| Weight (without packaging) | 463.00 lb |
| Weight (with packaging) | 493.80 lb |
Certifications
California Prop 65
