$256.00 off

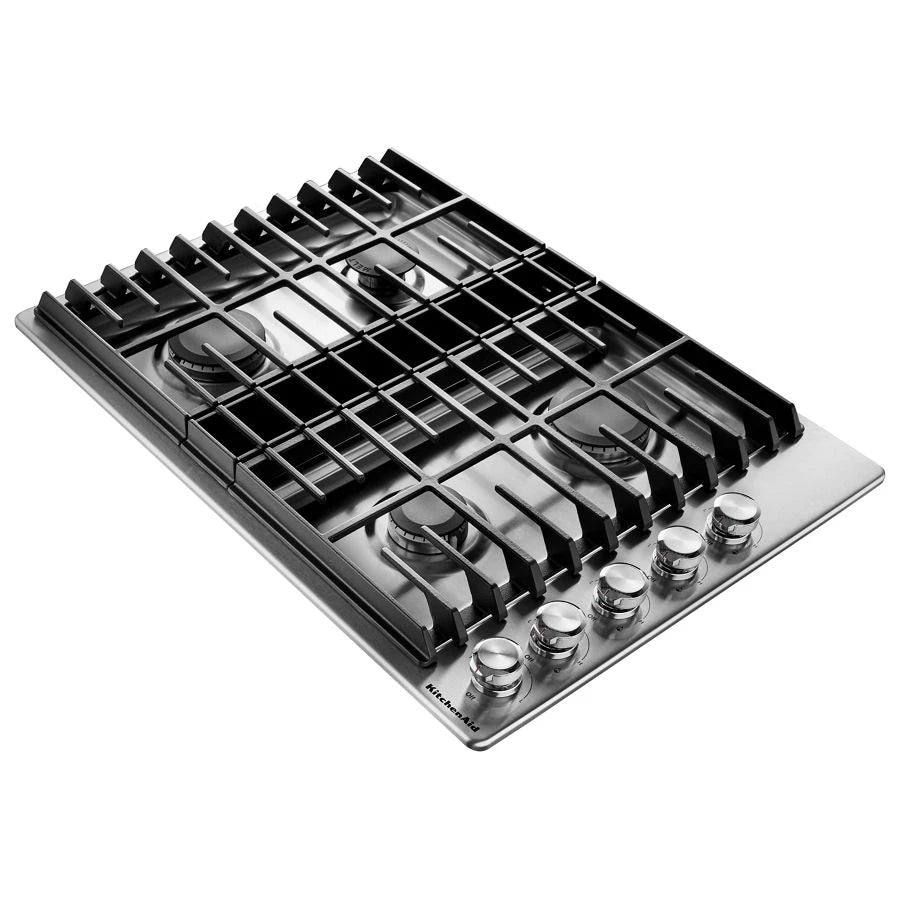

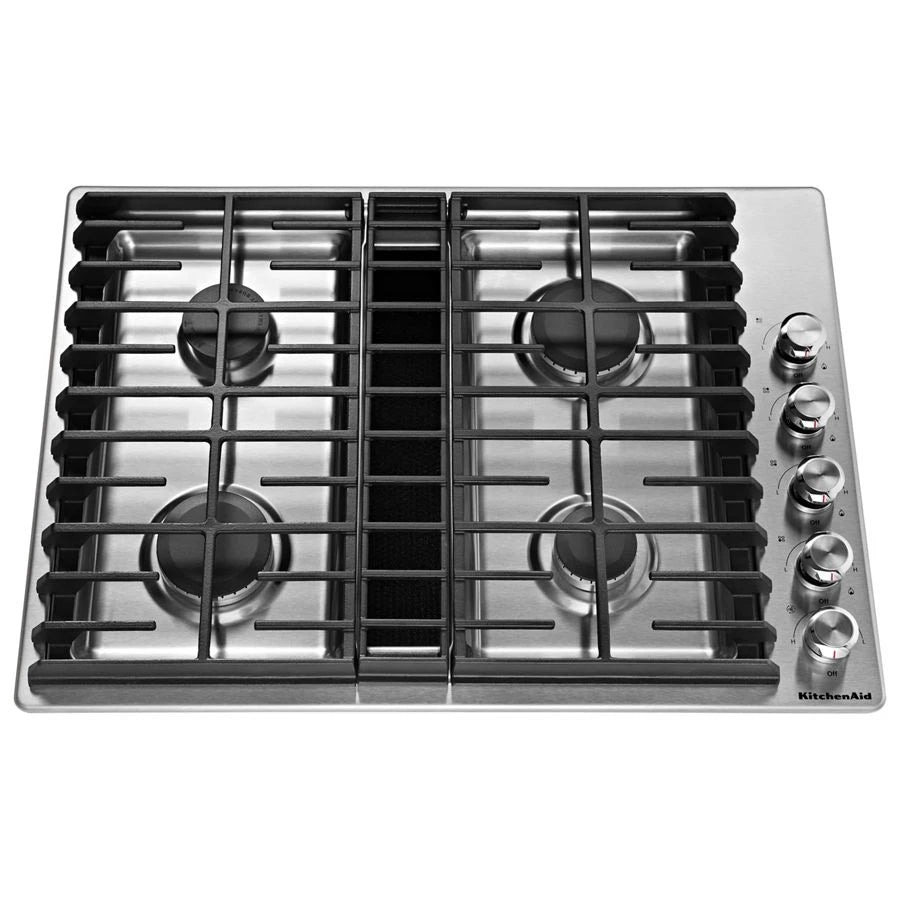

KITCHENAID 30" 4 Burner Gas Downdraft Cooktop - Stainless Steel (KCGD500GSS)
SKU:
KCGD500GSS
UPC: 883049415055
Sale price
$2,29800
Regular price
$2,55400
Unit price
KITCHENAID 30" 4 Burner Gas Downdraft Cooktop - Stainless Steel (KCGD500GSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
KitchenAid + NMG: Up to $4,000 Exclusive Rebate Q3 2026
RECEIVE UP TO $4,000 ON QUALIFYING KITCHENAID APPLIANCES WHEN YOU SHOP LOCAL
Ends: 2026-09-30
Kitchenaid Buy More Save More Delivery And Installation Allowance
KITCHENAID "BUY MORE SAVE MORE" DELIVERY AND INSTALLATION ALLOWANCE
Ends: 2026-08-22
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Downdraft Ventilation
- ✔ Stainless Steel Knobs
- ✔ Full-Width Cast-Iron Grates
- ✔ LP Conversion Kit
- ✔ 17K BTU Professional Burner
- ✔ 300 CFM Exhaust Rating
- ✔ 3-Speed Fan Control
- ✔ 15K BTU Professional Burner
- ✔ Convertible to Duct-Free Ventilation
- ✔ Melt Cap
- ✔ Electronic Ignition and Automatic Re-Ignition
- ✔ 5K BTU Even-Heat™ Simmer Burner
Documents
KITCHENAID 30" 4 Burner Gas Downdraft Cooktop - Stainless Ste...
Sale price
$2,29800
Regular price
$2,55400
Unit price
SKU:
KCGD500GSS
Sale price
$2,29800
Regular price
$2,55400
Unit price
KITCHENAID 30" 4 Burner Gas Downdraft Cooktop - Stainless Steel (KCGD500GSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
This 30” gas cooktop includes Downdraft, an integrated ventilation system that doesnt require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
This 30” gas cooktop includes Downdraft, an integrated ventilation system that doesn?t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
This 30” gas cooktop includes Downdraft, an integrated ventilation system that doesn?t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
Product Features
Downdraft Ventilation
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
Stainless Steel Knobs
Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
LP Conversion Kit
Allows you to convert the cooktop so it can be used with LP gas.
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
300 CFM Exhaust Rating
Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
15K BTU Professional Burner
Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Melt Cap
Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
Electronic Ignition and Automatic Re-Ignition
Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
5K BTU Even-Heat™ Simmer Burner
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
Product Specifications
Controls
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
Cooktop Details
| Number of Open Bays | N/A |
| Cooktop Surface Material | Stainless Steel |
| Digital Display | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
Certifications
| ADA Compliant | No |
| UL | Yes |
| prop65 | Standard |
Electrical
| Power Cord Included | Yes |

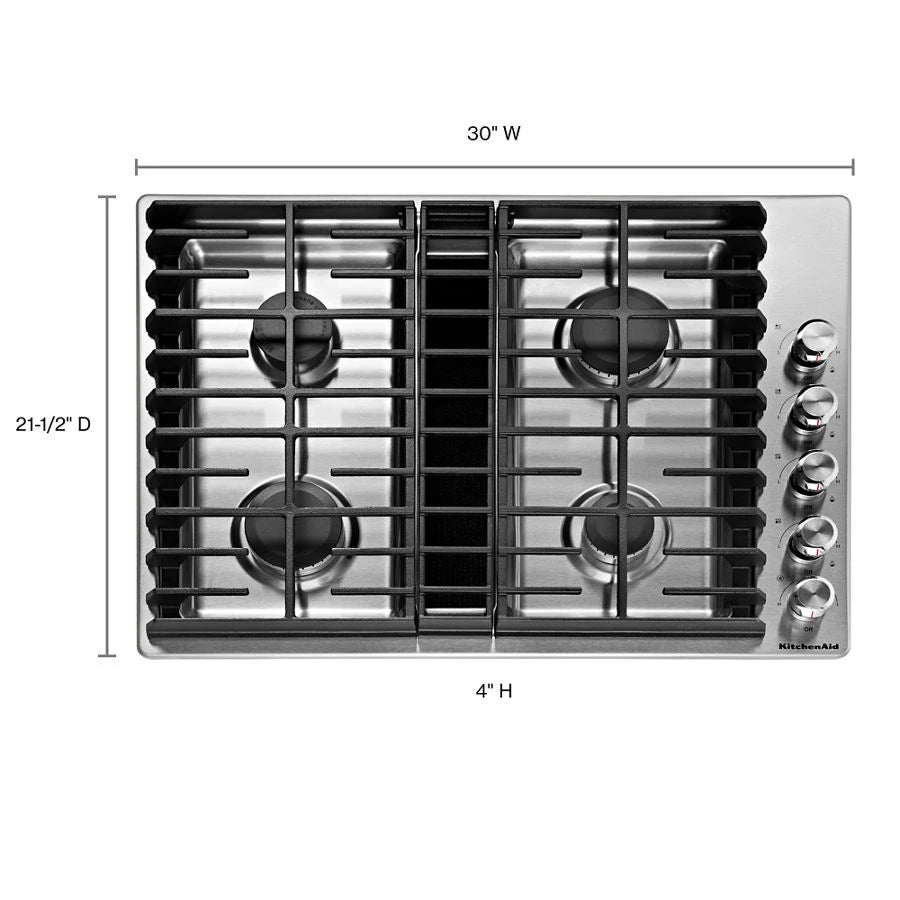

Dimensions & Weight
| Width | 30 in. |
| Height | 18.44 in. |
| Length | 21.5 in. |
| Weight | 78 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 35 1/8 |
| Gross Weight | 78 |
| Net Weight | 66.0 |
| Cutout Depth(IN,inches) | 19.9375 |
| Cutout Width(IN,inches) | 28.6250 |
| Net Weight(LB,pounds) | 66 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 35.1250 |
| Gross Weight(LB,pounds) | 78 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 23.44 in. |
| Shipping Length | 26.5 in. |
| Shipping Weight | 118 lbs. |
| Total of Shipping Weight | 118 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.88 ft |
| Dimensional Weight | 85.57 lbs. |
| Total of Cubes | 6.88 ft |
| Total of Dimensional Weight | 85.57 lbs. |
Details
| Automatic Pan Detection | No |
| Fuel Type | Gas |
| Installs Over Built-In Oven | No |
| LP Convertible | Yes |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | Yes |
Dimensions
| Cutout Depth | 19.938 |
| Cutout Width | 28.625 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 35.12 |
| gross weight | 78 |
| net weight | 66 |
Element/Burner Details
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Downdraft |
| Left Front Element-Burner Power | 17, 000 BTU |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Power | 5, 000 BTU |
| Left Rear Element-Burner Type | Even-Heat™ |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Power | 10, 000 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | 15, 000 BTU |
| Right Rear Element-Burner Type | Burner |
Grate Details
| Grate Details | Cast Iron Grates; Continuous; Matte Finish |
| Number of Grates | 3 |
Ventilation Details
| CFM Motor Class | 300 |
| Downdraft Vent | Yes |
Certifications
California Prop 65
