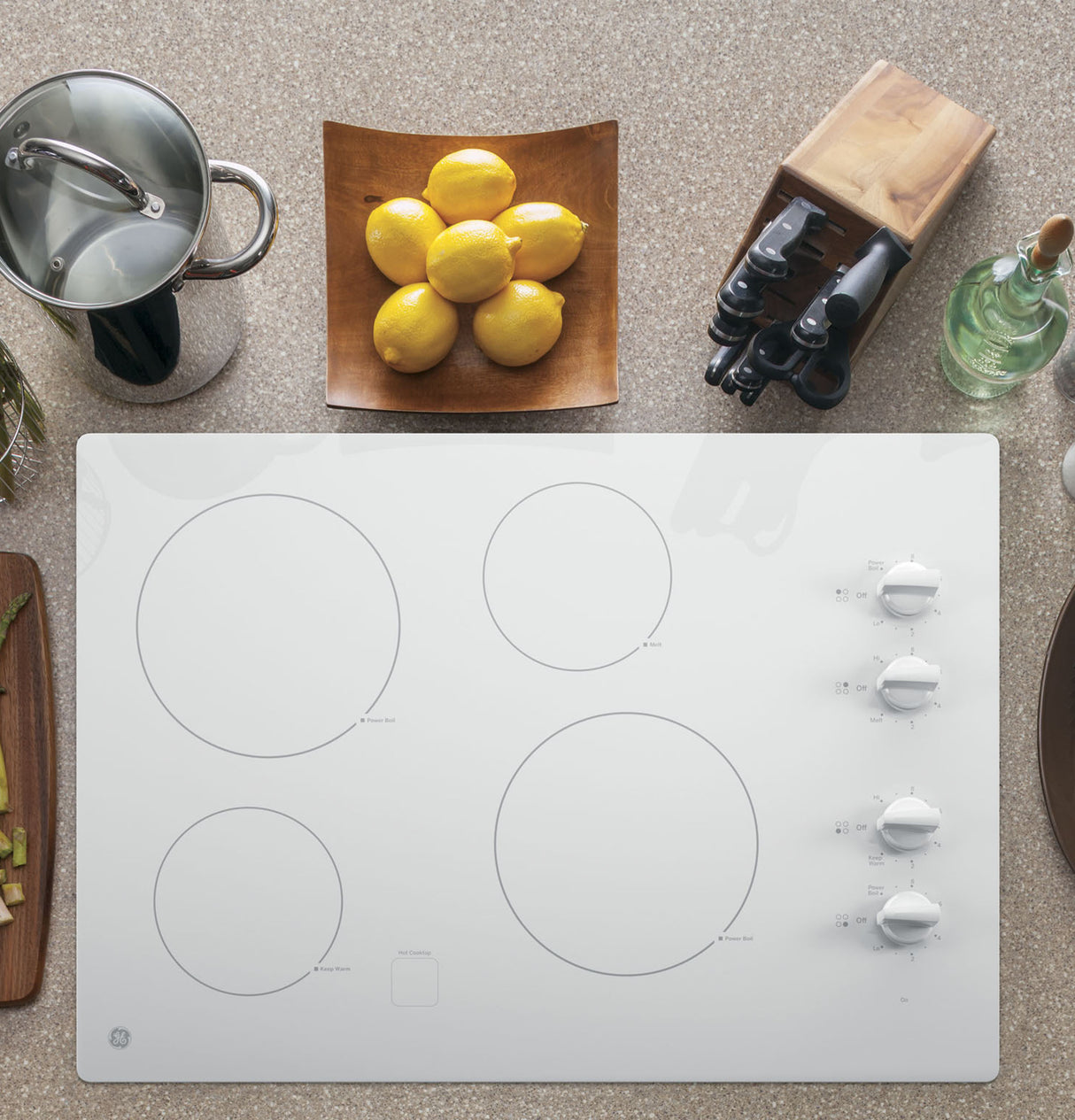

GE 30" Built-In Knob Control Electric Cooktop - White (JP3030TWWW)
UPC: 084691948780
GE 30" Built-In Knob Control Electric Cooktop - White (JP3030TWWW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
GE Fit Guarantee
GE Appliances guarantees your new GE cooktop, wall oven, or slide-in range will fit into an existing space when replacing a similar model. If it does not fit, GE Appliances will cover modification costs up to $100 or $300, issued on a GE Appliances Visa®
Ends: 2026-06-30
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Four radiant cooking elements
- ✔ Melt Setting
- ✔ Hot surface indicator lights
- ✔ Cooktop "On" indicator light
- ✔ Power Boil Elements
- ✔ Keep Warm Setting
- ✔ Fit Guarantee
GE 30" Built-In Knob Control Electric Cooktop - White (JP3030...
GE 30" Built-In Knob Control Electric Cooktop - White (JP3030TWWW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
Get rapid heat from these 2 powerful 8" 2,500-watt elements.A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting.4 H x 29 3/4 W x 20 7/8 D
Product Features
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Height | 4 in |
| Overall Width | 29.75 in |
| Overall Depth | 20.875 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 43 lb |
| Net Weight | 37 lb |

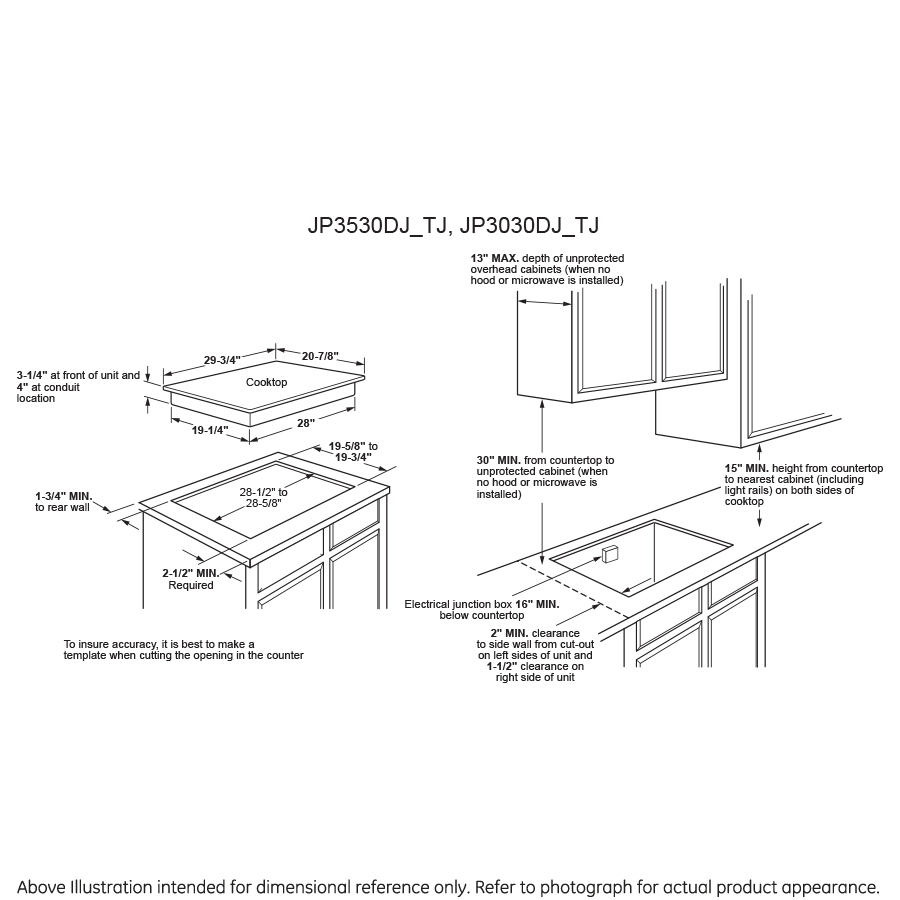

| Cutout Width (in) | 28.5 |
| Cutout Height (in) | 4 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32W |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Power Boil Burner | Yes |
| Element - Left Front | 6" 1200W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 8" 2500W Power Boil |
| Control Location | Right Side |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | True White Ceramic Glass |
| Cooktop Control Features | Melt Setting |
| Element - Left Rear | 8" 2500W Power Boil |
| Control Type | Knob (Infinite switch) |
| Element - Right Rear | 6" 1200W |
| Product Type | Cooktop |
| Cooktop Burner Type | 4 Ribbon |
| Cooktop Control Features | Keep-Warm Setting |
| Indicator Lights | 4 Hot Surface |
| Indicator Lights | Red |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 7.4 |
| Max. Current Draw (Amps) at 240V | 30.8 |
| Max. Connected Load (kW) at 208V | 5.6 |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 26.7 |
| Hertz | 60 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | White |
| Frameless | Yes |
| Control Knobs | Gloss White |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 4 in. |
| Length | 20.88 in. |
| Weight | 37 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 9 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 77 lbs. |
| Total of Shipping Weight | 77 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft |
| Dimensional Weight | 17.87 lbs. |
| Total of Cubes | 1.44 ft |
| Total of Dimensional Weight | 17.87 lbs. |
Certifications
California Prop 65
