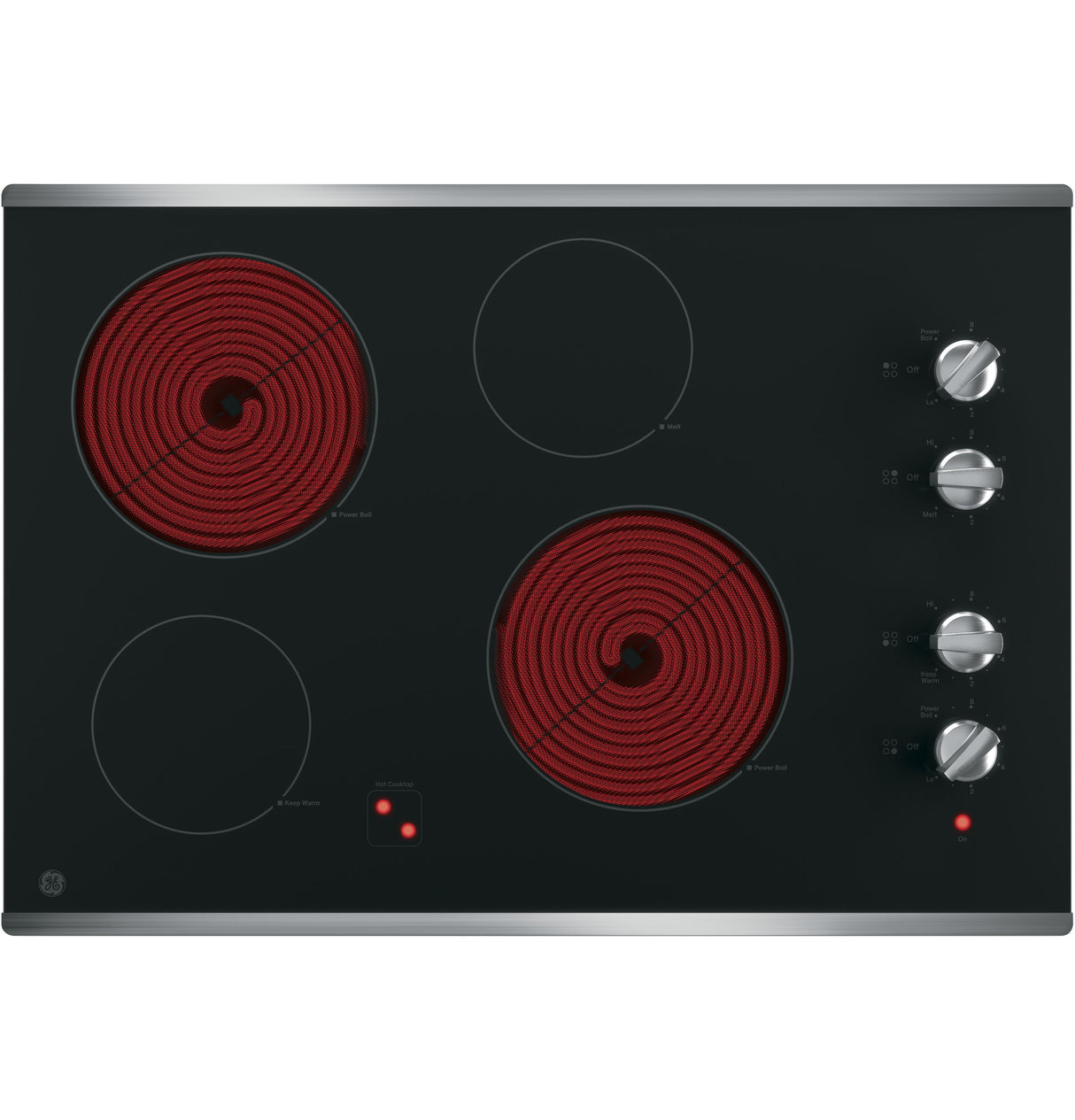

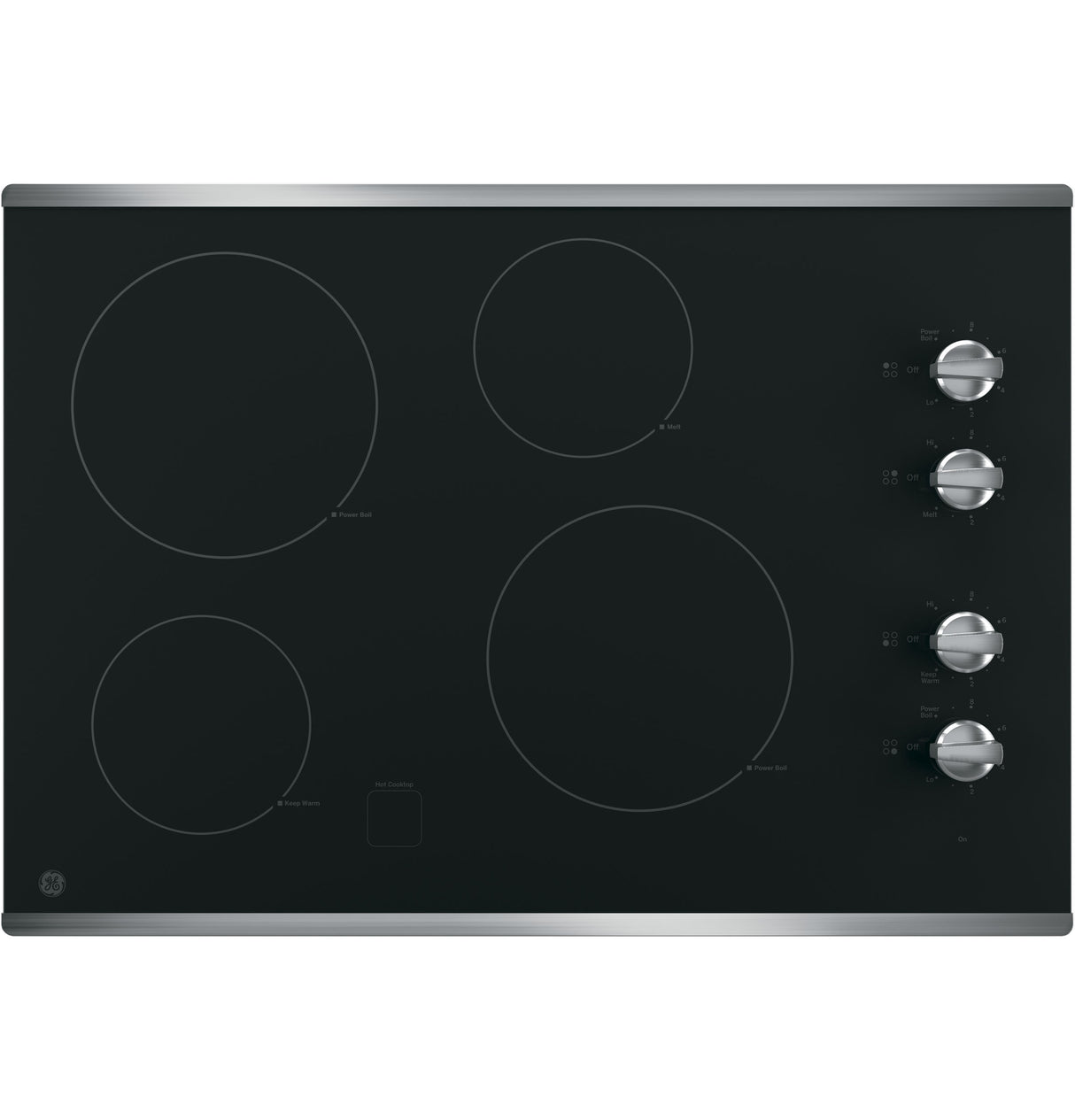

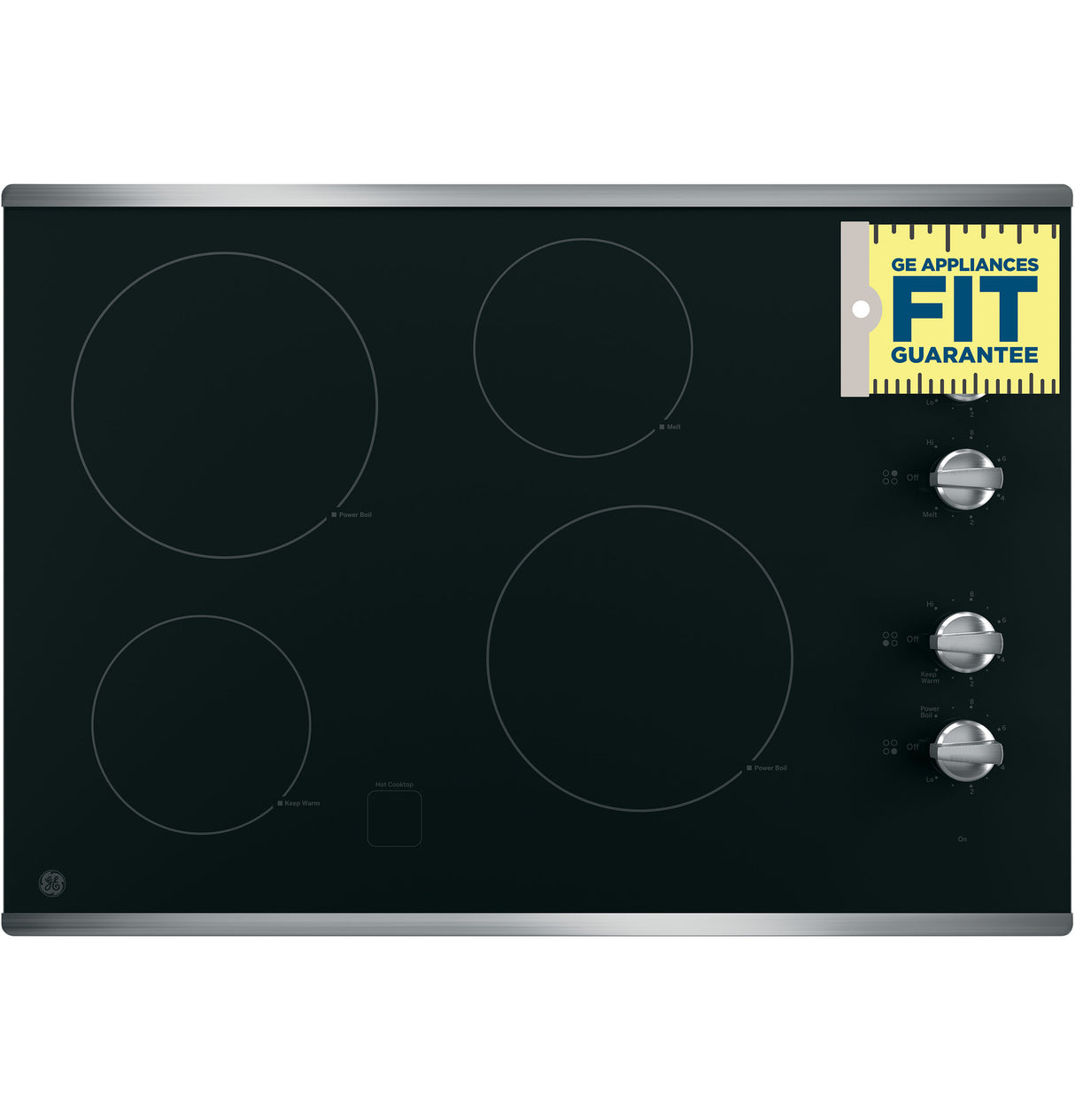

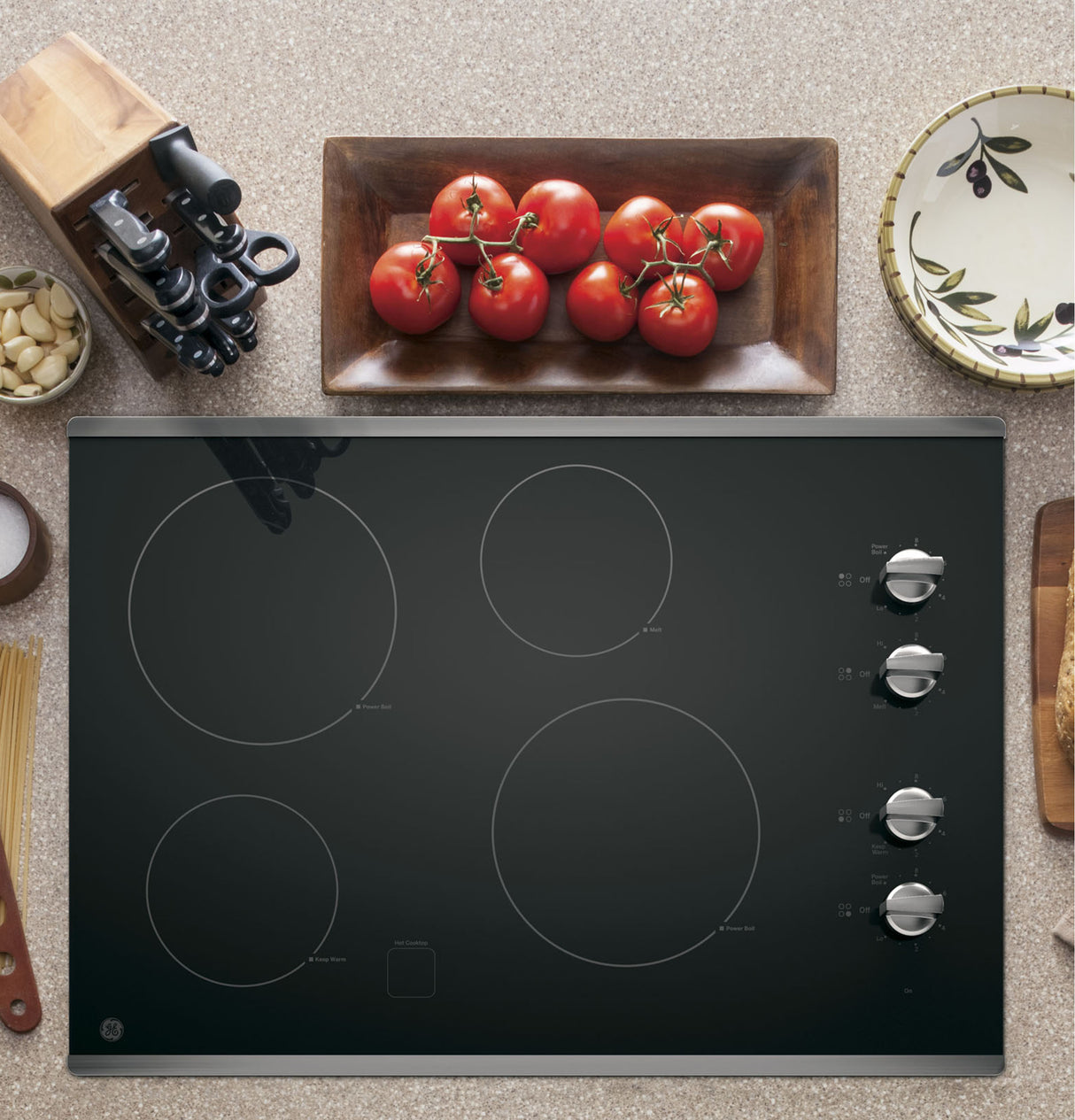

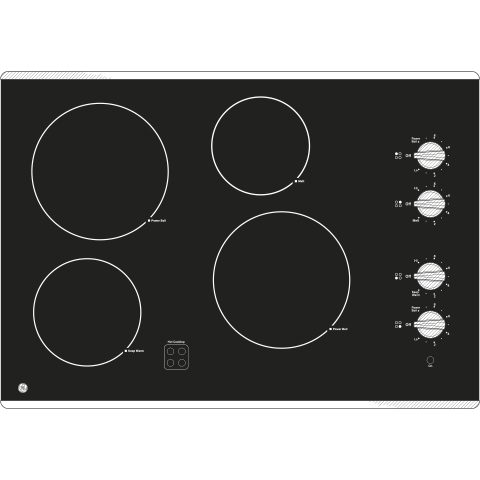

GE APPLIANCES GE(R) 30" Built-In Knob Control Electric Cooktop - (JP3030SWSS)

Product Specifications

Color Appearance	Stainless Steel on Black
Control Knobs	Stainless Steel Appearance
Frame Color / Material	Stainless Steel
Control Location	Right Side
Control Type	Knob (Infinite switch)
Cooktop Burner Type	4 Ribbon<br/> Smoothtop
Cooktop Control Features	Keep-Warm Setting<br/> Melt Setting
Cooktop Surface	Black Ceramic Glass with Stainless Steel Trim
Cooktop Type	Radiant Smoothtop
Dishwasher Safe Knobs	Yes
Element - Left Front	6" 1200W
Element - Left Rear	8" 2500W Power Boil
Element - Right Front	8" 2500W Power Boil
Element - Right Rear	6" 1200W
Filler trim kit	JXTR32B
Fuel Type	Electric
Indicator Lights	4 Hot Surface<br/> Red<br/> Surface Element "ON"
Melt Setting	Yes
Power Boil Burner	Yes
Product Type	Cooktop
Electrical Requirements	208/240V ; 60Hz ; 40A
Max. Connected Load (kW) at 208V	5.6
Max. Connected Load (kW) at 240V	7.4
Max. Current Draw (Amps) at 208V	26.7
Max. Current Draw (Amps) at 240V	30.8
Recommended Circuit Breaker (Amps) at 208V	30
Recommended Circuit Breaker (Amps) at 240V	40
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Approximate Shipping Weight	43

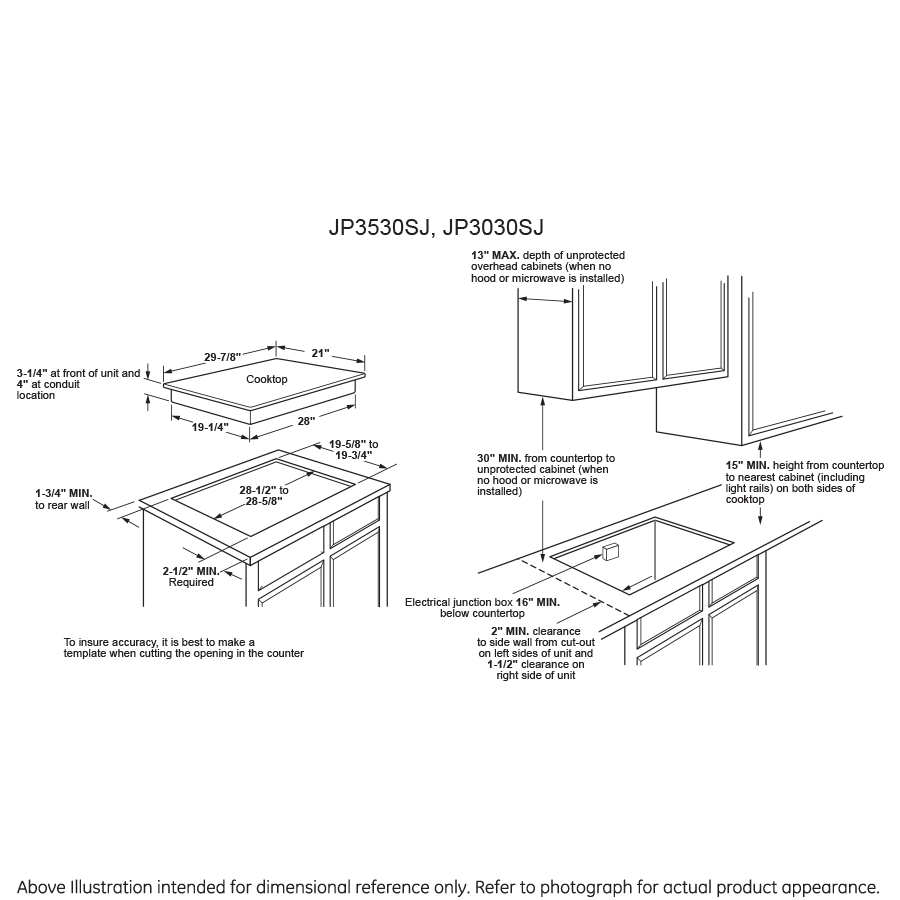

Cabinet Width	30
Cooktop Size	30
Cutout Depth (in)	19 5/8 in
Cutout Width (in)	28.5
Net Weight	37
Overall Depth	21
Overall Height	4
Overall Width	29.875

Product Specifications

Product Specifications

• Claim: ADA Compliant
• Data_ID: 1
• Claim: UL
• Data_ID: 2
• Claim: California Prop 65
• Data_ID: 3
• Claim: <div class="chemicals-link"><a href="https://www.geappliances.com/chemical-reports" target="_blank">View Chemical Content Reports</a></div>
• Data_ID: 4
• <div class="chemicals-link"><a href="https://www.geappliances.com/chemical-reports" target="_blank">View Chemical Content Reports</a></div>
• ADA Compliant
• California Prop 65
• UL
