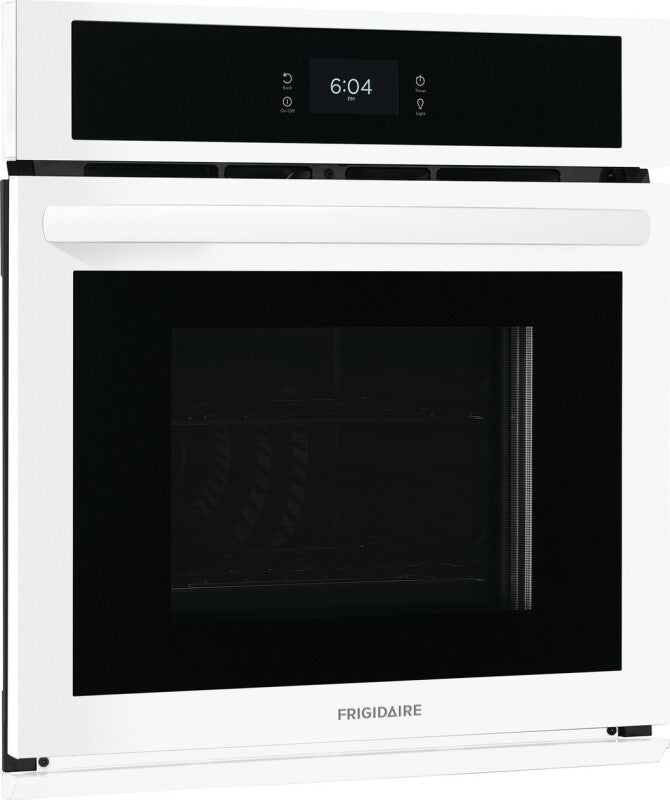

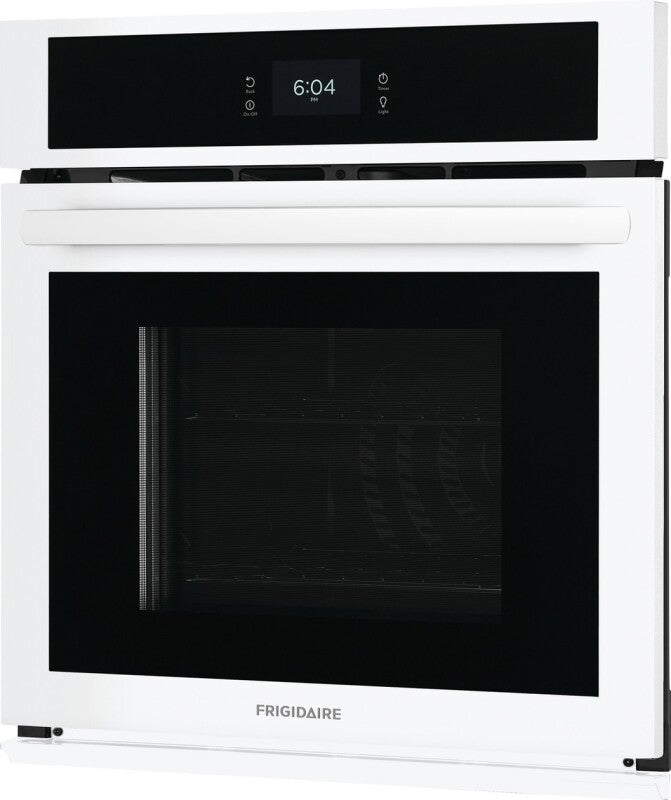

            Frigidaire 27" Single Electric Wall Oven with Fan Convection - White (FCWS2727AW)
UPC: 12505516320
Frigidaire 27" Single Electric Wall Oven with Fan Convection - White (FCWS2727AW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
Frigidaire Perfect Fit Promise 2025 - Wall Ovens
Frigidaire® promises that your new 27" or 30" Frigidaire® brand wall oven will fit your existing cabinet cutout of the same width and configuration, or Frigidaire will reimburse you for insta
Ends: 2025-12-31


Delivery and Shipping



                  Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Fan Convection
- ✔ Self Clean Oven
- ✔ Frigidaire® Fit Promise

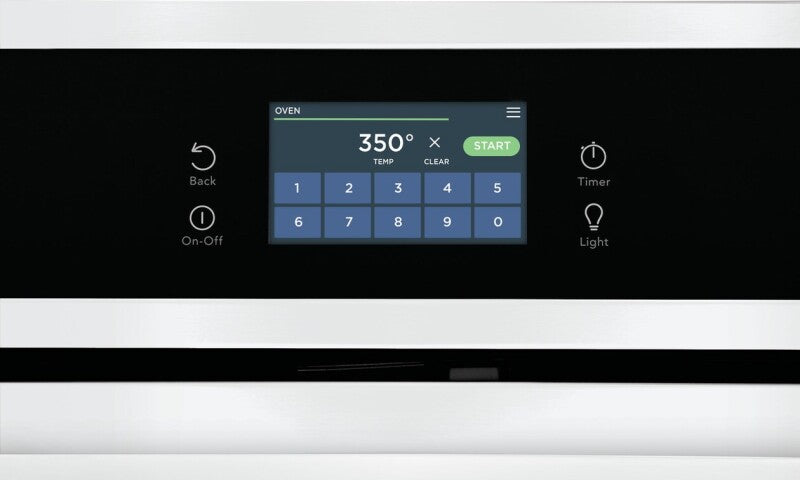

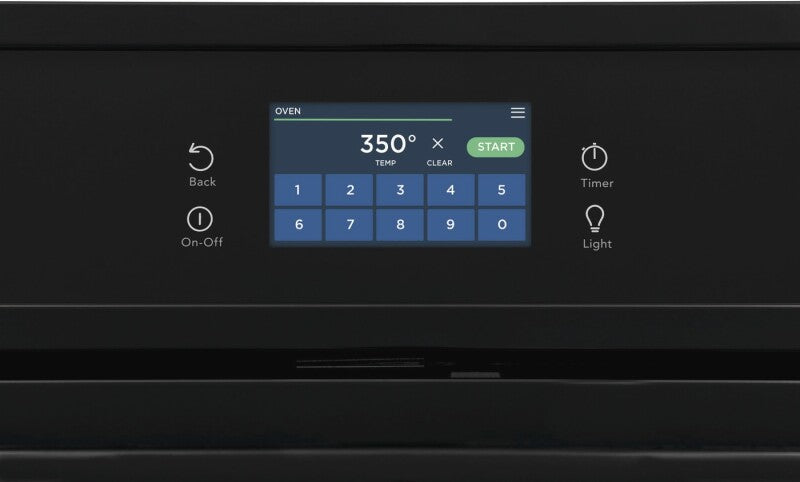

- ✔ Premium Touch Screen Control Panel
- ✔ Custom Broil Temp Setting
- ✔ Convenient Cook Time Setting
- ✔ Keep Warm Setting
Documents
Product Features
Product Specifications
Other
| Frigidaire Fit Promise | Yes |
| Warranty - Labor | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Oven Capacity | 3.8 Cu. Ft. |
Controls
| Control Lock | Yes |
| Sabbath Mode | Yes |
Cooking Controls
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |

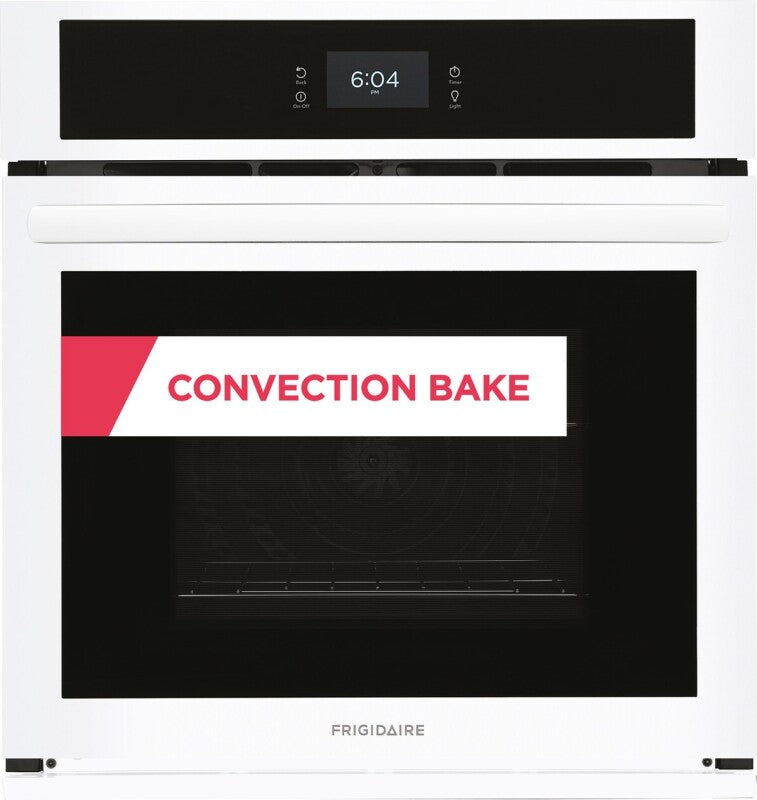

| Convection Bake | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Quick Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
Cooking Controls Function
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
Certifications and Approvals
| ADA Compliant | Yes |
| CSA Listed | Yes |
| RoHS | Yes |
| Star-K Certification | Yes |
| UL Listed | Yes |
Electrical Specifications
| Amps @ 240 Volts | 20 Amps |
| Connected Load @ 240V | 4.5 kW |
| Minimum Circuit Required | 20 Amps |
| Voltage Rating | 240 V |
Installation
| Power Supply Connection Location | Top Left |
Oven
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |

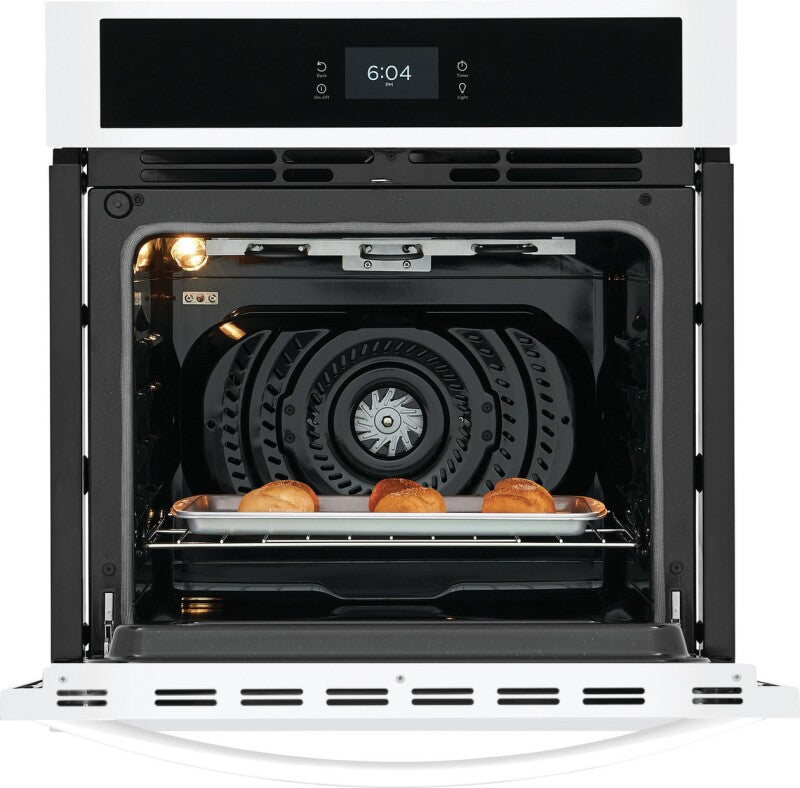

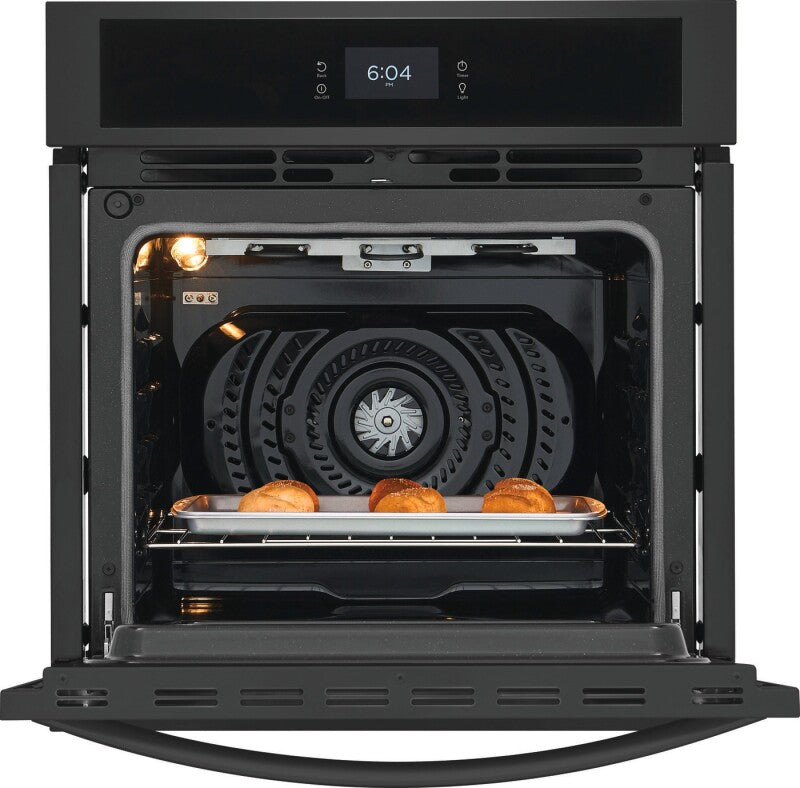

| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |

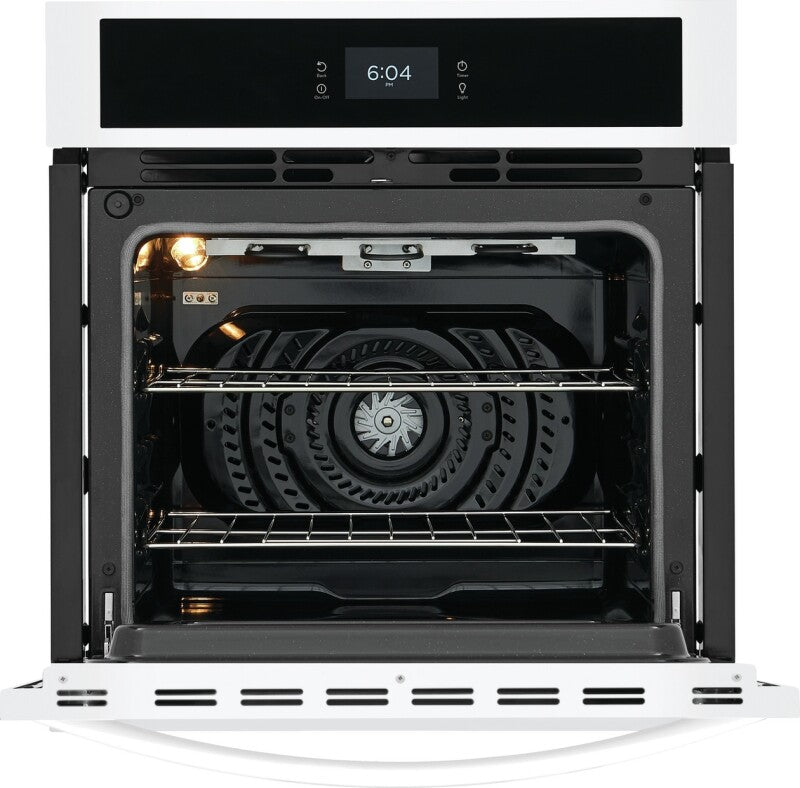

| Number of Rack Positions | 5 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Handle |
| Rack Type 1 Quantity | 2 |
Display
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | LED |

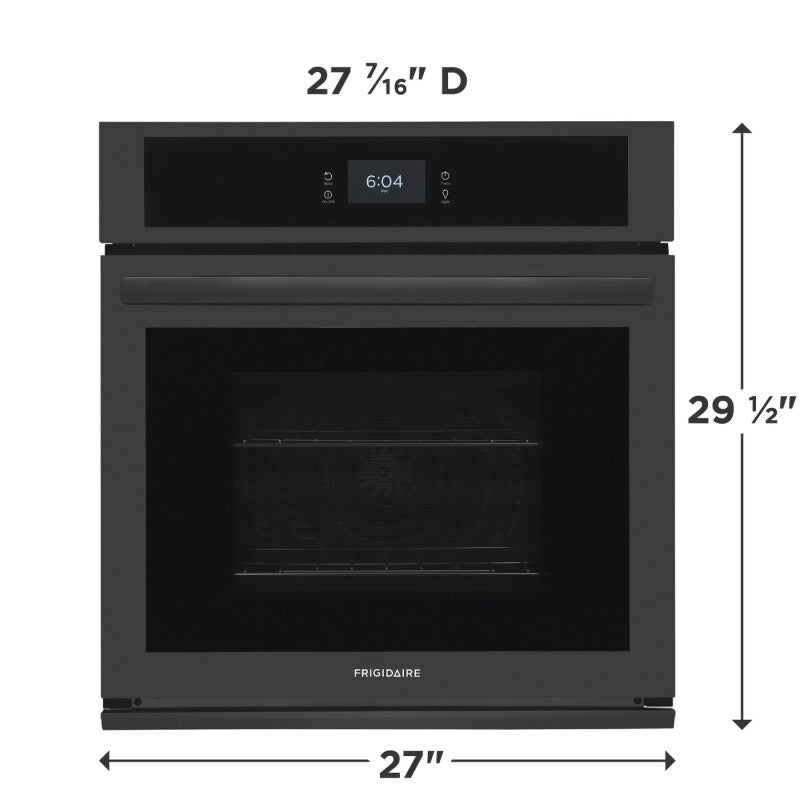

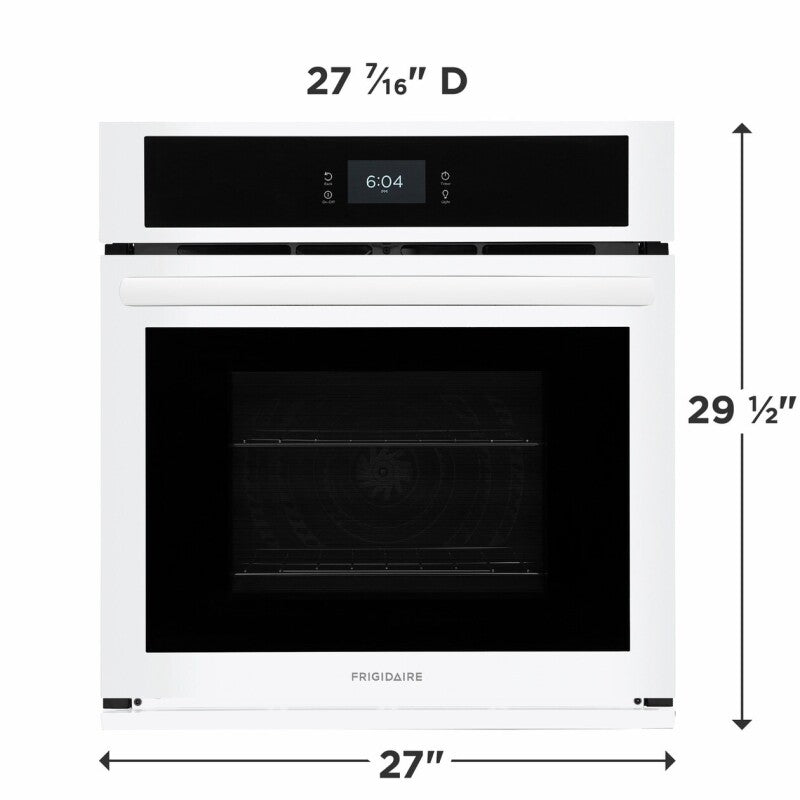

Dimensions & Weight
| Width | 27 in. |
| Height | 29.5 in. |
| Length | 24.75 in. |
| Weight | 110 lbs. |
| Depth With Door 90° Open | 45 3/4" |
| Depth With Handle | 27 7/16" |
| Oven Interior Height | 17" |
| Oven Interior Width | 20 1/2" |
| Oven Interior Depth | 18 3/4" |
| Minimum Cutout Height | 27 1/4" |
| Minimum Cutout Width | 24 7/8" |
| Maximum Cutout Height | 28 1/4" |
| Maximum Cutout Width | 25 1/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 34.5 in. |
| Shipping Length | 29.75 in. |
| Shipping Weight | 150 lbs. |
| Total of Shipping Weight | 150 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.41 ft |
| Dimensional Weight | 141.82 lbs. |
| Total of Cubes | 11.41 ft |
| Total of Dimensional Weight | 141.82 lbs. |
Certifications

      California Prop 65
