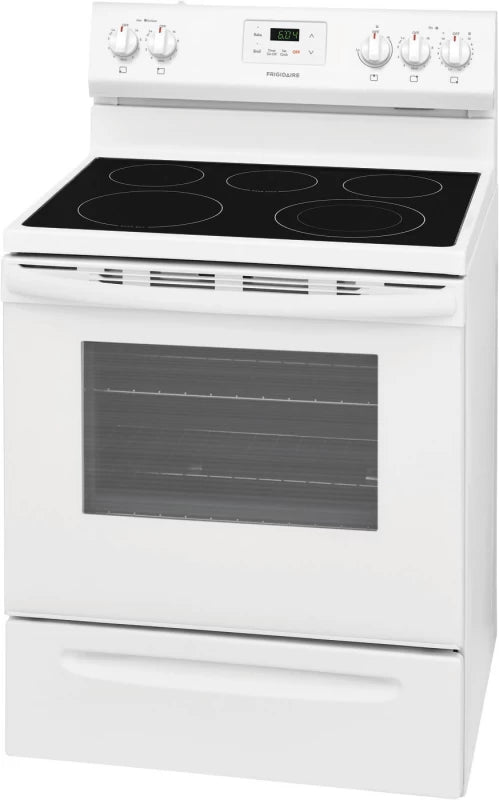

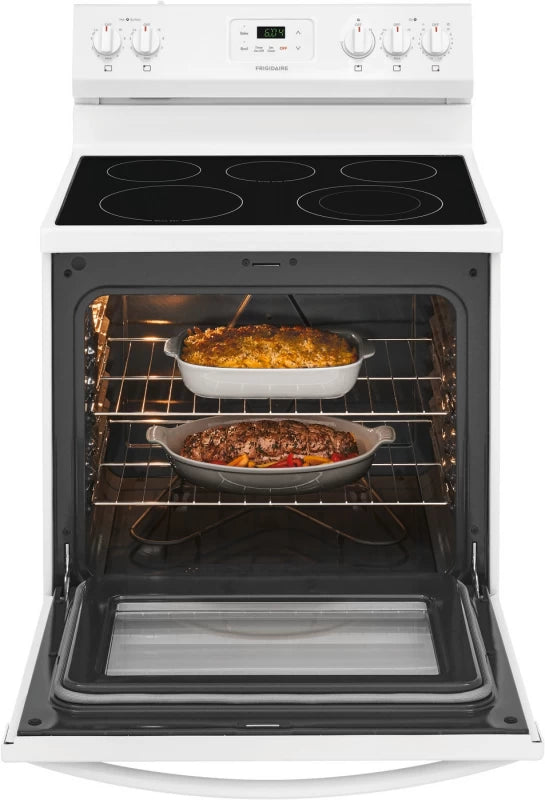

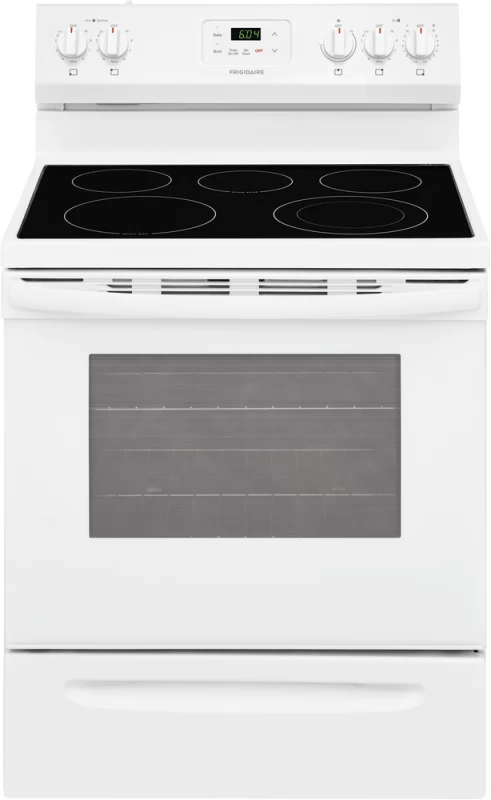

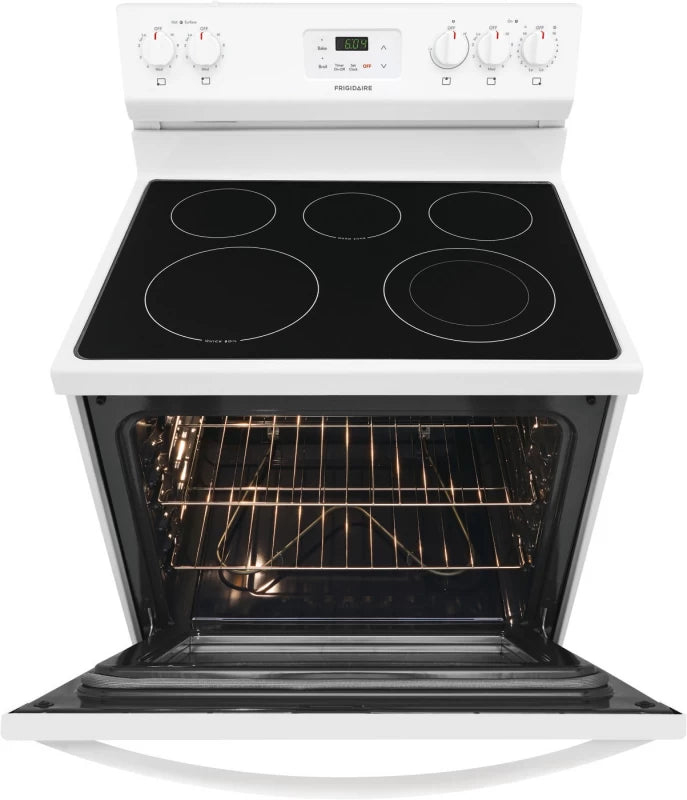

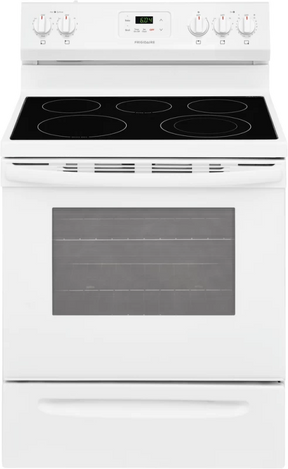

FRIGIDAIRE 30'' Electric Range - (FCRE3052AW)

SKU: FCRE3052AW

UPC: 012505513831

Regular price $609.00

FRIGIDAIRE 30'' Electric Range - (FCRE3052AW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • Quick Boil Element
  • SpaceWise® Expandable Elements
  • Store-More™ Storage Drawer
  • Keep Warm Zone

Documents

PDF Icon

Complete Owner's Guide

View | Download

PDF, 12.56 MB

PDF Icon

Installation Instructions

View | Download

PDF, 2.33 MB

PDF Icon

Quick Start Guide

View | Download

PDF, 829.23 KB

PDF Icon

Product Specifications Sheet

View | Download

PDF, 807.82 KB

Description

30'' Electric Range

Product Features

Quick Boil Element
Quick Boil Element
Get meals on the table faster with our 3,000W element - water boils faster than the traditional setting.
SpaceWise® Expandable Elements
SpaceWise® Expandable Elements
Flexible elements expand to meet your cooking needs big or small.
Store-More™ Storage Drawer
Store-More™ Storage Drawer
With the Store-More™ Storage Drawer, you will have extra space to store your cookware.
Keep Warm Zone
Keep Warm Zone
Keep food warm until everything and everyone is ready.

Product Specifications

Other

Prop 65 Label Yes
Warranty - Labor 1 Year
AB-1200 Information available at frigidaire.com/en/ab1200
Oven Capacity 5.3 Cu. Ft.

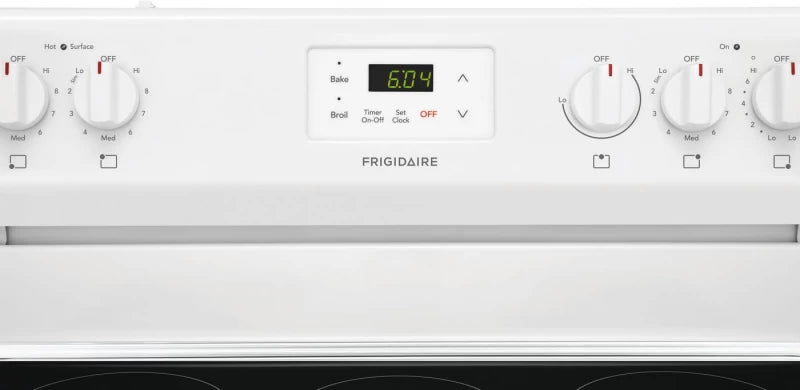

Controls

Control Lock No
Sabbath Mode No

Cooking Controls

Bake Yes
Broil Yes
Cancel Yes
Delay Clean No
Keep Warm Yes
Kitchen Timer Yes
Lockout No
Off No
Oven Light Yes
Preheat Yes
Probe No
Self Clean No
Temperature Display Yes
Timed Bake No
Warmer Drawer No

Certifications and Approvals

ADA Compliant No
ETL Listed No
UL Listed Yes

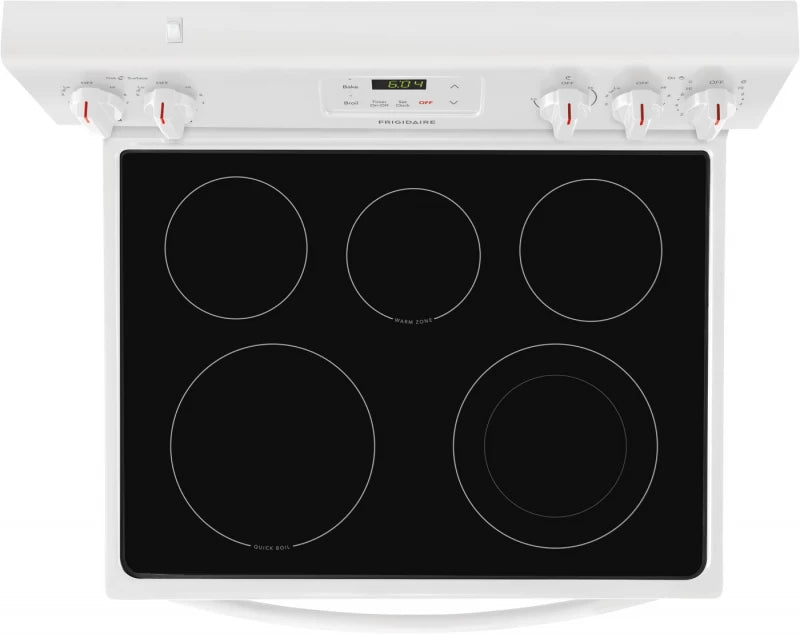

Cooktop

Cooking Surface Type Smooth
Element On Indicator Light Yes
Hot-Surface Indicator Light Yes
Keep Warm Zone Light Yes

Cooktop Performance

Right Front Element Burner Size (Small) 6"
Right Front Element Burner Size (Large) 9"
Right Rear Element Burner Size 6"
Left Front Element Burner Size 9"
Left Rear Element Burner Size 6"
Right Front Element Burner (Small) 1400 Watts
Right Front Element Burner (Large) 3000 Watts
Right Rear Element Burner 1200 Watts
Left Front Element Burner 3000 Watts
Left Rear Element Burner 1200 Watts
Keep Warm Burner Location Center Rear

Drawer

Drawer Type Storage

Electrical Specifications

Minimum Circuit Required 40 Amps
Voltage Rating 240 V

Installation

Adjustable Leveling Legs Yes
Power Supply Connection Location Bottom Center

Exterior

Cooktop Finish Black
Knob Color White
Knob Material Plastic

Oven

Bake Element 2600 Watts
Bake System Yes
Broil Element 3000 Watts
Broil System Yes
Number of Rack Positions 6
Rack Position Type Nickel Ladder
Rack Type 1 Flat
Rack Type 1 Quantity 2

Display

Display Type Membrane

Dimensions & Weight

Width 29.88 in.
Height 46.56 in.
Length 25.75 in.
Weight 156.75 lbs.
Depth With Door 90° Open 48 5/8"
Depth With Handle 29 1/4"
Oven Interior Height 19 3/4"
Oven Interior Width 24 3/8"
Oven Interior Depth 19 1/8"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 51.56 in.
Shipping Length 30.75 in.
Shipping Weight 196.75 lbs.
Total of Shipping Weight 196.75 lbs.
Source Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement 20.73 ft
Dimensional Weight 257.7 lbs.
Total of Cubes 20.73 ft
Total of Dimensional Weight 257.7 lbs.
