$151.00 off

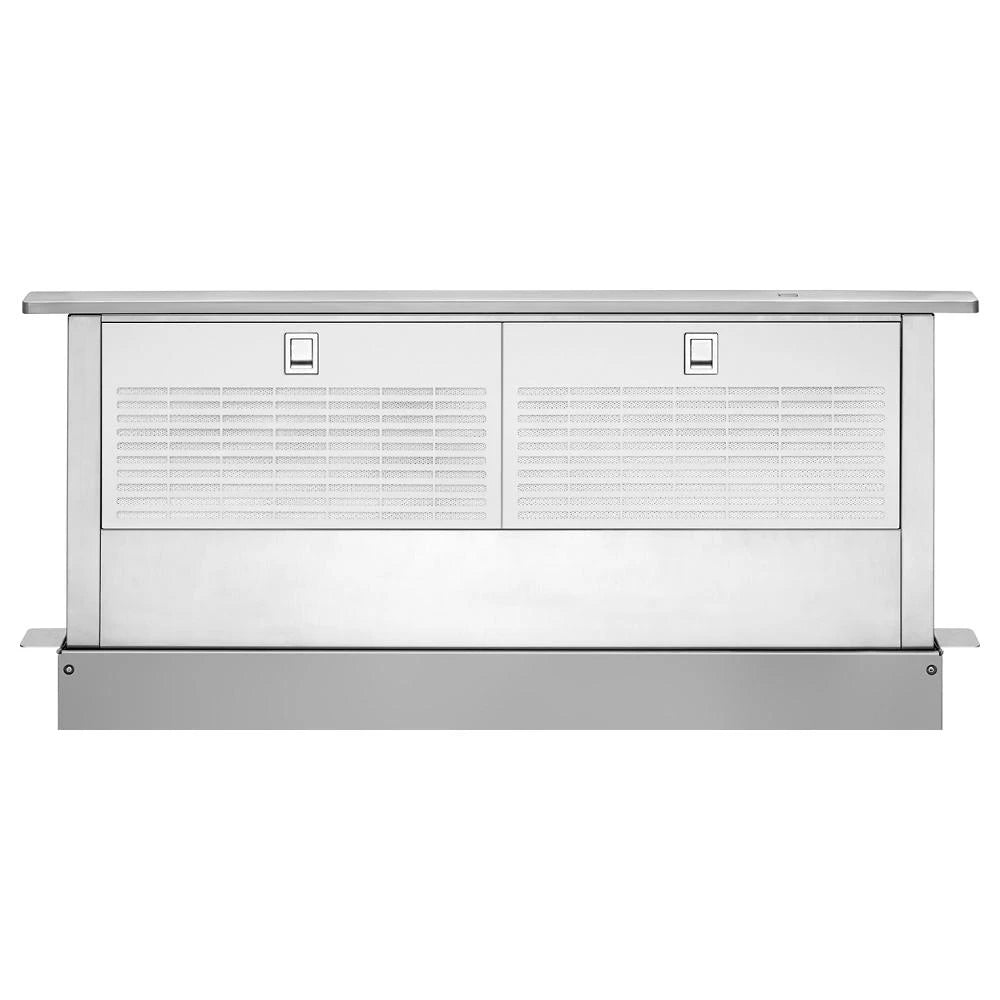

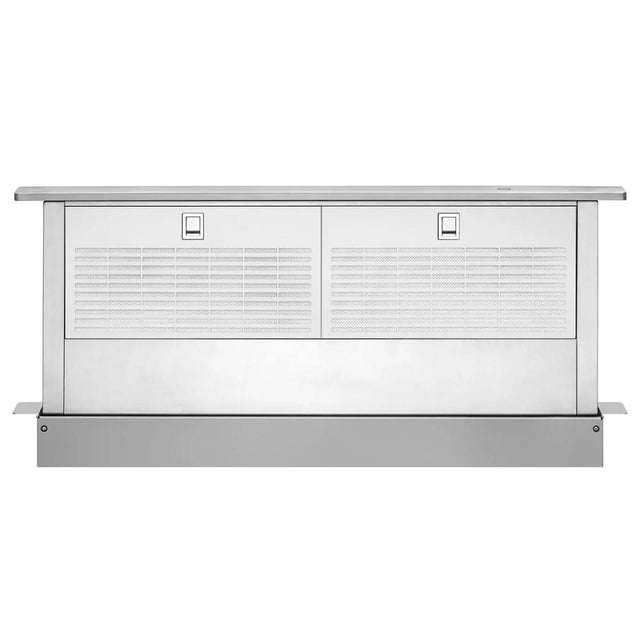

WHIRLPOOL 36" Retractable Downdraft System with Interior Blower Motor - Stainless Steel (UXD8636DYS)
SKU:
UXD8636DYS
UPC: 883049222455
Sale price
$1,32800
Regular price
$1,47900
Unit price
WHIRLPOOL 36" Retractable Downdraft System with Interior Blower Motor - Stainless Steel (UXD8636DYS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Powerful 600 CFM Interior Blower Motor Included
- ✔ Touch-Activated Telescoping Operation
- ✔ Aluminum Grease Filters
- ✔ Dual Centrifugal Blower
- ✔ 6.5 Vertical Sones (3-1/4" x 10")
- ✔ Auto Off When Retracted
- ✔ Damper
- ✔ Brushed Aluminum Intake Cover Standard
- ✔ Vertical Exterior Ventilation (3 1/4" x 10" Rectangular Duct)
- ✔ Slide Controls
WHIRLPOOL 36" Retractable Downdraft System with Interior Blow...
Sale price
$1,32800
Regular price
$1,47900
Unit price
SKU:
UXD8636DYS
WHIRLPOOL 36" Retractable Downdraft System with Interior Blower Motor - Stainless Steel (UXD8636DYS)
Sale price
$1,32800
Regular price
$1,47900
Unit price
WHIRLPOOL 36" Retractable Downdraft System with Interior Blower Motor - Stainless Steel (UXD8636DYS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.
Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.
Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.
Product Features
Powerful 600 CFM Interior Blower Motor Included
Touch-Activated Telescoping Operation
Keep the fresh air flowing during the peak cooking periods in your kitchen! Whirlpool® ventilation hoods feature variable-speed fan control for maximum relief. Hoods are designed to fit perfectly with today's kitchen layouts and designs and are available in a variety of colors, depending on the model.
Aluminum Grease Filters
Dual Centrifugal Blower
A barrel-shaped fan that moves air through a vent hood. A centrifugal fan moves more air, and operates more quietly, than an axial-type (bladed) fan.
6.5 Vertical Sones (3-1/4" x 10")
Auto Off When Retracted
Damper
Brushed Aluminum Intake Cover Standard
Vertical Exterior Ventilation (3 1/4" x 10" Rectangular Duct)
A fan system located at the surface of a range or cooktop. It serves to draw steam and grease downward and out of the kitchen via ductwork placed under the floor.
Slide Controls
Product Specifications
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.2 ft |
| Dimensional Weight | 89.5 lbs. |
| Total of Cubes | 7.2 ft |
| Total of Dimensional Weight | 89.5 lbs. |
Ventilation Details
| CFM Motor Class | 585 |
| Duct Direction | Vertical |
| Duct Type | Round |
| Venting | Exterior |
| Duct Outlet Size | 3.25 W x 10 H in |
Controls
| Control Location | Hidden |
| Control Type | Manual |
| Number of Vent Speeds | 3 |
Details
| Hood Type | Retractable Downdraft |
| Material | Stainless Steel |
| Blower Type | Centrifugal |

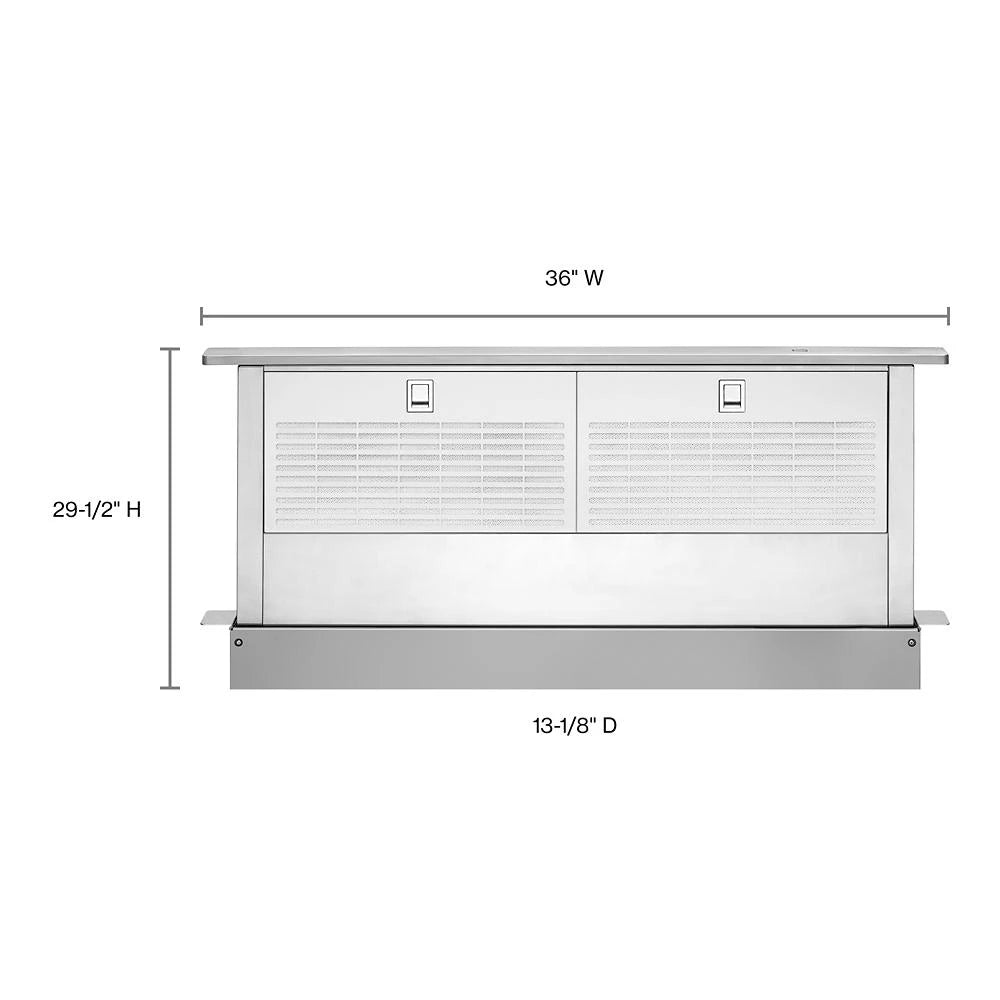

Dimensions & Weight
| Width | 36 in. |
| Height | 28.5 in. |
| Length | 12.13 in. |
| Weight | 100 lbs. |
| Gross Weight | 100 lbs |
| Net Weight | 72.75 lbs |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40 in. |
| Shipping Height | 16 in. |
| Shipping Length | 17.13 in. |
| Shipping Weight | 140 lbs. |
| Total of Shipping Weight | 140 lbs. |
| Source | Calculation |
Other
| Common Size | 36 in |
Electrical
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
Capacity
| Volume | 12.963 Cu.Ft. |
Certifications
California Prop 65
