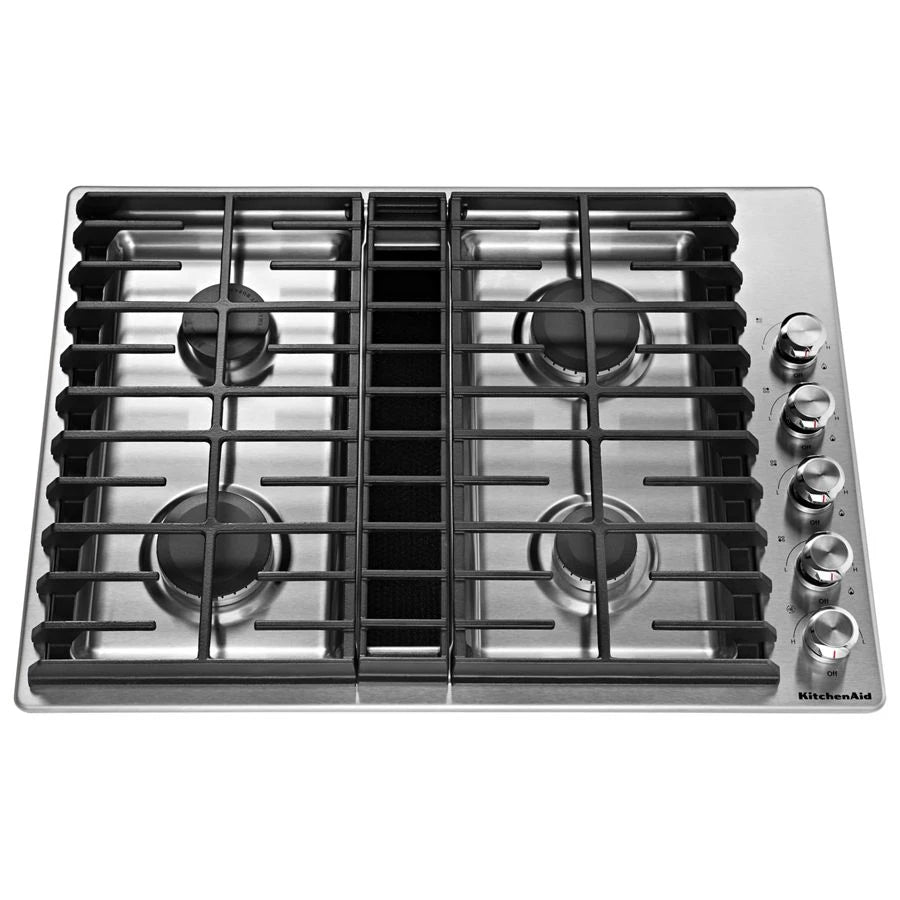

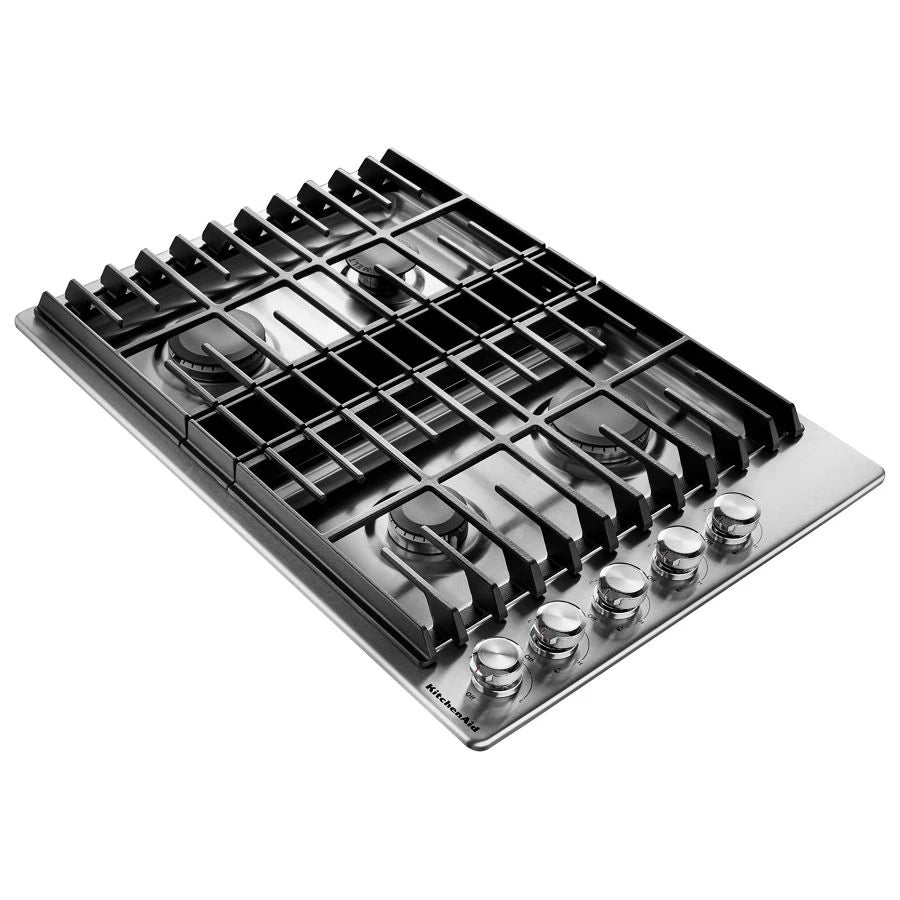

KitchenAid 30" 4 Burner Gas Downdraft Cooktop - Stainless Steel (KCGD500GSS)
SKU:
KCGD500GSS
UPC: 883049415055
Regular price
$2,499.00
Unit price
/
Unavailable
KitchenAid 30" 4 Burner Gas Downdraft Cooktop - Stainless Steel (KCGD500GSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Downdraft Ventilation
- ✔ Stainless Steel Knobs
- ✔ Full-Width Cast-Iron Grates
- ✔ LP Conversion Kit
- ✔ 17K BTU Professional Burner
- ✔ 5K BTU Even-Heat Simmer Burner
- ✔ 300 CFM Exhaust Rating
- ✔ 3-Speed Fan Control
- ✔ 15K BTU Professional Burner
- ✔ Convertible to Duct-Free Ventilation
- ✔ Melt Cap
- ✔ Electronic Ignition and Automatic Re-Ignition
Documents
KitchenAid 30" 4 Burner Gas Downdraft Cooktop - Stainless Stee...
Regular price
$2,499.00
Unit price
/
Unavailable
Description
KitchenAid 30" Gas Cooktop with Downdraft Ventilation, 4 Burners, and Full-Width Cast-Iron Grates
KitchenAid 30" Gas Cooktop with Downdraft Ventilation, 4 Burners, and Full-Width Cast-Iron Grates
KitchenAid 30" Gas Cooktop with Downdraft Ventilation, 4 Burners, and Full-Width Cast-Iron Grates
Product Features
Downdraft Ventilation
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
Stainless Steel Knobs
Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
LP Conversion Kit
Allows you to convert the cooktop so it can be used with LP gas.
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
5K BTU Even-Heat Simmer Burner
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
300 CFM Exhaust Rating
Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
15K BTU Professional Burner
Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Melt Cap
Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
Electronic Ignition and Automatic Re-Ignition
Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
Product Specifications
Description
| Cooktop Type | Downdraft |
| Fuel Type | Gas |
| Size (in.) | 30 |
Controls
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
Features
| Automatic Pan Detection | No |
| Digital Display | No |
| Downdraft Vent | Yes |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Installs Over Built-In Oven | No |
| LP Convertible | Yes |
| Power Boost | No |
| Power Outage Compatible | Yes |
| Selection | DownDraft |
Cooktop Details
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Ignition Type | Flame-Sensing™ Re-ignition |
| Number of Cooking Element-Burners | 4 |
| Number of Open Bays | N/A |
| Left Front Element-Burner Power | 17, 000 BTU |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Power | 5, 000 BTU |
| Left Rear Element-Burner Type | Even-Heat™ |
| Right Front Element-Burner Power | 10, 000 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | 15, 000 BTU |
| Right Rear Element-Burner Type | Burner |
| Grate Details | Cast Iron Grates, Continuous, Matte Finish |
| Number of Grates | 3 |
Details
| Cooktop Surface Material | Stainless Steel |
Ventilation System
| CFM Motor Class | 300 |
| Number of Vent Speeds | 3 |
Certifications
| ADA Compliant | No |
| CEC Listed | Yes |
| Prop 65 | Standard |
| UL | Yes |
Electrical
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
| Volts | 120 |
Specifications
| Accessory Relationships | Yes |

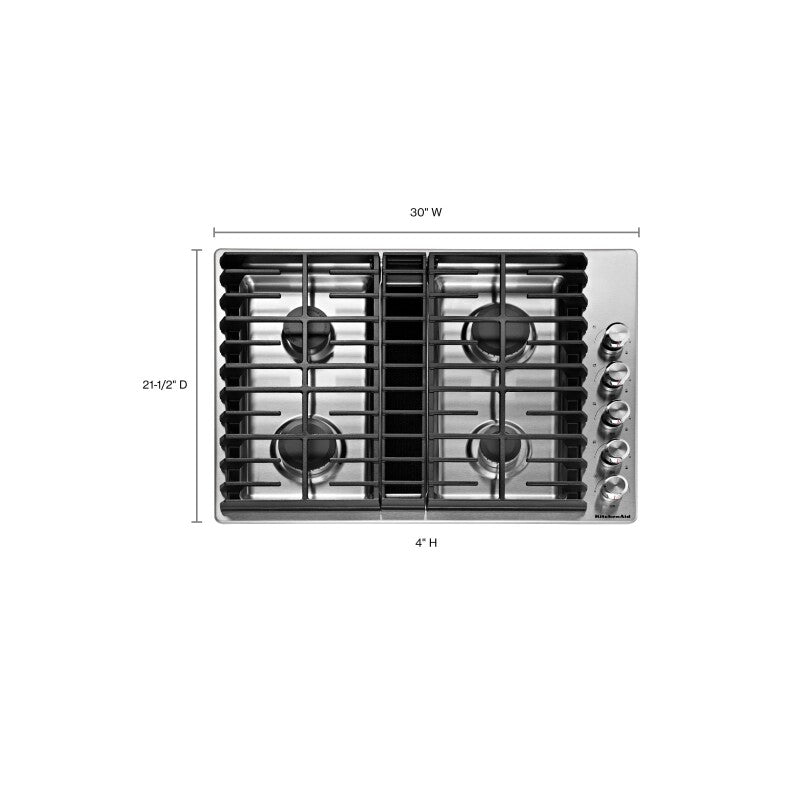

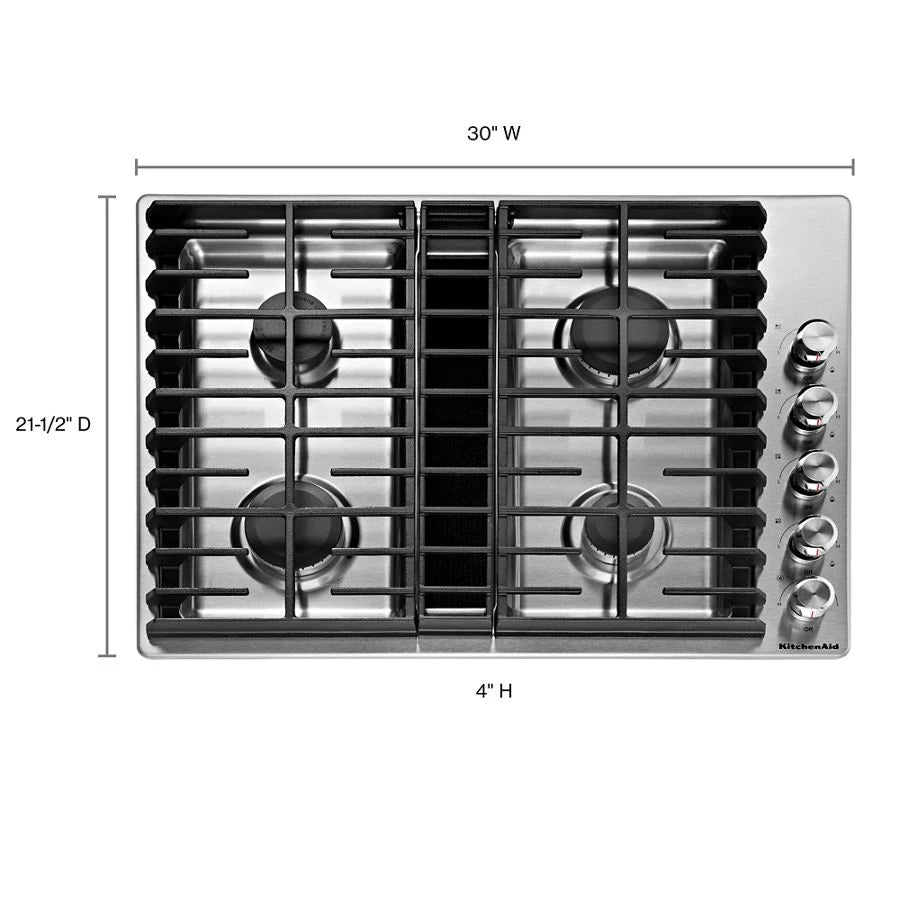

Dimensions & Weight
| Width | 30 in. |
| Height | 18.44 in. |
| Length | 21.5 in. |
| Weight | 78 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 35 1/8 |
| Gross Weight | 78 |
| Net Weight | 66.0 |
| Cutout Depth(IN,inches) | 19.9375 |
| Cutout Width(IN,inches) | 28.6250 |
| Net Weight(LB,pounds) | 66 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 35.1250 |
| Gross Weight(LB,pounds) | 78 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 23.44 in. |
| Shipping Length | 26.5 in. |
| Shipping Weight | 118 lbs. |
| Total of Shipping Weight | 118 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.88 ft |
| Dimensional Weight | 85.57 lbs. |
| Total of Cubes | 6.88 ft |
| Total of Dimensional Weight | 85.57 lbs. |
Certifications
California Prop 65
