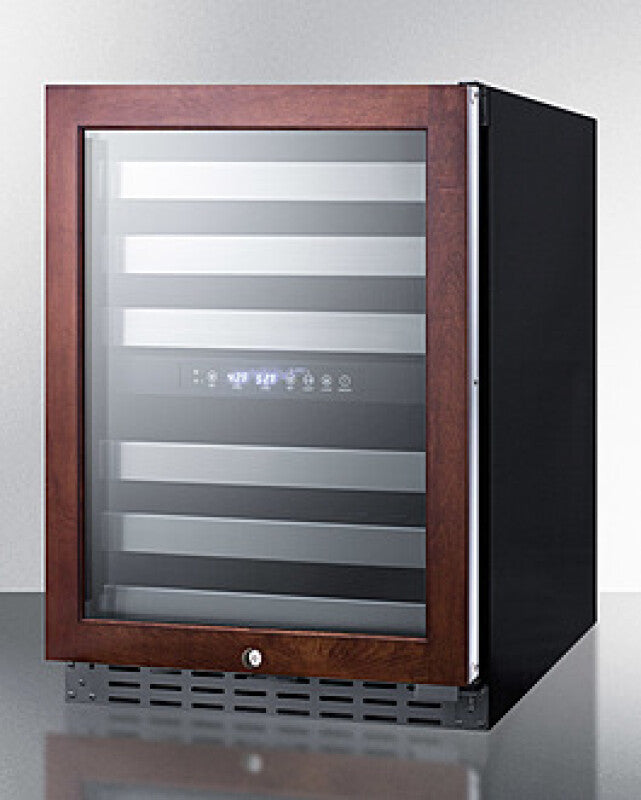

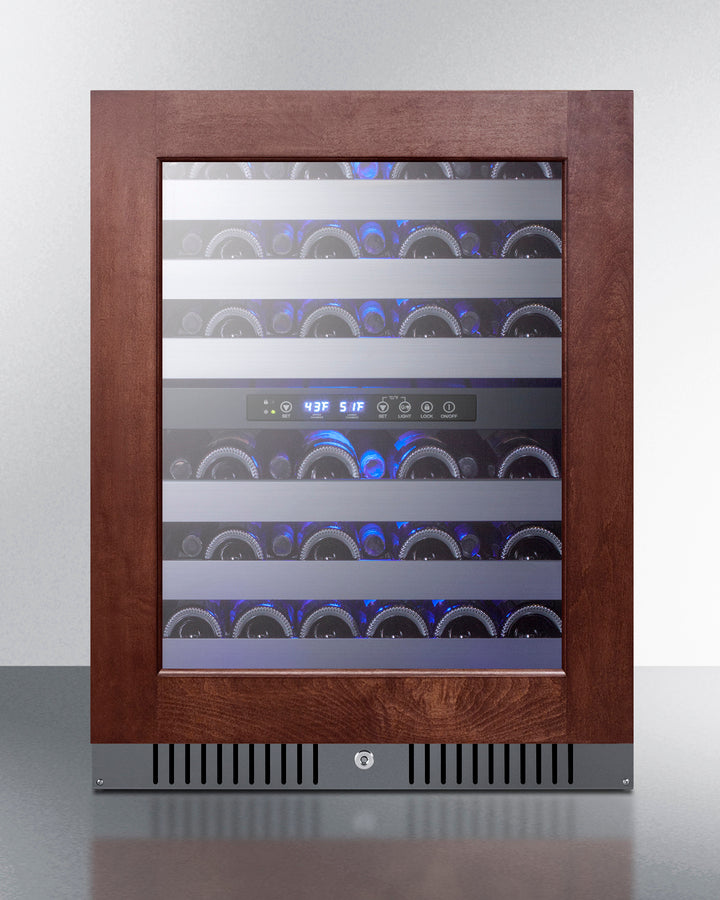

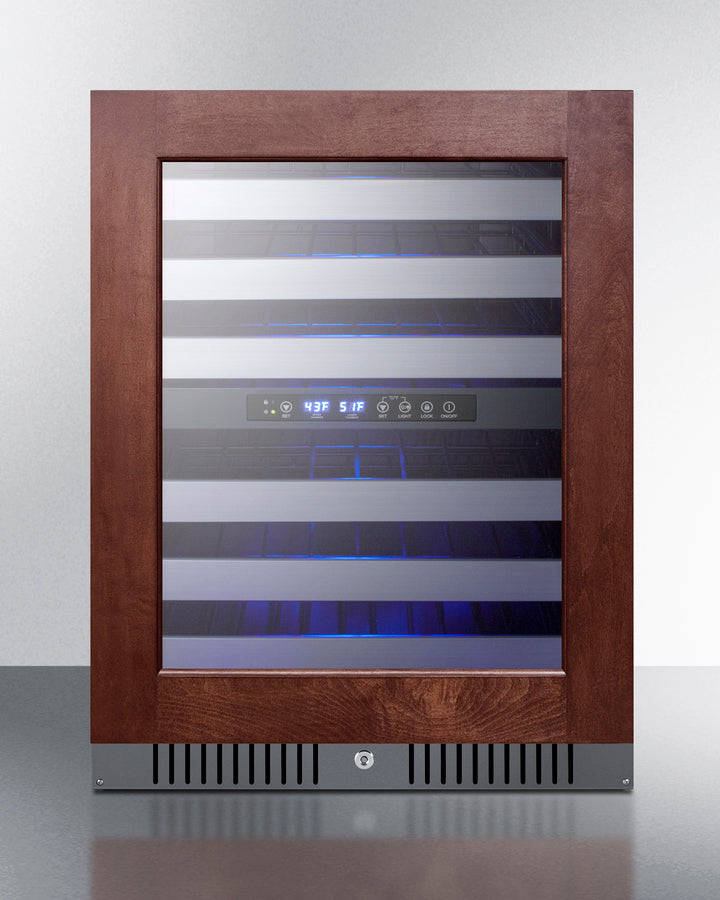

Summit 24" Wide Built-In Wine Cellar, ADA Compliant - Glass/Panel-Ready Frame (ALWC532PNR)
SKU:
ALWC532PNR
UPC: 761101065533
Regular price
$1,930.00
Unit price
/
Unavailable
Summit 24" Wide Built-In Wine Cellar, ADA Compliant - Glass/Panel-Ready Frame (ALWC532PNR) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ 24" Dual Zone Wine Cellar
- ✔ Advanced shelving
- ✔ Built-in capable
- ✔ Panel-ready door trim
- ✔ Full-extension shelving
- ✔ Two temperature zones
- ✔ Digital control panel
- ✔ Versatile readout
- ✔ Automatic defrost
- ✔ Double pane tempered glass door
- ✔ Interior lighting
- ✔ Factory installed lock
- ✔ Factory-reversible door swing
- ✔ Fully finished black cabinet
- ✔ Matching beverage center available
- ✔ 100% CFC Free
- ✔ CARB Compliant
Documents
Summit 24" Wide Built-In Wine Cellar, ADA Compliant - Glass/Pa...
Regular price
$1,930.00
Unit price
/
Unavailable
Product Features

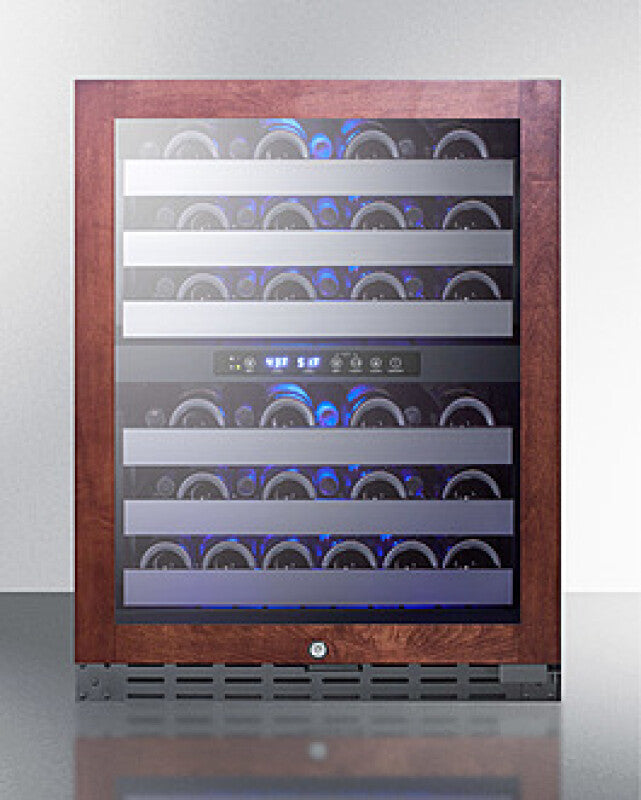

24" Dual Zone Wine Cellar
Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones

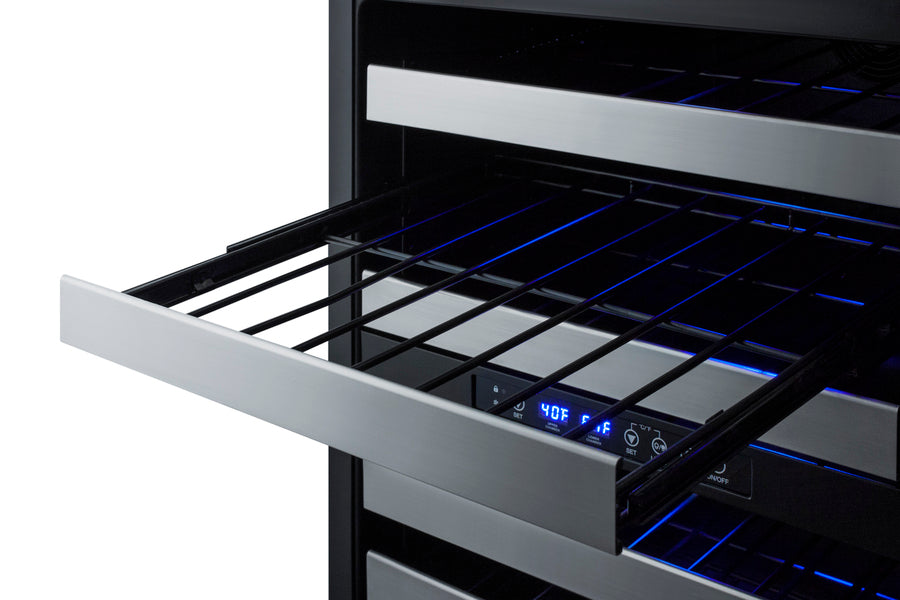

Advanced shelving
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

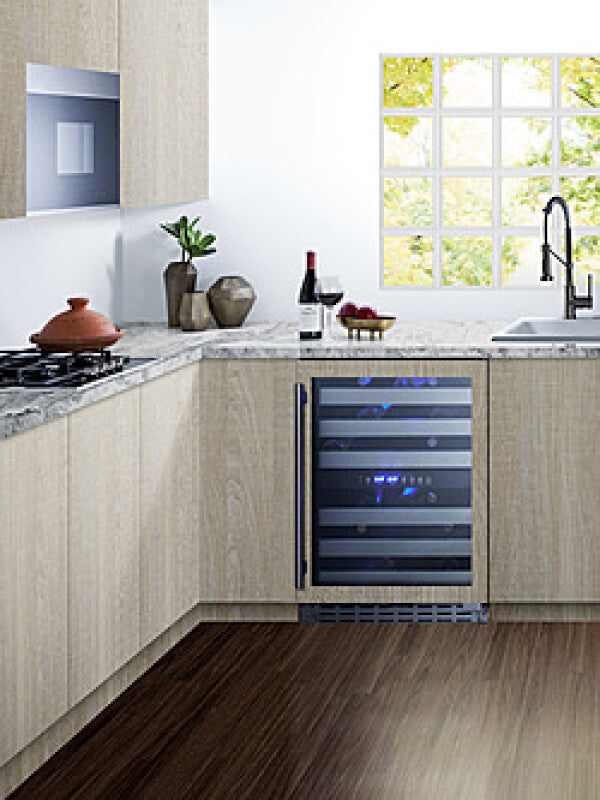

Built-in capable
Front-breathing design allows this unit to be installed under counters

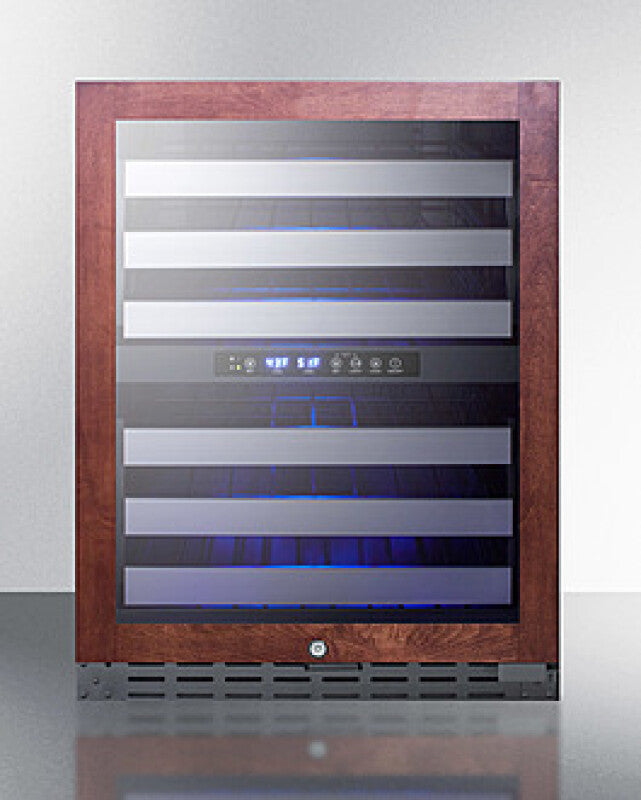

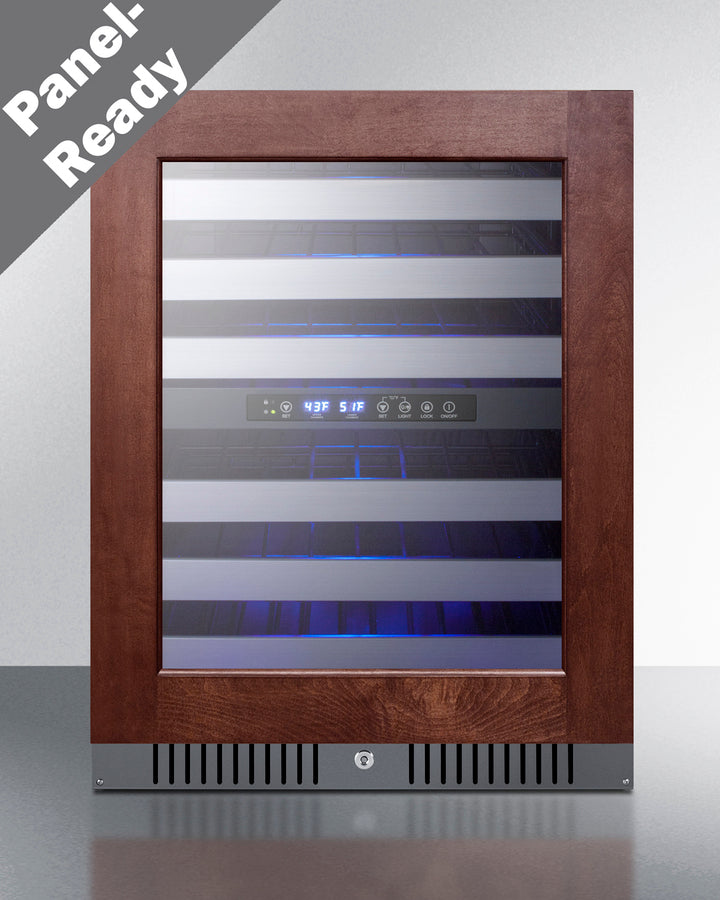

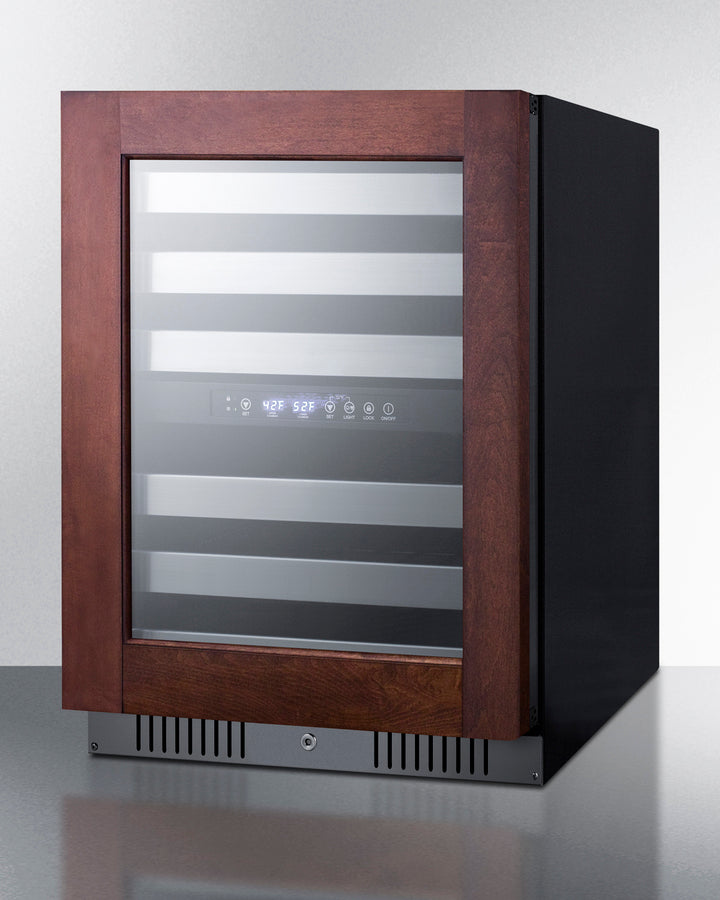

Panel-ready door trim
Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)

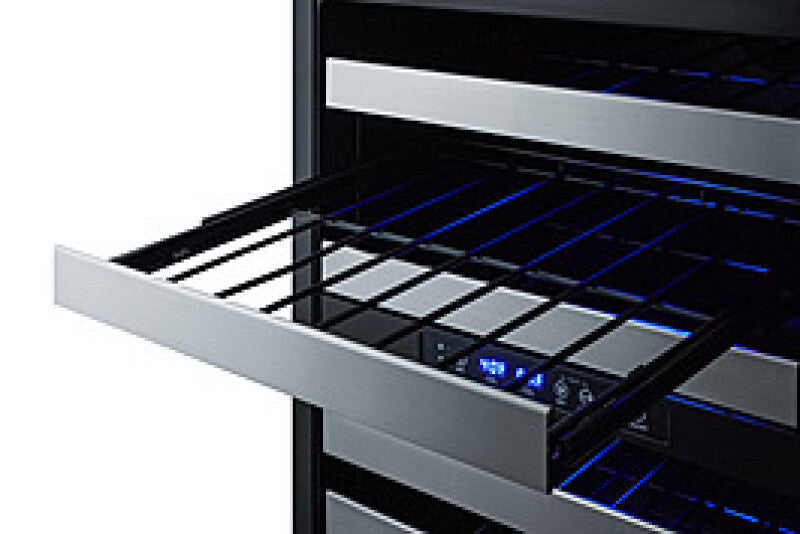

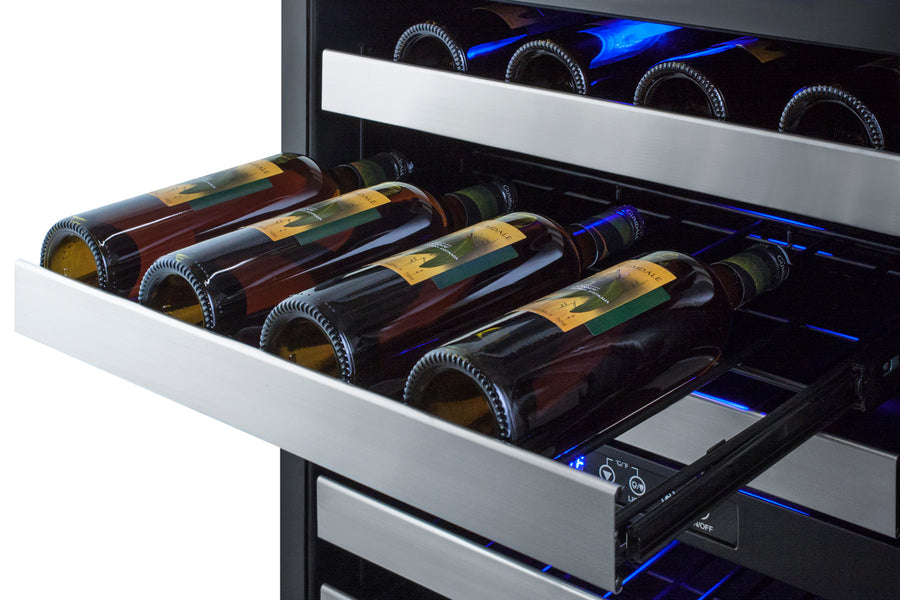

Full-extension shelving
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Two temperature zones
Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F

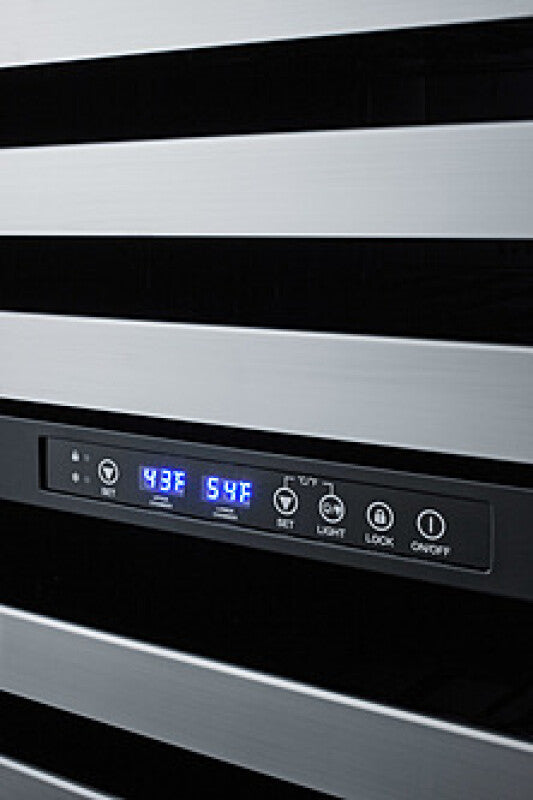

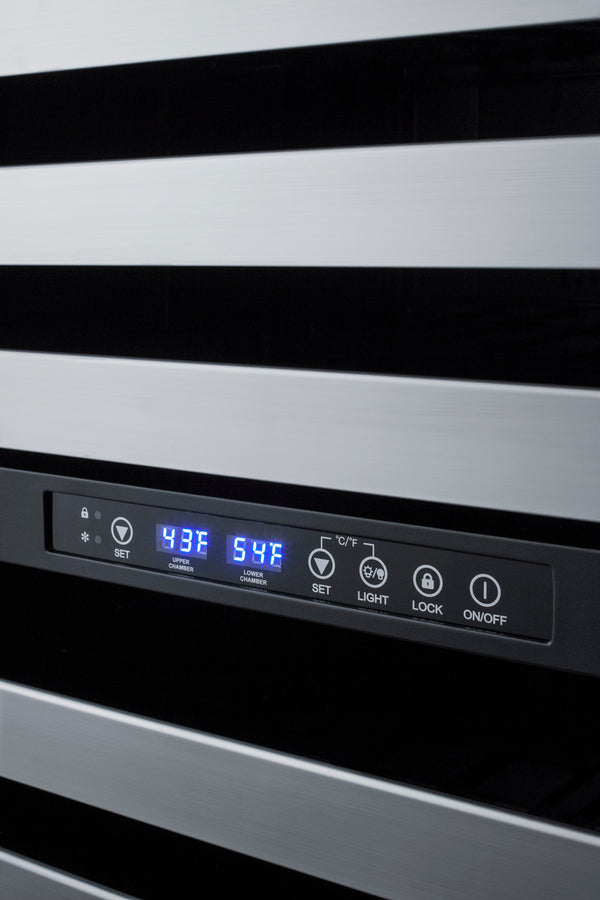

Digital control panel
Easy temperature management with electronic controls located inside
Versatile readout
Temperature viewable in Celsius or Fahrenheit
Automatic defrost
Reduced maintenance with auto defrost system
Double pane tempered glass door
Provides a full display of the interior, with two levels of glass for added protection
Interior lighting
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Factory installed lock
Keyed lock for secure interior, with two keys included

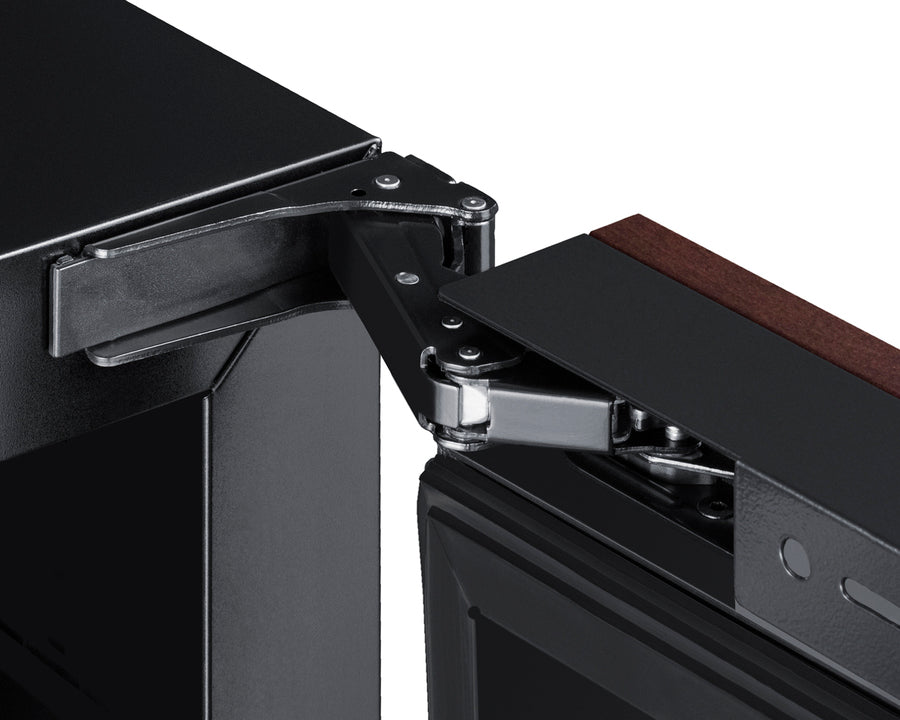

Factory-reversible door swing
Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
Fully finished black cabinet
Allows the unit to be used freestanding

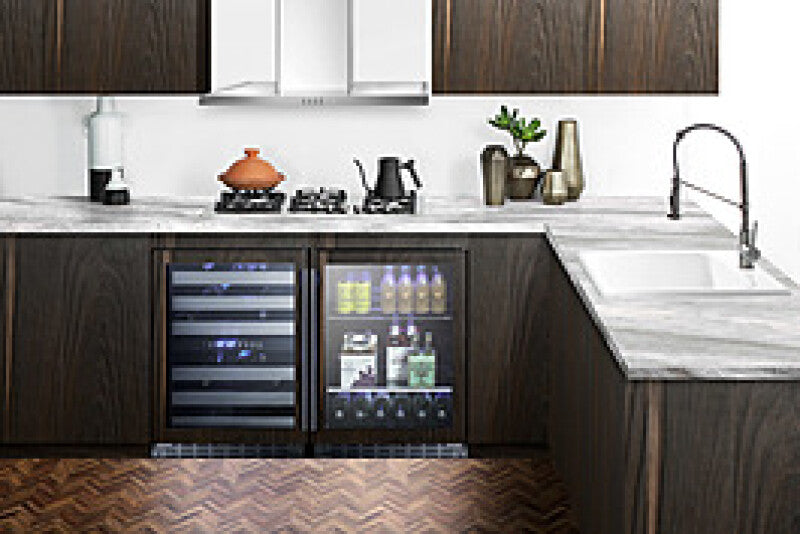

Matching beverage center available
Pairs perfectly with the ALBV2466PNR
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Product Specifications
Overview
| Height of Cabinet | 31.63" (80 cm) |
| Width | 23.5" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with door at 90° | 45.75" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065533 |
Wine Cellar
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64F |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 34 dB |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 23.5 in. |
| Height | 31.63 in. |
| Length | 23.38 in. |
| Weight | 113 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.5 in. |
| Shipping Height | 36.63 in. |
| Shipping Length | 28.38 in. |
| Shipping Weight | 153 lbs. |
| Total of Shipping Weight | 153 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.06 ft |
| Dimensional Weight | 125.02 lbs. |
| Total of Cubes | 10.06 ft |
| Total of Dimensional Weight | 125.02 lbs. |
Certifications
California Prop 65
