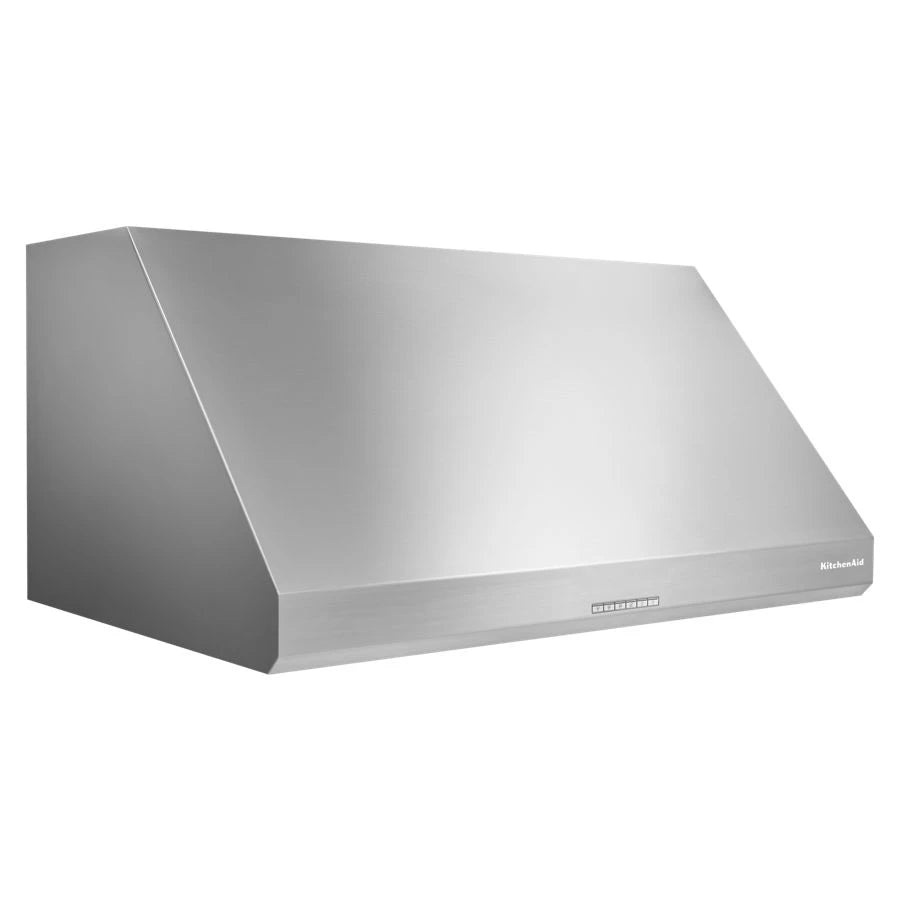

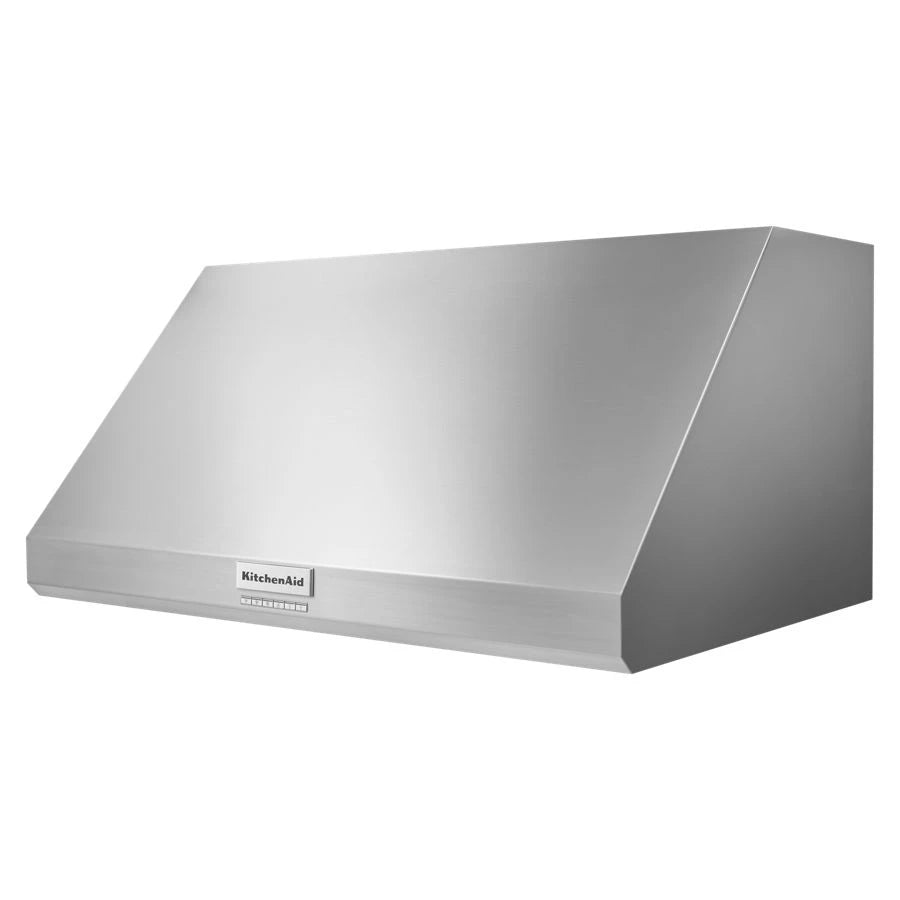

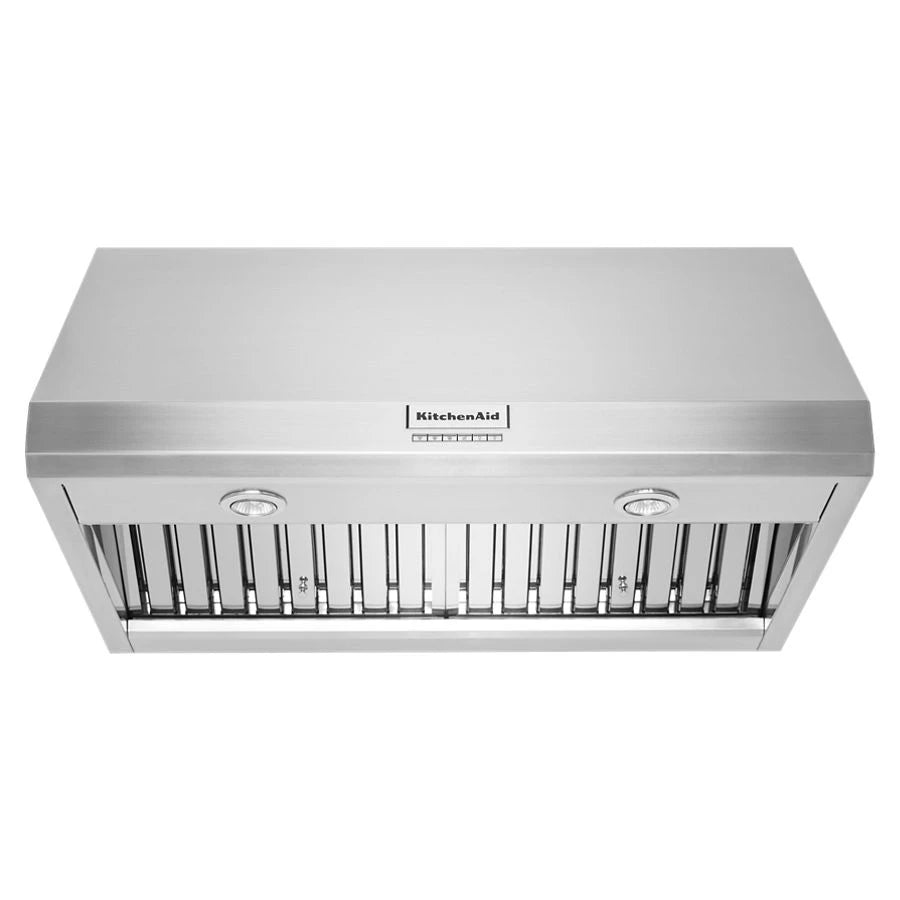

KitchenAid 36" 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood - Stainless Steel (KVWC906KSS)
SKU:
KVWC906KSS
UPC: 883049590592
Regular price
$2,119.00
Unit price
/
Unavailable
KitchenAid 36" 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood - Stainless Steel (KVWC906KSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Four-Speed Fan
- ✔ Power Boost Function
- ✔ Requires a 585 or 1170 CFM Motor Class - Sold Separately
- ✔ 105,000 BTU Rating
- ✔ Automatic Turn On
- ✔ Two LED Lights with Night Light Setting
- ✔ Removable Stainless Steel Baffle Filters
- ✔ KitchenAid Commercial-Style Ventilation
- ✔ KitchenAid Commercial-Style Wall-Mount Canopy Hoods
KitchenAid 36" 585 or 1170 CFM Motor Class Commercial-Style Wa...
Regular price
$2,119.00
Unit price
/
Unavailable
Product Features
Four-Speed Fan
Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Power Boost Function
Assists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
Requires a 585 or 1170 CFM Motor Class - Sold Separately
allowing you to customize a powerful ventilation system with your choice of commercial-style blowers (two blower options sold separately*).
105,000 BTU Rating
pairs with KitchenAid Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
Automatic Turn On
Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
Two LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

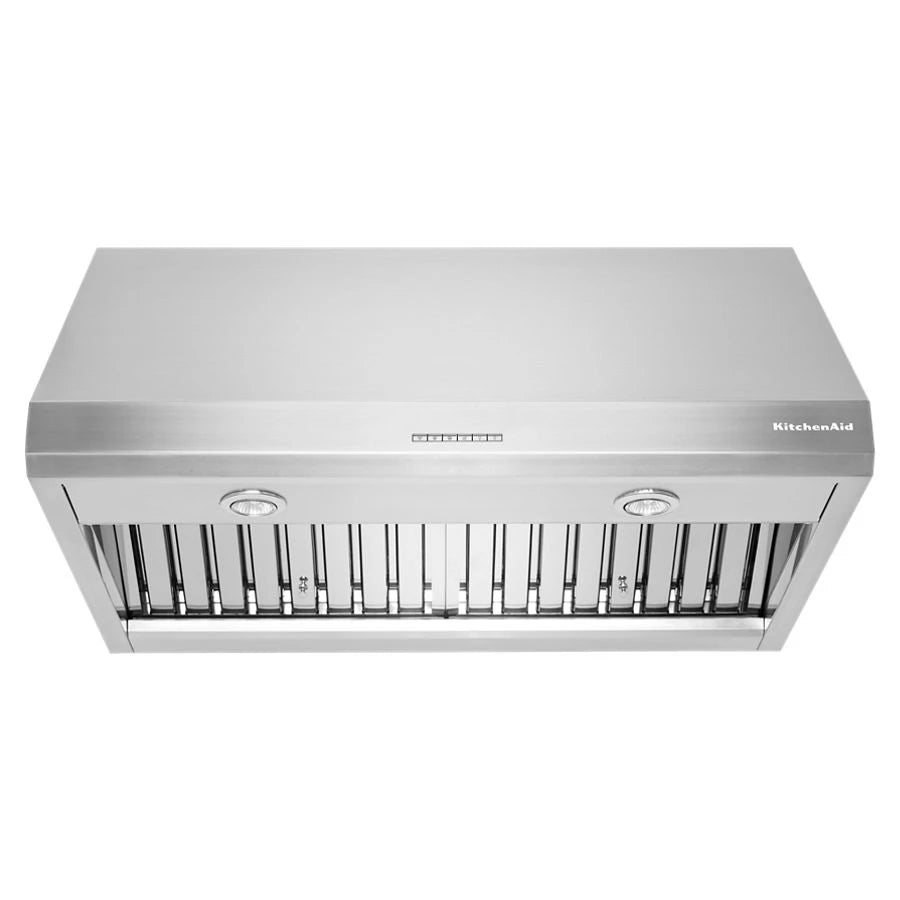

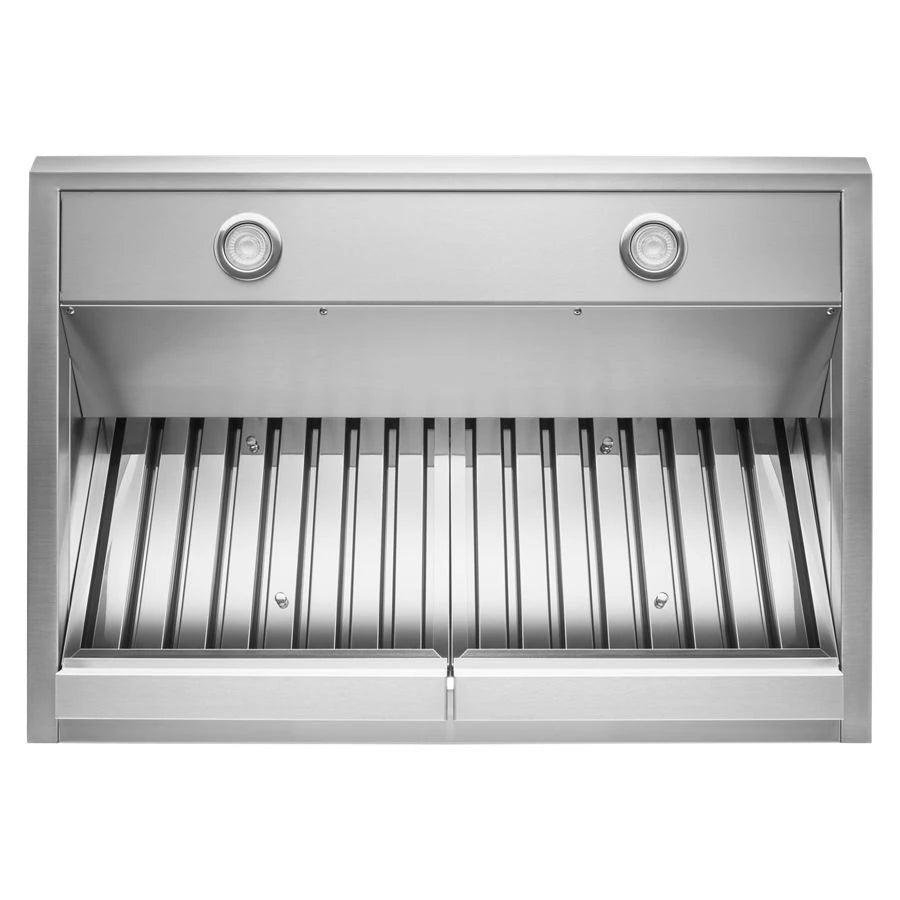

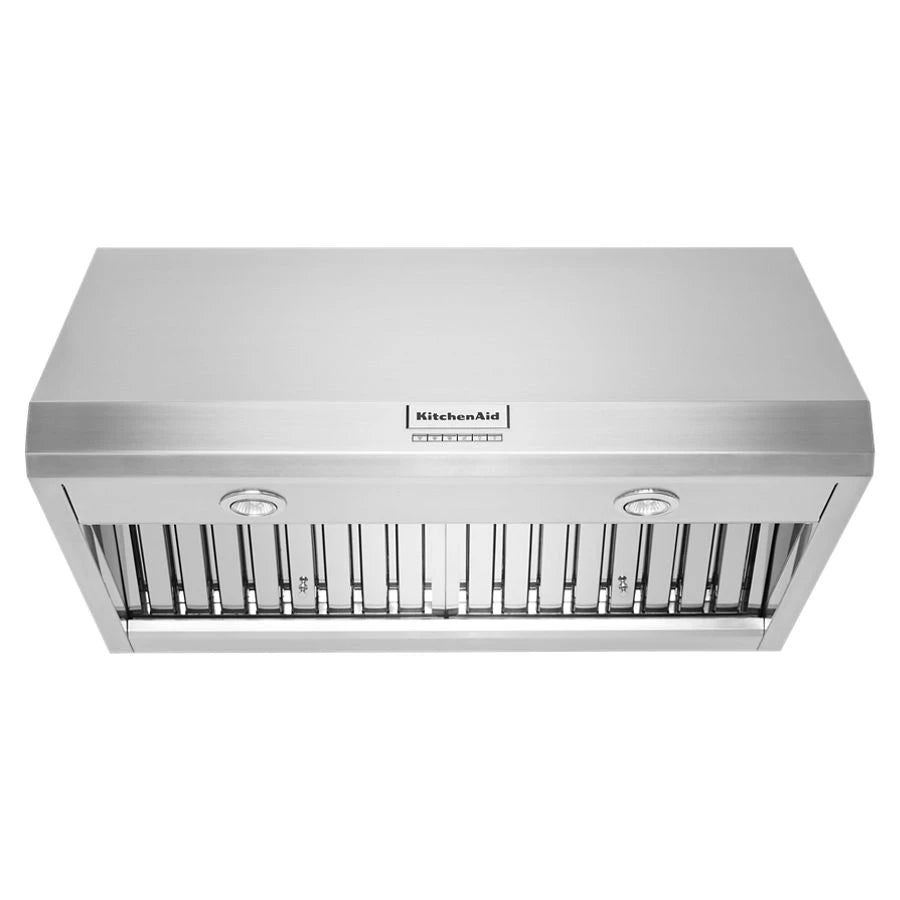

Removable Stainless Steel Baffle Filters
Help capture the grease, steam and odors of high-heat cooking. The stainless steel design adds to the hood's bold commercial-style look and the filters are removable for easy cleaning with soap and water.
KitchenAid Commercial-Style Ventilation
KitchenAid Commercial-Style Ventilation Hoods equip your kitchen with powerful ventilation designed to match the performance and styling of KitchenAid® Commercial-Style Ranges and Rangetops.
KitchenAid Commercial-Style Wall-Mount Canopy Hoods
KitchenAid Commercial-Style Wall-Mount Canopy Hoods add industrial style with the bold look of stainless steel. Choose from models featuring an exposed chimney or hidden ductwork.
Product Specifications
Description
| Hood Type | Wall-Mount Canopy |
| Size (in.) | 36 |

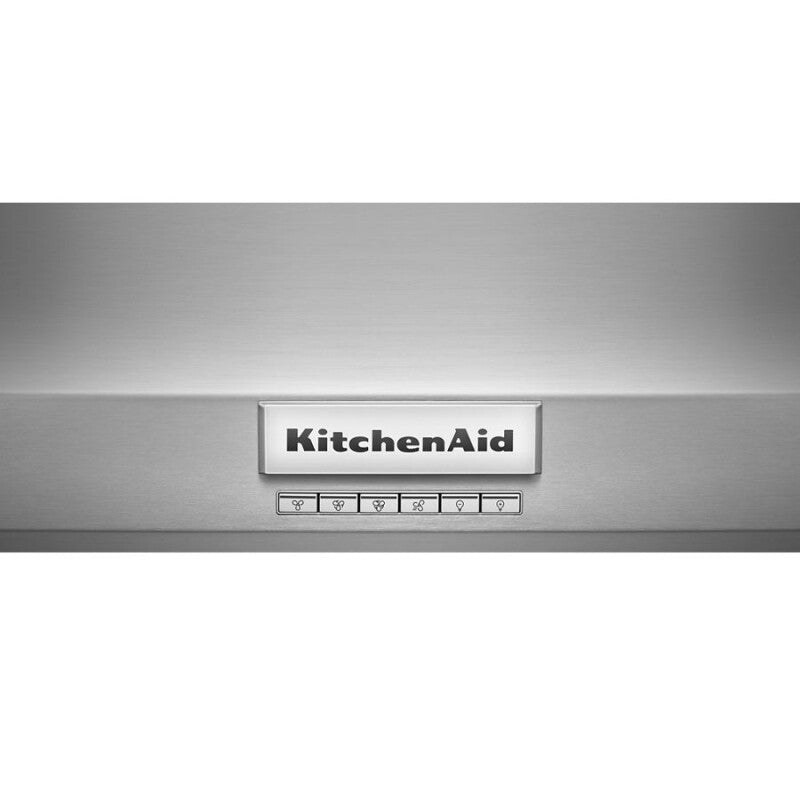

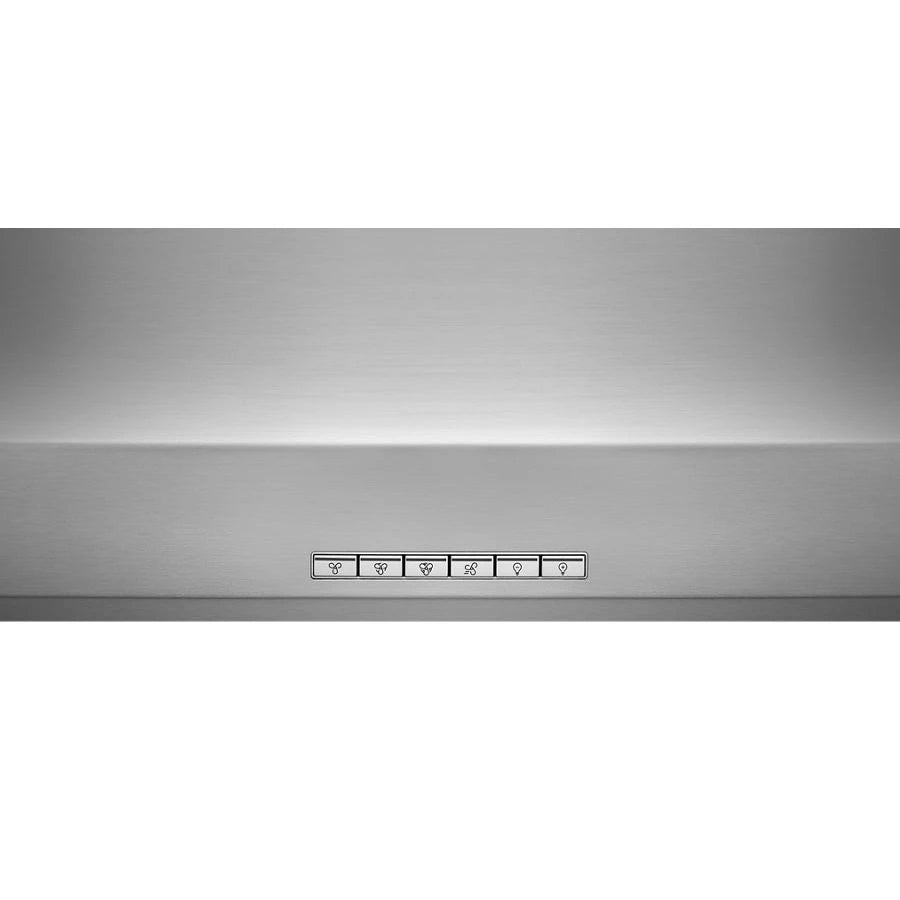

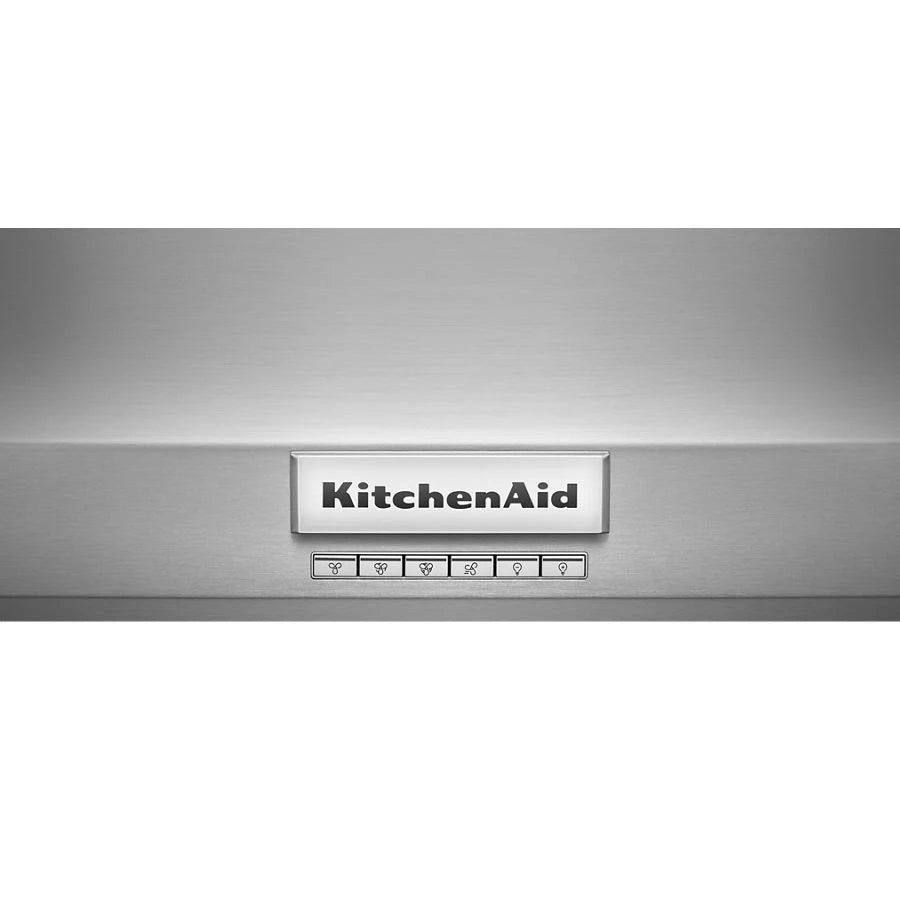

Controls
| Control Location | Front |
| Control Type | Push Button |
Features
| Lighting Control Type | Push Button |
| Night Light | Yes |
| Night Light Type | LED |
| Number of Night Light Settings | 1 |
| Number of Task Light Settings | 1 |
| Task Light Type | LED |
| Task Lighting | Yes |
| BTU Threshold | 90K/105K |
| Damper Included | Yes |
Ventilation System
| HVI (CFM HS Horizontal) | 480/960 |
| HVI (CFM HS Vertical) | 520/970 |
| HVI (Sones HS Horizontal) | 10.5/12.5 |
| HVI (Sones HS Vertical) | 11/12.5 |
| Auto Function | Auto On |
| Blower Motor | Blower Motor to be Purchased Separately |
| Blower Type | Centrifugal |
| Duct Direction | Vertical or Horizontal |
| Duct Length | 13.000 |
| Duct Outlet Size (in.) | 10 |
| Duct Type | Round |
| Exhaust Vent Location | Top |
| Filters | Removable Stainless Steel Baffle Filters |
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 1170 |
| Number of Vent Speeds | 4 |
| Sound Max Speed (dB(A) | 73.6 |
| Sound Max Speed (Sones) | 12.5 |
| Sound Min Speed (dB(A) | 70.1 |
| Sound Min Speed (Sones) | 2.50 |
| Vent Fan Location | Side |
| Vent Material | Aluminum |
| Venting | Exterior |
Certifications
| Energy Star® Certified | No |
| Kosher Consumer Friendly | No |
| Prop 65 | Standard |
| UL | Yes |
Electrical
| Amps | 3.86 (585 CFM)/7.6 (1170 CFM) |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 120 |
Specifications
| Accessory Relationships | Yes |
Dimensions & Weight
| Width | 36 in. |
| Height | 36 in. |
| Length | 25 in. |
| Weight | 37 lbs. |
| Carton Depth | 30 |
| Carton Height | 24 |
| Carton Width | 41 |
| Cutout Height (in) | 18 |
| Cutout Width (in) | 36 |
| Gross Weight | 37 |
| Net Weight | 28.0 |
| Canopy Height (IN,inches) | 12.00000 |
| Cutout Depth(IN,inches) | 18.0000 |
| Cutout Width(IN,inches) | 36.0000 |
| Net Weight(LB,pounds) | 28 |
| Carton Depth(IN,inches) | 30.0000 |
| Carton Height(IN,inches) | 24.0000 |
| Carton Width(IN,inches) | 41.0000 |
| Cutout Height Min(IN,inches) | 18.0000 |
| Gross Weight(LB,pounds) | 37 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 41 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 77 lbs. |
| Total of Shipping Weight | 77 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 18.75 ft |
| Dimensional Weight | 233.09 lbs. |
| Total of Cubes | 18.75 ft |
| Total of Dimensional Weight | 233.09 lbs. |
Certifications
California Prop 65
