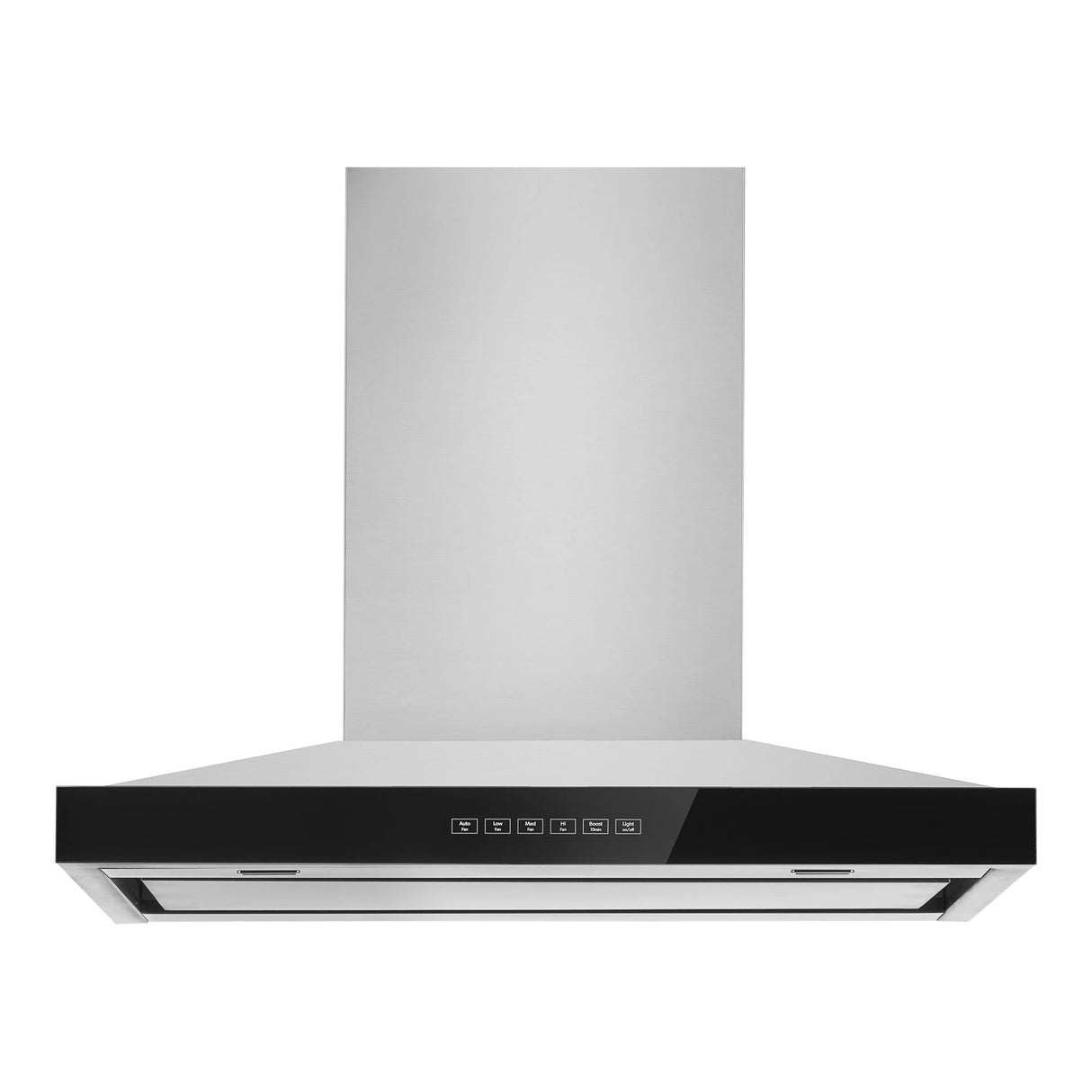

JENNAIR 30" Pyramid Style Canopy Wall Hood - Stainless Steel (JXW8530HS)
SKU:
JXW8530HS
UPC: 883049521008
Regular price
$2,39900
Unit price
JENNAIR 30" Pyramid Style Canopy Wall Hood - Stainless Steel (JXW8530HS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
JennAir Curate: 1H Up to 15% Instant Savings
GET UP TO 15% OFF IN INSTANT SAVINGS
Ends: 2026-06-30
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Premium Craftsmanship
- ✔ Quiet Operation
- ✔ Recirculating Installation Option
- ✔ Dishwasher-Safe Metal Filter
- ✔ Three Fan Speed Settings
- ✔ Timer Function
- ✔ Sleep Mode
- ✔ Auto Sense Option
- ✔ Badasses at the Ready
- ✔ Serviced by a Select Few
- ✔ LED Ambient Lighting
- ✔ Perimetric Extraction
- ✔ Glass Touch Controls
- ✔ Wall Mount Hood
- ✔ Boost Function
- ✔ 78,000 BTU Rating
- ✔ 600 CFM Blower
JENNAIR 30" Pyramid Style Canopy Wall Hood - Stainless Steel ...
Regular price
$2,39900
Unit price
SKU:
JXW8530HS
Regular price
$2,39900
Unit price
JENNAIR 30" Pyramid Style Canopy Wall Hood - Stainless Steel (JXW8530HS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features
Perimetric Extraction
This sophisticated design is not only attractive, it is the secret behind the ventilation systems exceptional performance and quiet operation.
Premium Craftsmanship
Each individually crafted system is welded and polished to produce a sleek, seamless look.
Quiet Operation
Sound-reducing technology minimizes the sound of the ventilation system to conversation-friendly levels
Recirculating Installation Option
Allows for installation of a premium ventilation system without ductwork.
Dishwasher-Safe Metal Filter
Easy-to-clean filters that maintain optimal ventilation performance by keeping ductwork clean.
Three Fan Speed Settings
Provides a range of ventilation power to accommodate your precise cooking needs.
Timer Function
Ventilation system automatically shuts off, even if forgotten about.
Sleep Mode
Automatically turns the ventilation system off when cooking is completed.
Auto Sense Option
Automatically turns the ventilation system on and adjusts power as needed.
Badasses at the Ready
Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to youfrom sales to installation to ownership.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with unprecedented access to products and knowledge, their expertise is unmatched.

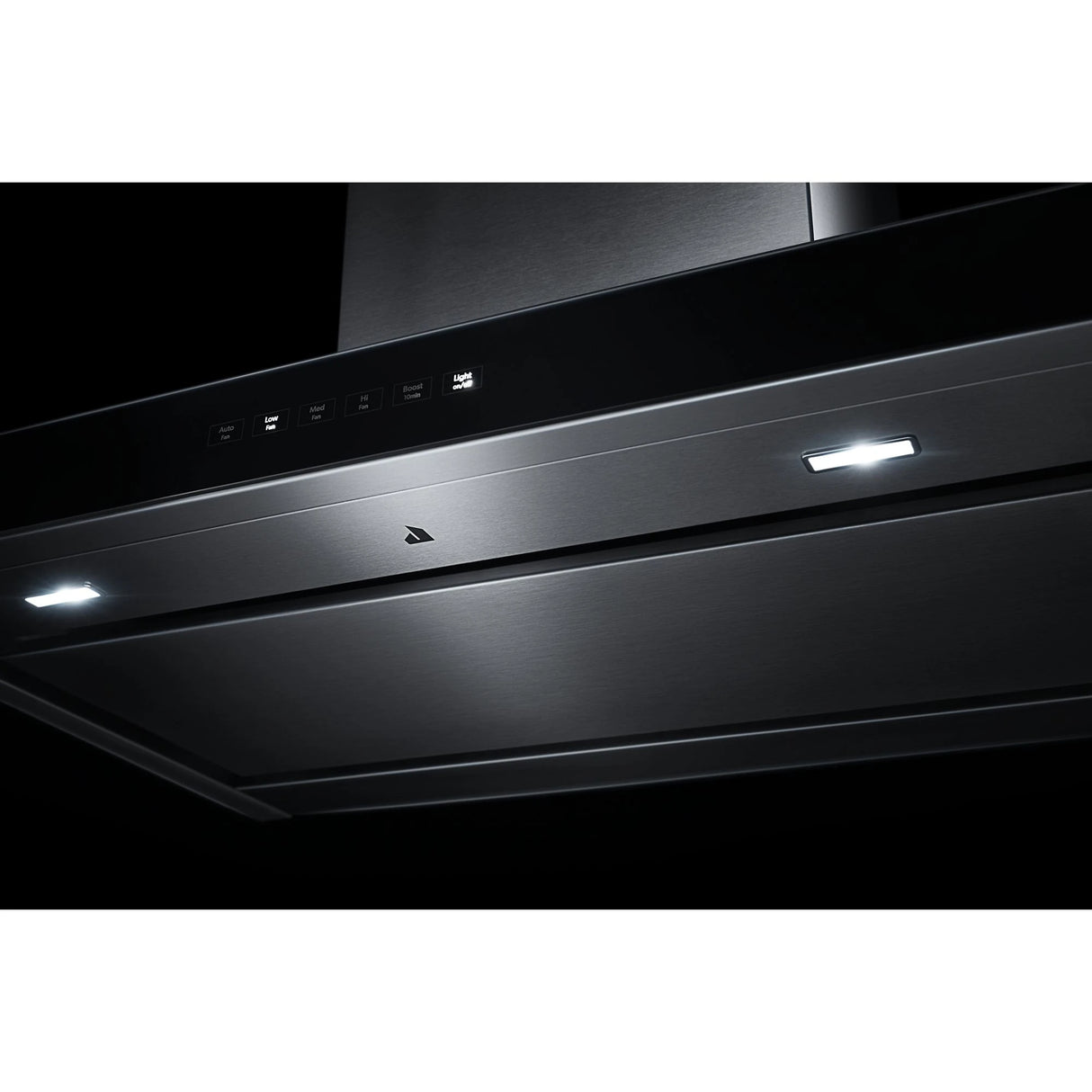

LED Ambient Lighting
Upward-facing ambient LED lighting gently illuminates the kitchen, adding a distinctive touch to this ventilation system.

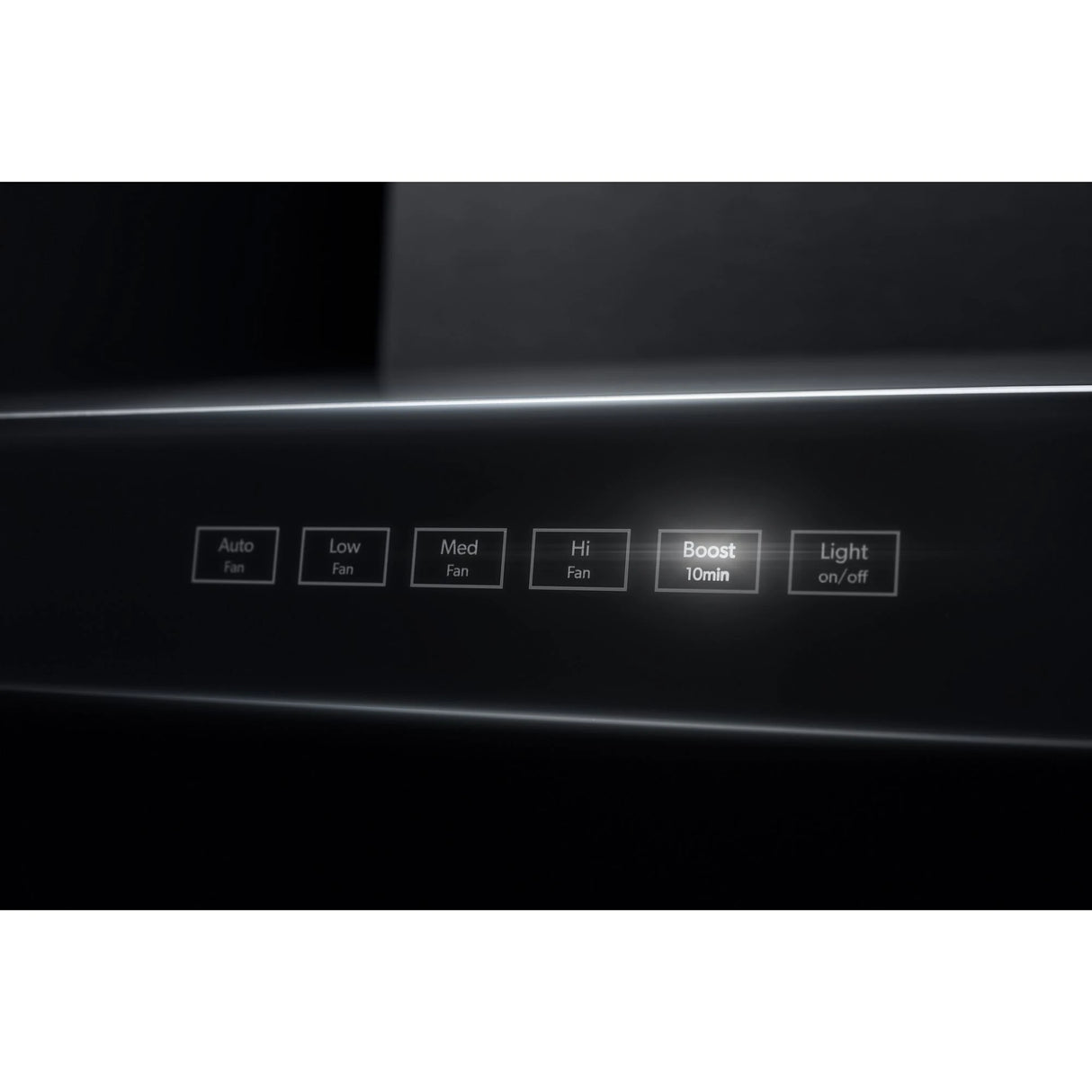

Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.
Wall Mount Hood
Wall installation allows the hood to seamlessly blend in with kitchens that follow a more traditional layout.
Boost Function
Clears the air quickly by raising the fan speed to its highest possible setting for 10 minutes, ridding the kitchen of smoke and steam.
78,000 BTU Rating
High-powered cooking surfaces are not a problem for this ventilation system.
600 CFM Blower
Rapidly rids the air of smoke and steam so the air is fresh and clean.
Product Specifications
Electrical
| Amps | 15 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.49 ft |
| Dimensional Weight | 118.03 lbs. |
| Total of Cubes | 9.49 ft |
| Total of Dimensional Weight | 118.03 lbs. |
Dimensions & Weight
| Width | 34.35 in. |
| Height | 26.49 in. |
| Length | 18.03 in. |
| Weight | 60.18 lbs. |
| Carton Depth | 18 1/16 |
| Carton Height | 26 1/2 |
| Carton Width | 34 3/8 |
| Gross Weight | 60 |
| Net Weight | 44.1 |
| Gross Weight | 60.18 |
| Depth(IN,inches) | 19.6875 |
| Net Weight(LB,pounds) | 44 |
| Carton Depth(IN,inches) | 18.0625 |
| Carton Height(IN,inches) | 26.5000 |
| Carton Width(IN,inches) | 34.3750 |
| Gross Weight(LB,pounds) | 60 |
| carton depth | 18 |
| carton height | 25 |
| carton width | 31 |
| gross weight | 60.18 |
| net weight | 44.09 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.38 in. |
| Shipping Height | 26.5 in. |
| Shipping Length | 23.03 in. |
| Shipping Weight | 100.18 lbs. |
| Total of Shipping Weight | 100.18 lbs. |
| Source | Calculation |
Details
| Hood Type | Wall Mount |
| Design Expression | Lustre Stainless |
| Material | Stainless Steel With Glass |
Ventilation Details
| Duct Direction | Vertical |
| Filters | Grease Filters |
| Duct Type | Round |
| Night Light | Yes |
| Number of Night Light Settings | 1 |
| Task Lighting | Yes |
| Duct Outlet Size | 6 In |
| Night Light Type | Led |
| Task Light Type | Led |
| Venting | Exterior Or Recirculating |
Controls
| Control Type | Electronic Touch |
| Number of Vent Speeds | 4 |

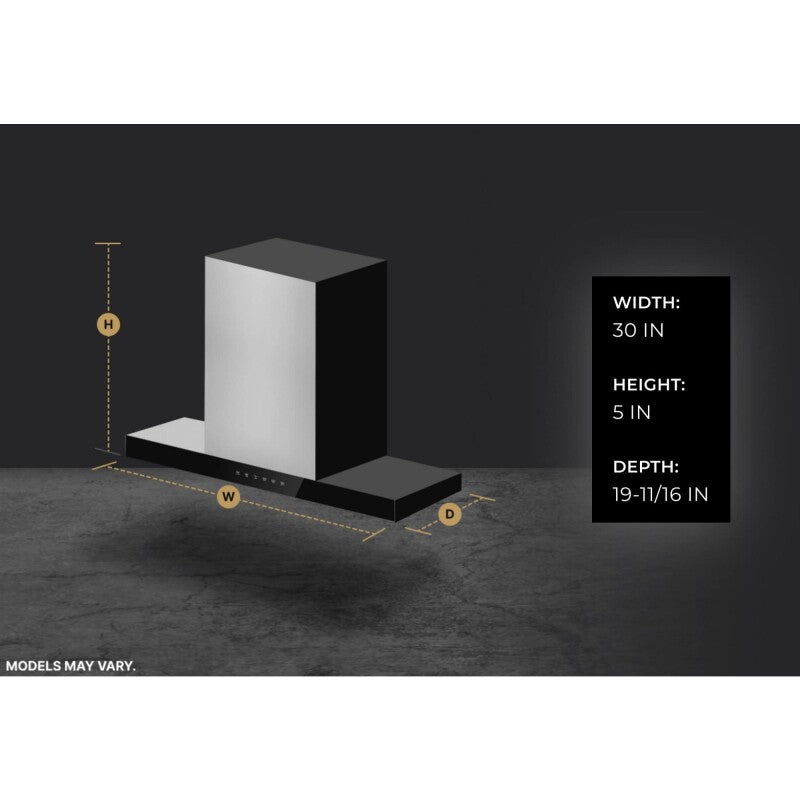

Dimensions
| Common Size | 30 In |
| Depth | 19-11/16 In |
| Gross Weight | 60-9/50 Lbs |
| Height | 5 In |
| Net Weight | 44-9/100 Lbs |
| Width | 30 In |
Certifications
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Certifications
California Prop 65
