BROAN Broan(R) Elite 30-Inch Convertible Under-Cabinet Range Hood, White, 375 Max Blower CFM - (ALT230WW)
SKU:
ALT230WW
Regular price
$400.00
Unit price
/
Unavailable
BROAN Broan(R) Elite 30-Inch Convertible Under-Cabinet Range Hood, White, 375 Max Blower CFM - (ALT230WW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ UL Listed
- ✔ HVI Certified
- ✔ Model replaced BQDD130WW
- ✔ Captur systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
- ✔ Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
- ✔ Bright, two-level LED modules supported by a 3-year warranty illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- ✔ Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface

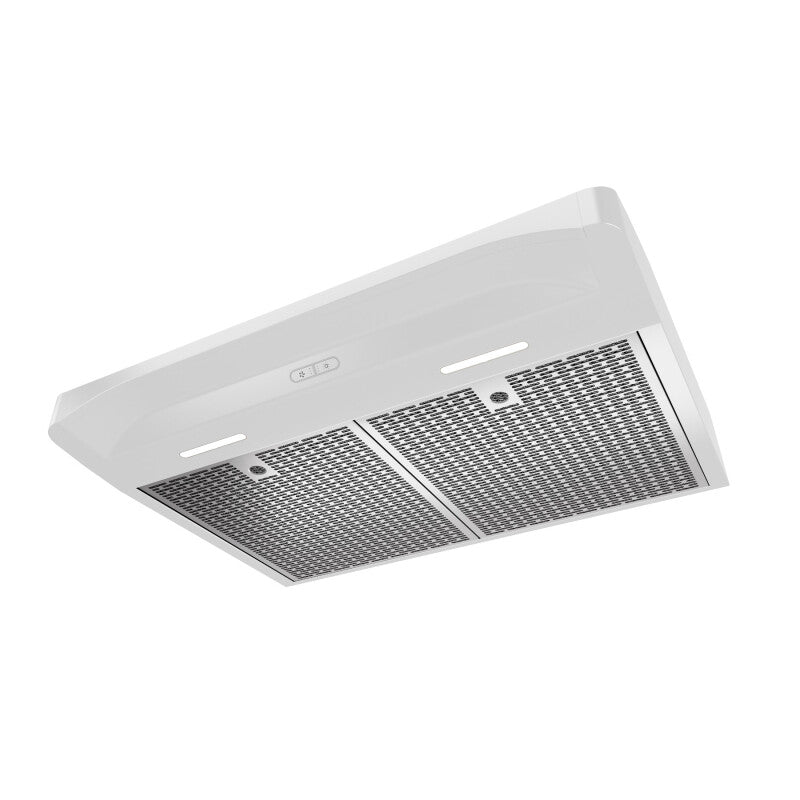

- ✔ Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
- ✔ EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ✔ ADA compliant, remote operation is possible using a standard UL approved wall switch.
- ✔ Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- ✔ 1-Person Installation in Half the Time
- ✔ HVI Certified
- ✔ UL Listed
BROAN Broan(R) Elite 30-Inch Convertible Under-Cabinet Range Hood, ...
Regular price
$400.00
Unit price
/
Unavailable
Description
Elite 30-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM
Product Features
UL Listed
HVI Certified
1-Person Installation in Half the Time
HVI Certified
UL Listed
Model replaced BQDD130WW
Captur systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
Bright, two-level LED modules supported by a 3-year warranty illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch.
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Product Specifications
Other
| Filter Type | Deluxe Micro Mesh |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| Light Bulb Wattage | 4.5 |
| Light Levels | 2 |
| Material | Steel |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Country of Origin | Mexico |
| Rated Amps | 0.65 |
| Capture Efficiency | 98.1 |
| CFM | 375 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
Dimensions & Weight
| Width | 30 in. |
| Height | 5 in. |
| Length | 22 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 10 in. |
| Shipping Length | 27 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.91 ft |
| Dimensional Weight | 23.74 lbs. |
| Total of Cubes | 1.91 ft |
| Total of Dimensional Weight | 23.74 lbs. |
Certifications
California Prop 65
