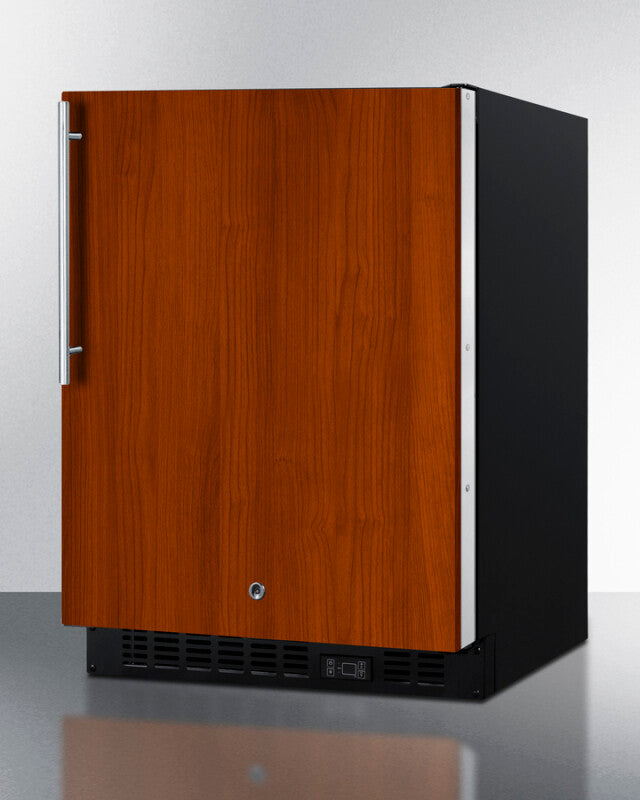

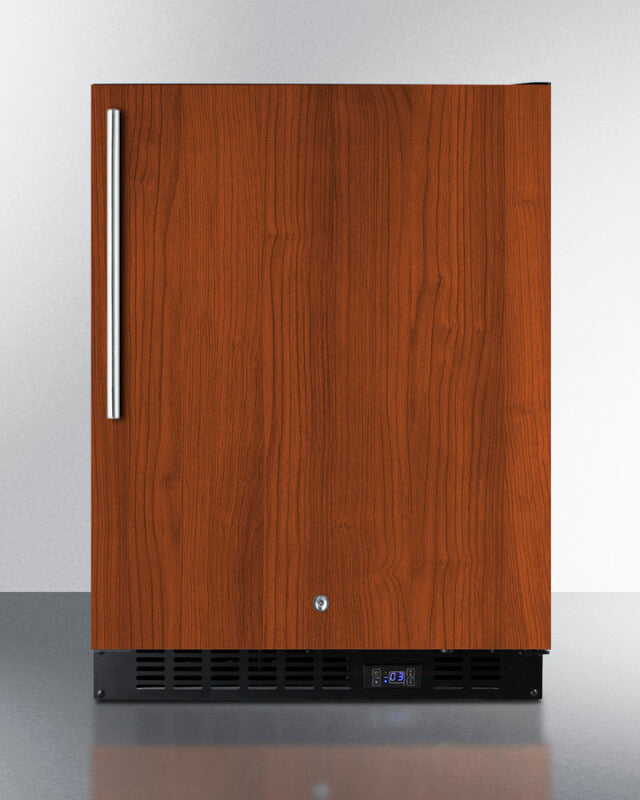

Summit 24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) - Panel Ready (ALFZ53IF)
SKU:
ALFZ53IF
UPC: 761101088037
Regular price
$2,150.00
Unit price
/
Unavailable
Summit 24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) - Panel Ready (ALFZ53IF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ NOTE: Design change
- ✔ Undercounter Freezer
- ✔ ADA compliant design
- ✔ Panel-ready door
- ✔ Frost-free operation
- ✔ Built-in capable
- ✔ Recessed LED light
- ✔ Factory-reversible door
- ✔ Digital thermostat
- ✔ Adjustable shelves
- ✔ Open door alarm
- ✔ Sabbath mode setting
- ✔ High temperature alarm
- ✔ Temperature Memory Function
- ✔ Right angle plug
- ✔ Sealed back
- ✔ Matching refrigerator available
- ✔ Commercially approved
- ✔ Fully finished cabinet
- ✔ CARB Compliant
- ✔ 100% CFC free
Summit 24" Wide Built-In All-Freezer, ADA Compliant (Panel Not...
Regular price
$2,150.00
Unit price
/
Unavailable
Product Features
NOTE: Design change
This item has recently been upgraded with a fully articulating hinge. The lock has been moved from the door front to kickplate. Images shown on website may not reflect product details
Undercounter Freezer
24" wide frost-free freezer sized to fit under lower ADA compliant counters
ADA compliant design
32" height allows easy installation under lower ADA compliant counters

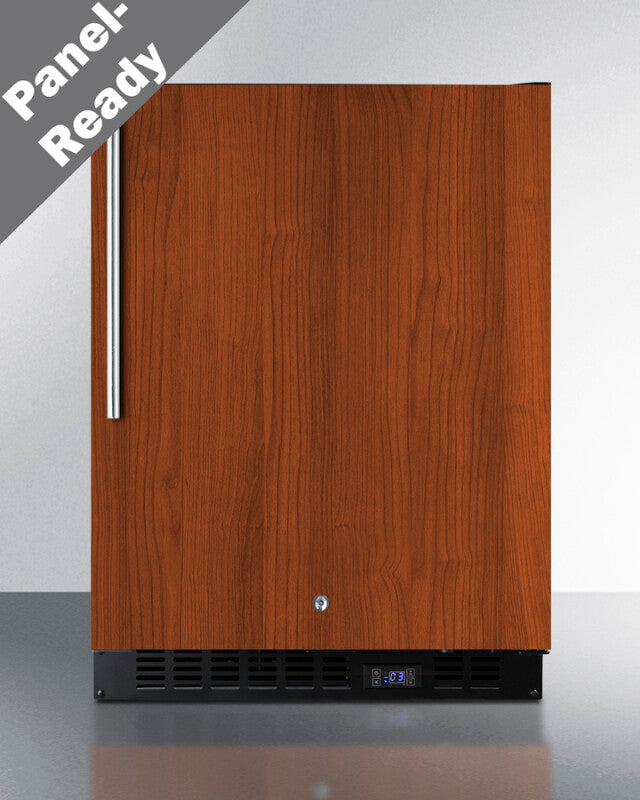

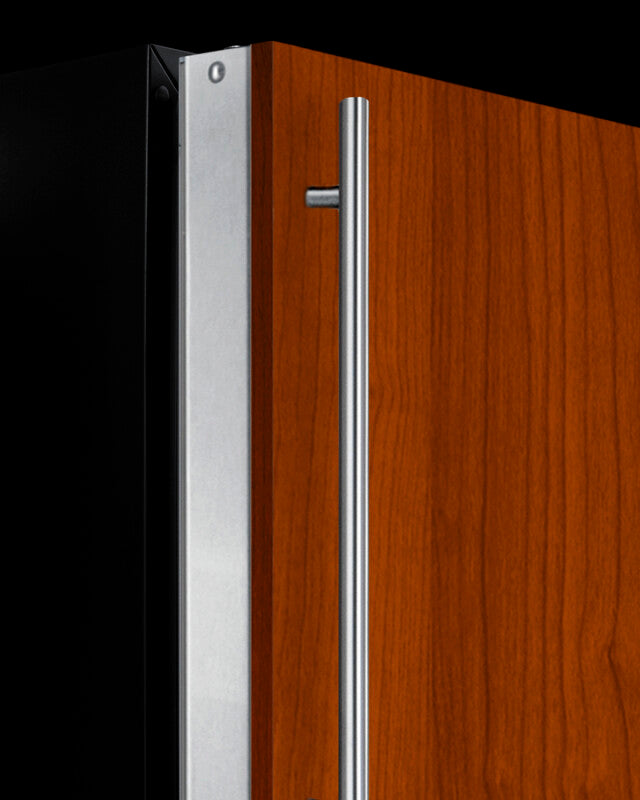

Panel-ready door
European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
Frost-free operation
No-frost convenience eliminates the need to manually defrost the unit

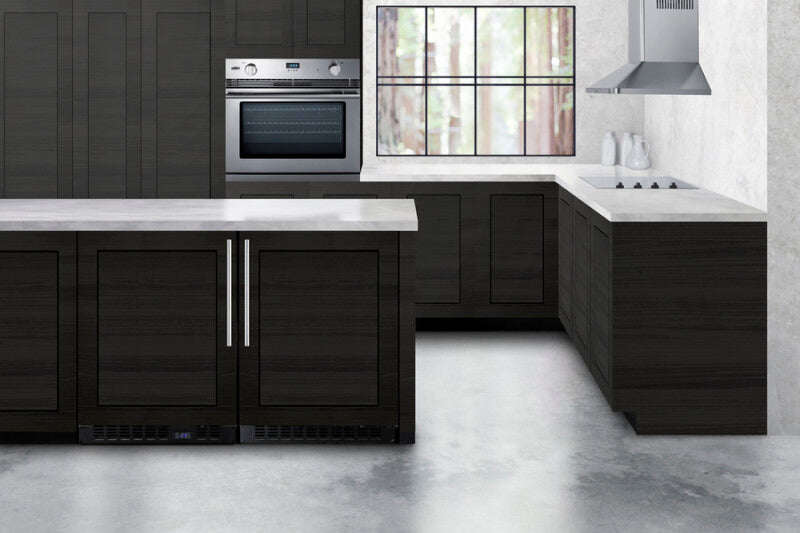

Built-in capable
Make the best use of space by installing your freezer under the counter and flush with other cabinets

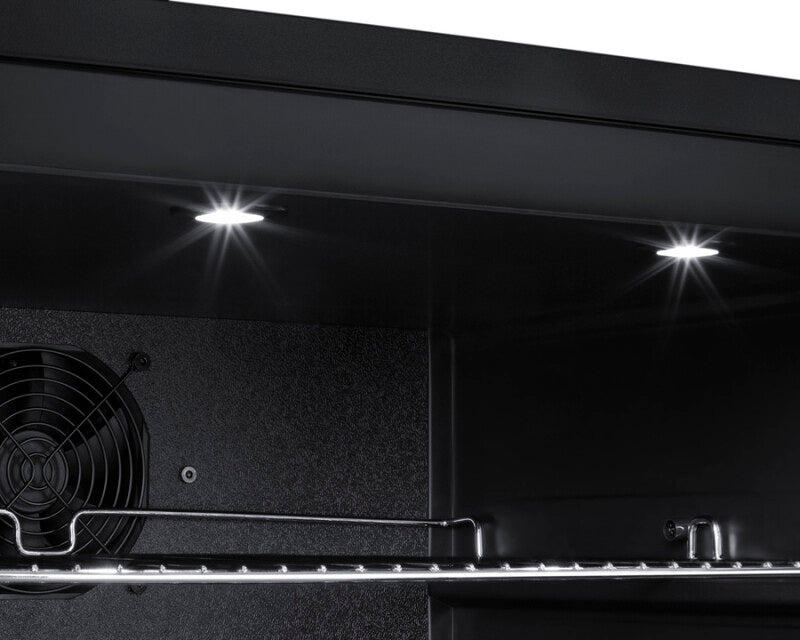

Recessed LED light
Elegant lighting with an on/off switch located on the control panel
Factory-reversible door
Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order
Digital thermostat
Electronic controls offer easy and intuitive temperature management

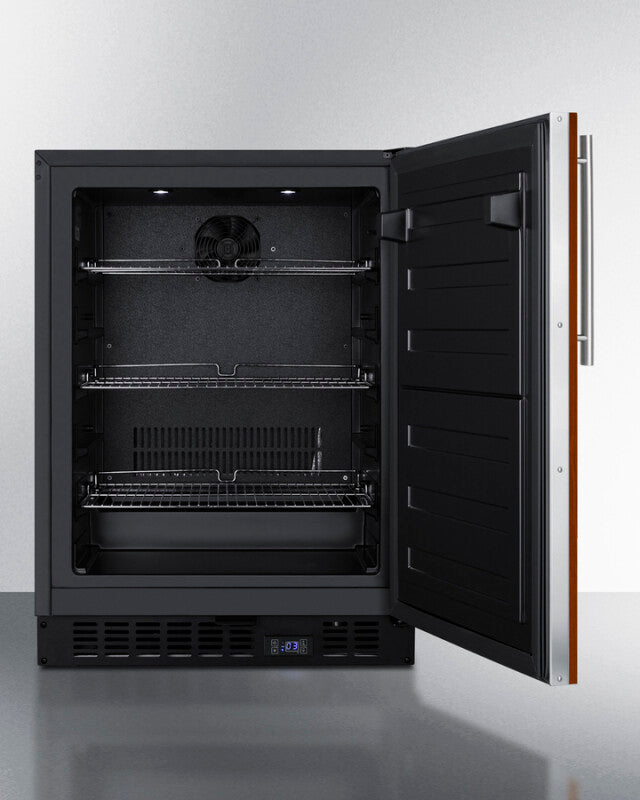

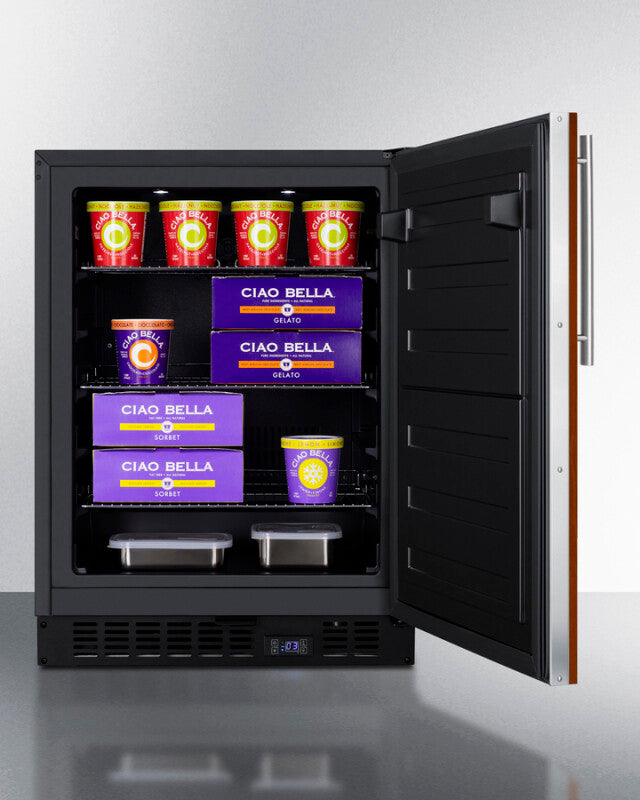

Adjustable shelves
Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability
Matching refrigerator available
Pair with the AL54IF for a matching side-by-side set under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 commercial standards
Fully finished cabinet
Allows the freezer to be used as a freestanding model
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 90.0 lbs. (41 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088037 |
Freezer
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
Dimensions & Weight
| Width | 23.63 in. |
| Height | 32 in. |
| Length | 22.63 in. |
| Weight | 90 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.63 in. |
| Shipping Height | 37 in. |
| Shipping Length | 27.63 in. |
| Shipping Weight | 130 lbs. |
| Total of Shipping Weight | 130 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.9 ft |
| Dimensional Weight | 123.11 lbs. |
| Total of Cubes | 9.9 ft |
| Total of Dimensional Weight | 123.11 lbs. |
Certifications
California Prop 65
