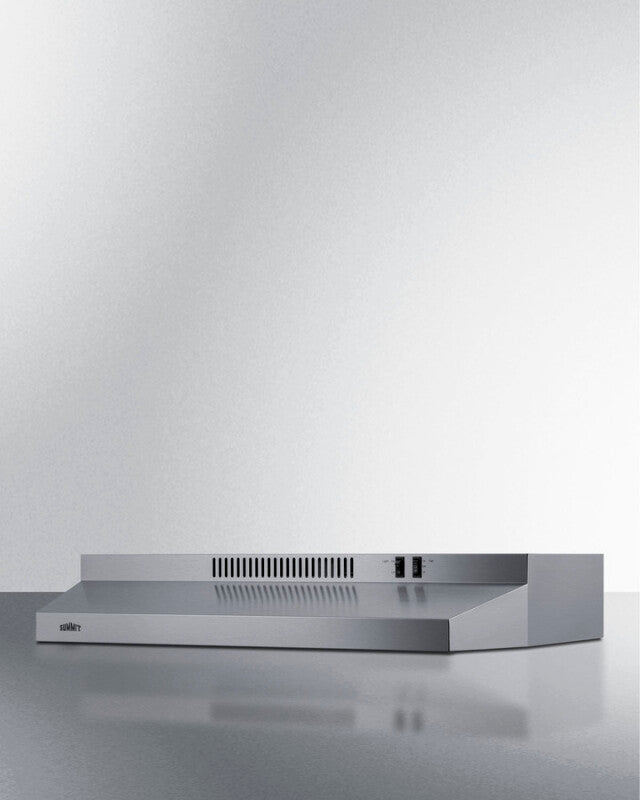

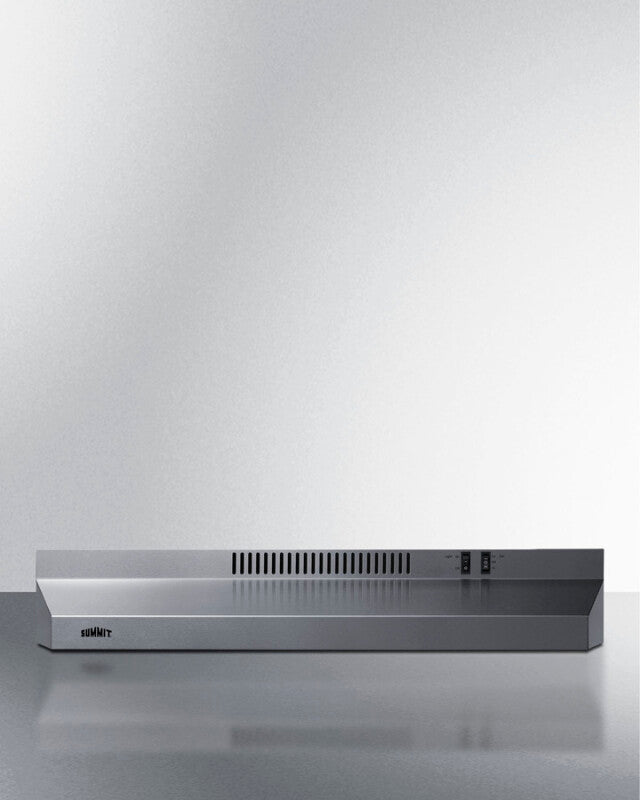

SUMMIT 30" Under Cabinet Convertible Range Hood, ADA Compliant - Other (H30RSSADA)

SKU: H30RSSADA

UPC: 761101087399

$25700 $34000

SUMMIT 30" Under Cabinet Convertible Range Hood, ADA Compliant - Other (H30RSSADA) is available for ordering but may require additional time to be fulfilled. Please contact us for details.

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • ✔ 30" Wide ADA Compliant Range Hood
  • ✔ ADA compliant design
  • ✔ Under cabinet range hood
  • ✔ 30 inch width
  • ✔ Convertible design
  • ✔ Versatile top or rear exhaust
  • ✔ Easy 1-step conversion
  • ✔ Two-speed fan
  • ✔ Stainless steel finish
  • ✔ Light & bulb included
  • ✔ Removable metal grease filter
  • ✔ Rocker switch controls
  • ✔ Charcoal filter included
  • ✔ Professional installation

Product Features

30" Wide ADA Compliant Range Hood
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
ADA compliant design

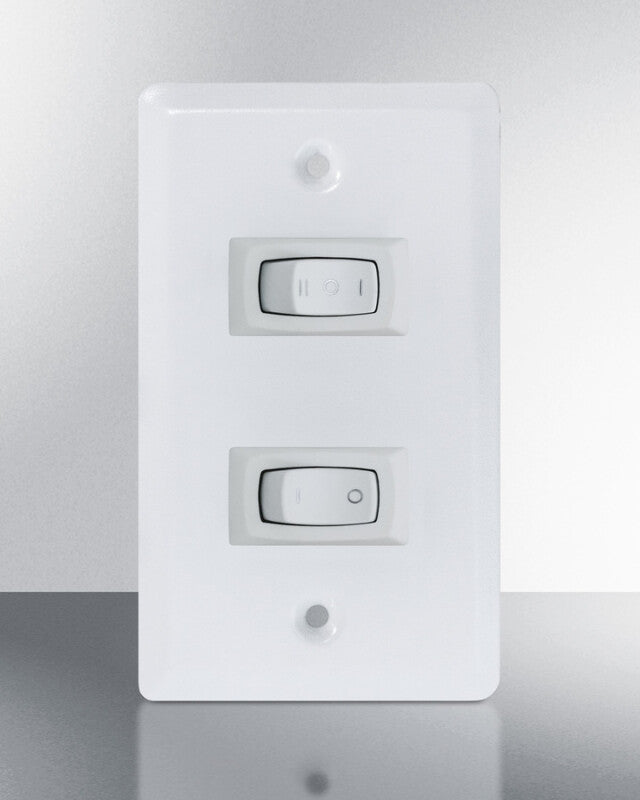

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
Under cabinet range hood
Low profile design offers a classic way to finish your kitchen
30 inch width
Sized for use over 30 inch cooking surfaces (additional sizes available)
Convertible design
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Versatile top or rear exhaust
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
Easy 1-step conversion
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
Two-speed fan
High and low setting to allow proper ventilation of your kitchen as needed
Stainless steel finish
Durable construction in an attractive style with a horizontal grain
Light & bulb included
Includes an incandescent bulb to help illuminate your cooking surface

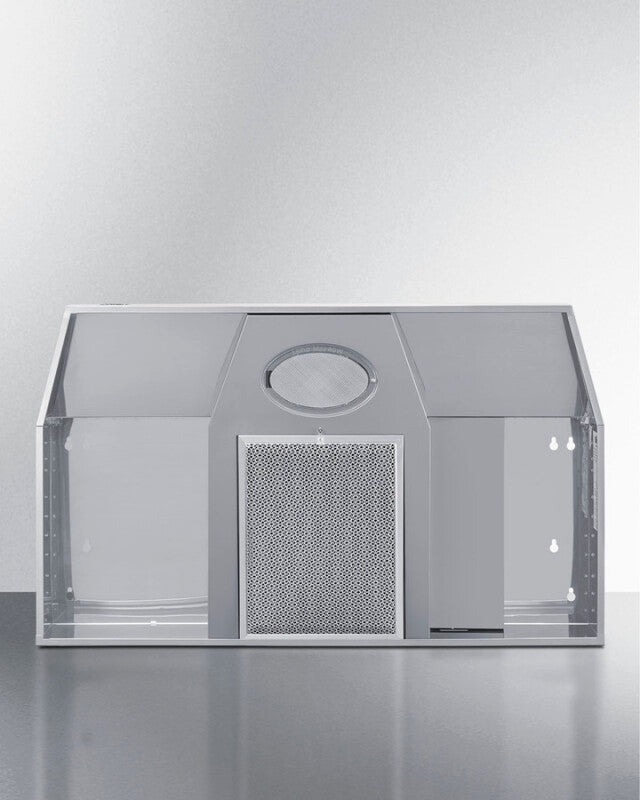

Removable metal grease filter
Easy installation and detaching allows you to properly clean the filter for optimum efficiency
Rocker switch controls
Front-located on/off and high/low switches make it easy to manage the light and fan
Charcoal filter included
Helps absorb grease and odors when using the hood in recirculating mode
Professional installation
Designed to be hard-wired by a licensed professional

Product Specifications

Warranty

Parts 1 Year
Labor 1 Year

Overview

Nominal Height 6.0" (15 cm)
Height of Cabinet 5.13" (13 cm)
Nominal Width 30.0" (76 cm)
Width 29.88" (76 cm)
Nominal Depth 19.0" (48 cm)
Depth 18.63" (47 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Weight 12.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101087399

Range Hood

Venting Convertible
Controls Dial
Light Yes
Number of Lights 1
Light Type Incandescent
Number of Fan Speeds 2
Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition

Dimensions & Weight

Width 29.88 in.
Height 5.13 in.
Length 18.63 in.
Weight 12 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 10.13 in.
Shipping Length 23.63 in.
Shipping Weight 52 lbs.
Total of Shipping Weight 52 lbs.
Source Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement 1.65 ft
Dimensional Weight 20.54 lbs.
Total of Cubes 1.65 ft
Total of Dimensional Weight 20.54 lbs.

Certifications

California Prop 65
