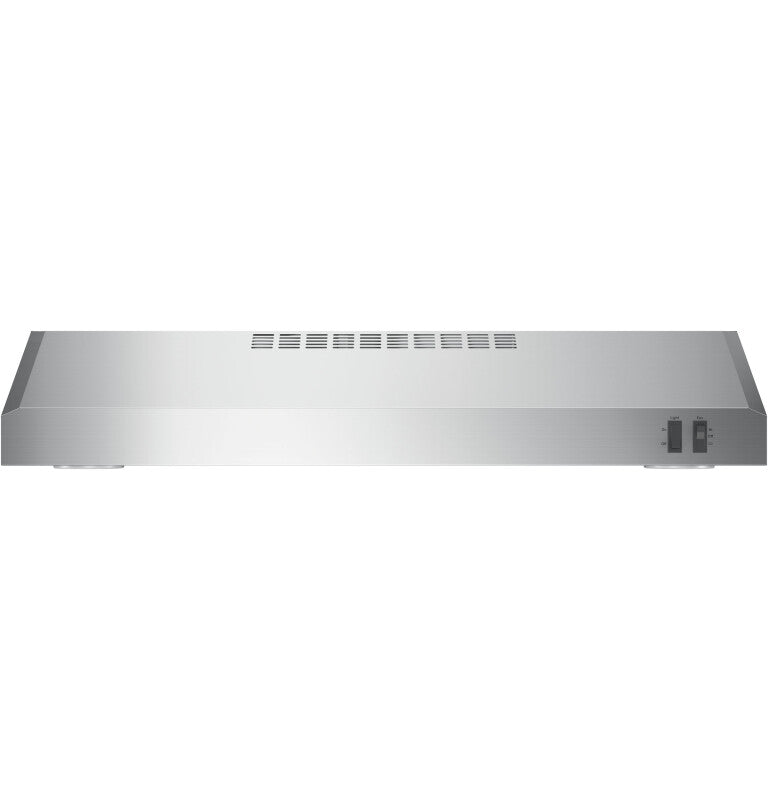

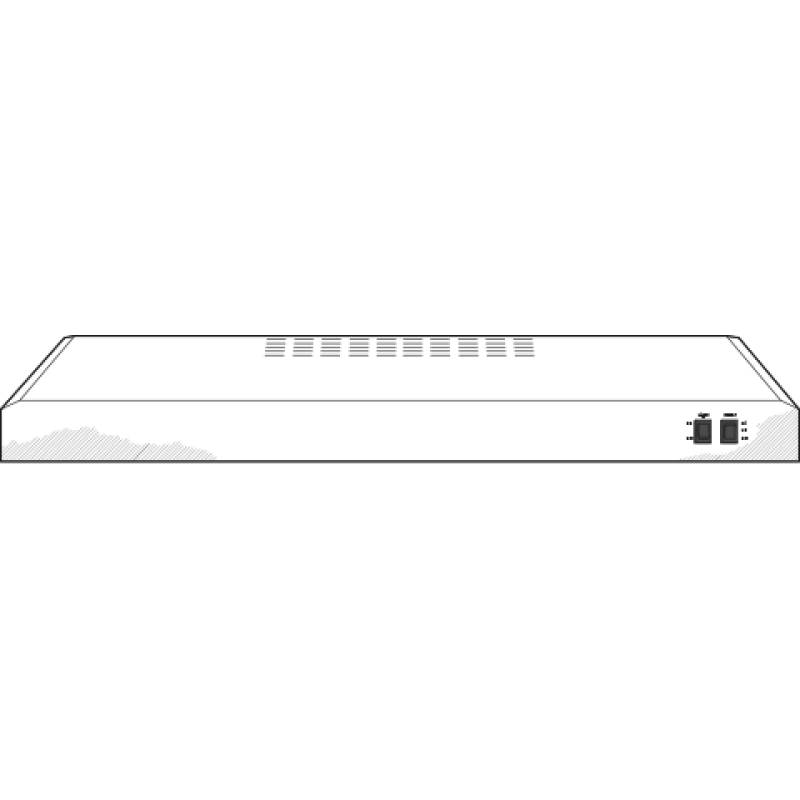

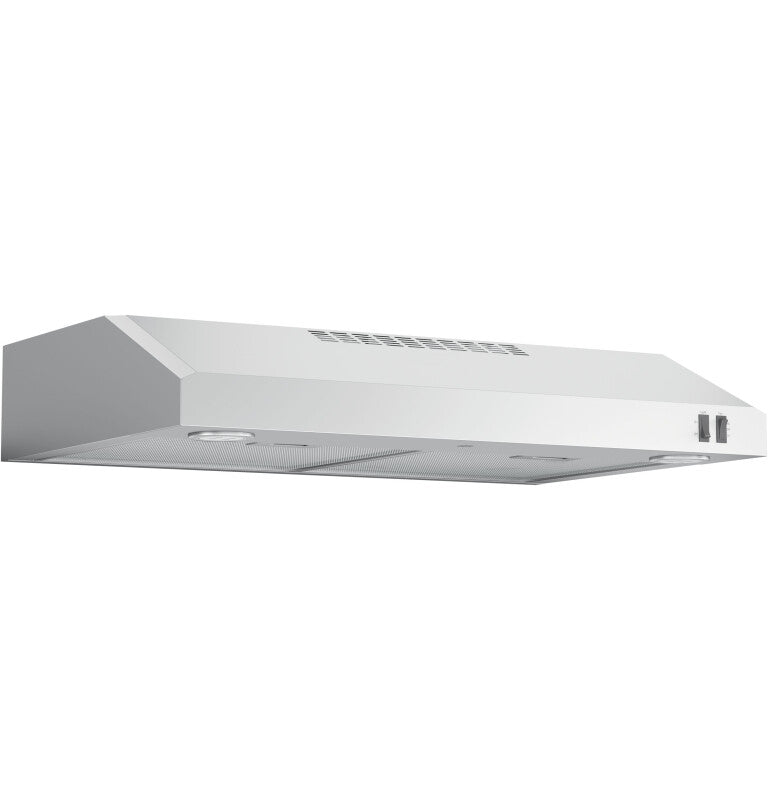

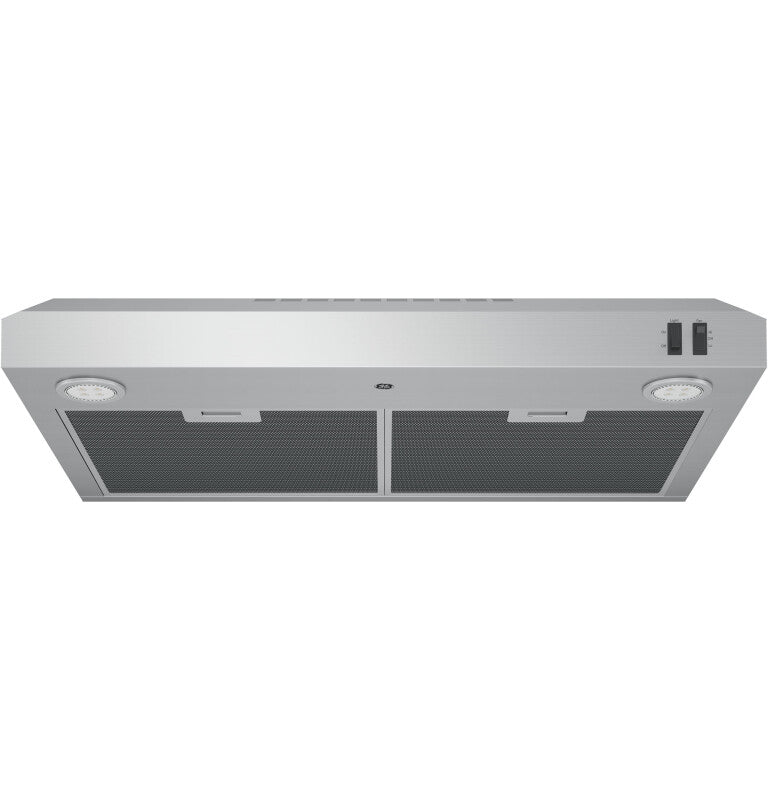

GE 30" Under The Cabinet Hood - Stainless Steel (JVX5305SJSS)
SKU:
JVX5305SJSS
UPC: 084691814757
Regular price
$43900
Unit price
GE 30" Under The Cabinet Hood - Stainless Steel (JVX5305SJSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Energy efficient
- ✔ Easy installation
- ✔ Two-speed, 270-CFM venting system
- ✔ Front controls
- ✔ Dual LED lighting
- ✔ Convertible venting options
- ✔ Vertical and rear exhaust
- ✔ Appearance (Fully enclosed bottom)
- ✔ Dishwasher-safe filter
- ✔ Wall Switch Option
GE 30" Under The Cabinet Hood - Stainless Steel (JVX5305SJSS)
Regular price
$43900
Unit price
SKU:
JVX5305SJSS
Regular price
$43900
Unit price
GE 30" Under The Cabinet Hood - Stainless Steel (JVX5305SJSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
30" Under The Cabinet Hood
Product Features
Energy efficient
JVX5305 series ventilation hoods are Energy Star qualified, helping you save energy and money
Easy installation
10 minutes or less by one person
Front controls
Conveniently located on the front of the canopy, the simple switches let you adjust fan speed and lighting with ease

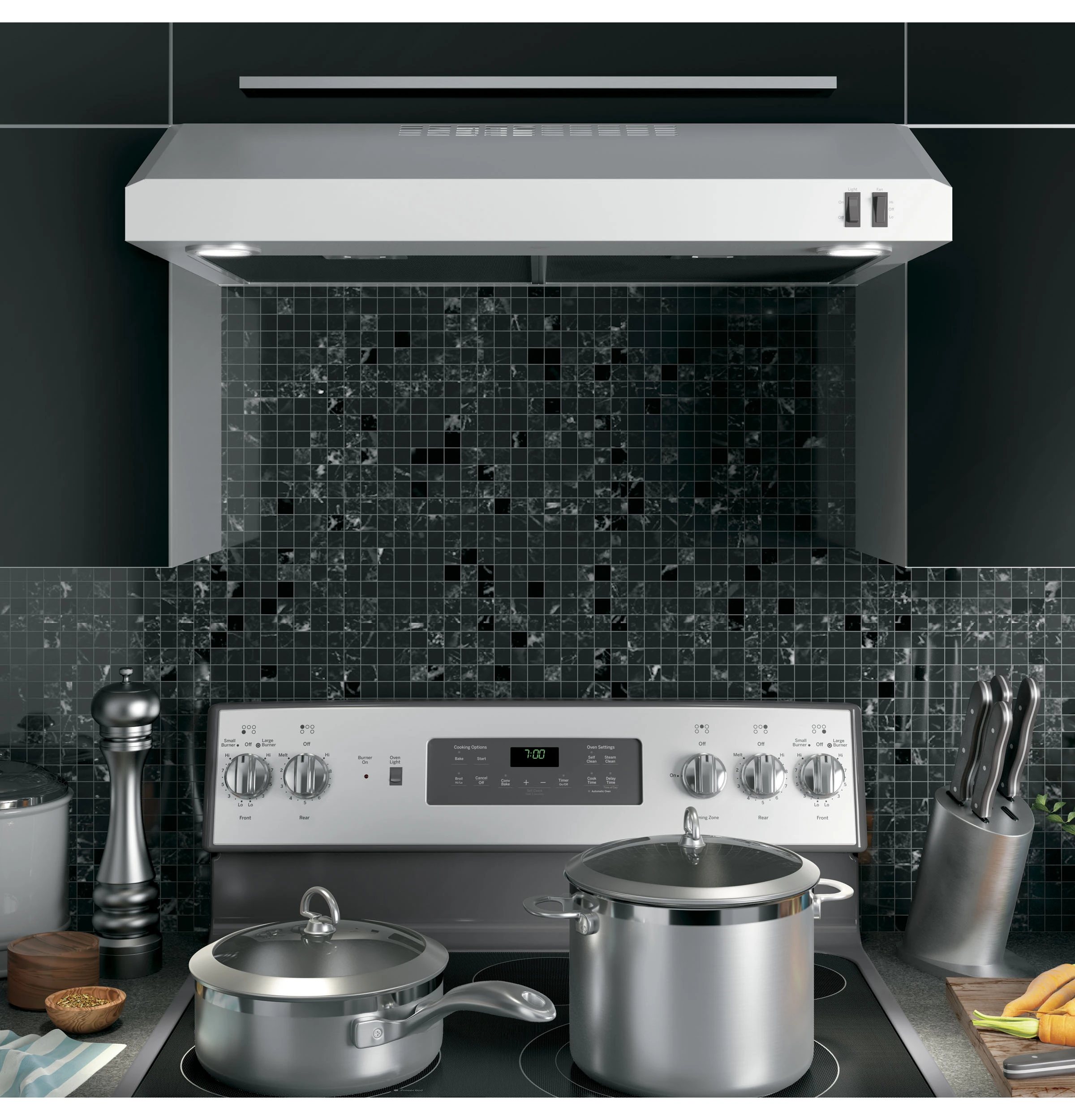

Dual LED lighting
Choose bright light while cooking - bulbs included
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchens specific ventilation

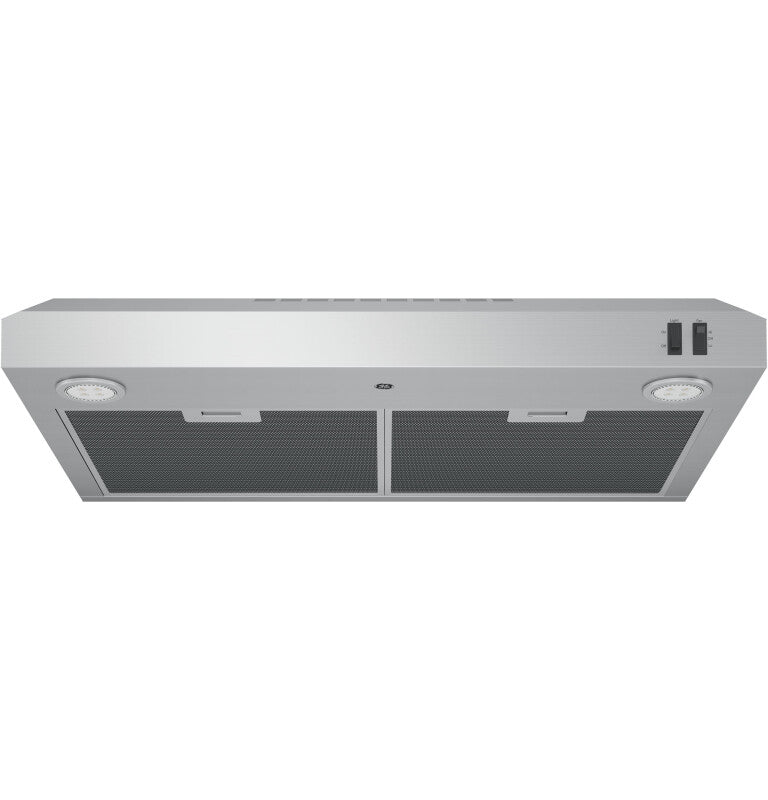

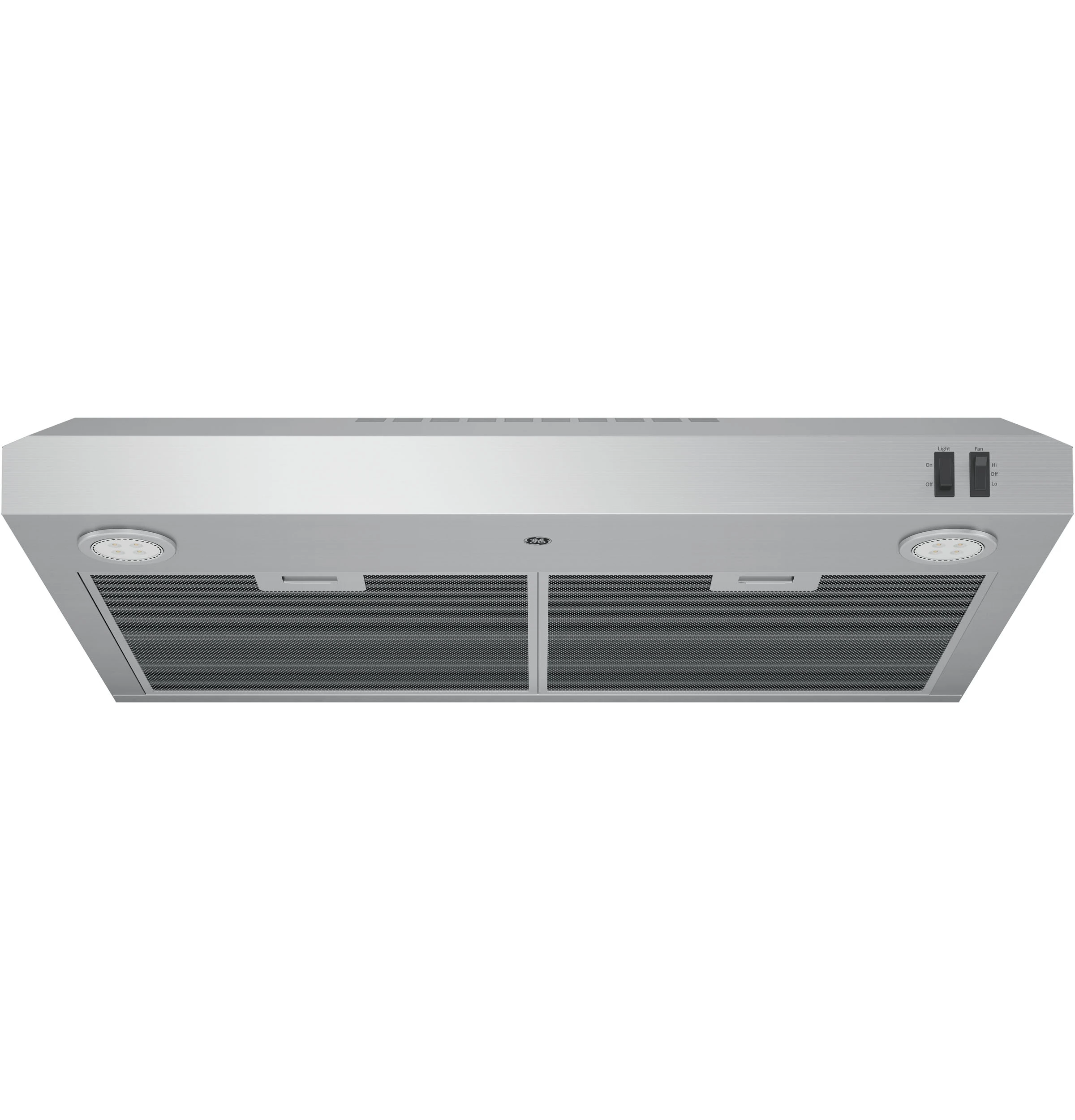

Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle

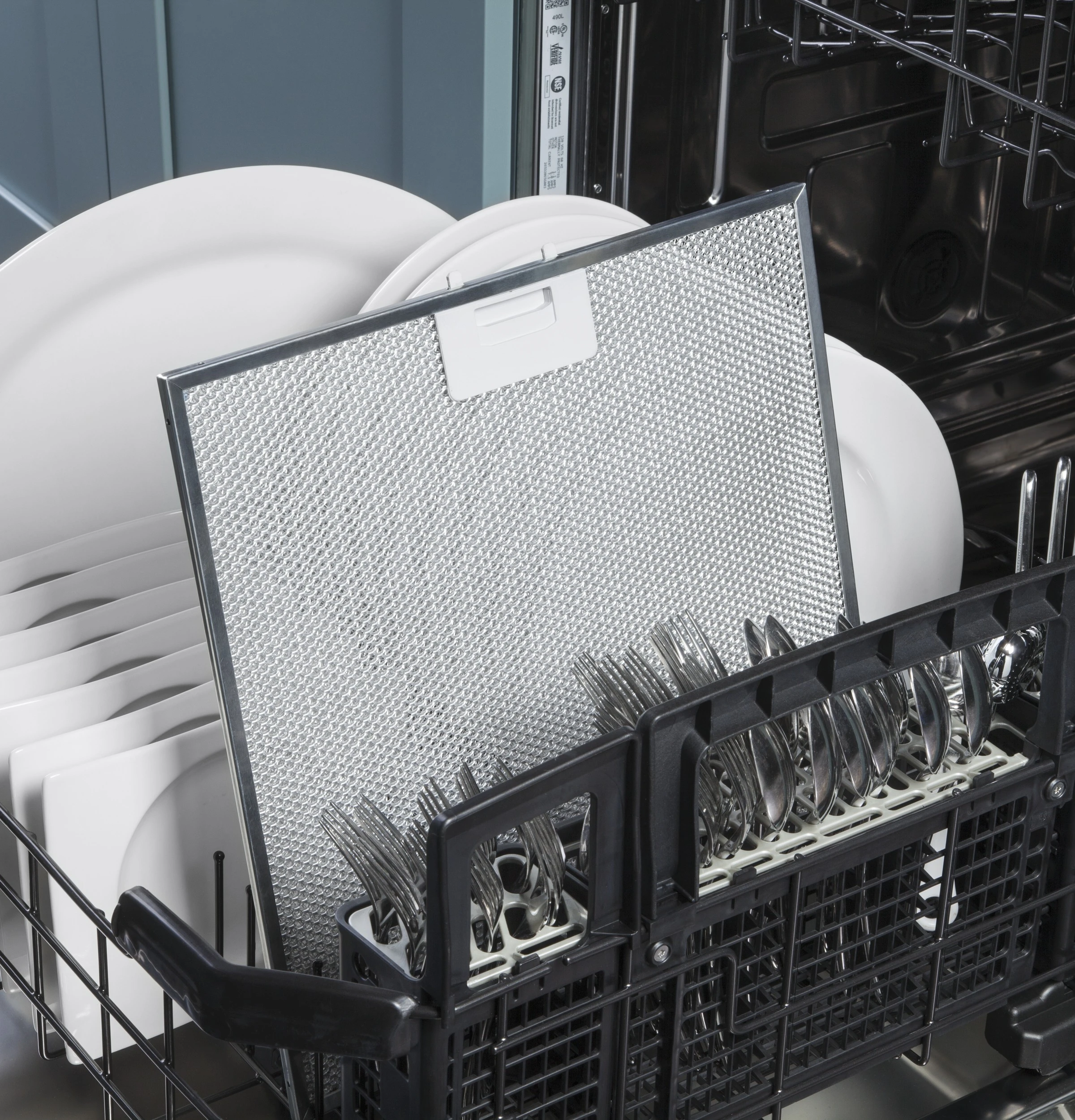

Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Two-speed, 270-CFM venting system
Removes smoke, grease, odors and moisture
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Wall Switch Option
Can be converted for operation with a wall switch, offering added flexibility and ADA-compliant convenience
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

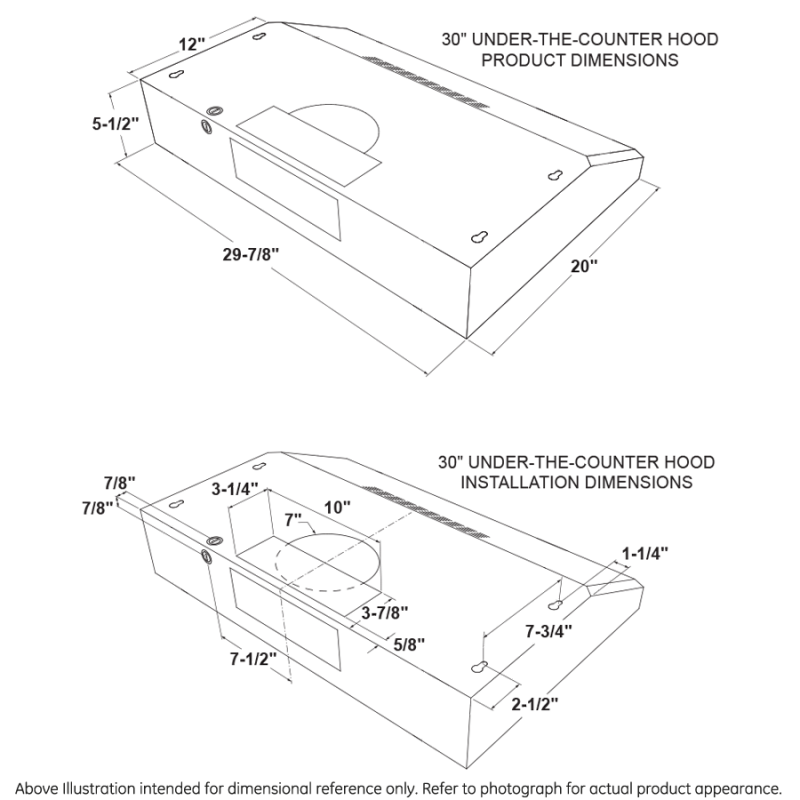

WEIGHTS & DIMENSIONS
| Overall Depth | 20 in |
| Overall Height | 5.5 in |
| Overall Width | 29.875 in |
| Cabinet Width | 30 in |
| Net Weight | 20 lb |
| Approximate Shipping Weight | 27 lb |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 5.5 in. |
| Length | 20 in. |
| Weight | 20 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 60 lbs. |
| Total of Shipping Weight | 60 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.9 ft |
| Dimensional Weight | 23.64 lbs. |
| Total of Cubes | 1.9 ft |
| Total of Dimensional Weight | 23.64 lbs. |
POWER / RATINGS
| Watts | 87 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 1.0A |
| Amp Rating at 120V | 1.0 |
FEATURES
| Cooktop Lighting | LED |
| Fan Speed Control | 2-Speed |
| Max CFM | 270 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 270/4.5 (High Speed) |
| Exhaust Options | Vented to Outside |
| Product Type | Under Cabinet Hood |
| Control Type | Rocker Switch |
| Control Location | Front |
| Blower Type | Internal |
| Removable Grease Filter(s) | Yes |
| CFM/ Sones Rating | 100/1.5 (Low Speed) |
| Exhaust Options | Recirculating |
| Cooktop Lighting | 2 |
APPEARANCE
| Blower / Light Switch Color | Gray |
| Material | Metal |
| Color Appearance | Stainless Steel |
ACCESSORIES
| Optional Accessories | JXHC1 - Power Cord Kit |
| Optional Accessories | JXCF55 - Charcoal Filter |
| Optional Accessories | JXS50SS - 15" Cabinet Spacer for 30" Hoods |
| Optional Accessories | JXDA22 - GE Optional Damper Accessory |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET
| Venting Type | Convertible |
Certifications
California Prop 65
