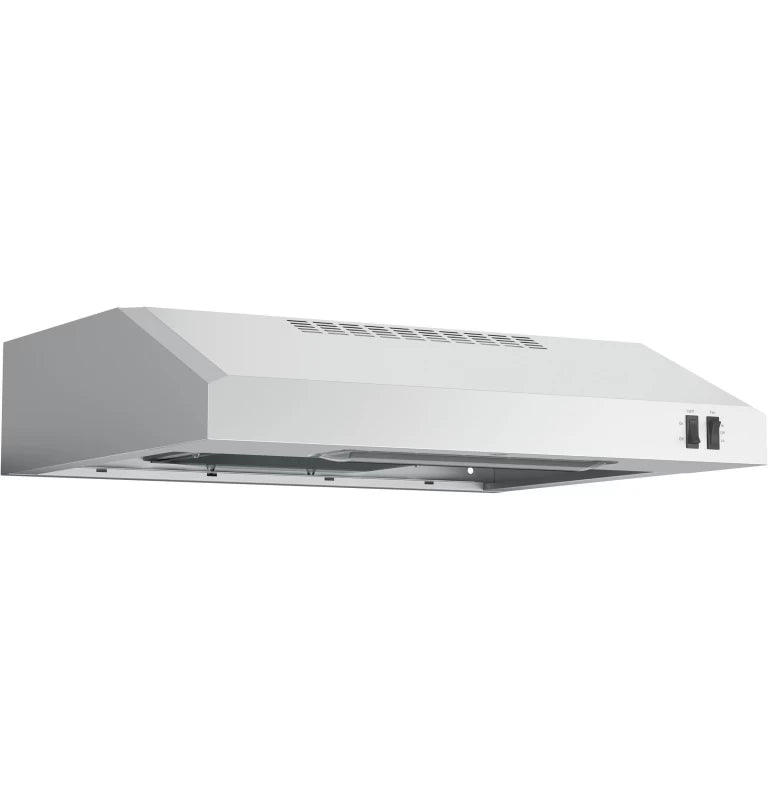

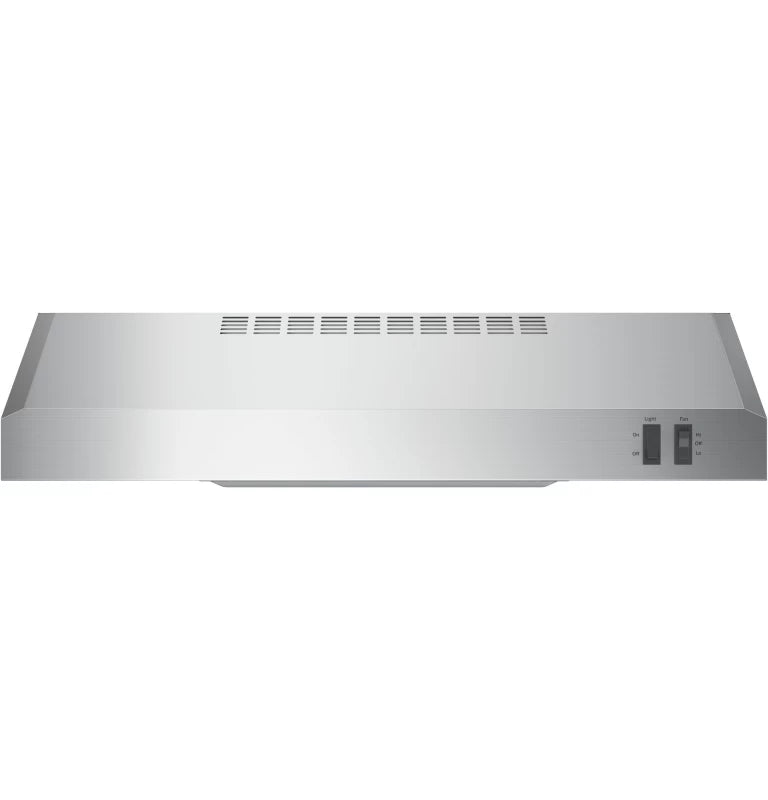

GE 24" Under The Cabinet Hood - Stainless Steel (JVX3240SJSS)
SKU:
JVX3240SJSS
UPC: 084691814863
Regular price
$26900
Unit price
GE 24" Under The Cabinet Hood - Stainless Steel (JVX3240SJSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Perfect fit
- ✔ Optional power cord kit
- ✔ Easy installation
- ✔ Two-speed, 200-CFM venting system
- ✔ Front controls
- ✔ Cooktop lighting
- ✔ Convertible venting options
- ✔ Vertical and rear exhaust
- ✔ Appearance (Partially enclosed bottom)
- ✔ Dishwasher-safe filter
- ✔ Wall Switch Option
GE 24" Under The Cabinet Hood - Stainless Steel (JVX3240SJSS)
Regular price
$26900
Unit price
SKU:
JVX3240SJSS
Regular price
$26900
Unit price
GE 24" Under The Cabinet Hood - Stainless Steel (JVX3240SJSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
24" Under The Cabinet Hood
Product Features

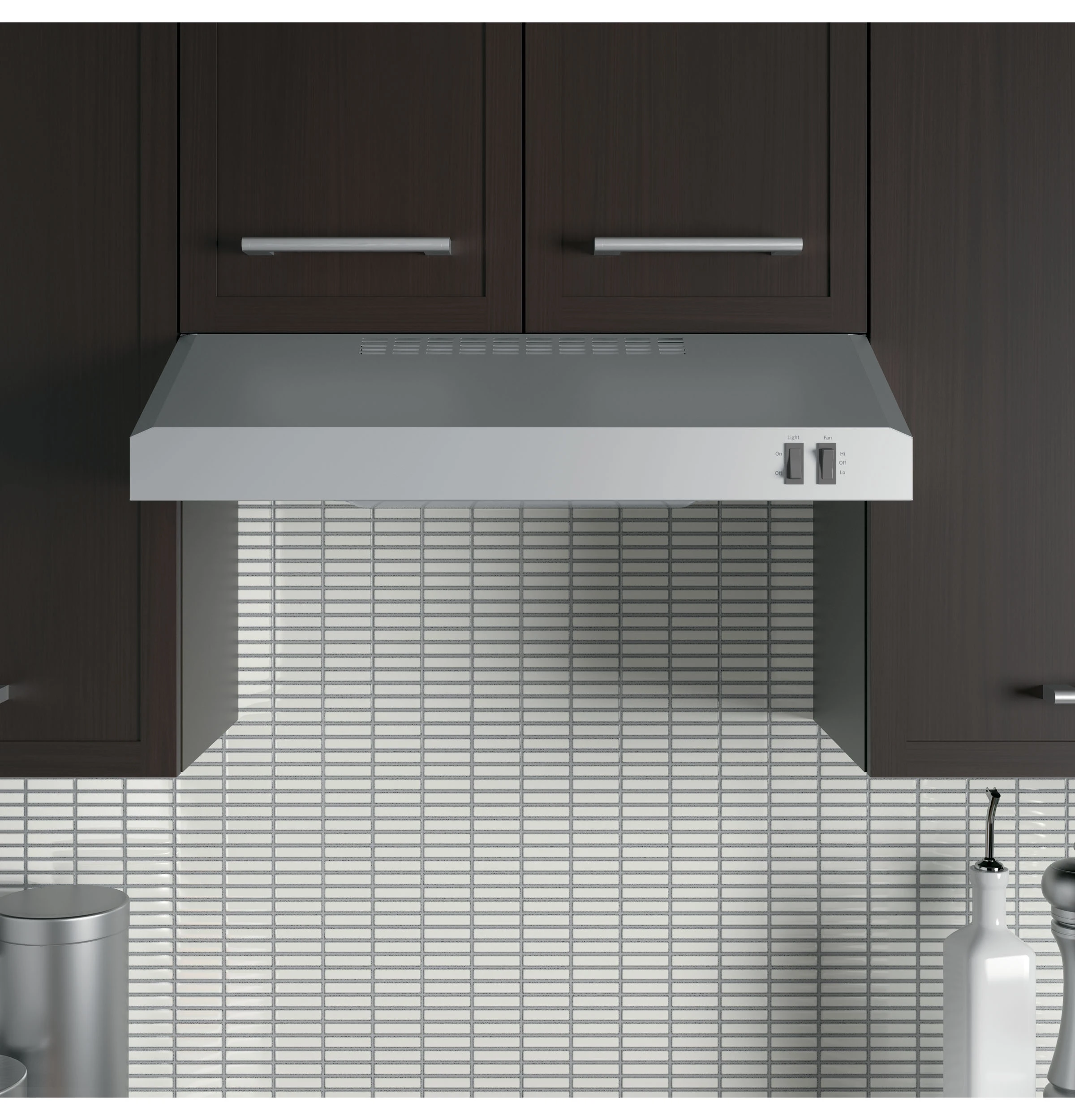

Perfect fit
Designed for a 24-inch wide space, this hood is ideal for smaller kitchens
Easy installation
10 minutes or less by one person
Front controls
Conveniently located on the front of the canopy, the simple switches let you adjust fan speed and lighting with ease
Cooktop lighting
Illuminate cooking space and surrounding surface - bulbs included
Convertible venting options
Select recirculating or external venting

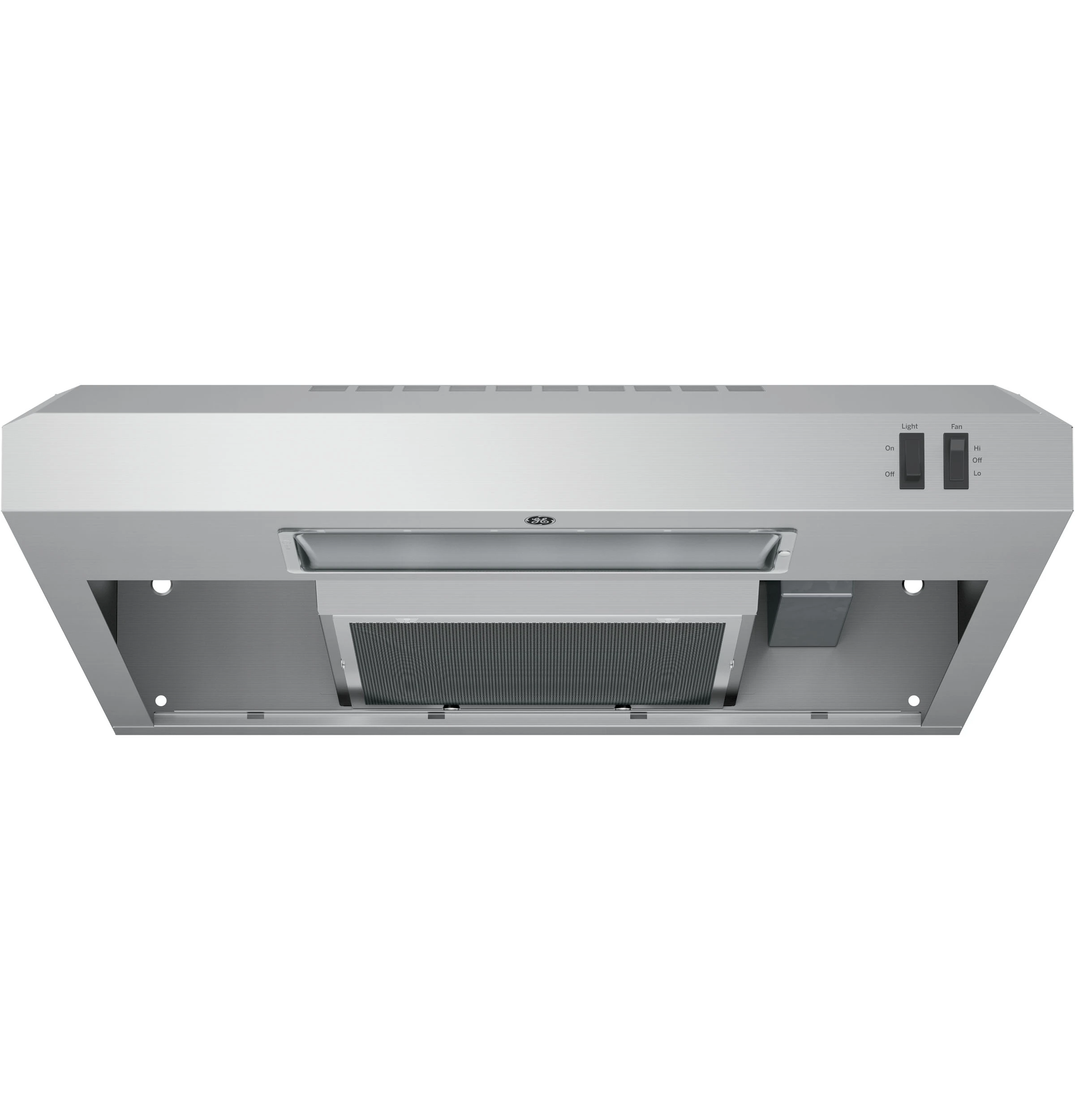

Appearance (Partially enclosed bottom)
Enjoy easy access to hood interior
Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Optional power cord kit
Install your hood using a standard 3-prong, grounded outlet with the optional Power Cord Connection Kit (JXHC1, sold separately)
Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Wall Switch Option
Can be converted for operation with a wall switch, offering added flexibility and ADA-compliant convenience
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

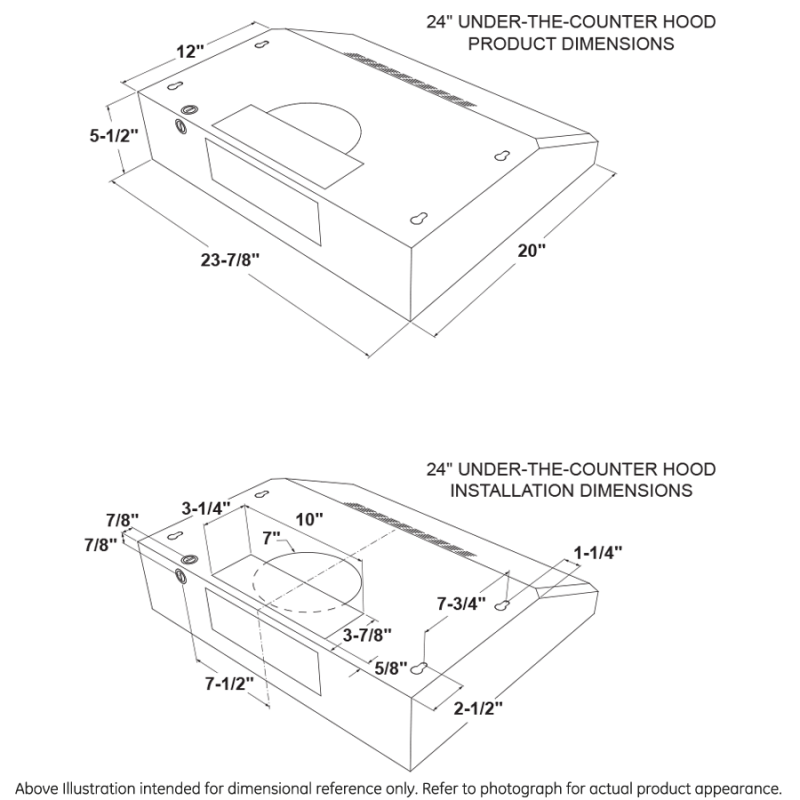

WEIGHTS & DIMENSIONS
| Overall Depth | 20 in |
| Overall Height | 5.5 in |
| Overall Width | 23.875 in |
| Cabinet Width | 24 in |
| Net Weight | 15 lb |
| Approximate Shipping Weight | 23 lb |
Dimensions & Weight
| Width | 23.88 in. |
| Height | 5.5 in. |
| Length | 20 in. |
| Weight | 15 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 55 lbs. |
| Total of Shipping Weight | 55 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.52 ft |
| Dimensional Weight | 18.89 lbs. |
| Total of Cubes | 1.52 ft |
| Total of Dimensional Weight | 18.89 lbs. |
POWER / RATINGS
| Watts | 81 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 2.5A |
| Amp Rating at 120V | 2.5 |
FEATURES
| Cooktop Lighting | Incandescent |
| Fan Speed Control | 2-Speed |
| Max CFM | 200 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off |
| Filter Cleaning | Dishwasher Safe |
| Fan Controls | Rocker |
| CFM/ Sones Rating | 200/6.5 (High Speed) |
| Exhaust Options | Vented to Outside |
| Product Type | Under Cabinet Hood |
| Control Type | Rocker Switch |
| Control Location | Front |
| Blower Type | Internal |
| Charcoal Filter | JXCF53 - Included |
| Removable Grease Filter(s) | Yes |
| CFM/ Sones Rating | 130/5.0 (Low Speed) |
| Exhaust Options | Recirculating |
| Cooktop Lighting | 1 |
APPEARANCE
| Blower / Light Switch Color | White |
| Material | Metal |
| Color Appearance | Stainless Steel |
ACCESSORIES
| Optional Accessories | JXHC1 - Power Cord Kit |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET
| Venting Type | Convertible |
Certifications
California Prop 65
