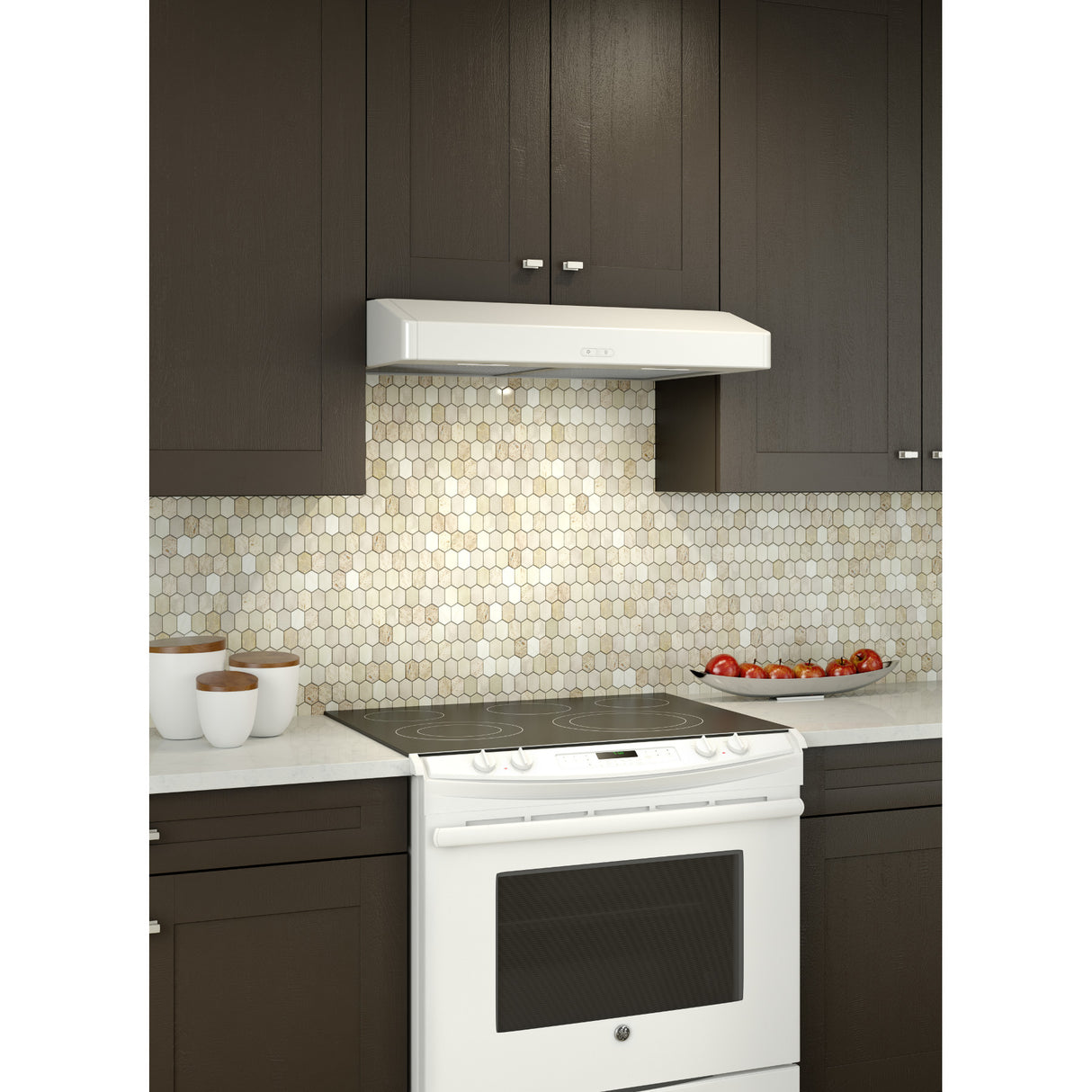

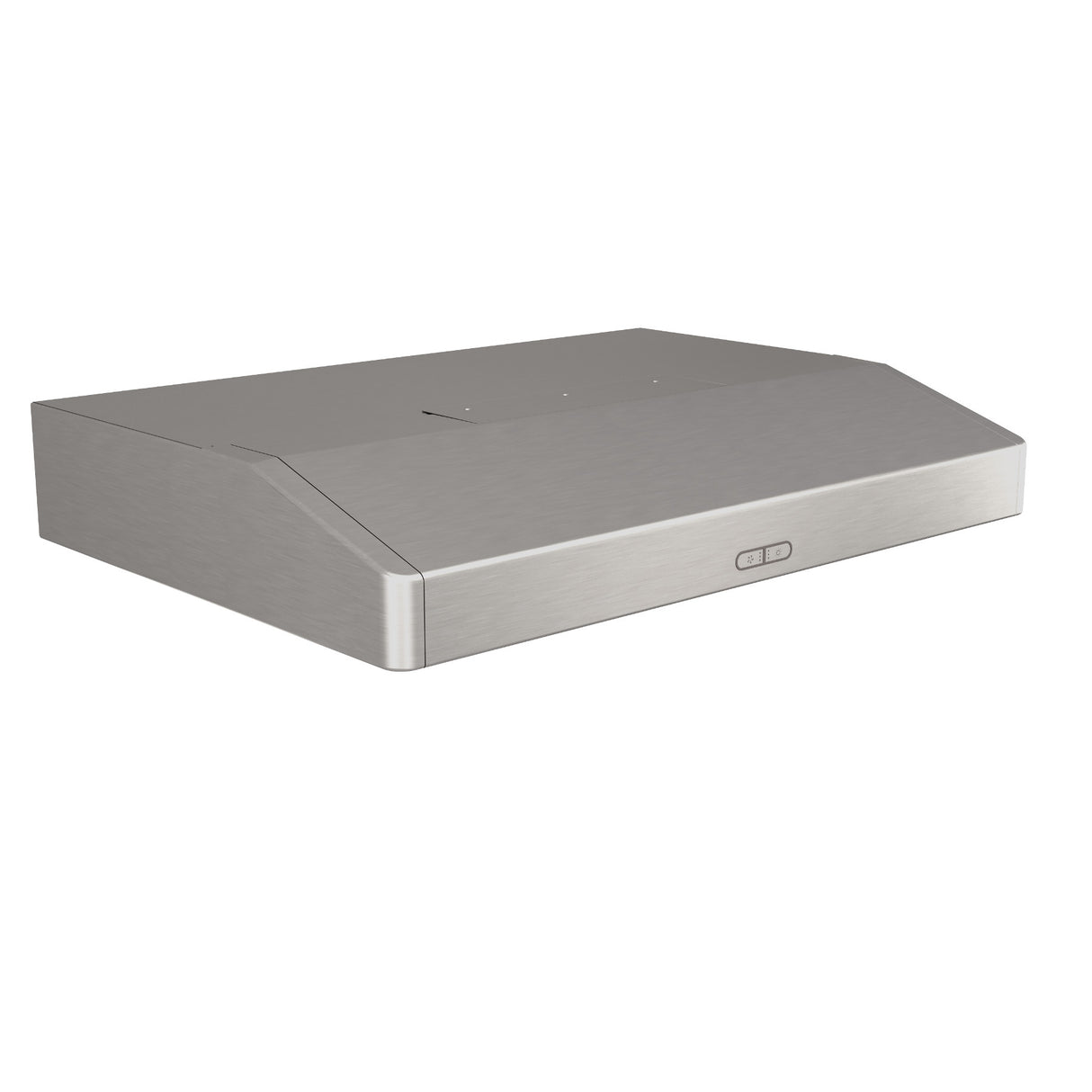

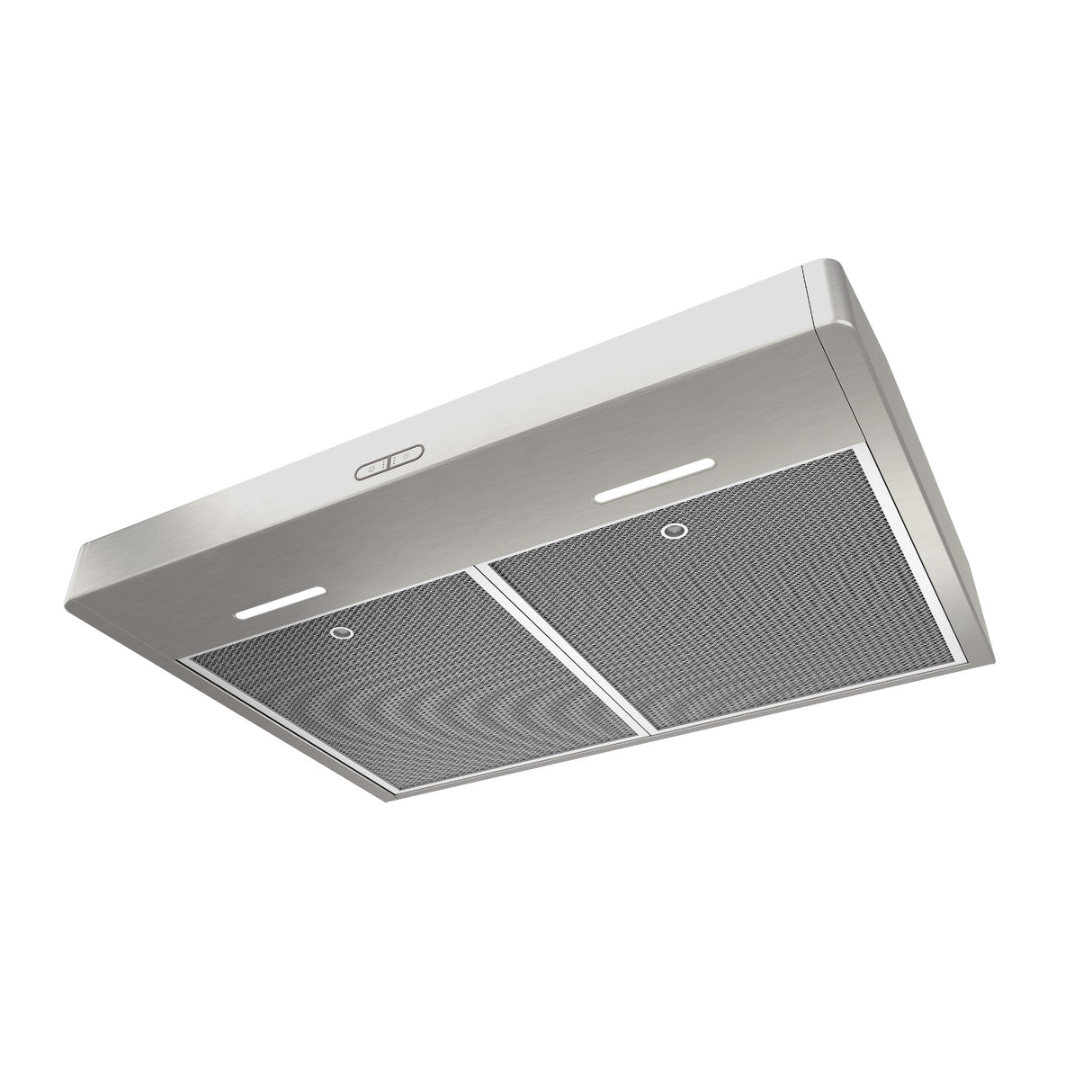

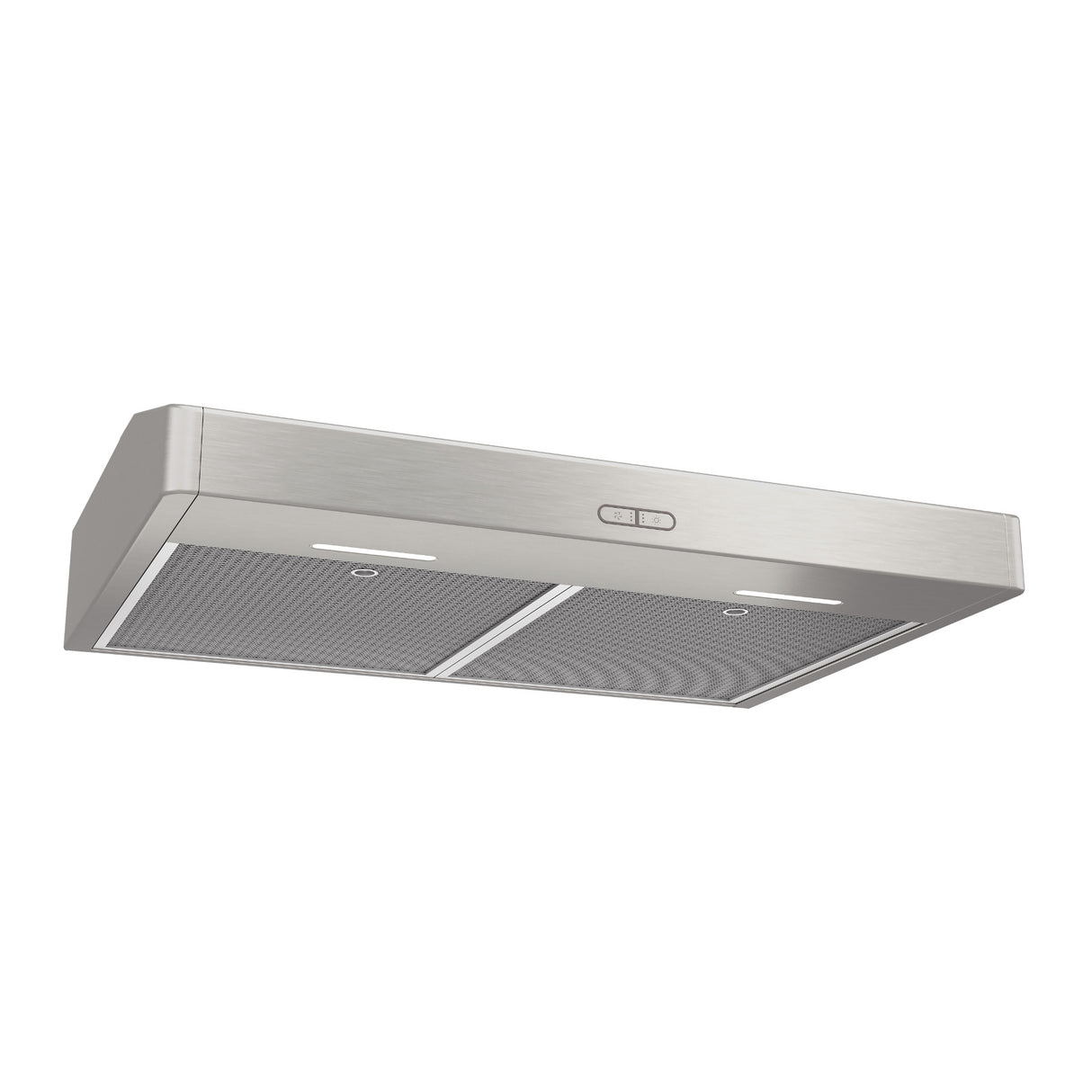

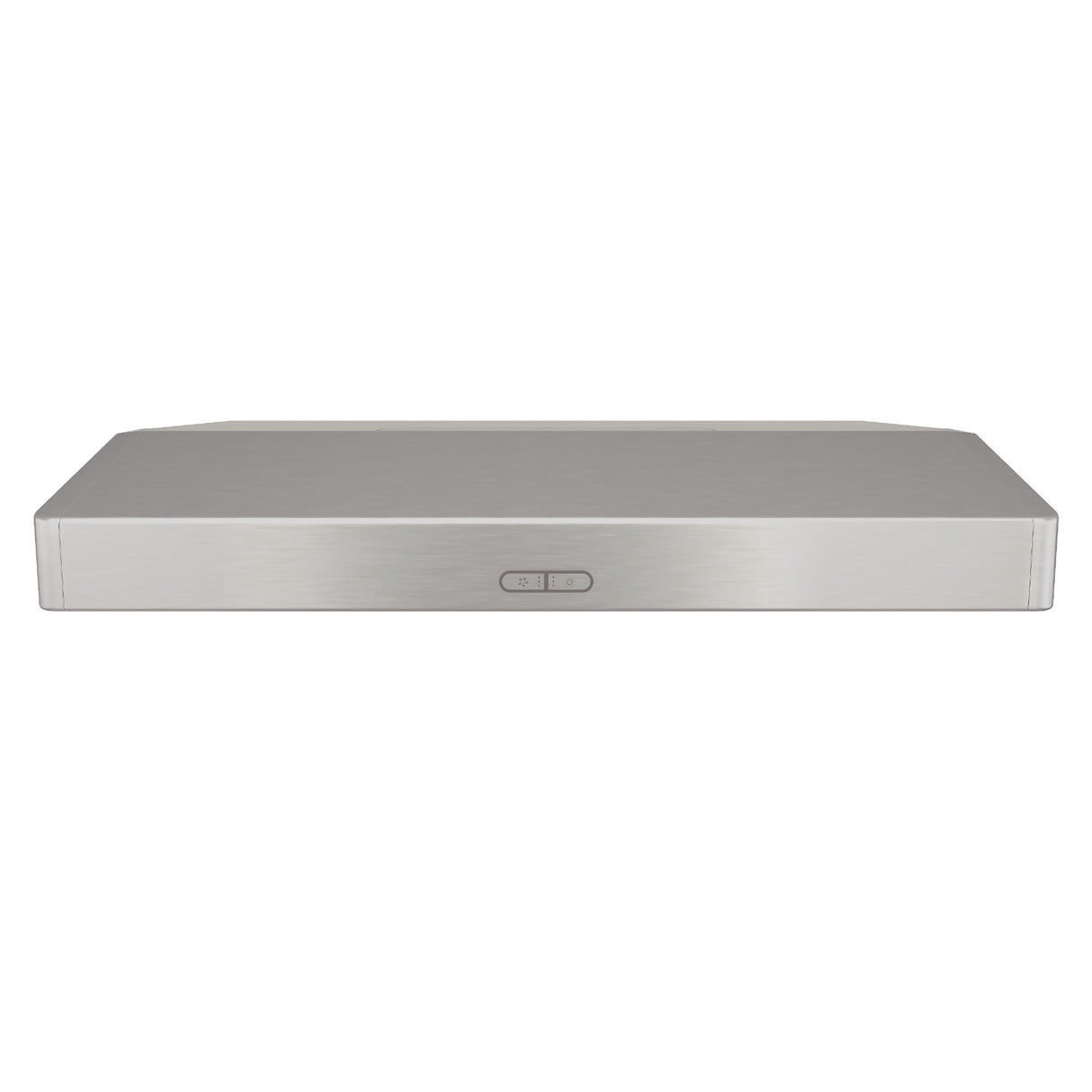

BROAN Elite 30-Inch Convertible Under-Cabinet Range Hood - (TEN230SS)
BROAN Elite 30-Inch Convertible Under-Cabinet Range Hood - (TEN230SS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Floor Model Condition:
This appliance was displayed in our showroom and is sold "AS IS." It may have cosmetic defects (scratches, dents, etc.) and may be missing original packaging or manuals. We will ensure the unit is functional before finalizing your sale. The discounted price reflects this condition. Photos of the specific unit are available upon request. All Floor Model sales are final.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ UL Listed
- ✔ HVI Certified
- ✔ Model replaced BNDF130SS
- ✔ The Captur system"s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- ✔ Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
- ✔ Bright, two-level LED modules supported by a 3-year warranty illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- ✔ Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- ✔ Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture
- ✔ EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ✔ ADA compliant, remote operation is possible using a standard UL approved wall switch.
- ✔ Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- ✔ Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
- ✔ 1-Person Installation in Half the Time
- ✔ HVI Certified
- ✔ UL Listed
Documents
BROAN Elite 30-Inch Convertible Under-Cabinet Range Hood - (TEN230SS)
BROAN Elite 30-Inch Convertible Under-Cabinet Range Hood - (TEN230SS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
Elite 30-Inch Convertible Under-Cabinet Range Hood
Product Features
Product Specifications
Other
| Filter Type | Micro Mesh |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| Light Bulb Wattage | 4.5 |
| Light Levels | 2 |
| Material | Steel |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Country of Origin | Mexico |
| Rated Amps | 0.65 |
| Capture Efficiency | 98.1 |
| CFM | 300 |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
Dimensions & Weight
| Width | 30 in. |
| Height | 5 in. |
| Length | 21.13 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 10 in. |
| Shipping Length | 26.13 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.83 ft |
| Dimensional Weight | 22.8 lbs. |
| Total of Cubes | 1.83 ft |
| Total of Dimensional Weight | 22.8 lbs. |
Certifications
California Prop 65
