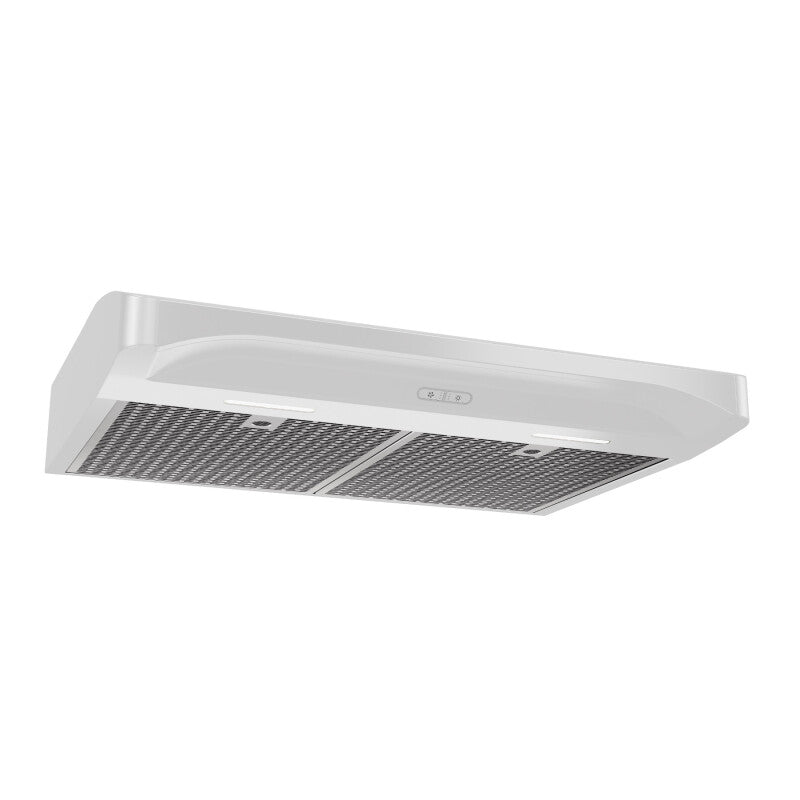

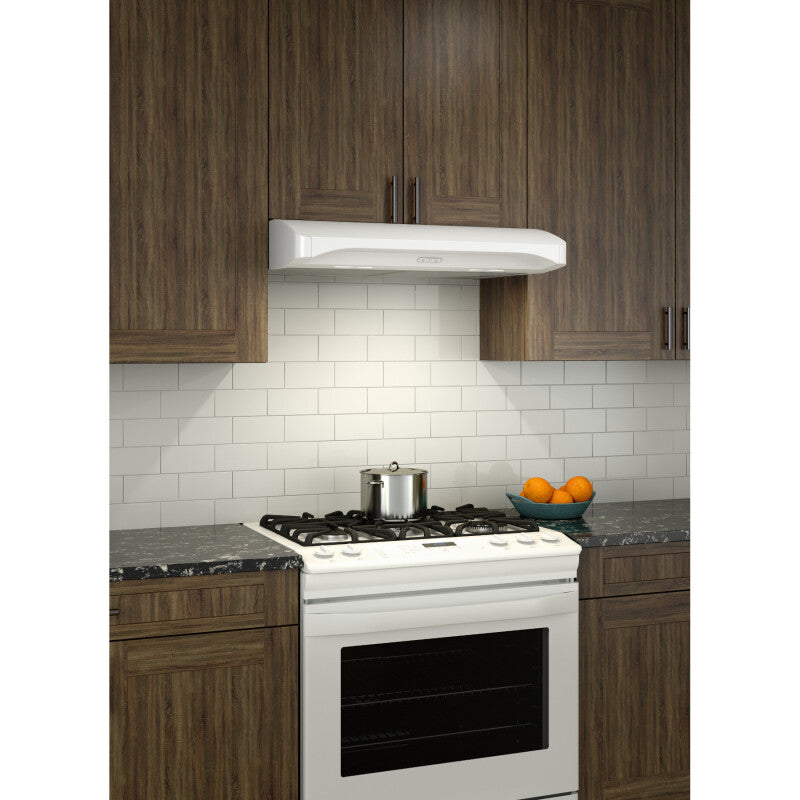

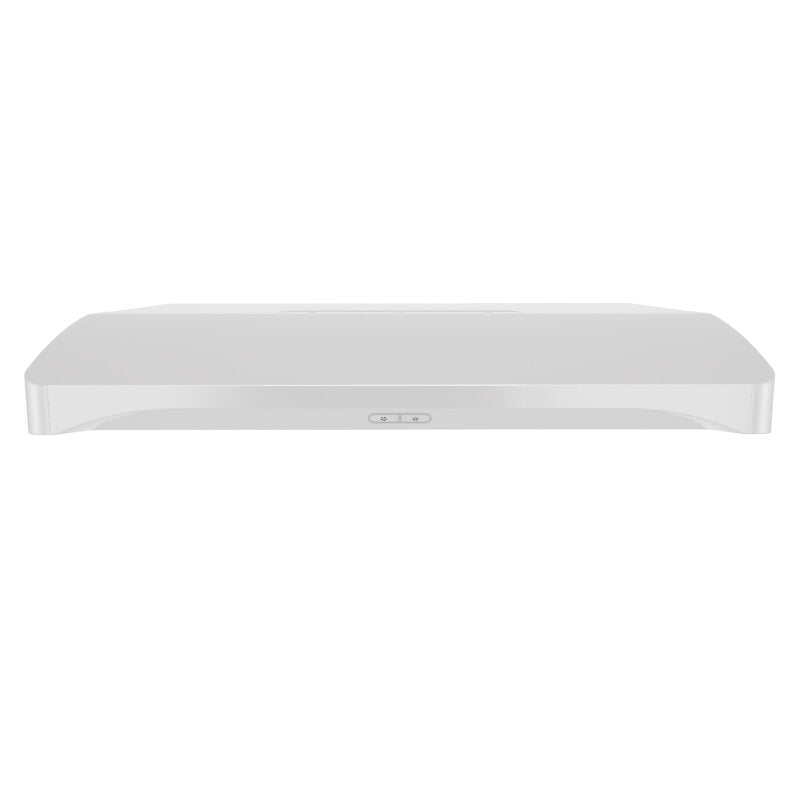

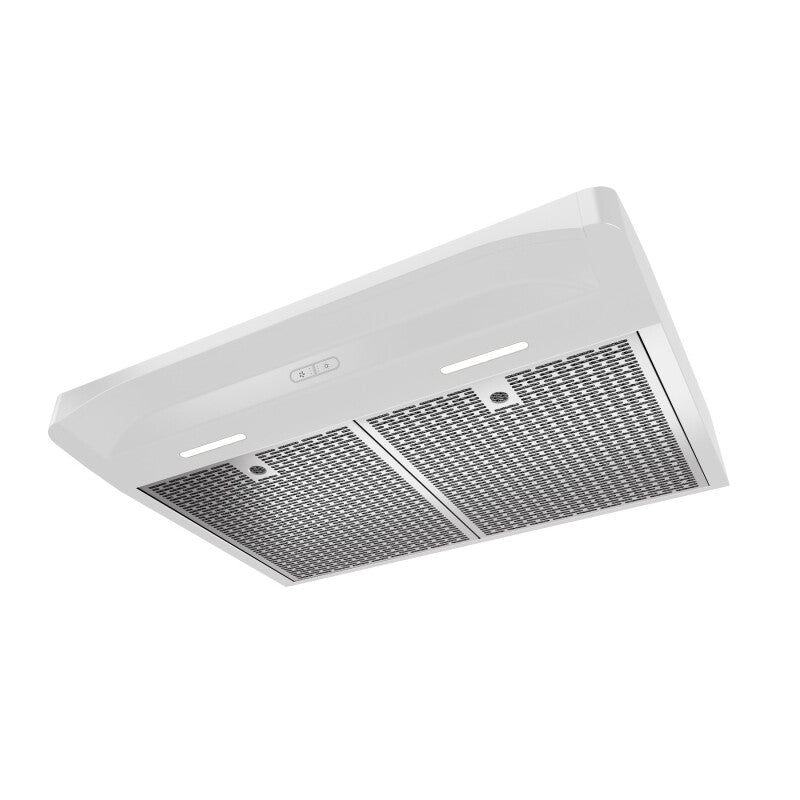

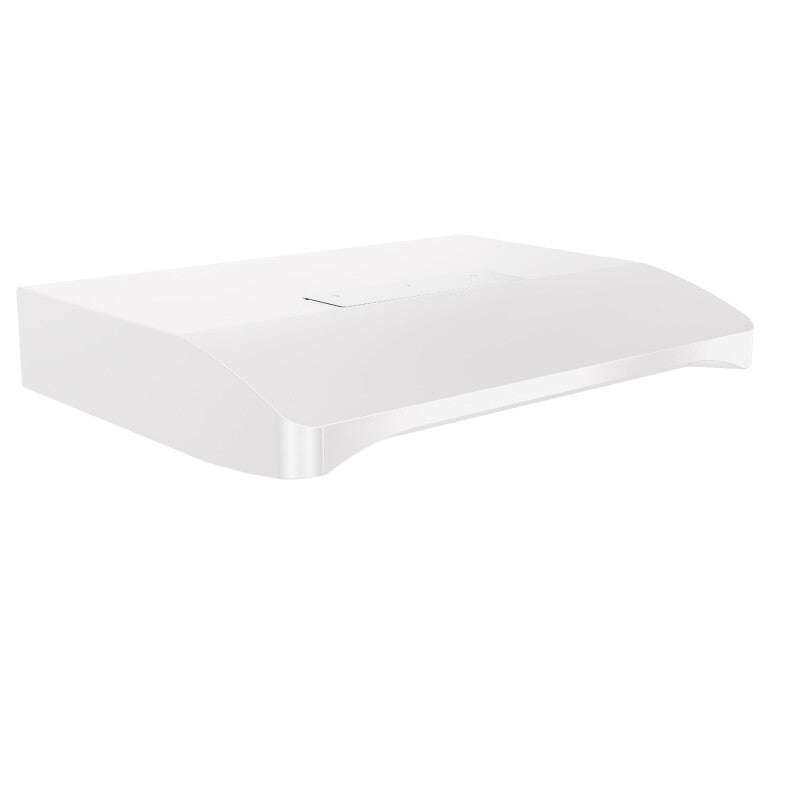

BROAN Broan(R) Elite 30-Inch Convertible Under-Cabinet Range Hood, White, 375 Max Blower CFM - (ALT230WW)

SKU: ALT230WW
$400.00

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • ✔ UL Listed
  • ✔ HVI Certified
  • ✔ Model replaced BQDD130WW
  • ✔ Captur systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
  • ✔ Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
  • ✔ Bright, two-level LED modules supported by a 3-year warranty illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
  • ✔ Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
  • ✔ Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
  • ✔ EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
  • ✔ ADA compliant, remote operation is possible using a standard UL approved wall switch.
  • ✔ Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
  • ✔ 1-Person Installation in Half the Time
  • ✔ HVI Certified
  • ✔ UL Listed

Description

Elite 30-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM

Product Features

UL Listed
UL Listed
HVI Certified
HVI Certified
1-Person Installation in Half the Time
1-Person Installation in Half the Time
HVI Certified
HVI Certified
UL Listed
UL Listed
Model replaced BQDD130WW
Captur systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
Bright, two-level LED modules supported by a 3-year warranty illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch.
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry

Product Specifications

Other

Filter Type Deluxe Micro Mesh
Heat Sentry No
HVI Certified Yes
Lighting Type LED
Sound Level (Sones) 1.5
Light Bulb Wattage 4.5
Light Levels 2
Material Steel
Speed Levels 3
Switch Control Type Capacitive Touch
Rated Voltage 120
Country of Origin Mexico
Rated Amps 0.65
Capture Efficiency 98.1
CFM 375 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 78

Dimensions & Weight

Width 30 in.
Height 5 in.
Length 22 in.
Weight -

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 10 in.
Shipping Length 27 in.
Shipping Weight -
Total of Shipping Weight -
Source Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement 1.91 ft
Dimensional Weight 23.74 lbs.
Total of Cubes 1.91 ft
Total of Dimensional Weight 23.74 lbs.

Certifications

California Prop 65
