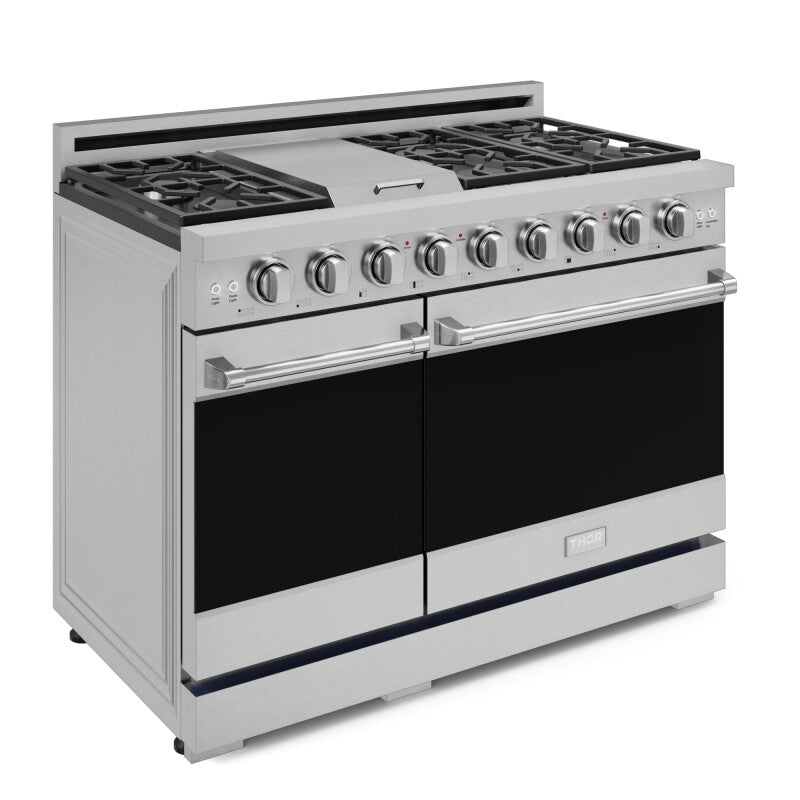

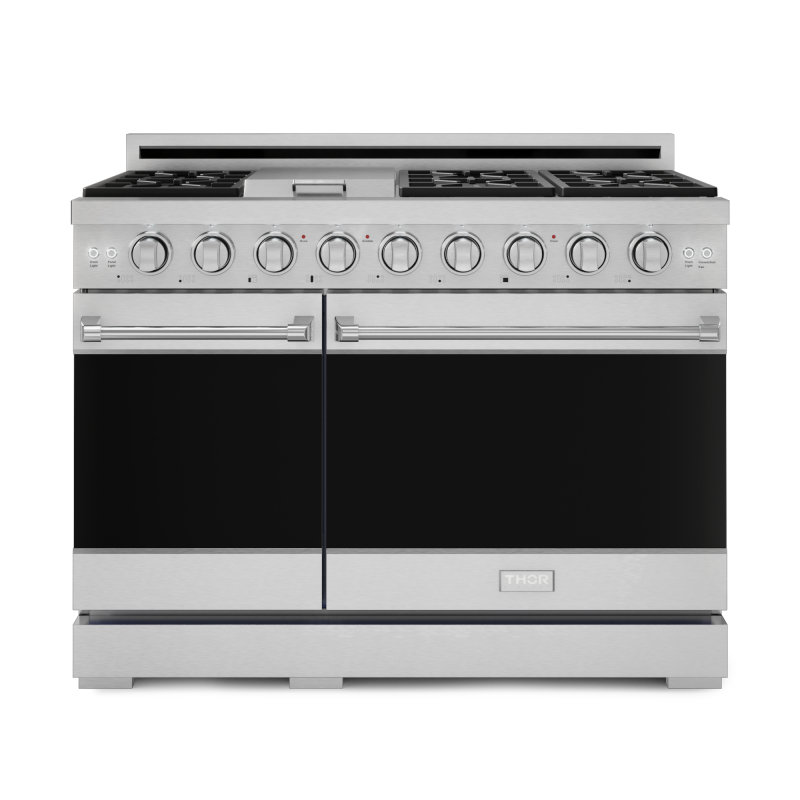

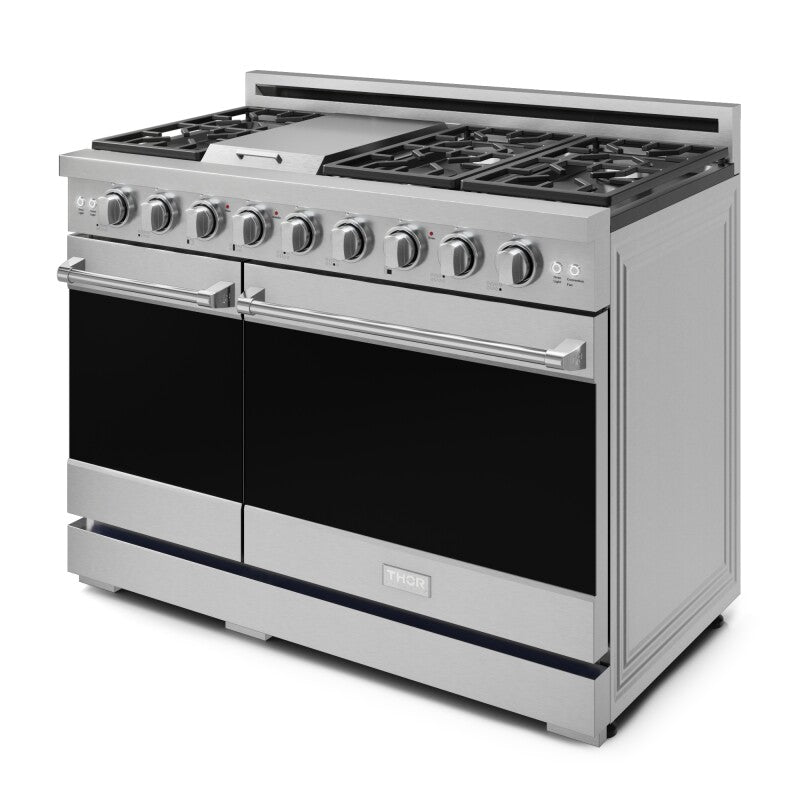

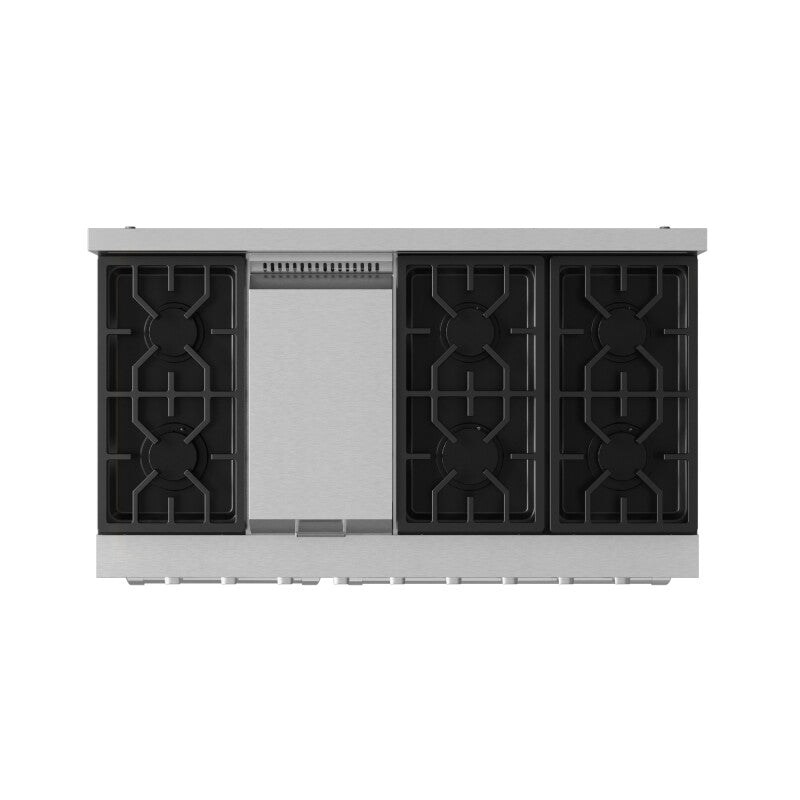

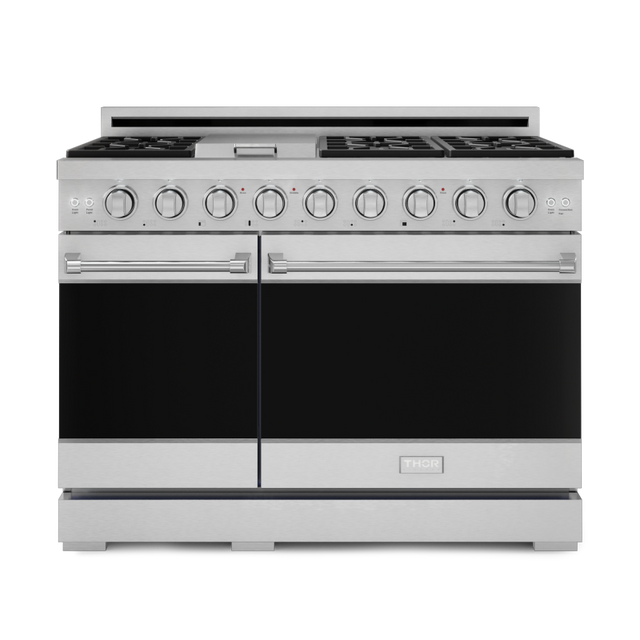

THOR KITCHEN Gordon Ramsay 48" PRO Style Gas Range - Other (RSG48E)

Product Features

Product Specifications

Technical Details

Fuel Type	Natural Gas
Construction	Freestanding
Burner Type	Sealed Burners
Type of Grate	Continuous
Watts (W) / Max BTU	18000
Amperage	15A
Volts (V)	120V
Frequency (Hz)	60Hz
Control Type	Knob
Panel light	Yes
Plug Type	US 3 Prong
Power Cord Length (in.)	59 in.
Color	Stainless Steel
Certification	CSA

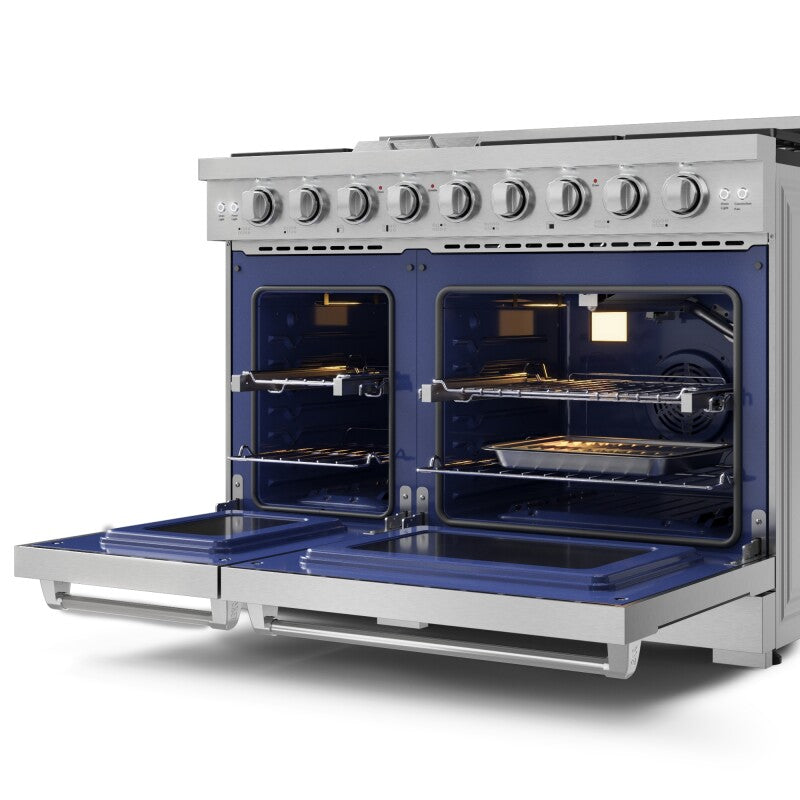

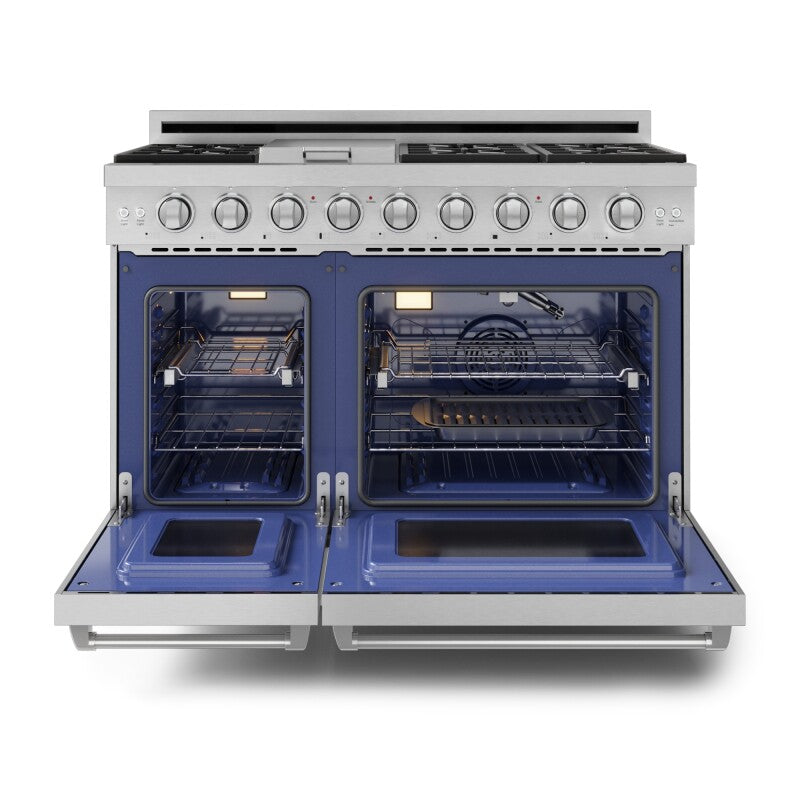

Oven Performance

Oven Capacity (cu. Ft.)	4.6 cu. ft. and 2.2 cu. ft.
Oven Control Features:	Light On/ Off, Convection Fan On / Off
Oven Cooking Modes	Bake, Conv Bake, Roast, Conv Roast, Broil
Bake Element Power	22000BTU
Broil Element Power	10000 BTU
Convection	Commerical convection
Oven Lights	Yes
Oven Racks (Standard)	2
Oven Racks (telescopic)	2
Baking Sheet Size	30″:Fits 29” x 16” Baking sheet 18:Fits 16x 12 1/2”Baking sheet
Self Clean (Y/N)	N
Sabbath Mode (Y/N)	N
Air Fry	N

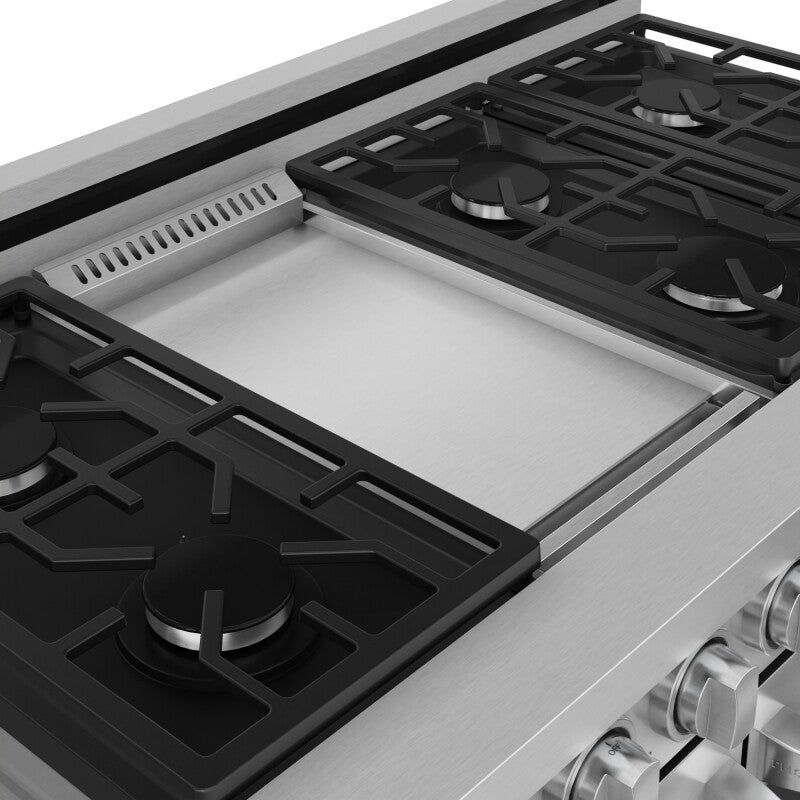

Cooktop Performance

Total Burners	7
Front Left Burner	12000 BTU
Front Center Burner	18000 BTU
Front Right Burner	12000 BTU
Rear Left Burner	12000 BTU
Rear Center Burner	12000 BTU
Rear Right Burner	12000 BTU
Griddle Burner	15000 BTU

Product Dimensions

Rubber Spacer Depth (install on back panel)	3/4 (in.)
Product Height (from bottom to top of back splash) (in.)	40 (in.)
Product Height (from bottom to top of side panel) (in.)	36 (in.)
Product Depth (from back panel to handle) (in.)	29 (in.)
Product Depth (from back panel to bullnose) (in.)	27-1/2 (in.)
Product Depth (from back panel to control panel) (in.)	26-3/8 (in.)
Product Depth (from back panel to side panel front) (in.)	24 (in.)
Adjustable Height	1 (in.)

Oven Dimensions

Oven Internal Width	30 in. Oven: 23-3/4″ 18 in. Oven: 12-5/8″
Oven Internal Depth	19-1/2 (in)
Oven Internal Height	18 (in)

Weight

Net weight	328 (lbs.)
Gross weight	390 (lbs.)

CUTOUT

Cutout Height	36 (min.) to 37 (max.) (in.)
Cutout Width	48 (in.)
Cutout Depth	24-3/4 (in.)

Accessories Included

2	Standard Oven Rack
2	Telescope Rack
2	Broiler Pan Set
