SUMMIT 24" Wide Built-In Wine Cellar, ADA Compliant - Stainless Steel (ASDW2412)
SKU:
ASDW2412
UPC: 761101079462
Regular price
$2,215.00
Unit price
/
Unavailable
SUMMIT 24" Wide Built-In Wine Cellar, ADA Compliant - Stainless Steel (ASDW2412) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Less than 18" deep
- ✔ 24" Wide Wine Cellar
- ✔ ADA compliant design
- ✔ Built-in capable
- ✔ Adjustable height
- ✔ Stainless steel interior
- ✔ Double pane tempered glass door
- ✔ Seamless stainless steel door trim
- ✔ Factory installed lock
- ✔ Professional handle
- ✔ Digital thermostat
- ✔ Dimmable LED lighting
- ✔ Commercial wine shelving
- ✔ Smooth gliding extension
- ✔ Large capacity
- ✔ Frost-free operation
- ✔ Internal fan
- ✔ Open door alarm
- ✔ High temperature alarm
- ✔ Sabbath mode setting
- ✔ Temperature Memory Function
- ✔ Right angle plug
- ✔ Sealed back
- ✔ Fully articulating European style hinge
- ✔ Reversible door
- ✔ Fully finished black cabinet
- ✔ Commercially approved
- ✔ 100% CFC Free
- ✔ CARB Compliant
SUMMIT 24" Wide Built-In Wine Cellar, ADA Compliant - Stainles...
Regular price
$2,215.00
Unit price
/
Unavailable
Product Features
Less than 18" deep
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
24" Wide Wine Cellar
Single zone wine cooler for residential or commercial cold storage
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Adjustable height
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Double pane tempered glass door
Elegant design offers a clear but protected view of your interior
Seamless stainless steel door trim
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Factory installed lock
Keyed lock for a secure interior (2 keys included)

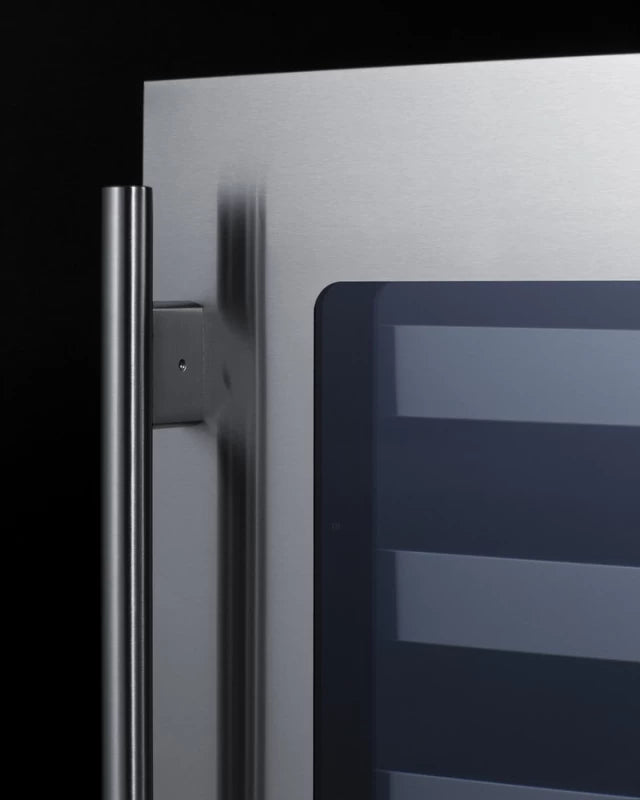

Professional handle
Stainless steel handle completes the look
Digital thermostat
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Dimmable LED lighting
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Commercial wine shelving
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

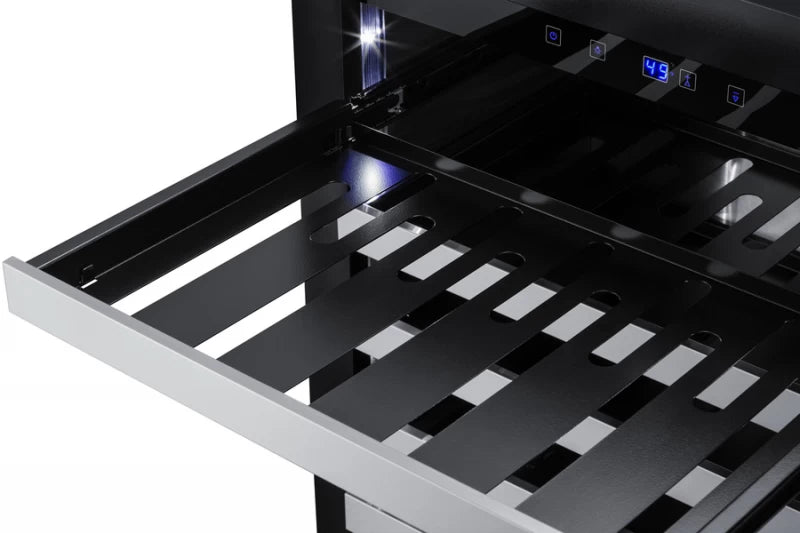

Smooth gliding extension
Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

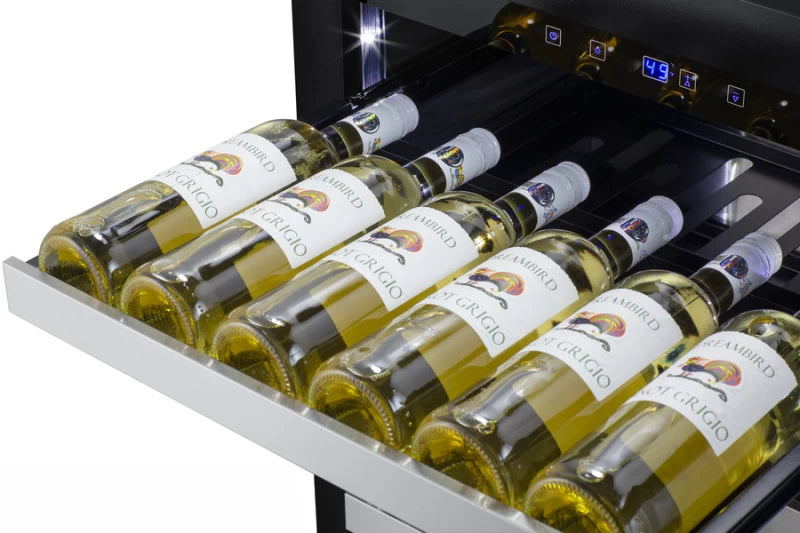

Large capacity
33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
Frost-free operation
No-frost operation for minimum user maintenance
Internal fan
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
Reversible door
User-reversible door swing for added flexibility
Fully finished black cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.63" (50 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079462 |
Wine Cellar
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 24.25" (62 cm) |
| Interior Width 1 | 19.5" (50 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 64F |
| Sabbath Mode | Yes |
Dimensions & Weight
| Width | 23.38 in. |
| Height | 32 in. |
| Length | 17.75 in. |
| Weight | 120 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.38 in. |
| Shipping Height | 37 in. |
| Shipping Length | 22.75 in. |
| Shipping Weight | 160 lbs. |
| Total of Shipping Weight | 160 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.69 ft |
| Dimensional Weight | 95.54 lbs. |
| Total of Cubes | 7.69 ft |
| Total of Dimensional Weight | 95.54 lbs. |
Certifications
California Prop 65
