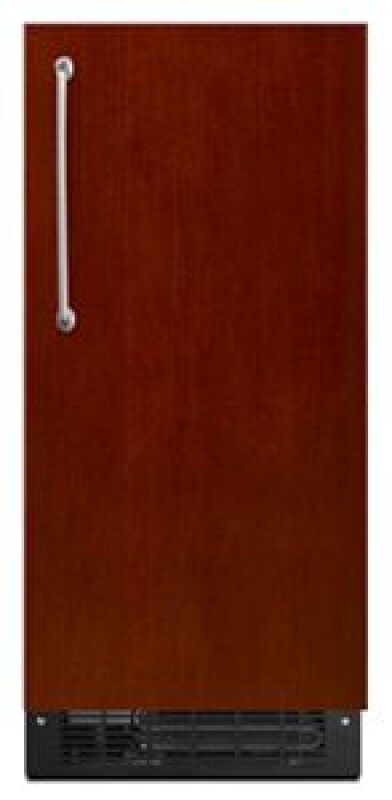

KitchenAid KitchenAid® 15'' Automatic Ice Maker - Panel Ready (KUIX535HPA)
SKU:
KUIX535HPA
UPC: 883049483283
Regular price
$3,049.00
Unit price
/
Unavailable
KitchenAid KitchenAid® 15'' Automatic Ice Maker - Panel Ready (KUIX535HPA) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ PrintShield™ Finish
- ✔ Self Cleaning Cycle
- ✔ Fully Flush Installation with Articulating Hinge
- ✔ Filter-Ready
Documents
KitchenAid KitchenAid® 15'' Automatic Ice Maker - Panel Rea...
Regular price
$3,049.00
Unit price
/
Unavailable
Description
Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.
Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.
Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.
Product Features
PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Fully Flush Installation with Articulating Hinge
allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
Filter-Ready
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
Product Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Controls
| Control Location | Interior Up Front |
| Control Type | Electronic Touch |
| Ambient Temperature Range | 55F to 110F |
Details
| Drain Connection | Rear Access 5/8in. OD |
| Drain Pump | Pump Included |
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
| Water Inlet Connection | 1/4in. OD PEX Tubing |
Certifications
| ADA Compliant | No |

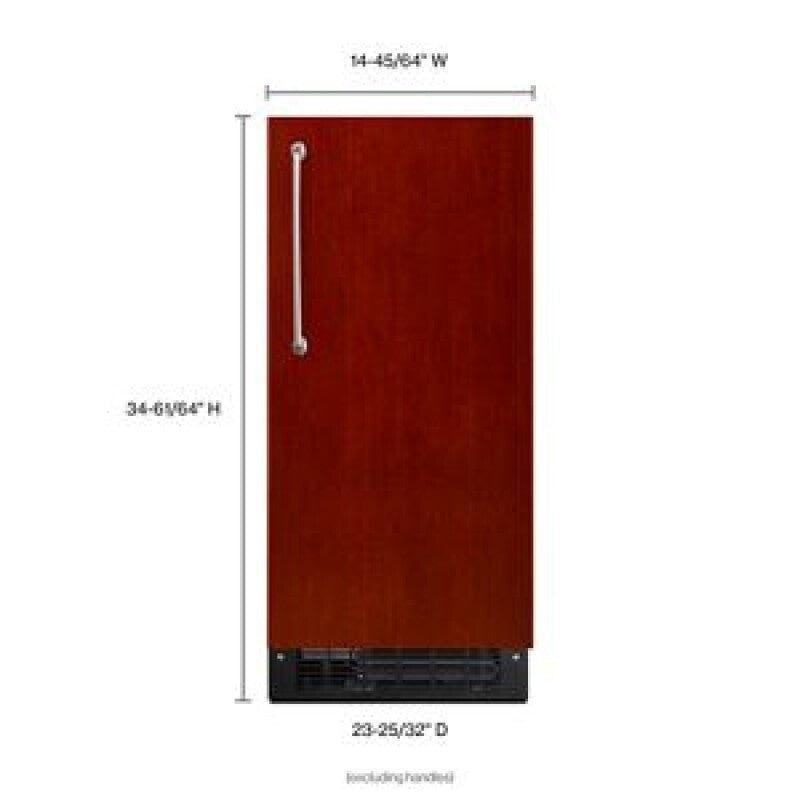

Dimensions & Weight
| Width | 15 in. |
| Height | 36.13 in. |
| Length | 26.06 in. |
| Weight | 107 lbs. |
| Cabinet Width (in) | 14 7/8 |
| Carton Depth | 28 3/8 |
| Carton Height | 36 1/8 |
| Carton Width | 17 1/4 |
| Cutout Depth (in) | 25 |
| Cutout Height (in) | 34 1/2 |
| Cutout Width (in) | 15 |
| Depth Closed Excluding Handles | 24 5/8 |
| Depth Closed Including Handles | 26 1/16 |
| Depth Excluding Doors | 22 1/8 |
| Depth With Door Open 90 Degree | 39 1/2 |
| Gross Weight | 107 |
| Height To Top Of Cabinet | 33 5/8 |
| Height To Top Of Door Hinge | 34 1/16 |
| Net Weight | 96.5 |
| Cabinet Width (IN,inches) | 14.8750 |
| Cutout Depth(IN,inches) | 25.0000 |
| Cutout Height(IN,inches) | 34.5000 |
| Cutout Width(IN,inches) | 15.0000 |
| Depth Closed Excluding Handles(IN,inches) | 24.6250 |
| Depth Closed Including Handles(IN,inches) | 26.0625 |
| Depth Excluding Doors(IN,inches) | 22.0625 |
| Depth With Door Open 90 Degree(IN,inches) | 39.5625 |
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
| Net Weight(LB,pounds) | 96 |
| Carton Depth(IN,inches) | 28.3750 |
| Carton Height(IN,inches) | 36.1250 |
| Carton Width(IN,inches) | 17.2500 |
| Gross Weight(LB,pounds) | 107 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 20 in. |
| Shipping Height | 41.13 in. |
| Shipping Length | 31.06 in. |
| Shipping Weight | 147 lbs. |
| Total of Shipping Weight | 147 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.17 ft |
| Dimensional Weight | 101.62 lbs. |
| Total of Cubes | 8.17 ft |
| Total of Dimensional Weight | 101.62 lbs. |
Exterior Details
| Cabinet Finish | Textured |
| Cabinet Material | Prepainted Steel |
| Handle Location | Horizontal |
| Reversible Door | Yes |
Filter Details
| Water Filter Indicator/Reset | Yes |
| Water Filter Location | Interior |
| Water Filter Part Number | F2WC9I1 |
Freezer Details
| Defrost Type | Automatic Defrost |
Icemaker Details
| Ice Maker On/Off | Yes |
Refrigerator Details
| Liner Color | White |
Certifications
California Prop 65
