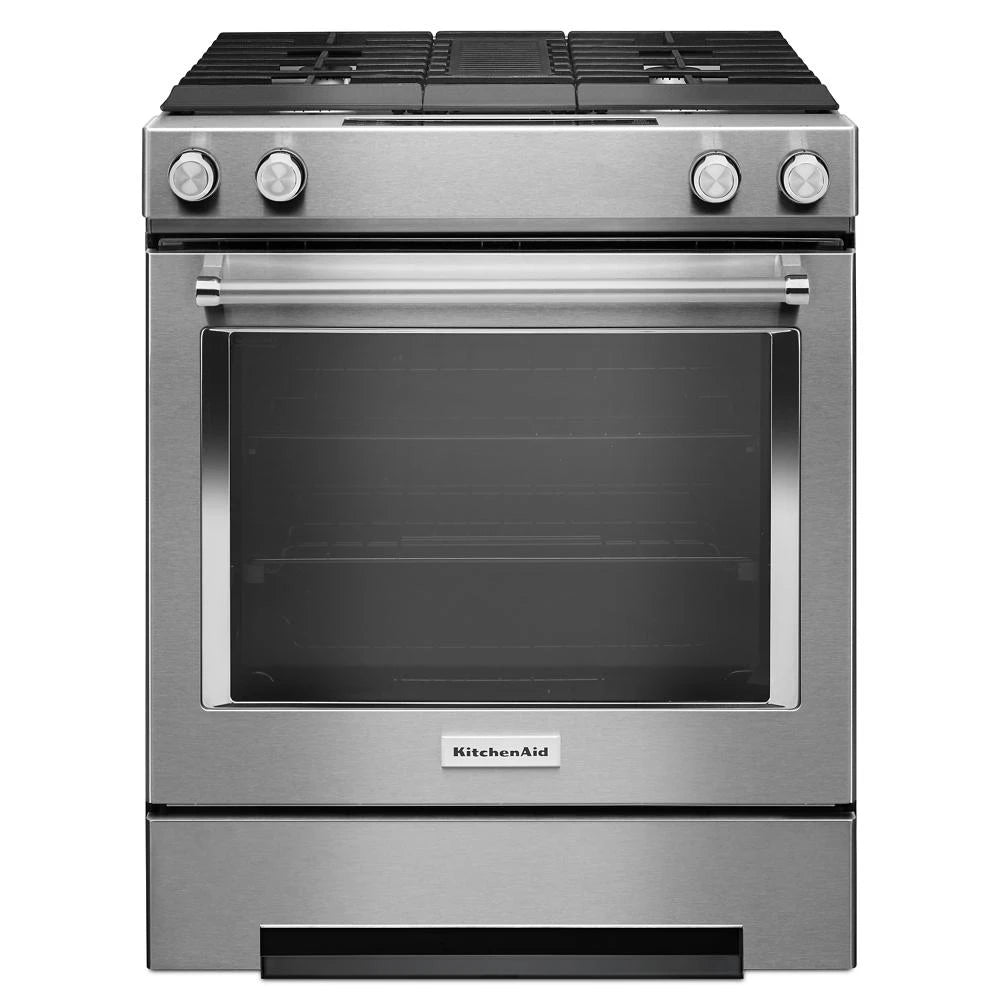

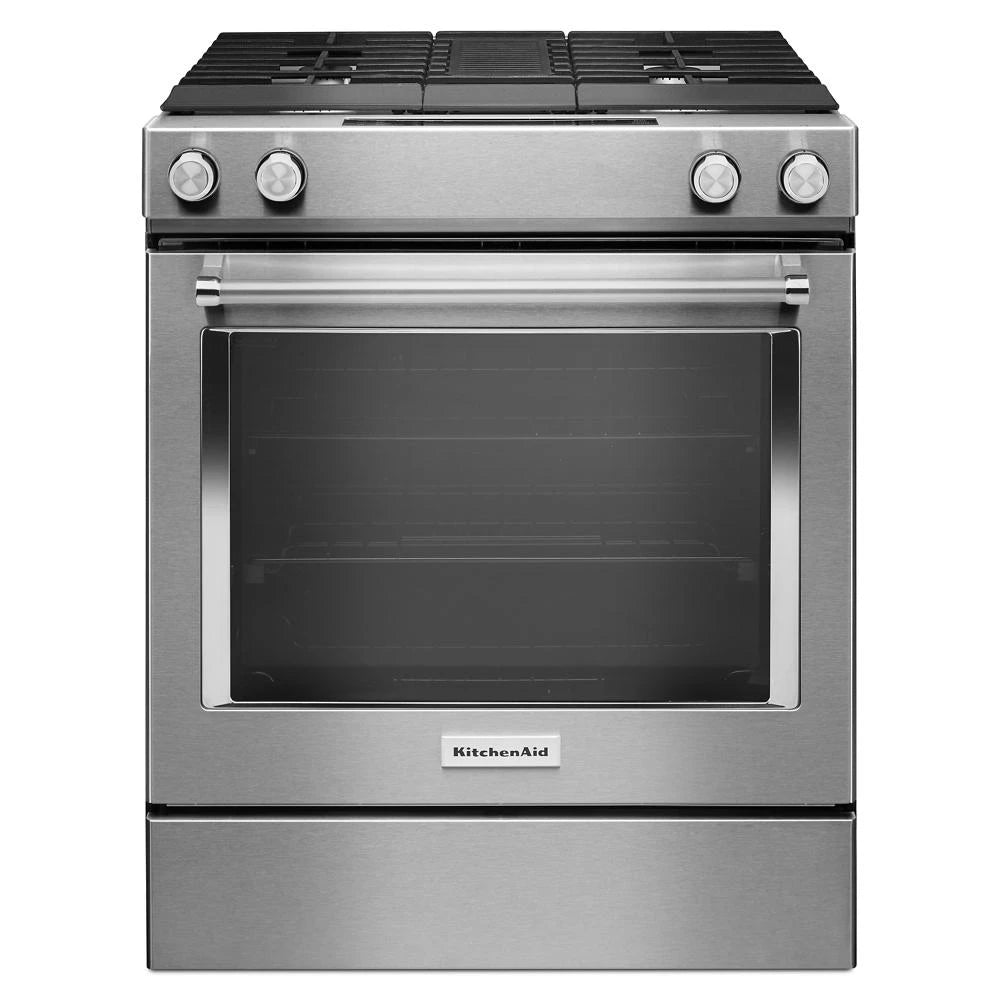

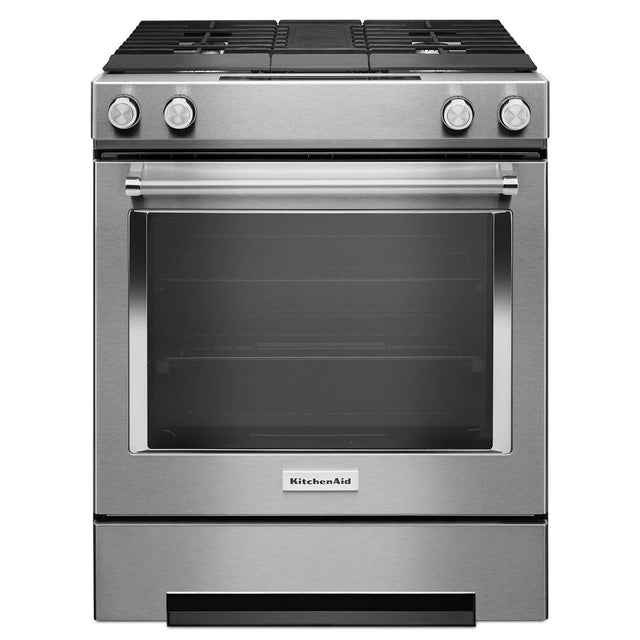

KitchenAid 30" 4-Burner Dual Fuel Downdraft Slide-In Range - Stainless Steel (KSDG950ESS)
SKU:
KSDG950ESS
UPC: 883049343648
Regular price
$4,09900
Unit price
KitchenAid 30" 4-Burner Dual Fuel Downdraft Slide-In Range - Stainless Steel (KSDG950ESS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
KitchenAid® Major Appliance Package Rebate - Up to $3,000
BUY SELECT KITCHENAID MAJOR APPLIANCES: Get up to $2000 PLUS RECEIVE AN ADDITIONAL BONUS UP TO $1000
Ends: 2026-03-31
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Downdraft
- ✔ Side Trim Accessory Kit
- ✔ Steam Rack
- ✔ 4 burners (5k, 9.2k, 15k and 17k)
- ✔ Glass Touch Controls
- ✔ Aqualift®
- ✔ EasyConvect™ Conversion
- ✔ Even-Heat™ True Convection
- ✔ SatinGlide® Max Racks
- ✔ Max Capacity Rack (Sold separately)
Documents
KitchenAid 30" 4-Burner Dual Fuel Downdraft Slide-In Range - ...
Regular price
$4,09900
Unit price
SKU:
KSDG950ESS
Regular price
$4,09900
Unit price
KitchenAid 30" 4-Burner Dual Fuel Downdraft Slide-In Range - Stainless Steel (KSDG950ESS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
KitchenAid 30" Dual Fuel Range with Downdraft Ventilation, 4 Cooking Burners, and Even-Heat™ True Convection Oven
KitchenAid 30" Dual Fuel Range with Downdraft Ventilation, 4 Cooking Burners, and Even-Heat™ True Convection Oven
KitchenAid 30" Dual Fuel Range with Downdraft Ventilation, 4 Cooking Burners, and Even-Heat™ True Convection Oven
Product Features

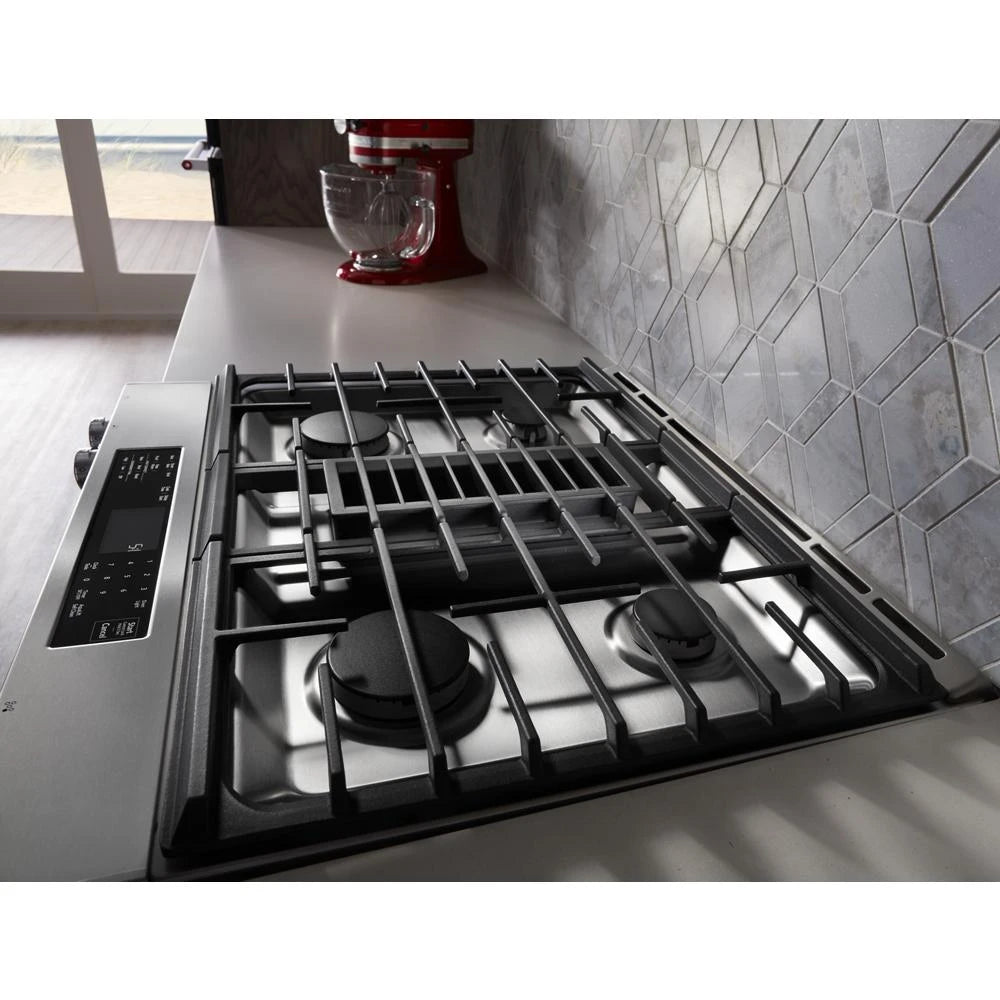

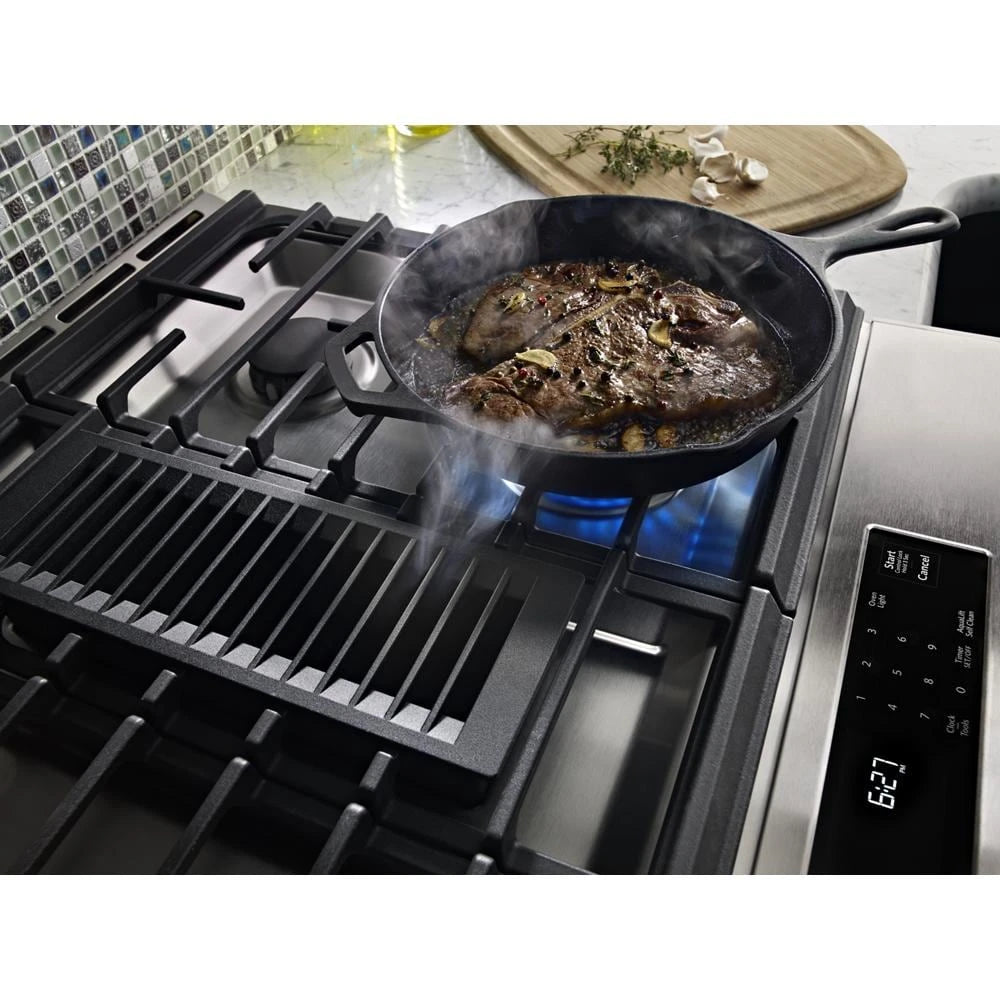

Downdraft
Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

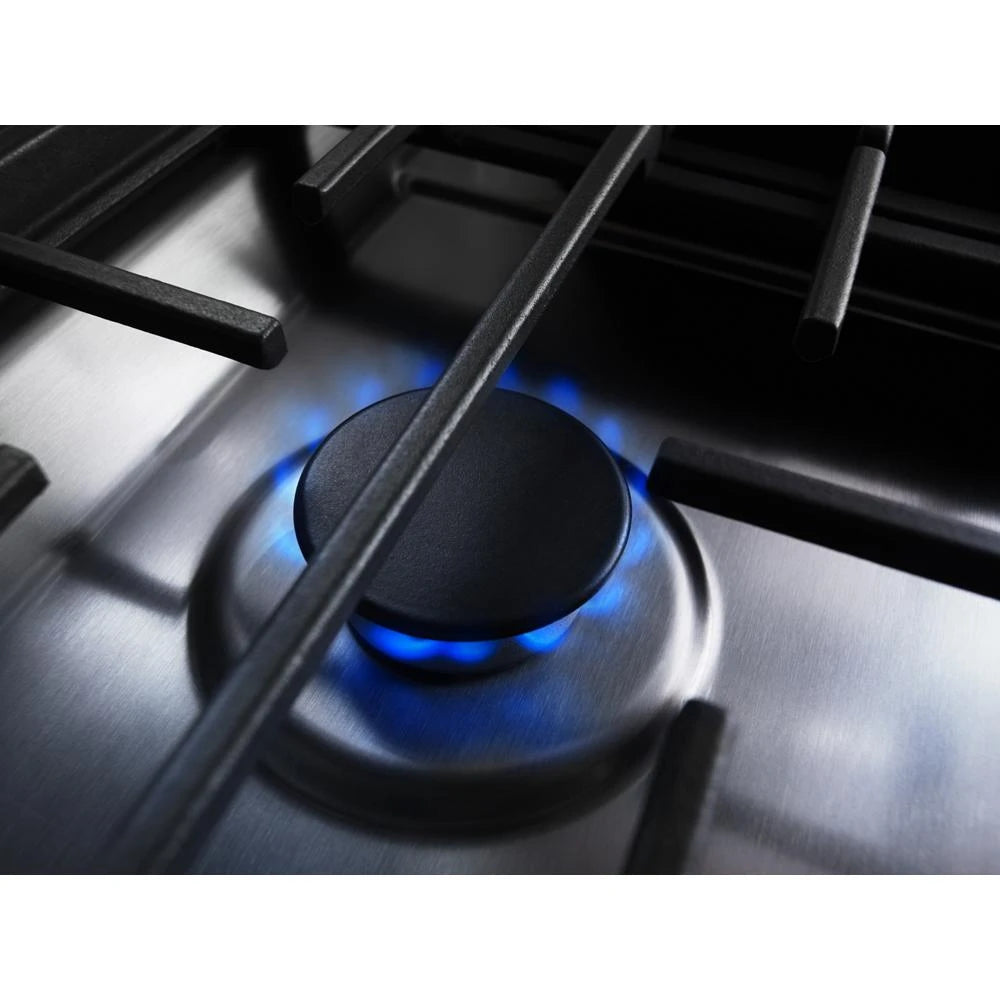

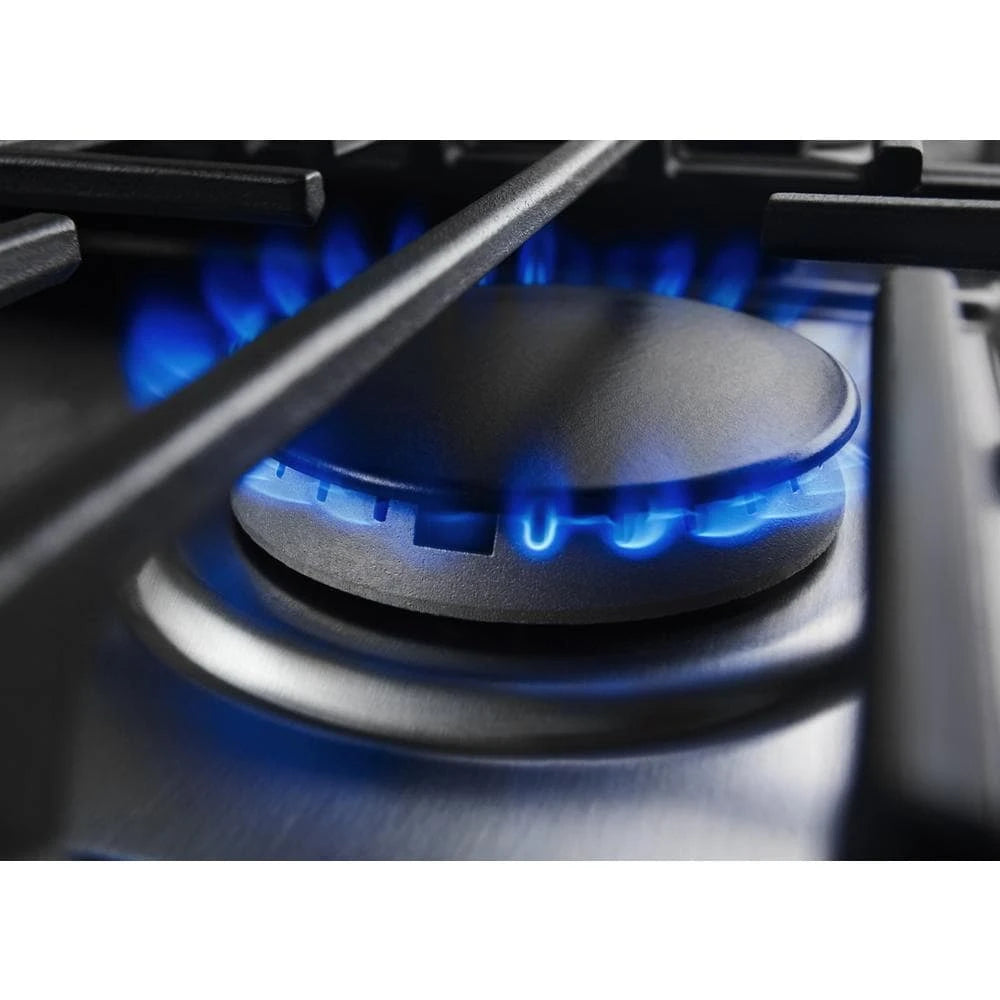

4 burners (5k, 9.2k, 15k and 17k)
Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.
Aqualift®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
EasyConvect™ Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
Even-Heat™ True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
SatinGlide® Max Racks
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Max Capacity Rack (Sold separately)
The Max Capacity Rack dips down so you have plenty of room for cooking your largest dishes.
Product Specifications
Controls
| Display Color | Red, White |
| Electronic Display Type | Digital |
Details
| Oven Automatic Shut-Off | Yes |
| Fuel Type | Dual Fuel |
| LP Convertible | Yes |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
| Oven Selections | Cancel/Off, Clock, Cook Time Indicator, Delay Start, Keep Warm Setting, Proofing, Steam Bake, Timer |
Cooktop Details
| Auto Re-ignition | No |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Griddle Included | No |
Certifications
| ADA Compliant | ADA Height and Operation Compliant |
| Prop 65 | Standard |
| UL | Yes |
Electrical
| Amps | 40 |
| Power Cord Included | No |
| Volts | 240 |

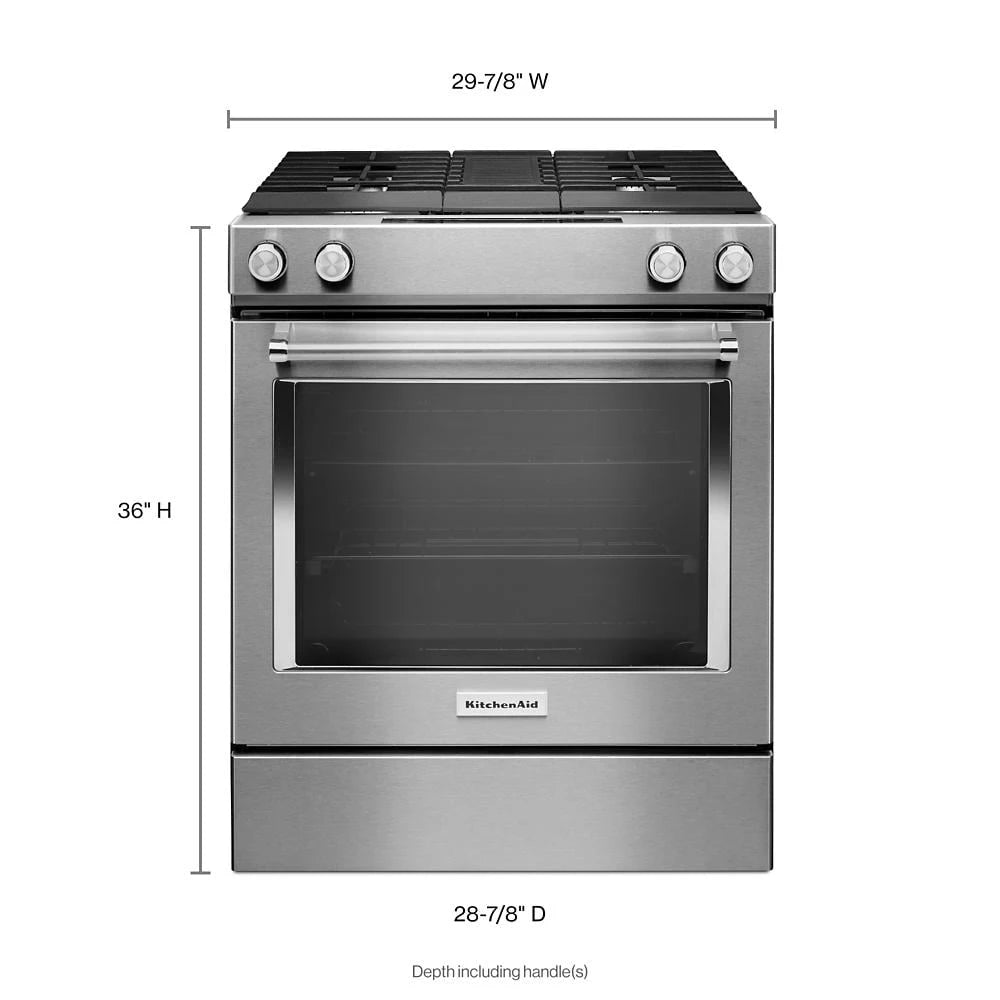

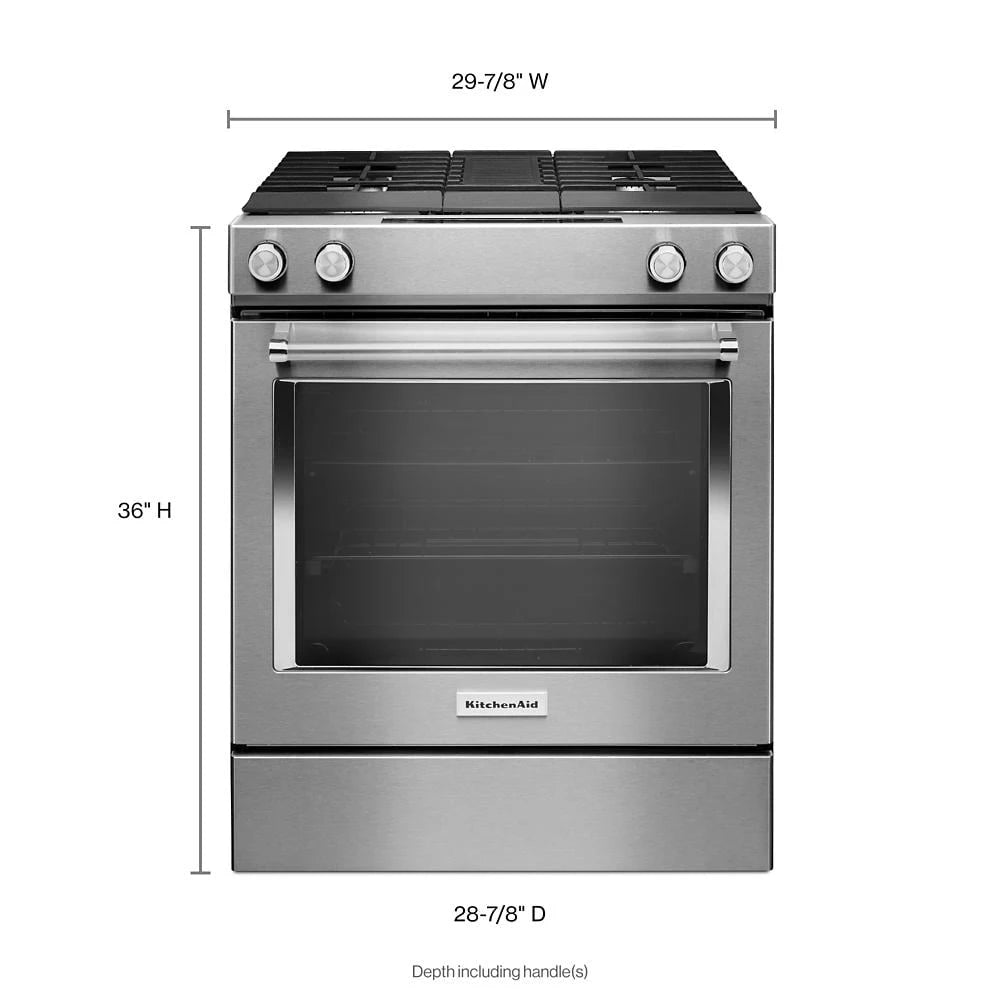

Dimensions & Weight
| Width | 29.88 in. |
| Height | 36 in. |
| Length | 28.88 in. |
| Weight | 205 lbs. |
| Carton Depth | 30 9/16 |
| Carton Height | 43 1/2 |
| Carton Width | 31 1/2 |
| Depth Closed Including Handles | 28 7/8 |
| Depth With Door Open 90 Degree | 48 3/4 |
| Gross Weight | 205 |
| Net Weight | 183.0 |
| Depth Closed Including Handles(IN,inches) | 28.8750 |
| Depth With Door Open 90 Degree(IN,inches) | 48.7500 |
| Net Weight(LB,pounds) | 183 |
| Carton Depth(IN,inches) | 30.5625 |
| Carton Height(IN,inches) | 43.5000 |
| Carton Width(IN,inches) | 31.5000 |
| Gross Weight(LB,pounds) | 205 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 41 in. |
| Shipping Length | 33.88 in. |
| Shipping Weight | 245 lbs. |
| Total of Shipping Weight | 245 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.97 ft |
| Dimensional Weight | 223.42 lbs. |
| Total of Cubes | 17.97 ft |
| Total of Dimensional Weight | 223.42 lbs. |
Element/Burner Details
| Cooktop Element Style | Gas Burner |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Type | Burner |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Type | Burner |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Rear Element-Burner Power | 5,000 BTU |
| Number of Grates | 3 |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Rear Element-Burner Power | 9,200 BTU |
Exterior Details
| Door Type | Metal & Glass |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
Grate Details
| Number of Grates | 3 |
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |

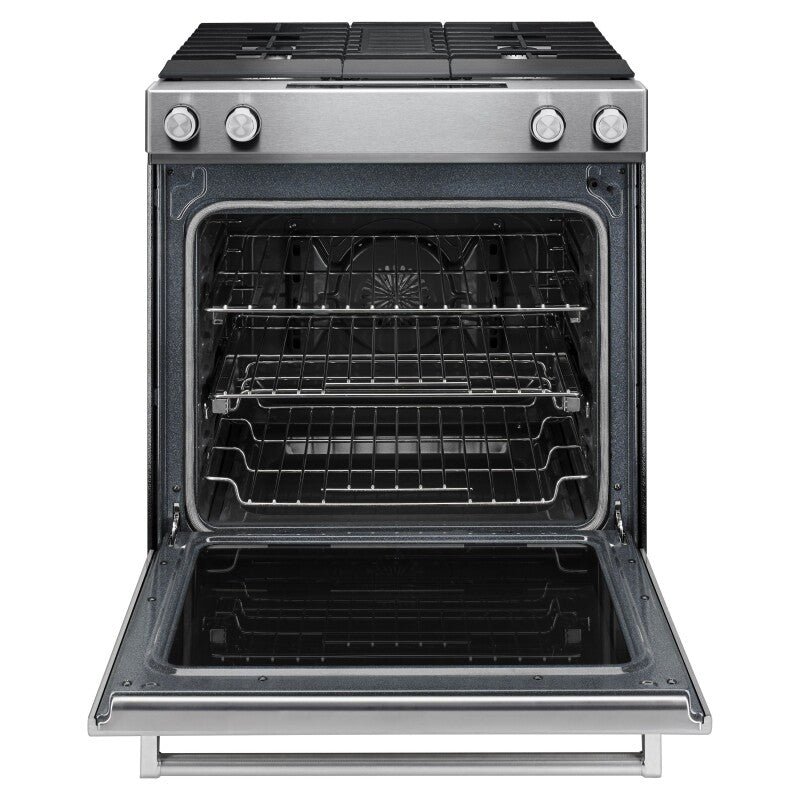

Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 3,600 W |
| Broiler Element Power | 4,000 W |
| Broiler Location | Top of Oven |
| Convection Element Type | Fan |
| Convection Functions | Bake, Broil, Roast |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 2 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Convection Element Power | 3,200 w |
| Number of Oven Racks | 2 |
| Oven Rack Type | 1 Steam Rack, 1 Gliding Roll-out Rack |
Features
| Range Features | ADA Compliant, Downdraft, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, SatinGlide™ Racks, Steam Rack |

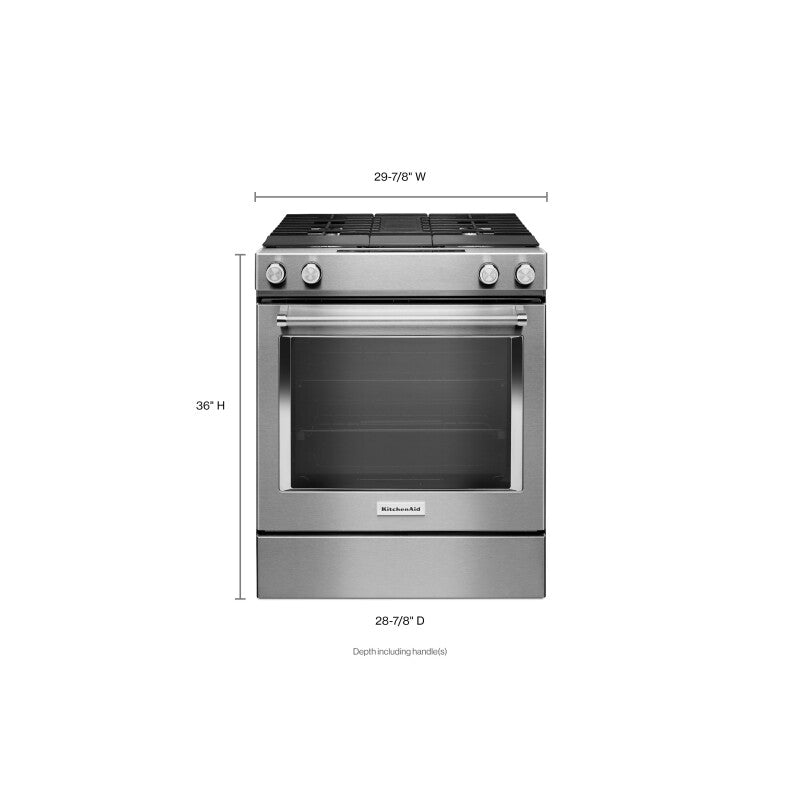

Dimensions
| Capacity | 6.4 cu. ft. |
| Common Size | 30 in |
| Depth | 28-7/8 in |
| Depth Closed Including Handles | 28-7/8 in |
| Depth With Door Open 90 Degree | 48-3/4 in |
| Gross Weight | 205 lbs |
| Height | 36 in |
| Net Weight | 183 lbs |
| Oven Interior Depth | 20-3/4 in |
| Oven Interior Height | 22-1/8 in |
| Oven Interior Width | 24-1/8 in |
| Width | 29-7/8 in |
Ventilation Details
| Maximum Motor CFM | 300 |
Certifications
California Prop 65
