$342.00 off
SUMMIT 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - Other (AR5BIF)
SKU:
AR5BIF
UPC: 761101068787
Sale price
$1,26800
Regular price
$1,61000
Unit price
SUMMIT 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - Other (AR5BIF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ ADA Compliant
- ✔ ADA compliant
- ✔ Slim undercounter dimensions
- ✔ Built-in capable
- ✔ Panel-ready door
- ✔ Automatic defrost
- ✔ Adjustable glass shelves
- ✔ Door shelves
- ✔ Wine shelf
- ✔ Interior light
- ✔ One piece interior liner
- ✔ Hidden evaporator
- ✔ Adjustable thermostat
- ✔ CARB Compliant
- ✔ Fully finished black cabinet
- ✔ 100% CFC free
SUMMIT 24" Wide Built-In All-Refrigerator, ADA Compliant (Pane...
Sale price
$1,26800
Regular price
$1,61000
Unit price
SKU:
AR5BIF
Sale price
$1,26800
Regular price
$1,61000
Unit price
SUMMIT 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - Other (AR5BIF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features
ADA Compliant
ADA compliant
32" height to fit under lower ADA compliant counters
Slim undercounter dimensions
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Door shelves
Store tall bottles and condiments right on the door for convenient access
Wine shelf
Removable scalloped wine shelf is included to store champagne and wine bottles
Interior light
Automatically illuminates when you open the door
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior

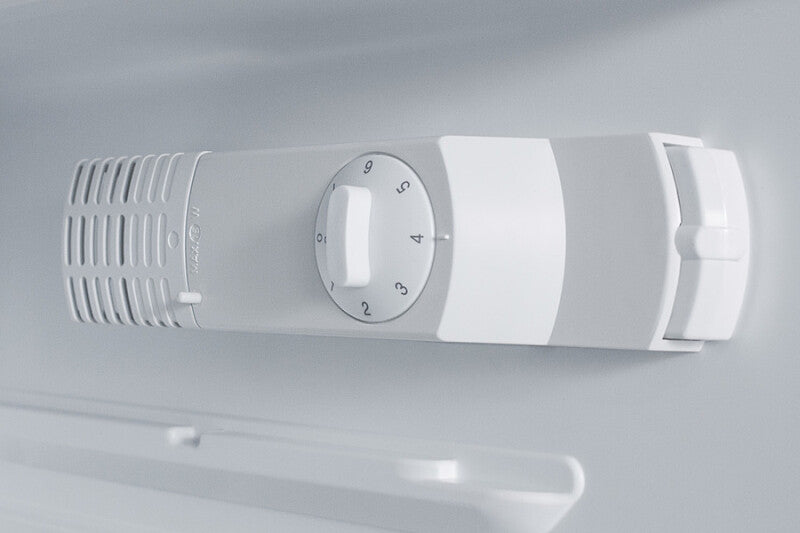

Adjustable thermostat
Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Product Specifications
Refrigerator Features
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
Dimensions
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 23.63 in. |
| Height | 32 in. |
| Length | 23 in. |
| Weight | 100 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.06 ft |
| Dimensional Weight | 125.12 lbs. |
| Total of Cubes | 10.06 ft |
| Total of Dimensional Weight | 125.12 lbs. |
Other
| Number of Boxes | 1 |
| Source | Calculation |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068787 |
Certifications
California Prop 65
