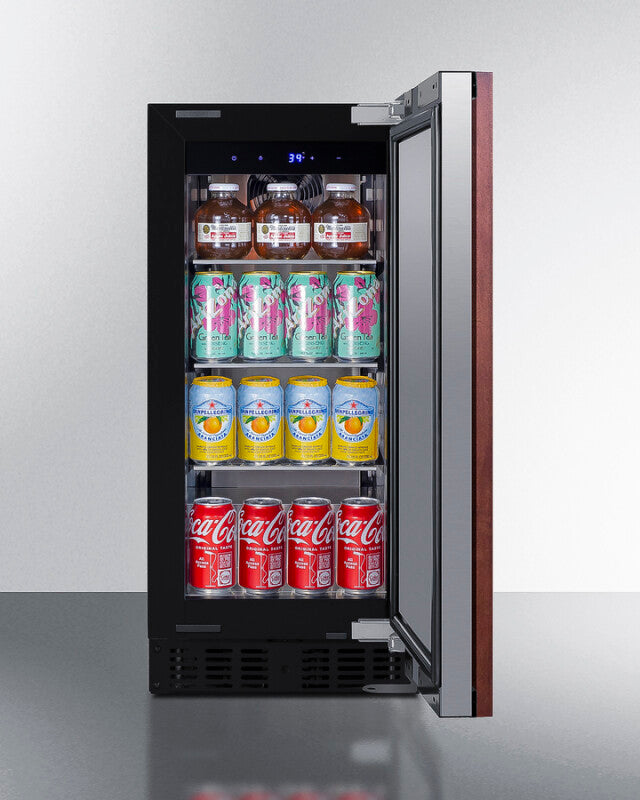

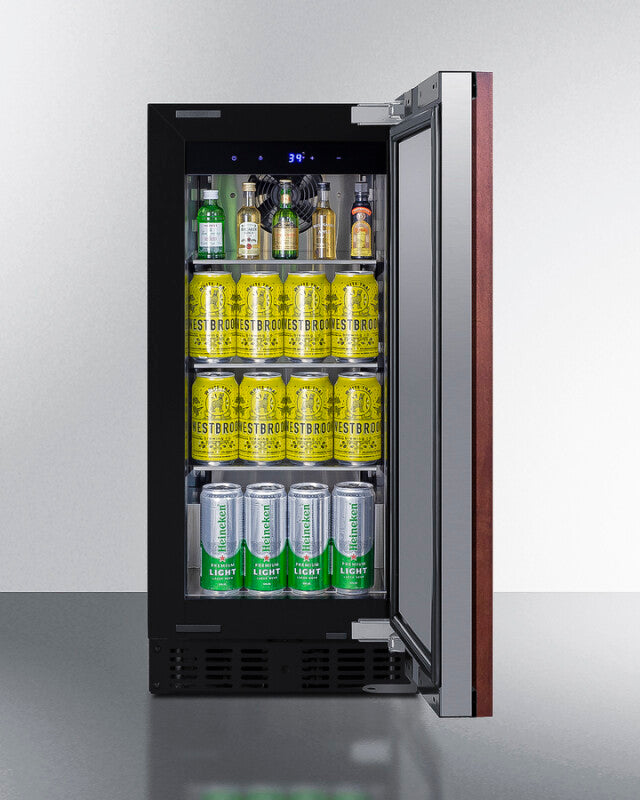

SUMMIT 15" Wide Built-In All-Refrigerator, ADA Compliant - Panel Ready (ASDS1523IF)
SKU:
ASDS1523IF
Regular price
$1,740.00
Unit price
/
Unavailable
SUMMIT 15" Wide Built-In All-Refrigerator, ADA Compliant - Panel Ready (ASDS1523IF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ ADA compliant design
- ✔ 15" wide all-refrigerator
- ✔ Less than 18" deep
- ✔ Built-in capable
- ✔ Adjustable height
- ✔ Panel-ready door
- ✔ Stainless steel interior
- ✔ Factory-installed lock
- ✔ Frost-free operation
- ✔ Fan-forced cooling
- ✔ Digital thermostat
- ✔ Dimmable LED lighting
- ✔ Cantilevered shelving
- ✔ Open door alarm
- ✔ Sabbath mode setting
- ✔ High temperature alarm
- ✔ Temperature Memory Function
- ✔ Integrated hinge
- ✔ Right angle plug
- ✔ Sealed back
- ✔ Reversible door
- ✔ Fully finished black cabinet
- ✔ Commercially approved
- ✔ 100% CFC free
- ✔ CARB Compliant
SUMMIT 15" Wide Built-In All-Refrigerator, ADA Compliant - Pan...
Regular price
$1,740.00
Unit price
/
Unavailable
Product Features
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
15" wide all-refrigerator
1.7 cu.ft. interior for residential or commercial cold storage
Less than 18" deep
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Adjustable height
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

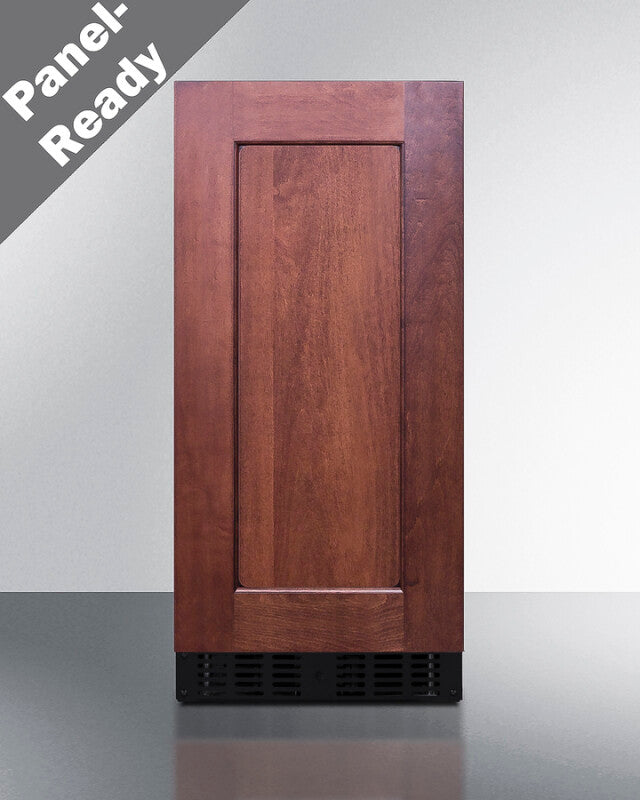

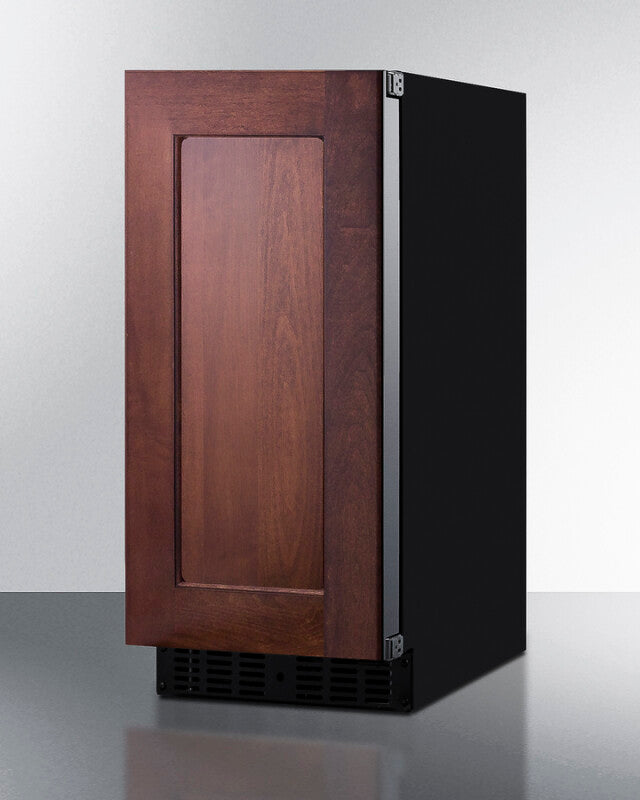

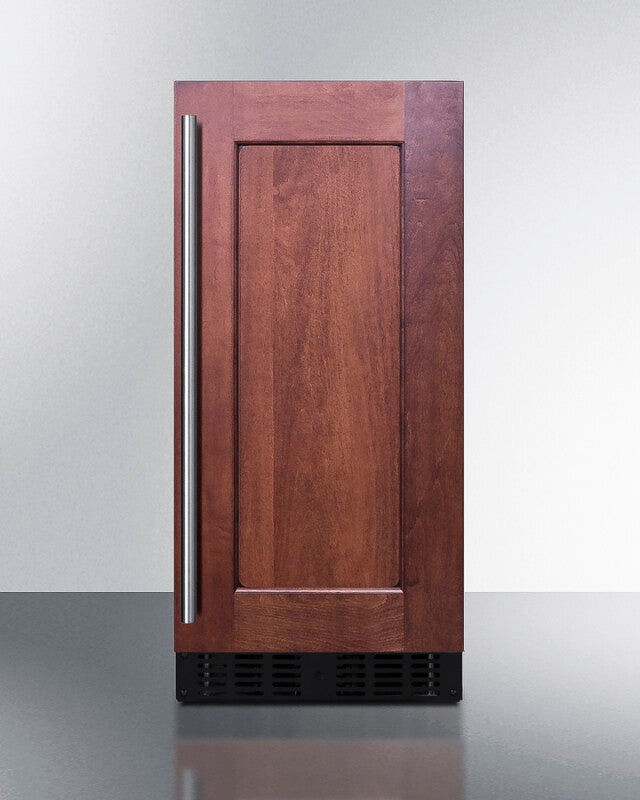

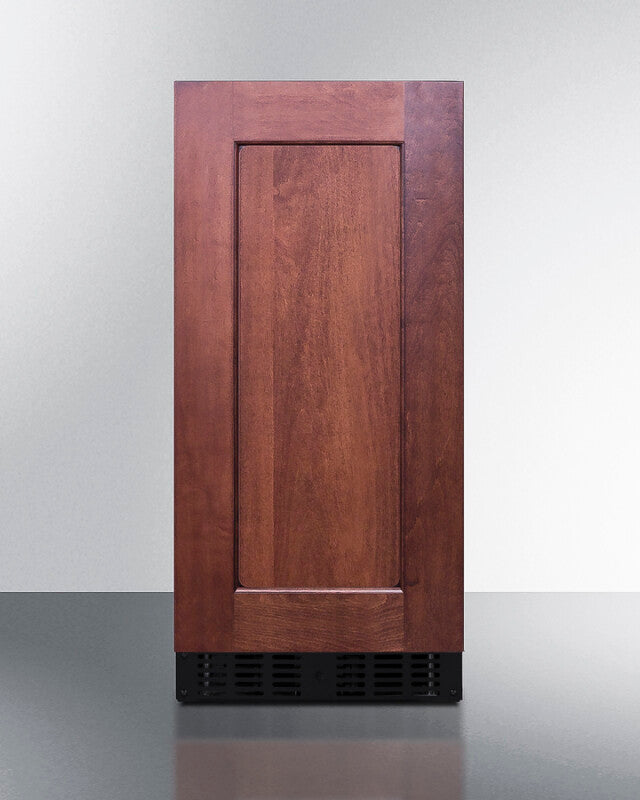

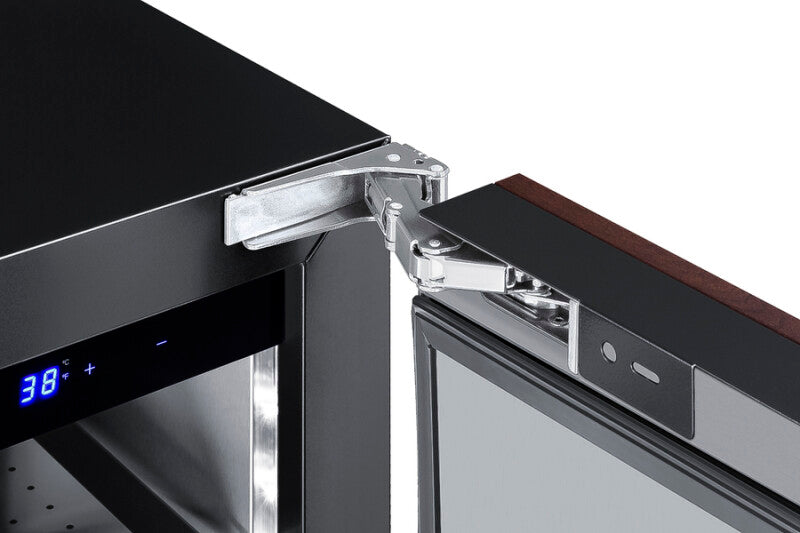

Panel-ready door
European style articulating door hinge allows you to add an overlay panel to match adjacent cabinetry for a custom look
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Factory-installed lock
Keyed lock for a secure interior (2 keys included)
Frost-free operation
No-frost operation for minimal user maintenance

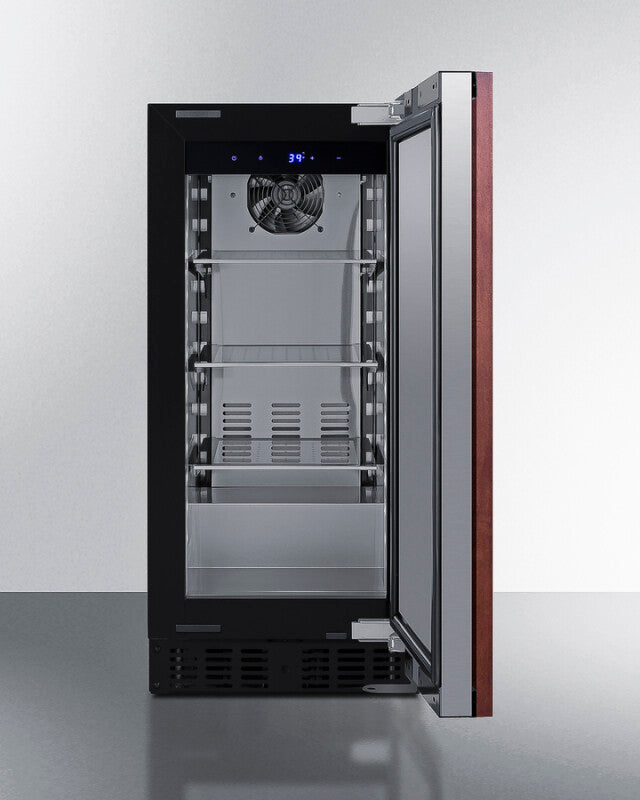

Fan-forced cooling
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Digital thermostat
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Dimmable LED lighting
Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

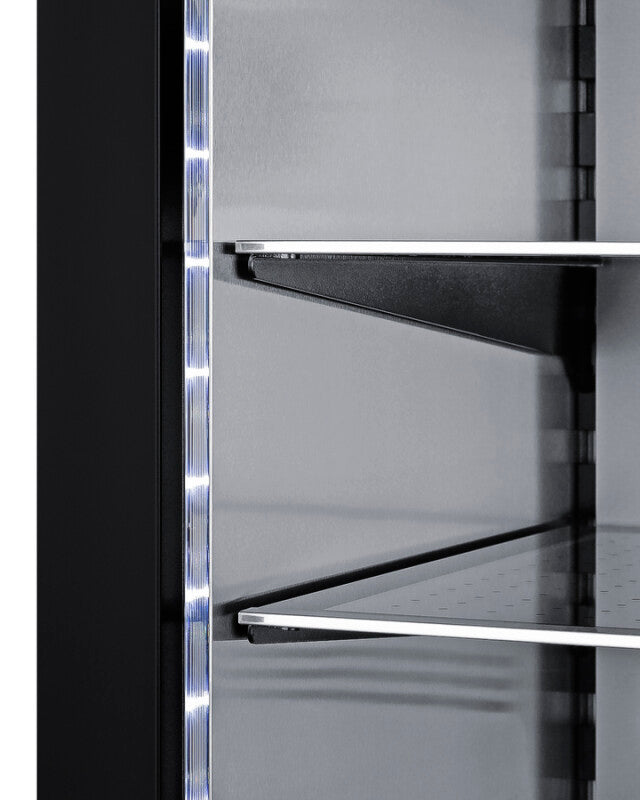

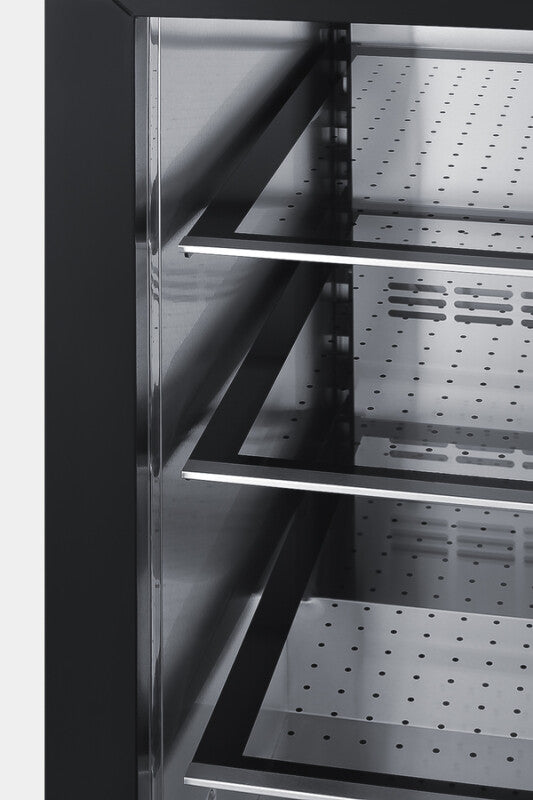

Cantilevered shelving
Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Integrated hinge
Flat hinge ensures no added height is needed when installing under a counter
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Reversible door
User-reversible door swing for added flexibility
Fully finished black cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

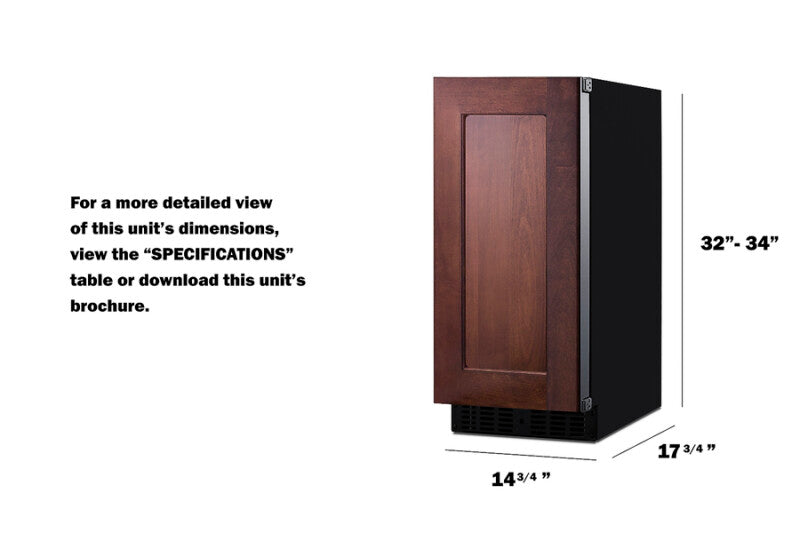

Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.25" (79 cm) |
| Capacity | 1.72 cu.ft. (49 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 235.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 59.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088815 |
Refrigerator Features
| Sabbath Mode | Yes |
| Door Swing | Reversible |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43F |
| Sound Level | 33 dB |
Dimensions
| Interior Height | 24.25" (62 cm) |
| Interior Width | 10.75" (27 cm) |
| Interior Depth | 12.38" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
Dimensions & Weight
| Width | 14.75 in. |
| Height | 32 in. |
| Length | 17.75 in. |
| Weight | 59 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19.75 in. |
| Shipping Height | 37 in. |
| Shipping Length | 22.75 in. |
| Shipping Weight | 99 lbs. |
| Total of Shipping Weight | 99 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.85 ft |
| Dimensional Weight | 60.27 lbs. |
| Total of Cubes | 4.85 ft |
| Total of Dimensional Weight | 60.27 lbs. |
Certifications
California Prop 65
