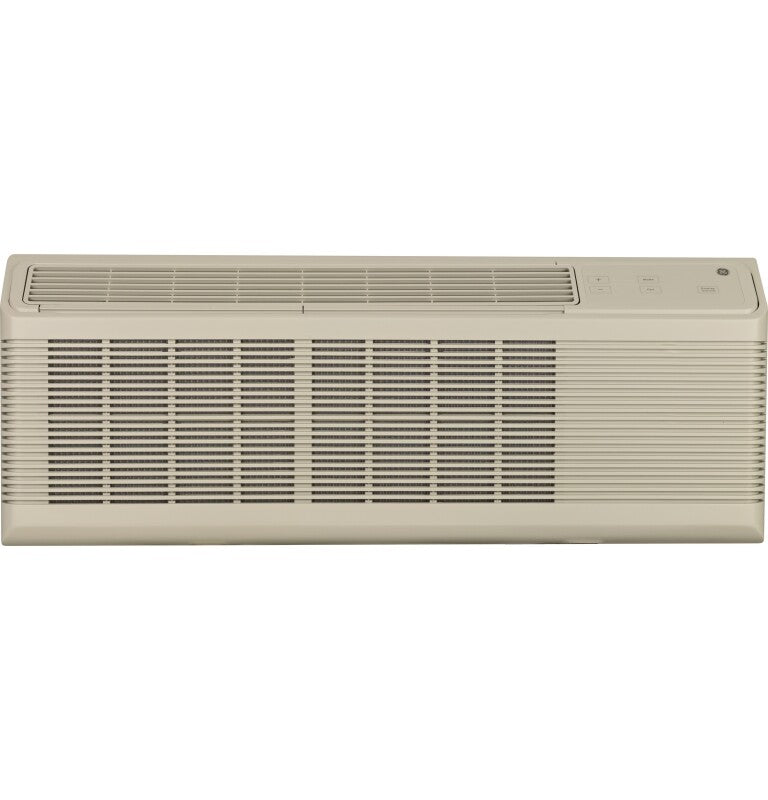

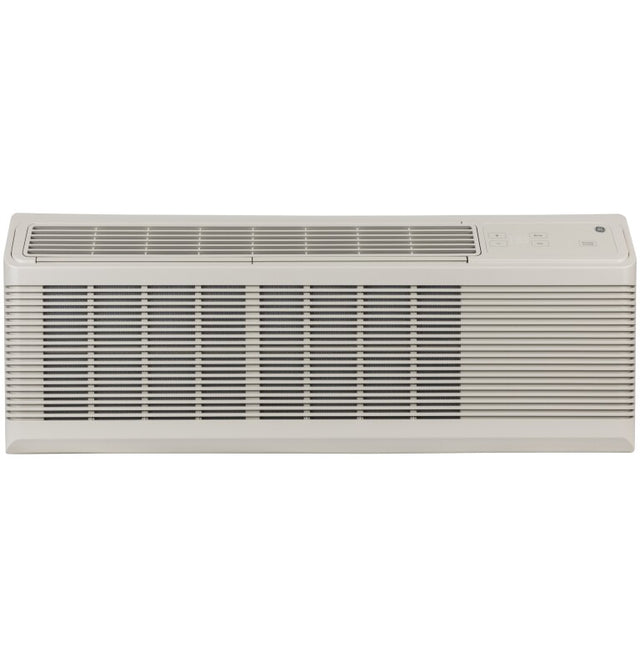

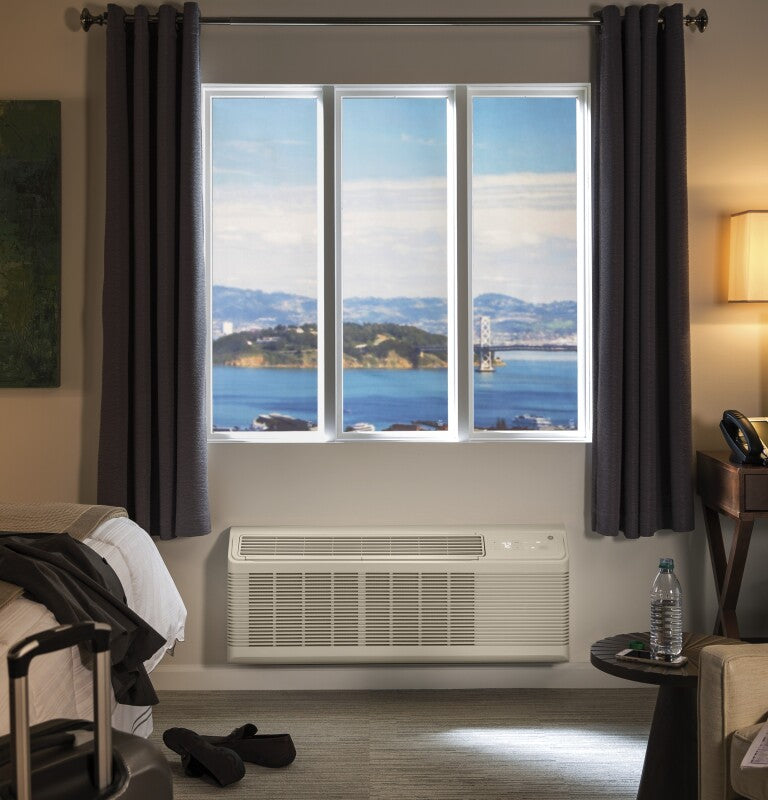

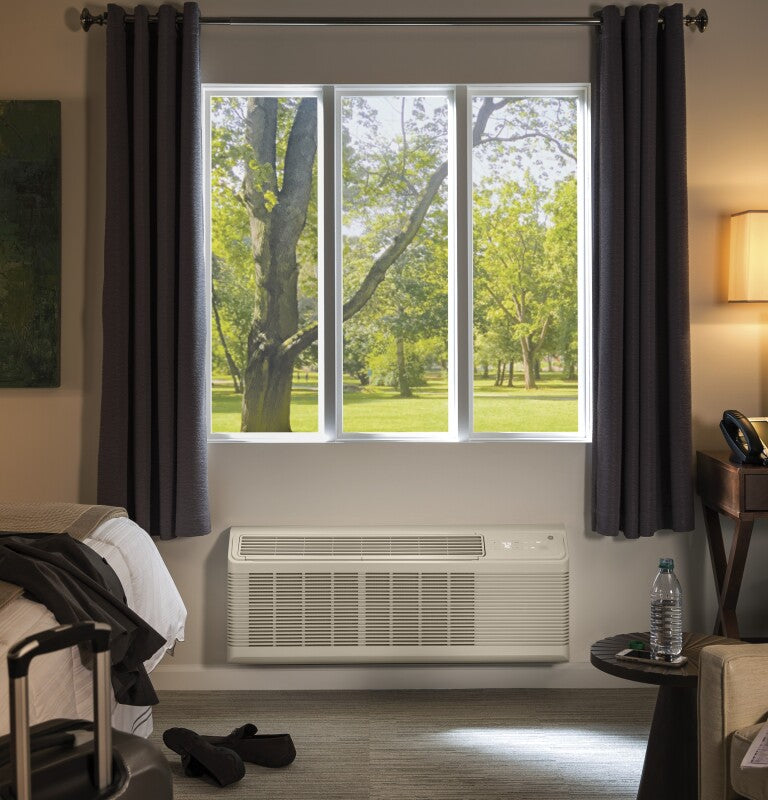

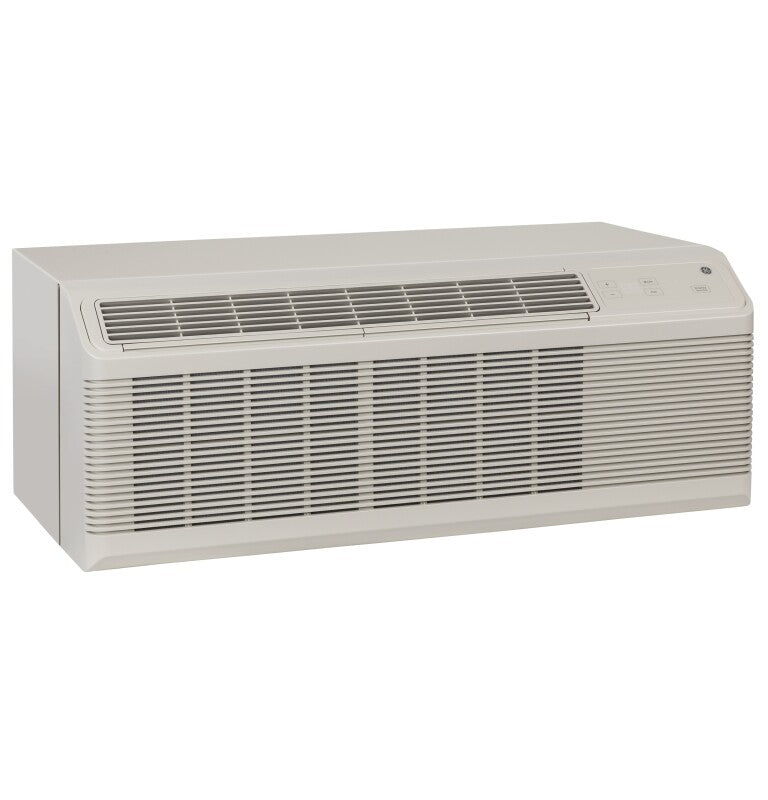

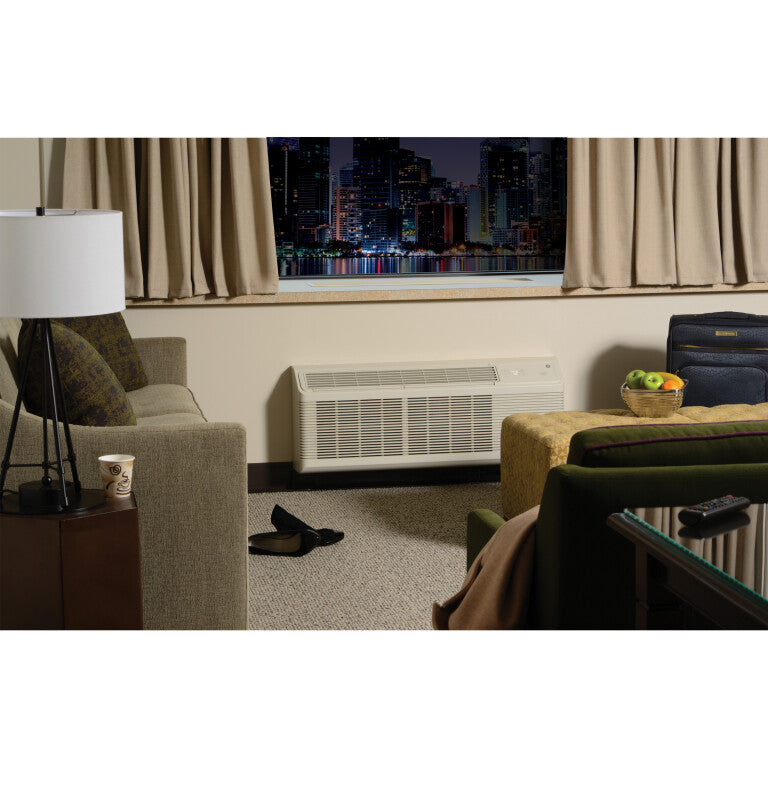

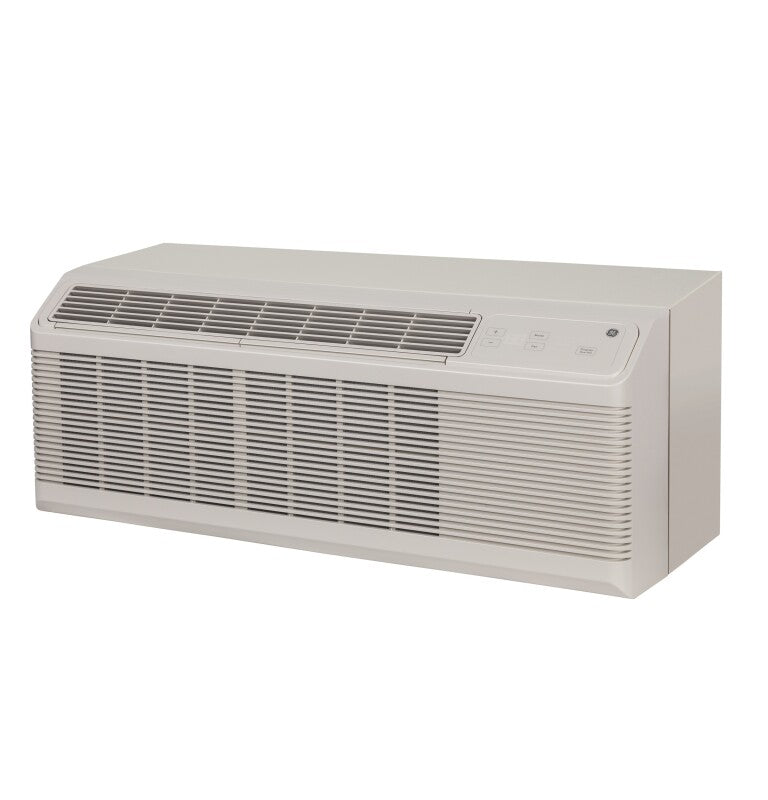

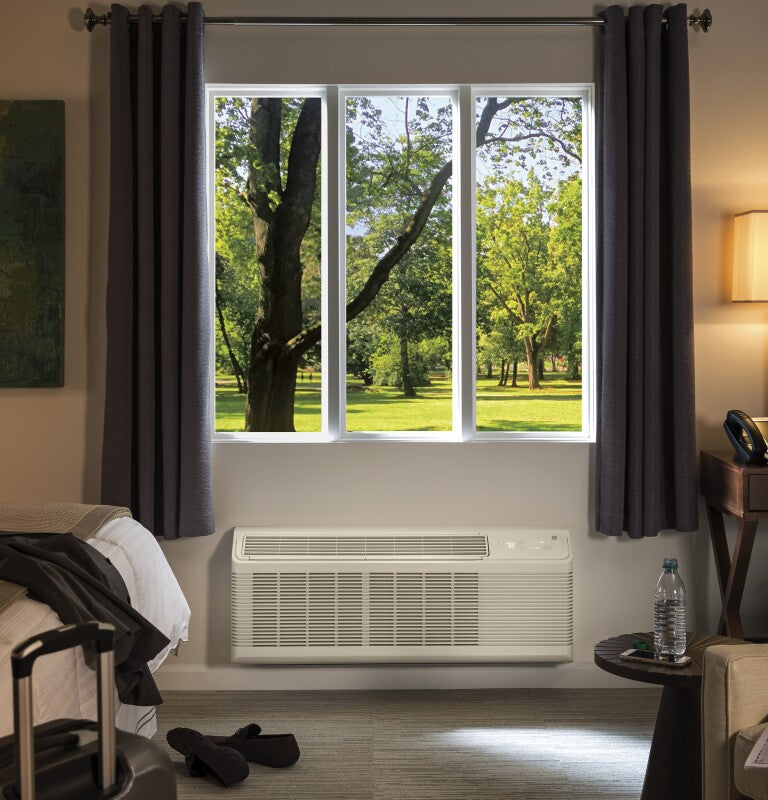

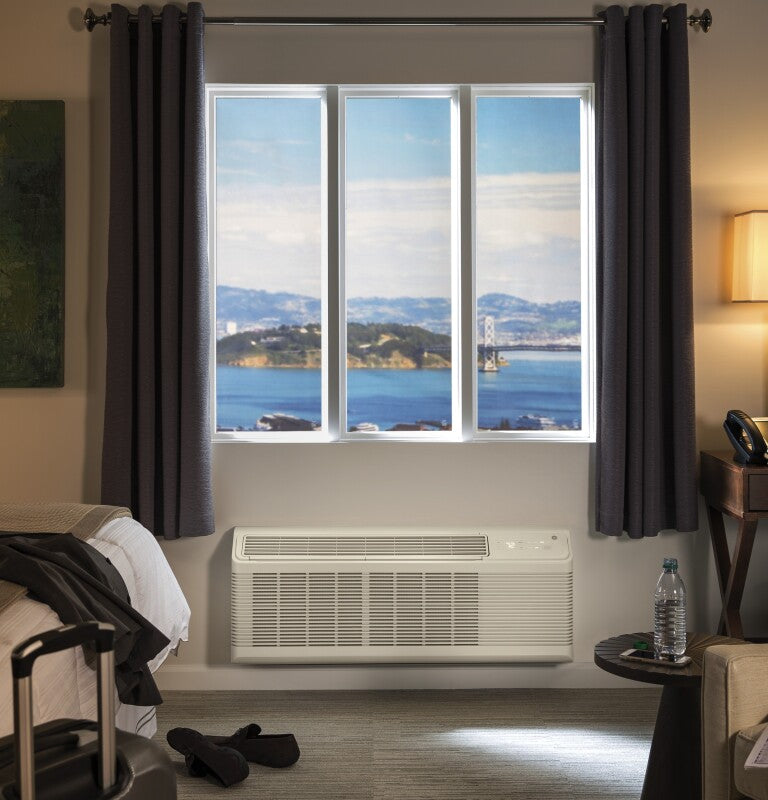

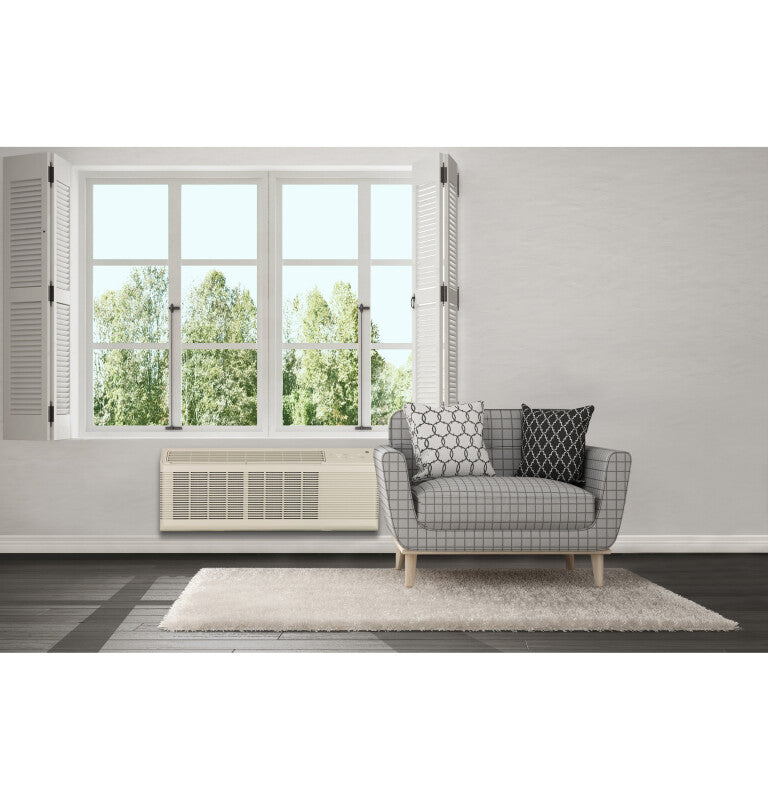

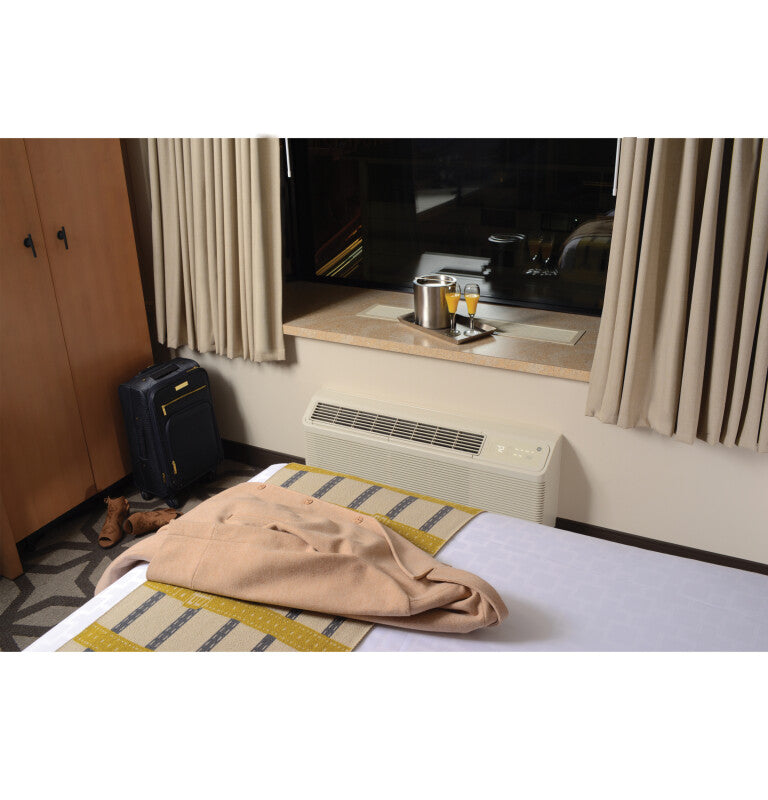

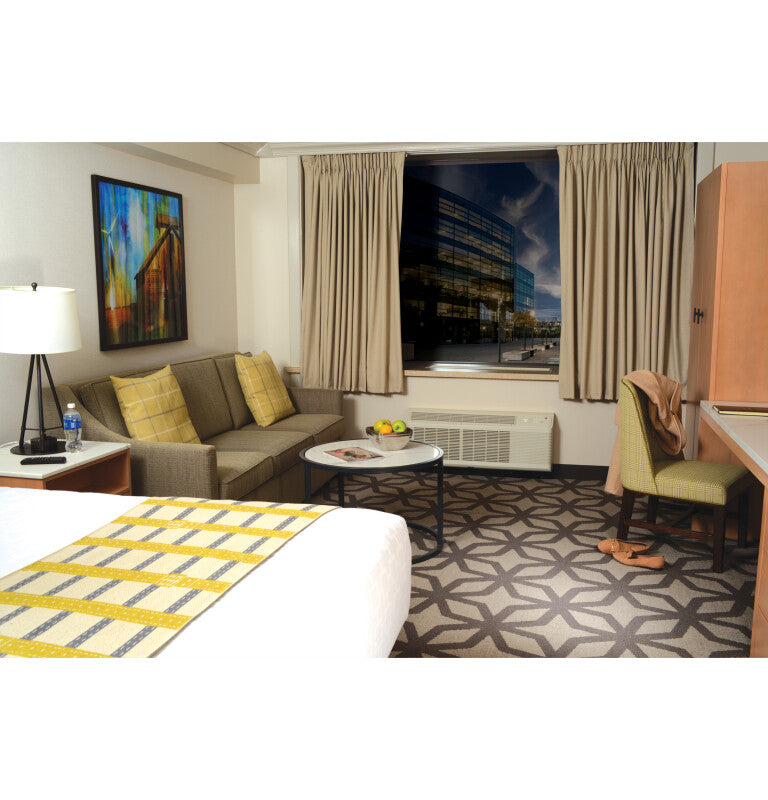

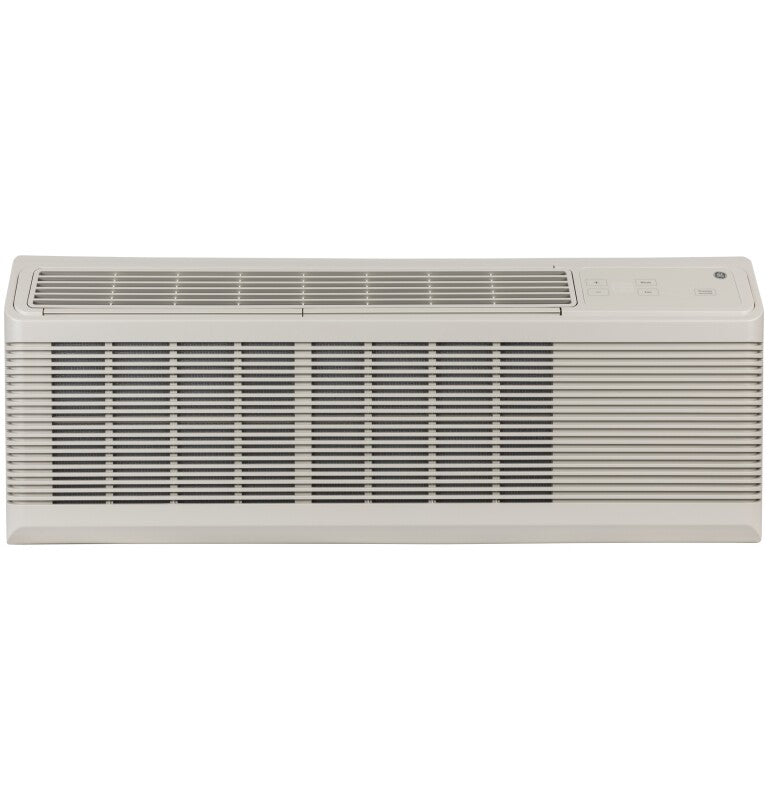

GE Zoneline Cooling and Electric Heat Unit, 230/208 Volt - Gray (AZ45E15DAB)
SKU:
AZ45E15DAB
UPC: 84691815679
Regular price
$1,401.00
Unit price
/
Unavailable
GE Zoneline Cooling and Electric Heat Unit, 230/208 Volt - Gray (AZ45E15DAB) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
GE Appliances 5% Bodewell Rebate - Select Members Only
RECEIVE A 5%* REBATE WITH THE PURCHASE OF SELECT GE BRAND APPLIANCES AND BODEWELL MEMBERSHIP
Ends: 2025-09-30
Bodewell $149 Rebate 2H25 - Select Members Only
Enjoy up to $149 Off Delivery, Installation or Haul-Away with eligible appliance purchase
Ends: 2025-12-31
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Cooling capacity
- ✔ Energy efficiency
- ✔ Dehumidification
- ✔ Indoor fan CFM (high/low)
- ✔ Fresh air vent CFM (fully open high fan)
- ✔ Quiet operation
- ✔ Heat & Freeze Sentinels
- ✔ Electronic temperature limiting
- ✔ Electronic touch controls with LED display
- ✔ R-410A refrigerant
- ✔ SMC base pan
- ✔ Simplified structure
Documents
GE Zoneline Cooling and Electric Heat Unit, 230/208 Volt - Gray (AZ...
Regular price
$1,401.00
Unit price
/
Unavailable
Description
Zoneline Cooling and Electric Heat Unit, 230/208 Volt
Product Features
Energy efficiency
10.5 EER
Quiet operation

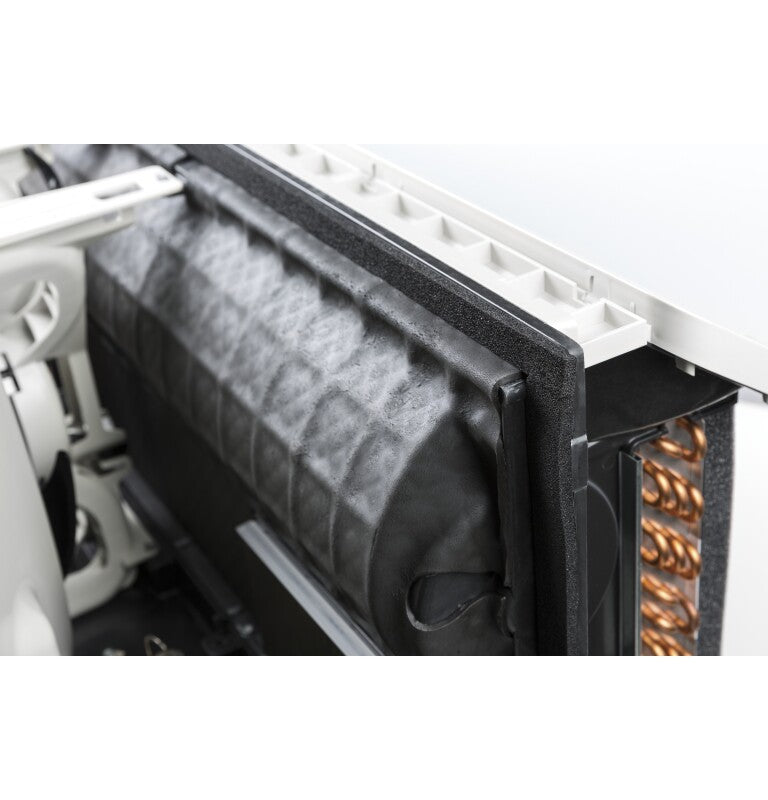

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

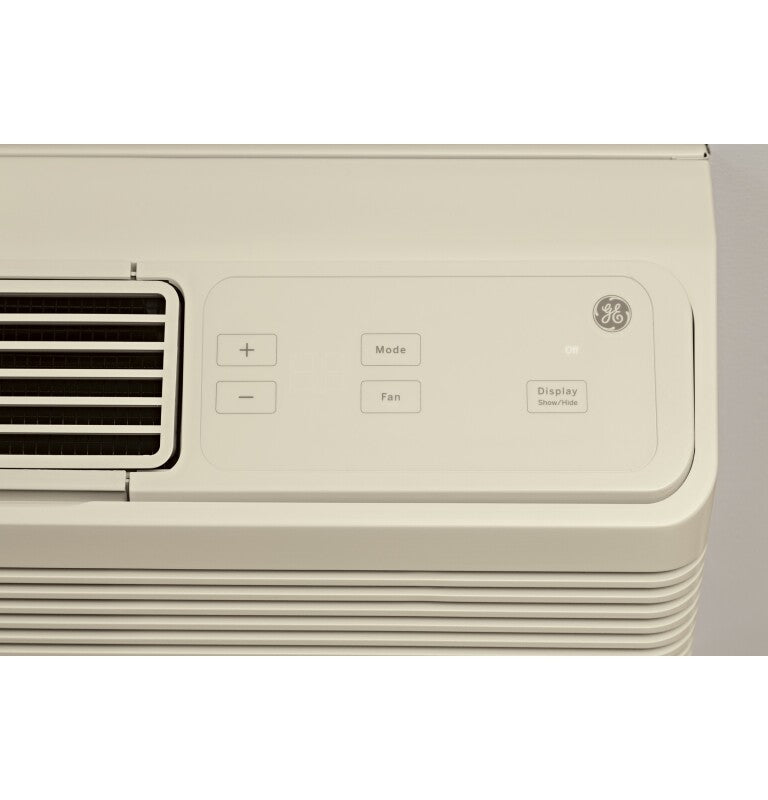

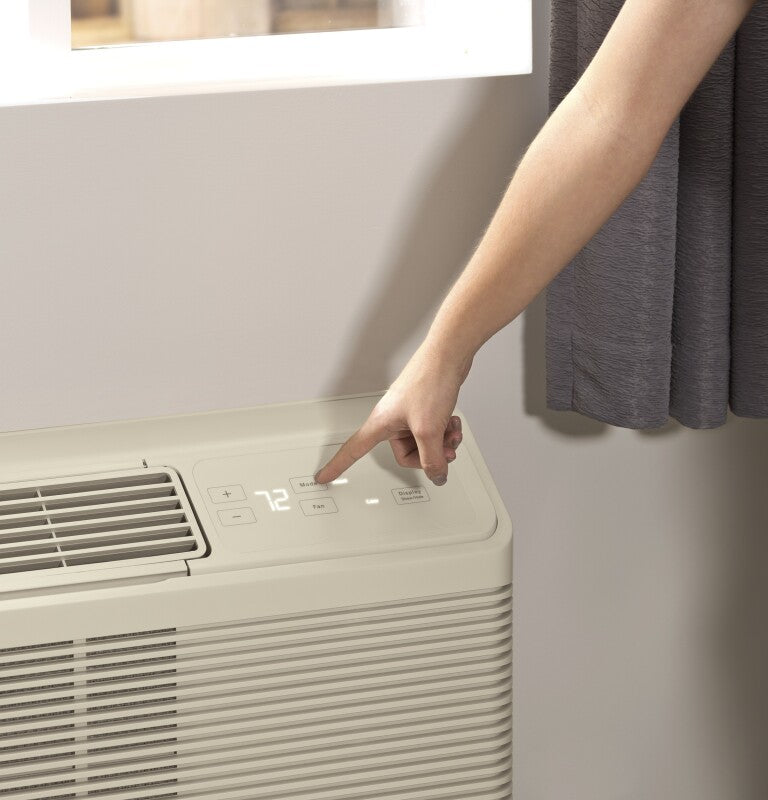

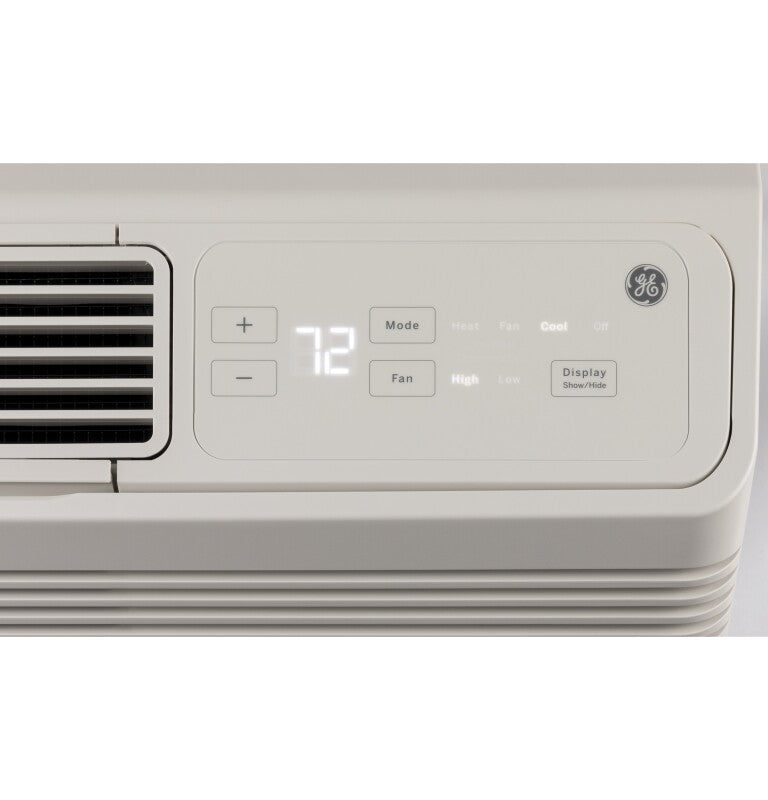

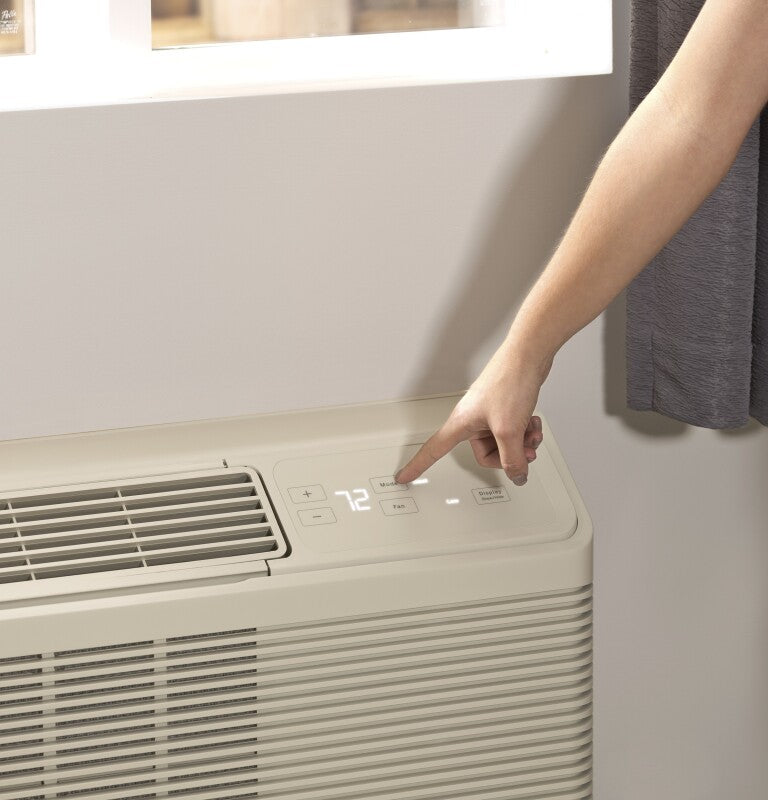

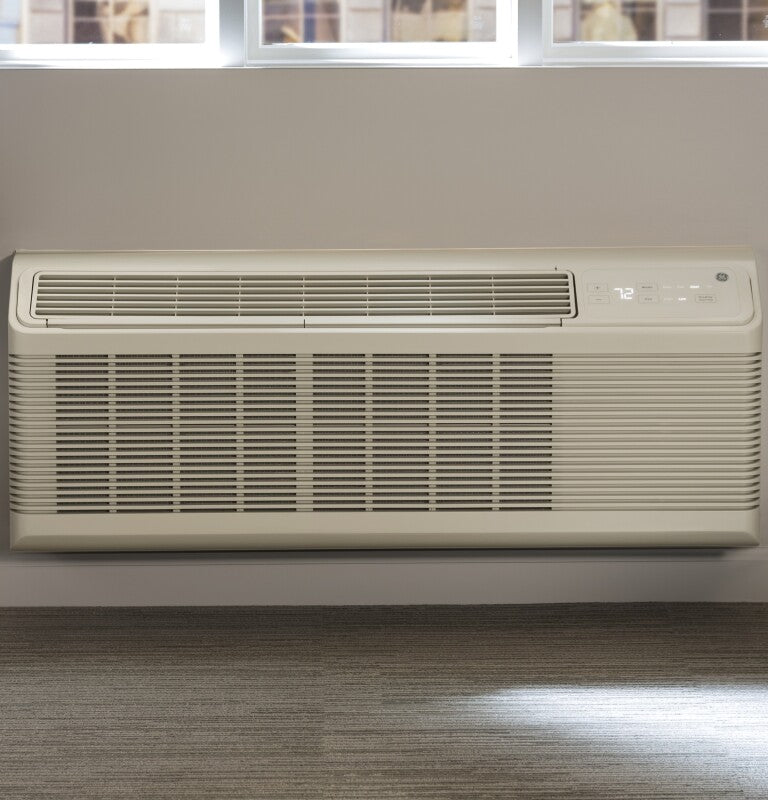

Electronic touch controls with LED display

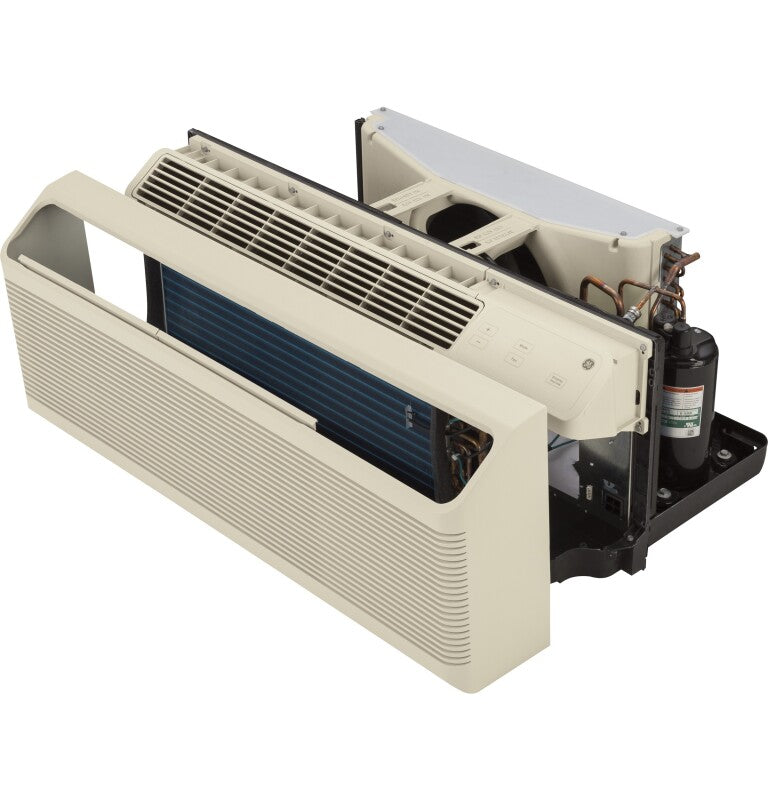

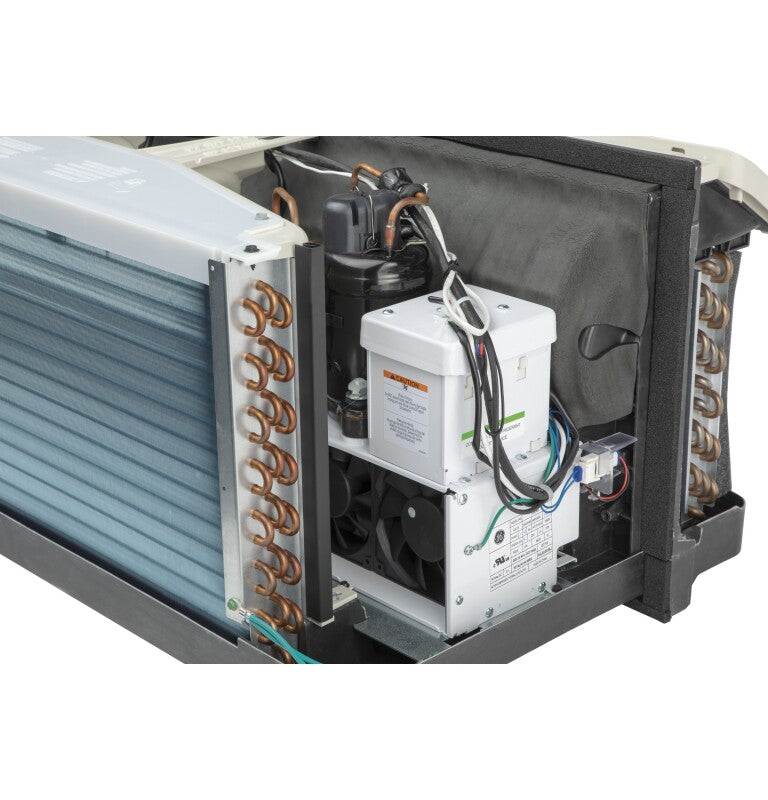

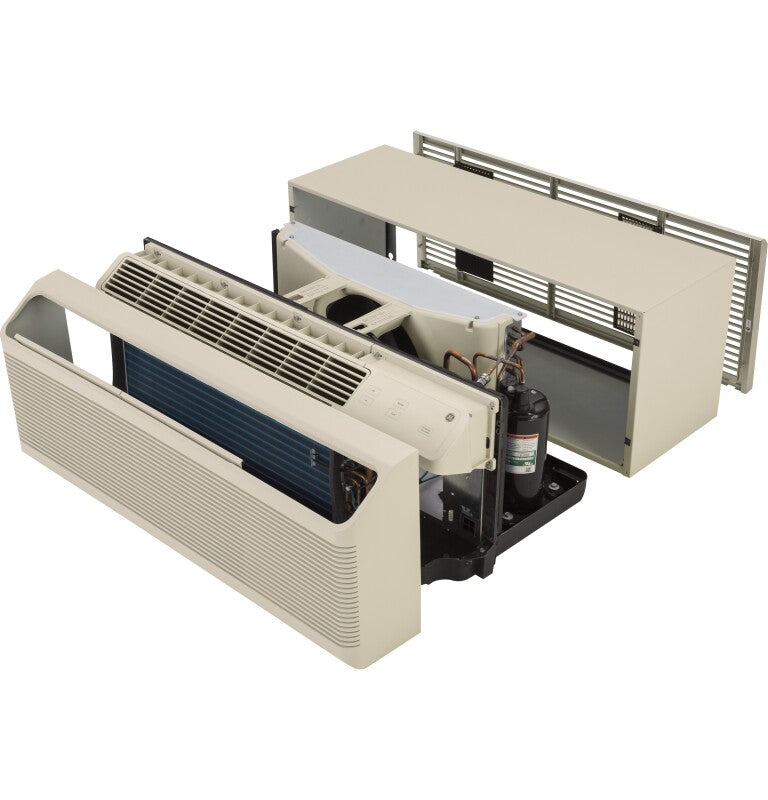

Simplified structure

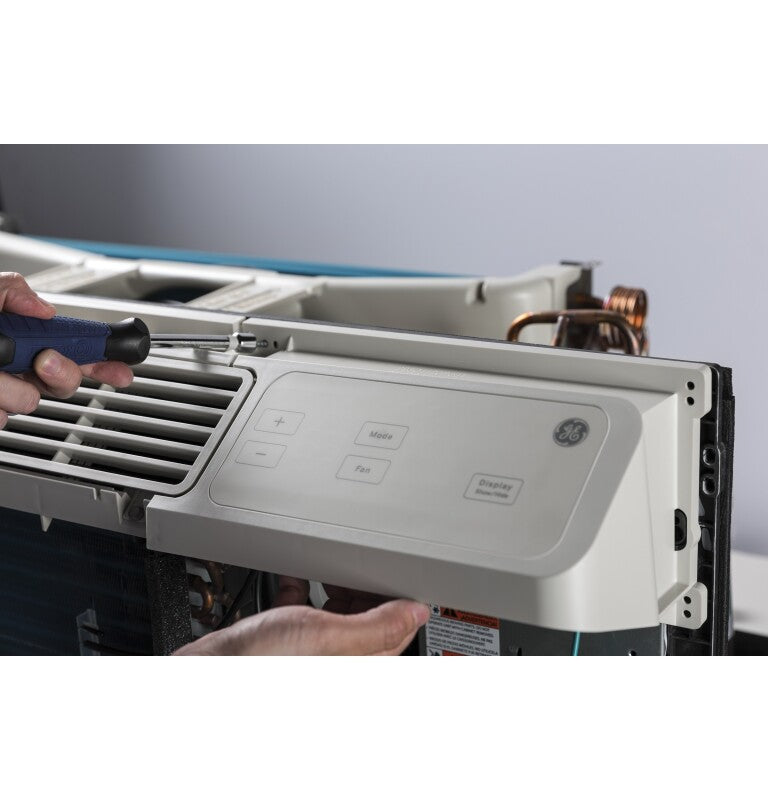

Easy to maintain and service
Cooling capacity
14,200/14,100 BTU
Dehumidification
4.6 pints/hour
Indoor fan CFM (high/low)
449/300
Fresh air vent CFM (fully open high fan)
47
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
R-410A refrigerant

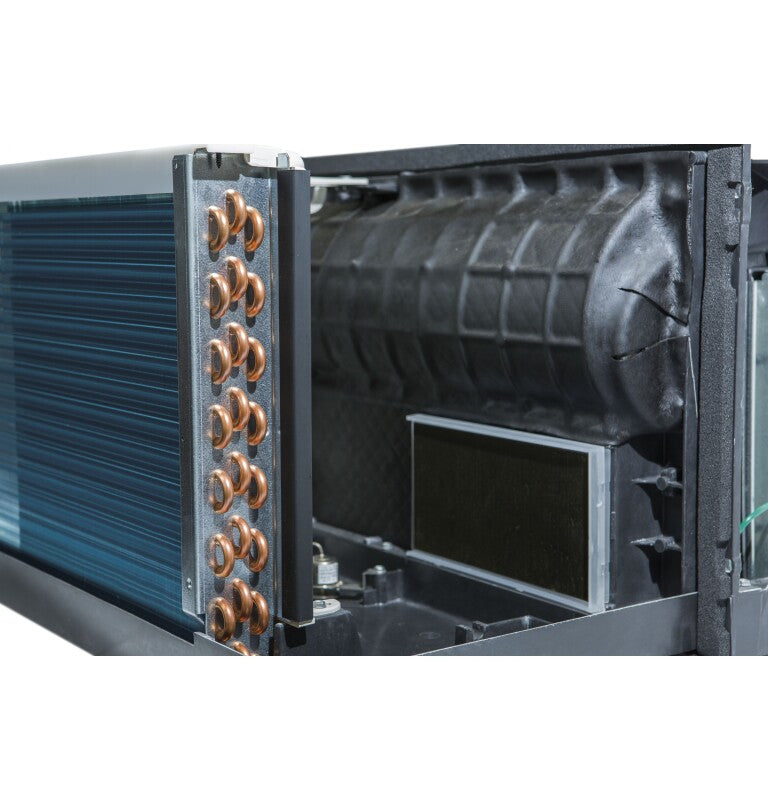

SMC base pan
Product Specifications
CAPACITY
| Vent CFM (high fan at zero ESP) | 47 |
| Cooling BTUH (MAX) | 14200 |
| Dehumidification (pts./hr.) | 4.6 |
| CFM Indoor Fan High | 435 |
| CFM Indoor Fan Low | 330 |
| Cooling BTUH (MIN) | 14100 |
| Cooling EER (BTUH / Watt) | 10.5 |
FEATURES
| Fan Cycle Switch | Yes |
| Discharge Grille | 2-position |
| Heat - Cool | Yes |
| Rotary Compressor | Yes |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Power Factor | 97 |
| Vent Control | 3-position |
| Manual Vent Control | Hidden |
| Heating System | Electric Resistance |
| Louver Style | Reversible |
| Fan Speed Control | Yes |

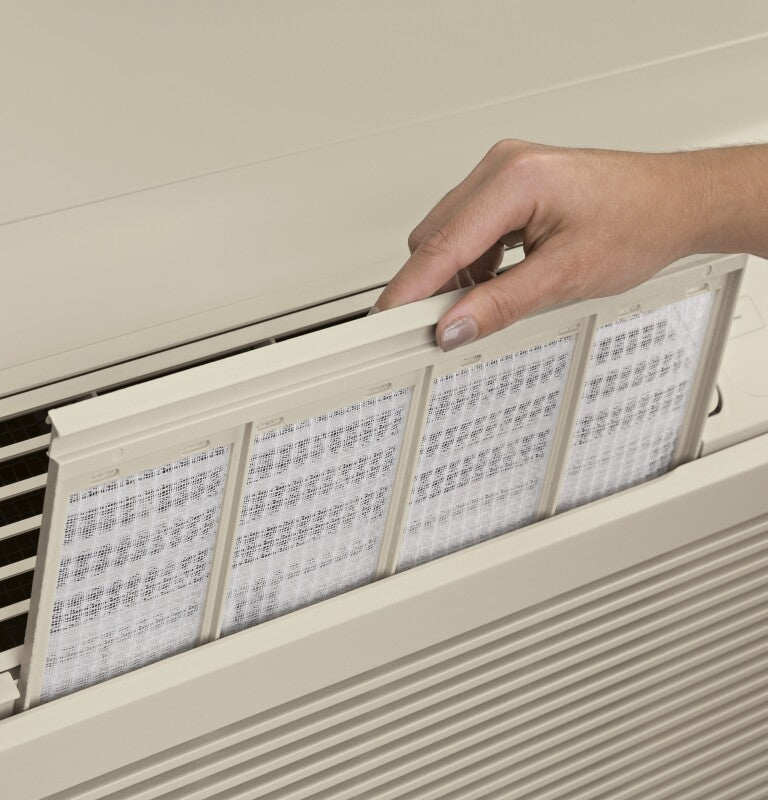

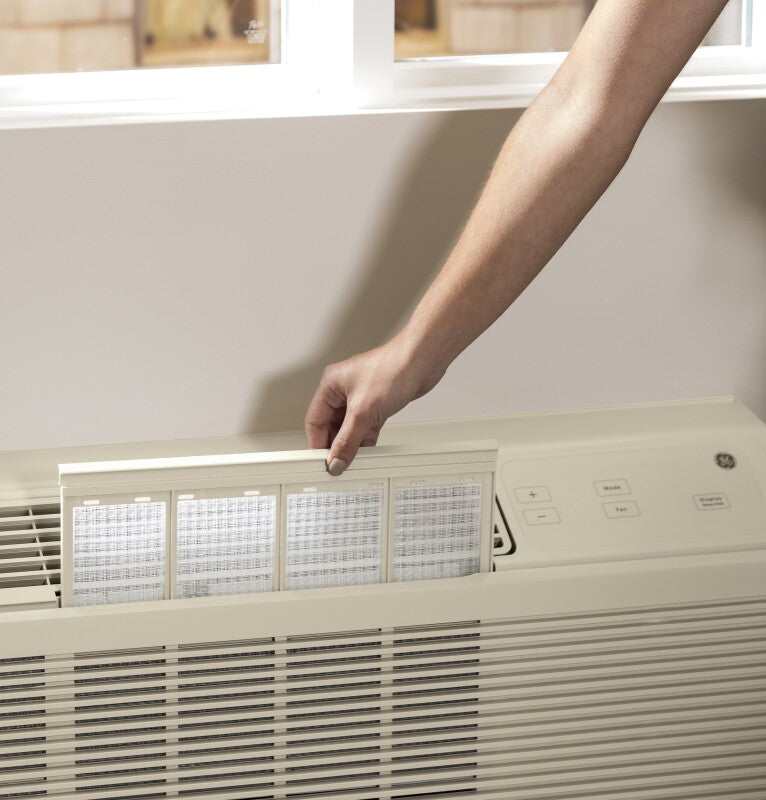

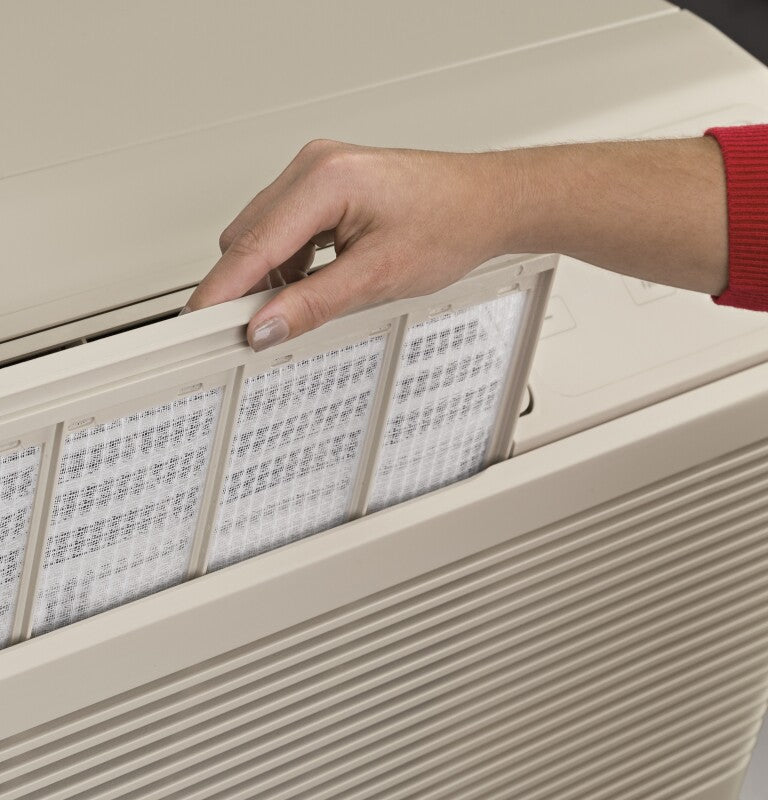

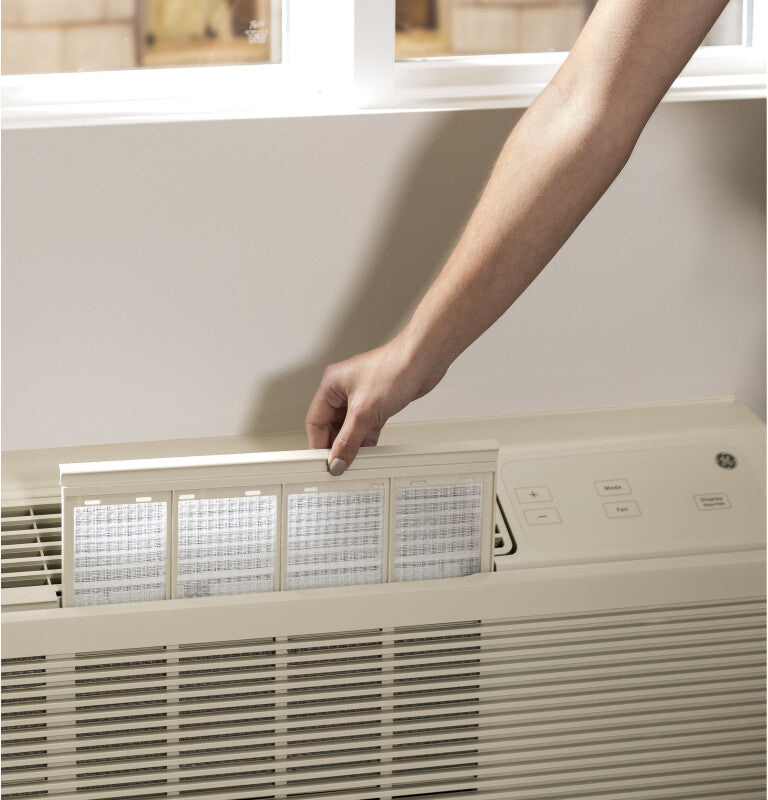

| Filter Type | Rigid Frame |
| Filter Type | Slide-Out |
| Temperature Range | 60 - 85 F |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Electronic Micro Computer Control | Yes |
| Zoneline Features | "Sleep" Mode |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Sentinel (85F) |
| Zoneline Features | Proportional - Integral ID Airflow |

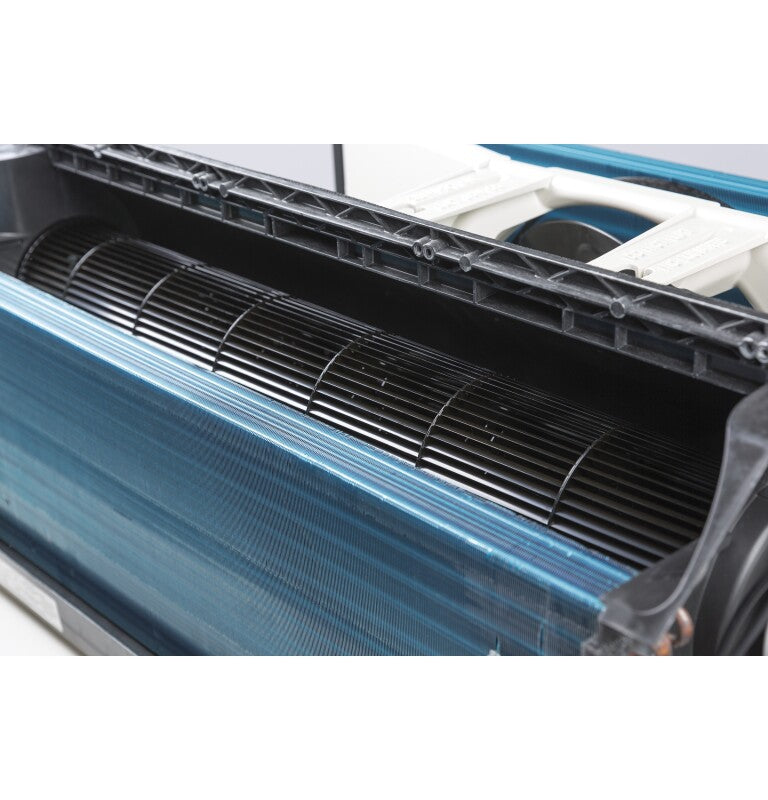

| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Universal Heaters |

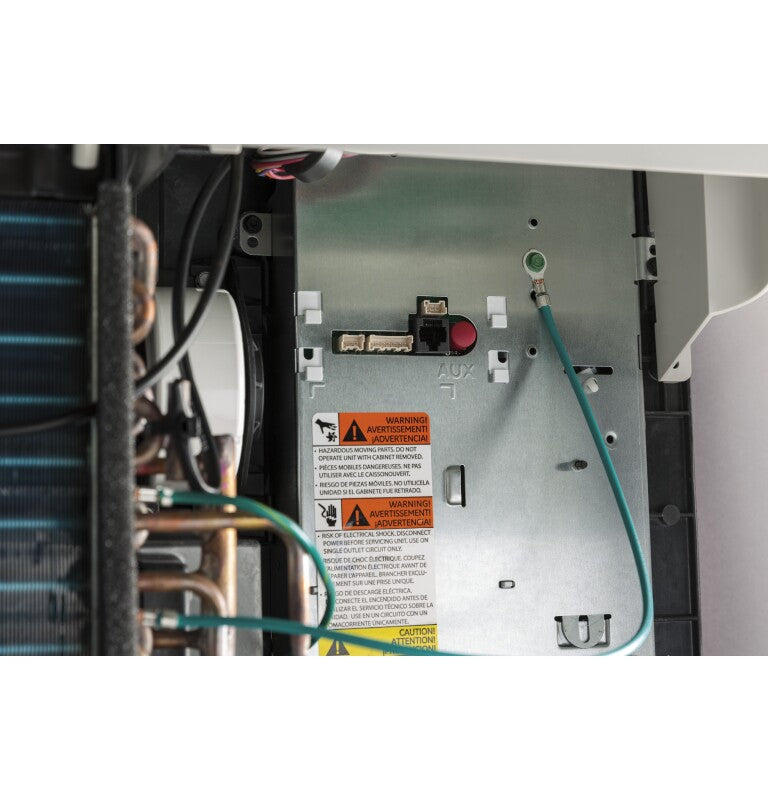

| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 63% |
| Chassis Type | Slide-In |
| Venting Features | Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions |
| Control Type | Coverless Backlit White LED Touch Controls |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Fan Only |
| Fan Speed Selections | Hi/Low Heating |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 6.4/6.8 |
| Voltage (MIN) | 208 |
| Cooling - Amperes | 6.4/6.8 |
| Cooling - Watts | 1415/1405 |
| Cooling - Amperes; L.R. | 31.5 |
| Voltage (MAX) | 230 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 5-year sealed refrigerating system |
FILTER
| App Filter - Dry Air 25 | No |
| App Filter - Product Type | Zoneline PTAC |
| App Filter - Heat | Electric Resistance |
| App Filter - Programmable | No |
| App Filter - Voltage | 230V - 208V |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 20.81 in. |
| Weight | 110 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.81 in. |
| Shipping Weight | 150 lbs. |
| Total of Shipping Weight | 150 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.09 ft |
| Dimensional Weight | 100.62 lbs. |
| Total of Cubes | 8.09 ft |
| Total of Dimensional Weight | 100.62 lbs. |
Certifications
California Prop 65
