$76.00 off

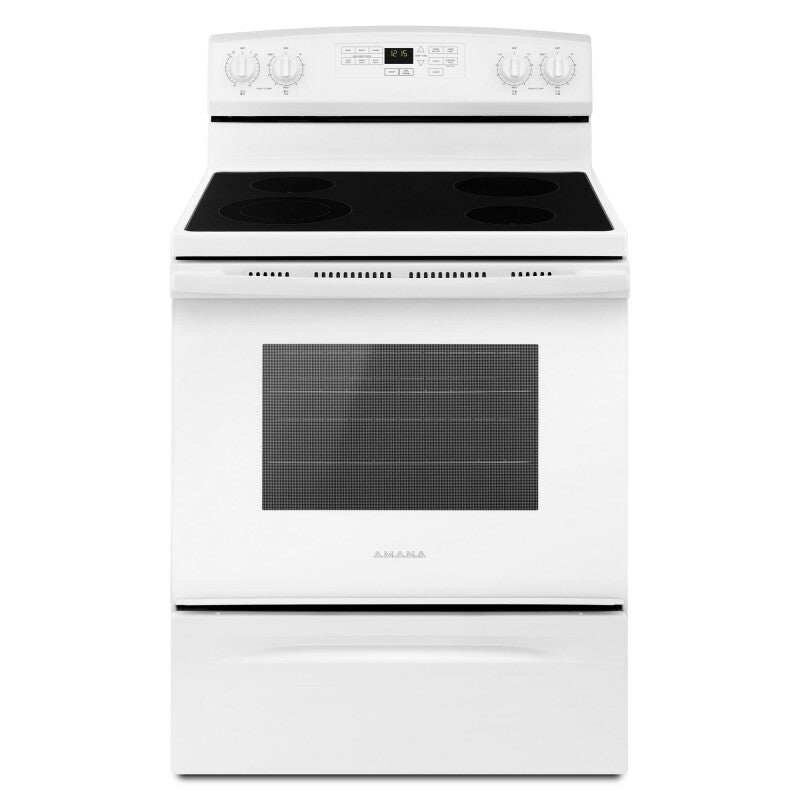

AMANA 30-inch Electric Range with Extra-Large Oven Window - White (AER6603SFW)
SKU:
AER6603SFW
UPC: 883049410395
Sale price
$67800
Regular price
$75400
Unit price
AMANA 30-inch Electric Range with Extra-Large Oven Window - White (AER6603SFW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Large Oven Capacity (4.8 cu. ft.)
- ✔ Versatile Cooktop
- ✔ Bake Assist Temps
- ✔ Easy Touch Electronic Controls Plus
Documents
AMANA 30-inch Electric Range with Extra-Large Oven Window - White ...
Sale price
$67800
Regular price
$75400
Unit price
SKU:
AER6603SFW
Sale price
$67800
Regular price
$75400
Unit price
AMANA 30-inch Electric Range with Extra-Large Oven Window - White (AER6603SFW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
30-inch Amana® Electric Range with Extra-Large Oven Window
30-inch Amana® Electric Range with Extra-Large Oven Window
30-inch Amana® Electric Range with Extra-Large Oven Window
Product Features

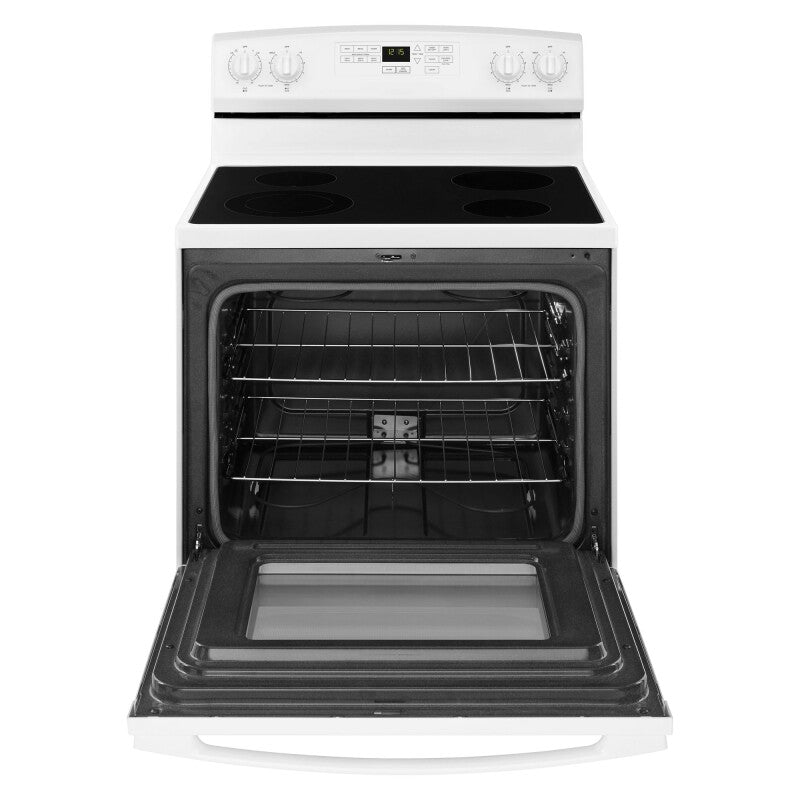

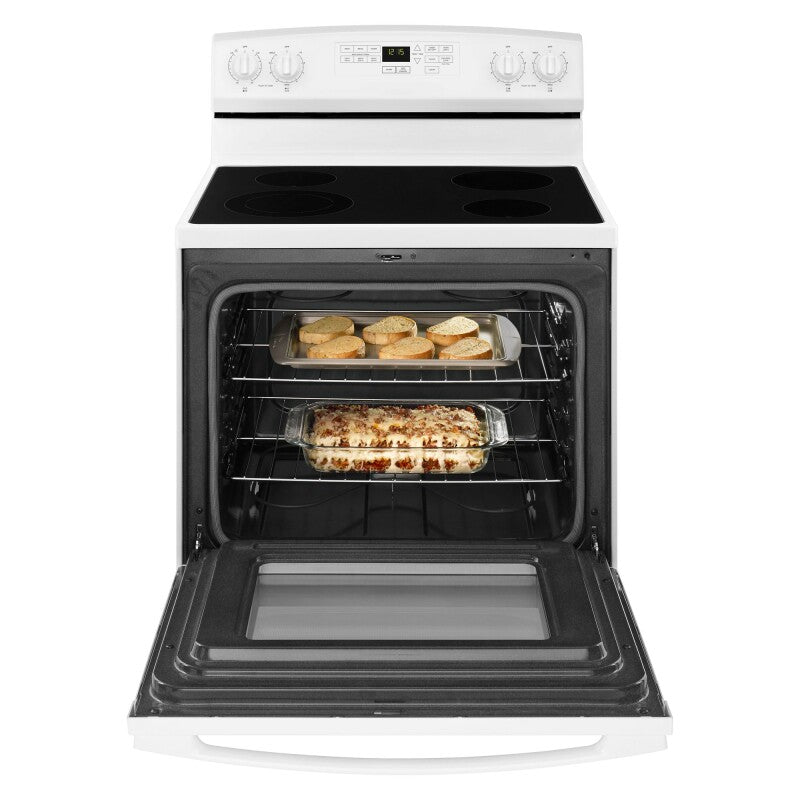

Large Oven Capacity (4.8 cu. ft.)
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

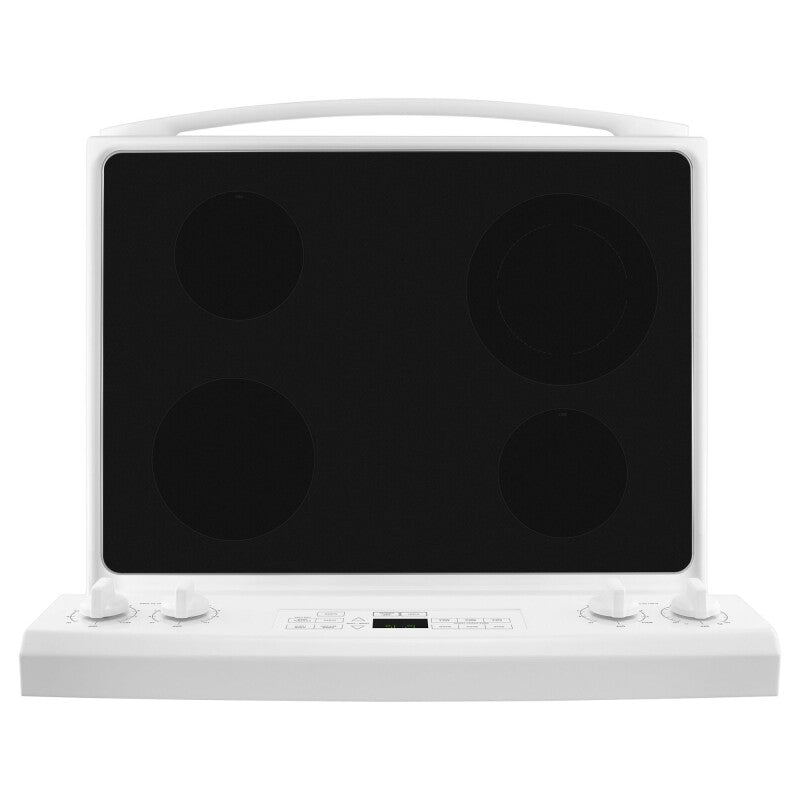

Versatile Cooktop
Our Versatile Cooktop with multiple element options provides up to 3,000 watts on the largest burner to help you cook more of your favorites at the same time.
Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

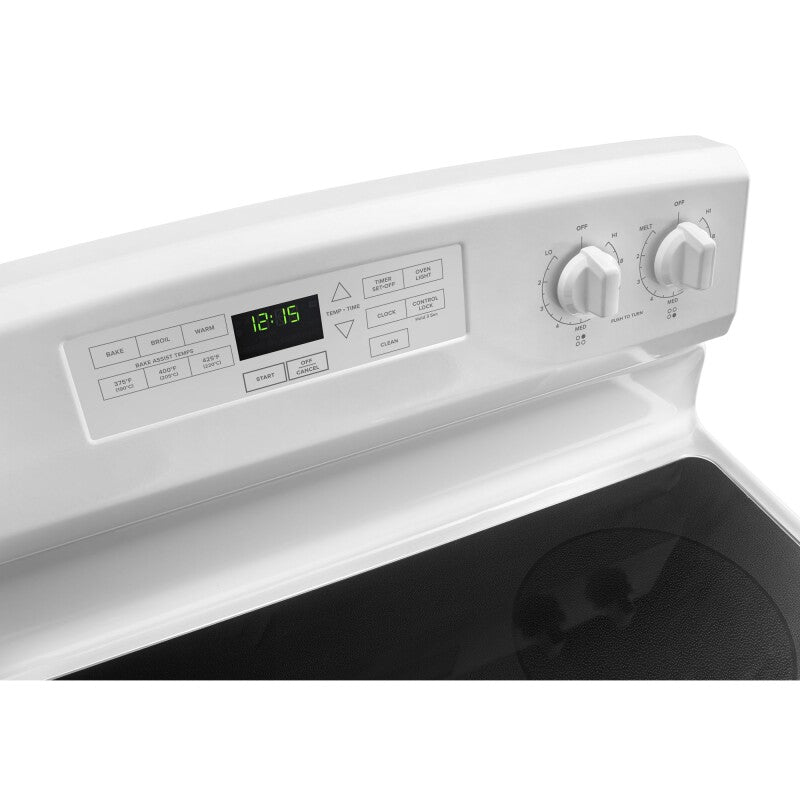

Easy Touch Electronic Controls Plus
Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Product Specifications
Controls
| Display Color | Green |
Cooktop Details
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Material | Porcelain Coated Steel |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Certifications
| ADA Compliant | No |
| UL | Yes |
| prop65 | CA |
Electrical
| Power Cord Included | No |
Other
| Capacity (Cu Ft) | 4.80 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | - |
| Carton Depth | 29 |
| Carton Height | 48 3/4 |
| Carton Width | 32 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 36 |
| Cutout Width (in) | 30 |
| Depth Closed Excluding Handles | 25 5/16 |
| Depth With Door Open 90 Degree | 46 11/16 |
| Gross Weight | 187 |
| Maximum Height | 47 7/8 |
| Minimum Height | 46 7/8 |
| Net Weight | 0.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 36.0000 |
| Cutout Width(IN,inches) | 30.0000 |
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
| Maximum Height(IN,inches) | 47.8750 |
| Minimum Height(IN,inches) | 46.8750 |
| Carton Depth(IN,inches) | 29.0000 |
| Carton Height(IN,inches) | 48.7500 |
| Carton Width(IN,inches) | 32.0000 |
| Cutout Height Min(IN,inches) | 36.0000 |
| Gross Weight(LB,pounds) | 187 |
| Width | 32 in. |
| Height | 48.75 in. |
| Length | 29 in. |
| Gross Weight | 187 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 40 lbs. |
| Total of Shipping Weight | 40 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft |
| Total of Dimensional Weight | 279.57 lbs. |
Details
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
| Oven Light Switch Location | Oven Control |
| Oven Selections | Audible Signal; Clock; Control Lock; Sabbath Mode; Timer; Warm Hold |
| Range Drawer Type | Storage Drawer |
Element/Burner Details
| Cooktop Element Style | Smoothtop |
| Left Front Element-Burner Power | 3000W/1400W |
| Left Front Element-Burner Size | 9in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Radiant |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Power | 1200W |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Radiant |
| Right Rear Element-Burner Size | 8in. |
| Right Rear Element-Burner Type | Radiant |
| Left Rear Element-Burner Power | 1, 200W |
| Right Rear Element-Burner Power | 1, 800W |
Exterior Details
| Door Type | Glass Window |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
Dimensions
| Cutout Depth | 24 |
| Cutout Height | 36 |
| Cutout Width | 30 |
| Depth Closed Excluding Handles | 25.313 |
| Depth With Door Open 90 Degree | 46.688 |
| Oven Interior Depth | 18.5 |
| Oven Interior Height | 18.125 |
| Oven Interior Width | 24.5 |
| carton depth | 29 |
| carton height | 48.75 |
| carton width | 32 |
| net weight | 0 |
| gross weight | 187 |
Oven Details
| Bake Element Power | 2, 400 W |
| Broiler Element Power | 3, 400 W |
| Broiler Location | Top of Oven |
| Convection Element Type | None |
| Convection Functions | No |
| Door Removable | Yes |
| Hidden Bake Element | No |
| Natural Gas Convertible | No |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Oven Cooking System | Thermal |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard |
Capacity
| Volume | 26.181 Cu.Ft. |
Certifications
California Prop 65
