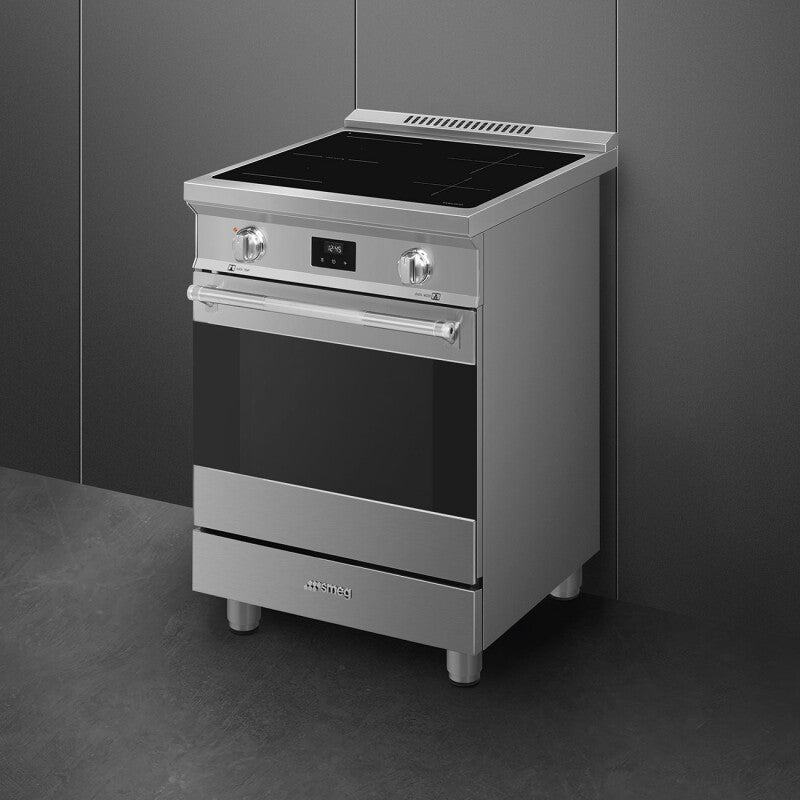

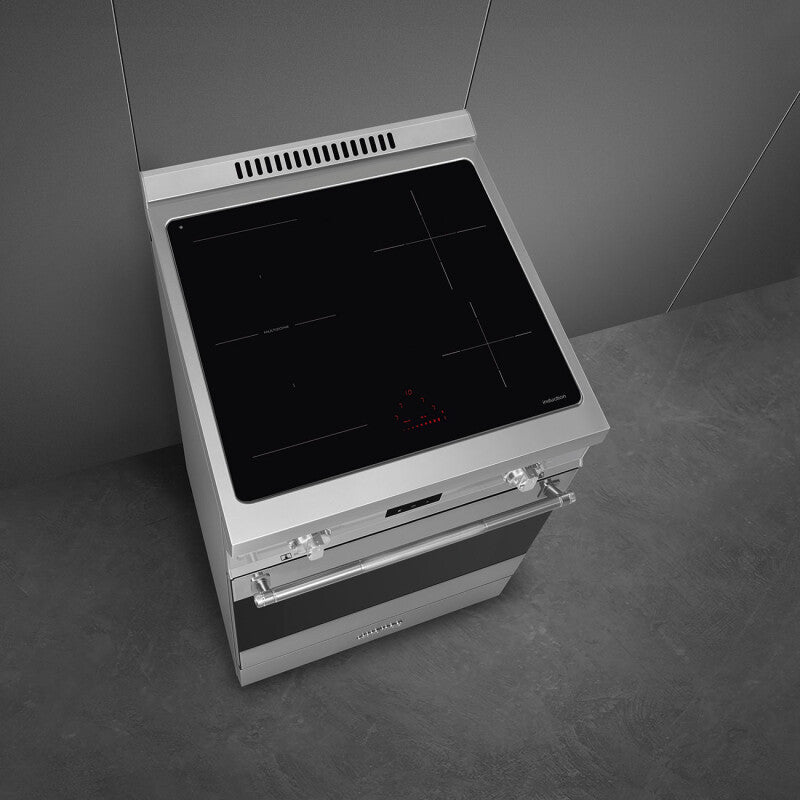

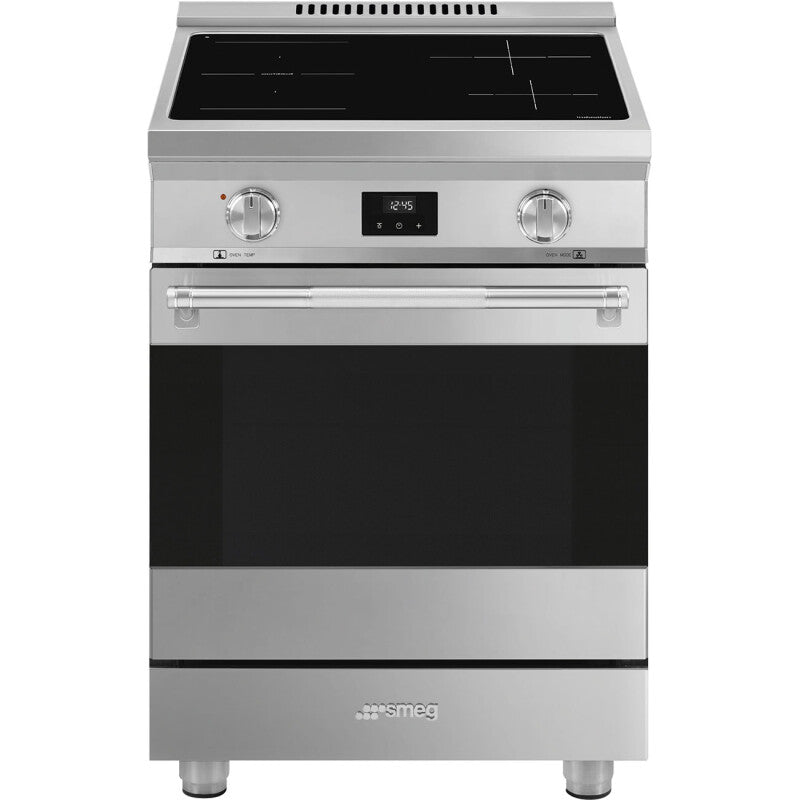

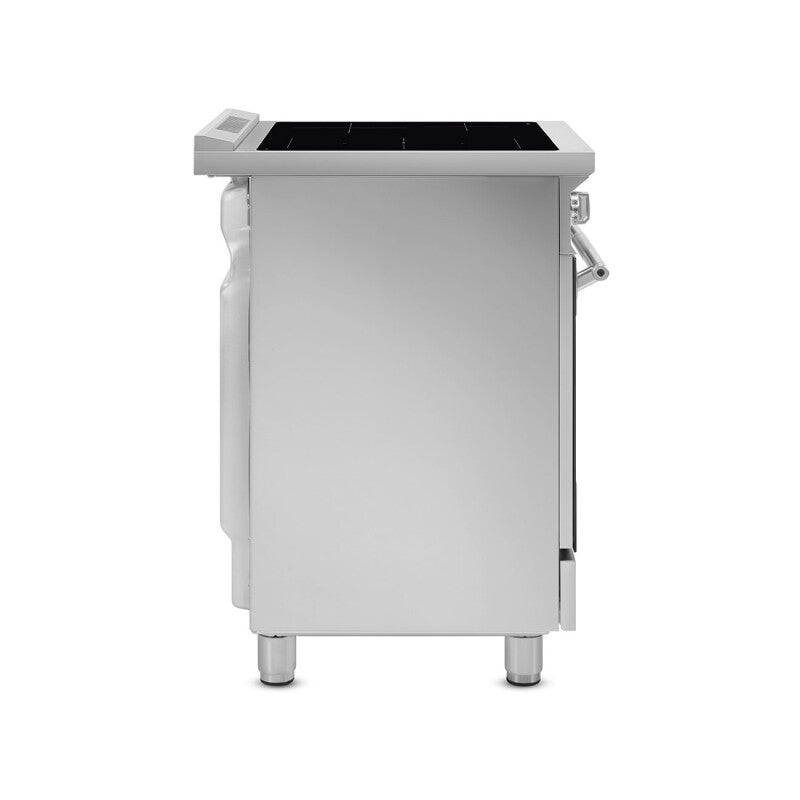

SMEG Range - Stainless Steel (SPR24UIMX)

Product Features

Product Specifications

Aesthetic

Color	Stainless steel
Finishing	Satin
Control panel finish	Stainless steel
Series	Professional
Material	Stainless steel
Cooktop color	Stainless steel

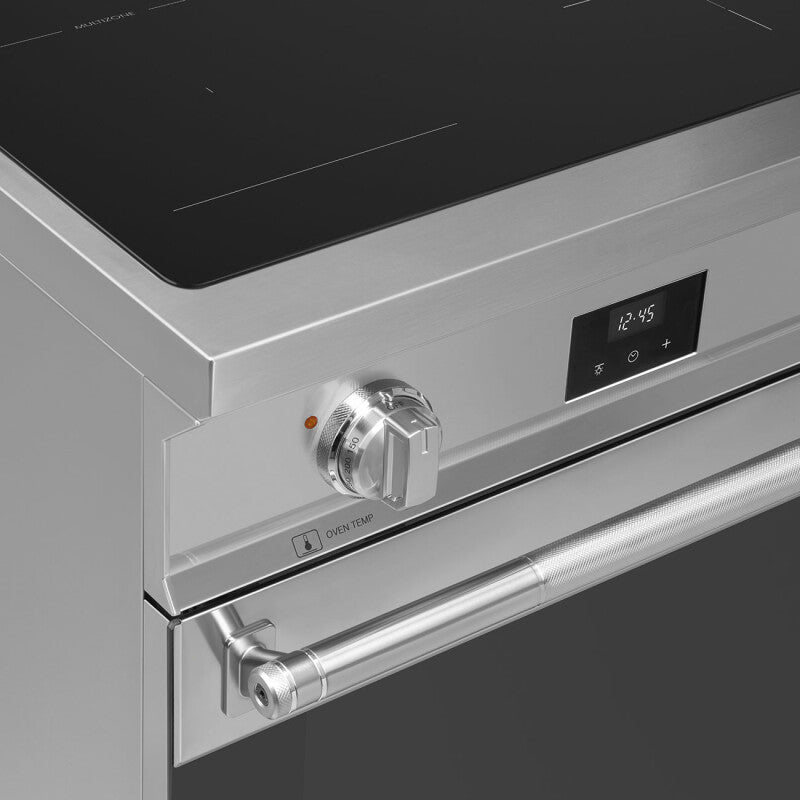

Control knobs	Pro-style control knobs
No. of controls	2
Display	Touch
Handle	Robust knurled handle
Handle color	Brushed stainless steel
Feet	Stainless steel

Type

Product family	Range
Range size	24"
Cooker configuration	Full electric

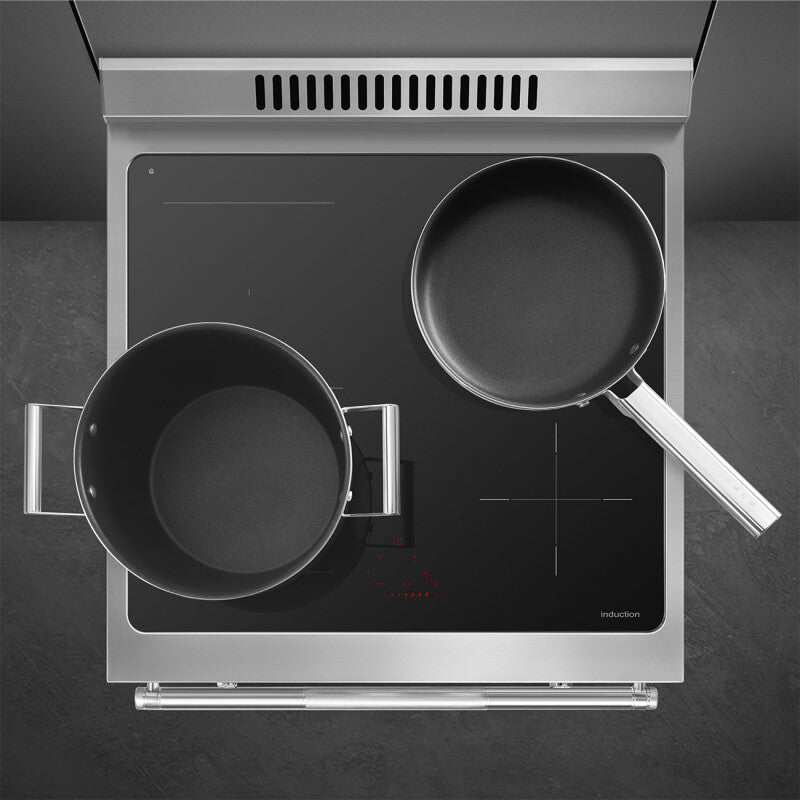

Cooktop type	Induction
Range fuel	Induction
N. of ovens	1
Main oven	Thermo-ventilated
EAN code	8017709332341
Installation positioning of the appliance	Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system	VaporClean

Main oven options

Minimum Temperature	151 °F
Maximum temperature	500 °F

Cooktop options

Multizone Option	Yes
End cooking timer	4
Minute minder	1
Limited power consumption option	Yes

Cooktop technical features

Cooking zones	4
Number of Flexible zones	1
Zone 1 - Dimensions	18.0 cm
Zone 2 - Dimensions	18.0 cm
Zone 3 - Dimensions	14.5 cm
Zone 4 - Dimensions	21.0 cm
Zone 1 - Power	1300 W
Zone 2 - Power	2300 W
Zone 3 - Power	2300 W
Zone 4 - Power	1300 W
Zone 1 - Booster power	1400 W
Zone 2 - Booster power	3000 W
Zone 3 - Booster power	3000 W
Zone 4 - Booster power	1400 W
Automatic switch-off in case of over-heating	Yes
Automatic switch-off in case of overflow	Yes
Automatic pan detection	Yes
Minimum pan diameter indicator	Yes
Selected zone indicator	Yes
Residual heat indicator	Yes

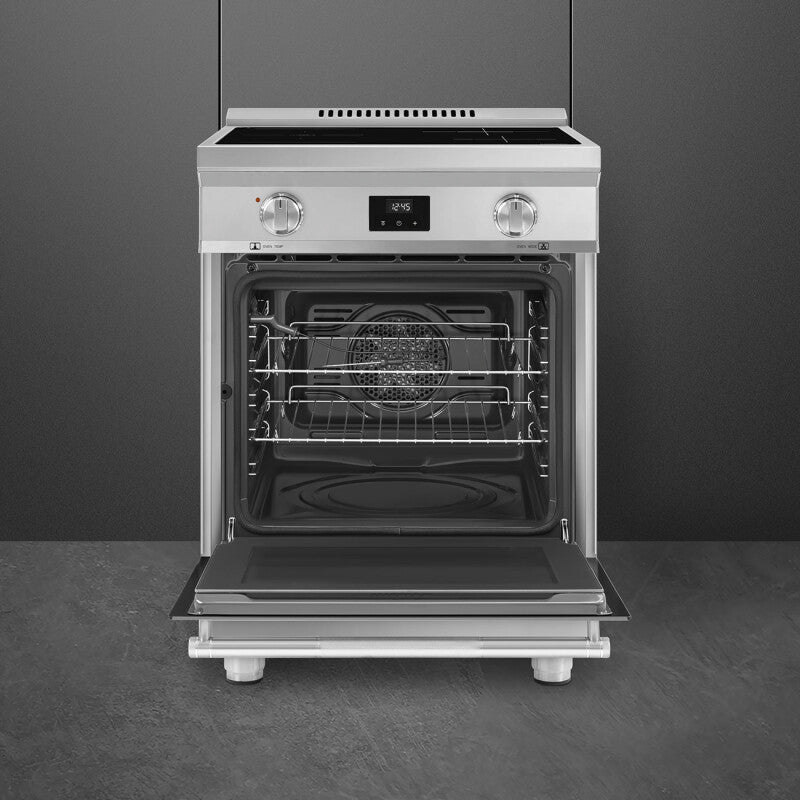

Main Oven Technical Features

Volume	2.79 cu. ft.
Cavity material	EverClean enamel
No. of shelves	5
No. of lights	1
Light type	Halogen
Light Power	40 W
Fan number	1
Time setting	Minute minder
Removable door	Yes
Removable inner door	Yes
Total no. of door glasses	3
Cooling system	Tangential
Grill type	Electric
Grill power	1700 W
Large grill - Power	2700 W
Bottom heating element - Power	1200 W
Upper heating element - Power	1000 W
Circular heating element - Power	2000 W
Soft Close system	Yes

Electrical Connection

Plug	(B) NEMA 14-50P
Circuit breaker	40 A
Voltage	208/240 V
Frequency	60 Hz
Power cord length	47 1/4 "
Type of electric cable installed	Yes, Double phase

Gas Connection

Gas Type

G20 Natural gas

Dimensions & Weight

Width	23.94 in.
Height	35.56 in.
Length	25 in.
Weight	157 lbs.
Gross weight	176 lbs
Net weight	157 lbs
Packaged width	26 9/16 "
Packaged depth	27 3/4 "
Packaged height	35 7/16 "

Number of Boxes, Shipping Dimensions, & Shipping Weight

Shipping Width	26.56 in.
Shipping Height	35.44 in.
Shipping Length	27.75 in.
Shipping Weight	-
Total of Shipping Weight	-
Source	Manufacturer
