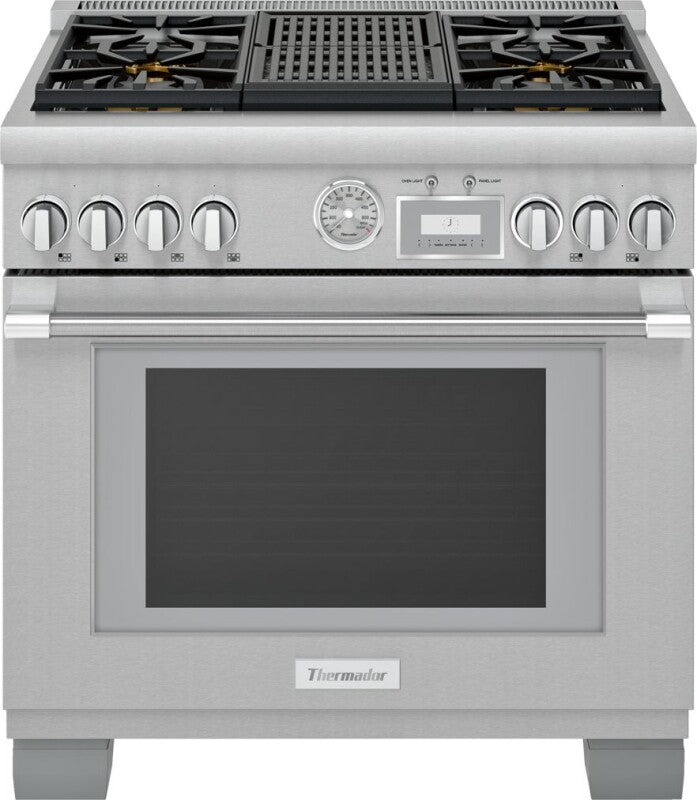

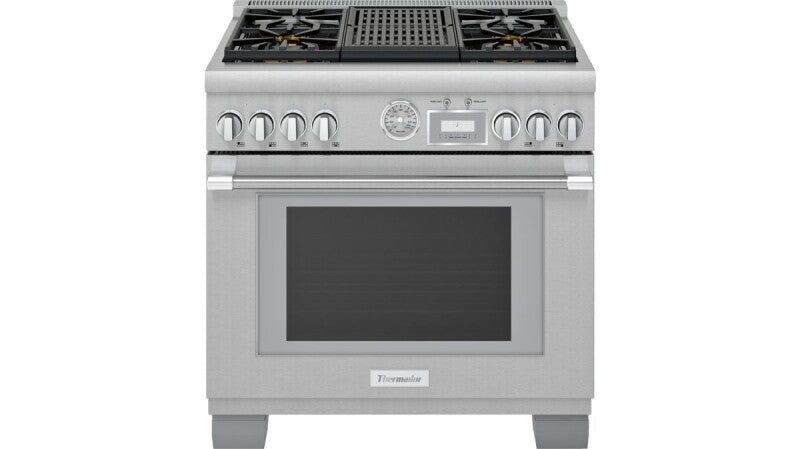

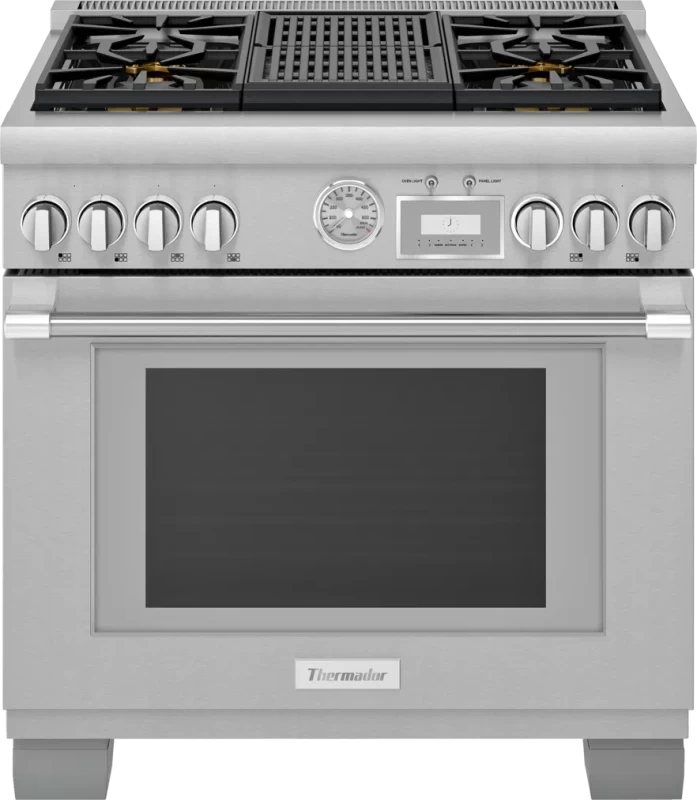

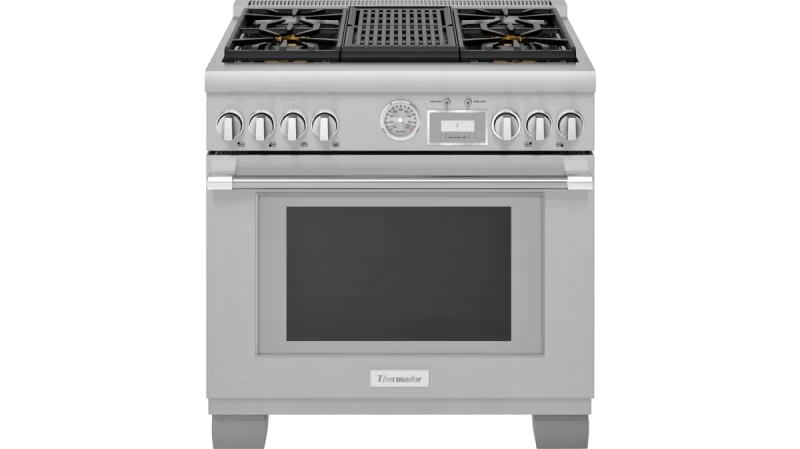

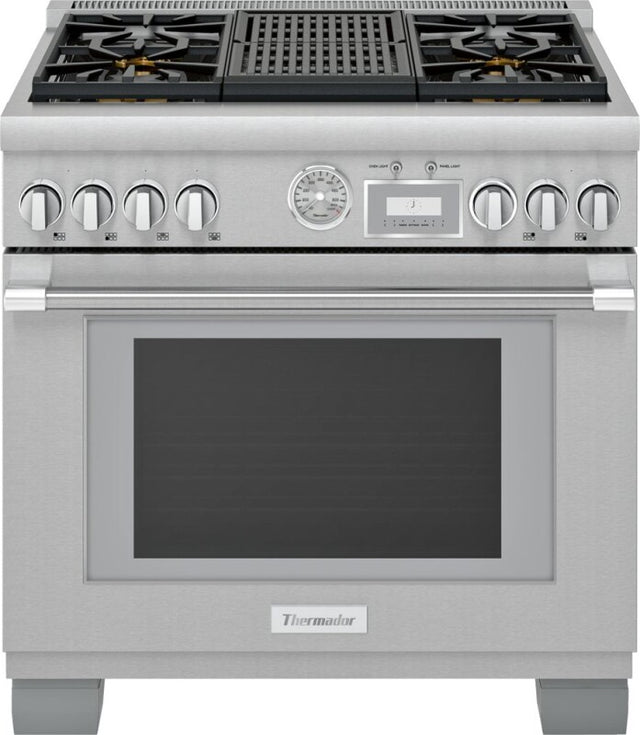

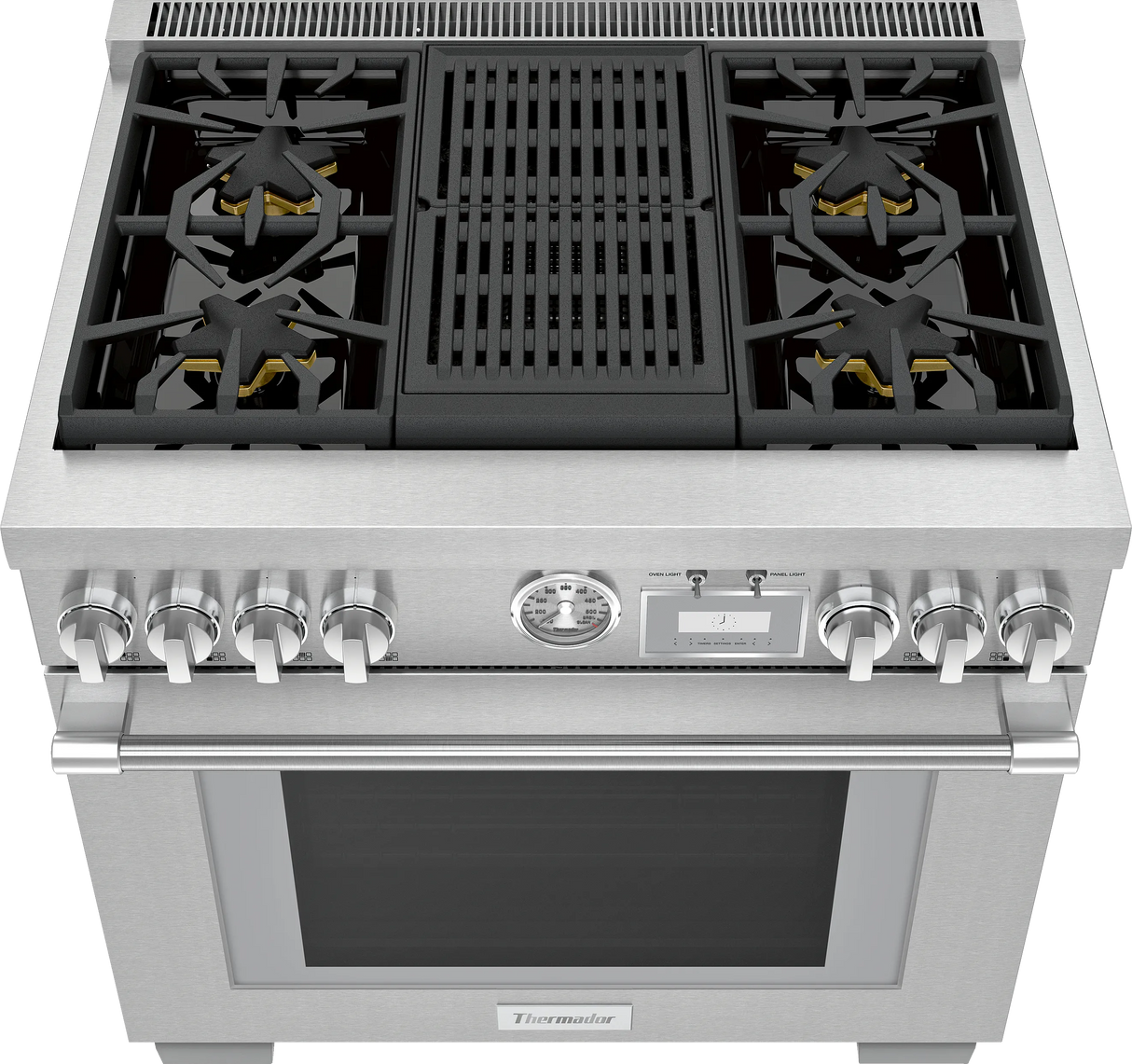

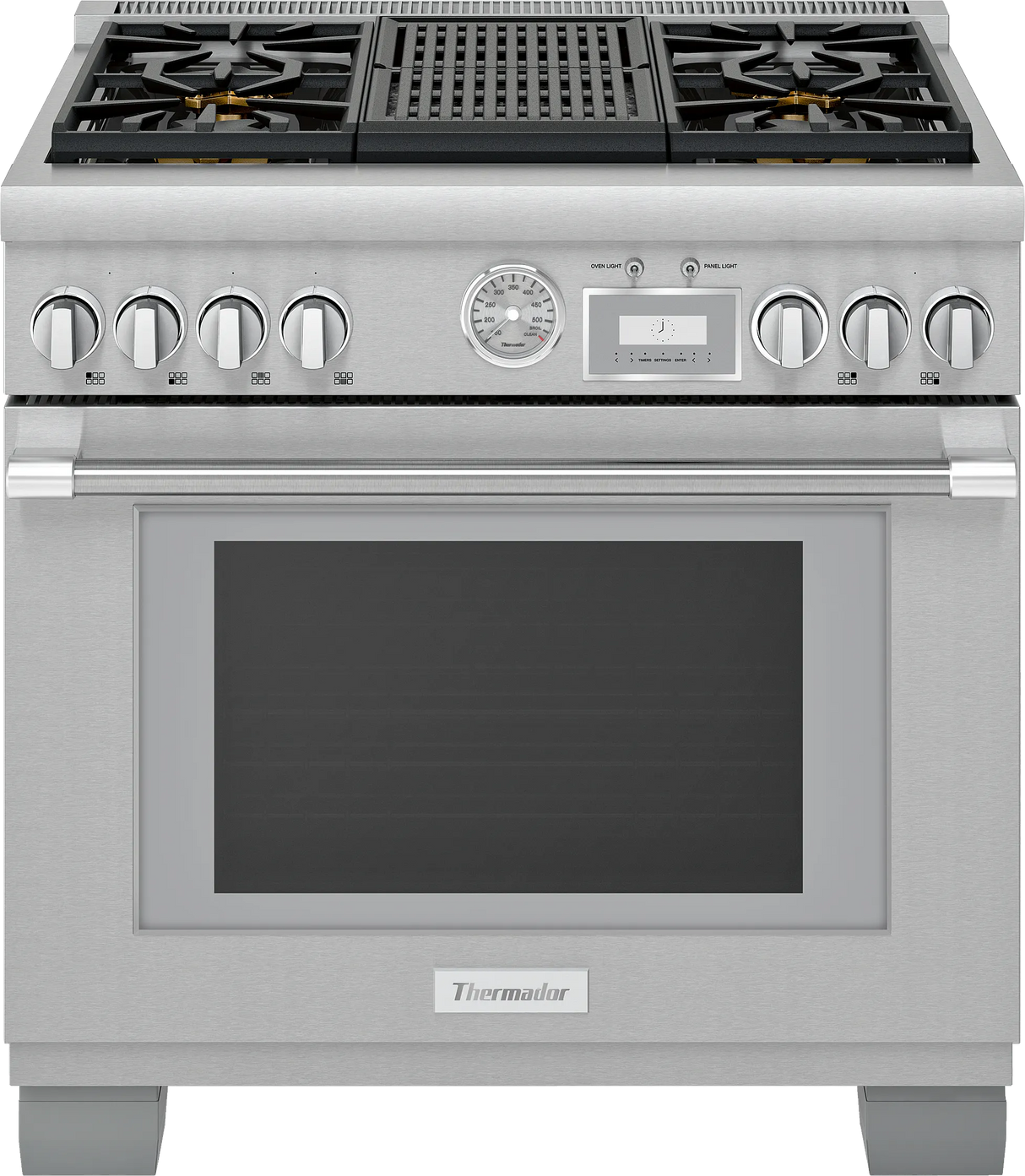

Thermador Dual Fuel Professional Range - Stainless Steel (PRD364WLGU)
SKU:
PRD364WLGU
UPC: 825225926405
Regular price
$10,199.00
Unit price
/
Unavailable
Thermador Dual Fuel Professional Range - Stainless Steel (PRD364WLGU) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Change settings on the Color TFT Display
- ✔ Features bold, iconic design elements including temperature gauge, color TFT display, and stainless steel knobs with down lighting

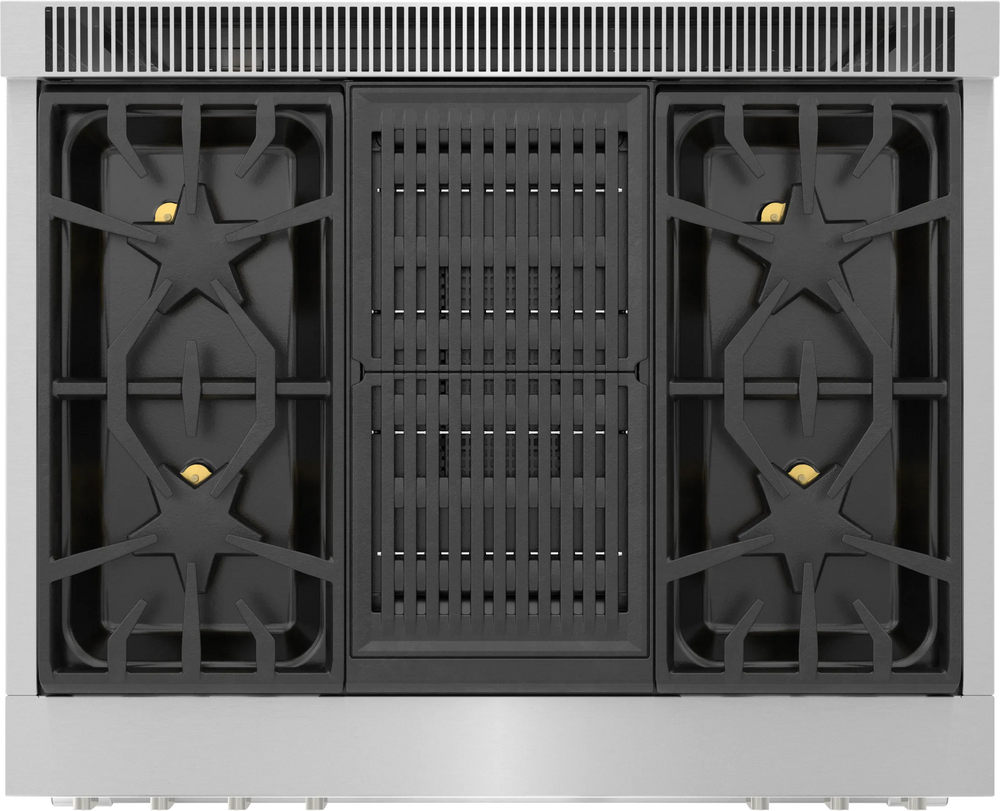

- ✔ Four Star Burners: Our patented five-point design provides equal flame distribution for even cooking.Close
- ✔ Four ExtraLow Burners: These burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.Close
- ✔ Superior grilling results, thermostatically controlled for even heating.
- ✔ Four Star Burners provide equal flame distribution
- ✔ ExtraLow Burners offer precise settings for cooking
- ✔ Connect to your Oven with Home Connect
- ✔ Four Star Burners:
- ✔ Four ExtraLow Burners:
Documents
Thermador Dual Fuel Professional Range - Stainless Steel (PRD364WLGU)
Regular price
$10,199.00
Unit price
/
Unavailable
Product Features
Change settings on the Color TFT Display
The TFT display panel offers a vibrant, full-color touchscreen display that lets you easily adjust settings.

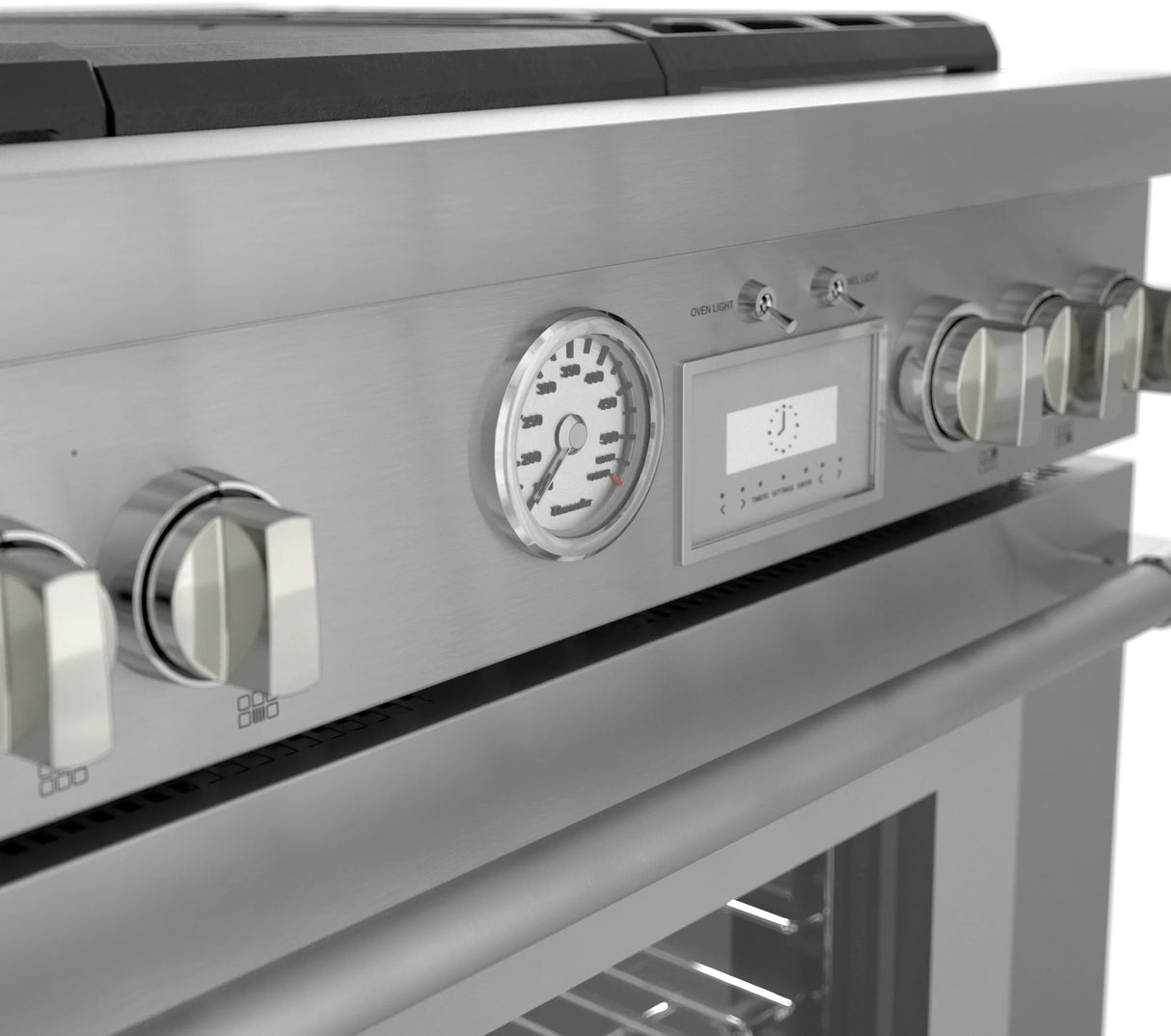

Features bold, iconic design elements including temperature gauge, color TFT display, and stainless steel knobs with down lighting
Four Star Burners:
Our patented five-point design provides equal flame distribution for even cooking.Close
Four ExtraLow Burners:
These burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.Close

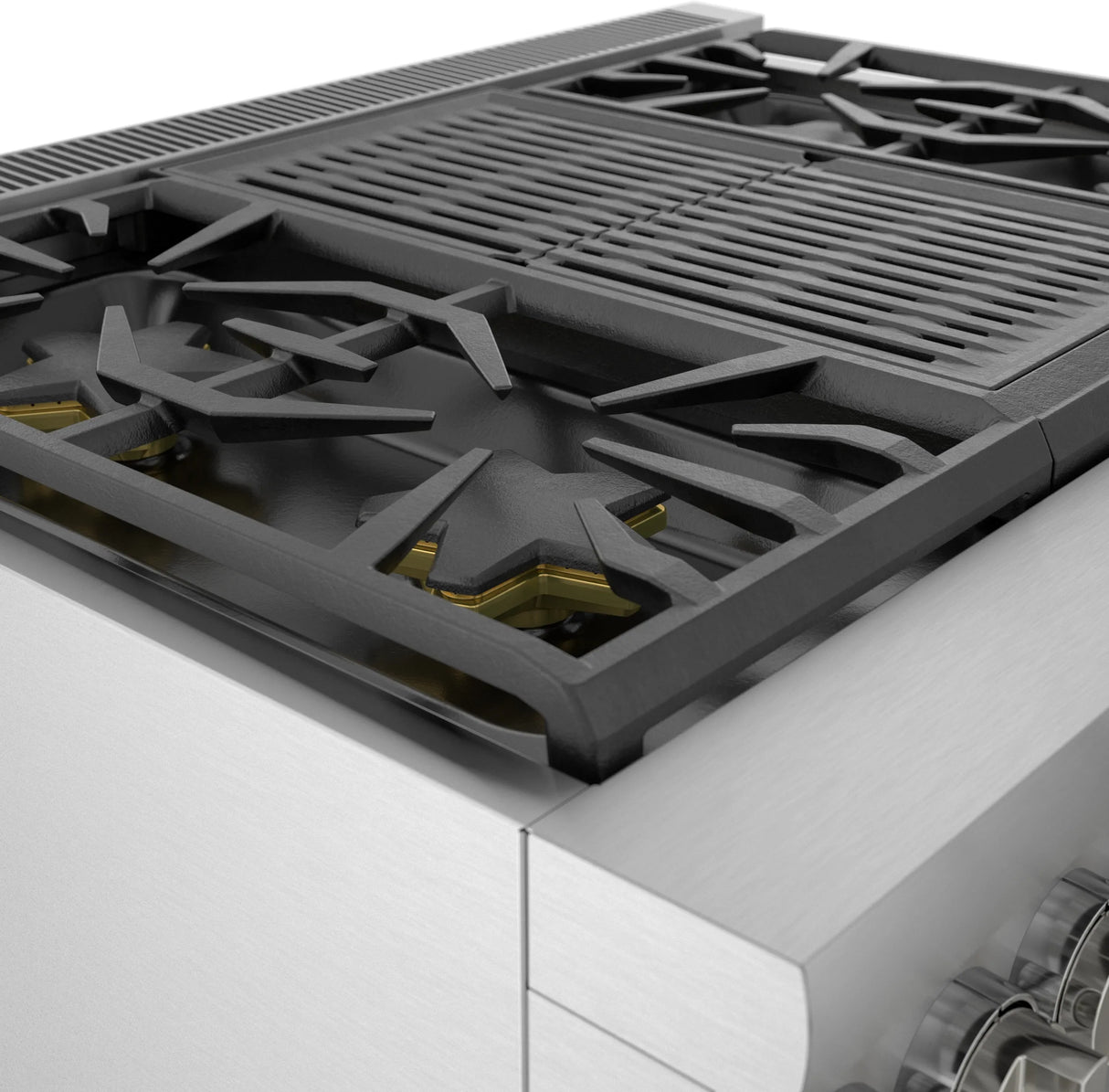

Superior grilling results, thermostatically controlled for even heating.

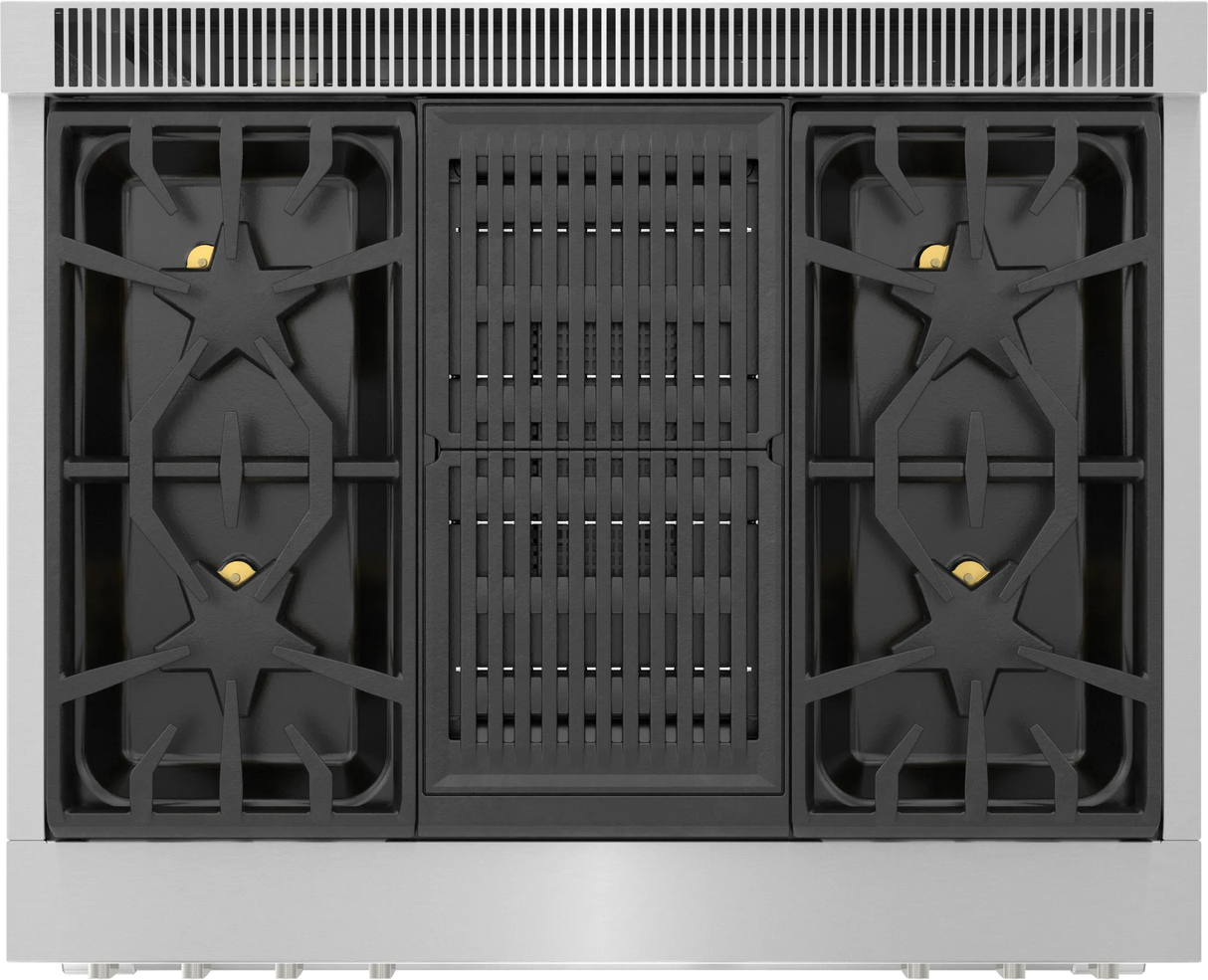

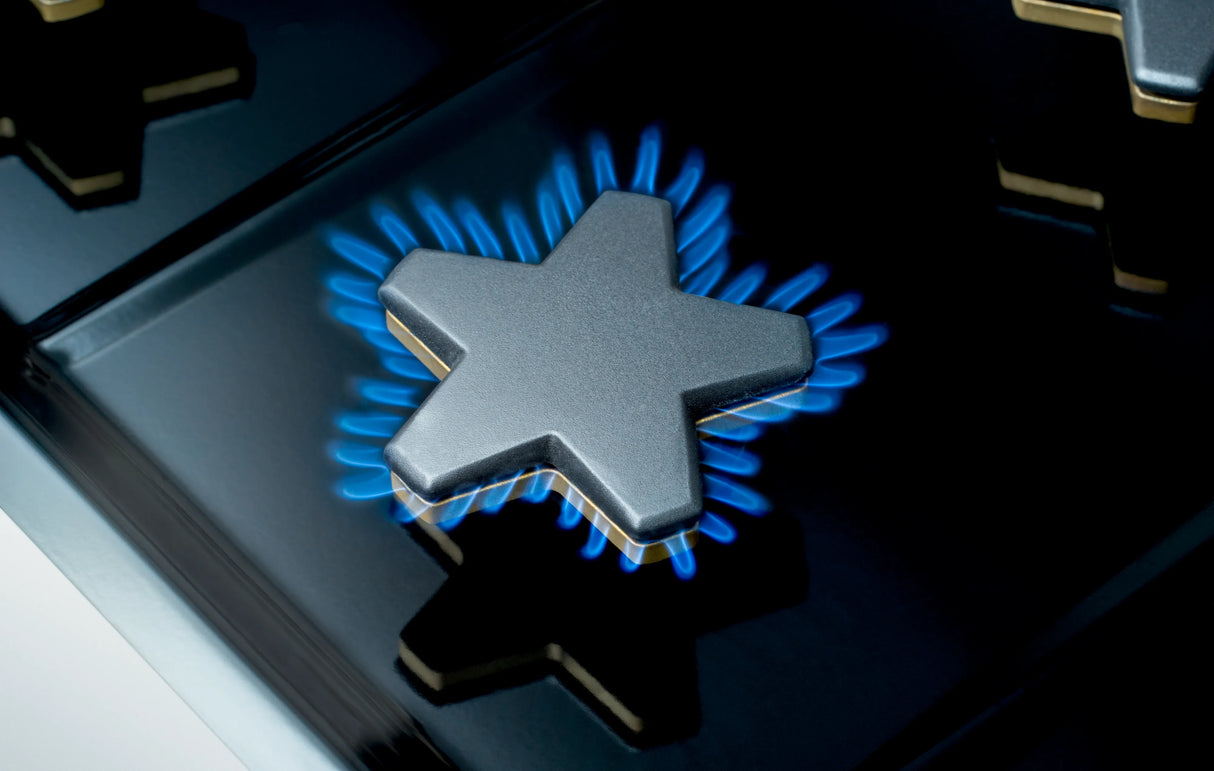

Four Star Burners provide equal flame distribution
Star Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
ExtraLow Burners offer precise settings for cooking
Our ExtraLow feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.
Connect to your Oven with Home Connect
This appliance is Wi-Fi Enabled, and allows for remote preheating and monitoring via the Home Connect app, smartwatch and other smart home devices and services like Amazon Alexa for hands-free voice control.
Four Star Burners:
Our patented five-point design provides equal flame distribution for even cooking.
Four ExtraLow Burners:
These burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.
Product Specifications
Warranty
| Parts | 2 Year |
General
| Brand | Thermador |
| SKU | PRD364WLGU |
| UPC code | 825225926405 |
| ExtraLow® Burners | no |
| Number of Gas Burners | 4 |
| Included Accessories | 1 x nozzle set for liquid gas, 1 x temperature sensor, 1 x telescopic rack, 1 x grill plate, 1 x Broiler pan, 1 x island trim |
| Number of cooking modes | 7 |
| Total NG BTUs | 70000 Btu |
| Cooking Modes | Roast, Convection Roast, Bake, Convection Bake, True Convection, Convection Broil, Broil , Self-Clean |
| Cavity Capacity | 5.7 Cu Ft |
Construction type
| Design | Free-standing |
| Door Material - primary cavity | Stainless steel |
| Energy source | Mixed |
| Installation Type | Freestanding Appliance |
| Product color | Stainless Steel |
Safety
| Safety Functions | Door Lock Mechanical |
| Type of safety device for gas | Electromagnetic for each burner |
Oven
| Cooking Modes | Bake, Broil , Convection Bake, Convection Broil, Roast, Self-Clean, True Convection |
Comfort
| Power on Indicator | No |
| Number of Continuous Grates | 2 |
| Fast Pre-Heat | No |
| Pizza Setting | No |
Connection
| Amps | 30 A |
| Watts | 8,100 W |
| Plug Type | No Plug |
| Volts | 240/208 V |
Comfort and Convenience
| Pedestal Star® Burners | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| Cleaning System | Self Clean, Catalytic partial |
| Cooking Modes | Roast, Convection Roast, Bake, Convection Bake, True Convection, Convection Broil, Broil , Self-Clean |
| Sabbath Mode | yes |
Induction Cooktop Features
| Induction | no |
| Join Split Function of Cooking Zones | no |
| Keep Warm | no |
| Automatic Cookware Detection | no |
| MoveMode® | no |
| Frying Sensor Technology | Not Applicable |
| HeatShift® Increase/ Decrease Power Level via Moving Pot | No |
Design
| Color | Stainless Steel |
| Display Concept | TFT Display |
| SoftClose® Door | yes |
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Number of Continuous Grates | 2 |
Technical Specifications
| Volts | 240/208 V |
| Watts | 8100 W |
| Plug Type | No Plug |
| Amps | 30 A |
Connectivity
| Home Connect® WiFi-enabled | yes |

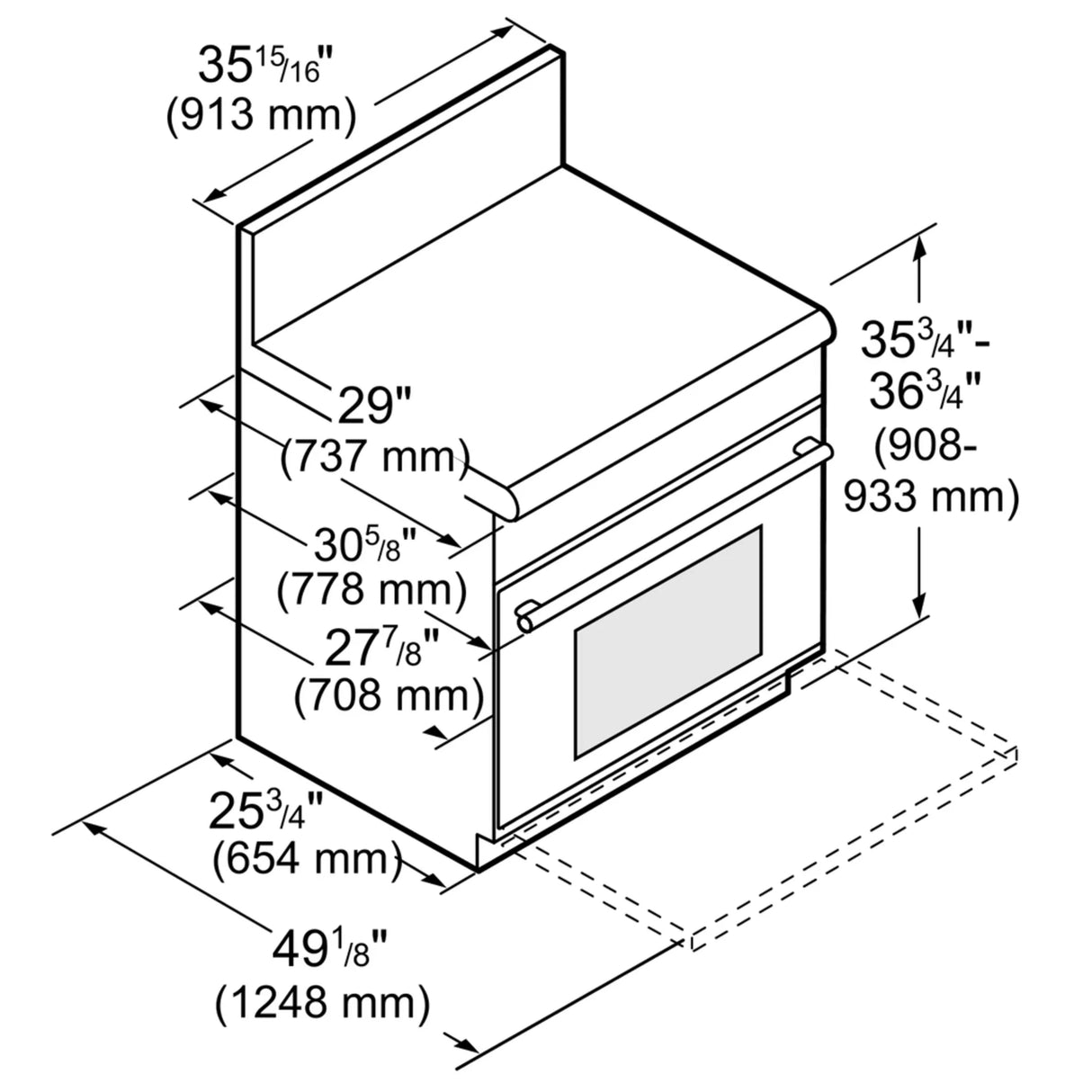

Dimensions & Weight
| Width | 35.94 in. |
| Height | 35.88 in. |
| Length | 27.88 in. |
| Weight | 391 lbs. |
| Net Weight | 391.000 lbs |
| Cavity dimensions (in) | 16 1/4'' x 28'' x 21 1/2'' |
| Size and weight | |
| Product Packaging Dimensions (HxWxD) | 49 1/4 x 43 1/2 x 40 3/8 |
| Cavity dimensions (in) | 16 1/4'' x 28'' x 21 1/2'' |
| Product Packaging Dimensions (HxWxD) | 49 1/4 x 43 1/2 x 40 3/8 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40.94 in. |
| Shipping Height | 40.88 in. |
| Shipping Length | 32.88 in. |
| Shipping Weight | 431 lbs. |
| Total of Shipping Weight | 431 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.8 ft |
| Dimensional Weight | 258.55 lbs. |
| Total of Cubes | 20.8 ft |
| Total of Dimensional Weight | 258.55 lbs. |
Certifications
California Prop 65
