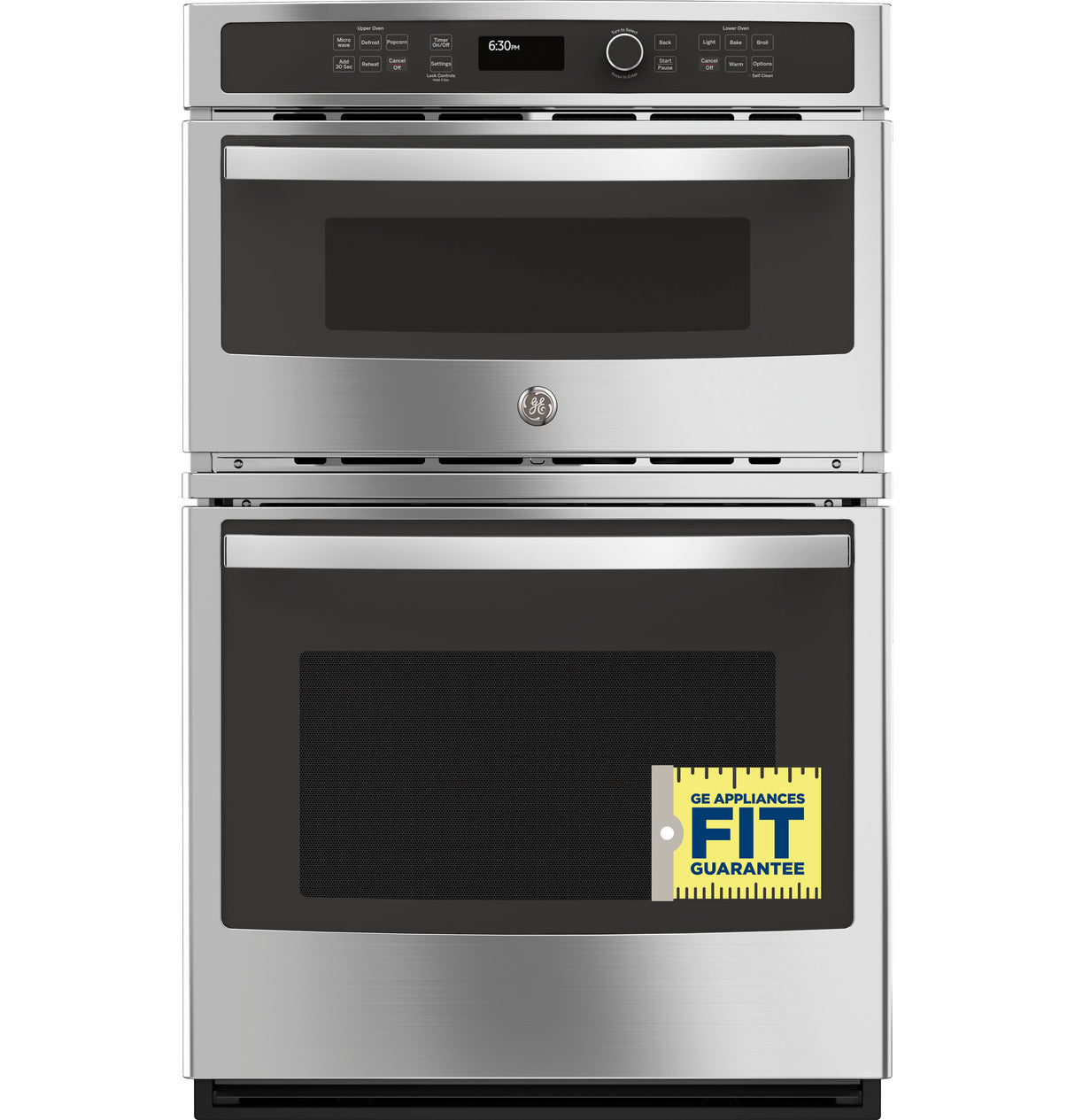

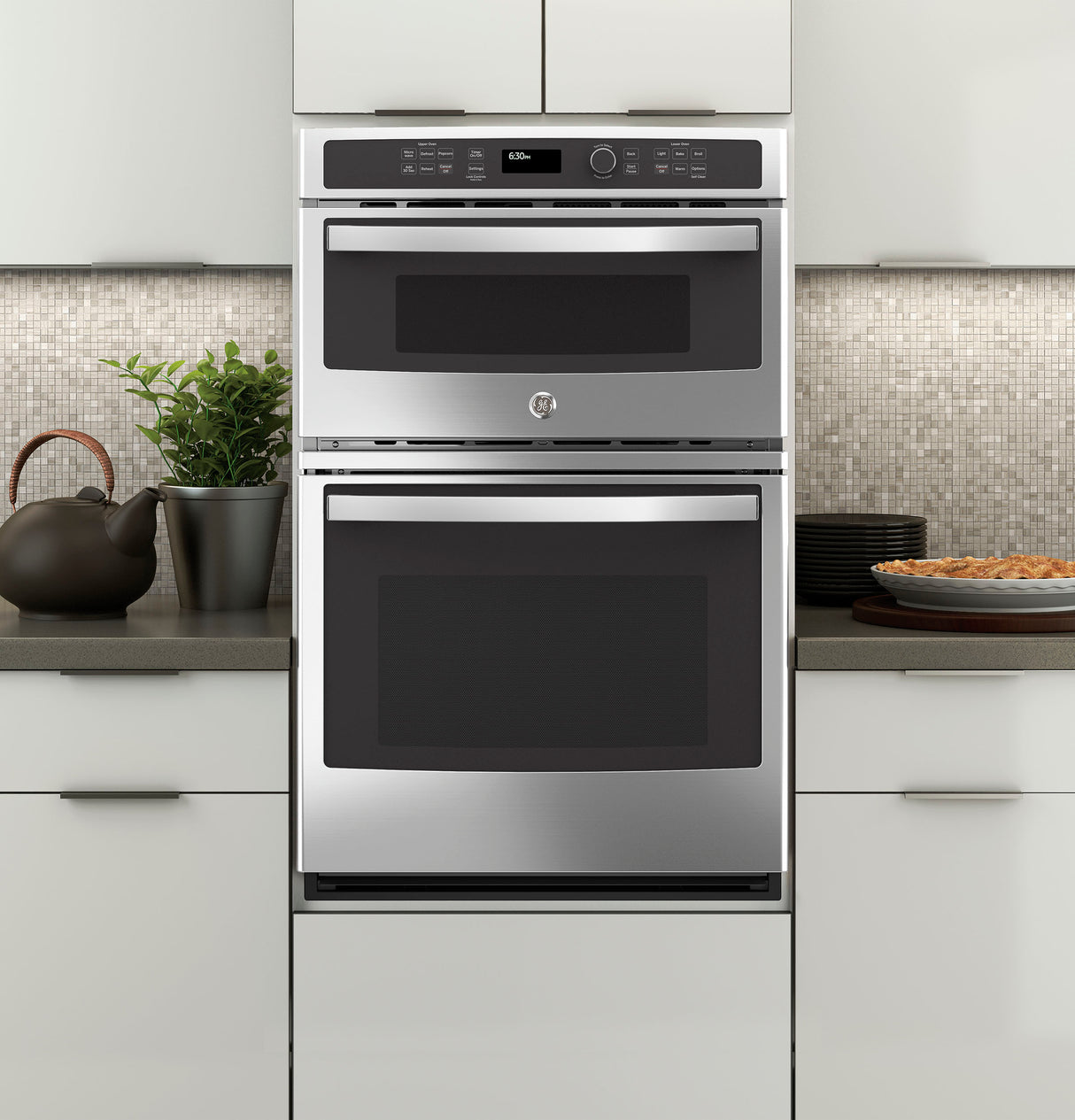

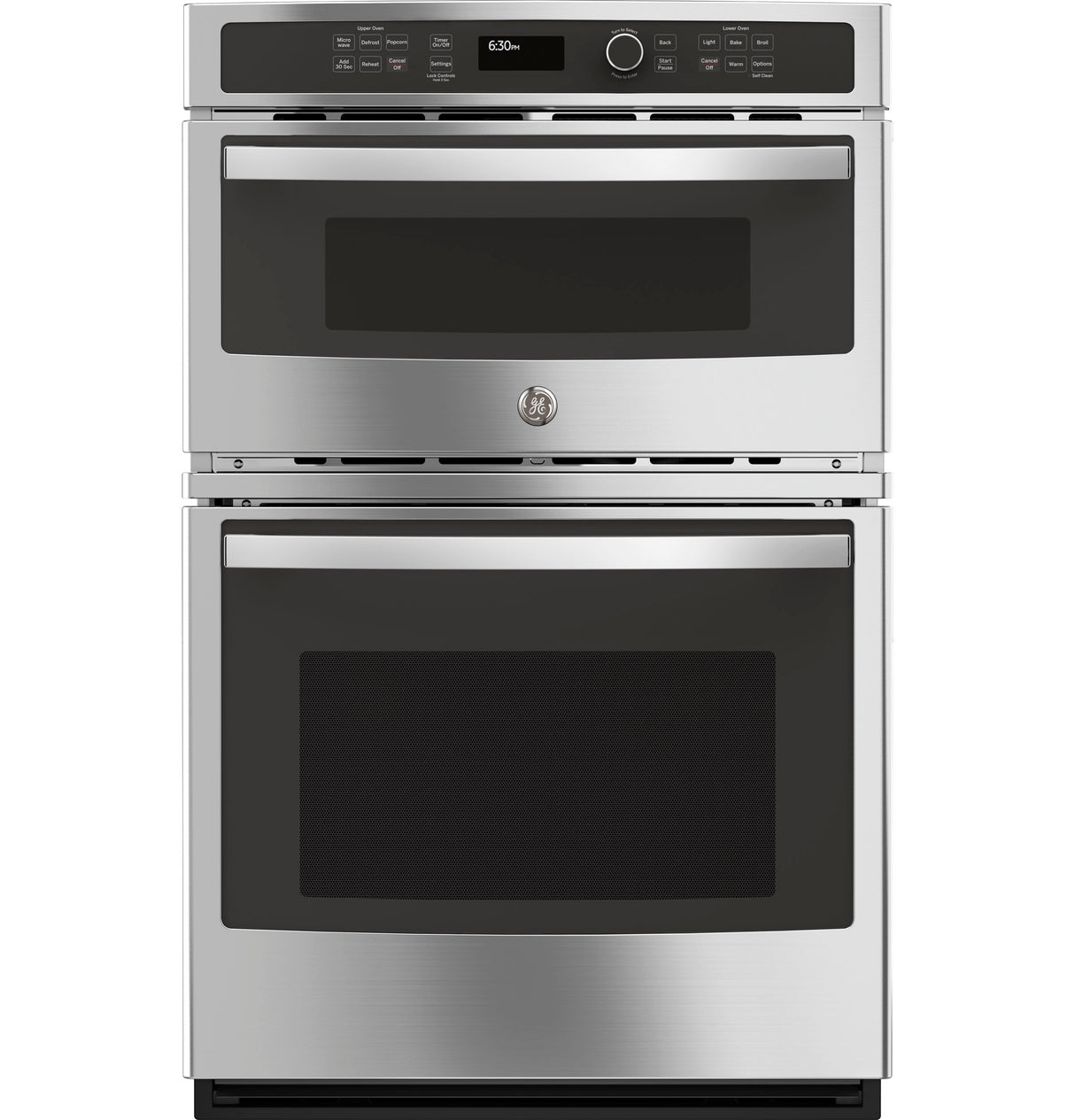

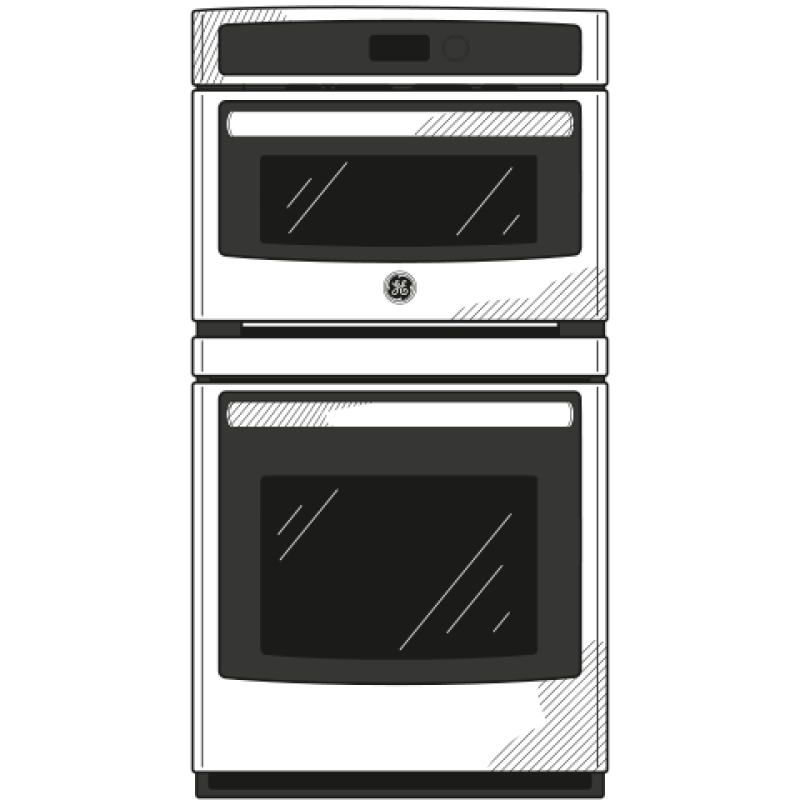

GE APPLIANCES GE(R) 27" Built-In Combination Microwave/Thermal Wall Oven - (JK3800SHSS)

Product Specifications

Color Appearance	Stainless Steel
Handle Color	Stainless Steel
Handle Design	Designer Style
Installation	Above Warming Drawer
Oven Door Features	Big Clear View Oven Window (Lower)

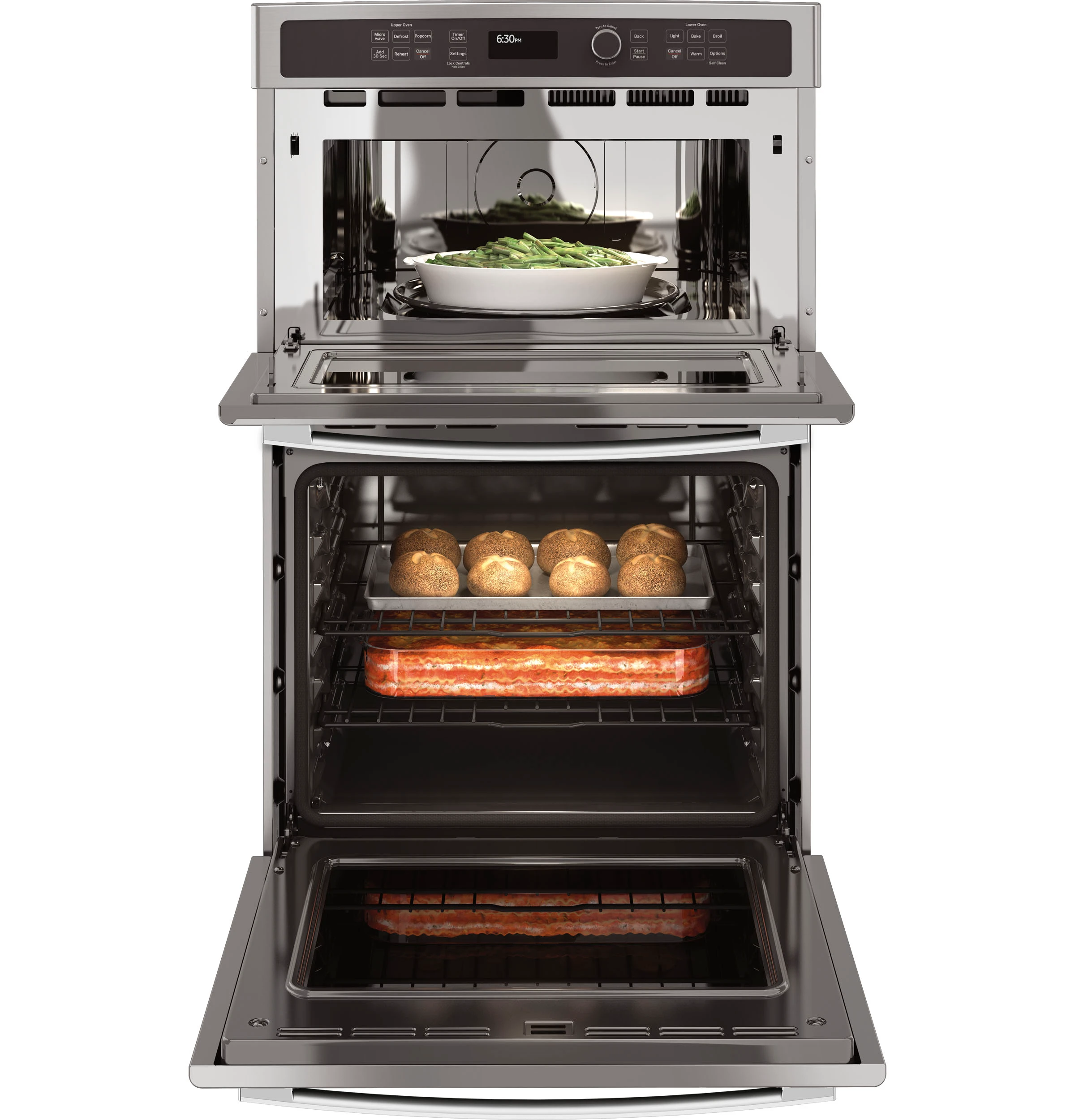

Capacity (Cu. Ft.)	1.7 Upper / 4.3 Lower
Total Capacity (cubic feet)	6
Cleaning Time	Variable with Delay Clean Option
Configuration	Double Oven

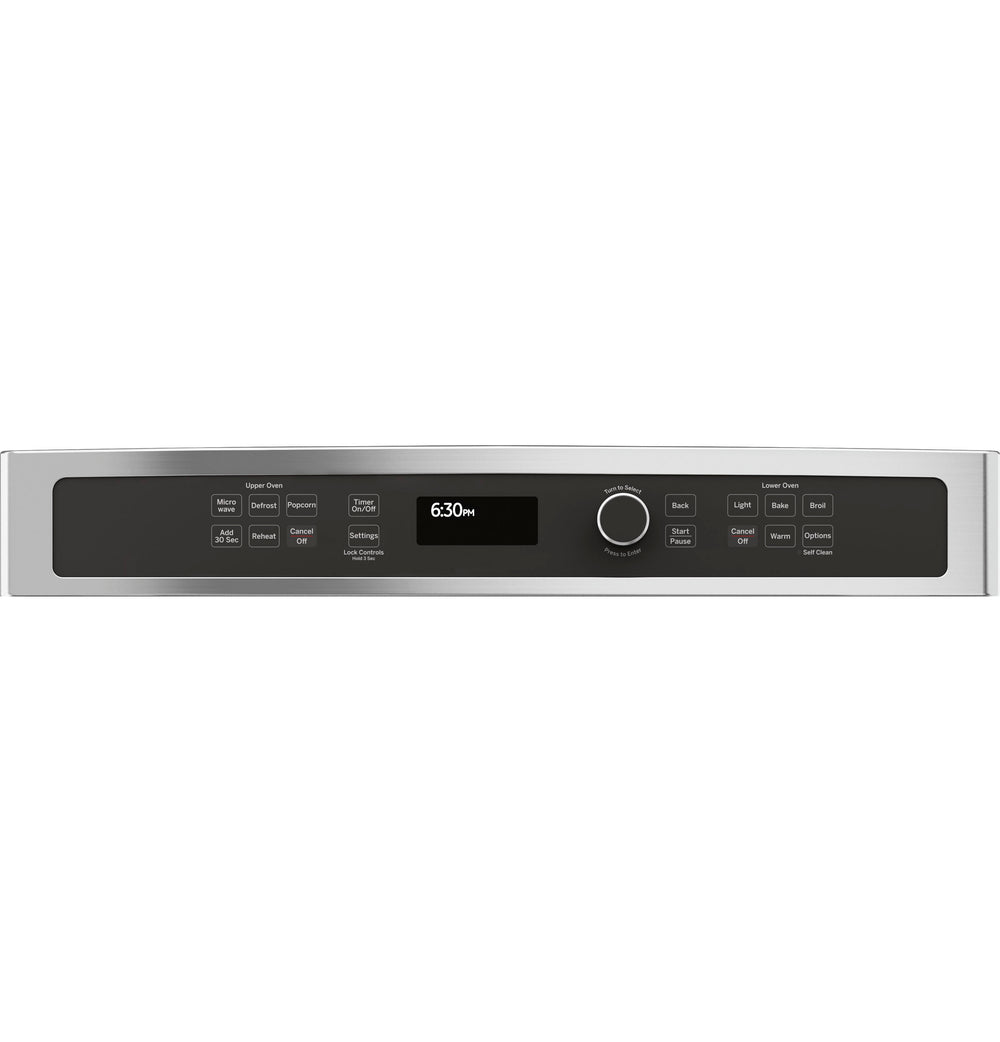

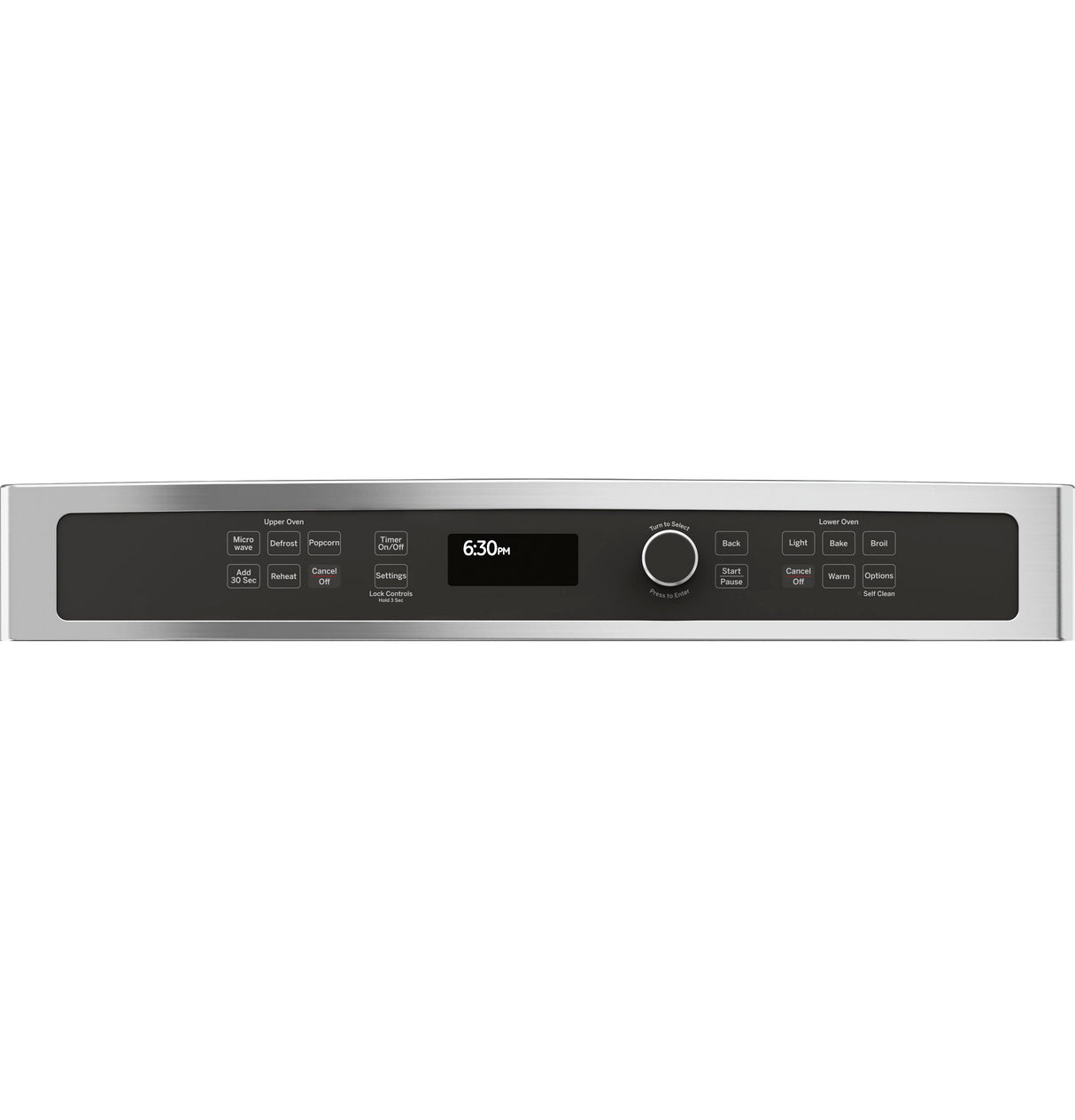

Control Type	Dial<br/> Glass Touch
Cooking Technology	Microwave/Traditional
Fuel Type	Electric
Interior Oven Light	Halogen
Microwave Sensor Cooking Controls	Cook<br/> Defrost<br/> Express<br/> Reheat
Microwave Watts (IEC-705)	1000
OU Certified	No

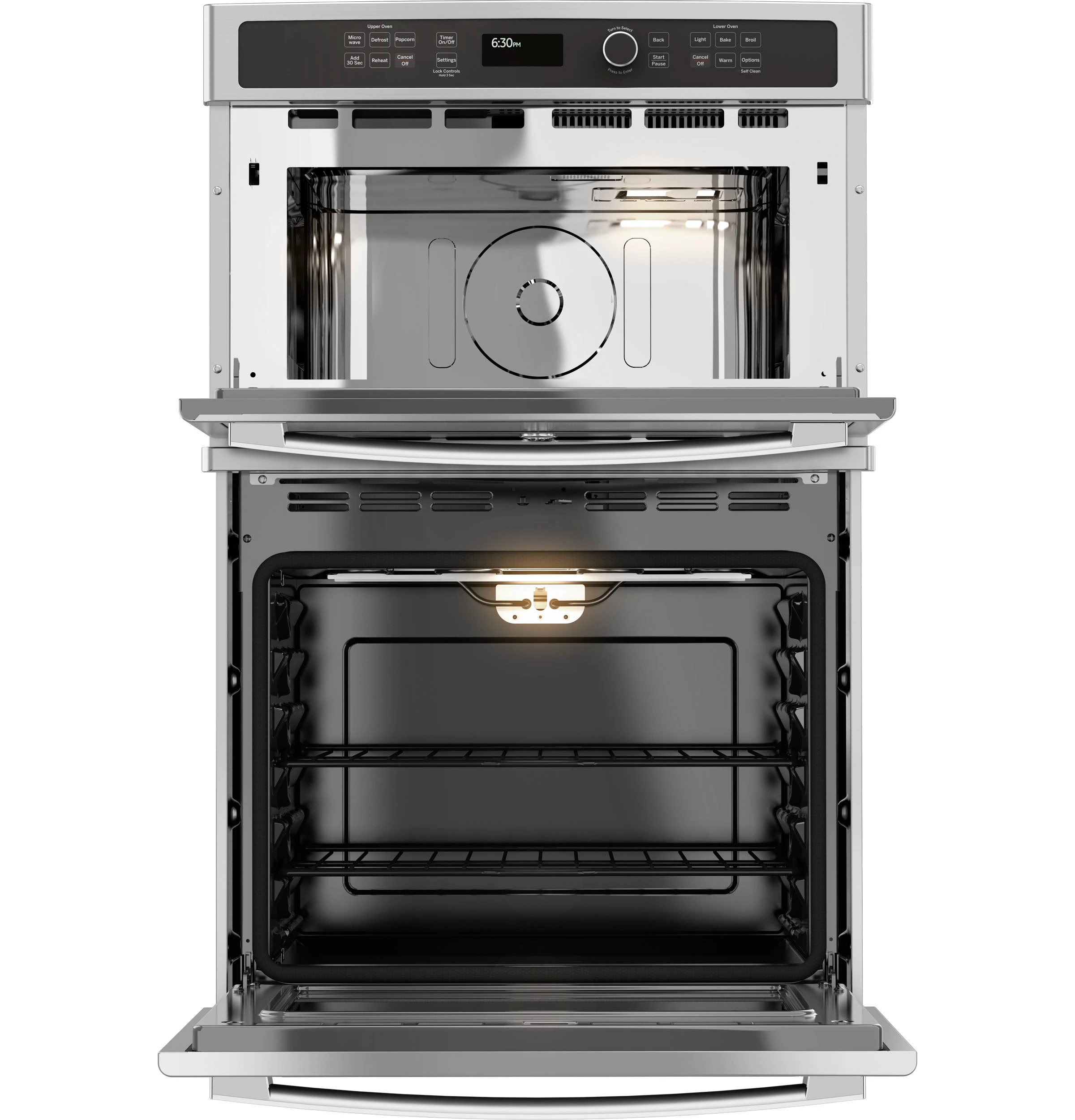

Oven Cleaning Type	Self-Clean with Steam Clean Option (Lower)
Oven Control Features	Audible Preheat Signal<br/> Certified Sabbath Mode<br/> Control Lock Capability<br/> C° or F° Programmable<br/> Defrost Mode<br/> Delay Clean Option<br/> Delay Start<br/> Electronic Clock & Kitchen Timer

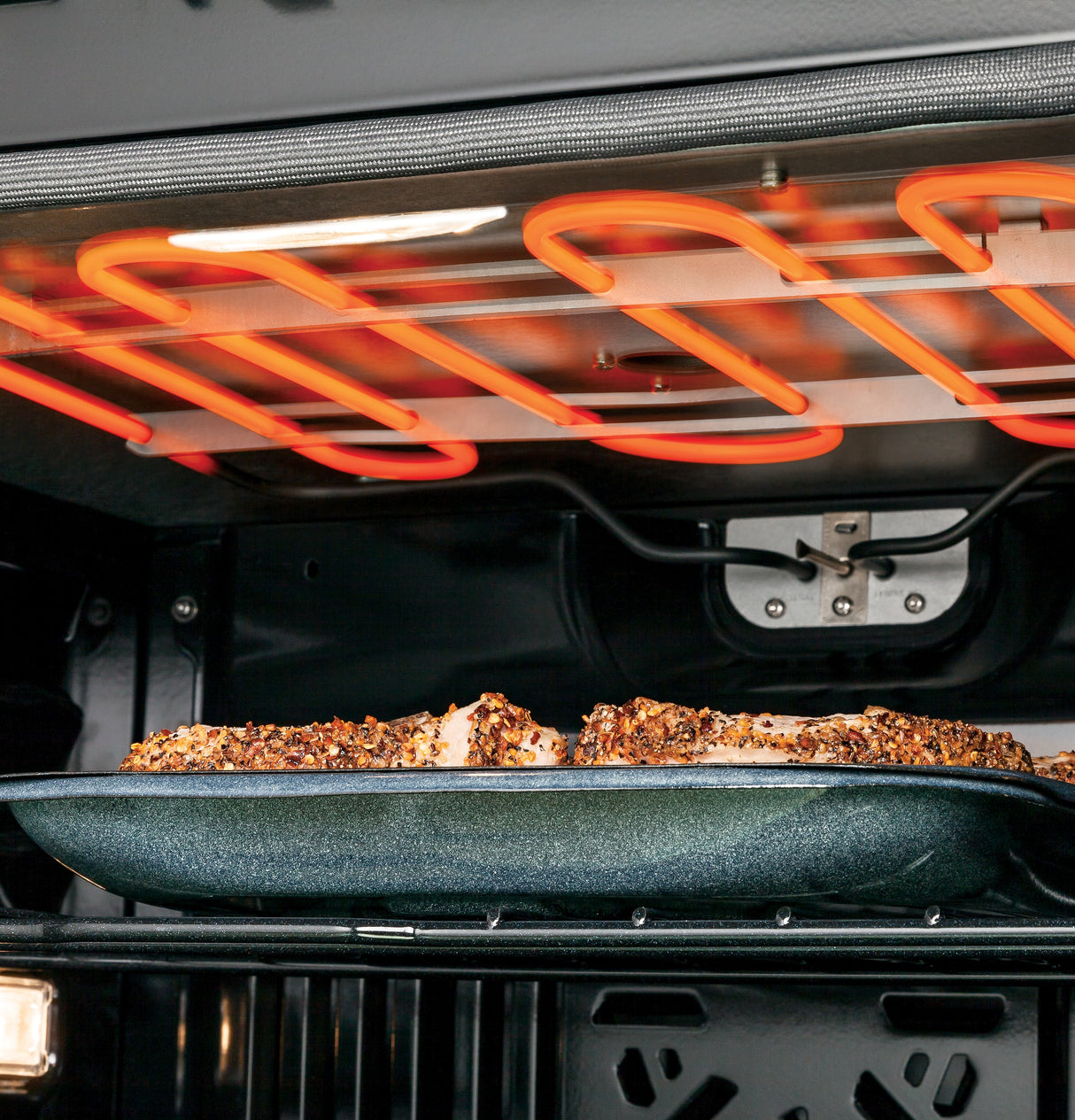

Oven Features	10-Pass Bake Element<br/> 8-Pass Broil Element

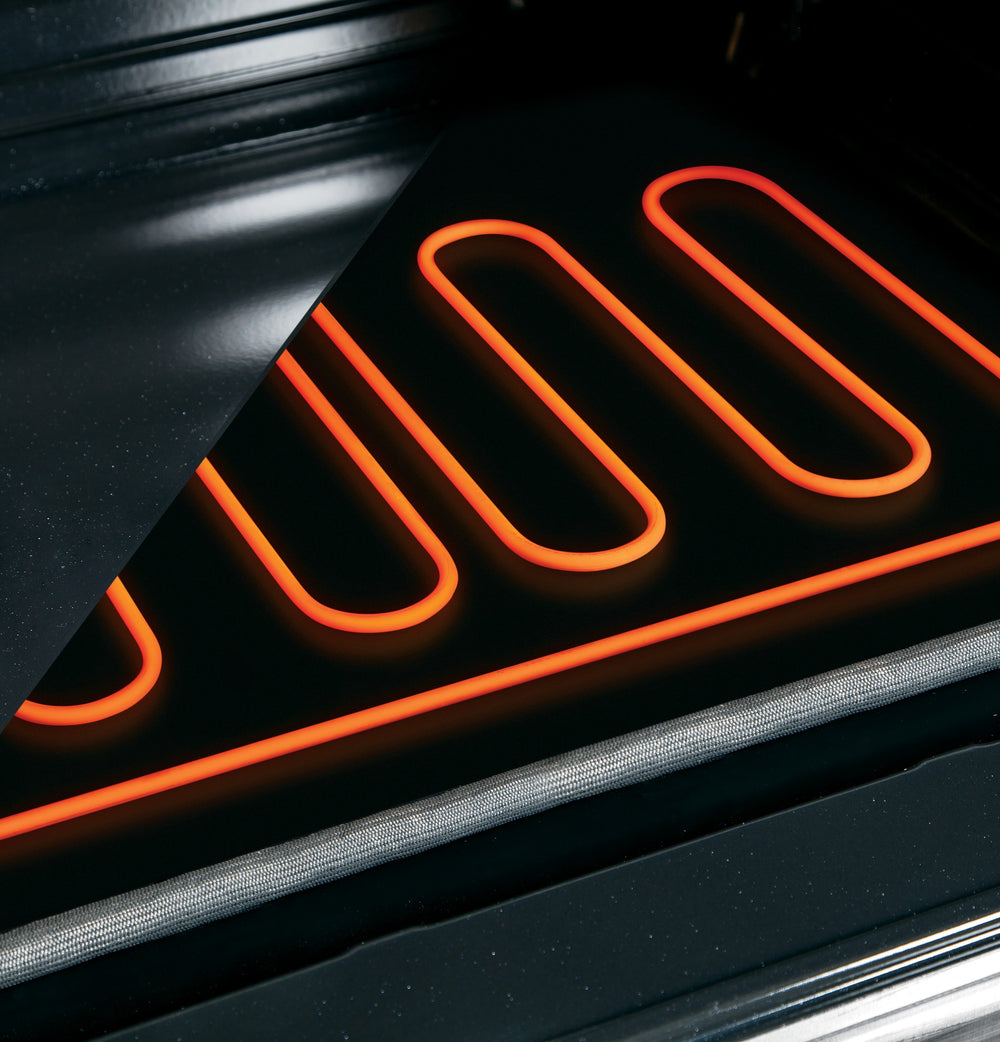

Oven Interior	1 Halogen Interior Oven Light (Lower)<br/> 1 Halogen Interior Oven Light (Upper)<br/> Hidden Bake
Oven Rack Features	2 Self-Clean Heavy-Duty Oven Racks (Lower)<br/> Embossed Rack Positions (Lower)
Oven Rack Positions (Single or Upper/Lower)	6
Power Levels	10
Product Type	Double Oven<br/> Microwave Oven Combination
Sabbath Mode	Yes
Self-Clean Oven Door Lock	Automatic (Lower)
Style	Built-In

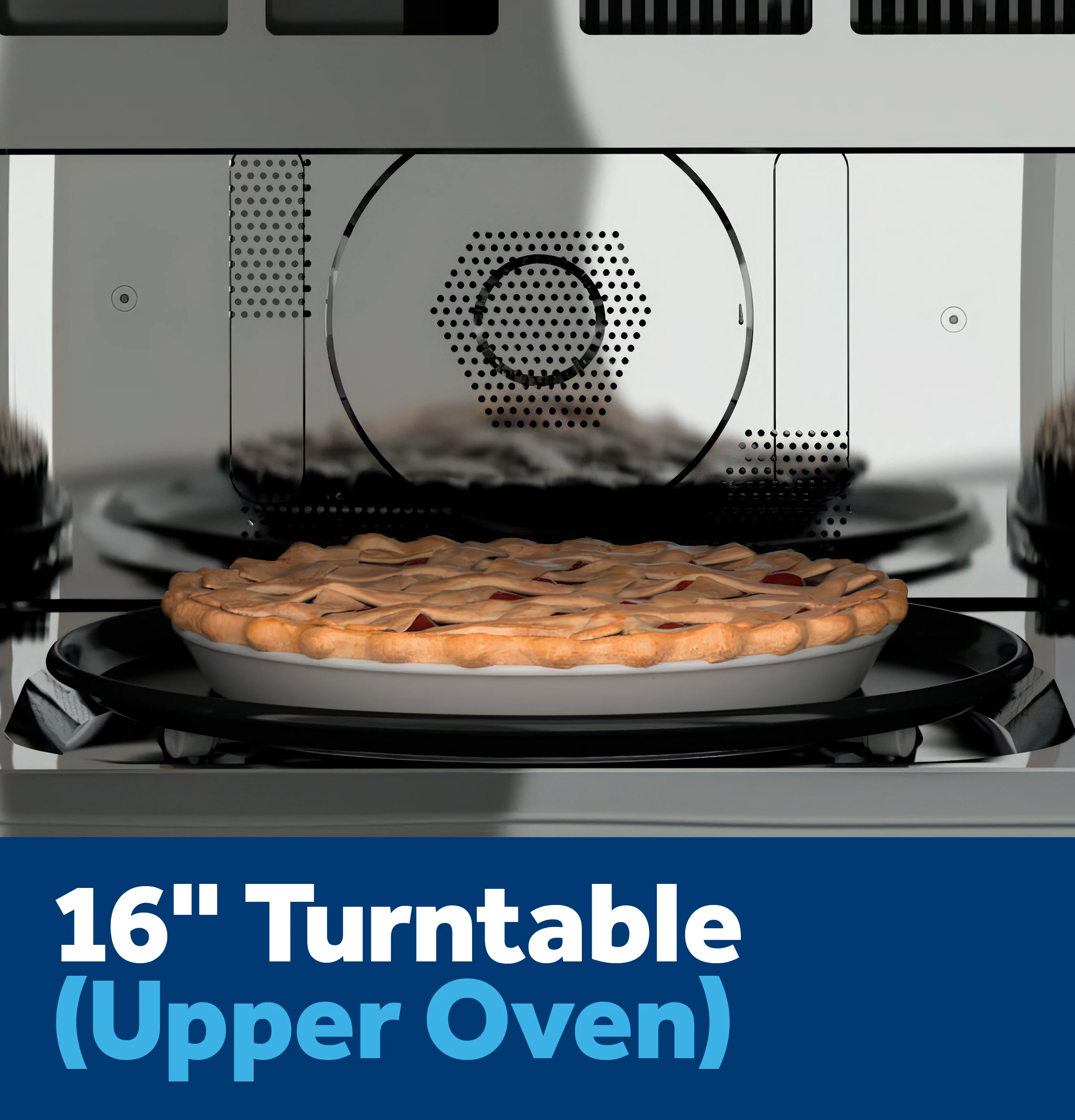

Turntable Size	16
Vent	Not Vented
App Filter - Brillion Enabled	No
App Filter - Cabinet Width	Cooking 27 in.
App Filter - Cleaning Type	Steam and Self-Clean
App Filter - Control Type	Electronic touchpad
App Filter - Convection	No
App Filter - Cooking Technology	Microwave Only<br/> Traditional
App Filter - Fuel Type	Electric
App Filter - Product Type	Wall Oven Microwave Oven Combination
Amp Rating at 208V	30
Amp Rating at 240V	30
Bake Wattage	2600W
Broiler Wattage	3400W
Electrical Requirements	208/240V ; 60Hz ; 30A
KW Rating at 208V	5.4
KW Rating at 240V	7.2
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Approximate Shipping Weight	192
Cabinet Width	27

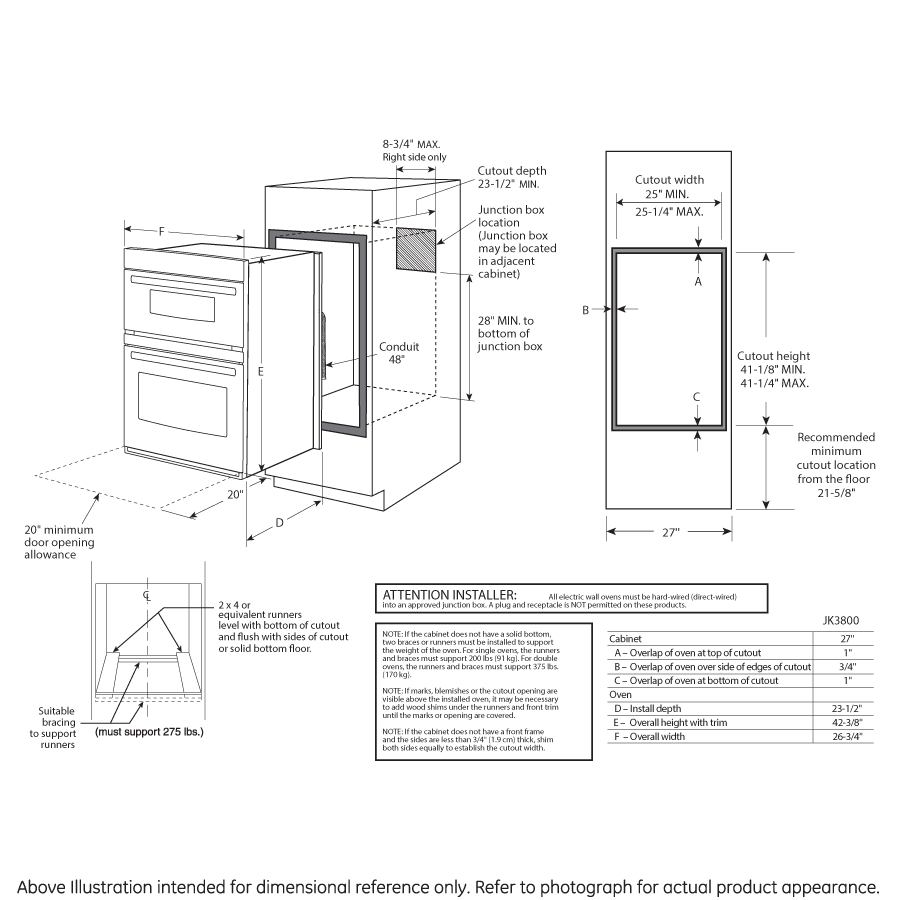

Cutout Depth (in)	23.5
Cutout Dimensions (w x h x d) (in.)	25 x 41-1/8 x 23-1/2
Cutout Height (in)	41.125 in
Cutout Width (in)	25 in
Net Weight	172
Oven Interior Dimensions (lower)	21-1/2 x 17-1/4 x 20
Oven Interior Dimensions (upper)	20-1/16 x 8-1/2 x 17
Overall Depth	26.875
Overall Height	42.375
Overall Width	26.75
