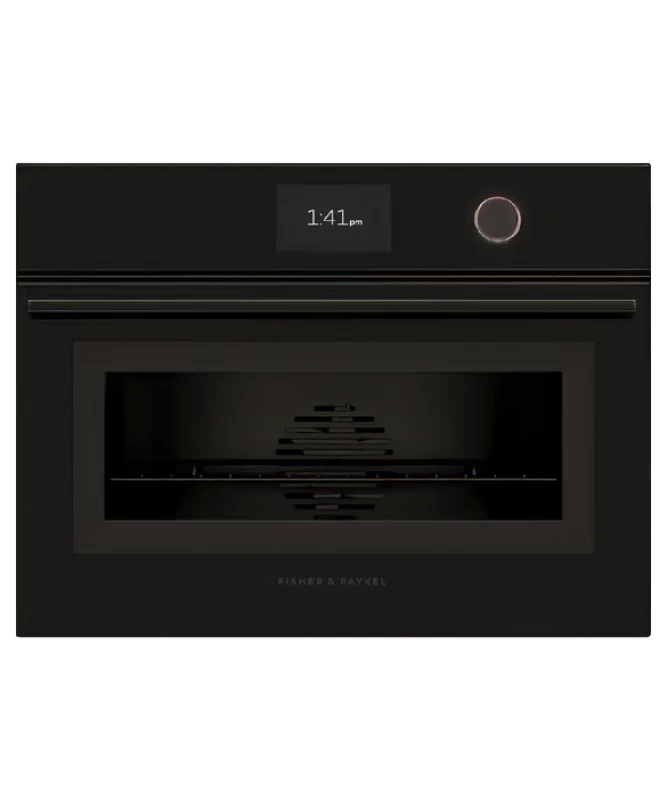

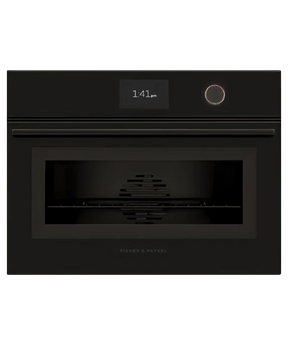

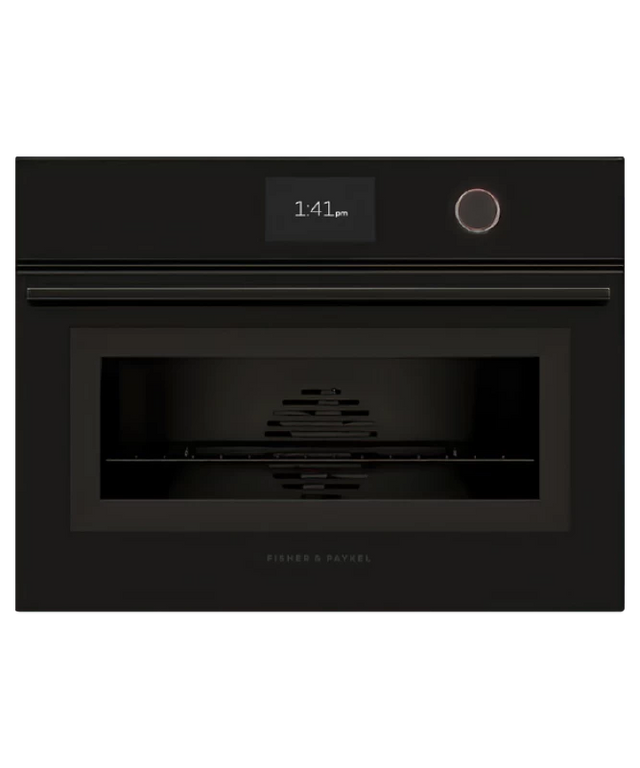

Fisher Paykel Combination Steam Oven, 24", 23 Function - Black Glass (OS24NMTDB1)

Product Features

Product Specifications

Warranty

Parts	2 Year
Labor	2 Year
	Yes
Parts and labor	2 years

Other

Yes

Accessories (included)

	Yes
Broil pan	1
Broil rack	1
Chromed shelf runners	Yes
Descale solution	2 sachets, Part 580925
Large steam dish	1
Perforated large dish	1
Perforated small dish	1
Wire shelf	1
Wired temperature sensor	1

Capacity

	Yes
Shelf positions	4
Total capacity	1.9cu ft
Usable capacity	1.6cu ft
Water tank capacity	50.7oz

Cleaning

	Yes
Acid resistant graphite enamel	Yes
Descale cycle	Yes
Drying cycle	Yes
Removable oven door	Yes
Removable oven door inner glass	Yes
Removable shelf runners	Yes
Removable water tank	Yes
Steam clean (oven)	Yes

Controls

	Yes
Adjustable audio and display settings	Yes
Audio feedback	Yes
Automatic cooking/minute timer	Yes
Automatic pre-set temperatures	Yes
Delay start	Yes
Electronic clock	Yes
Electronic oven control	Yes
Guided cooking by food types	Yes
Halogen lights	Yes
Intuitive touchscreen display	Yes
Multi-language display	UK English, US English, Simplified Chinese, Franais, Espaol
Sabbath mode with Star K certification	Yes
Smart Appliance	Yes
Soft close doors	Yes
True convection oven	Yes
Turned stainless steel dials with illuminated halos	Yes
Wireless temperature sensor compatible	Yes

Functions

	Yes
Aero Bake	Yes
Aero Broil	Yes
Air fry	Yes
Bake	Yes
Classic bake	Yes
Crisp regenerate	Yes
Maxi Broil	Yes
Number of functions	23
Pastry Bake	Yes
Pizza bake	Yes
Roast	Yes
Slow cook	Yes
Sous vide	Yes
Steam	Yes
Steam clean (oven)	Yes
Steam defrost	Yes
Steam proof	Yes
Steam regenerate	Yes
True Aero	Yes
True Aero + High steam	Yes
True Aero + Low steam	Yes
True Aero + Medium steam	Yes
Vent bake	Yes
Warm	Yes

Performance

	Yes
ActiveVent™ system	Yes
AeroTech™ technology	Yes
Automatic rapid pre-heat	Yes
SteamTechnology	Yes
Temperature range	95 °F - 445 °F
Whisper quiet cooking	Yes

Power requirements

	Yes
Amperage	16.6 - 19.4 A
Supply frequency	60Hz
Supply voltage	208-240V

Safety

	Yes
ADA compliant	Yes
Balanced oven door	Yes
Control panel key lock	Yes
CoolTouch door	Yes
Non-tip shelves	Yes
Safety thermostat	Yes

Dimensions & Weight

Width	23 in.
Height	18 in.
Length	22 in.
Weight	-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	28 in.
Shipping Height	23 in.
Shipping Length	27 in.
Shipping Weight	-
Total of Shipping Weight	-
Source	Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	5.27 ft
Dimensional Weight	65.53 lbs.
Total of Cubes	5.27 ft
Total of Dimensional Weight	65.53 lbs.
