Summit 25 lb. Drain-Free Icemaker, ADA Compliant - Stainless Steel (BIM26H32)
SKU:
BIM26H32
Regular price
$1,985.00
Unit price
/
Unavailable
Summit 25 lb. Drain-Free Icemaker, ADA Compliant - Stainless Steel (BIM26H32) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ ADA Compliant
- ✔ ADA compliant
- ✔ 15" Wide No-Drain Icemaker
- ✔ Adjustable Height
- ✔ Drain-free design
- ✔ Large capacity
- ✔ Manual defrost
- ✔ Stainless steel exterior
- ✔ Reversible door
- ✔ Built-In capable
- ✔ Sealed back
- ✔ Standard water hookup
- ✔ Modern handle
- ✔ Filter included
- ✔ Ice scoop included
- ✔ Removable bin
- ✔ Lasting ice cube production
- ✔ Insulated storage bin
- ✔ 100% CFC free
- ✔ Lead-free certified
Summit 25 lb. Drain-Free Icemaker, ADA Compliant - Stainless Steel ...
Regular price
$1,985.00
Unit price
/
Unavailable
Product Features
ADA Compliant
31.75" height allows installation under lower ADA-compliant counters
ADA compliant
31.75" height allows installation under lower ADA-compliant counters
15" Wide No-Drain Icemaker
No drain is required for more flexibility in placing the icemaker indoors or outside
Adjustable Height
This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
Drain-free design
Convenient design allows more flexibility in positioning the unit
Large capacity
Produces and stores more than 20 lbs of ice per day cycle
Manual defrost
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Stainless steel exterior
304-grade stainless steel allows the icemaker to be used freestanding
Reversible door
User-reversible door swing for flexible placement
Built-In capable
Make the best use of space by installing your ice maker under the counter
Sealed back
Space-saving design with easier cleanability
Standard water hookup
Operates with a standard 1/4" OD water supply line
Modern handle
Horizontally mounted towel bar style handle in stainless steel

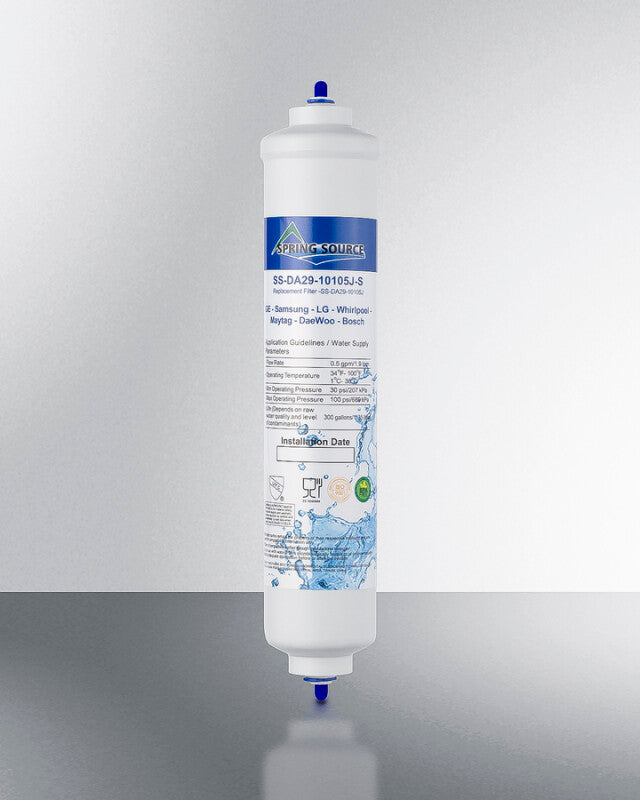

Filter included
Water filter is included for optional use
Ice scoop included
Large ice scoop and holder included for your convenience

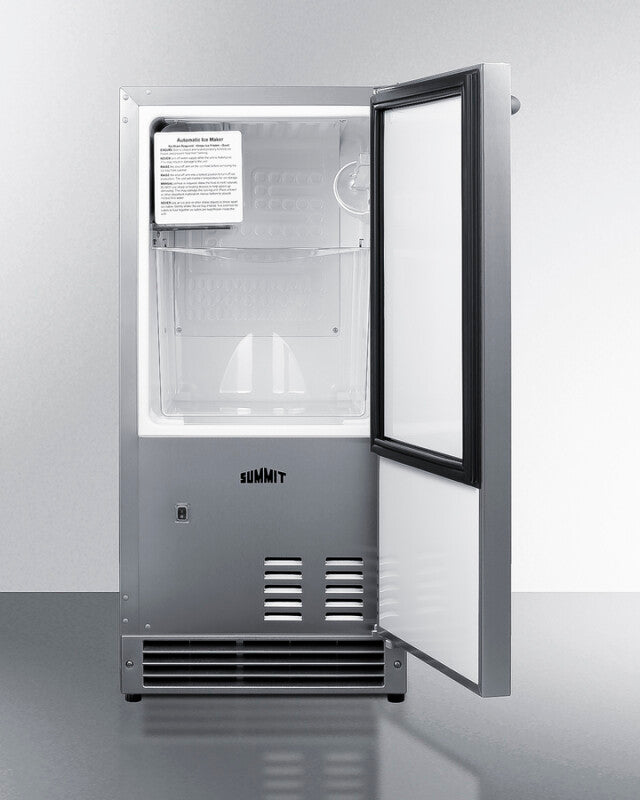

Removable bin
Users can remove the ice bucket for fast and easy cleaning
Lasting ice cube production
Crescent-shaped ice provides a harder and longer-lasting ice
Insulated storage bin
Ice stays solid longer in this cold-protected bin
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 19.38" (49 cm) |
| Depth with Handle | 21.38" (54 cm) |
| Depth with door at 90° | 33.63" (85 cm) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 61.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101103525 |
Icemaker
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
Dimensions & Weight
| Width | 14.88 in. |
| Height | 31.75 in. |
| Length | 19.38 in. |
| Weight | 61 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19.88 in. |
| Shipping Height | 36.75 in. |
| Shipping Length | 24.38 in. |
| Shipping Weight | 101 lbs. |
| Total of Shipping Weight | 101 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.3 ft |
| Dimensional Weight | 65.87 lbs. |
| Total of Cubes | 5.3 ft |
| Total of Dimensional Weight | 65.87 lbs. |
Certifications
California Prop 65
