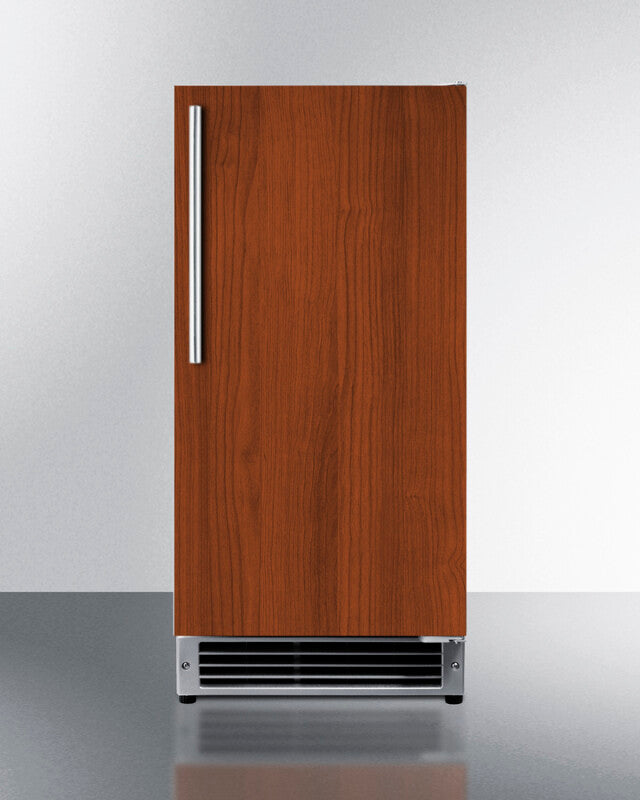

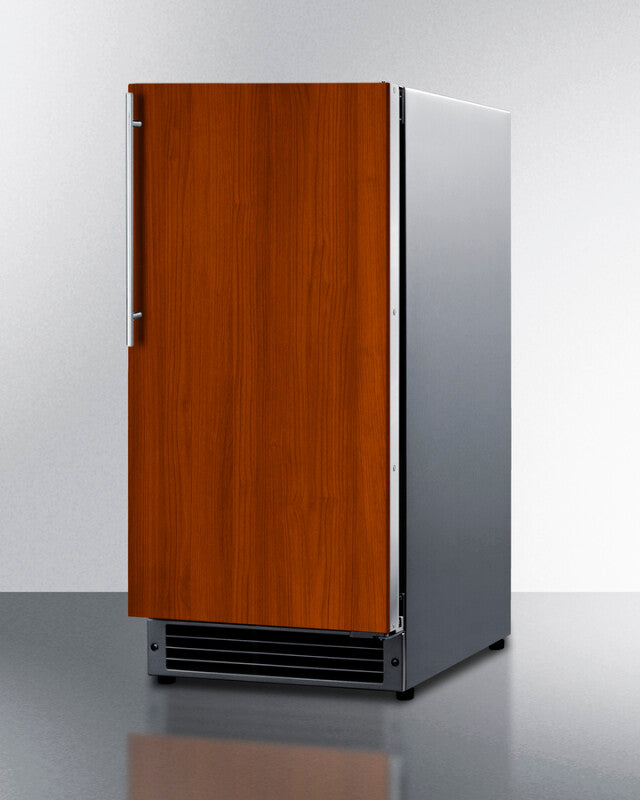

SUMMIT 15" Wide 25 lb. Drain-Free Icemaker, ADA Compliant (Panel Not Included) - Panel-Ready (BIM26H32IF)
SKU:
BIM26H32IF
UPC: 761101108407
Sale price
$1,78200
Regular price
$2,41000
Unit price
SUMMIT 15" Wide 25 lb. Drain-Free Icemaker, ADA Compliant (Panel Not Included) - Panel-Ready (BIM26H32IF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ 15" Wide No-Drain Icemaker
- ✔ Drain-free design
- ✔ Manual defrost
- ✔ Adjustable Height
- ✔ Panel-ready door
- ✔ Large capacity
- ✔ Stainless steel exterior
- ✔ Reversible door
- ✔ Built-In capable
- ✔ Sealed back
- ✔ Standard water hookup
- ✔ Filter included
- ✔ Ice scoop included
- ✔ Lasting ice cube production
- ✔ Removable bin
- ✔ Insulated storage bin
- ✔ 100% CFC free
- ✔ Lead-free certified
SUMMIT 15" Wide 25 lb. Drain-Free Icemaker, ADA Compliant (Pa...
Sale price
$1,78200
Regular price
$2,41000
Unit price
SKU:
BIM26H32IF
Sale price
$1,78200
Regular price
$2,41000
Unit price
SUMMIT 15" Wide 25 lb. Drain-Free Icemaker, ADA Compliant (Panel Not Included) - Panel-Ready (BIM26H32IF) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description

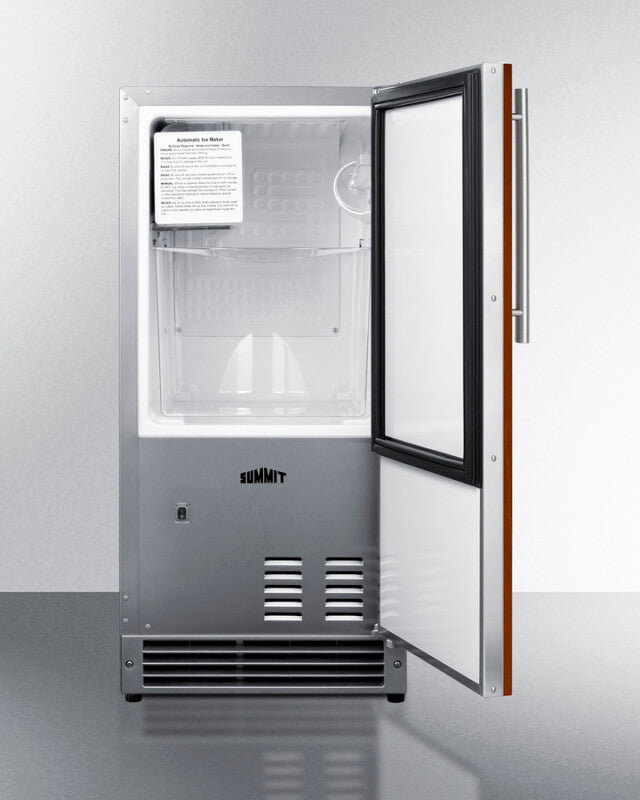

Summit combines convenience and luxury to craft the BIM26H32IF - an undercounter icemaker finished in complete 304-grade stainless steel. Sized at just under 15" wide, the BIM26H32IF features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height just under 32", Summit designed this icemaker to be compatible with ADA-compliant counters. This unit can be raised to 34". A taller kickplate is included for a streamlined and cohesive look. This model features a panel-ready door with an integrated stainless steel frame that lets you install an overlay panel and handle to match or complement surrounding cabinetry (recommended panel dimensions: 27 9/16" H x 14 13/16" W at 3/4" thick). The sealed back design allows more flush installation. An optional water filter is included and designed to be mounted in the rear. A look inside the BIM26H32IF shows it can produce 25 lbs of crescent-shaped ice daily. The static manual de
Product Features
15" Wide No-Drain Icemaker
No drain is required for more flexibility in placing the icemaker indoors or outside
Drain-free design
Convenient design allows more flexibility in positioning the unit
Manual defrost
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Adjustable Height
This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic

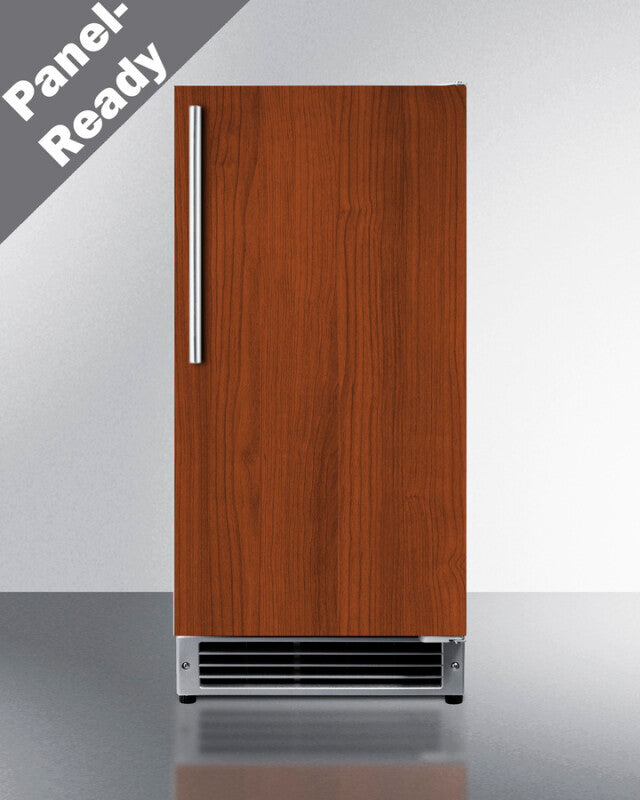

Panel-ready door
Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
Large capacity
Produces and stores more than 20 lbs of ice per day cycle
Stainless steel exterior
304-grade stainless steel allows the icemaker to be used freestanding
Reversible door
User-reversible door swing for flexible placement
Built-In capable
Make the best use of space by installing your ice maker under the counter
Sealed back
Space-saving design with easier cleanability
Standard water hookup
Operates with a standard 1/4" OD water supply line

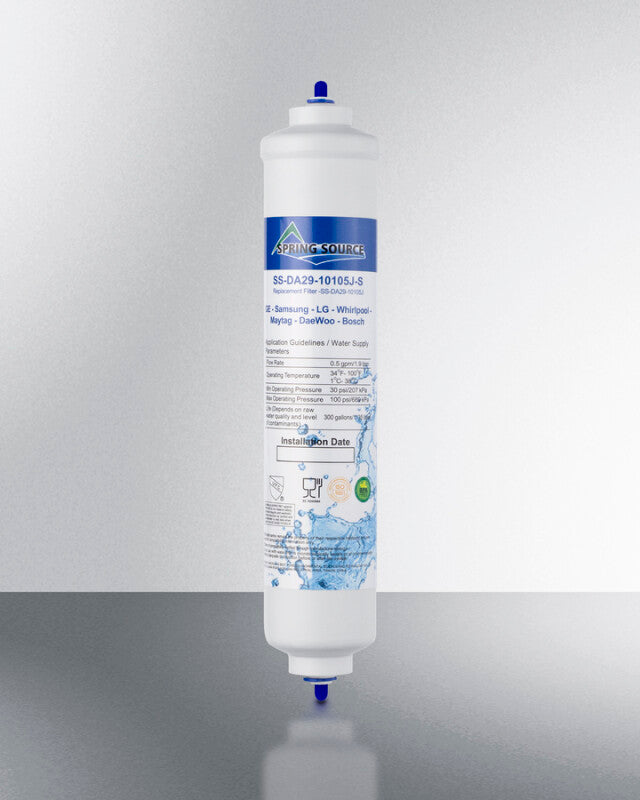

Filter included
Water filter is included for optional use
Ice scoop included
Large ice scoop and holder included for your convenience
Lasting ice cube production
Crescent-shaped ice provides a harder and longer-lasting ice
Removable bin
Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin
Ice stays solid longer in this cold-protected bin
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Product Specifications
Overview
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.13" (51 cm) |
| Depth with door at 90° | 34.38" (87 cm) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108407 |
Icemaker
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
Dimensions & Weight
| Width | 14.88 in. |
| Height | 31.75 in. |
| Length | 20.13 in. |
| Weight | 65 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19.88 in. |
| Shipping Height | 36.75 in. |
| Shipping Length | 25.13 in. |
| Shipping Weight | 105 lbs. |
| Total of Shipping Weight | 105 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.5 ft |
| Dimensional Weight | 68.42 lbs. |
| Total of Cubes | 5.5 ft |
| Total of Dimensional Weight | 68.42 lbs. |
Certifications
California Prop 65
