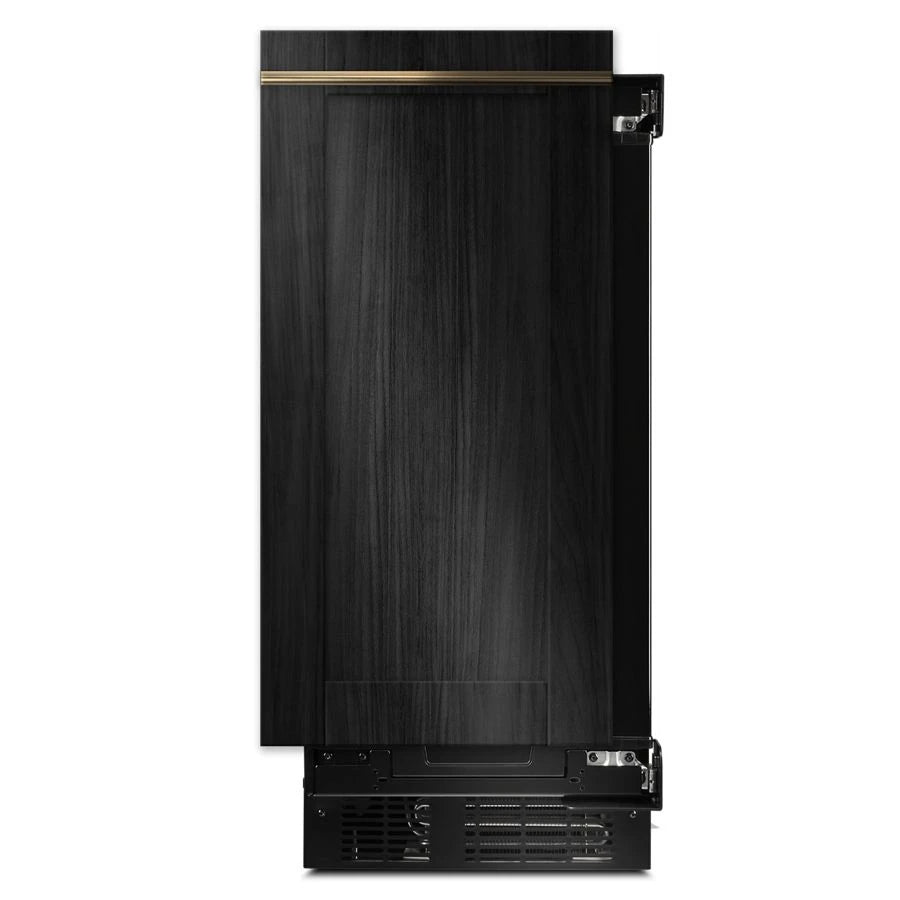

JENNAIR Panel-Ready 15" Undercounter Ice Machine with Articulating Hinge with Drain Pump - Panel Ready (JUIFX15HX)
SKU:
JUIFX15HX
UPC: 883049475554
Regular price
$3,79900
Unit price
JENNAIR Panel-Ready 15" Undercounter Ice Machine with Articulating Hinge with Drain Pump - Panel Ready (JUIFX15HX) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
JennAir Curate: 1H Up to 15% Instant Savings
GET UP TO 15% OFF IN INSTANT SAVINGS
Ends: 2026-06-30
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Frost-Free Operation
- ✔ Ice Scoop
- ✔ Clean Cycle Indicator with Alert Chime
- ✔ Door Open Alarm
- ✔ Replace Filter Indicator
- ✔ Precision Levelers
- ✔ Reversible Door Swing
- ✔ Crystalline Ice
- ✔ Max Ice Option
- ✔ Concealed Controls
- ✔ Drain Pump
- ✔ Flush Integrated Design
- ✔ 25-lb capacity
JENNAIR Panel-Ready 15" Undercounter Ice Machine with Articul...
Regular price
$3,79900
Unit price
SKU:
JUIFX15HX
Regular price
$3,79900
Unit price
JENNAIR Panel-Ready 15" Undercounter Ice Machine with Articulating Hinge with Drain Pump - Panel Ready (JUIFX15HX) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features
Crystalline Ice
Slow melt, reduced fizz. Adorn your next cocktail with glittering, clear ice.
Max Ice Option
You say when the party ends. Plummet internal temperatures to their lowest point to intensify ice production.
Concealed Controls
Responds to your touch. Vanishes when closed, leaving only a smooth profile.
Drain Pump
A system that drains excess water over a greater distance or an incline without the need to monitor or empty water manually.
Flush Integrated Design
Create an unbroken silhouette. Discreet " reveals envelop every side, without exposed hinges or trim pieces.
Frost-Free Operation
The ice machine provides frost-free performance, which eliminates the need to defrost.
Ice Scoop
Included Ice Scoop conveniently stores in a dedicated holder inside ice bin.
Clean Cycle Indicator with Alert Chime
Automatic cycle cleans the ice machine to reduce mineral scale buildup, helping to maintain efficient performance.
Door Open Alarm
The Door Open Alarm will chime if the ice machine door is left open for more than 5 minutes.
Replace Filter Indicator
An optional replaceable water filter reduces chlorine tastes, odors and scale buildup to provide fresh, clean water for fresh, clear ice. (Purchased separately.)
Precision Levelers
Level off with uncontested command. Adjust each leg independently for a detailed fit that practically vanishes into its surroundings.
Reversible Door Swing
Swing right. Swing left. This is installation free from the confinement of a single door swing.
25-lb capacity
Stores up to 25 lbs of ice to easily fill a cooler or meet entertaining needs.
Product Specifications
Warranty
| Parts | 10 Year |
| Labor | 5 Year |
Controls
| Control Location | Interior Up Front |
| Control Type | Electronic Touch |
| Ambient Temperature Range | 55f To 110f |
Details
| Drain Pump | Pump Included |
| Installation Option | Undercounter |
| Refrigerator Type | Ice Maker, Ice Maker |
| Design Expression | Panel-ready |
| Drain Connection | Rear Access 5/8in. Od |
| Ice Capacity Storage | 25 Lbs |
| Ice Maker On/Off | Yes |
| Stainless Steel Cutting Grid | 3/4in. X 3/4in. Cubes |
| Water Inlet Connection | 1/4in. Od Pex Tubing |
Certifications
| ADA Compliant | No |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Electrical
| Hz | 60 |
| Amps | 6-1/2 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.22 ft |
| Dimensional Weight | 126.99 lbs. |
| Total of Cubes | 10.22 ft |
| Total of Dimensional Weight | 126.99 lbs. |
Exterior Details
| Cabinet Finish | Textured |
| Cabinet Material | Stainless Steel |
| Handle Location | Horizontal |
| Reversible Door | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Door Opening Direction | N/a |
Filter Details
| Water Filter Indicator/Reset | Yes |
| Water Filter Location | Interior |
| Water Filter Part Number | F2wc9i1 |
Freezer Details
| Defrost Type | Automatic Defrost |
Icemaker Details
| Ice Maker On/Off | Yes |
Refrigerator Details
| Liner Color | White |
Dimensions & Weight
| Width | 17.25 in. |
| Height | 36.07 in. |
| Length | 28.37 in. |
| Weight | 107 lbs. |
| Cabinet Width (in) | 14 7/8 |
| Carton Depth | 28 3/8 |
| Carton Height | 36 1/8 |
| Carton Width | 17 1/4 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 34 |
| Cutout Width (in) | 15 |
| Depth Closed Excluding Handles | 24 |
| Depth Closed Including Handles | 24 |
| Gross Weight | 107 |
| Net Weight | 96.5 |
| Gross Weight | 107 |
| Cabinet Width (IN,inches) | 14.8750 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 34.5000 |
| Cutout Width(IN,inches) | 15.0000 |
| Depth Closed Excluding Handles(IN,inches) | 24.0000 |
| Depth Closed Including Handles(IN,inches) | 24.0000 |
| Depth Excluding Doors(IN,inches) | 23.6875 |
| Depth With Door Open 90 Degree(IN,inches) | 39.0000 |
| Depth(IN,inches) | 24.0000 |
| Height To Top Of Cabinet(IN,inches) | 34.5000 |
| Height To Top Of Door Hinge(IN,inches) | 33.8750 |
| Net Weight(LB,pounds) | 96 |
| Carton Depth(IN,inches) | 28.3750 |
| Carton Height(IN,inches) | 36.1250 |
| Carton Width(IN,inches) | 17.2500 |
| Cutout Height Min(IN,inches) | 34.0000 |
| Gross Weight(LB,pounds) | 107 |
| Cutout Width | 15 |
| Depth Excluding Doors | 23.688 |
| Depth With Door Open 90 Degree | 39 |
| carton depth | 28.37 |
| carton height | 36.07 |
| carton width | 17.25 |
| gross weight | 107 |
| net weight | 96.5 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.25 in. |
| Shipping Height | 36.13 in. |
| Shipping Length | 33.37 in. |
| Shipping Weight | 147 lbs. |
| Total of Shipping Weight | 147 lbs. |
| Source | Calculation |
Dimensions
| Cutout Width | 15 In |
| Depth | 24 In |
| Depth Excluding Doors | 23-86/125 In |
| Depth With Door Open 90 Degree | 39 In |
| Gross Weight | 107 Lbs |
| Height | 33-3/4 In |
| Net Weight | 96-1/2 Lbs |
| Width | 15 In |
Certifications
California Prop 65
