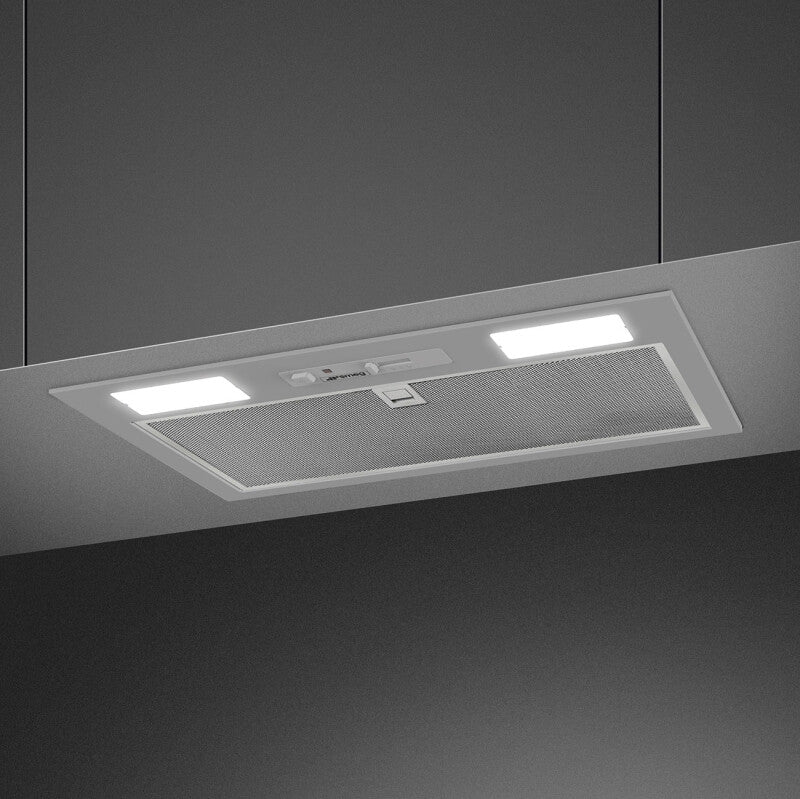

SMEG Hood Universal - Silver (KSEG24XU)

Product Features

Product Specifications

Program / Functions

Speed levels	3
Other options	Recirculating KIT accessory

Aesthetic

Color	Silver
Aesthetics	Universal
Design	Fully-integrated

Type

Product family	Hood
Hood Type	Insert hood
Hood width	24 "
EAN code	8017709296834

Controls

Control setting

Slider

Technical Features

No. of lights	2
Lighting	LED
Light power	5 W
Light color temperature scale (°K)	3000 °K
Maximum extraction capacity at free mode	200 CFM
Motor power	110 W
No. of filters	1
Anti-grease filters	Aluminum
Minimum distance from gas cooktop	750 "
Minimum distance from electric cooktop	600 "
Vent outlet	4 3/4 "
Non-return valve	Yes

Electrical Connection

Plug	(A) USA & Mexico
Voltage	110-127 V
Frequency (Hz)	60 Hz
Power supply cable length	1000 "

Speed level 1

Extraction rate	90 CFM
Noise level	55 dBA

Speed 2

Extraction rate	150 CFM
Noise level	64 dBA

Speed 3

Extraction rate	200 CFM
Noise level	71 dBA

Dimensions & Weight

Width	20.56 in.
Height	7.06 in.
Length	11.25 in.
Weight	10 lbs.
Net weight	10 lbs
Gross weight	13 lbs
Packaged width	23 13/16 "
Packaged depth	14 9/16 "
Packaged height	12 1/16 "

Number of Boxes, Shipping Dimensions, & Shipping Weight

Shipping Width	23.81 in.
Shipping Height	12.06 in.
Shipping Length	14.56 in.
Shipping Weight	-
Total of Shipping Weight	-
Source	Manufacturer

Other

Packaged dimensions	305X605X370
Maximum stackability	9
Packaging	Cardboard box
Packaging composition - Paper	3 lbs
