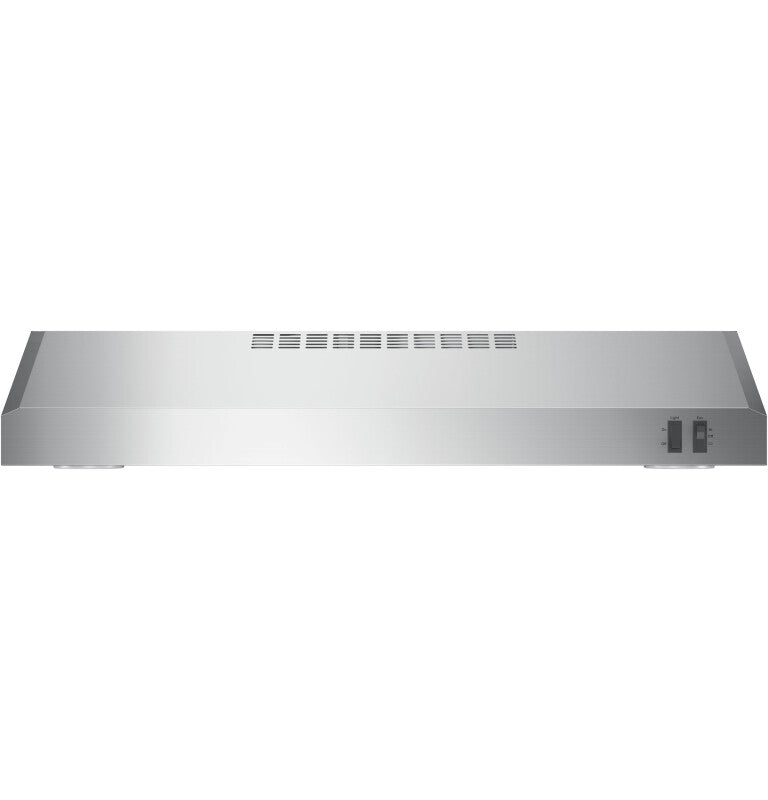

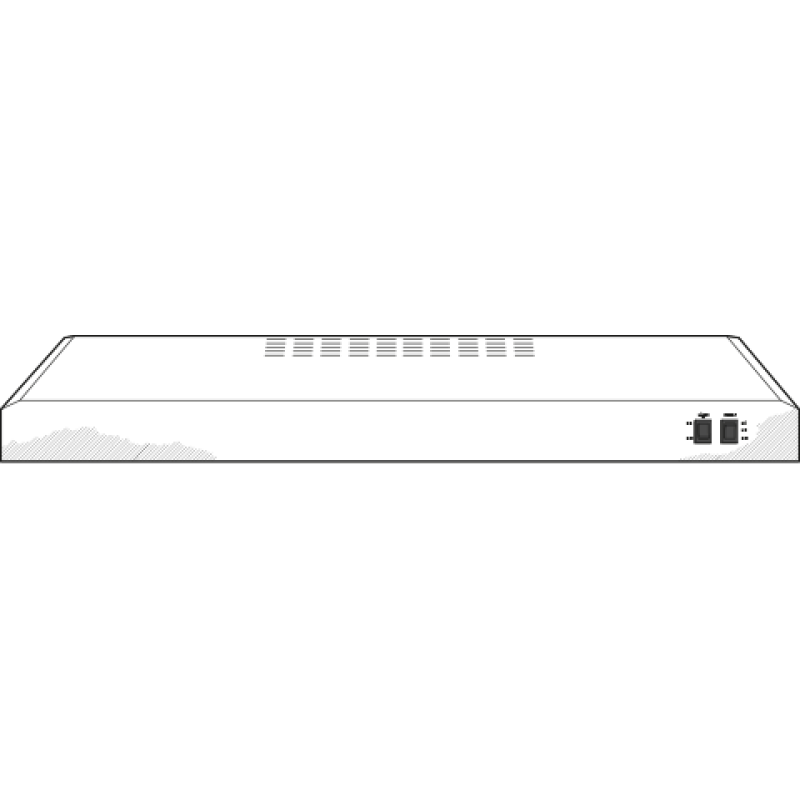

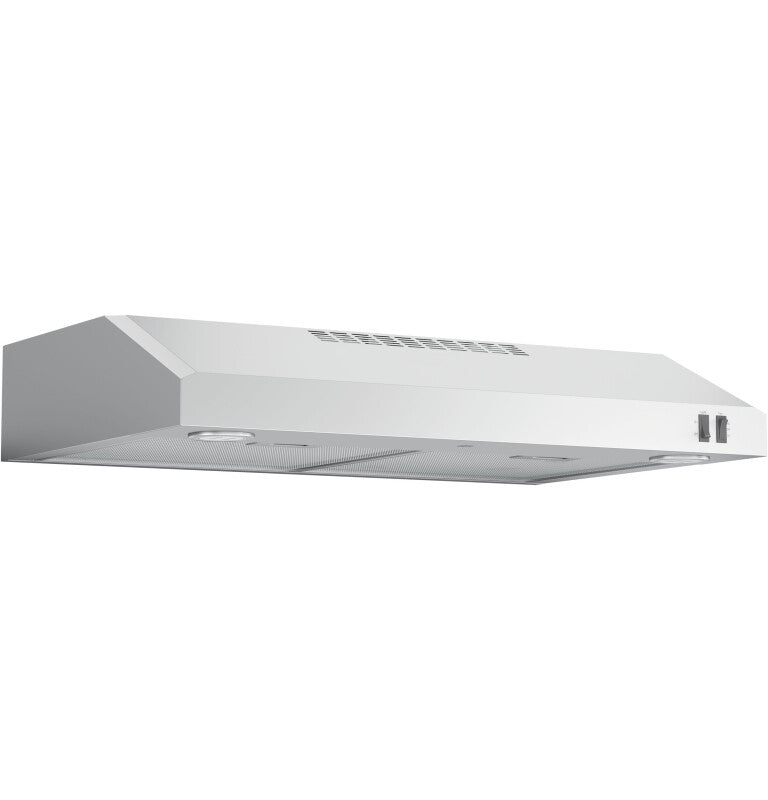

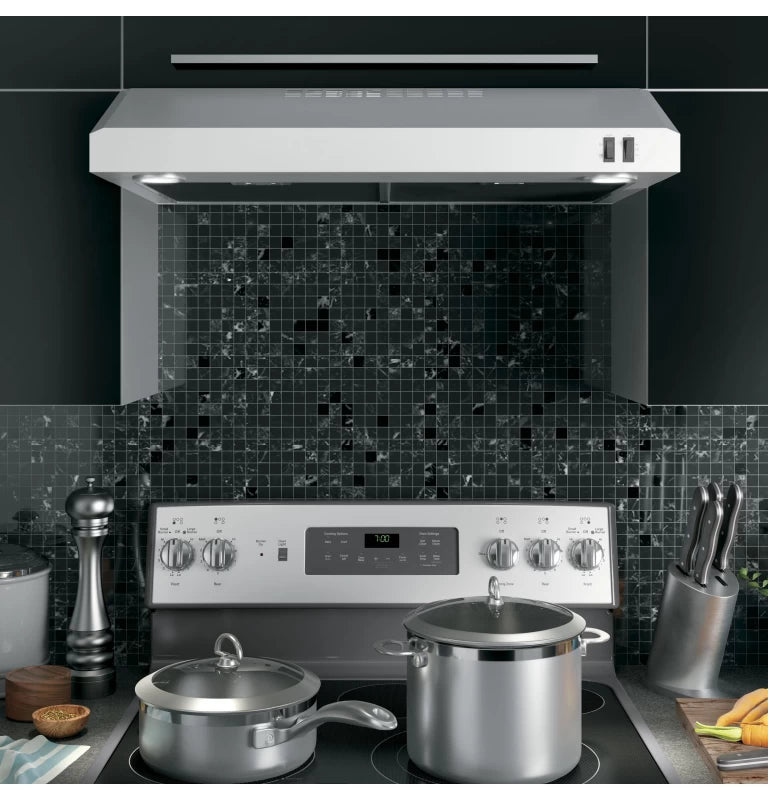

GE 30" Under The Cabinet Hood - Stainless Steel (JVX5305SJSS)
SKU:
JVX5305SJSS
UPC: 084691814757
Regular price
$43900
Unit price
/
Unavailable
GE 30" Under The Cabinet Hood - Stainless Steel (JVX5305SJSS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Energy efficient
- ✔ Easy installation
- ✔ Two-speed, 270-CFM venting system
- ✔ Front controls
- ✔ Dual LED lighting
- ✔ Convertible venting options
- ✔ Vertical and rear exhaust
- ✔ Appearance (Fully enclosed bottom)
- ✔ Dishwasher safe filter
GE 30" Under The Cabinet Hood - Stainless Steel (JVX5305SJSS)
Regular price
$43900
Unit price
/
Unavailable
Description
30" Under The Cabinet Hood
Product Features
Easy installation
10 minutes or less by one person

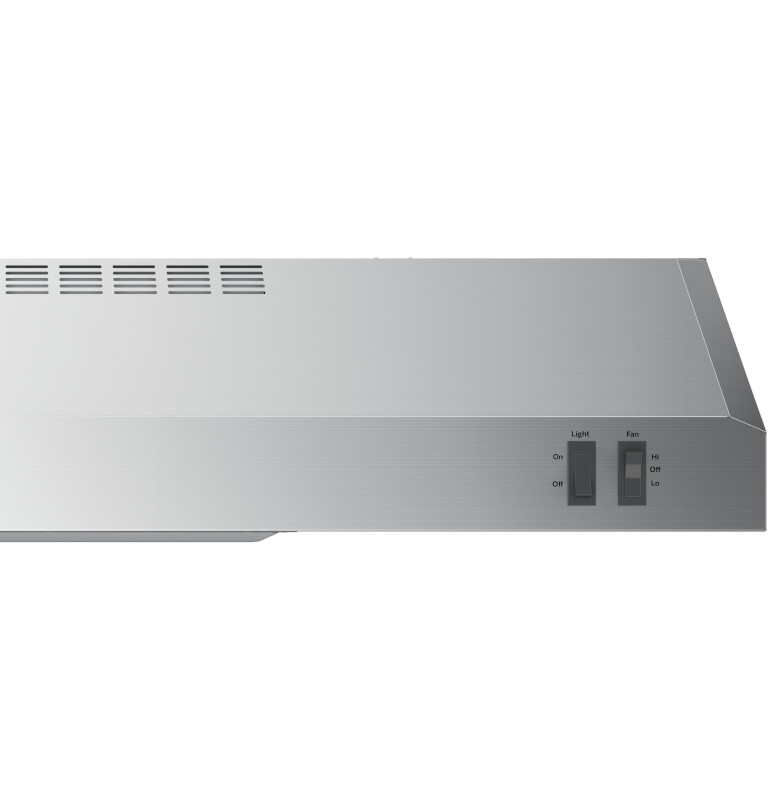

Front controls
Enjoy easy access and a subtle appearance
Energy efficient
JVX5305 series ventilation hoods are Energy Star qualified, helping you save energy and money
Two-speed, 270-CFM venting system
Removes smoke, grease, odors and moisture

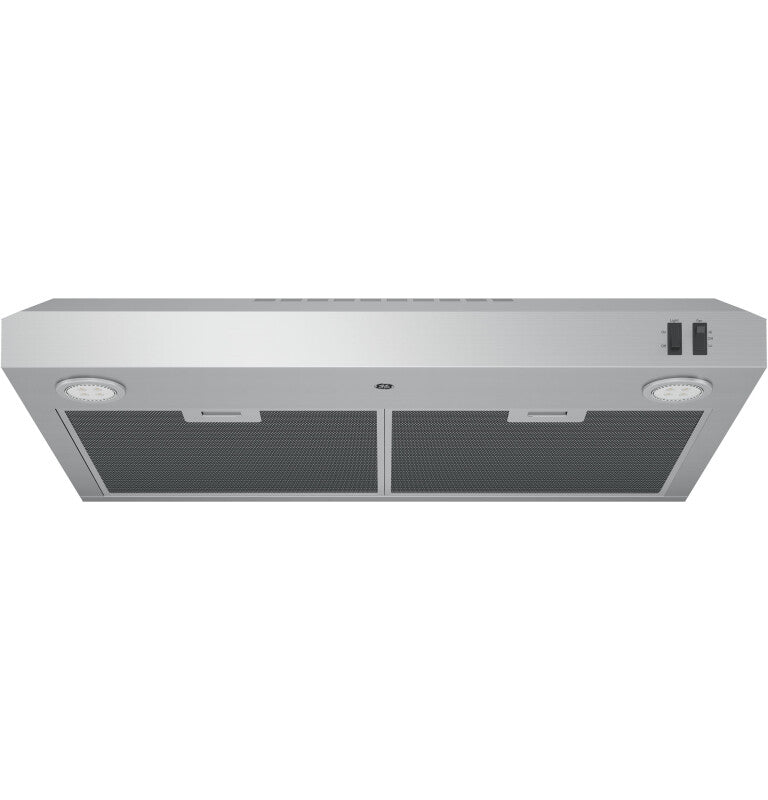

Dual LED lighting
Choose bright light while cooking - bulbs included
Convertible venting options
Select recirculating or external venting
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle

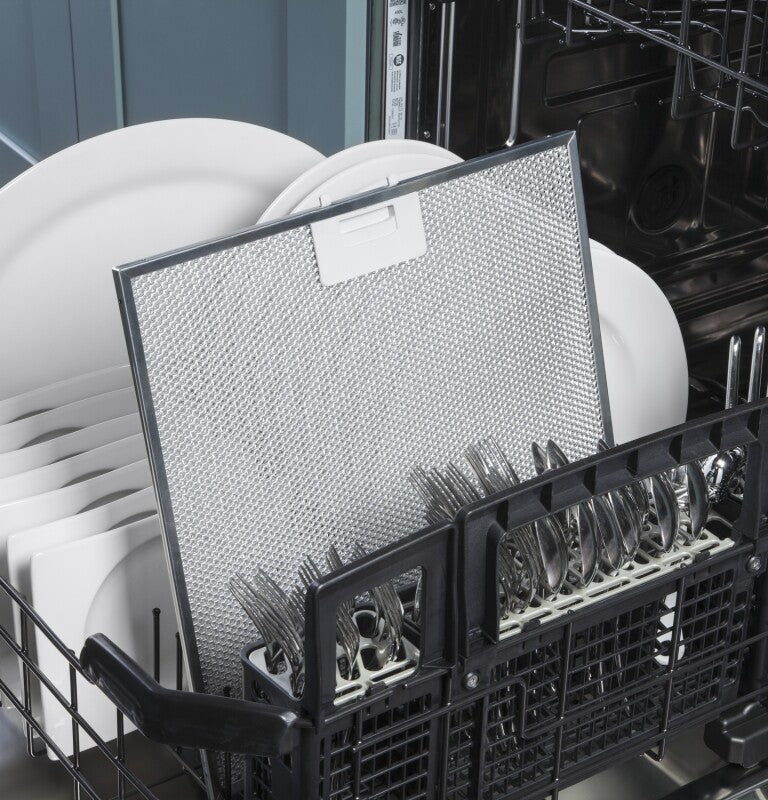

Dishwasher safe filter
Filters grease and is dishwasher-safe
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

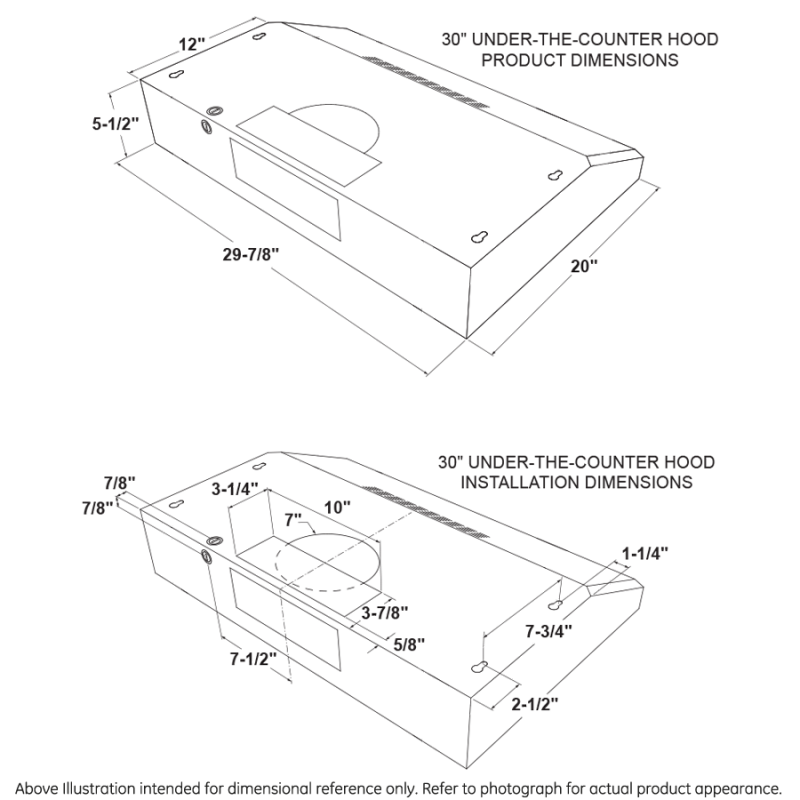

WEIGHTS & DIMENSIONS
| Overall Depth | 20 in |
| Overall Height | 5.5 in |
| Overall Width | 29.875 in |
| Cabinet Width | 30 in |
| Net Weight | 20 lb |
| Approximate Shipping Weight | 27 lb |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 5.5 in. |
| Length | 20 in. |
| Weight | 20 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 60 lbs. |
| Total of Shipping Weight | 60 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.9 ft |
| Dimensional Weight | 23.64 lbs. |
| Total of Cubes | 1.9 ft |
| Total of Dimensional Weight | 23.64 lbs. |
POWER / RATINGS
| Watts | 87 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 1.0A |
| Amp Rating at 120V | 1.0 |
FEATURES
| Cooktop Lighting | LED |
| Fan Speed Control | 2-Speed |
| Max CFM | 270 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 270/4.5 (High Speed) |
| Exhaust Options | Vented to Outside |
| Product Type | Under Cabinet Hood |
| Control Type | Rocker Switch |
| Control Location | Front |
| Blower Type | Internal |
| Removable Grease Filter(s) | Yes |
APPEARANCE
| Blower / Light Switch Color | Gray |
| Material | Metal |
| Color Appearance | Stainless Steel |
ACCESSORIES
| Optional Accessories | JXHC1 - Power Cord Kit |
FILTER
| App Filter - Hood Type | Under Cabinet Hoods |
| App Filter - Venting Type | Convertible |
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET
| Venting Type | Convertible |
Certifications
California Prop 65
