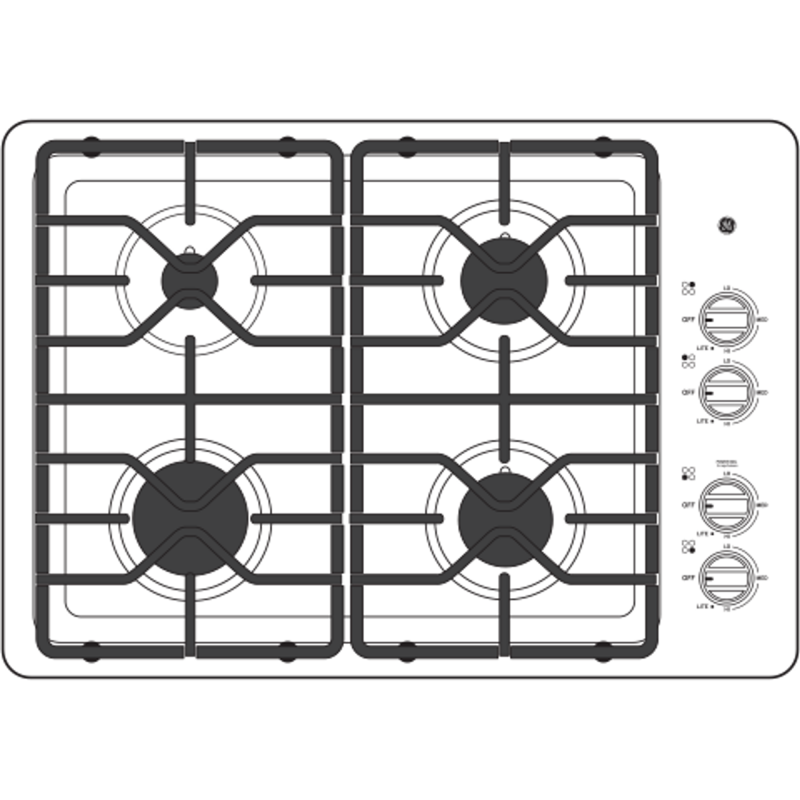

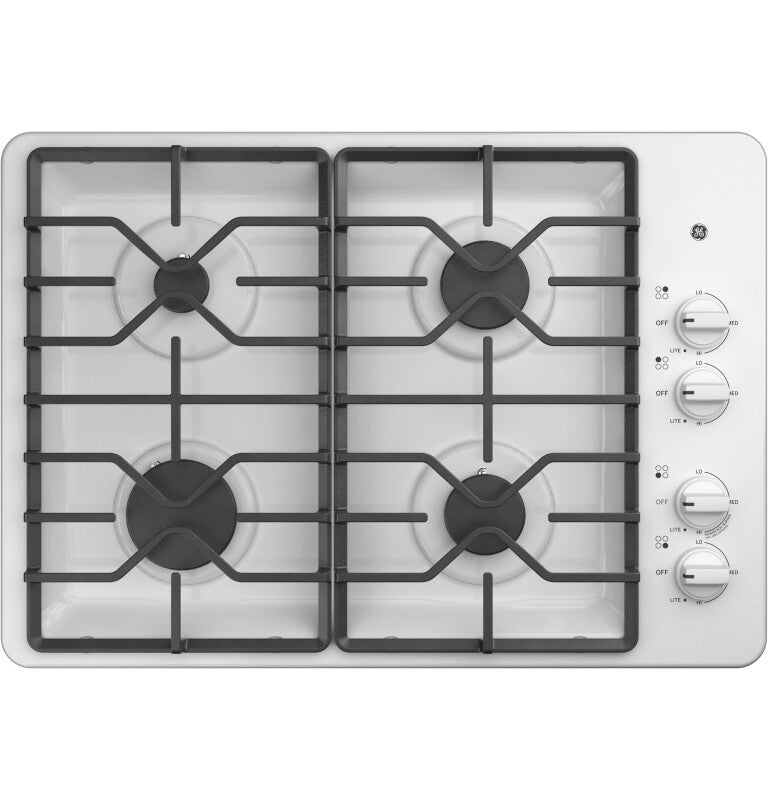

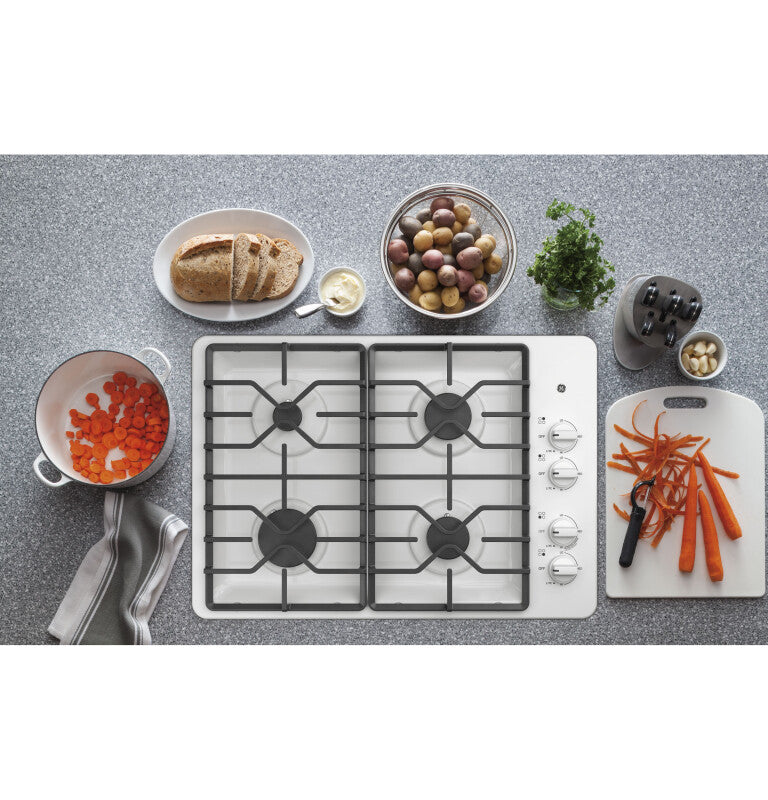

GE Ge® 30" Built-in Gas Cooktop With Dishwasher-safe Grates - White (JGP3030DLWW)
UPC: 084691823025
GE Ge® 30" Built-in Gas Cooktop With Dishwasher-safe Grates - White (JGP3030DLWW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates

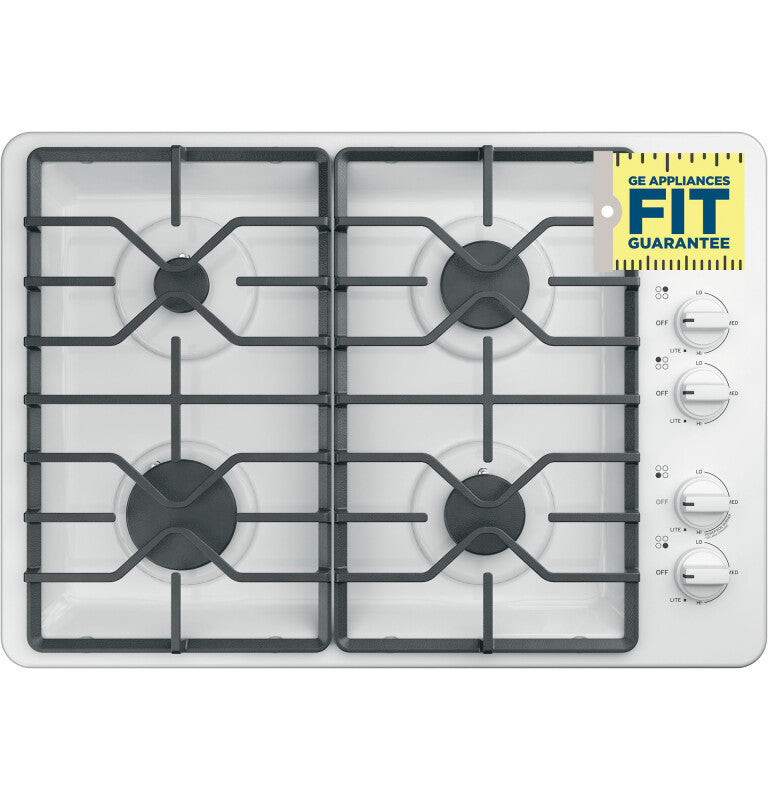

GE Fit Guarantee
GE Appliances guarantees your new GE cooktop, wall oven, or slide-in range will fit into an existing space when replacing a similar model. If it does not fit, GE Appliances will cover modification costs up to $100 or $300, issued on a GE Appliances Visa®
Ends: 2026-06-30
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features

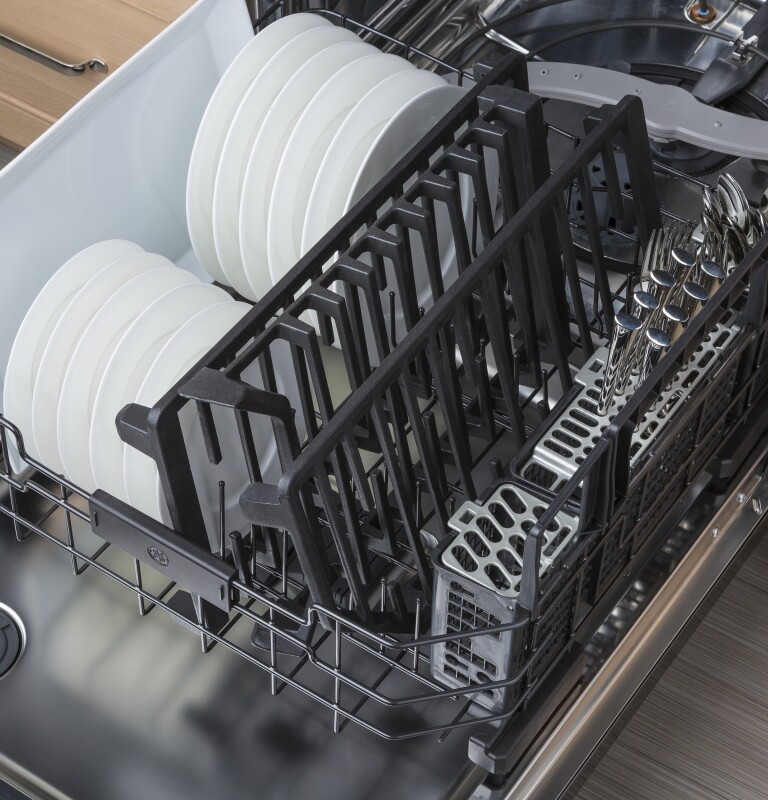

- ✔ Dishwasher-Safe Grates
- ✔ Spend Less Time Cleaning Up

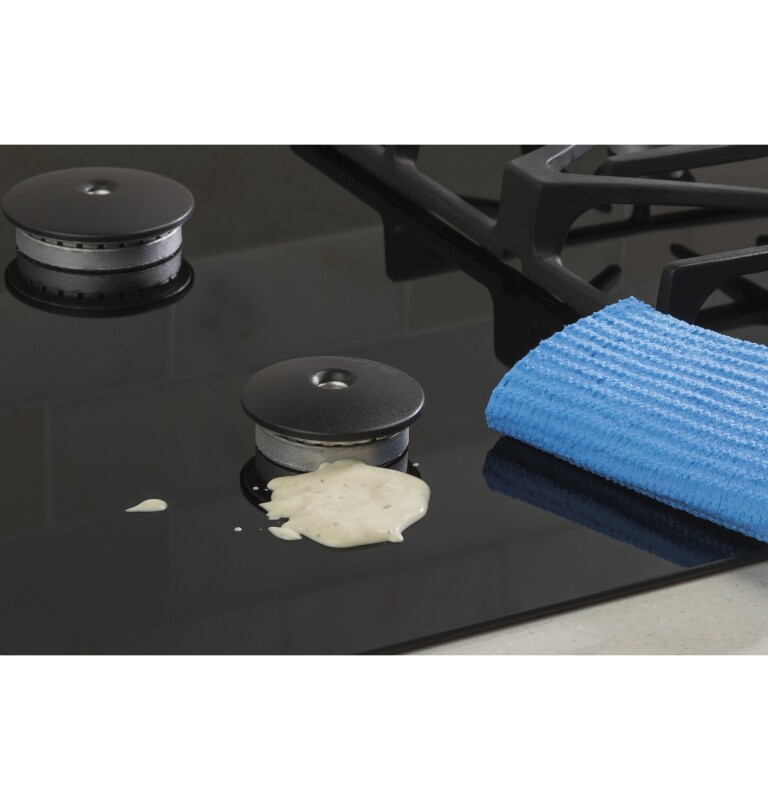

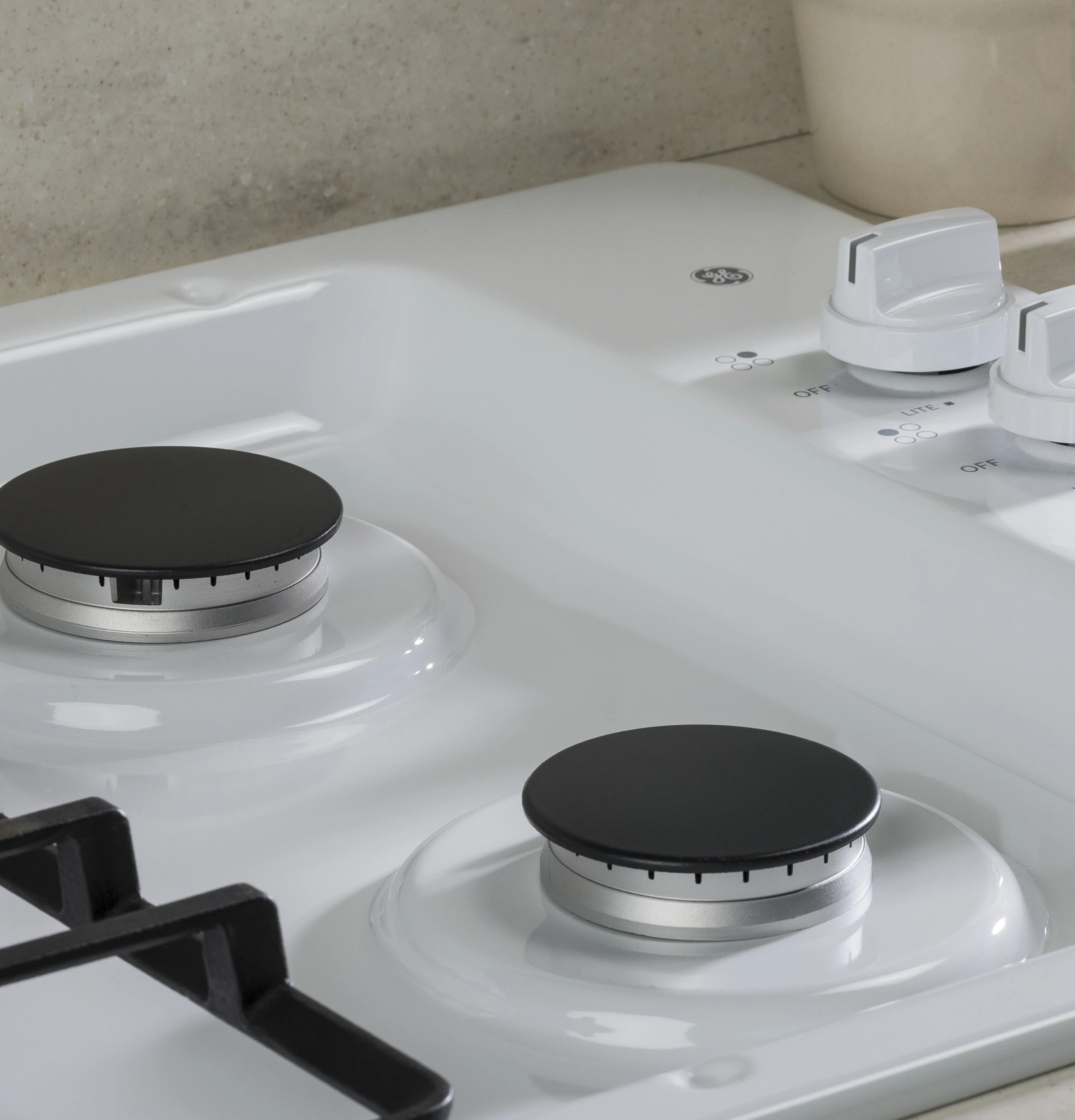

- ✔ Designed for Easy Cleaning

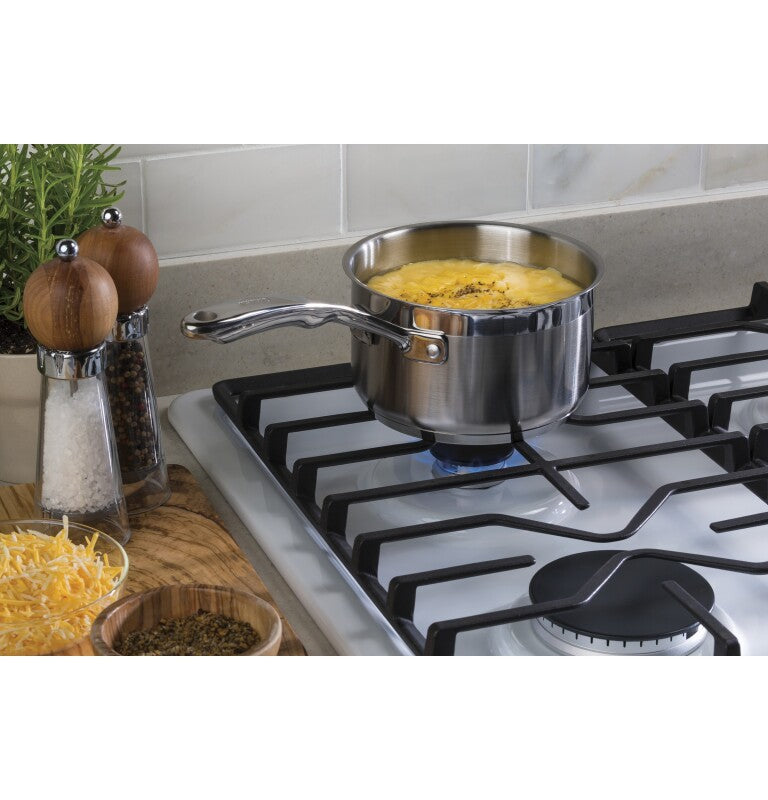

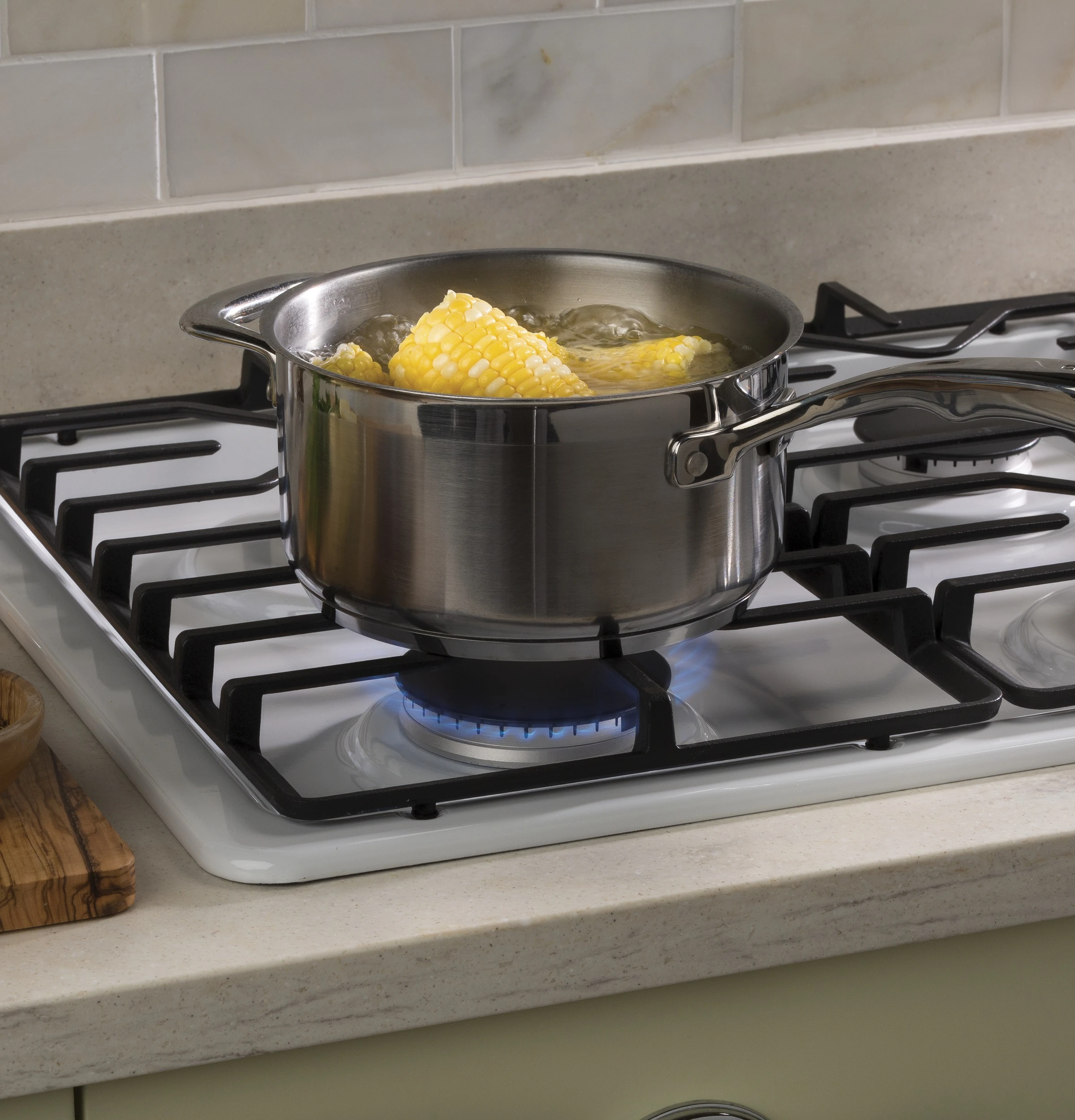

- ✔ 15,000 BTU Power Boil Burner

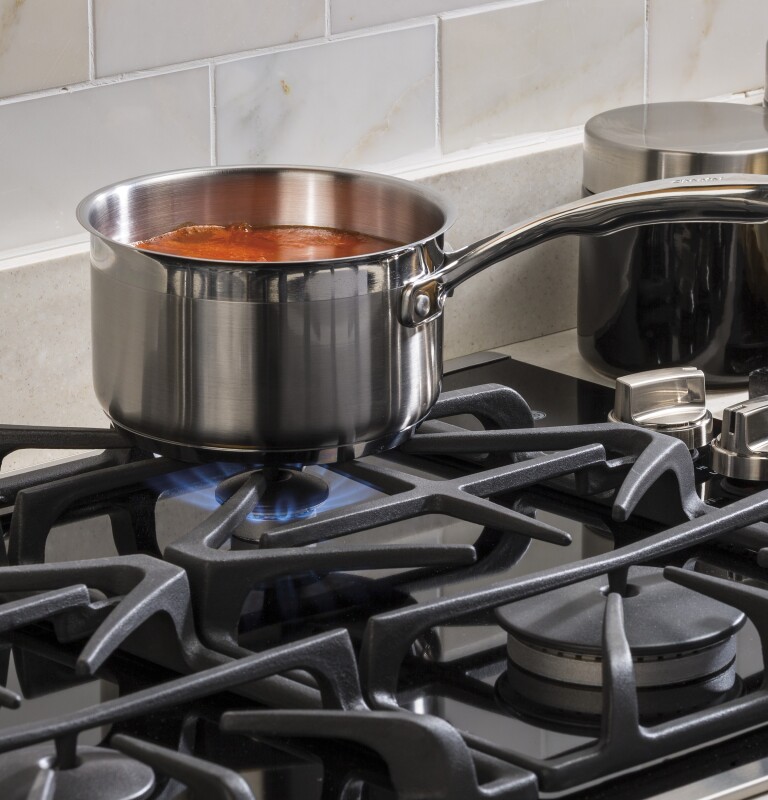

- ✔ Precise Simmer Burner

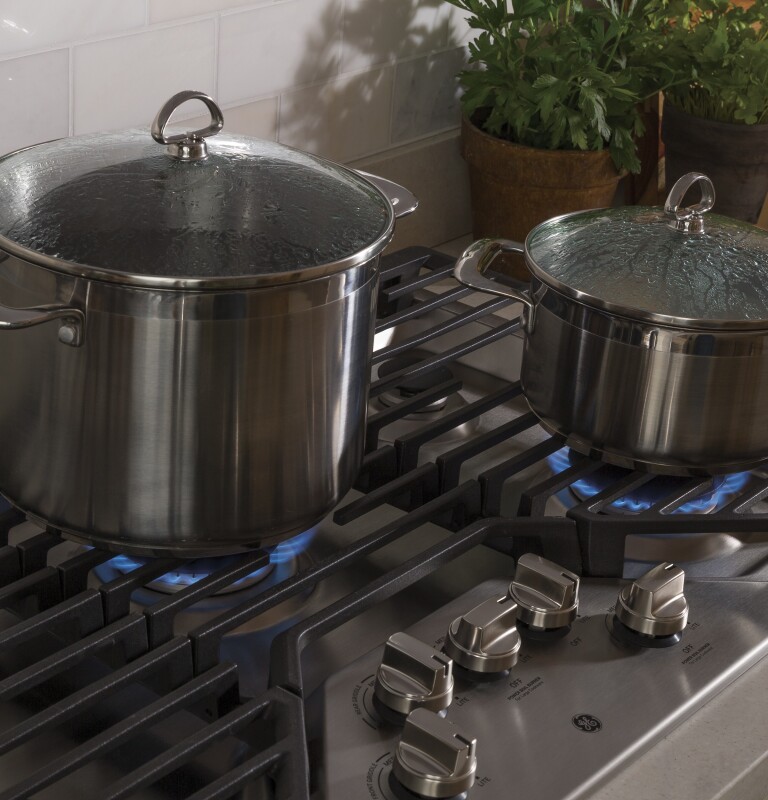

- ✔ MAX Burner System
- ✔ Fit Guarantee
GE Ge® 30" Built-in Gas Cooktop With Dishwasher-safe Grates -...
GE Ge® 30" Built-in Gas Cooktop With Dishwasher-safe Grates - White (JGP3030DLWW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description

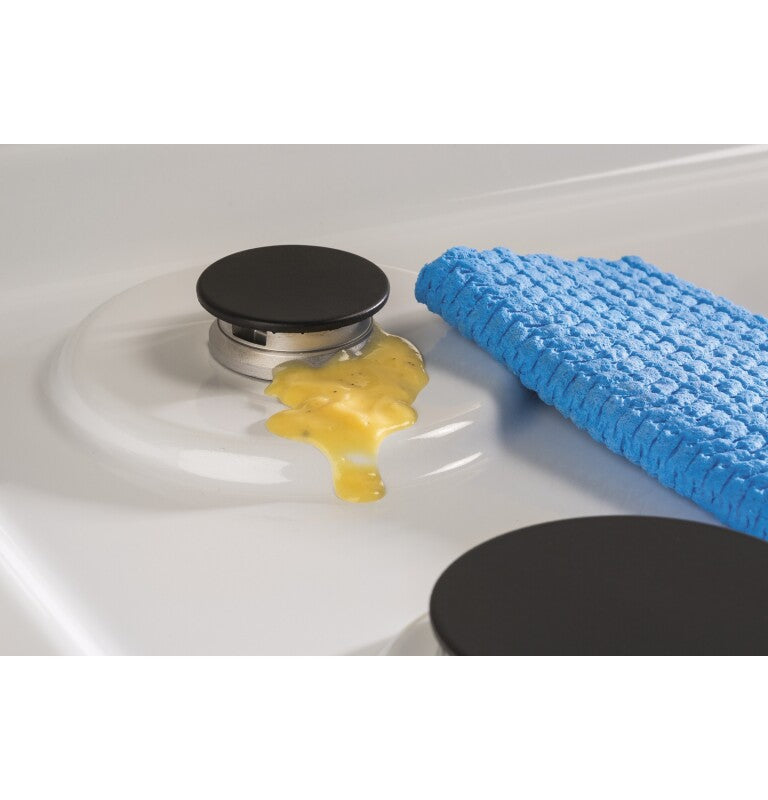

Sealed cooktop burners contain spills and make cleaning quick and easy.Recessed surface helps contain spills and make cleaning easy.4 3/4 H x 30 W x 21 D
Product Features
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Height | 4.75 in |
| Overall Width | 30 in |
| Overall Depth | 21 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 40 lb |
| Net Weight | 34 lb |

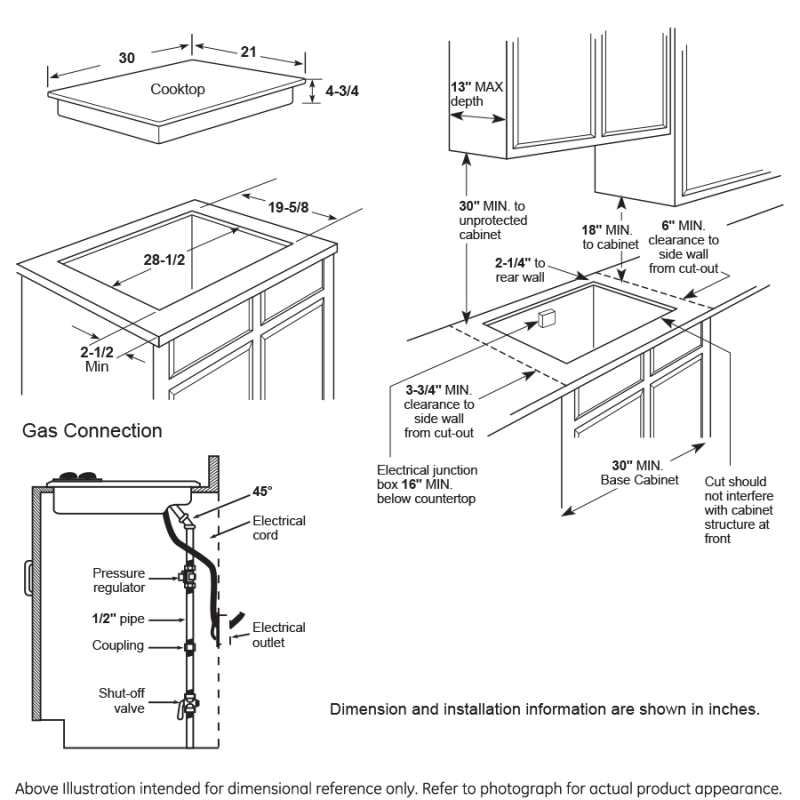

| Cutout Width (in) | 28.5 |
| Cutout Height (in) | 3.6875 |
| Cutout Depth (in) | 19.625 |
Dimensions & Weight
| Width | 30 in. |
| Height | 4.75 in. |
| Length | 21 in. |
| Weight | 34 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 9.75 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 74 lbs. |
| Total of Shipping Weight | 74 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.73 ft |
| Dimensional Weight | 21.53 lbs. |
| Total of Cubes | 1.73 ft |
| Total of Dimensional Weight | 21.53 lbs. |
FEATURES
| Cooktop Burner Type | 4 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 12,000 BTU |
| Burner - Right Front | 9,500 BTU |
| Fuel Type | Natural Gas |
| Power Boil Burner | Yes |
| Control Location | Right Side |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Cooktop Surface | White |
| Burner - Left Rear | 5,000 BTU |

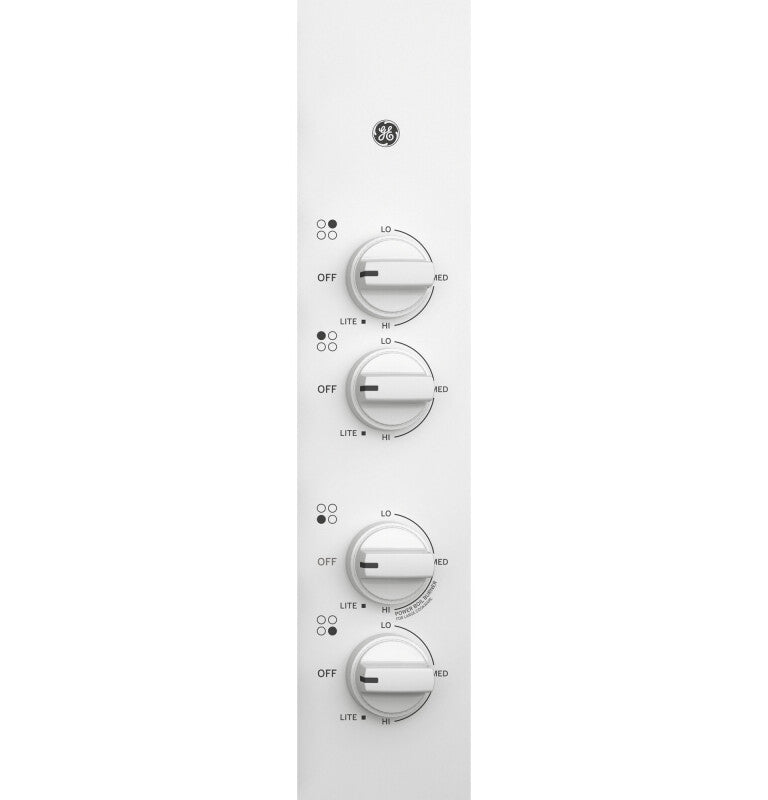

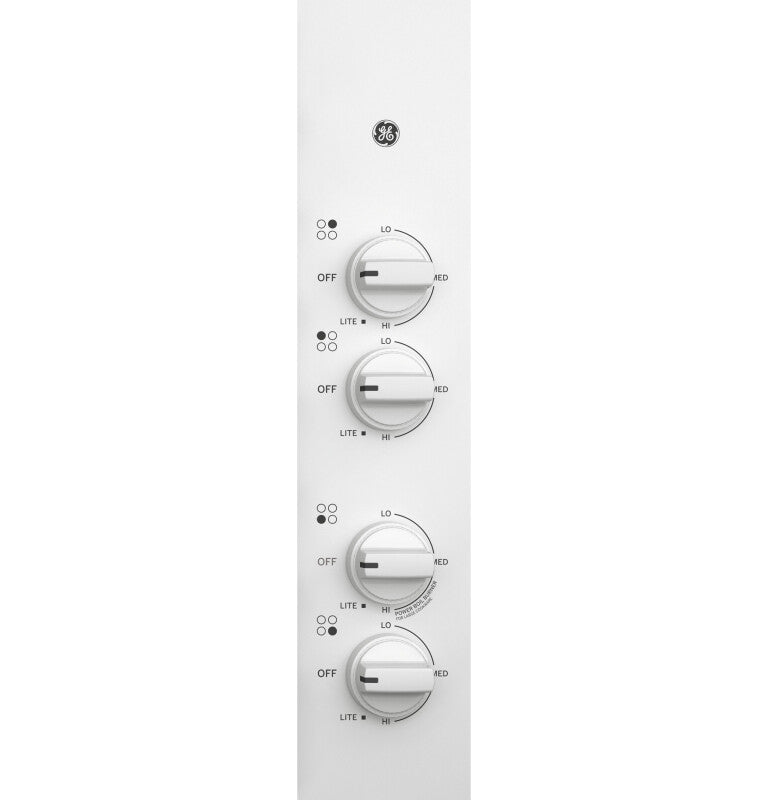

| Control Type | Knob |
| Cooktop Burner Grate Material | Standard Cast |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Burner - Left Front | 15,000 BTU Power Boil |
| Product Type | Cooktop |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | Deep Porcelain-Enamel |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
| Hertz | 60 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
| Electrical Requirements | 120V |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | White |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Gloss White |
| Control Knobs | Dishwasher Safe |
Certifications
California Prop 65
