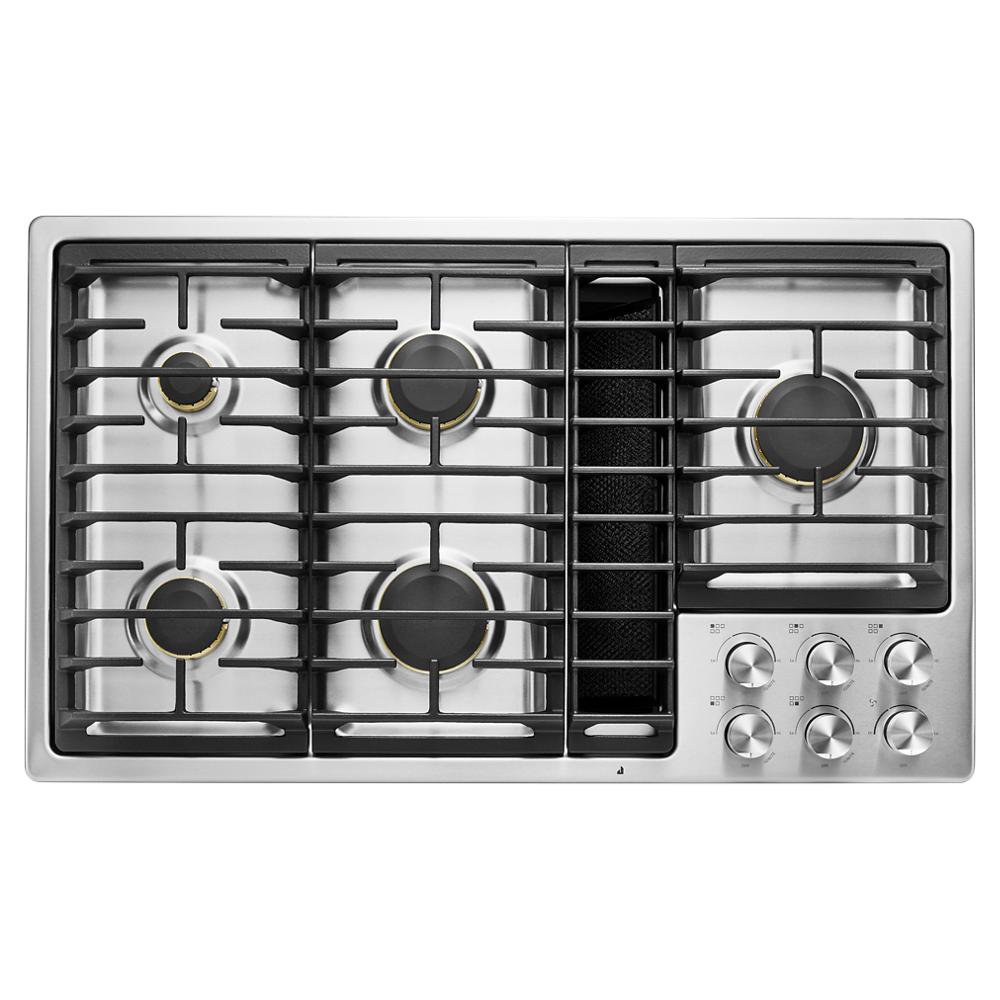

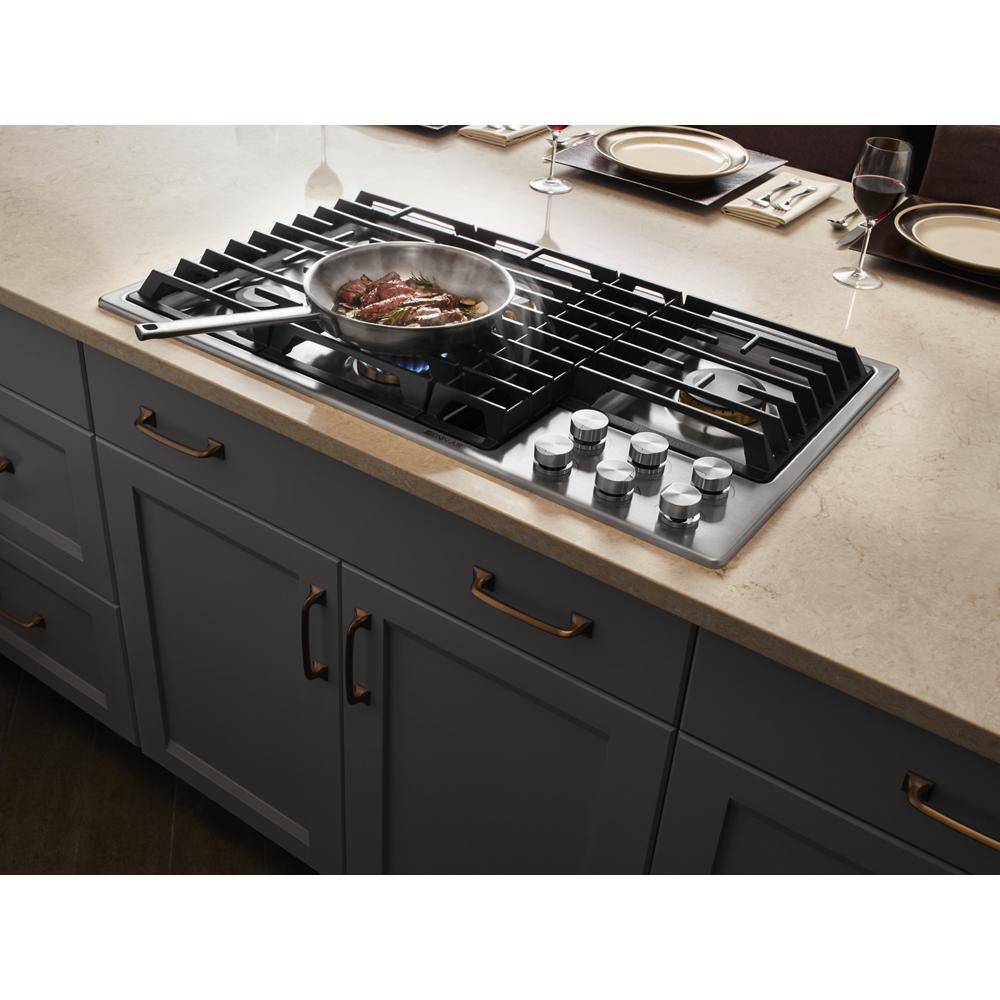

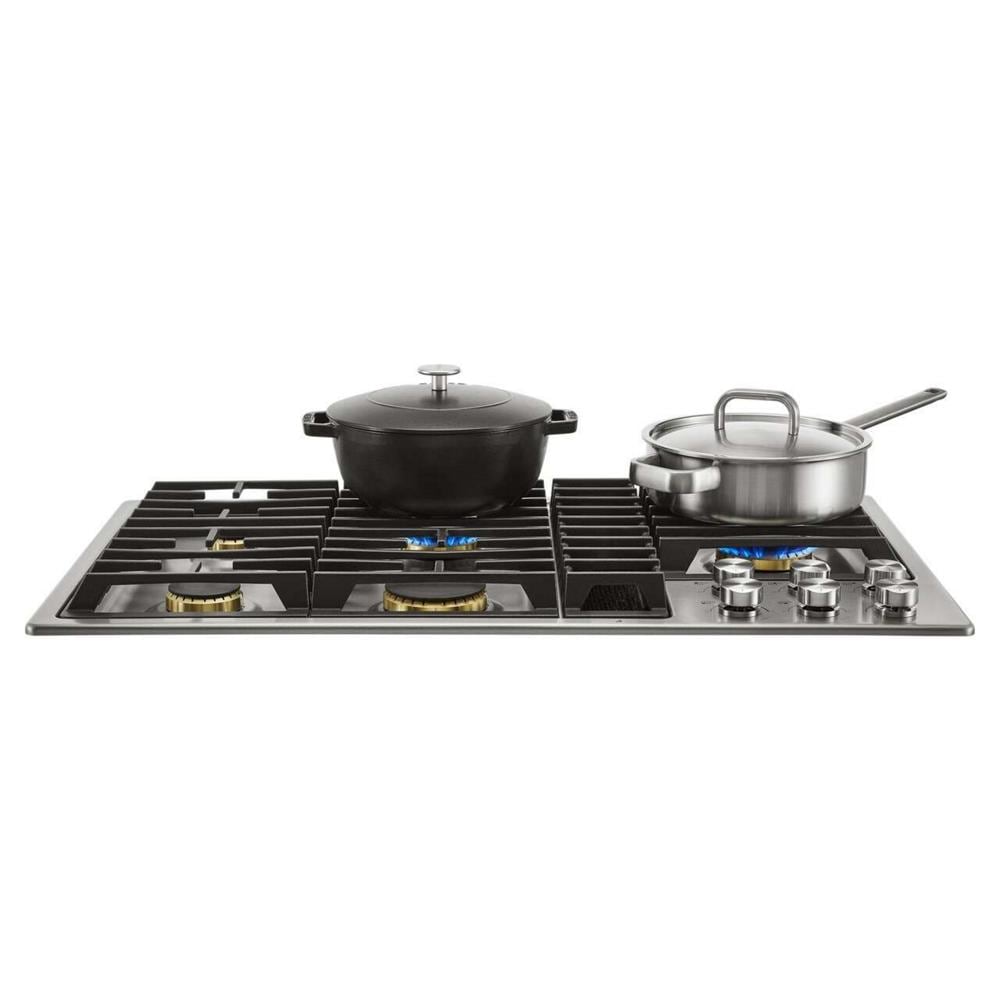

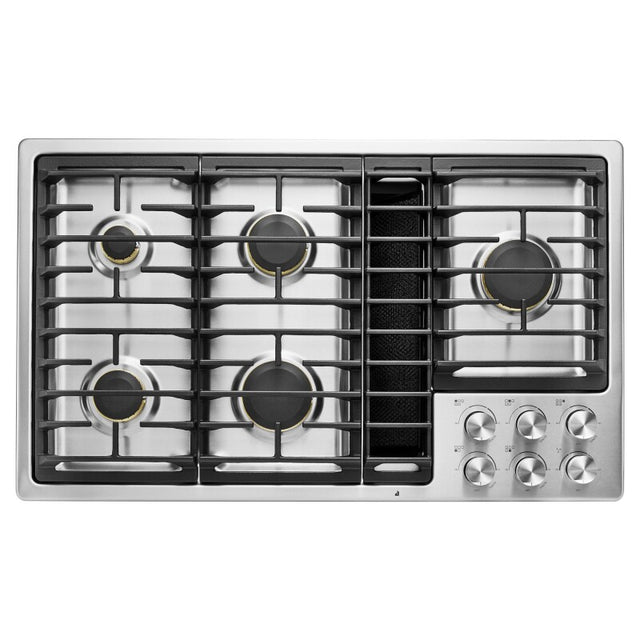

JennAir Euro-Style 36" JX3™ Gas Downdraft Cooktop - Stainless Steel (JGD3536GS)
SKU:
JGD3536GS
UPC: 883049414416
Regular price
$2,99900
Unit price
JennAir Euro-Style 36" JX3™ Gas Downdraft Cooktop - Stainless Steel (JGD3536GS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
JennAir Curate: 1H Up to 15% Instant Savings
GET UP TO 15% OFF IN INSTANT SAVINGS
Ends: 2026-06-30
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ 17,000 BTU Ultra-High Output Burner
- ✔ Brass Burners with Removable Base
- ✔ JX3™ Downdraft Ventilation System with 3 Speeds
- ✔ 5,000 BTU Ultra-Low Output Burner with Melt Cap
- ✔ DuraFinish™ Protection
- ✔ Convertible to Duct-Free Ventilation
JennAir Euro-Style 36" JX3™ Gas Downdraft Cooktop - Stainless...
Regular price
$2,99900
Unit price
SKU:
JGD3536GS
Regular price
$2,99900
Unit price
JennAir Euro-Style 36" JX3™ Gas Downdraft Cooktop - Stainless Steel (JGD3536GS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features

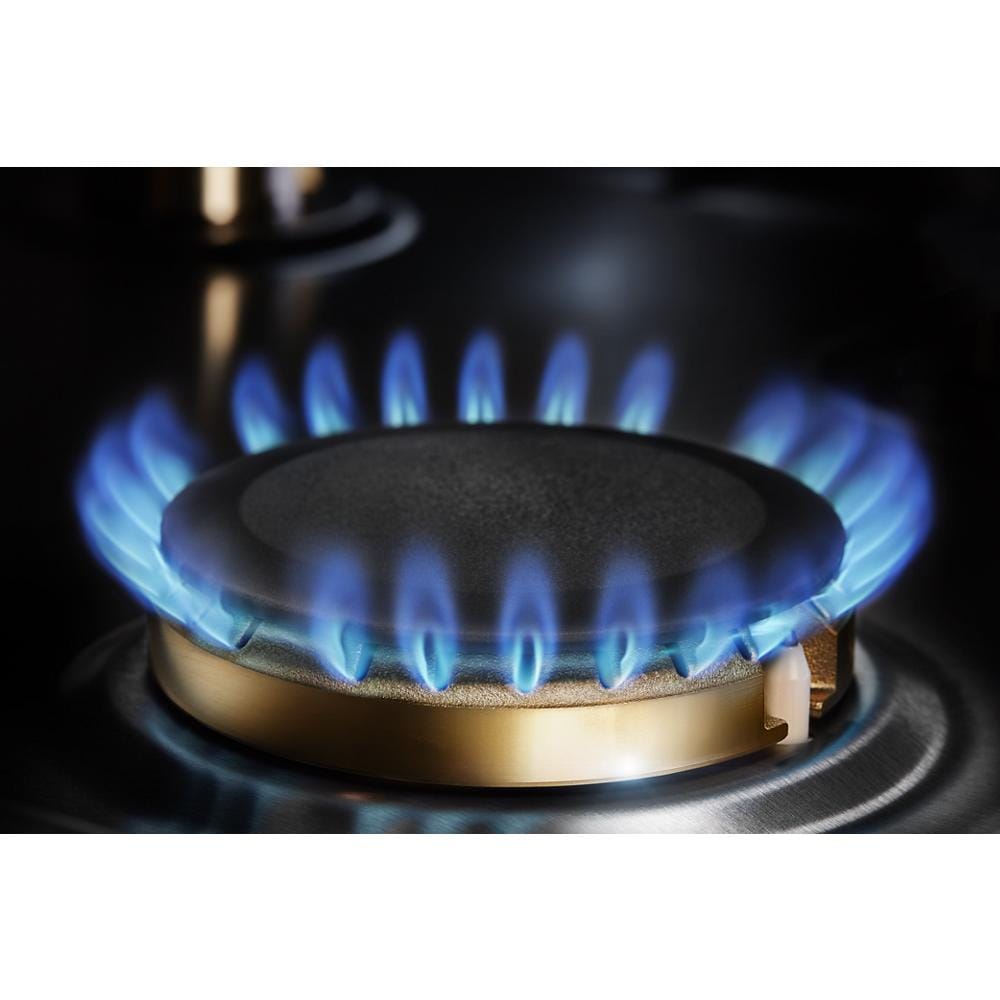

17,000 BTU Ultra-High Output Burner
Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.

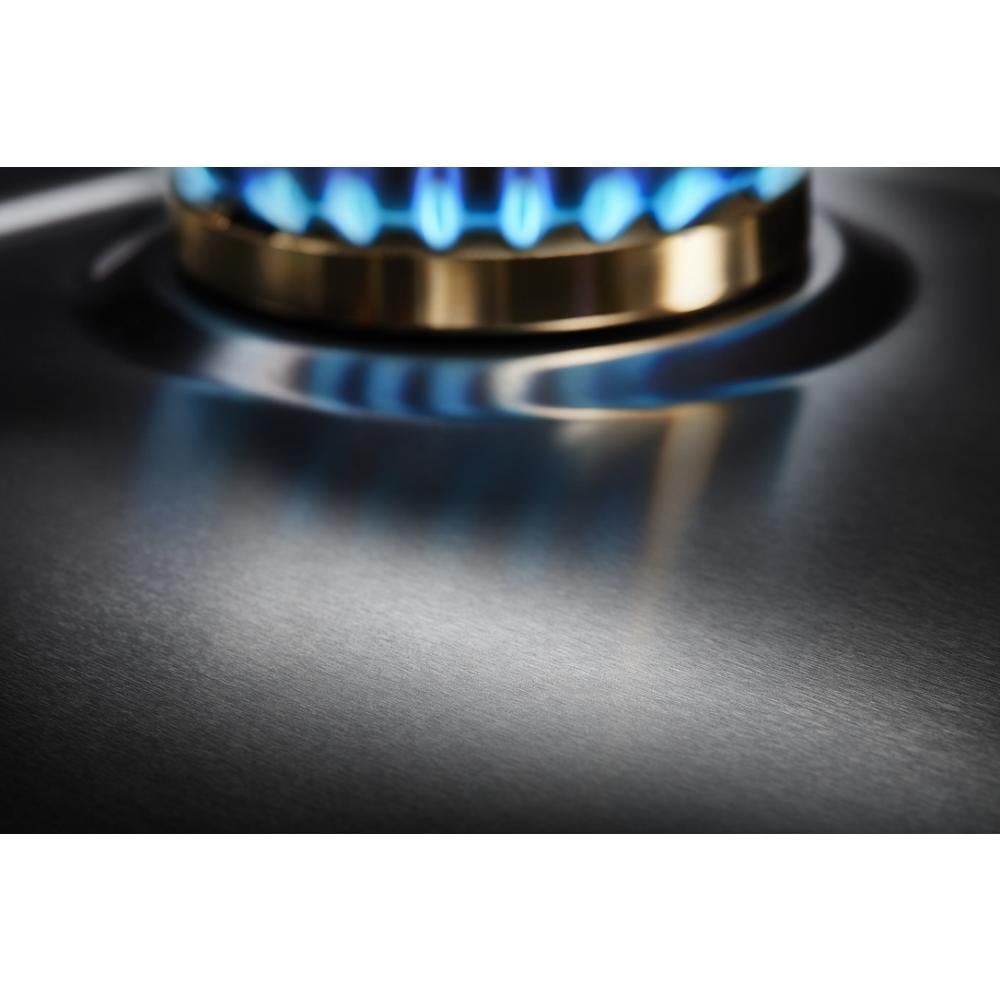

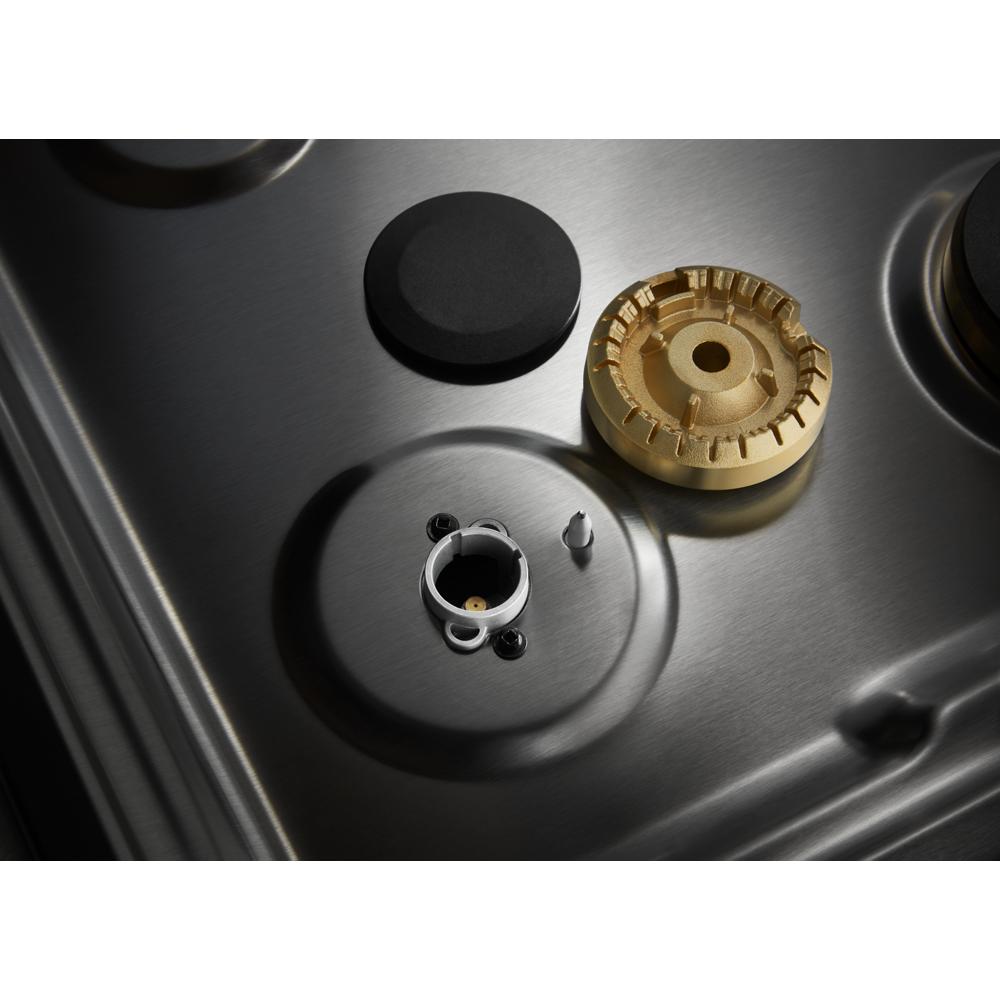

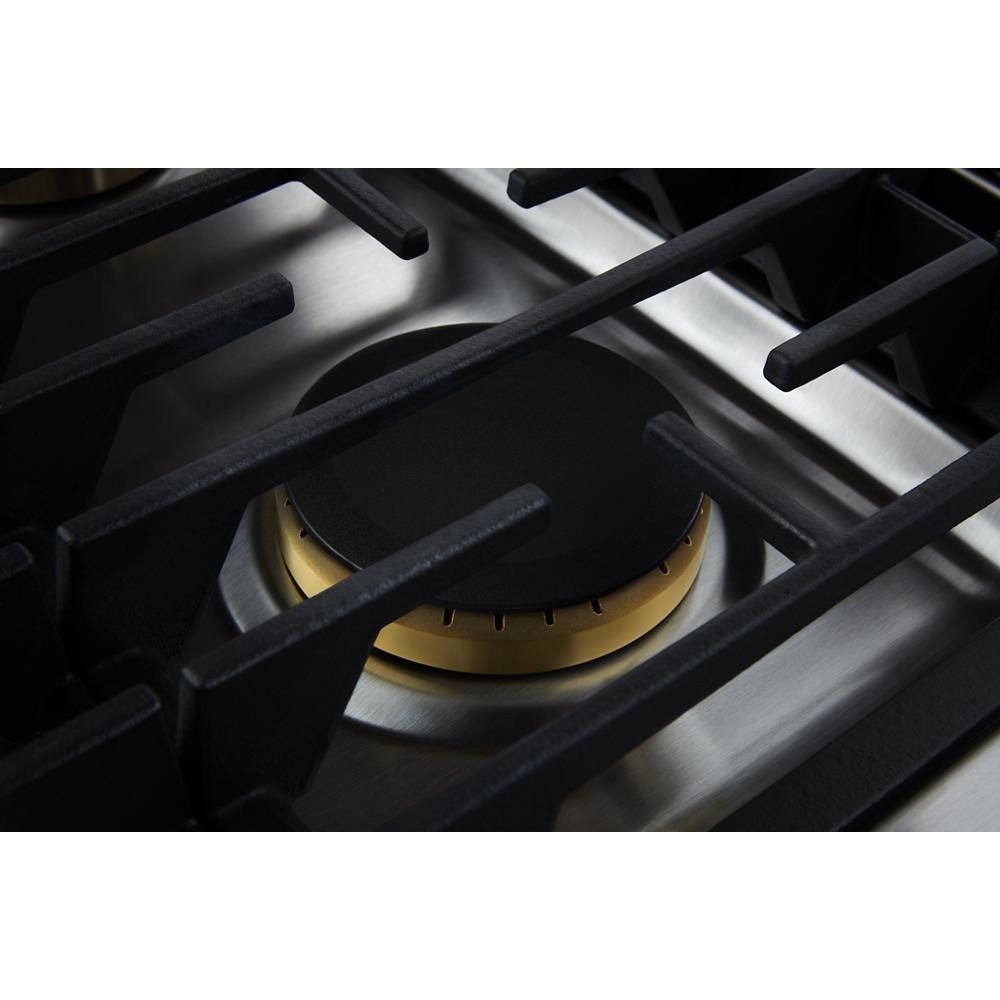

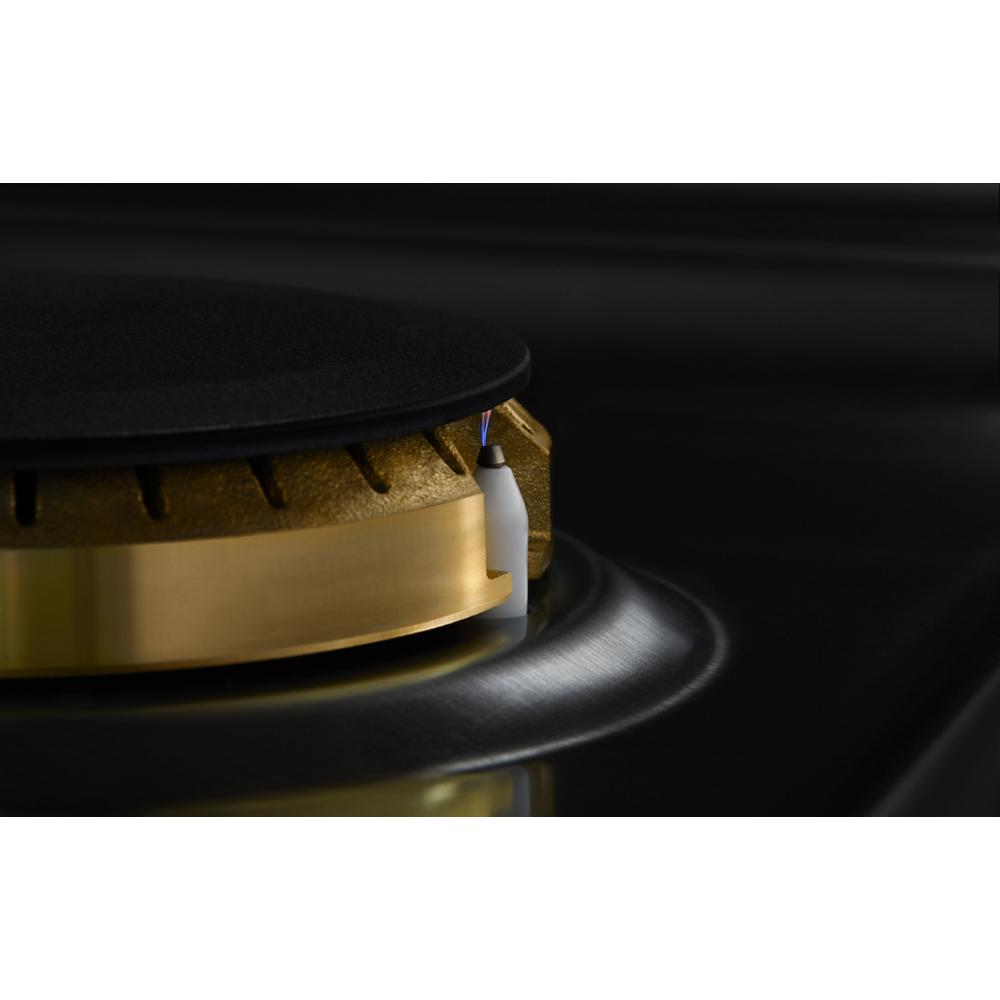

Brass Burners with Removable Base
Elegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.

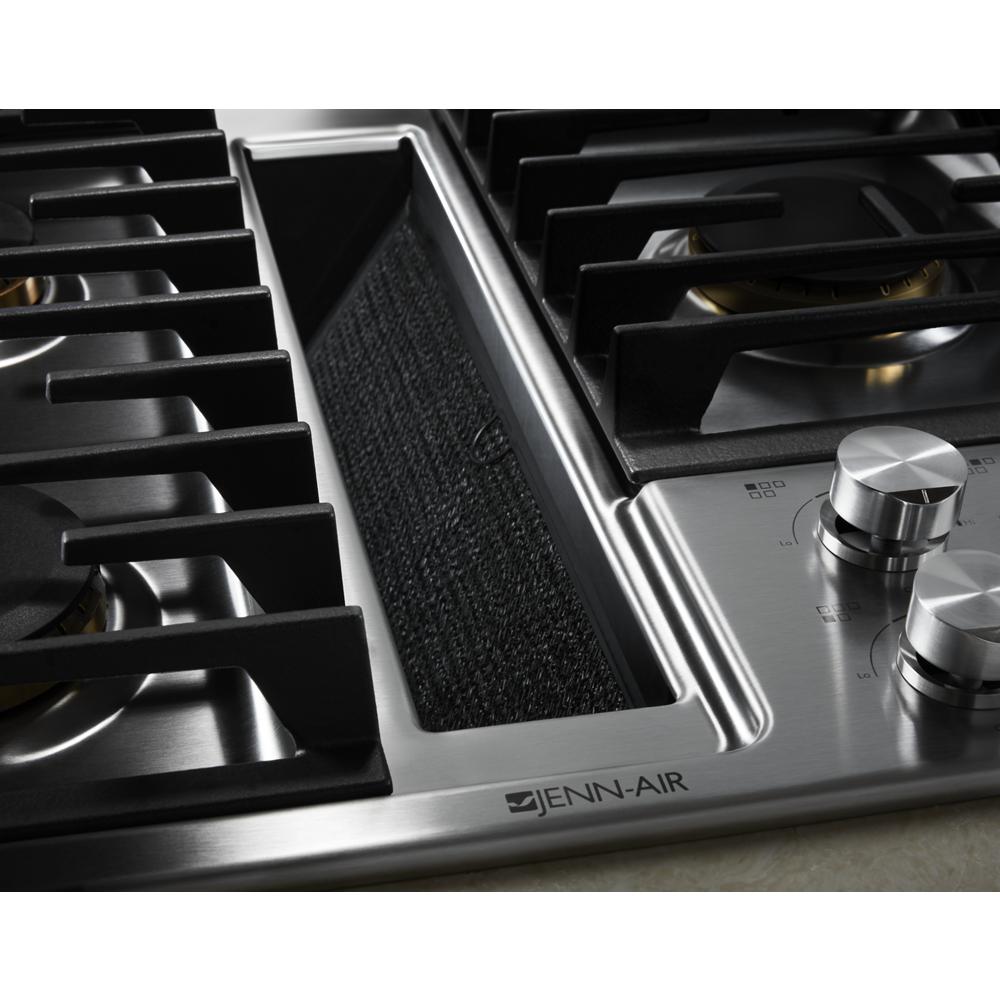

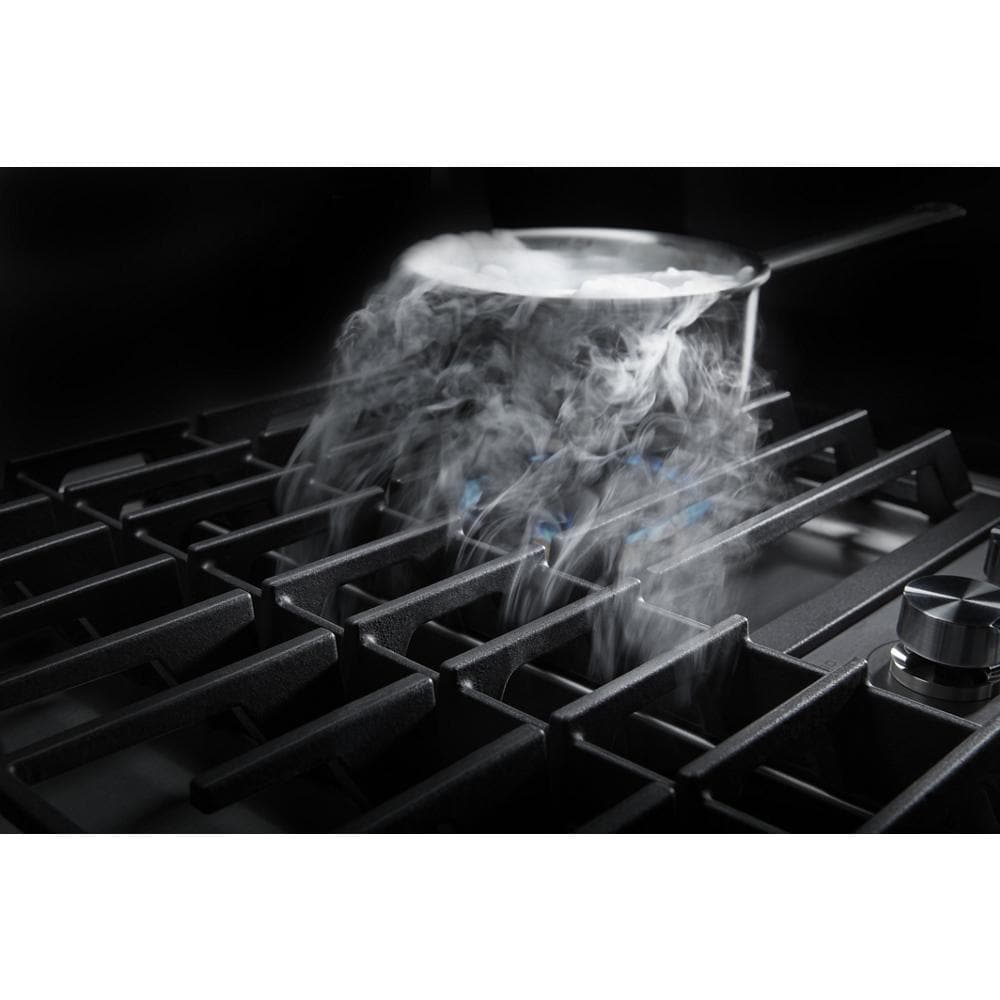

JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

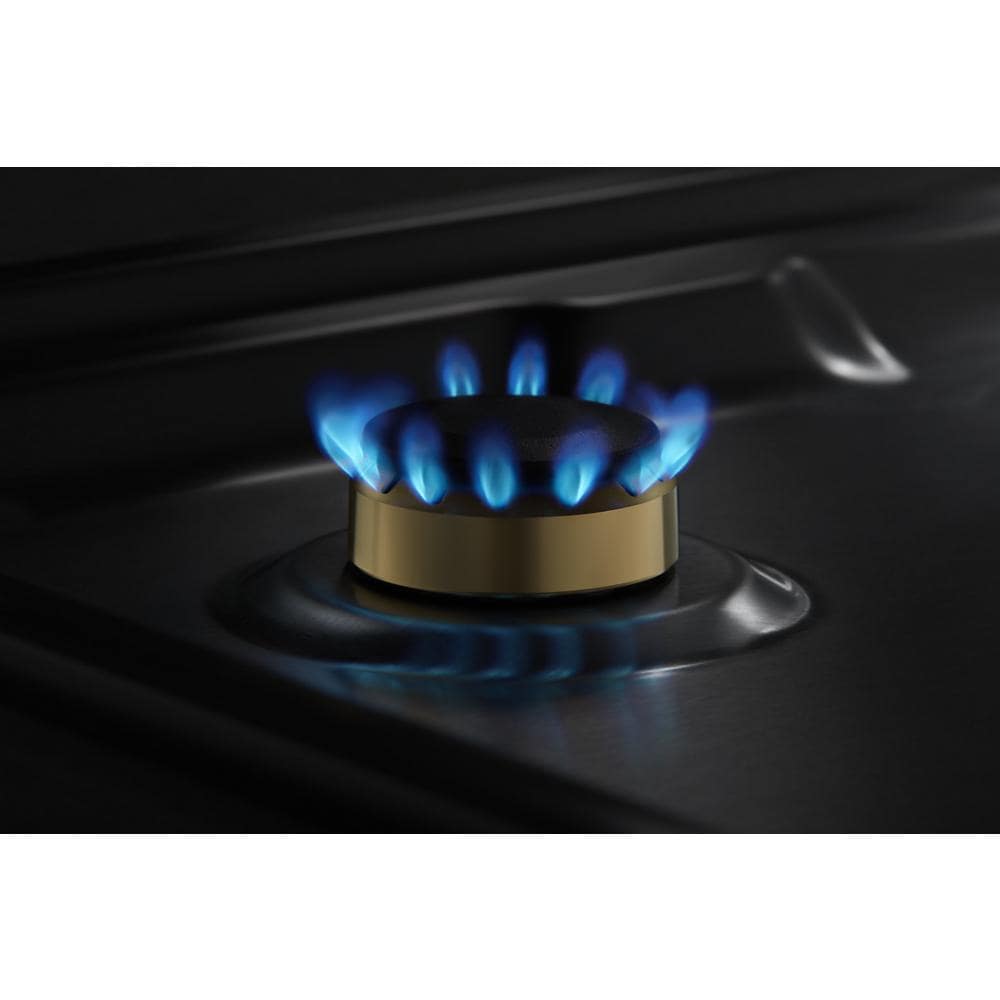

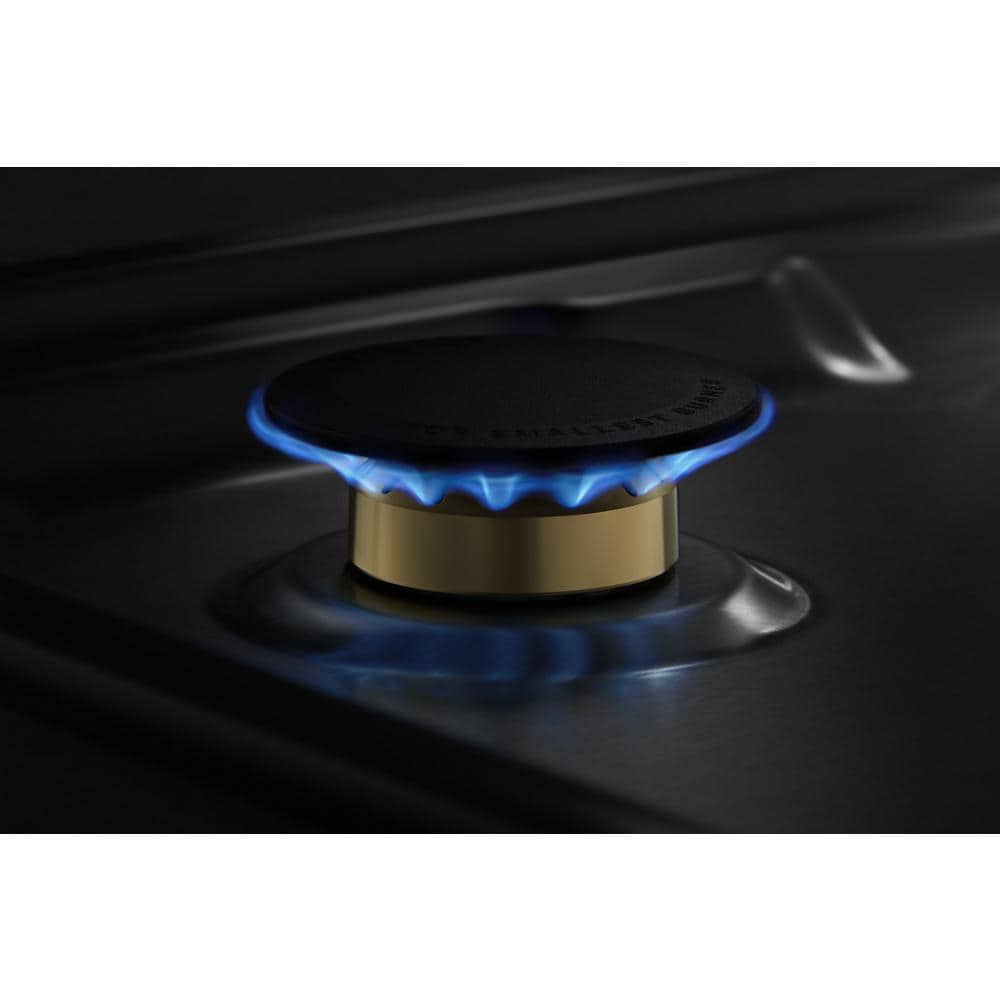

5,000 BTU Ultra-Low Output Burner with Melt Cap
Provides the optimal temperature for gently cooking delicate sauces and foods.
DuraFinish™ Protection
With excellence in every detail, DuraFinish™ Protection keeps your cooktops surface looking like new by resisting yellowing, staining, scratching and the most common effects of aging. Stainless steel models only
Convertible to Duct-Free Ventilation
Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Product Specifications
Cooktop Details
| Cooktop Surface Color | Stainless |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Installs Over Built-In Oven | No |
| Cooktop Selections | Convertible To Duct Free Ventilation, Melt Cap |
| Griddle Included | N/a |
| Ignition Type | Flame-sensing™ Re-ignition |
Electrical
| Amps | 15 |
| Volts | 120 |
| Watts | 60 |
| Power Cord Included | Yes |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 15.06 ft |
| Dimensional Weight | 187.25 lbs. |
| Total of Cubes | 15.06 ft |
| Total of Dimensional Weight | 187.25 lbs. |
Dimensions & Weight
| Width | 41.5 in. |
| Height | 23.78 in. |
| Length | 26.38 in. |
| Weight | 93.6 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 41 1/2 |

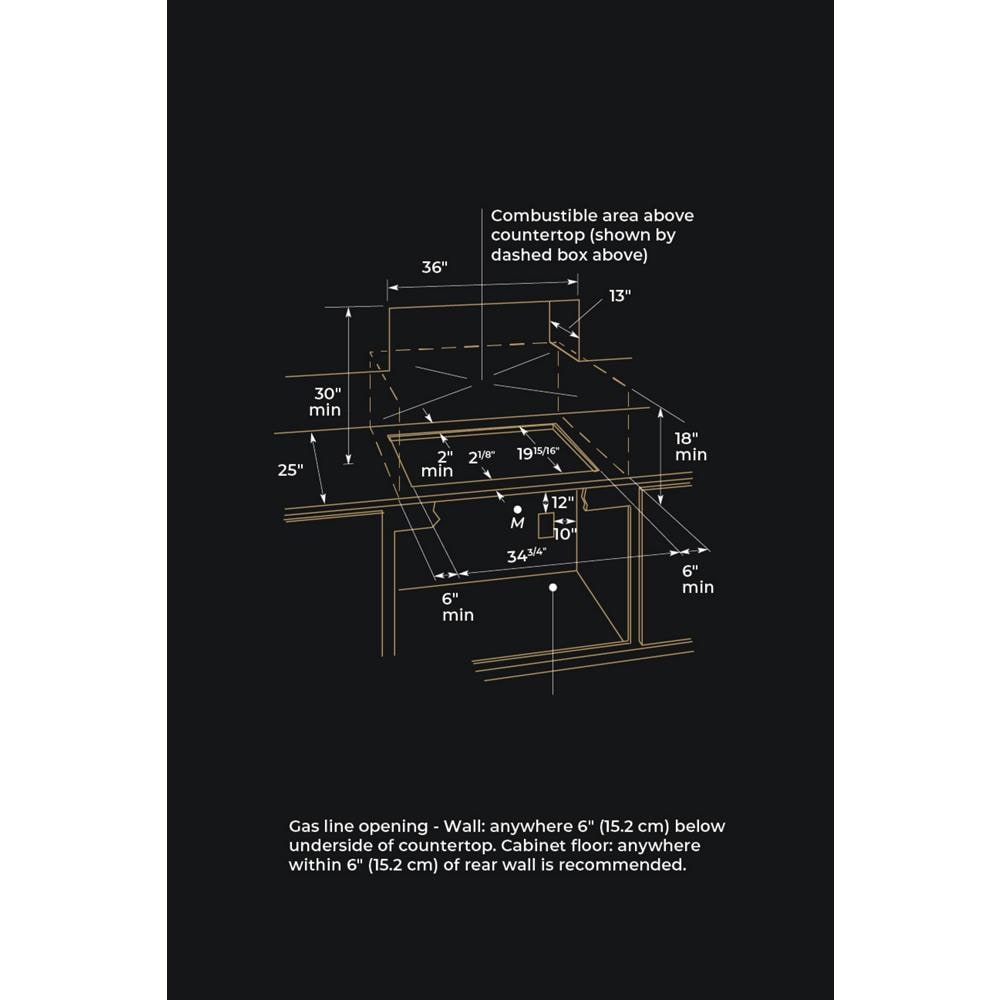

| Cutout Depth (in) | 19 15/16 |
| Cutout Height (in) | 4 |
| Cutout Width (in) | 34 3/4 |
| Gross Weight | 94 |
| Maximum Height | 17 7/16 |
| Net Weight | 80.6 |
| Gross Weight | 93.60000000000001 |
| Cutout Depth(IN,inches) | 19.9375 |
| Cutout Width(IN,inches) | 34.7500 |
| Depth(IN,inches) | 21.5000 |
| Maximum Height(IN,inches) | 17.4375 |
| Net Weight(LB,pounds) | 81 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 41.5000 |
| Cutout Height Min(IN,inches) | 4.0000 |
| Gross Weight(LB,pounds) | 94 |
| Cutout Depth | 19.938 |
| Cutout Width | 34.75 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 41.5 |
| gross weight | 93.6 |
| net weight | 80.6 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41.5 in. |
| Shipping Height | 23.81 in. |
| Shipping Length | 31.38 in. |
| Shipping Weight | 133.6 lbs. |
| Total of Shipping Weight | 133.6 lbs. |
| Source | Calculation |
Details
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Design Expression | Stainless Steel |
| Digital Display | No |
Certifications
| ADA Compliant | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Ventilation Details
| CFM Motor Class | 310 |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
Controls
| Control Location | Right Front |
| Control Type | Knobs |
| Number of Vent Speeds | 3 |
Element/Burner Details
| Center Front Element-Burner Type | Sealed Burner |
| Center Rear Element-Burner Type | Sealed Burner |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Downdraft |
| Left Front Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Rear Element-Burner Type | Sealed Burner |
| Automatic Pan Detection | No |
| Number of Grates | 4 |
| Center Front Element-Burner Power | 15,000 Btu |
| Center Rear Element-Burner Power | 12,500 Btu |
| Left Front Element-Burner Power | 10000 Btu |
| Left Rear Element-Burner Power | 5,000 Btu |
| Left Rear Element-Burner Type | Even-heat™ |
| Right Rear Element-Burner Power | 17,000 Btu |
Exterior Details
| Knob Color | Stainless Steel |
| Knob Type | Metal |

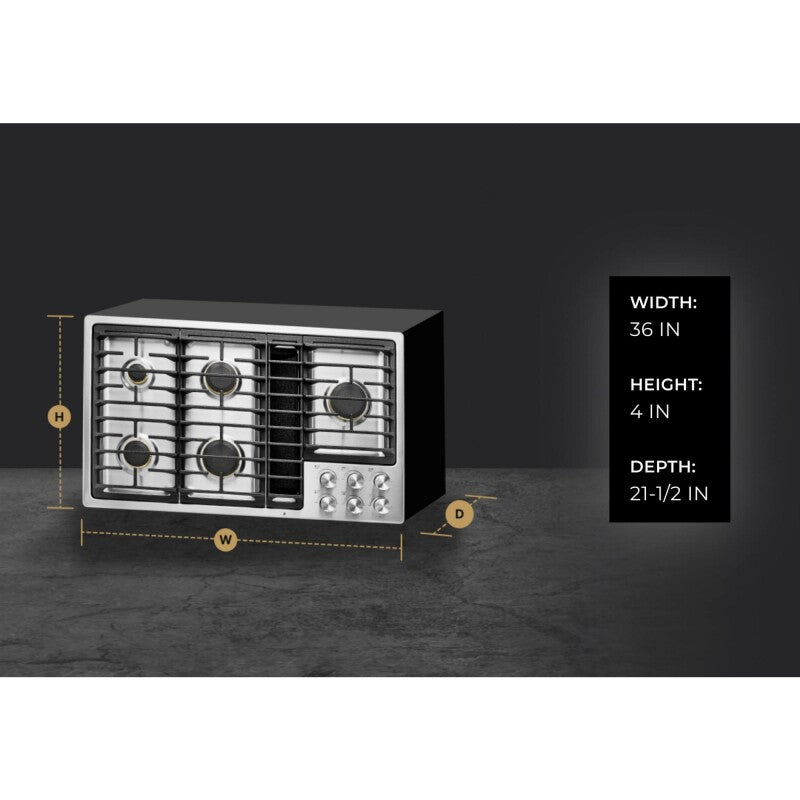

Dimensions
| Common Size | 36, 36 |
| Cutout Depth | 19-469/500 In |
| Cutout Width | 34-3/4 In |
| Depth | 21-1/2 In |
| Gross Weight | 93-3/5 Lbs |
| Height | 4 In |
| Maximum Height | 17-7/16 In |
| Net Weight | 80-3/5 Lbs |
| Width | 36 In |
Grate Details

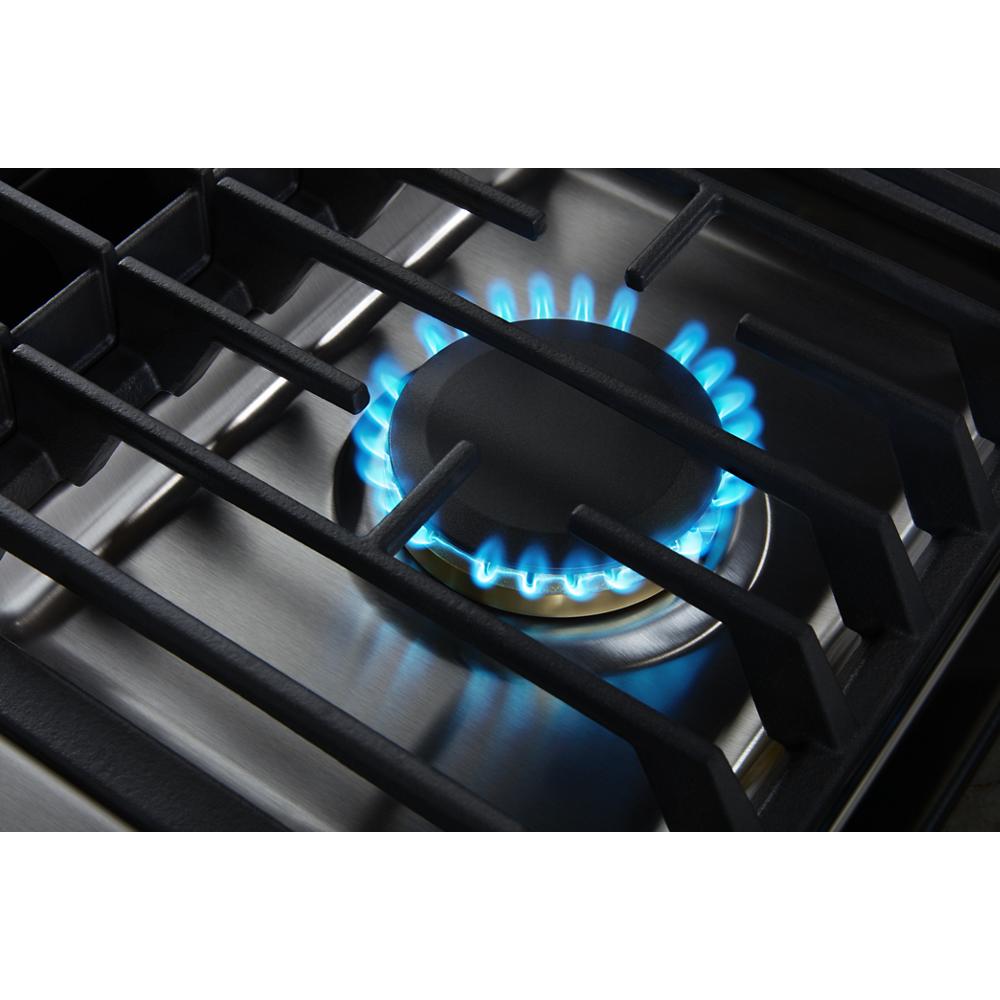

| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
Certifications
California Prop 65
