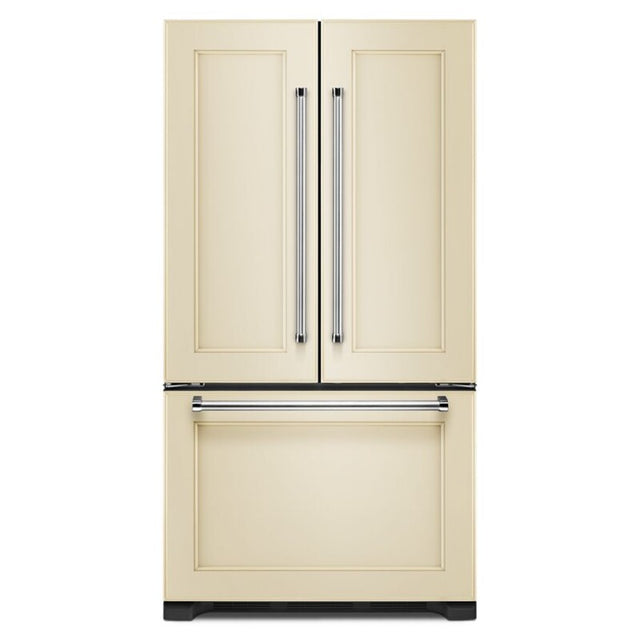

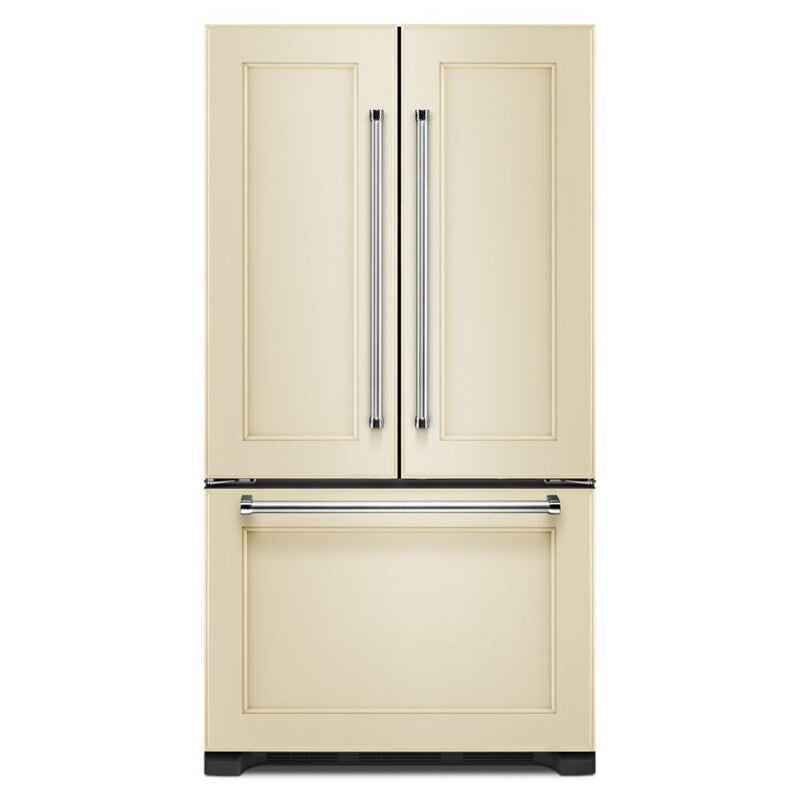

KitchenAid 22 cu. ft. 36-Inch Width Counter Depth Panel Ready with Interior Dispense French Door Refrigerator - Panel Ready (KRFC302EPA)

SKU: KRFC302EPA

UPC: 883049360959

Regular price $3,899.00

KitchenAid 22 cu. ft. 36-Inch Width Counter Depth Panel Ready with Interior Dispense French Door Refrigerator - Panel Ready (KRFC302EPA) is available for ordering but may require additional time to be fulfilled. Please contact us for details.

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • Overlay Panel-Ready
  • Metal Wine Rack
  • ExtendFresh Temperature Management System
  • Interior Water Dispenser
  • Produce Preserver
  • Humidity-Controlled Crispers
  • FreshChill Temperature-Controlled Full-Width Pantry
  • LED Lighting
  • Automatic Ice Maker
  • Max Cool

Documents

PDF Icon

Panel Installation Instructions

View | Download

PDF, 143.81 KB

PDF Icon

Energy Guide

View | Download

PDF, 106.22 KB

PDF Icon

Warranty

View | Download

PDF, 130.32 KB

PDF Icon

Dimension Guide

View | Download

PDF, 82.04 KB

PDF Icon

Quick Start Guide

View | Download

PDF, 703.37 KB

Product Features

Overlay Panel-Ready
Allows the refrigerator to be customized to match surrounding cabinets with custom panels and handles (not included).
Metal Wine Rack
provides a durable storage solution for up to four bottles of wine or 2-liter containers and can be removed for additional storage flexibility.
ExtendFresh Temperature Management System
Separately monitors the temperatures in the refrigerator and freezer through a sensor located in each, to help ensure fresh fruit juices don't become frozen and prawns avoid freezer burn.
Interior Water Dispenser
provides easy access to filtered water and is conveniently located for one-hand operation.
Produce Preserver
Absorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.
Humidity-Controlled Crispers
Provide a dedicated storage option with adjustable humidity levels. They let you select the high humidity that keeps romaine crisp, or the arid environment that helps figs and apricots stay fresh.
FreshChill Temperature-Controlled Full-Width Pantry
Provides a manual temperature setting that lets you maintain the freshness of ingredients as varied as a whole salmon or large eggplants.It gives you total control over of the amount of cool air that enters the drawer.
LED Lighting
Uses less energy than incandescent bulbs. Multiple lights are purposefully placed throughout the refrigerator and freezer, making it easy to find items at a glance.
Automatic Ice Maker
ensures a constant supply of ice on hand at all times for entertaining and everyday use.
Max Cool
Lets you use the touch of a button to drop refrigerator temperature to the coldest level, helping to chill groceries, beverages or ingredients for serving. After 24 hours, the temperature will automatically be restored to the previous setting.

Product Specifications

AHAM Volumes And Shelf Area

Freezer Volume (Cu Ft) 5.59
Refrigerator Volume (Cu Ft) 16.35

Description

Refrigerator Type French Door

Details

Cooling Type Single Evaporator
Counter Depth Yes

Exterior

Base Grille Color Black
Cabinet Color Black
Cabinet Finish Textured
Door Color Panel Ready
Door Finish Smooth
Door Style Flat
Hidden Hinge Yes
Number of Doors 3

Controls

Air Filter Indicator/Reset No
Automatic Defrost Yes
Control Location Interior Up Front
Control Lockout No
Control Type Electronic
Door Ajar/Open Alarm Yes
LCD Touch Screen No
Max Cool/Fast Cool Yes
Sabbath Mode Yes
Water Filter Indicator/Reset Yes

Specifications

Width Doors Open 90 Degrees 44.125
Humidity-Controlled Crispers 2 Half-Width
Accessory Relationships Yes
ExtendFresh Temperature Management System ExtendFresh Temperature Management System
FreshChill™ Temperature Controlled Full-Width Pantry FreshChill™ Temperature Controlled Full-Width Pantry
LED Lighting LED Lighting

Refrigerator Compartment

Number of Interior Shelves 5
Conventional Shelves 1 Fixed Full-Width Glass
Spill-Proof Glass Shelves 4 Adjustable Half Width
Shelf Supports Cantilever
Non Climate Control Drawers None
Pantry Drawer Yes
Deli Drawer No
Temperature-Controlled Drawers 1 Full Width Pantry
Door Bins 2 Fixed Full-Width Gallon, 4 Adjustable Gallon
Supplementary Containers Yes
Liner Finish White Glossy
Refrigerator Lighting LED

Freezer Compartment

Freezer Compartment Type Slide-Out Door 3 Tier
Freezer Door Type Pull-Out
Freezer Number of Shelves 0
Freezer Shelves None
Freezer Drawer/Basket 1 Full Width Middle Wire, 1 Full Width Lower Metal, 1 Half Width Upper Wire
Freezer Door Bins No
Freezer Lighting LED

Dispenser

Dispenser Type Interior Water Only
Dispenser Options Filtered Water
Types of Ice Cubed

Icemaker

Icemaker Factory Installed
Icemaker Location Freezer

Filters

Fresh Flow Air Filter Included No
Produce Preserver Yes
Water Filter Location Interior
Water Filter Part Number EDR4RXD1

Certifications

ADA Compliant No
CEE Tier Not Rated
Energy Rating (kWh/year) 633
Energy Star® Certified No
NSF/ANSI/CAN 61 Q 1
Prop 65 Standard
UL Yes
ULe Environmentally Preferred Certified Passed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards

Electrical

Amps 15
Hz 60
Volts 120

Compatibility

Connectivity No
Works With No

Configuration

Door Style Configuration French Door
Installation Configuration Freestanding
Refrigeration Configuration Refrigerator

Other

Capacity (Cu Ft) 21.94

Dimensions & Weight

Width 35.75 in.
Height 72 in.
Length 30.25 in.
Weight 360 lbs.
Cabinet Width (in) 35 5/8
Carton Depth 32 1/2
Carton Height 74 1/2
Carton Width 39 1/2
Cutout Height (in) 72
Cutout Width (in) 36
Depth Closed Excluding Handles 27 3/4
Depth Closed Including Handles 30 1/4
Depth Excluding Doors 24 5/8
Depth With Door Open 90 Degree 44 1/8
Gross Weight 360
Height To Top Of Cabinet 71 3/8
Height To Top Of Door Hinge 72
Net Weight 0.0
Cabinet Width (IN,inches) 35.6250
Cutout Height(IN,inches) 72.0000
Cutout Width(IN,inches) 36.0000
Depth Closed Excluding Handles(IN,inches) 27.7500
Depth Closed Including Handles(IN,inches) 30.2500
Depth Excluding Doors(IN,inches) 24.6250
Depth With Door Open 90 Degree(IN,inches) 44.1250
Height To Top Of Cabinet(IN,inches) 71.3750
Height To Top Of Door Hinge(IN,inches) 72.0000
Carton Depth(IN,inches) 32.5000
Carton Height(IN,inches) 74.5000
Carton Width(IN,inches) 39.5000
Cutout Height Min(IN,inches) 72.0000
Gross Weight(LB,pounds) 360

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width 40.75 in.
Shipping Height 77 in.
Shipping Length 35.25 in.
Shipping Weight 400 lbs.
Total of Shipping Weight 400 lbs.
Source Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement 45.06 ft
Dimensional Weight 560.17 lbs.
Total of Cubes 45.06 ft
Total of Dimensional Weight 560.17 lbs.
