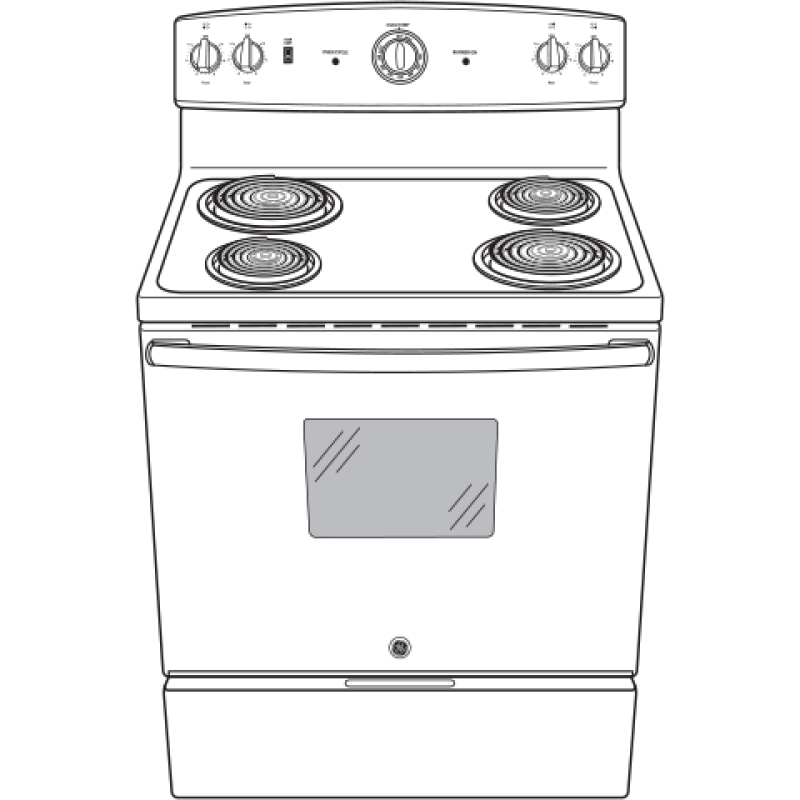

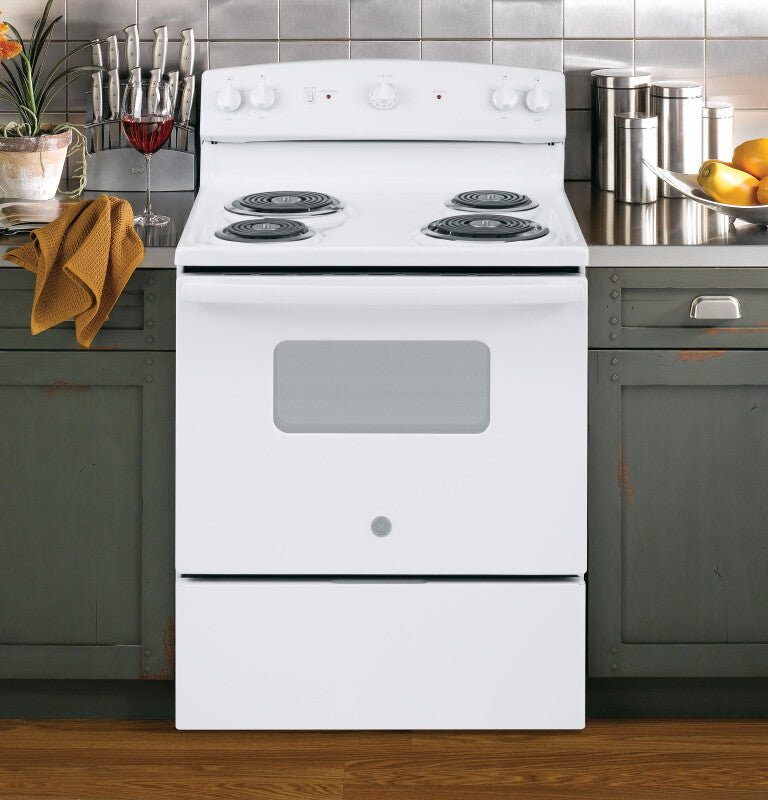

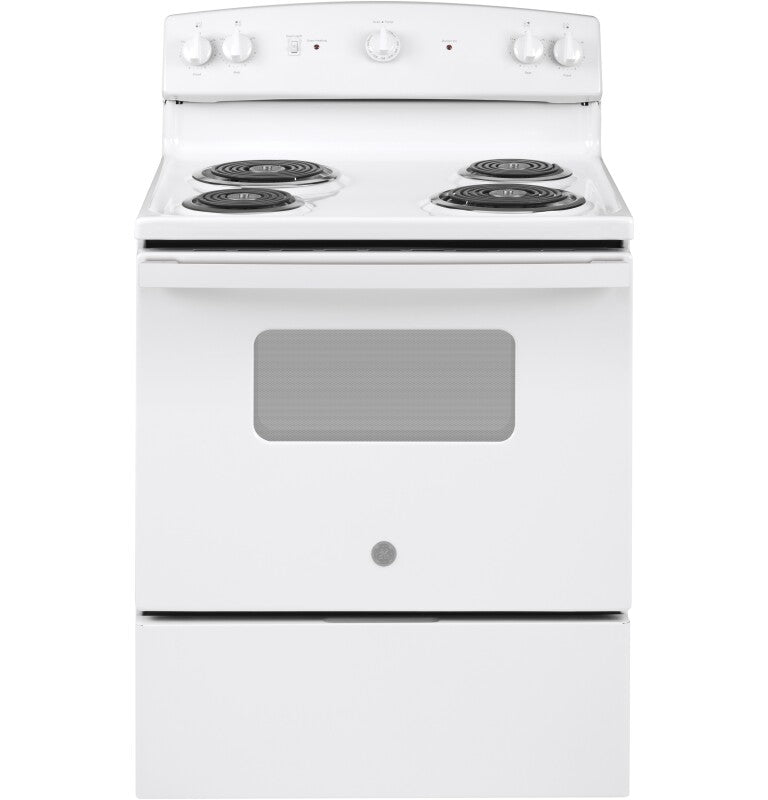

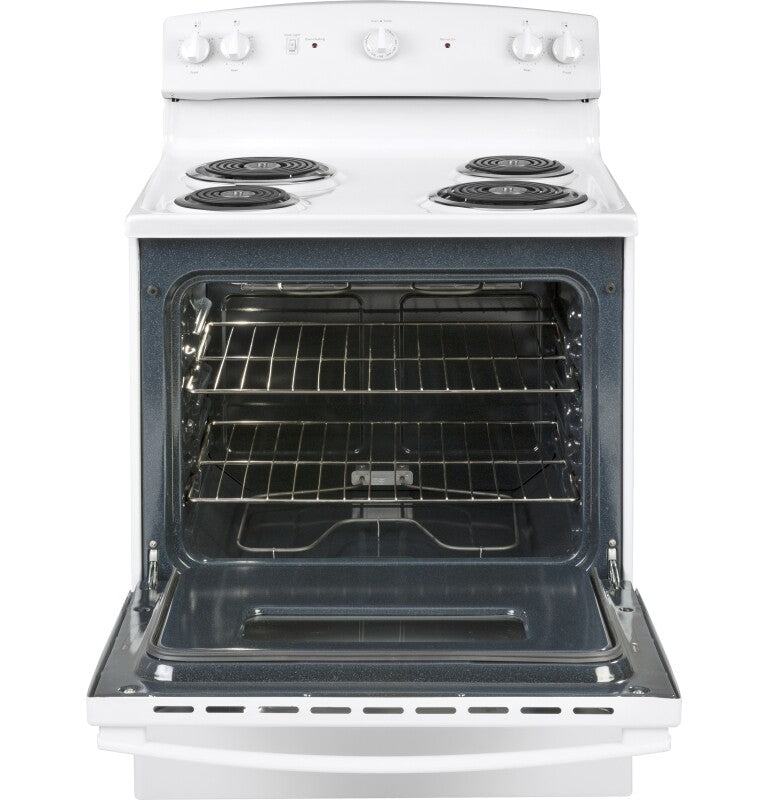

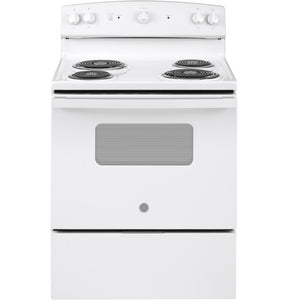

GE 30" Free-Standing Electric Range - White (JBS160DMWW)
SKU:
JBS160DMWW
UPC: 84691829126
Regular price
$69900
Unit price
GE 30" Free-Standing Electric Range - White (JBS160DMWW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ 5.0 cu. ft. oven capacity
- ✔ Standard clean oven
- ✔ Sensi-temp technology
- ✔ Dual-element Bake
- ✔ Removable full-width storage drawer
Documents
GE 30" Free-Standing Electric Range - White (JBS160DMWW)
Regular price
$69900
Unit price
SKU:
JBS160DMWW
Regular price
$69900
Unit price
GE 30" Free-Standing Electric Range - White (JBS160DMWW) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
Smooth surface and rounded corners make clean-up quick and easy.Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety.47 H x 30 W x 29 D
Smooth surface and rounded corners make clean-up quick and easy.Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety.47 H x 30 W x 29 D
Smooth surface and rounded corners make clean-up quick and easy.Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety.47 H x 30 W x 29 D
Product Features

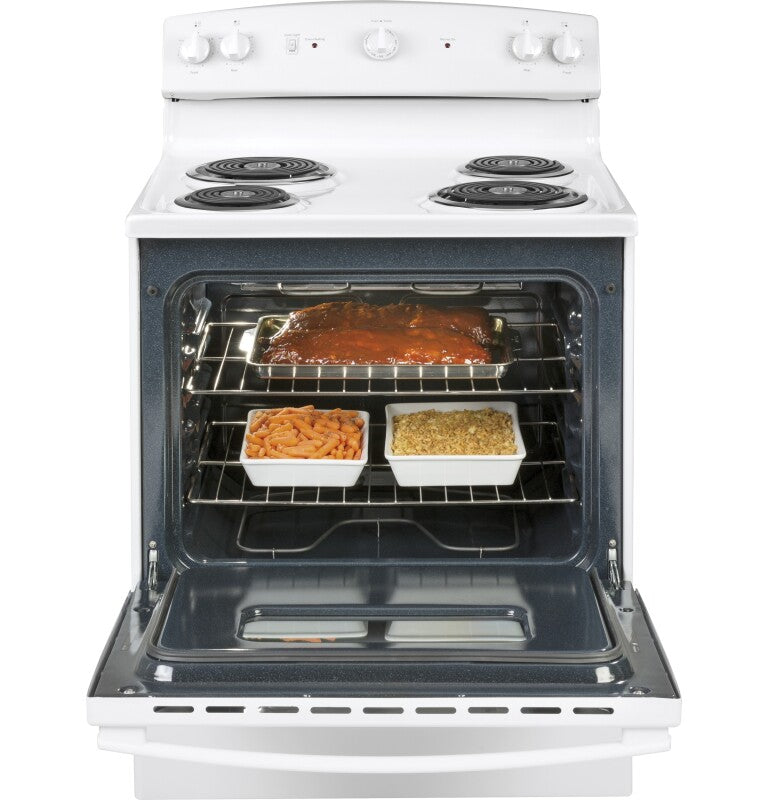

5.0 cu. ft. oven capacity
Cook more dishes at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
Dual-element Bake
Upper and lower elements produce even heat and great results
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

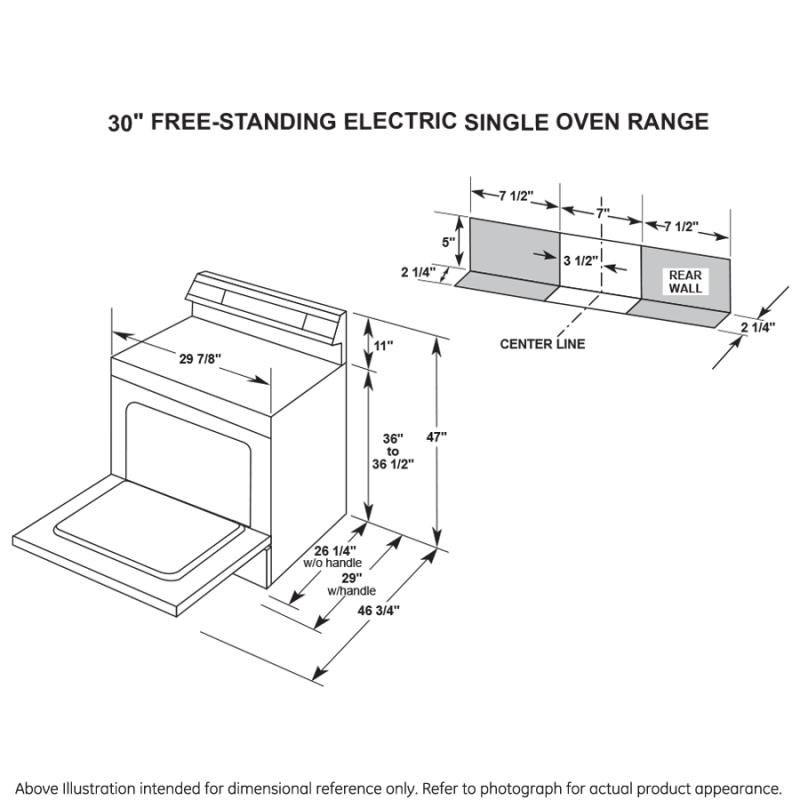

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 47 in |
| Overall Depth | 29 in |
| Net Weight | 130 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 150 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 29 in. |
| Weight | 130 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 34 in. |
| Shipping Weight | 170 lbs. |
| Total of Shipping Weight | 170 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.66 ft |
| Dimensional Weight | 294.17 lbs. |
| Total of Cubes | 23.66 ft |
| Total of Dimensional Weight | 294.17 lbs. |
FEATURES
| Cooking System | Traditional |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | 1 Incandescent Light |
| Oven Control Features | Oven "ON" Light |
| Lift-Up Cooktop With Support Rods | Yes |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1250W Temp Limiting Coil |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |

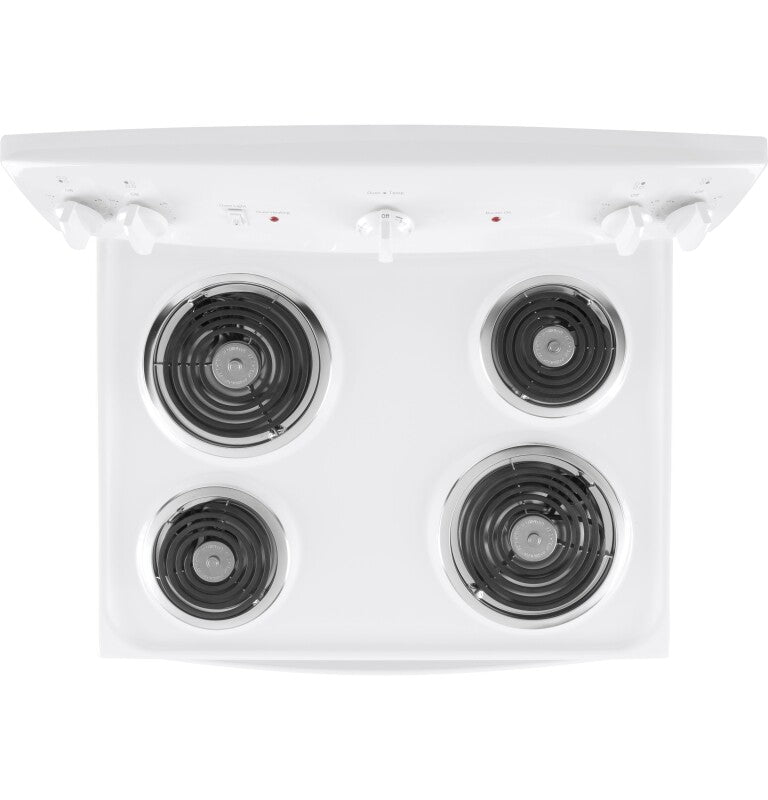

| Cooktop Type | Coil |
| Fuel Type | Electric |
| Element - Right Front | 8" 2400W Temp Limiting Coil |

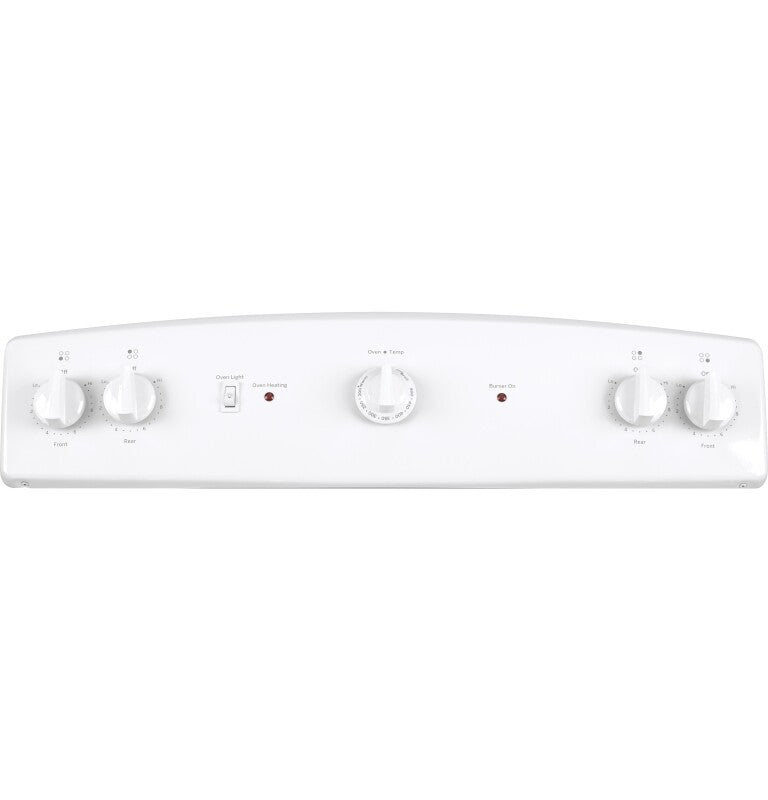

| Control Location | Backsplash |
| Control Type | Rotary knobs |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Element - Left Rear | 8" 2400W Temp Limiting Coil |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Oven Features | 4-Pass Broil Element |
| Removable One-Piece Drip Bowls | Chrome |
| OU Certified | No |
| Cooktop Burner Type | Coil |
| Element - Right Rear | 6" 1250W Temp Limiting Coil |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Cooktop Surface | One-Piece Upswept |
| Oven Features | 4-Pass Bake Element |
APPEARANCE
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Small Window |
| Handle Color | White |
| Control Knobs | White |
| Color Appearance | White |
| Oven Door Features | Metal Door |
POWER / RATINGS
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 11.5 |
| Bake Wattage | 2585W |
| Hertz | 60 |
| KW Rating at 208V | 8.8 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
Certifications
California Prop 65
