$319.00 off

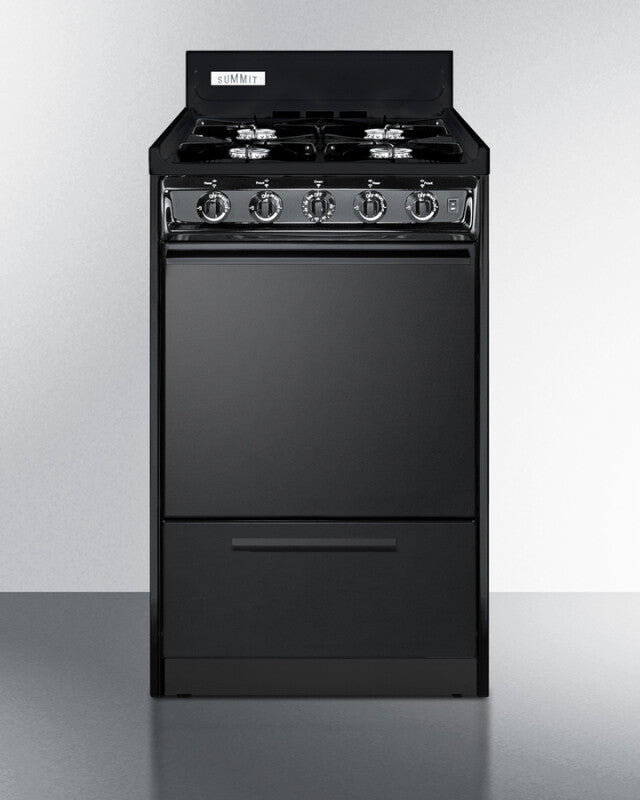

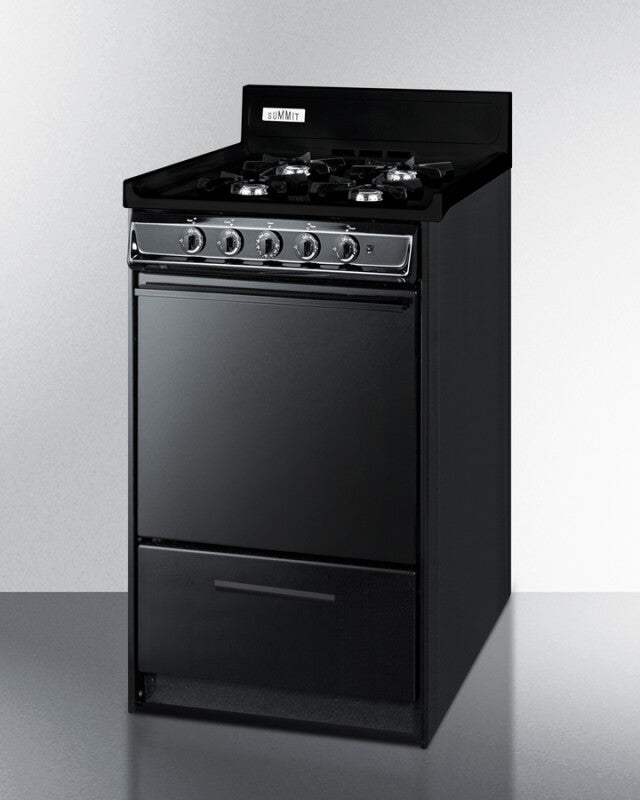

SUMMIT 20" Wide Gas Range, Open Burners - Other (TNM1107C)
SKU:
TNM1107C
UPC: 761101054070
Sale price
$84600
Regular price
$1,16500
Unit price
SUMMIT 20" Wide Gas Range, Open Burners - Other (TNM1107C) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Four open burners
- ✔ Slim 20 inch width
- ✔ Made in the USA
- ✔ 24 inch depth
- ✔ Electronic ignition
- ✔ Drop-down broiler compartment
- ✔ Designed for natural gas
- ✔ Recessed oven door
- ✔ Upfront controls
- ✔ ADA compliant design
- ✔ Adjustable oven racks
- ✔ Removable oven door and range top
- ✔ Porcelain and steel construction
- ✔ Anti-tip bracket included
- ✔ Broiler pan included
- ✔ Black exterior finish
SUMMIT 20" Wide Gas Range, Open Burners - Other (TNM1107C)
Sale price
$84600
Regular price
$1,16500
Unit price
SKU:
TNM1107C
Sale price
$84600
Regular price
$1,16500
Unit price
SUMMIT 20" Wide Gas Range, Open Burners - Other (TNM1107C) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features
Four open burners
9000 BTU burners with built-in enamel grates to meet most cooking needs
Slim 20 inch width
Apartment-sized width offers all the functionality you need in a smaller footprint
Made in the USA
Designed and constructed domestically
24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens
Electronic ignition
Spark ignition system with a pre-installed 115V 3-prong cord
Drop-down broiler compartment
Lower compartment for separate broiling with even heat distribution
Designed for natural gas
Set for use with natural gas connection. To convert for propane use, add Kit LP
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Upfront controls
Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

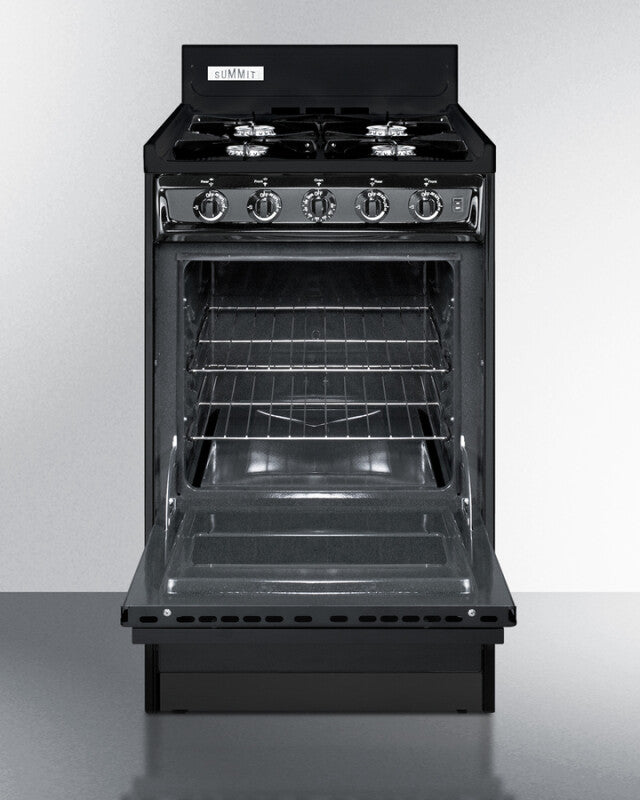

Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Removable oven door and range top
Porcelain oven door and top can be removed for easier cleaning
Porcelain and steel construction
Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use
Anti-tip bracket included
Included for user installation to help prevent tipping
Broiler pan included
Two-piece porcelain broiler tray with grease well
Black exterior finish
Jet black finish brings a modern look to smaller kitchen spaces
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview
| Nominal Height | 40.0" (102 cm) |
| Height of Cabinet | 40.0" (102 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 20.0" (51 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101054070 |
Gas Range
| Ignition | Spark |
| LP Convertible | With Kit LP Accessory |
| Oven Capacity | 2.46 cu.ft |
| Cooktop Surface | Porcelain |
| Burner Type | Open |
| Number of Burners | 4 |
| Burner #1 BTU | 9000.0 |
| Burner #2 BTU | 9000.0 |
| Burner #3 BTU | 9000.0 |
| Burner #4 BTU | 9000.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 16.0" (41 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Broiler Location | Below Oven |
| Broiler Door | Black |
| Oven Door | Black |
Dimensions & Weight
| Width | 20 in. |
| Height | 40 in. |
| Length | 24 in. |
| Weight | 140 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25 in. |
| Shipping Height | 45 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 180 lbs. |
| Total of Shipping Weight | 180 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.11 ft |
| Dimensional Weight | 138.13 lbs. |
| Total of Cubes | 11.11 ft |
| Total of Dimensional Weight | 138.13 lbs. |
Certifications
California Prop 65
