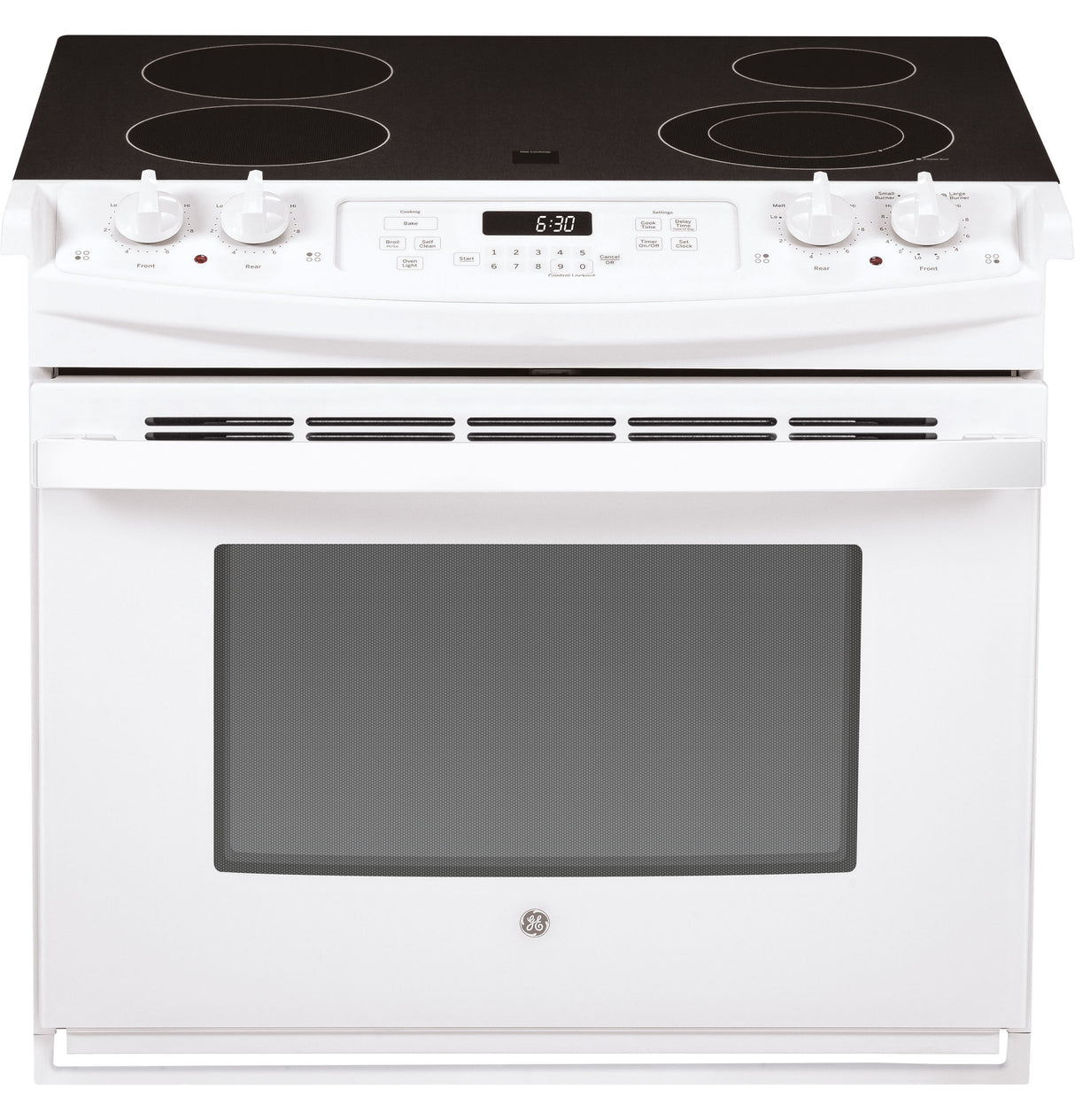

GE APPLIANCES GE(R) 30" Drop-In Electric Range - (JD630DTWW)

Product Specifications

Color Appearance	White on White
Control Knobs	Weighted<br/> White
Handle	Designer Style
Handle Color	White
Installation	Flush Appearance
Oven Door Features	Big View Oven Window<br/> Glass Door
Total Capacity (cubic feet)	4.4
Control Location	Front
Control Type	Digital Temperature Display<br/> Electronic<br/> Touchpads
Cooking Technology	Traditional
Cooktop Burner Type	Radiant<br/> Smoothtop
Cooktop Surface	Overhanging Cooktop<br/> White Patterned Ceramic Glass
Cooktop Type	Radiant Smoothtop
Element - Left Front	8" 2000W
Element - Left Rear	8" 2000W
Element - Right Front	9"/6" 3000W Power Boil
Element - Right Rear	6" 1200W
Fuel Type	Electric
Heating Element "ON" Indicator Light	2
Hot Surface Indicator Lights	4
Interior Oven Light	1 Incandescent
Melt Setting	Yes
OU Certified	No
Oven Cleaning Type	Self-Clean
Oven Control Features	Audible Preheat Signal<br/> Auto Oven Shut-Off with Override<br/> Certified Sabbath Mode<br/> Control Lock Capability<br/> C° or F° Programmable<br/> Delay Bake Option With Cook & Hold<br/> Electronic Clock & Kitchen Timer
Oven Features	6-Pass Bake Element<br/> 6-Pass Broil Element
Oven Rack Features	2 Oven Racks
Oven Rack Positions (Single or Upper/Lower)	7
Power Boil Burner	Yes
Product Type	Drop-In
Sabbath Mode	Yes
Self-Clean Oven Door Lock	Automatic
Amp Rating at 208V	40
Amp Rating at 240V	40
Bake Wattage	3410W
Broiler Wattage	3420W
Electrical Requirements	208/240V ; 60Hz ; 40A
KW Rating at 208V	8.9
KW Rating at 240V	11.9
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Approximate Shipping Weight	179
Cabinet Opening	30
Cabinet Width	30
Cooktop Width	31.25
Depth with Door Open	44.625
Depth Without Handle	25.75
Net Weight	152
Oven Interior Dimensions (W x H x D) (in.)	24 x 17-1/2 x 18-1/4
Overall Depth	28.5
Overall Height	27
Overall Width	31.25

Product Specifications

Product Specifications

• Claim: ADA Compliant
• Data_ID: 1
• Claim: UL
• Data_ID: 2
• Claim: MADE IN AMERICA: 70 to 90% U.S. Content
• Data_ID: 3
• Claim: California Prop 65
• Data_ID: 4
• Claim: <div class="chemicals-link"><a href="https://www.geappliances.com/chemical-reports" target="_blank">View Chemical Content Reports</a></div>
• Data_ID: 5
• <div class="chemicals-link"><a href="https://www.geappliances.com/chemical-reports" target="_blank">View Chemical Content Reports</a></div>
• ADA Compliant
• California Prop 65
• MADE IN AMERICA: 70 to 90% U.S. Content
• UL
