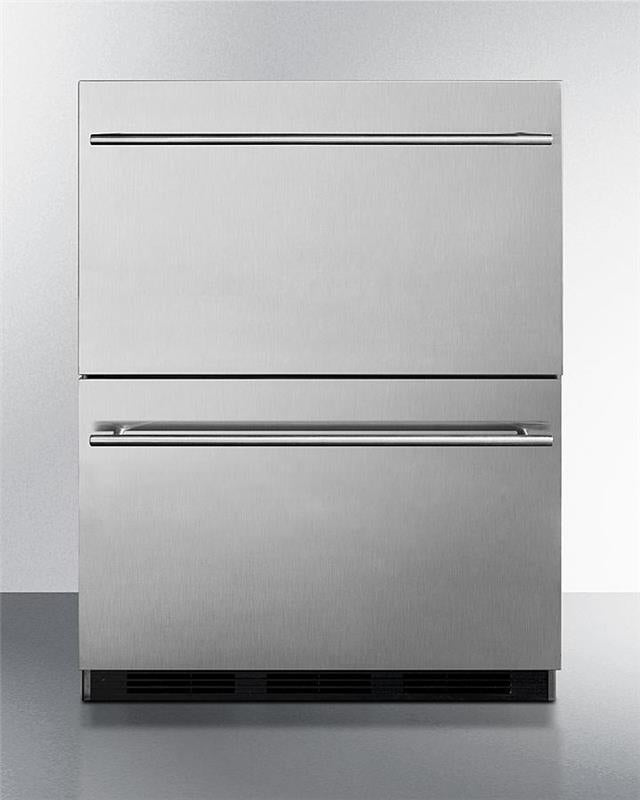

SUMMIT 24" Wide 2-Drawer All-Refrigerator, ADA Compliant - Other (SP6DBS2D7ADA)

SKU: SP6DBS2D7ADA

UPC: 761101069517

$3,15500 $3,66500

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • ✔ Commercially approved
  • ✔ ADA Compliant
  • ✔ Built-in capable
  • ✔ Fully finished cabinet
  • ✔ Slim undercounter dimensions
  • ✔ Adjustable thermostat
  • ✔ Rapid chill compartment
  • ✔ Automatic defrost
  • ✔ Adjustable drawer divider
  • ✔ Complete stainless steel construction
  • ✔ Large top drawer
  • ✔ Customizable drawer fronts
  • ✔ 100% CFC free
  • ✔ CARB Compliant

Documents

▼
PDF Icon

brochure

View | Download

PDF, 727.54 KB

Product Features

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully finished cabinet
Allows the unit to be used freestanding
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Adjustable thermostat
Dial thermostat for easy temperature management
Rapid chill compartment
Special rear section is perfect for chilling wine and beer from room to drinking temperature in under an hour
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable drawer divider
Wire divider lets you separate items into four sections for easier organization
Complete stainless steel construction
Built with solid durability, inside and out
Large top drawer
Holds two liter bottles, gallon containers, and wine bottles in 12 1/2" height
Customizable drawer fronts
Order our conversion kit to install your own panels over the drawers
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Product Specifications

Overview

Height of Cabinet 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.88" (61 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 41.25" (105 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101069517

Refrigerator Features

Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4

Drawer Dimensions

Interior Height 1 9.5" (24 cm)
Interior Width 1 18.75" (48 cm)
Interior Depth 1 12.0" (30 cm)
Interior Height 2 12.63" (32 cm)
Interior Width 2 17.25" (44 cm)
Interior Depth 2 16.0" (41 cm)

Dimensions

Compressor Step Height 5.75" (15 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.0" (10 cm)

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & Weight

Width 23.63 in.
Height 32.25 in.
Length 23.88 in.
Weight 120 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width 28.63 in.
Shipping Height 37.25 in.
Shipping Length 28.88 in.
Shipping Weight 160 lbs.
Total of Shipping Weight 160 lbs.
Source Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement 10.53 ft
Dimensional Weight 130.92 lbs.
Total of Cubes 10.53 ft
Total of Dimensional Weight 130.92 lbs.

Certifications

California Prop 65
