KitchenAid 1.4 Cu. Ft. Panel-Ready Built-In Trash Compactor - Panel Ready (KTTS505EPA)
UPC: 883049355207
KitchenAid 1.4 Cu. Ft. Panel-Ready Built-In Trash Compactor - Panel Ready (KTTS505EPA) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
KitchenAid® Major Appliance Package Rebate - Up to $3,000
BUY SELECT KITCHENAID MAJOR APPLIANCES: Get up to $2000 PLUS RECEIVE AN ADDITIONAL BONUS UP TO $1000
Ends: 2026-03-31
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ 1/3 HP Motor
- ✔ Odor Management System
- ✔ Panel-Ready Design
- ✔ Solid Pack™ Control with 5:1 Compaction Ratio
- ✔ Whisper Quiet® Plus
KitchenAid 1.4 Cu. Ft. Panel-Ready Built-In Trash Compactor - Pane...
KitchenAid 1.4 Cu. Ft. Panel-Ready Built-In Trash Compactor - Panel Ready (KTTS505EPA) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
KitchenAid Panel-Ready Trash Compactor with 1.4 Cu. Ft. Capacity and 1/3 HP Motor
Product Features
Product Specifications
Controls
| Control Type | Touch Pad |
| Air Filter Fan On/Off | Yes |
Details
| Compaction Ratio | 5 to 1 |
| Construction Type | All Welded |
| Front Levelers Rear Rollers | Yes |
| Side Release Bin | Yes |
| Solid Pack | Yes |
| Tilt-Away Trash Basket | Yes |
| Automatic Anti-Jam | Yes |
| Bag Retainer Buttons | Yes |
| Compactor Type | Built-In |
| Odor Management System | Fan with Charcoal Filter |
| Solid Pack On/Off | Yes |
| Sound Package | Yes |
| Tilt Switch | Yes |
| Toe Bar Drawer Opener | Yes |
Certifications
| UL | Yes |
| prop65 | Standard |

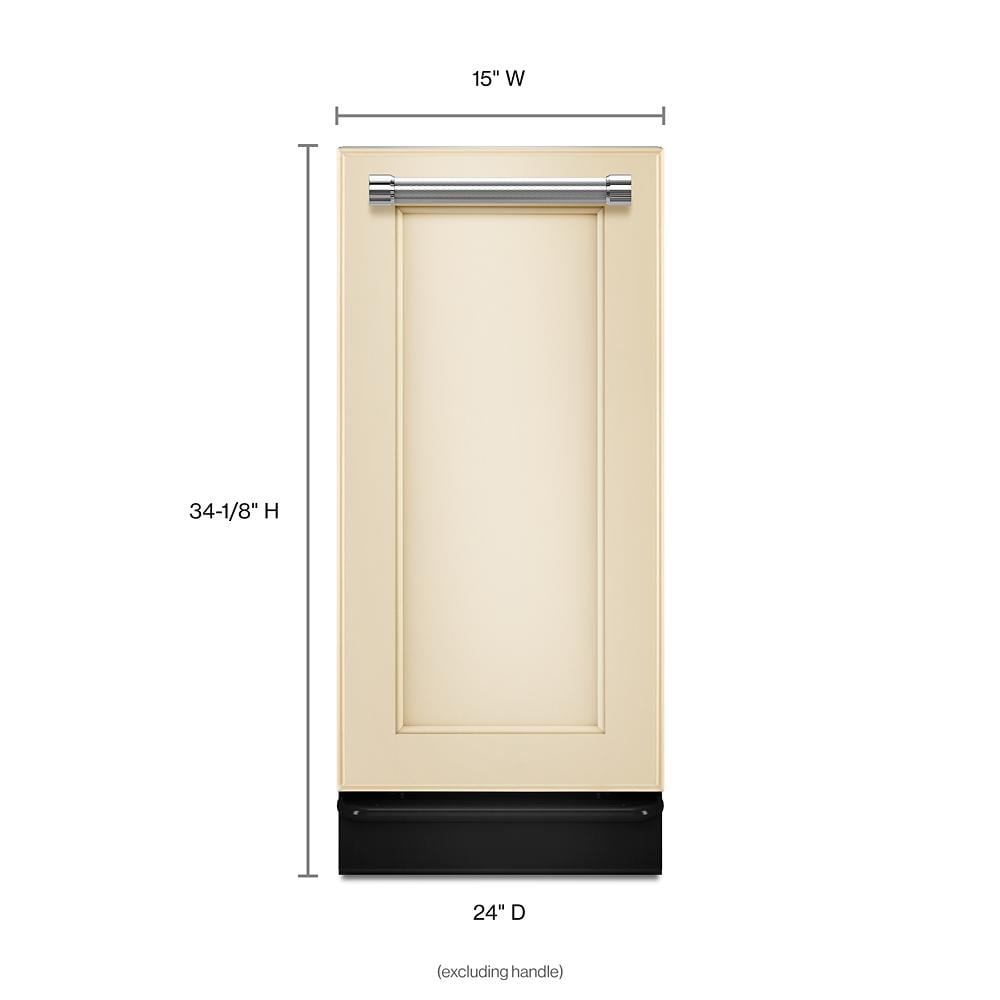

Dimensions & Weight
| Width | 15 in. |
| Height | 34.13 in. |
| Length | 24 in. |
| Weight | 132 lbs. |
| Carton Depth | 27 1/4 |
| Carton Height | 36 1/4 |
| Carton Width | 16 3/4 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 34 1/4 |
| Cutout Width (in) | 15 1/4 |
| Depth With Door Open 90 Degree | 47 |
| Gross Weight | 132 |
| Maximum Height | 34 1/2 |
| Net Weight | 0.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 34.2500 |
| Cutout Width(IN,inches) | 15.2500 |
| Depth With Door Open 90 Degree(IN,inches) | 47.0000 |
| Maximum Height(IN,inches) | 34.5000 |
| Carton Depth(IN,inches) | 27.2500 |
| Carton Height(IN,inches) | 36.2500 |
| Carton Width(IN,inches) | 16.7500 |
| Cutout Height Min(IN,inches) | 34.2500 |
| Gross Weight(LB,pounds) | 132 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 20 in. |
| Shipping Height | 39.13 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 172 lbs. |
| Total of Shipping Weight | 172 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.11 ft |
| Dimensional Weight | 88.39 lbs. |
| Total of Cubes | 7.11 ft |
| Total of Dimensional Weight | 88.39 lbs. |
Dimensions
| Cutout Depth | 24 |
| Cutout Height | 34.25 |
| Cutout Width | 15.25 |
| Depth With Door Open 90 Degree | 47 |
| carton depth | 27.25 |
| carton height | 36.25 |
| carton width | 16.75 |
| net weight | 130 |
| gross weight | 140 |
Exterior Details
| Door Style | Flat |
| Removable Key Lock | Hidden Removable - Knob |
Performance Details
| Motor Horsepower | 1/3 HP |
Certifications
California Prop 65
