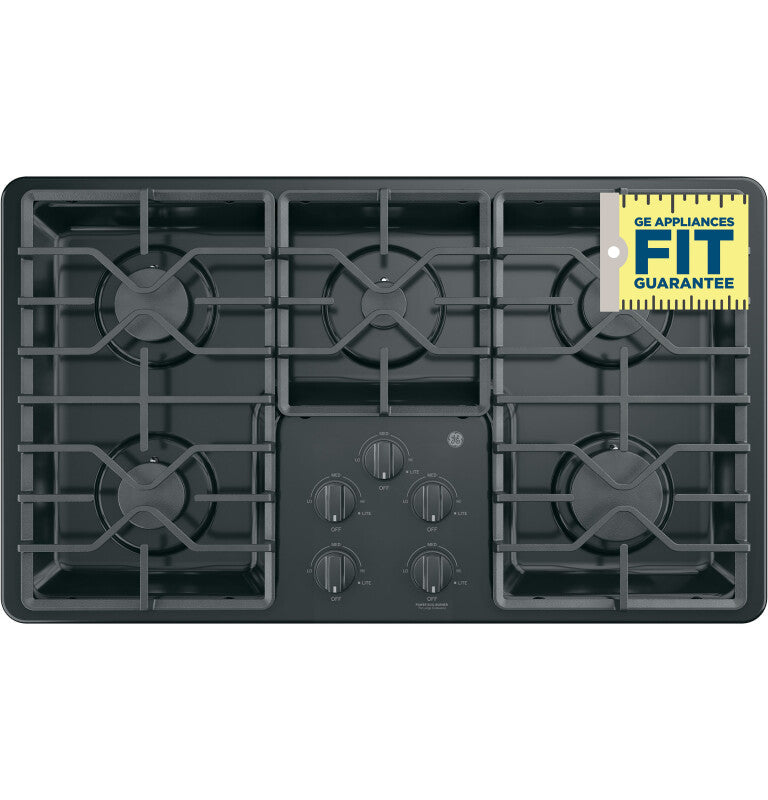

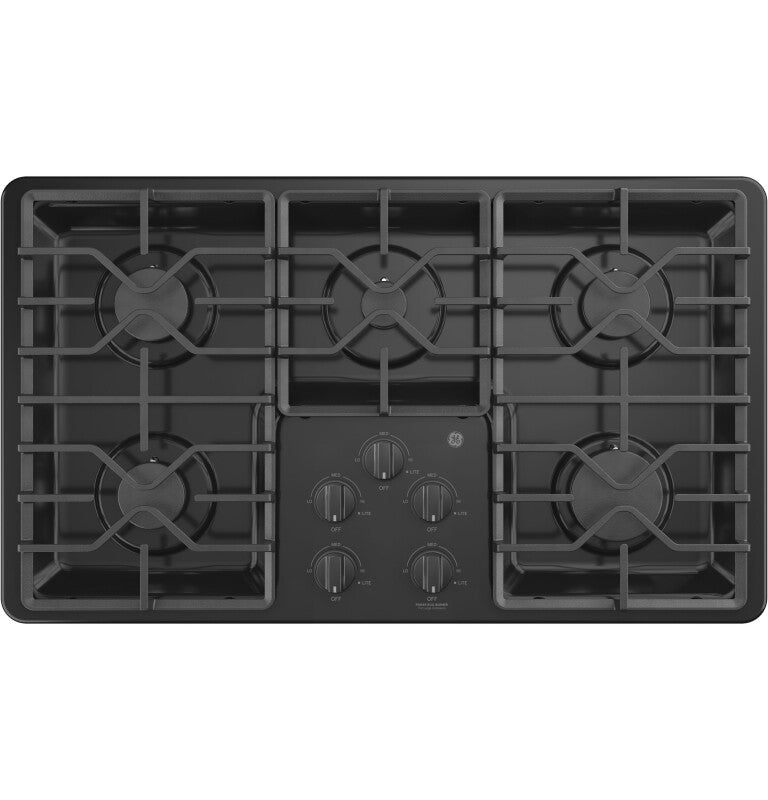

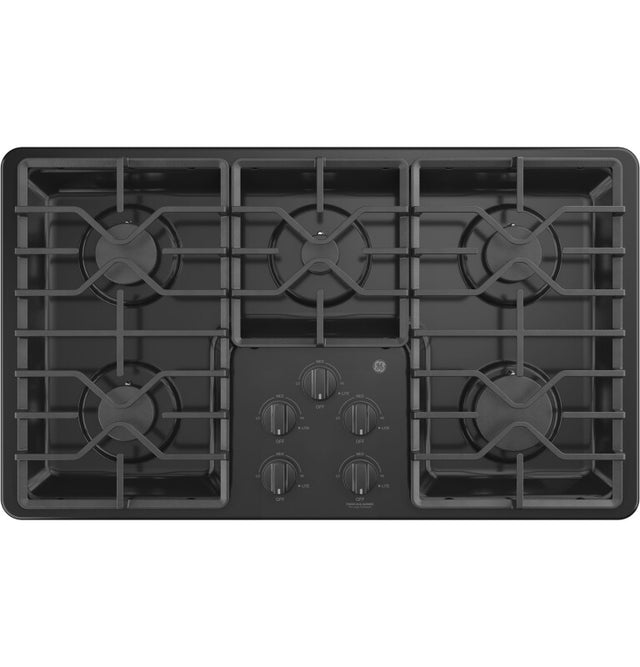

GE APPLIANCES GE(R) 36" Built-In Gas Cooktop with Dishwasher-Safe Grates - (JGP3036DLBB)

Product Specifications

Color Appearance	Black
Control Knobs	Dishwasher Safe<br/> Gloss Black
Cooktop Burner Grate Color	Matte Black
Burner - Center	5,000 BTU
Burner - Left Front	9,500 BTU
Burner - Left Rear	12,000 BTU
Burner - Right Front	15,000 BTU Power Boil
Burner - Right Rear	9,500 BTU

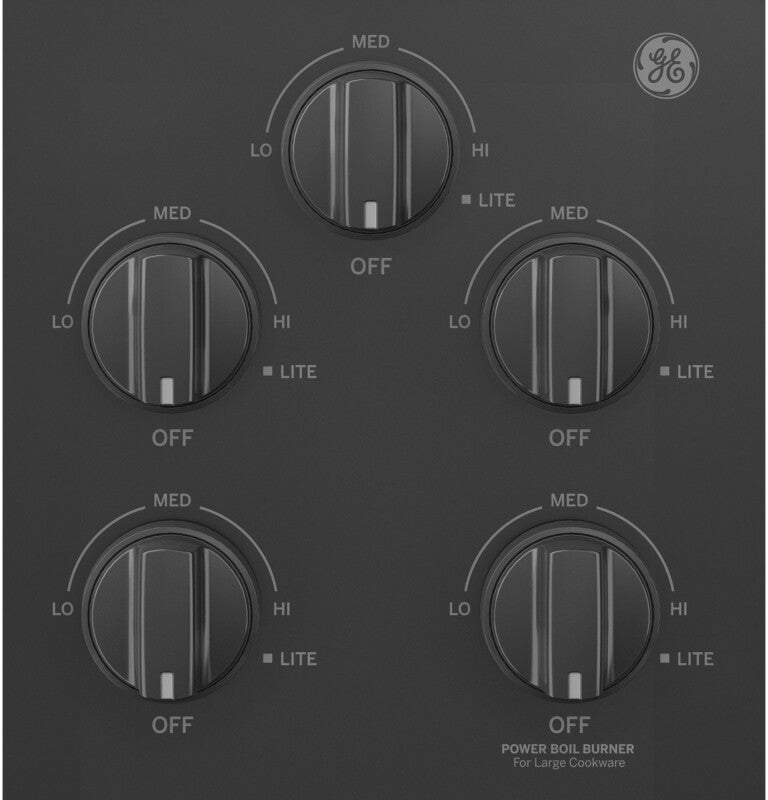

Control Location	Front Center
Control Type	Knob
Cooktop Burner Grate Features	Continuous Grates<br/> Dishwasher Safe
Cooktop Burner Grate Material	Standard Cast
Cooktop Burner Type	5 Sealed

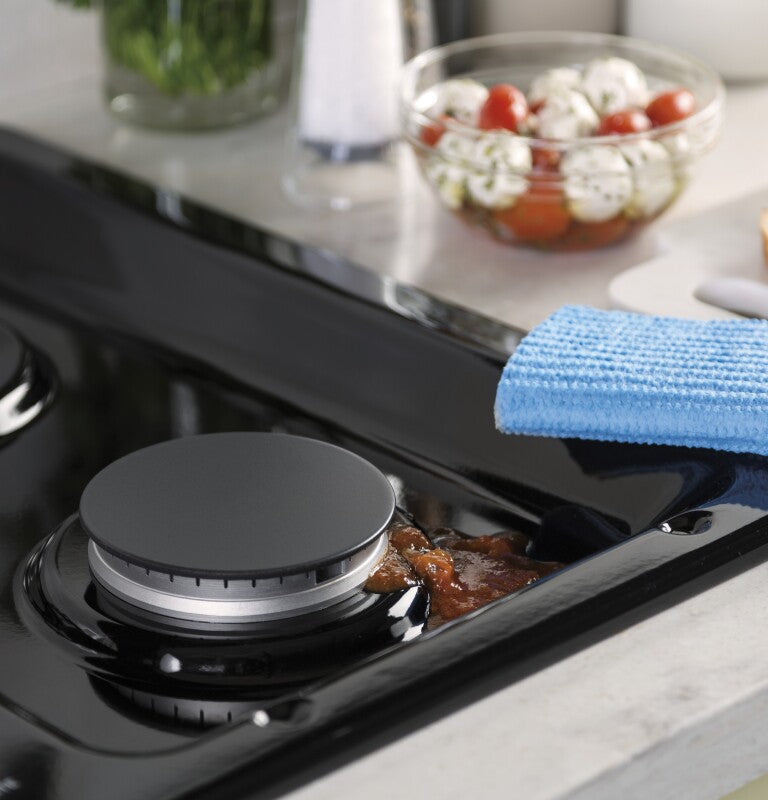

Cooktop Surface	Black<br/> Deep Porcelain-Enamel
Cooktop Type	Continuous Grates
Fuel Type	Natural Gas
Ignition System	Electronic
Power Boil Burner	Yes
Product Type	Cooktop
Valves (Degree of Turn)	270
App Filter - Cabinet Width	Cooking 36 in.
App Filter - Control Type	Rotary knobs
App Filter - Cooktop Type	Continuous Grates
App Filter - Fuel Type	Gas
Burner BTU Ratings (000's/BTU) - LP Gas	(1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas	(1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
Electrical Requirements	120V
Volts/Hertz/Amps	120V; 60Hz; 5A
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Approximate Shipping Weight	44

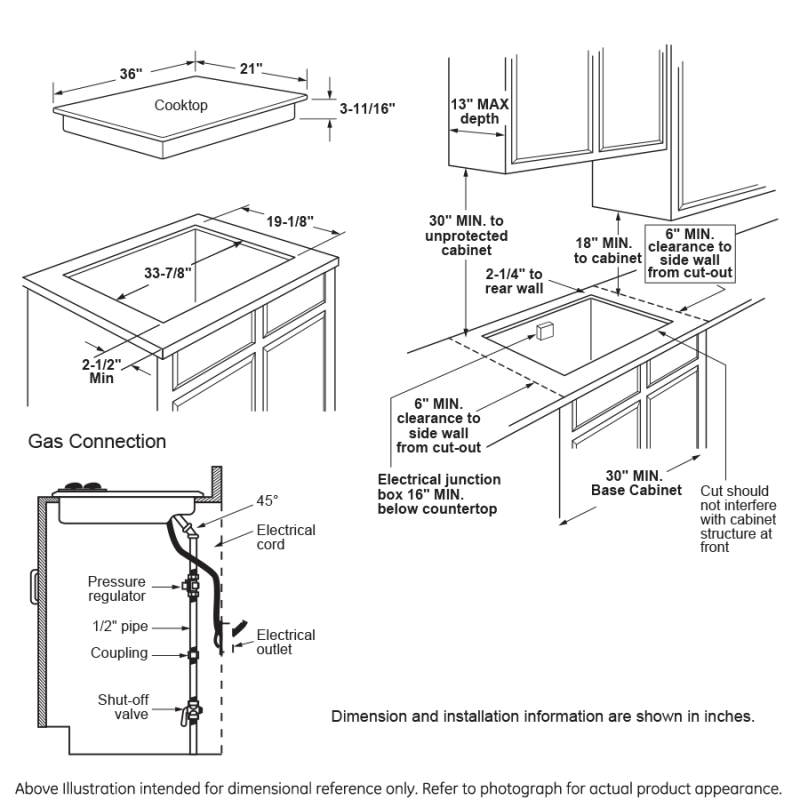

Cabinet Width	36
Cutout Depth (in)	19 1/8 in
Cutout Width (in)	33.875
Net Weight	38
Overall Depth	21
Overall Height	4.75
Overall Width	36
